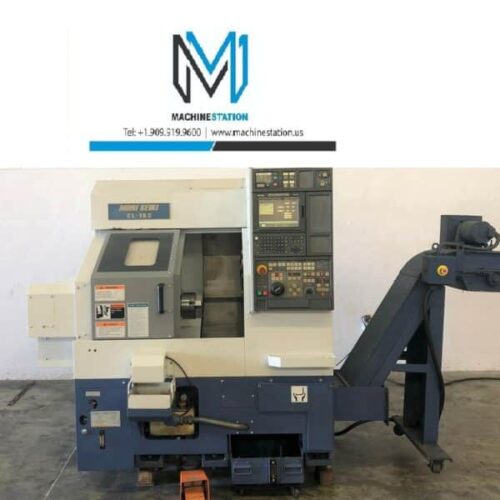

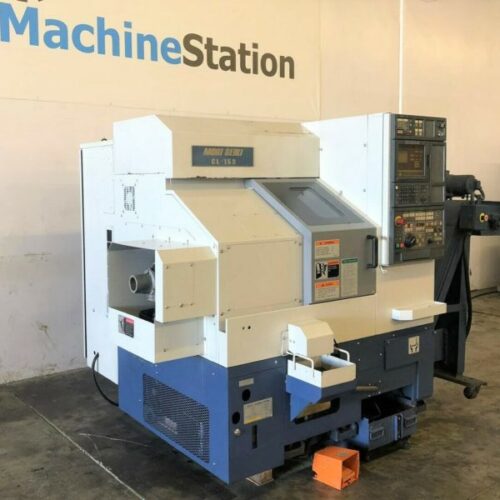

MORI SEIKI CL-153 CNC TURNING CENTER
Make: Mori Seiki
Model No.: CL-153
Serial No.: 342
Condition: Very Good
All specifications are approximations, and are subject to verification.
“This machine is in very Good running condition. It is equipped with Chuck, Tool Presetter & chip conveyor. On Our Floor fully powered / tested & is in Great working condition.”
MORI SEIKI CL-153 Equipped With:

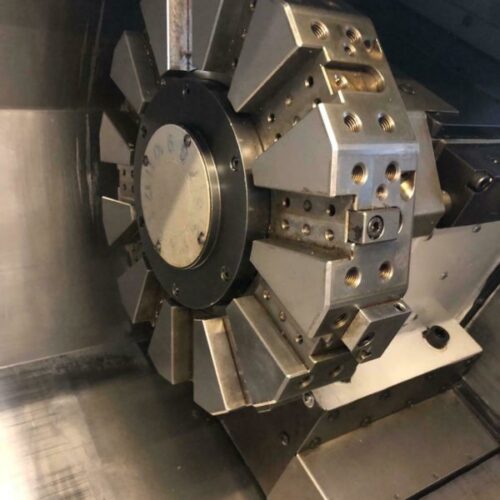

- 12-Station Turret with Tool Holders

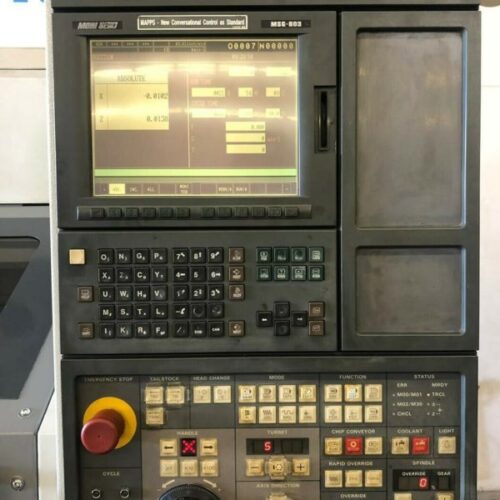

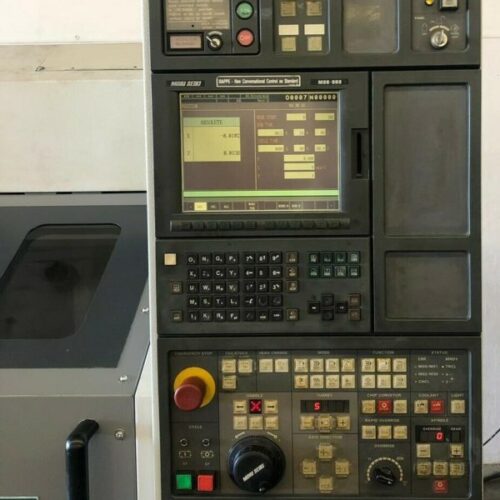

- MSC-518 (Fanuc ) CNC Control

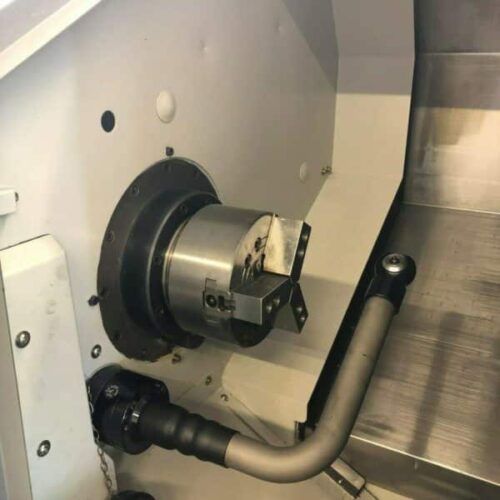

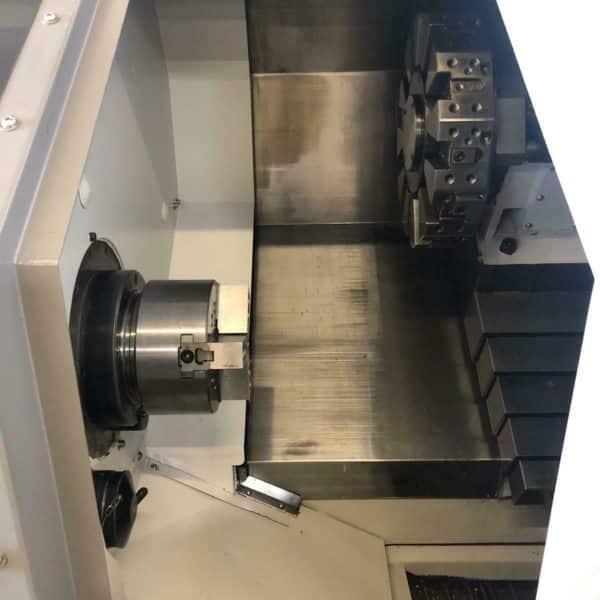

- Kitagawa B-206 Hydraulic Chuck (8″ Capable)
- 2 Step gear spindle for powerful torque
- Hydraulic Tailstock with Power Quill

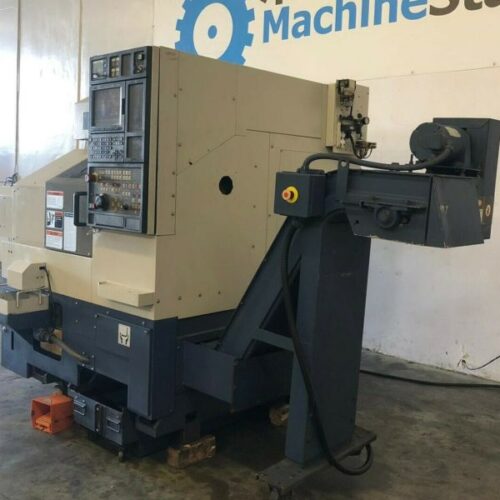

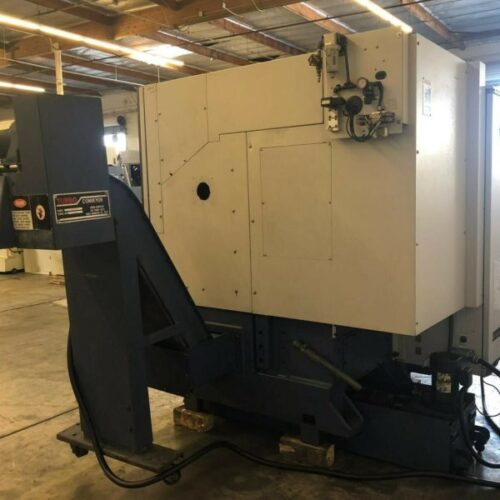

- Chip Pan and Chip Conveyor
- Coolant System.
- Automatic Lubrication system
- Work Light
MORI SEIKI CL-153 Specifications:
Max Turning Diameter: 16.9″
Max Turning Length: 20.9″
Max Bar Capacity: 2.2″
Swing Over Slide: 17.9″
Swing Over Bed: 24.4″
Distance Between Centers: 24.6″
X Axis Travel: 9.1″
Z Axis Travel: 20.5″
Rapid Traverse X Axis: 790 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-6
Spindle Bore: 2.65″
Spindle Speed: 5000 RPM
Spindle Motor: 20 HP
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second
Tailstock Body Travel: 19.3″
Tailstock Quill Dia.: 4.33″
Tailstock Quill Stroke: 3.93″
Tailstock Taper: MT-4
Power Source: AC 220 V, Three Phase, 60 Hz
Overall Dimensions: 90″ x 70″ x 80″ High
Overall Dimensions: 120″ x 70″ x 80″ High with Chip Conveyor
Weight : 9500 lbs Approx.

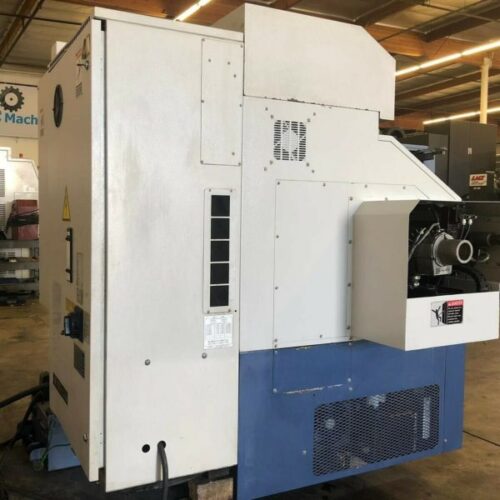

MORI SEIKI CL-153 Comes as shown in pictures.
