*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mori Seiki |
| Model: | DL-20 |
| Year: | NA |
| Equipped With: |
|---|

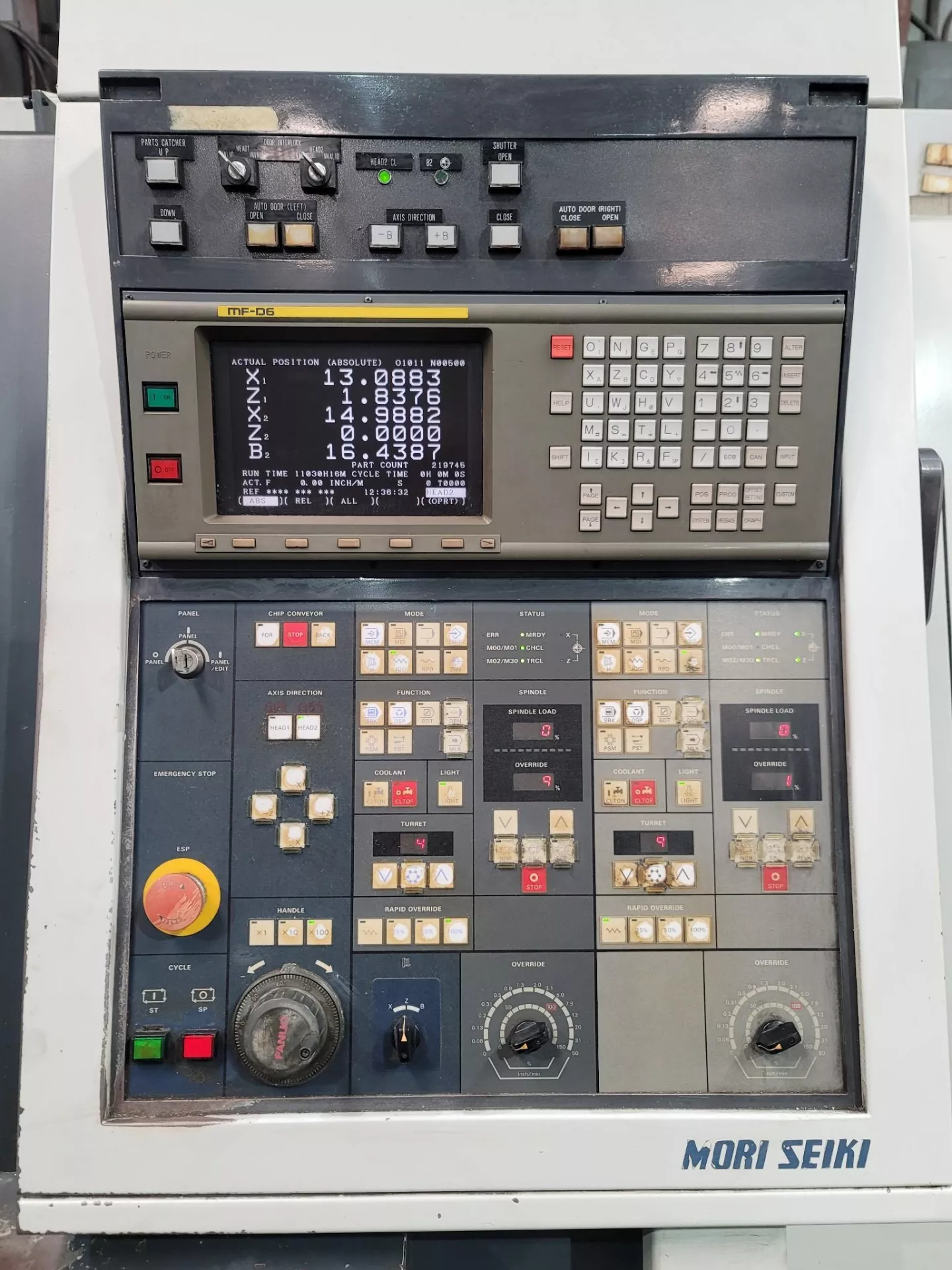

| Mori Seiki MF-D6 CNC Control |

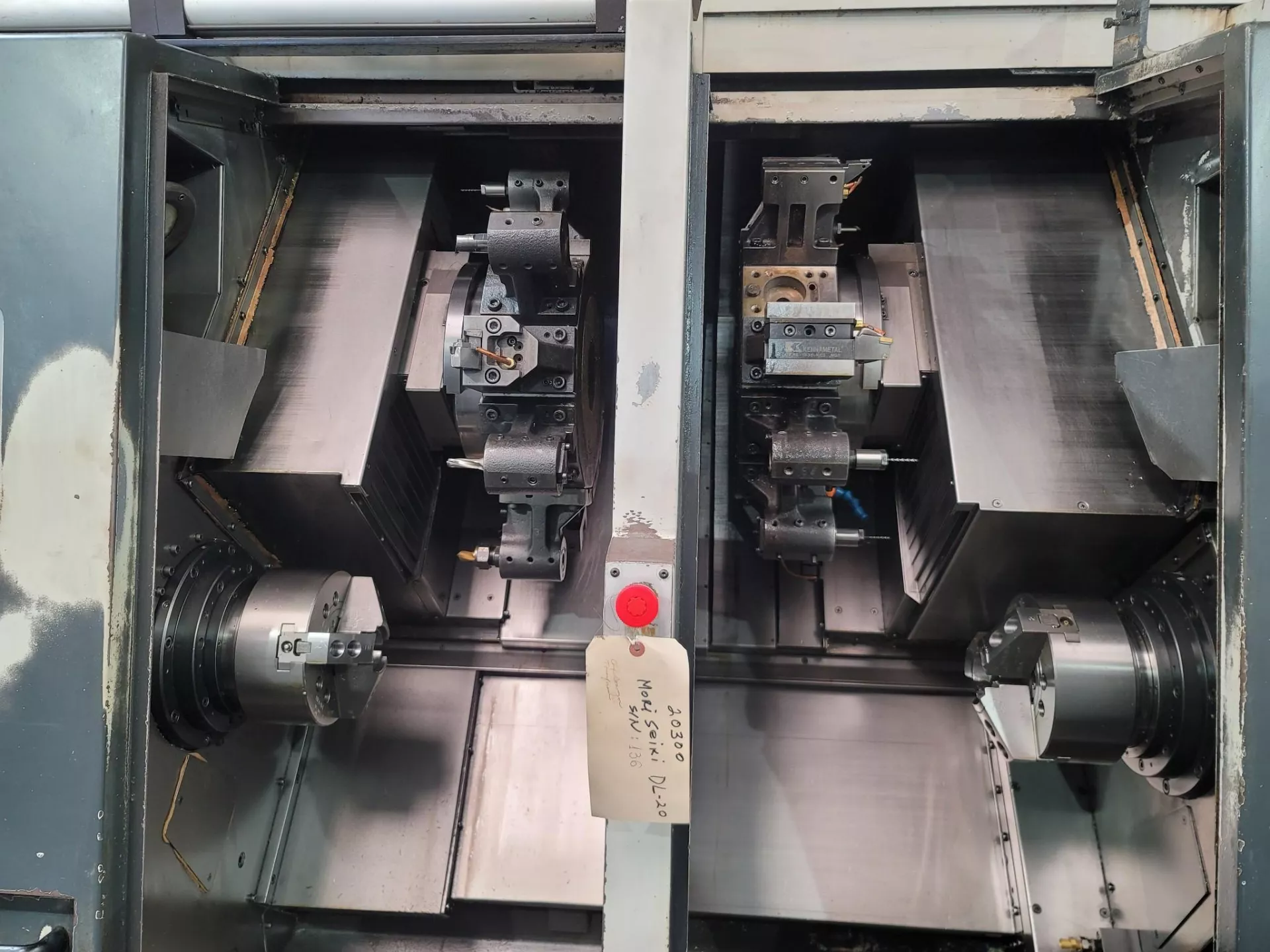

| Twin Opposed Spindles |
| Upper Turret – Head 1 |
| Upper Turret – Head 2 |
| Dual 8″ Hydraulic Chucks |
| Chip Conveyor |
| Parts Catcher |
| Automatic Lubrication System |
| Fully Enclosed Splash Guard |
| Coolant System |
| Hydraulic Unit |
| Capacity: |
|---|
| Max Swing: 20.08″ |
| Max Turning Diameter: 10.24″ |
| Max Turning Length: 20.08″ |
| Bar Capacity: 2.56″ |
| Chuck Size: 8″ |
| Travels: |
|---|
| X-Axis Travel (Each Turret): 7.09″ |
| Z-Axis Travel (Each Turret): 21.26″ |
| Rapid Traverse X-Axis: 944 IPM |
| Rapid Traverse Z-Axis: 1,181 IPM |
| Main Spindle (Head 1): |
|---|
| Chuck Size: 8″ |
| Spindle Nose: A2-6 |
| Bar Capacity: 2.56″ |
| Spindle Bore: 3.07″ |
| Max Spindle Speed: 4,000 RPM |
| Spindle Motor: 20 HP |
| Second Spindle (Head 2): |
|---|
| Chuck Size: 8″ |
| Spindle Nose: A2-6 |
| Bar Capacity: 2.56″ |
| Spindle Bore: 3.07″ |
| Max Spindle Speed: 4,000 RPM |
| Spindle Motor: 20 HP |
| Turrets: |
|---|
| Number of Turrets: 2 |
| Turret Type: Servo Indexing |
| Stations per Turret: 12 |

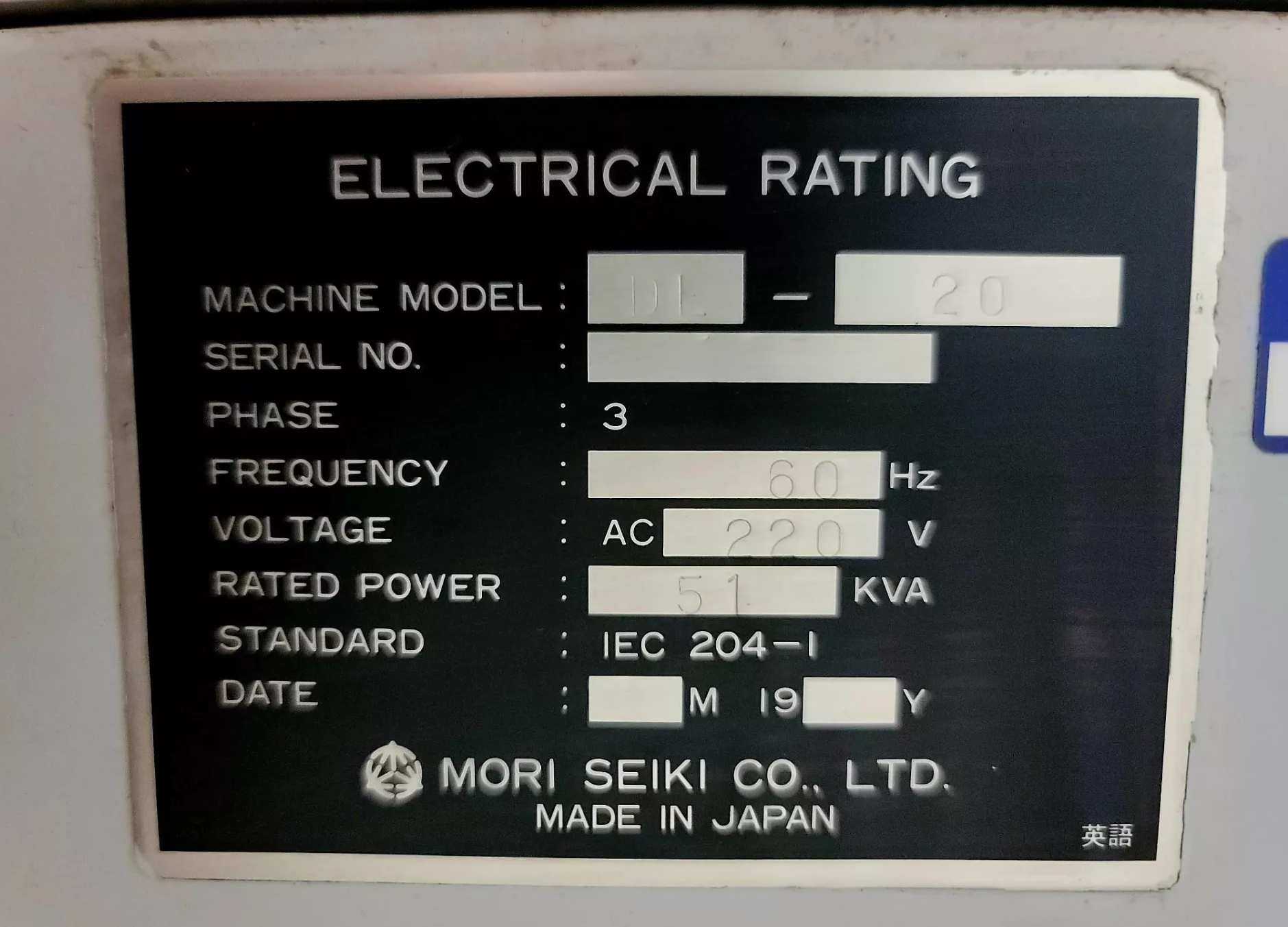

| Electrical: |
|---|
| Power Requirement: 220 VAC, 3-Phase, 60 Hz |
| Connected Load: 51 kVA |
| General: |
|---|
| Country of Manufacture: Japan |
| Head 1 Cutting Time: 16,647 hrs |
| Head 2 Cutting Time: 12,435 hrs |
| Machine Dimensions (Approx.): 145″ × 78″ × 84″ |
| Machine Weight (Approx.): 18,500 lbs |
