*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112832 |

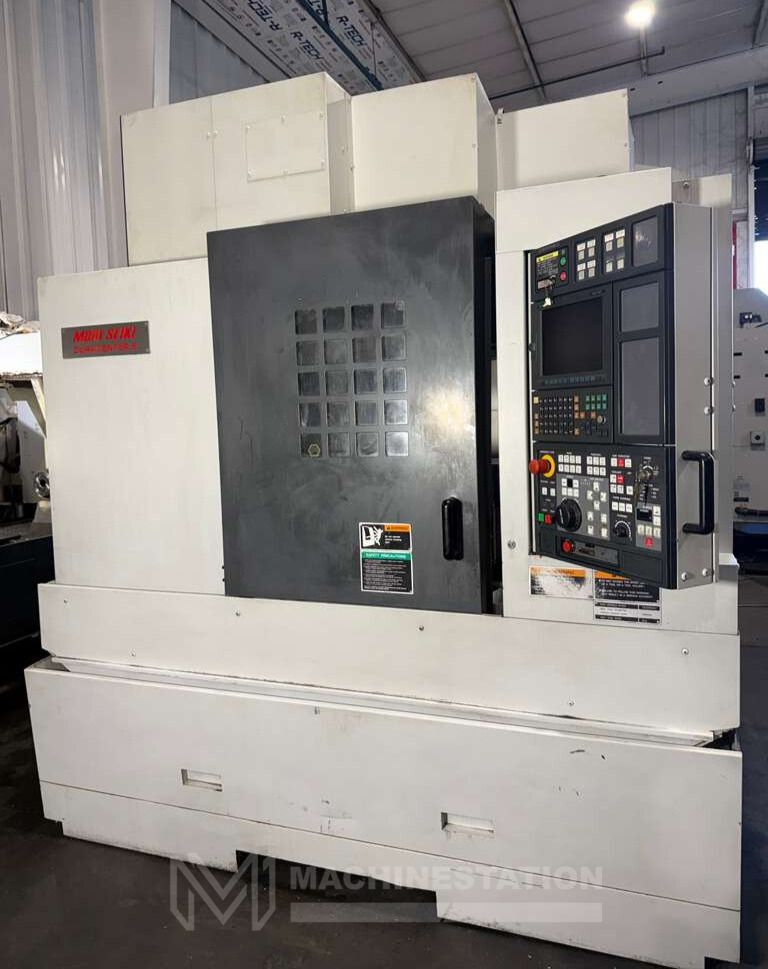

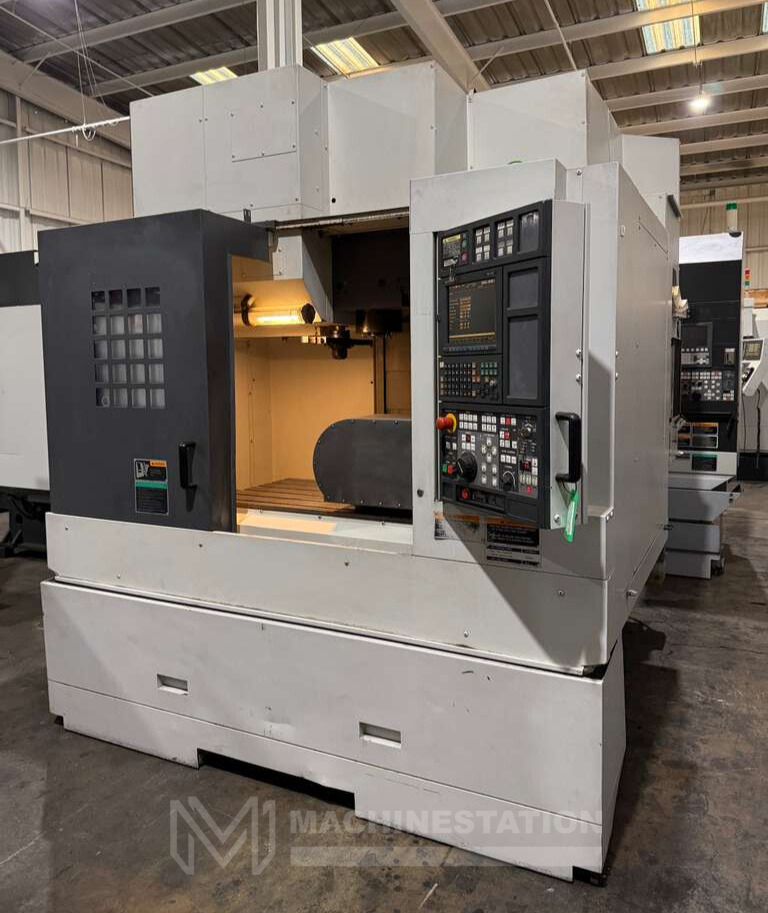

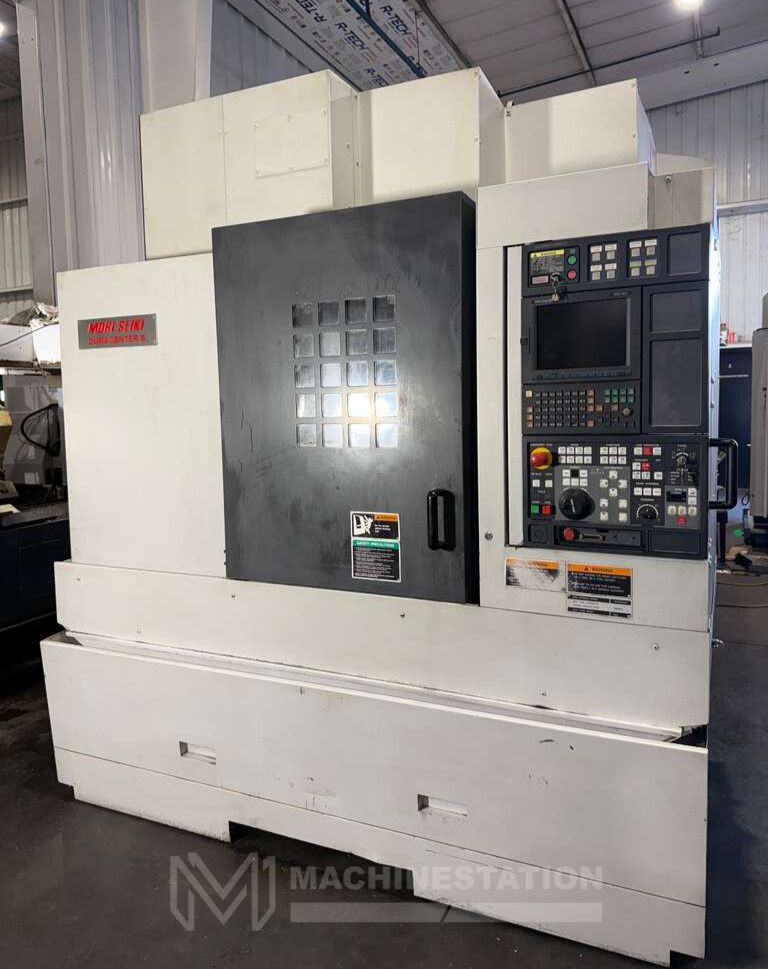

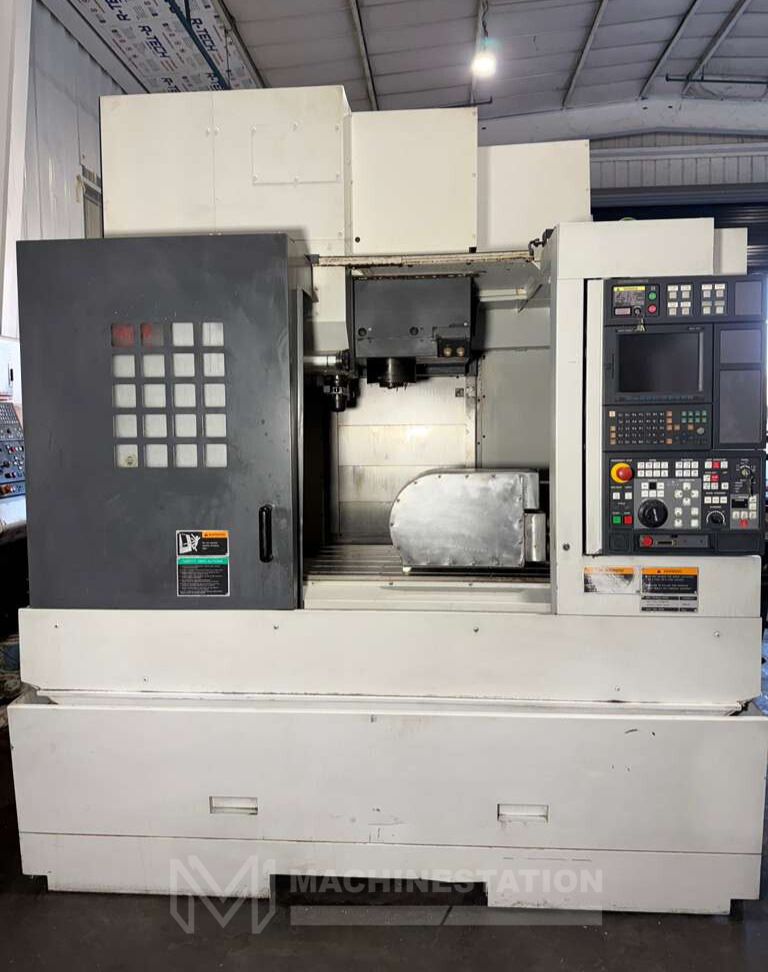

| Make: | Mori Seiki |
| Model: | DuraCenter 5 |
| Year: | 2005 |
| Features: |
|---|

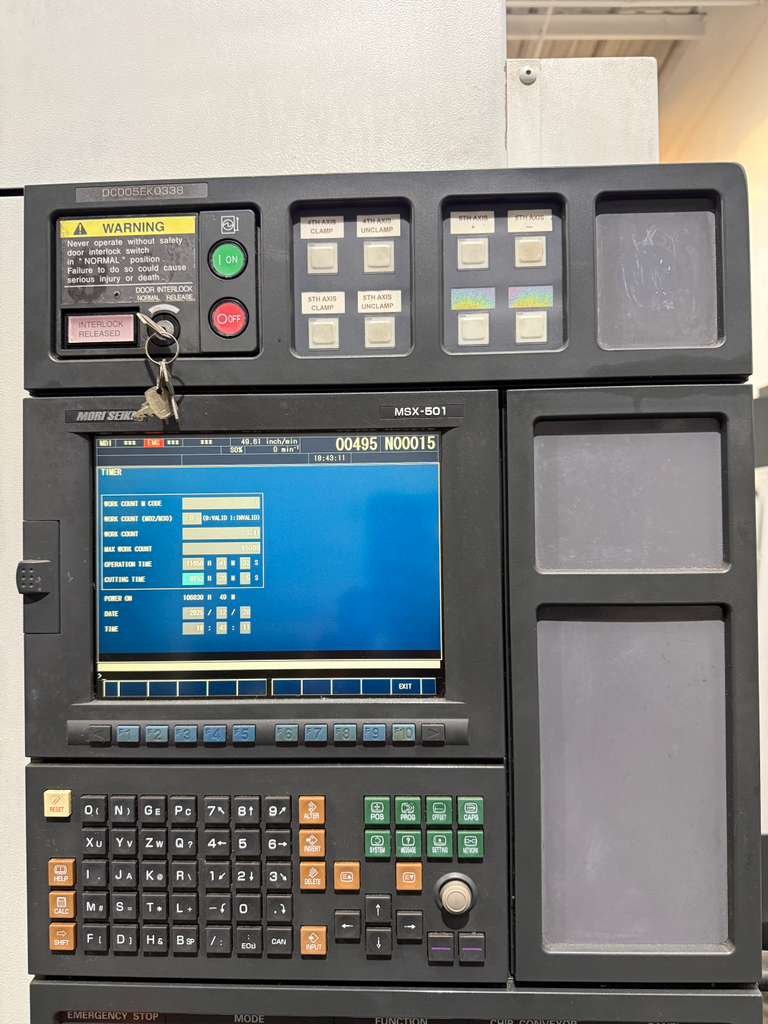

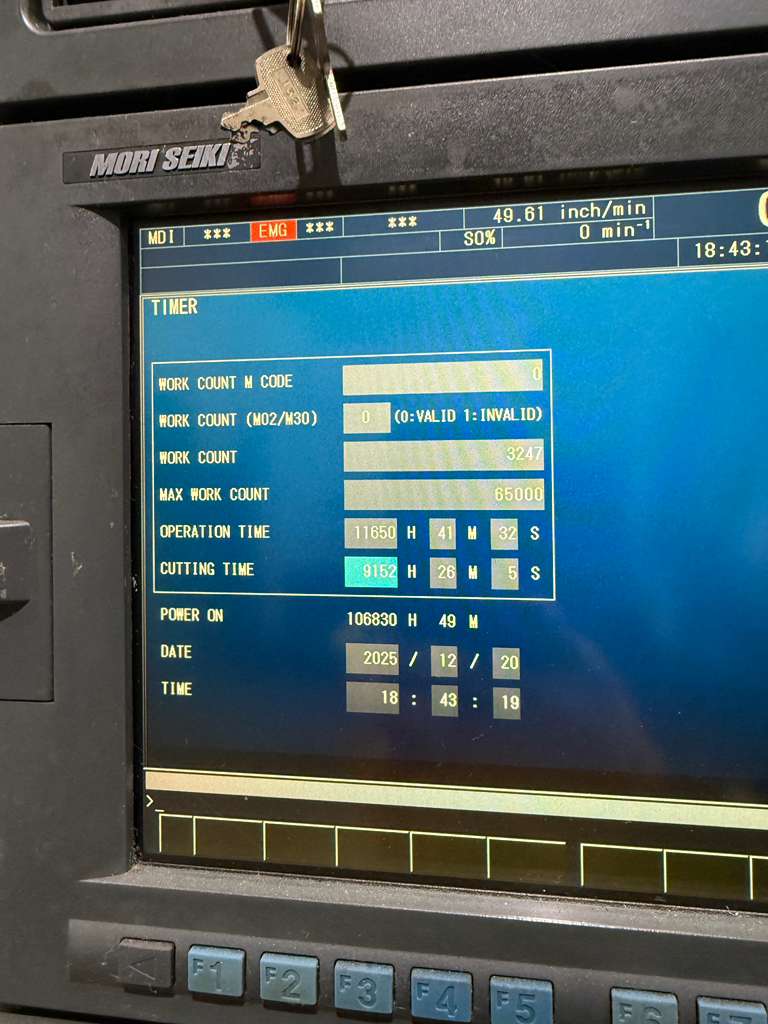

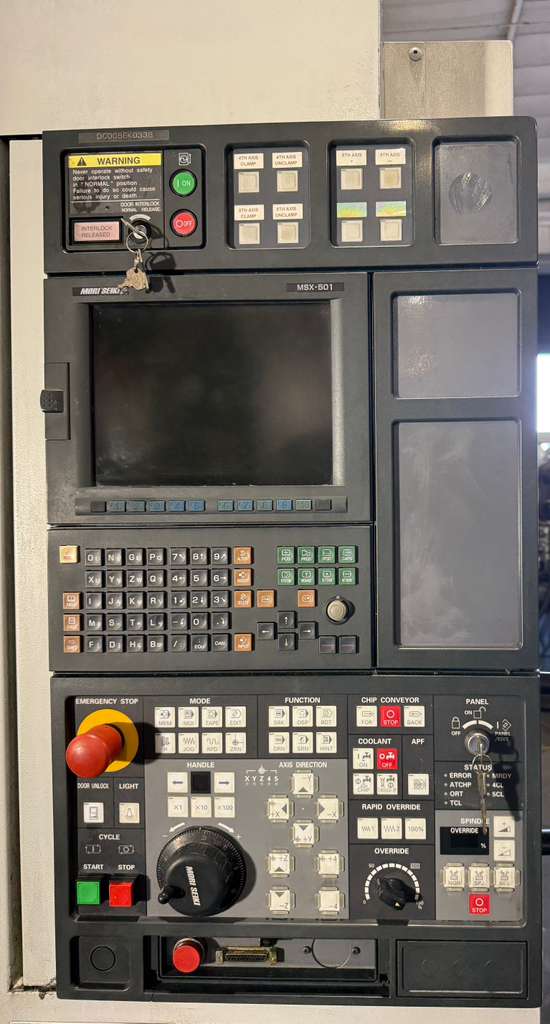

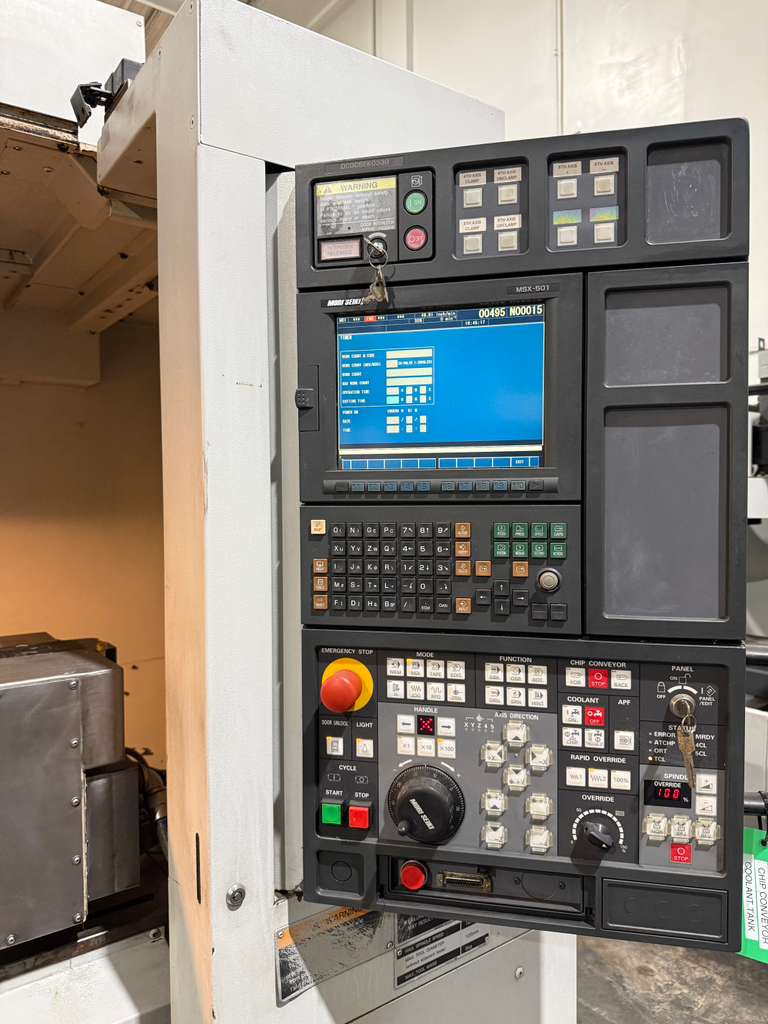

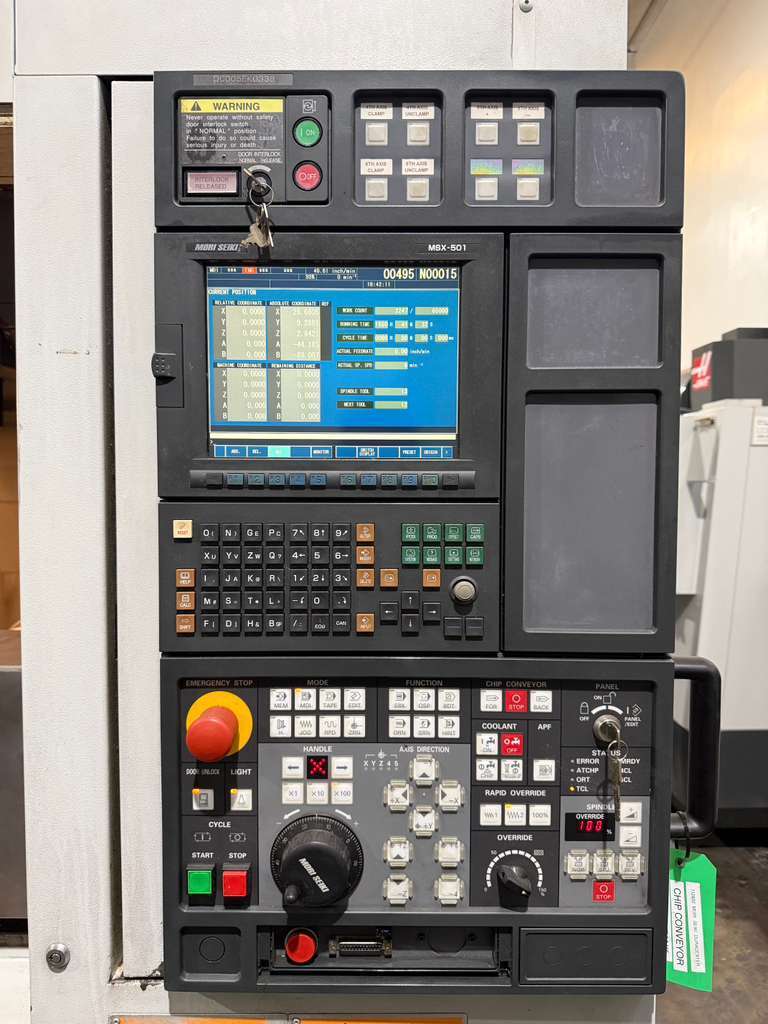

| Mori Seiki MSX-501 Series CNC Control |

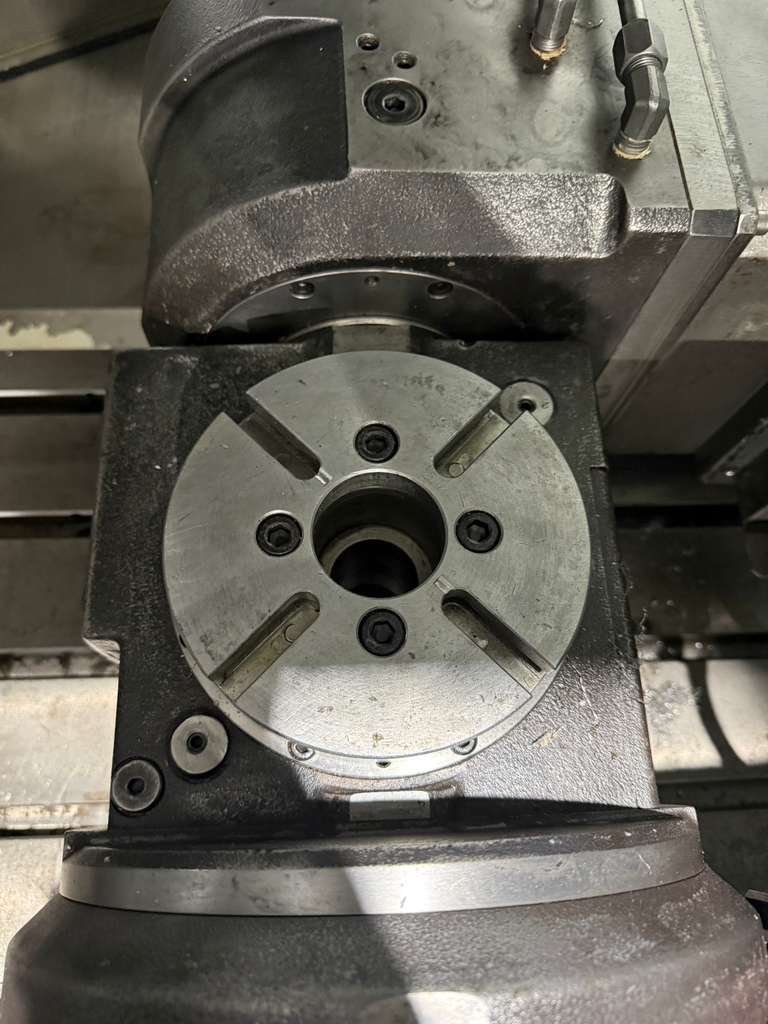

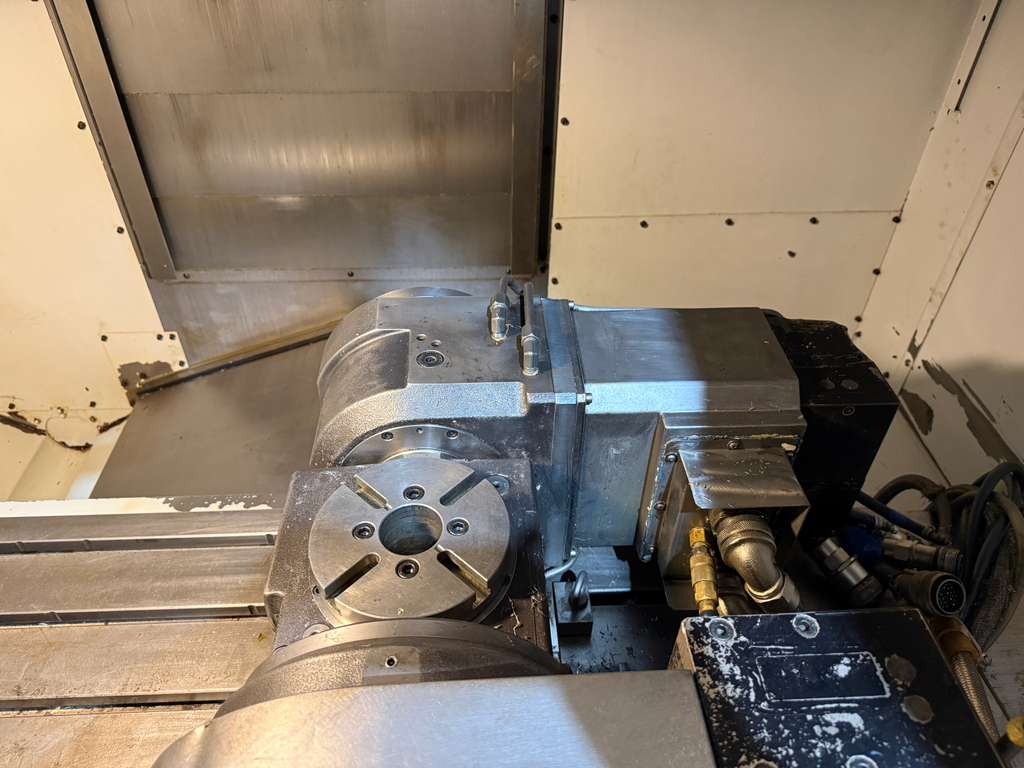

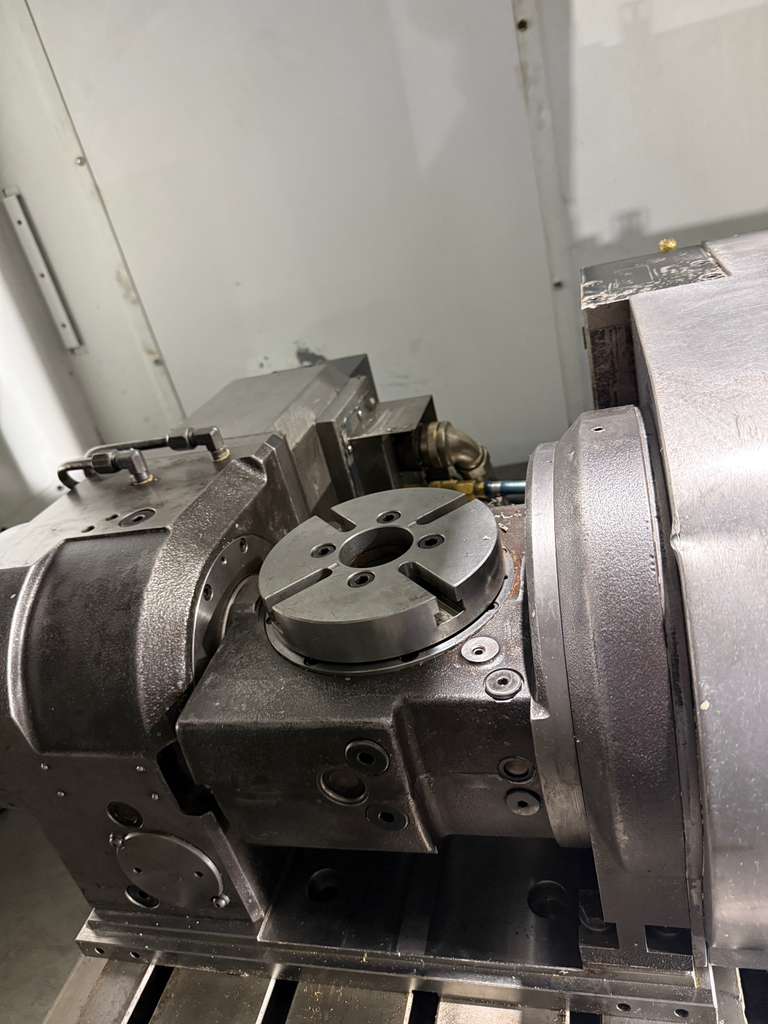

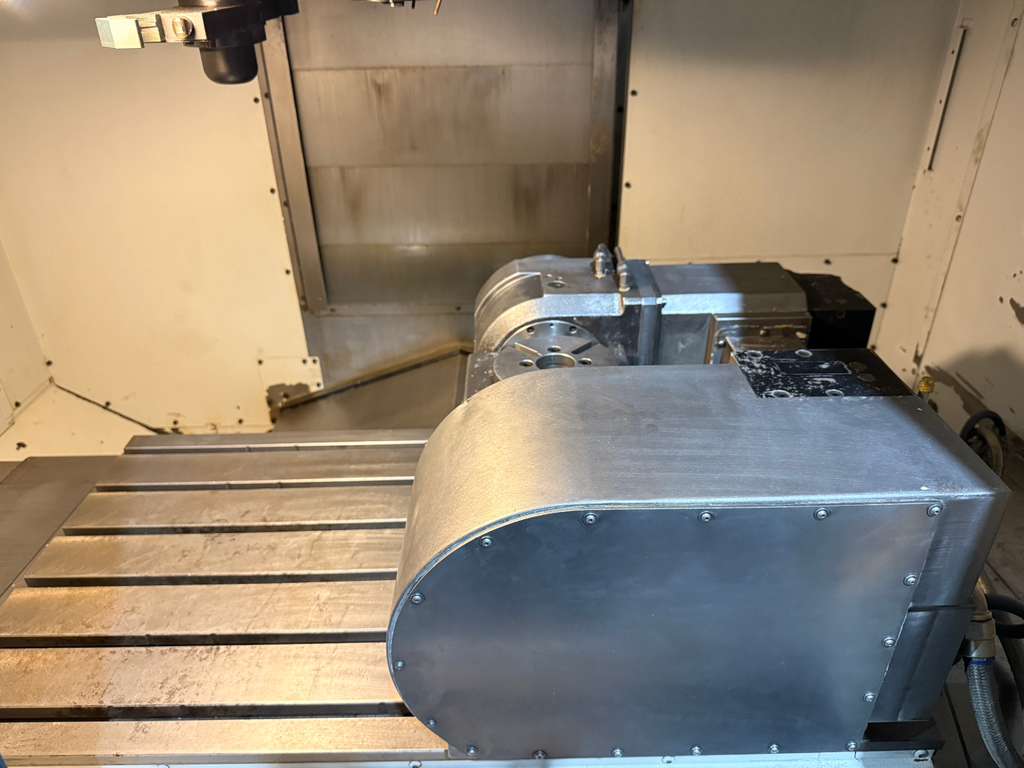

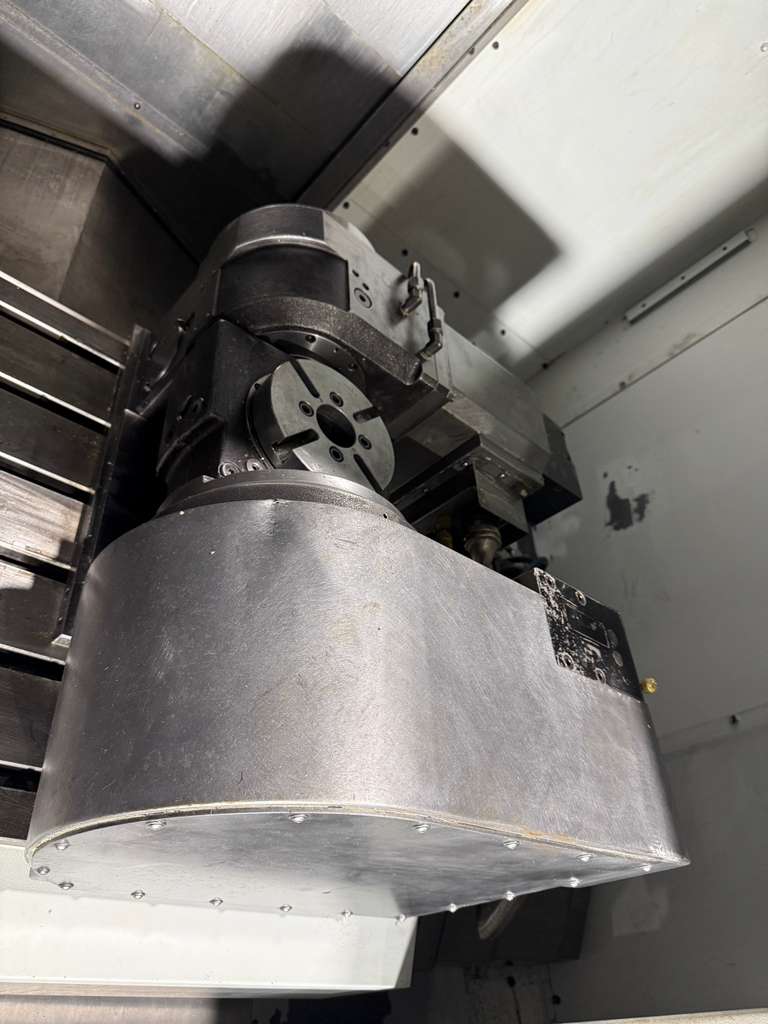

| 6″ Diameter 5th Axis Rotary Table |

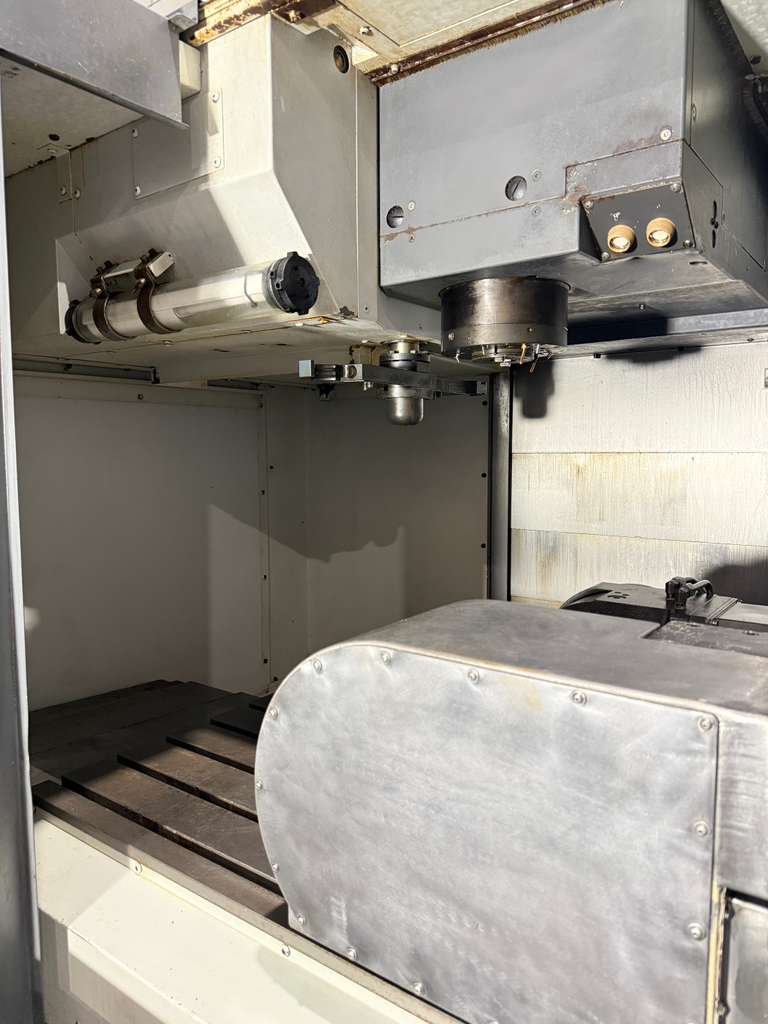

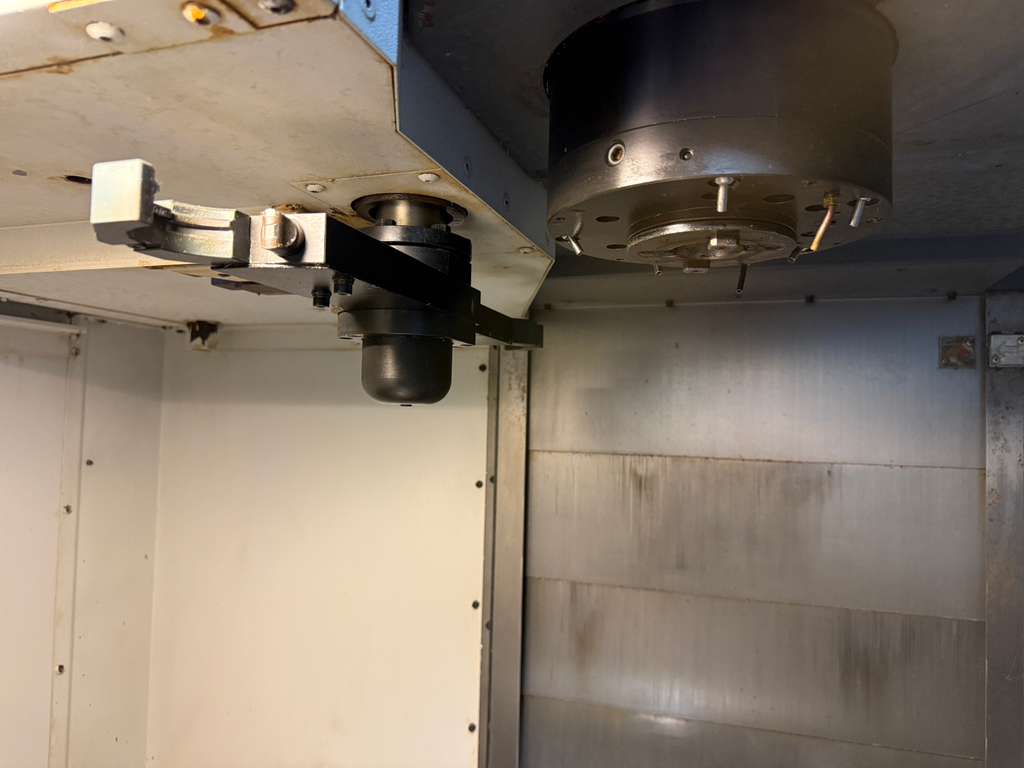

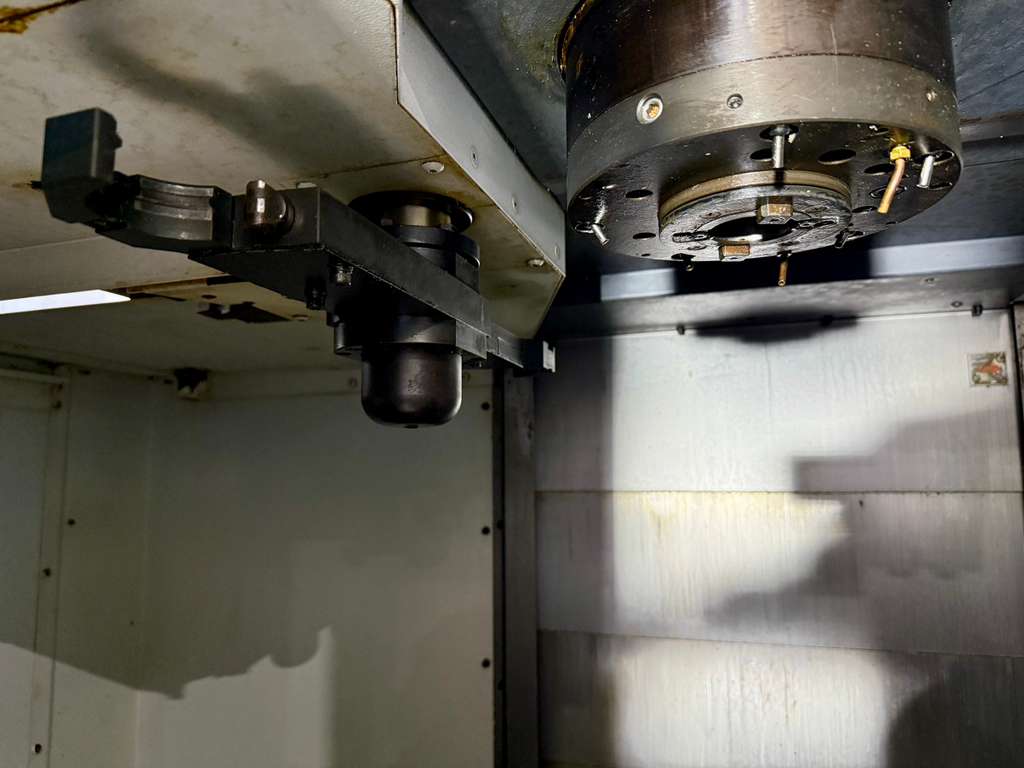

| CAT-40 Taper 12,000 RPM Spindle |

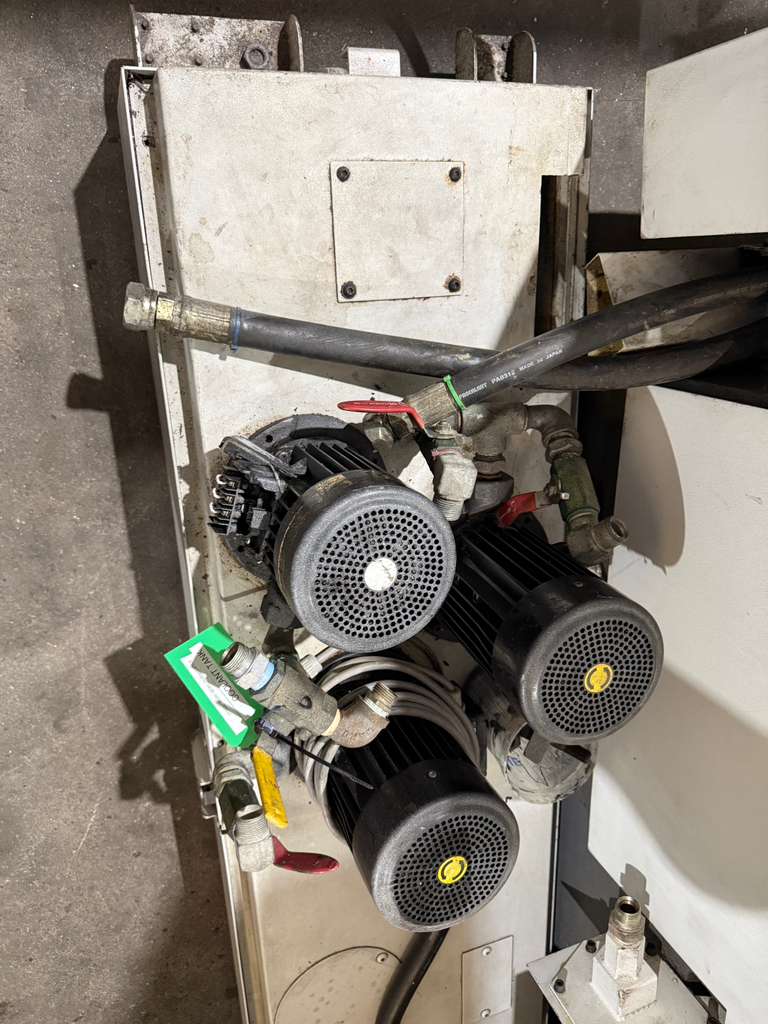

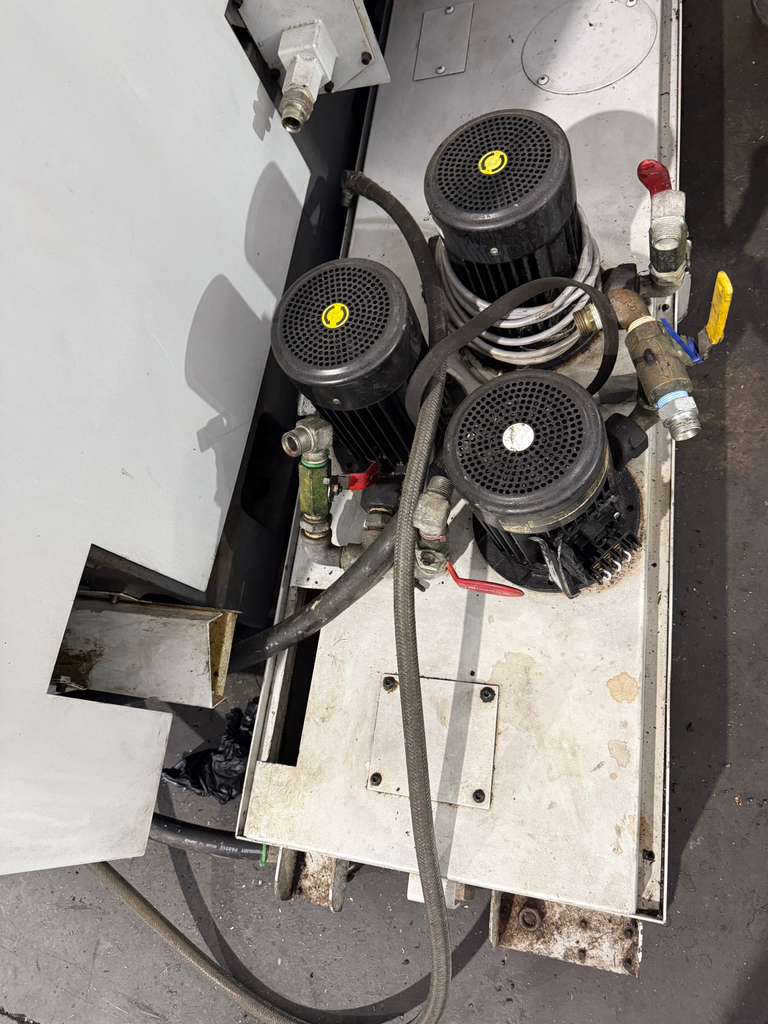

| Through Spindle Coolant |

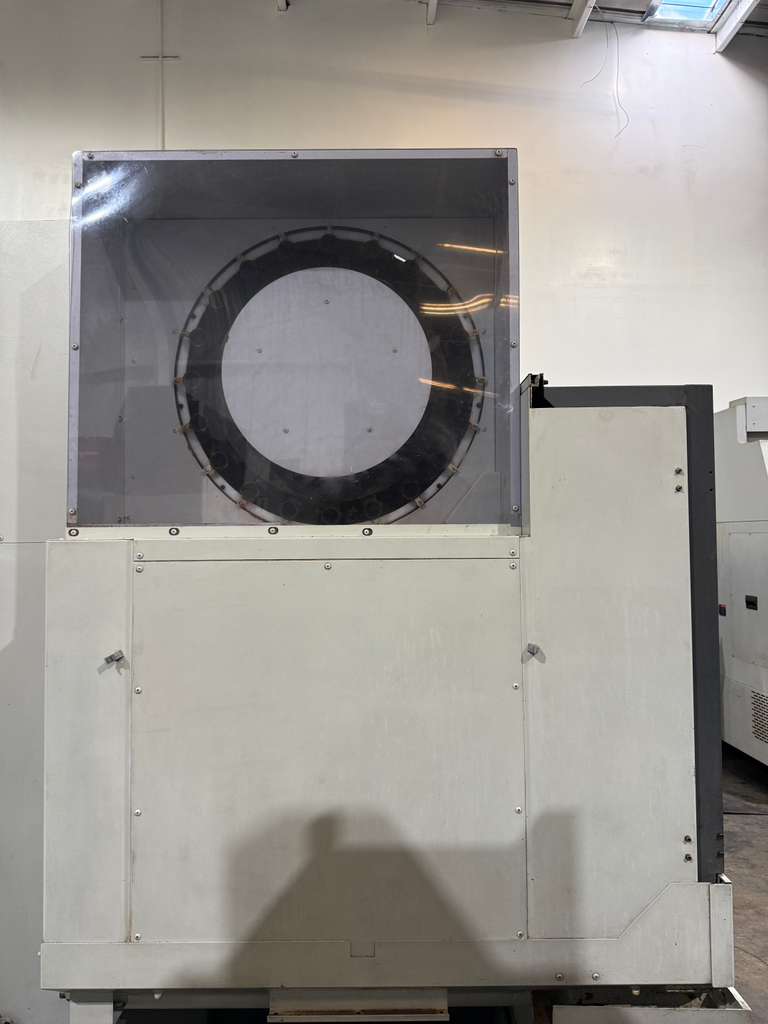

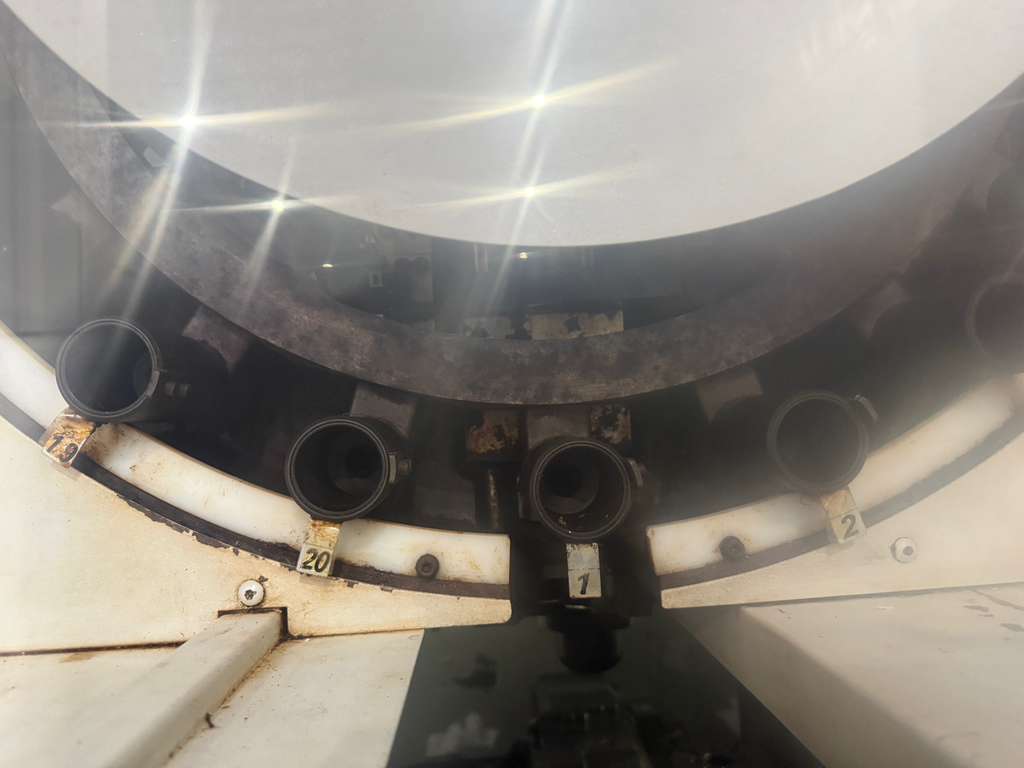

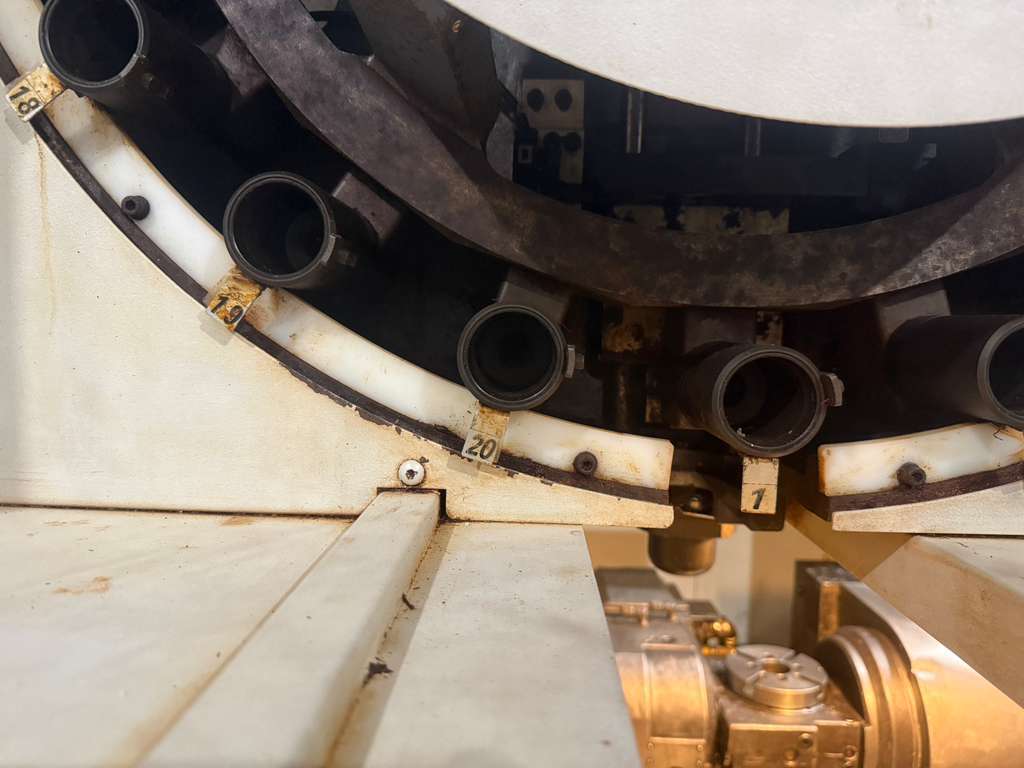

| 20 Station Side Mounted Tool Changer |
| PCMCIA Card Slot |
| Spindle Orientation |
| Rigid Tapping |
| Coolant tank |

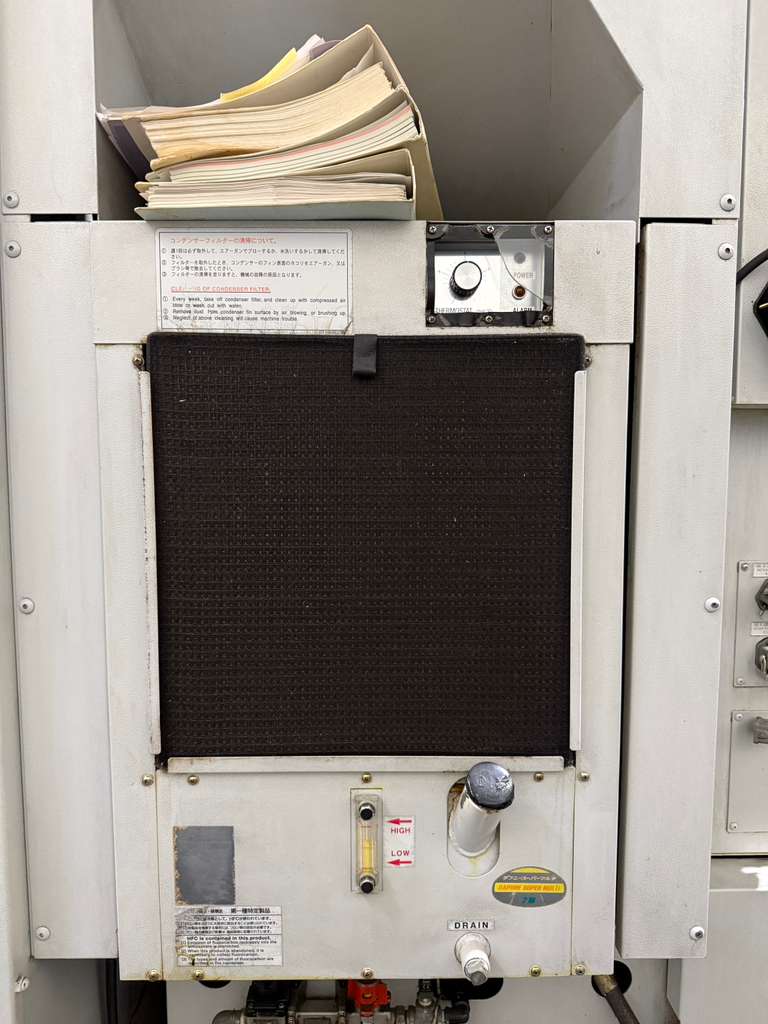

| Chiller Unit |

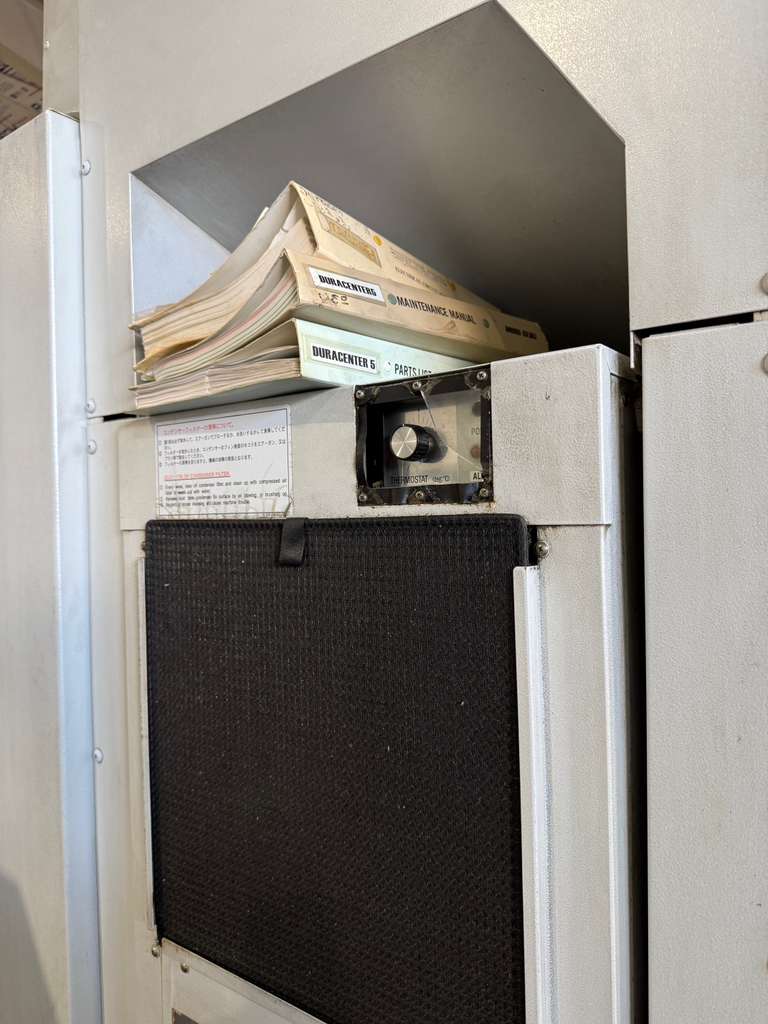

| Books & Manuals |
| Travels: |
|---|
| X-Axis: 31.5″ |
| Y-Axis: 20.1″ |
| Z-Axis: 20.1″ |
| Rapid Traverse Rates X, Y Axis: 1417″ Per Minute |
| Rapid Traverse Rates Z Axis: 787″ Per Minute |
| Cutting Feed Rates: ″ Per Minute |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0″ |
| Table: |
|---|
| Length: 43.3″ |
| Width: 23.6″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1760 lbs |
| Spindle: |
|---|
| Spindle: Taper Size: CAT-40 |

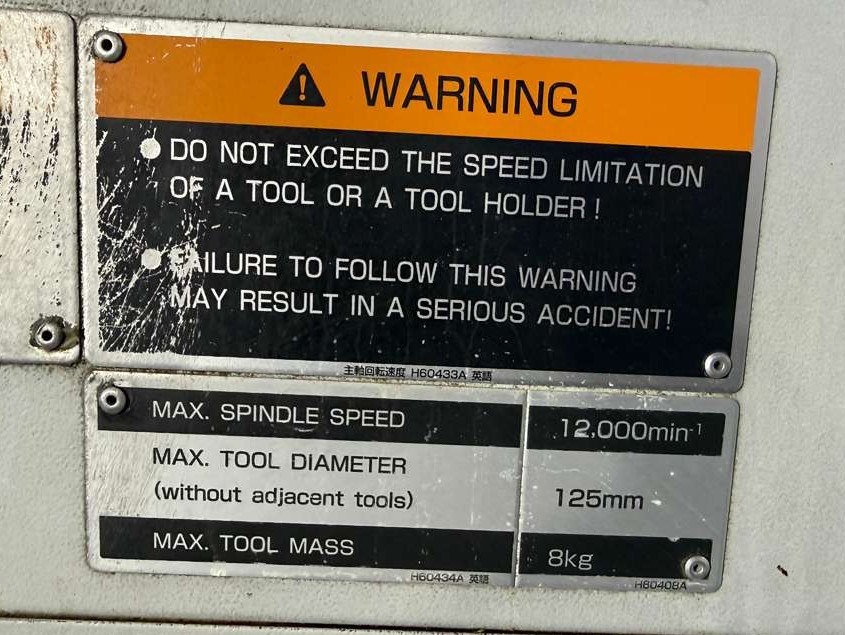

| Speed Range: 12,000 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 20 Station |
| Tool Weight: 17.63 lbs |
| Max Tool Dia: 4.9″ |
| Max Tool Length: 11.8″ |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

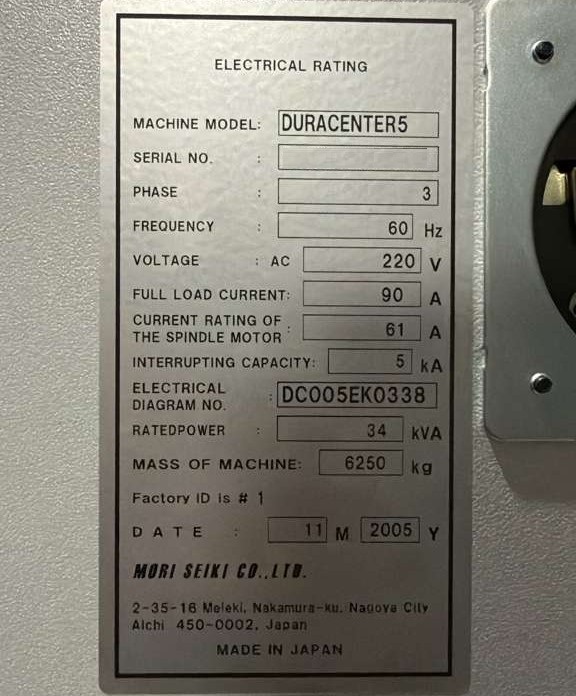

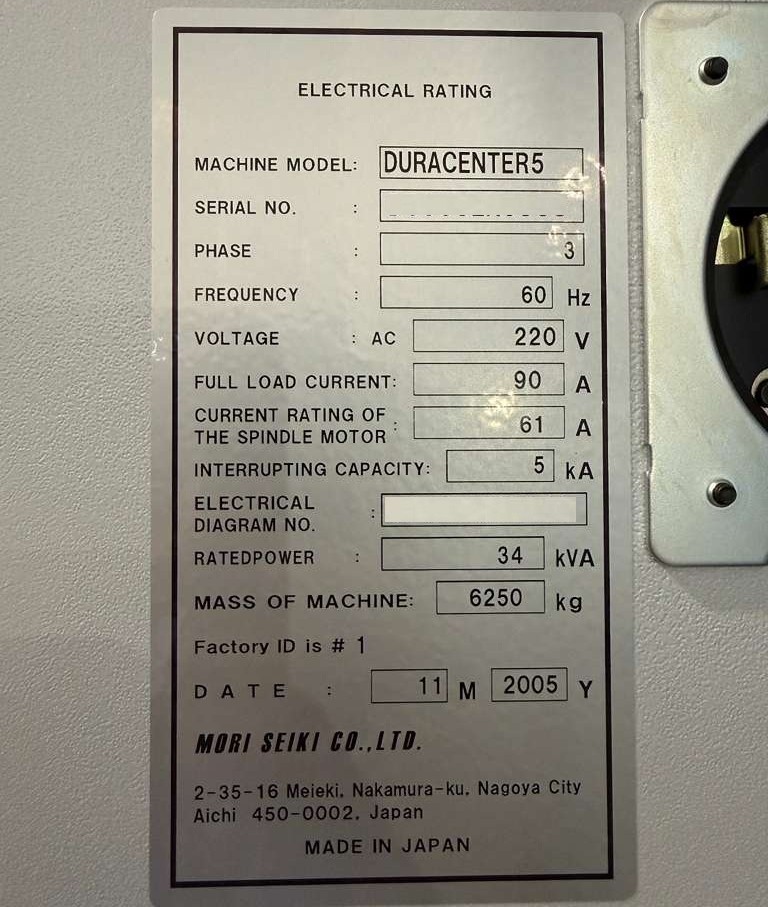

| Power: 220v / 34 kva / 3-Phase |
| Overall Dimensions: 104″ x 90″ x 103″ High Apporx. |
| Weight: 13,780 lbs Apporx. |
