*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Mori Seiki |
| Model No.: |
MH-403 |
| Year of Manufacture: |
2000 |
| Machine Type: |
CNC Horizontal Machining Center |
| CNC Control: |
Mori Seiki MSG-502 |
| Country of Origin: |
Japan |
| Equipped With: |
| 60-Position Automatic Tool Changer |
| Dual Pallet Changer |
| 1° Indexing Table |
| Box Way Construction |
| Through-Spindle Coolant |

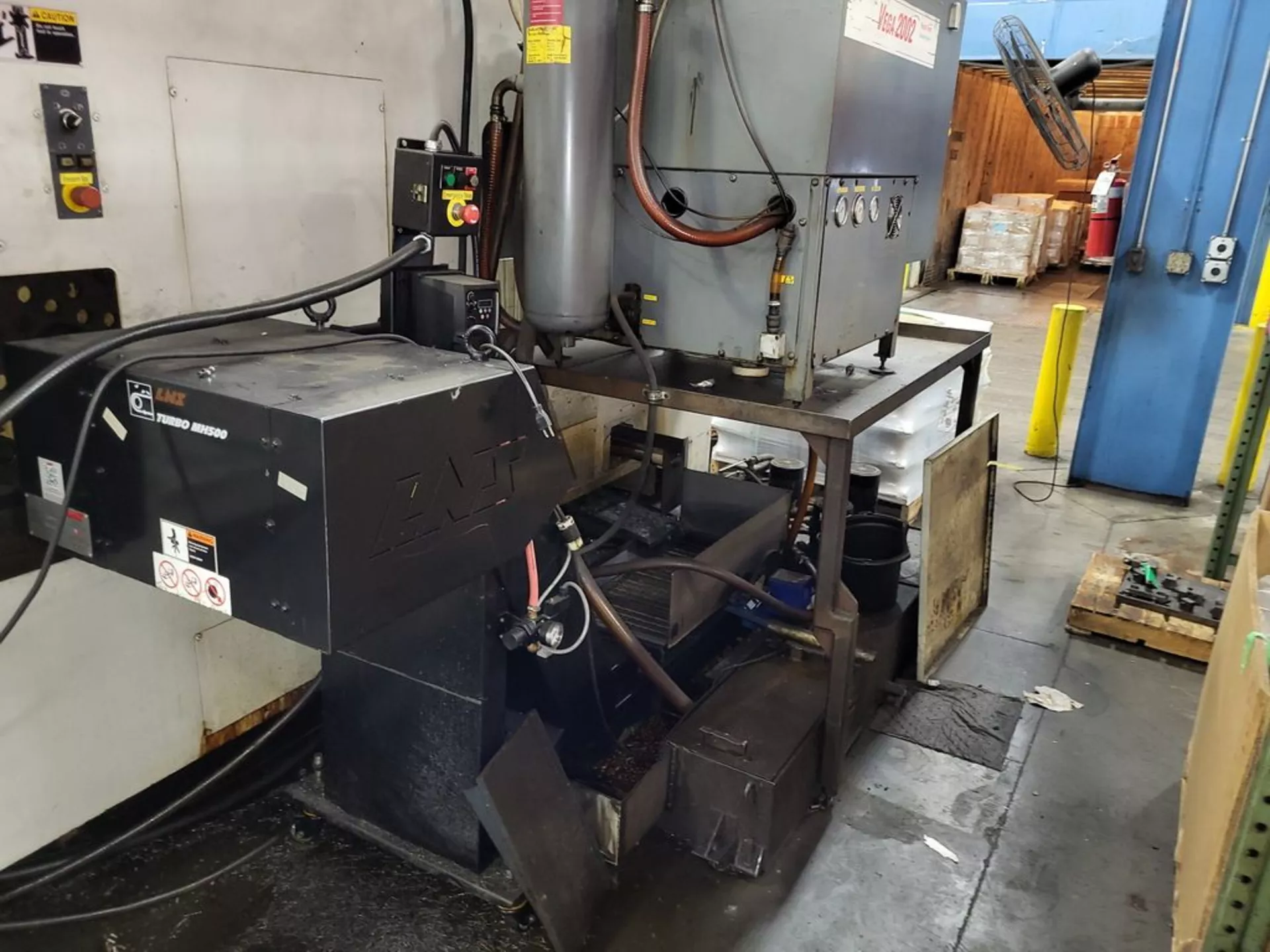

| High-Pressure Coolant System (Yamazan Vega 2000) |
| Probe Capability |
| Rigid Tapping |
| Coolant Filtration System |
| Transformer |
| Full Enclosure |
| Capacity: |
| Pallet Size: 15.7″ x 15.7″ |
| Number of Pallets: 2 |
| Travels: |
| X-Axis Travel: 22.046″ |
| Y-Axis Travel: 21.656″ |
| Z-Axis Travel: 24.0157″ |
| Spindle: |
| Spindle Speed: 7,000 RPM |
| Spindle Motor: 15/10 HP |
| Tooling: |
| ATC Capacity: 60 Tools |
| Max Tool Length: 11.8″ |
| Max Tool Diameter: 5.9″ |
| Max Tool Weight: 26.4 lbs |
| Tool Change Time: ~1.5 sec (Chip-to-Chip) |
| Feed Rates: |
| Rapid Traverse (X & Y): 787.4 IPM |
| Rapid Traverse (Z): 787.4 IPM |
| Cutting Feed Rate: Programmable |
| Coolant System: |
| High Pressure Coolant: 13 GPM @ 2,000 PSI |
| Coolant Through Spindle: Yes |
| General: |
| Power: AC 220V, 3-Phase |
| Overall Dimensions: ~110″ x 90″ x 100″ High |
| Weight: ~18,000 lbs |
