*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Mori Seiki |
| Model: |
MH-63 |
| Year: |
1990 |
| Machine Type: |
CNC Horizontal Machining Center |

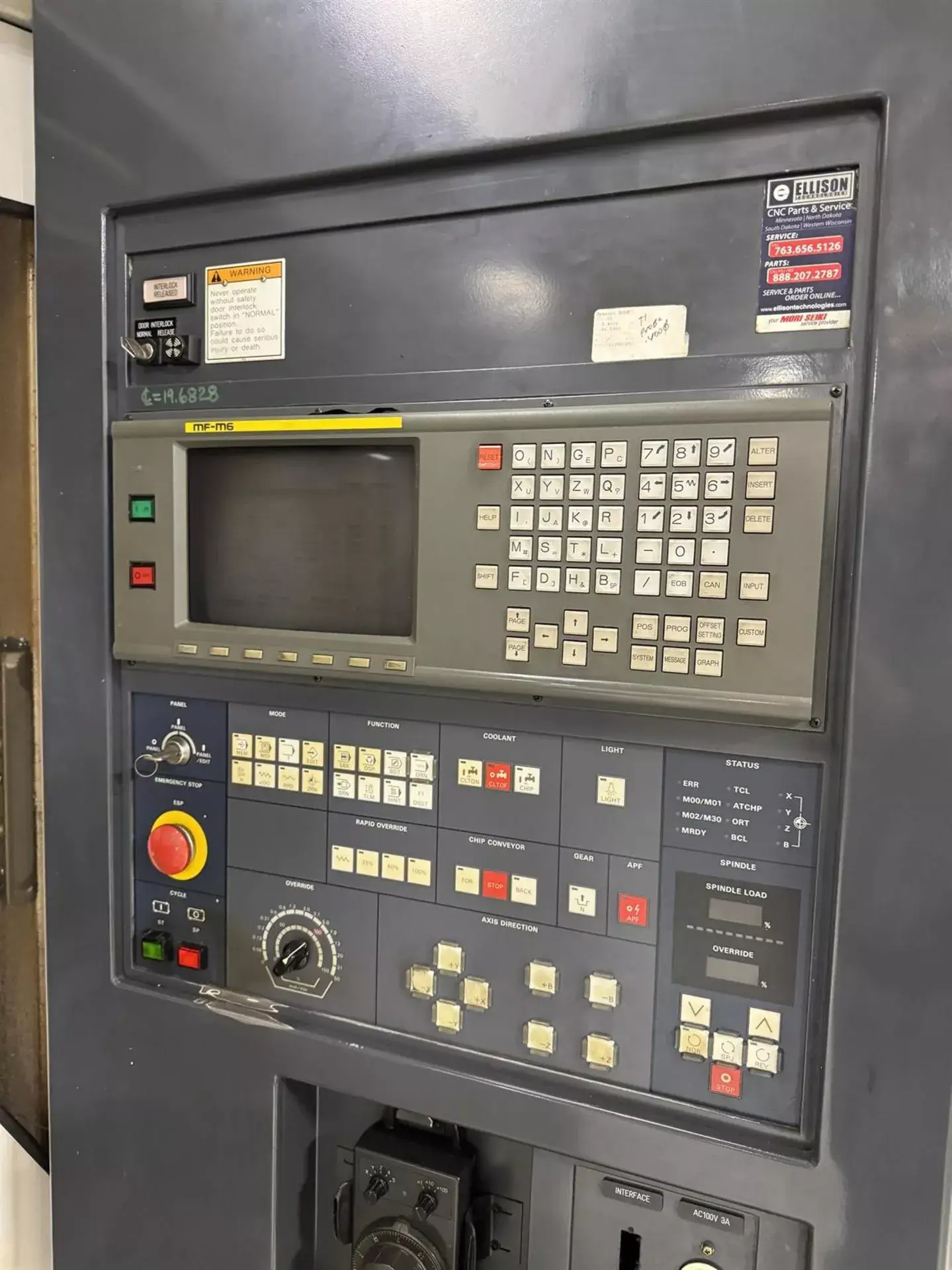

| CNC Control: |
Fanuc Control |
| Country of Origin: |
Japan |
| Equipped With: |
| Fanuc CNC Control |

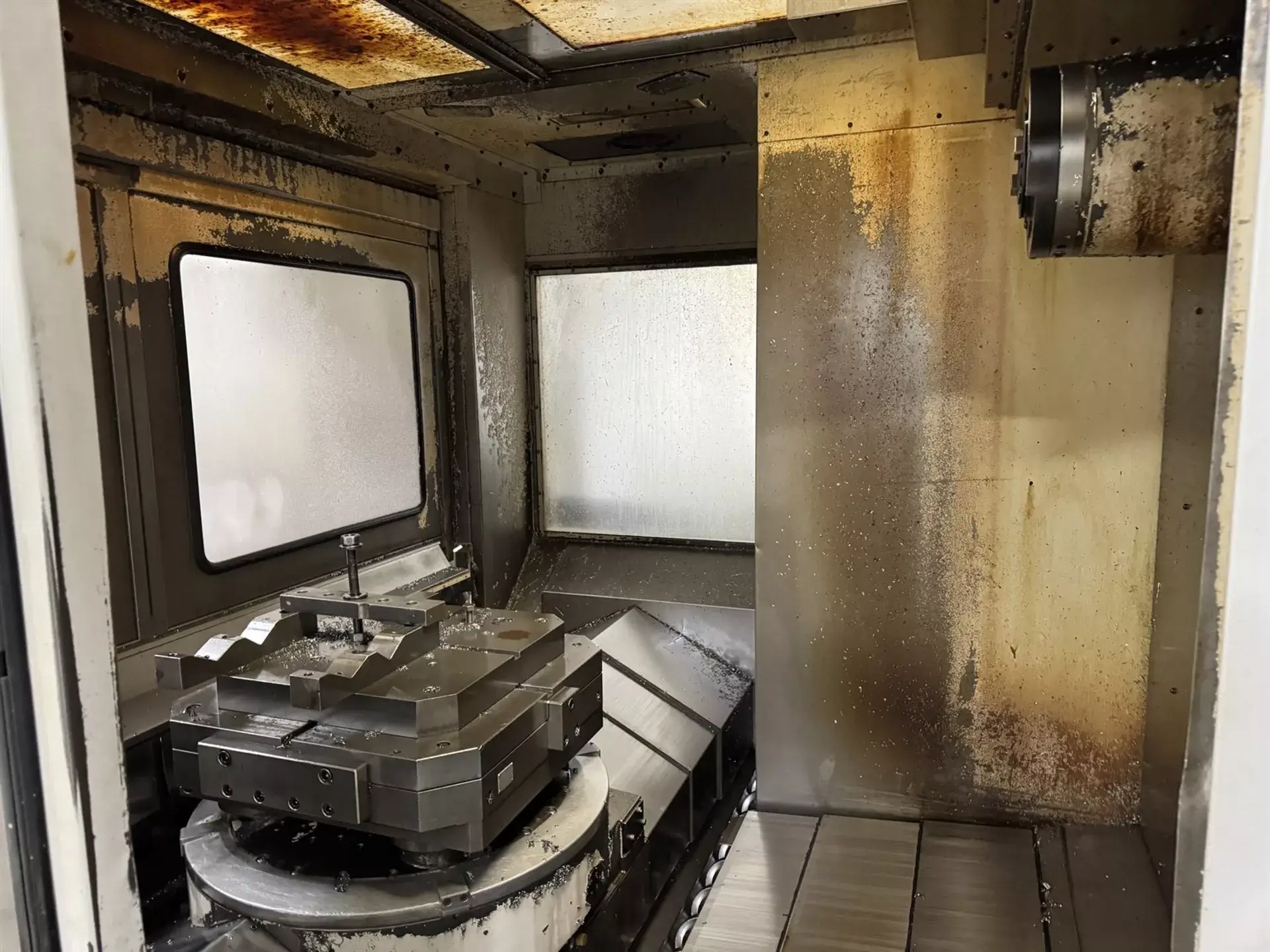

| 4th Axis Rotary Table |
| Automatic Pallet Changer (2-Pallet System) |
| Chip Conveyor |
| Coolant System |
| Full Enclosure |
| Manual Pulse Generator (MPG) |
| Capacity: |
| Pallet Size: Approx. 24.8″ x 24.8″ (630 x 630 mm) |
| Table Load Capacity: Approx. 2,200 lbs (1,000 kg) |
| Travels: |
| X-Axis Travel: ~39″ |
| Y-Axis Travel: ~31″ |
| Z-Axis Travel: ~31″ |
| B-Axis: 360° (Indexing) |
| Spindle: |
| Spindle Speed: Up to 6,000 RPM |
| Spindle Taper: BT50 / CAT50 |
| Spindle Motor: Approx. 20-30 HP |
| Tool Changer: |
| Tool Capacity: 40 ATC |
| Tool Holder Type: BT50 / CAT50 |
| Feed Rates: |
| Rapid Traverse (X/Y/Z): Approx. 600-800 IPM |
| Cutting Feed Rate: Programmable |

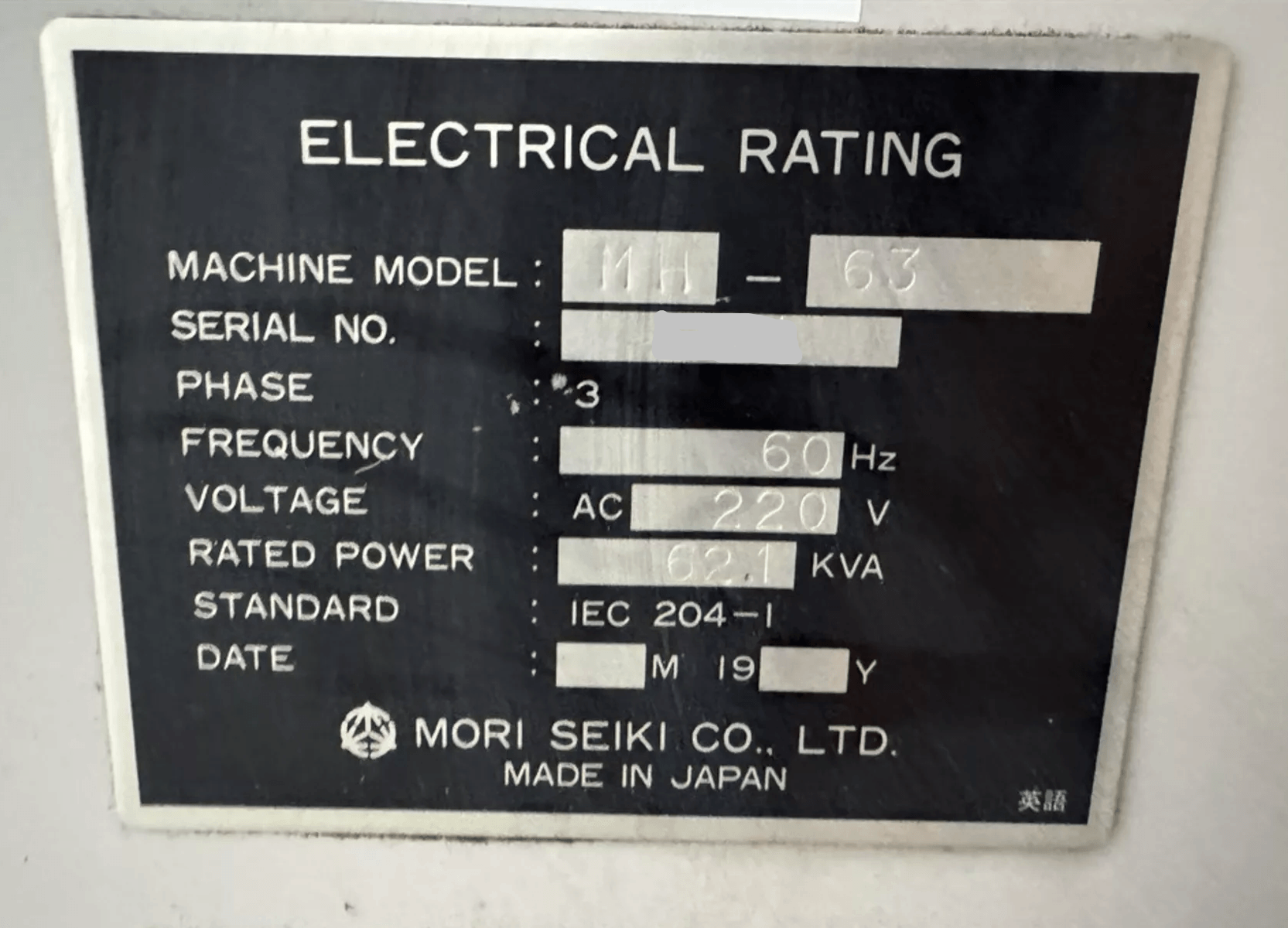

| Electrical: |
| Voltage: 220V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| General: |
| Air Required: 90-100 PSI |
| Power: Approx. 62 kVA |
| Weight: Approx. 25,000 – 30,000 lbs |
