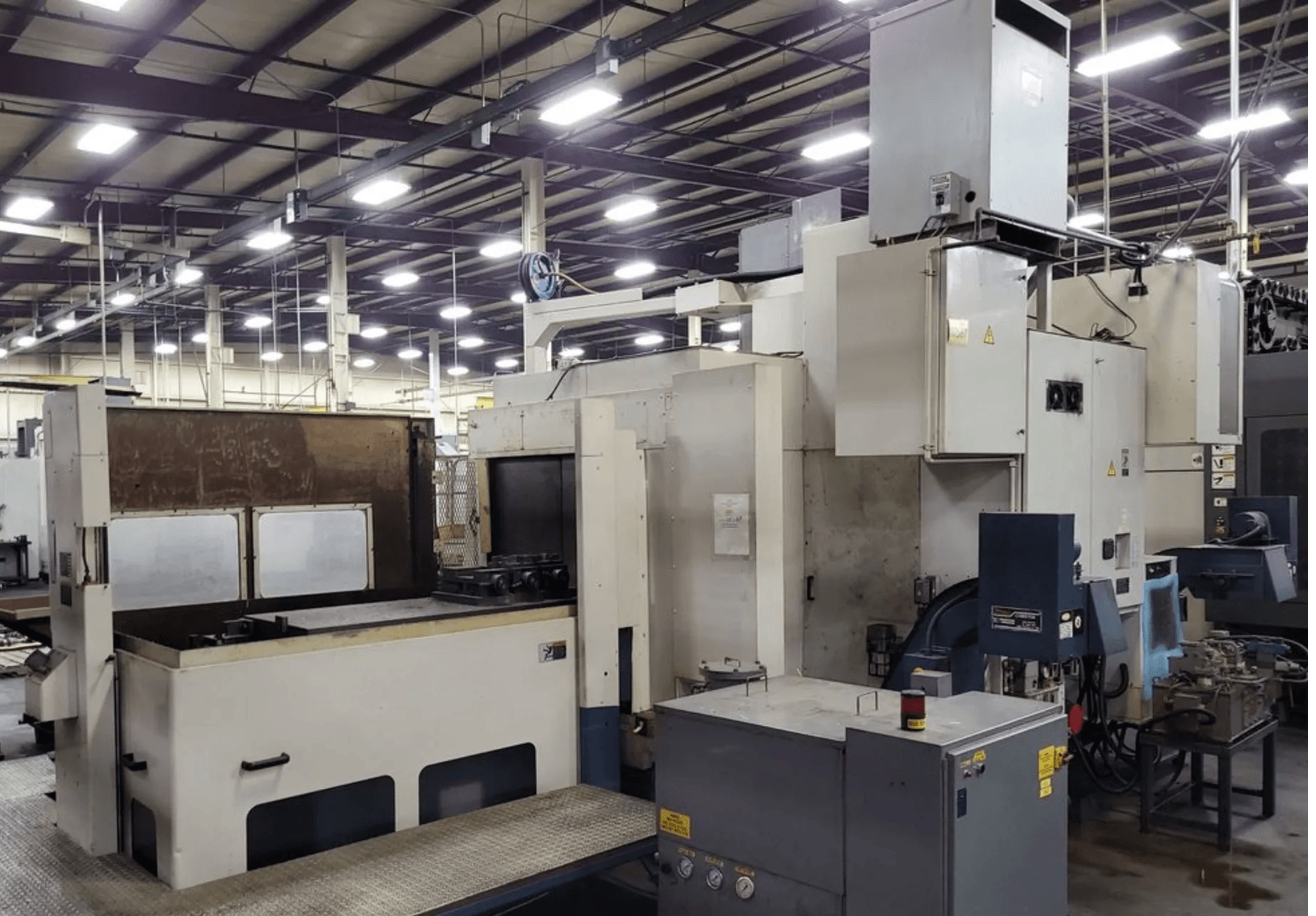

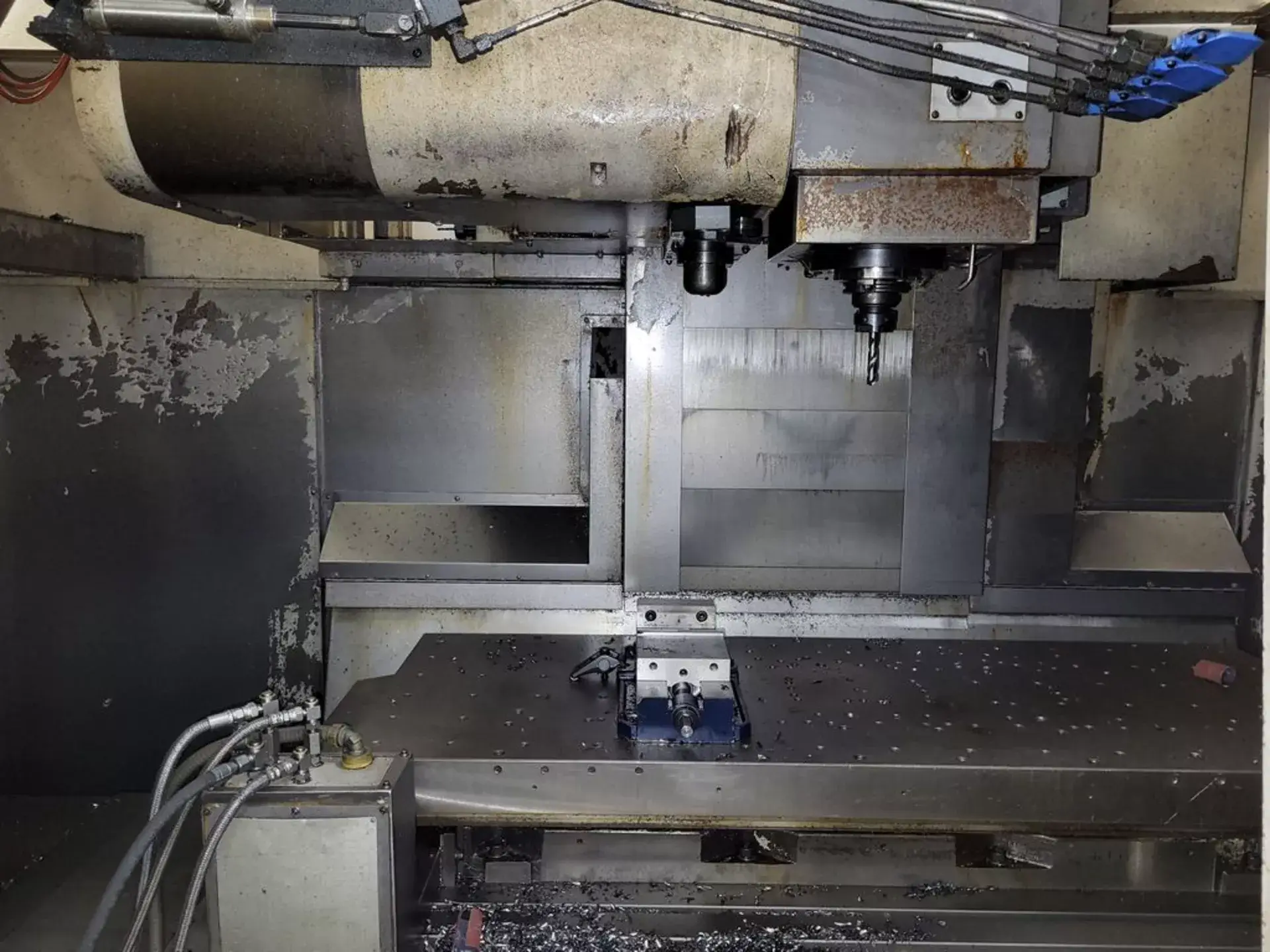

*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Mori Seiki |
| Model No.: |
MV-65B/50 |
| Year of Manufacture: |
1998 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Vertical Machining Center |
| CNC Control: |

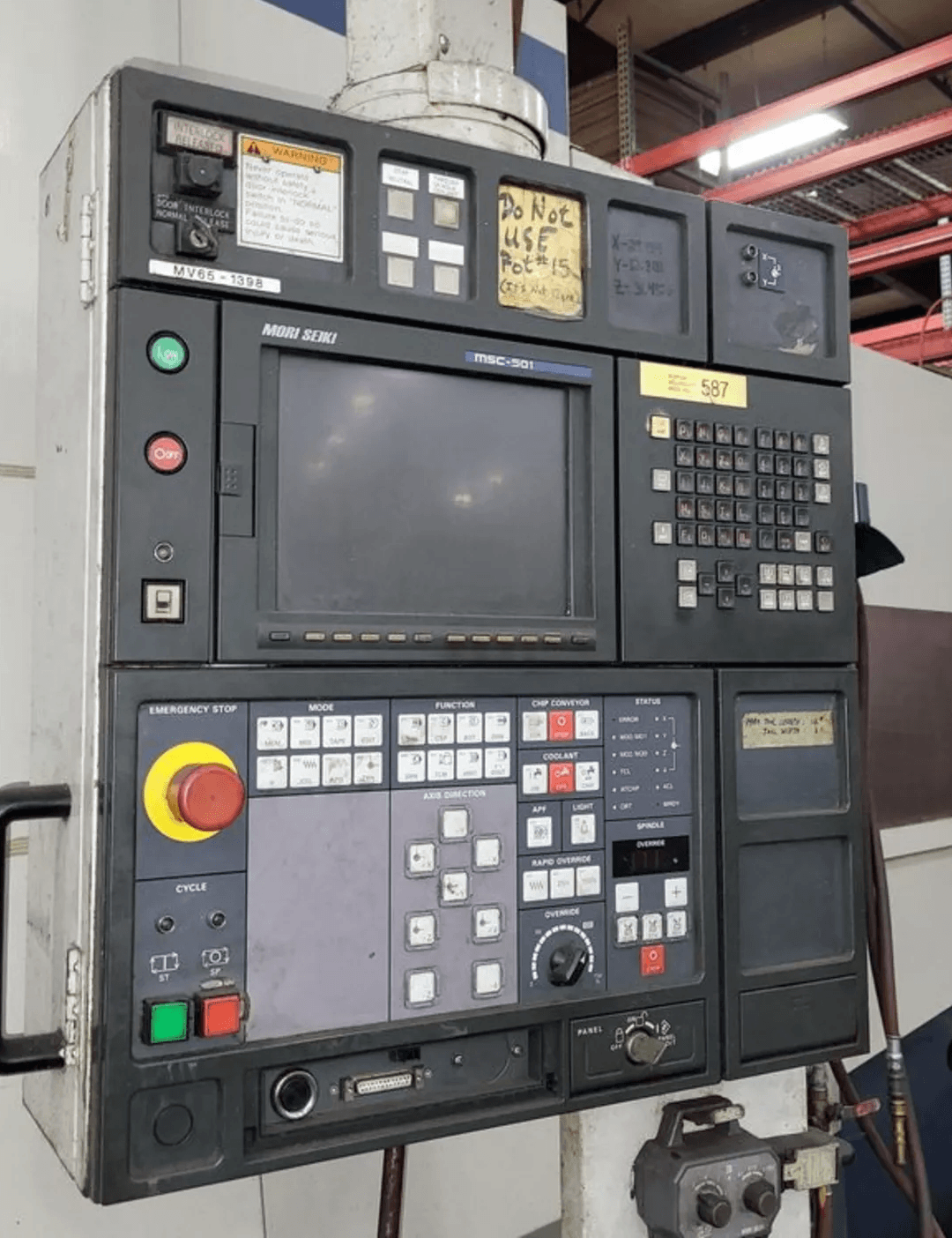

Mori Seiki MSC-501 |
| Country of Origin: |
Japan |
| Equipped With: |
| 40-Position Automatic Tool Changer |
| Dual Pallet Tables |
| Through-Spindle Coolant |
| High-Pressure Coolant |
| Rigid Tapping |
| Coolant & Filtration System |
| (2) Turbo Chip Conveyors |
| Transformer |
| Full Enclosure |
| Capacity: |
| Table Size: 65″ x 24″ (Dual Pallet) |
| Max Swing (4th Axis): 67″ x 25.56″ |
| Travels: |
| X-Axis Travel: 60″ |
| Y-Axis Travel: 25.6″ |
| Z-Axis Travel: 25.6″ |
| Spindle: |
| Spindle Speed: 6,000 RPM |
| Spindle Motor: 20 / 15 HP |
| Taper: CAT 50 |
| Tooling: |
| ATC Capacity: 40 Tools |
| Max Tool Length: 13.78″ |
| Max Tool Diameter: 9.5″ |
| Max Tool Weight: 44 lbs |
| Tool Change Time: ~2.5 sec (Chip-to-Chip) |
| Feed Rates: |
| Rapid Traverse (X & Y): 590.55 IPM |
| Rapid Traverse (Z): 472.44 IPM |
| Cutting Feed Rate: Programmable |
| General: |
| Power: AC 220V, 3-Phase, 50/60 Hz |
| Overall Dimensions: ~170″ x 120″ x 115″ High |
| Weight: ~28,000 lbs |
