*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mori Seiki |
| Model: | NH5000DCG/40 |
| Year: | 2011 |
| Condition: | Used – Good |
| Machine Type: | Horizontal Machining Center (HMC) |

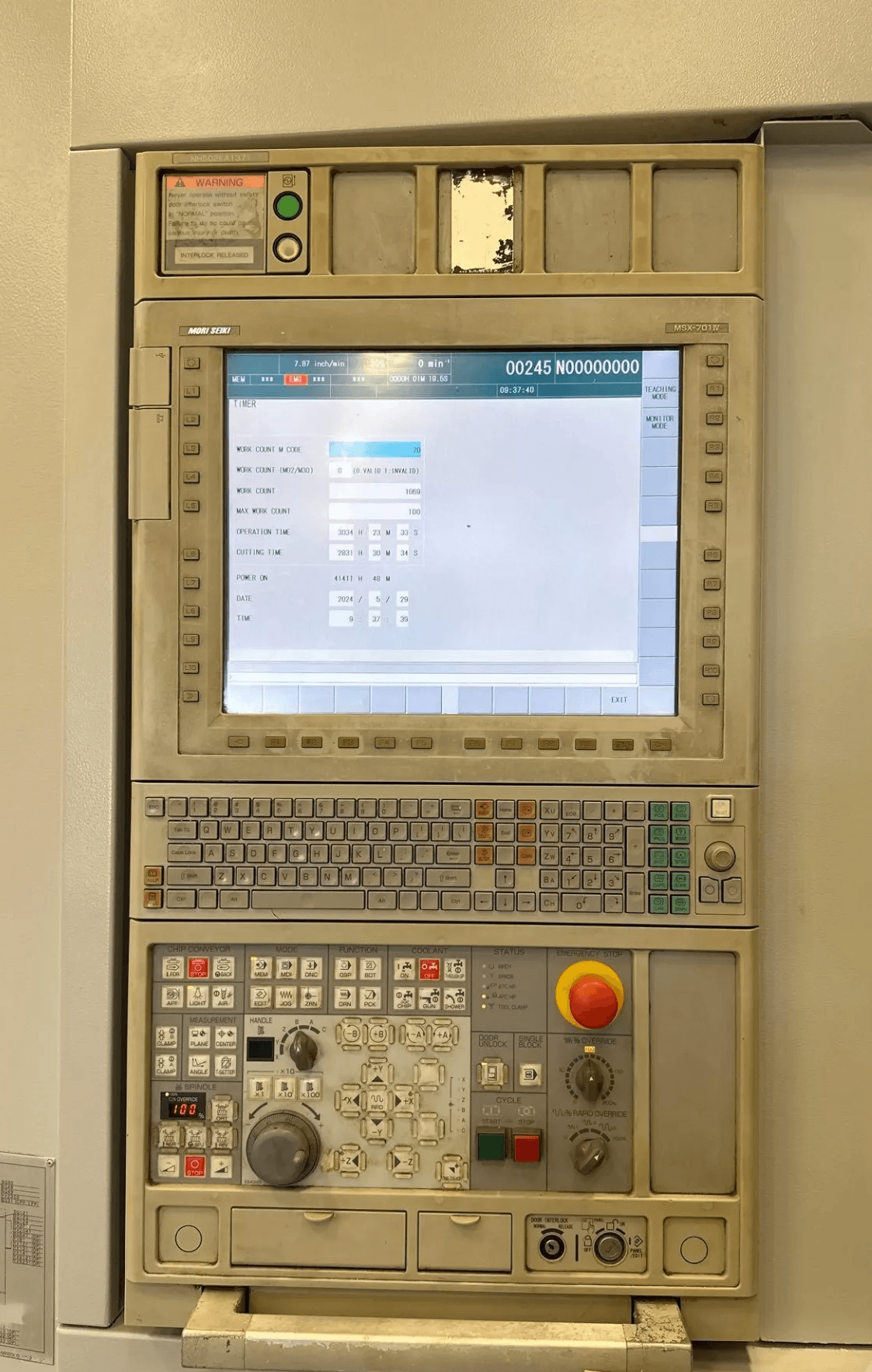

| Control: | Mori Seiki MSX-701IV CNC Control |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| Full 4th Axis Rotary Table (360,000 Degree) |
| Mori Seiki MSX-701IV CNC Control |
| CAT 40 Spindle |
| 10,000 RPM Spindle |
| 20″ Twin Pallets |
| Rotary Pallet Changer |
| 60 Position Automatic Tool Changer |
| High-Pressure Coolant Through The Spindle |
| Rear Discharge Chip Conveyor |
| Coolant Tank |
| Full Enclosure |
| Cutting Time Shows 2,831 Hours |
| Capacity: |
|---|
| X-Axis Travel: Approx. 28.7″ |
| Y-Axis Travel: Approx. 28.7″ |
| Z-Axis Travel: Approx. 31.5″ |
| Pallet Size: 19.7″ x 19.7″ |
| Maximum Workpiece Diameter: Approx. 28.7″ |
| Maximum Workpiece Height: Approx. 35.4″ |
| Maximum Table Load Capacity: Approx. 1,100 Lbs |
| B-Axis Indexing: 0.001° |
| Spindle: |
|---|
| Spindle Taper: CAT 40 |
| Spindle Speed: 10,000 RPM |
| Spindle Motor: Approx. 40 HP |
| Rapid Traverse Rate: Approx. 2,362 IPM |
| Automatic Tool Changer: |
|---|
| 60 Position Automatic Tool Changer |
| Maximum Tool Diameter: Approx. 5.1″ |
| Maximum Tool Length: Approx. 19.7″ |
| Maximum Tool Weight: Approx. 44 Lbs |
| Pallet Changer: |
|---|
| Automatic Twin Pallet Changer |
| Pallet Quantity: 2 |
| Pallet Size: 19.7″ x 19.7″ |

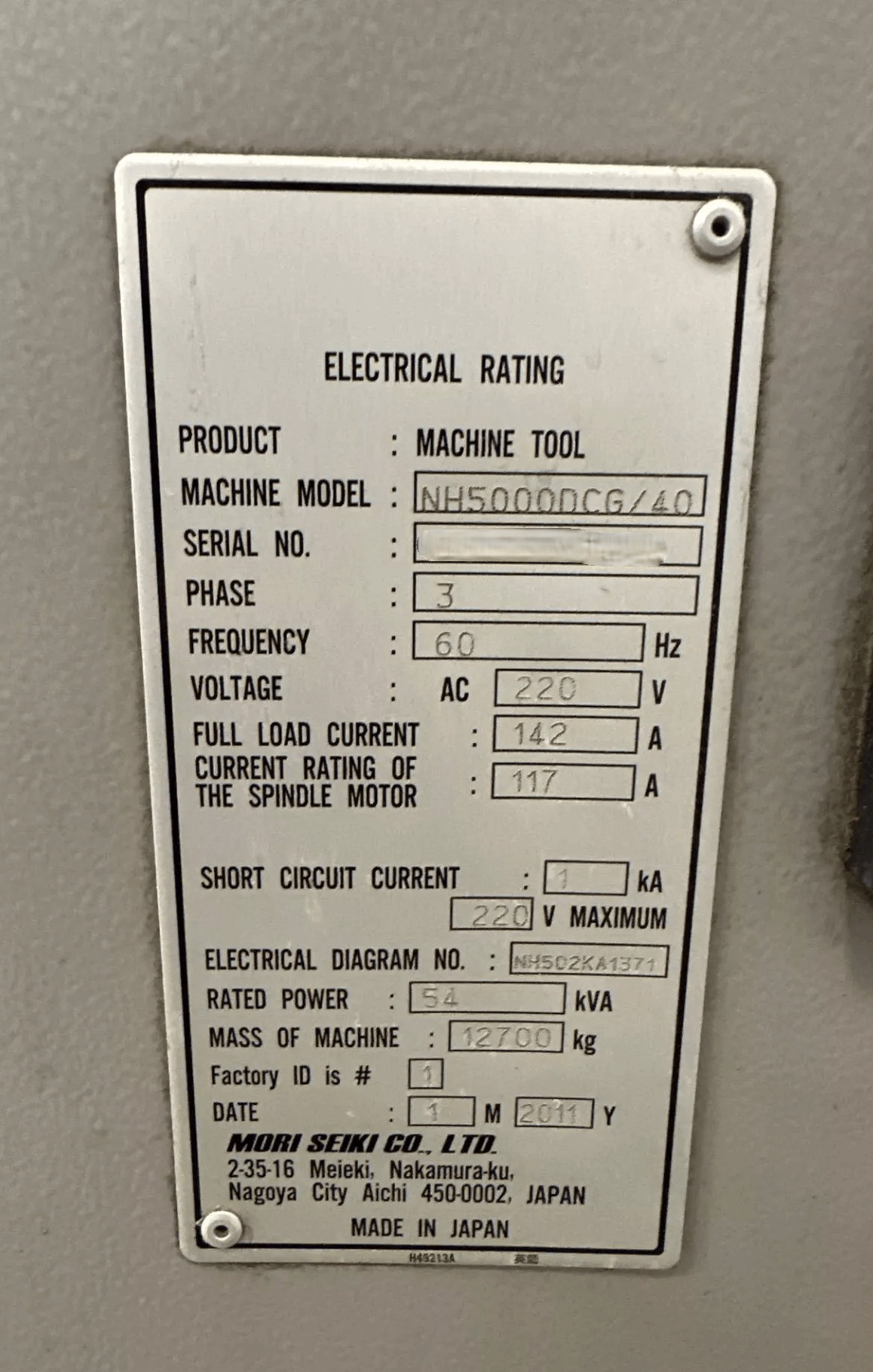

| Electrical: |
|---|
| Voltage: 220V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Rated Power: 54 kVA |
| General: |
|---|
| Machine Weight: Approx. 28,000 Lbs |
| Overall Dimensions: Approx. 210″ x 130″ x 125″ |
| Made In: Japan |
