*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mori Seiki |
| Model: | NH6300/50 |
| Year: | 2005 |
| Machine Type: | CNC Horizontal Machining Center |

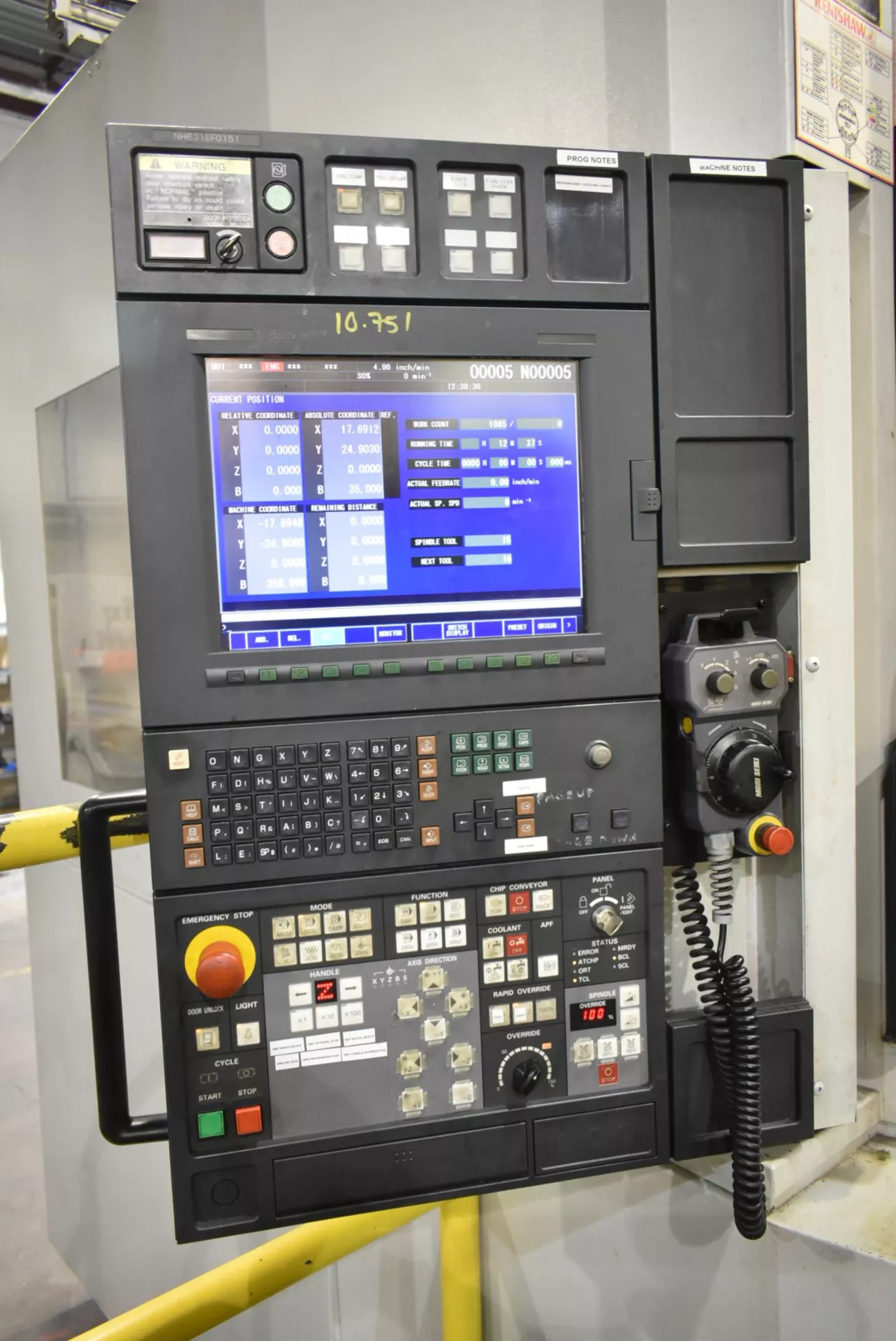

| Control: | Fanuc MSX CNC Control |
| Features: |
|---|
| Fanuc MSX CNC Control |
| Twin Pallet Changer |
| HSK Spindle |
| 60-Position Automatic Tool Changer |
| Through Spindle Coolant |
| CoolJet Systems High-Pressure Coolant Unit |
| Mayfran Chip Conveyor |
| Rotary B-Axis Table |
| Automatic Pallet Changer |
| Tool Holders Included |

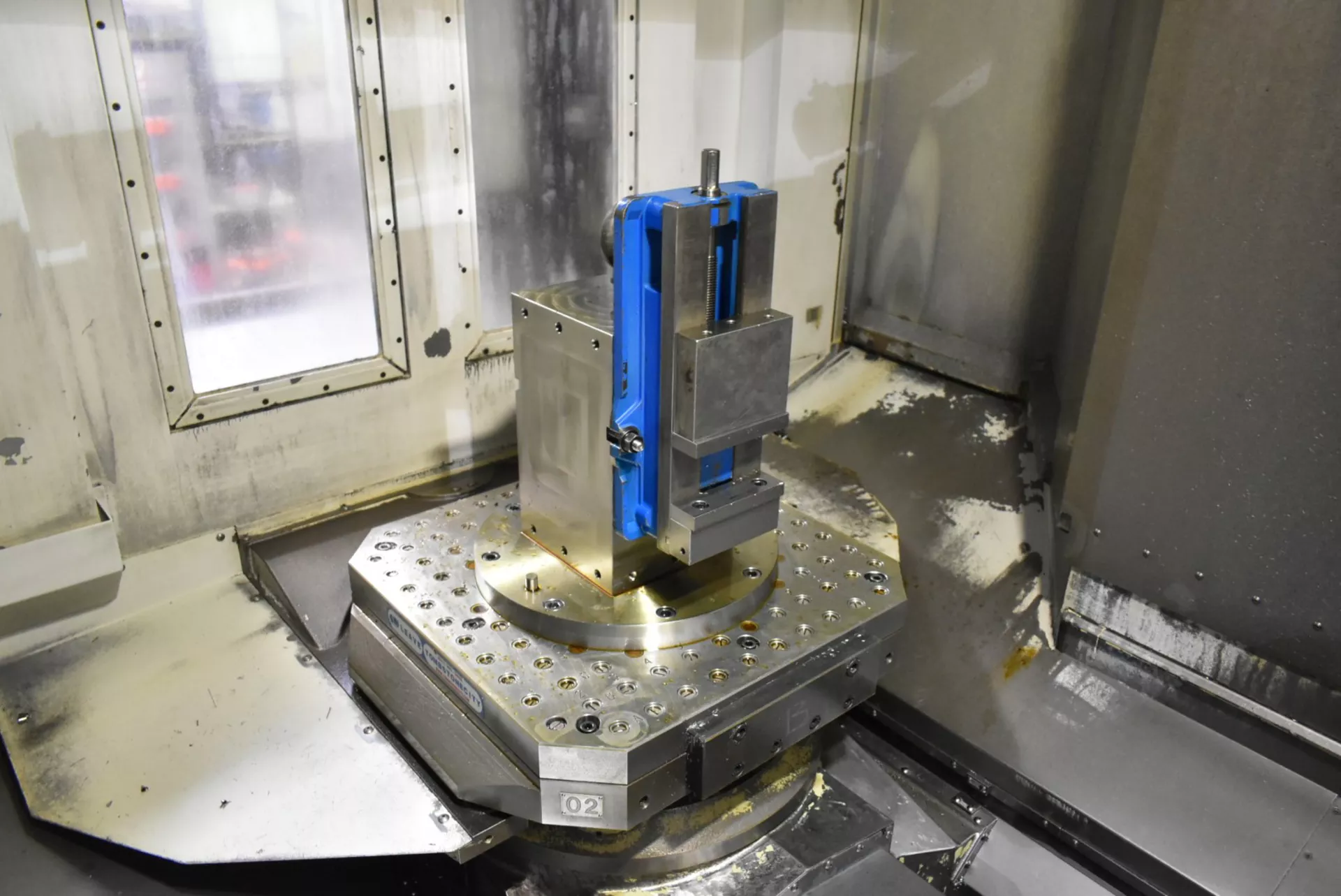

| Table / Pallet: |
|---|
| Number of Pallets: 2 |
| Pallet Size: 24.8″ x 24.8″ |
| Maximum Pallet Load Capacity: 2,640 Lbs |
| Pallet Indexing: 0.001° |
| Travels: |
|---|
| X-Axis Travel: 35.43″ |
| Y-Axis Travel: 31.50″ |
| Z-Axis Travel: 38.58″ |

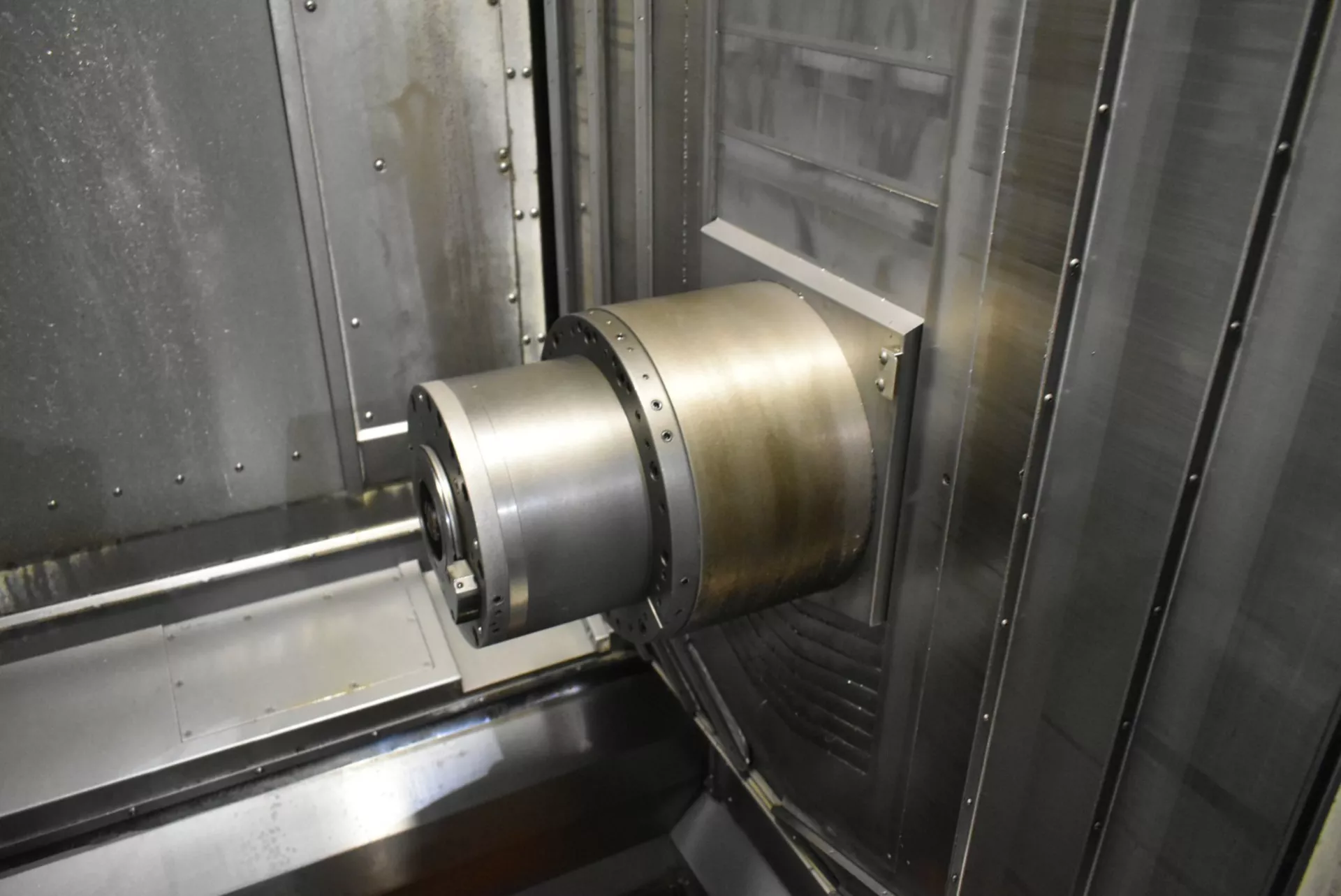

| Spindle: |
|---|
| Spindle Motor: 30 HP |
| Spindle Speed: 10,000 RPM |
| Spindle Taper: HSK-100A |
| Automatic Tool Changer: |
|---|
| Tool Changer Capacity: 60 Tools |
| Tool Changer Type: Chain Style Automatic Tool Changer |
| Maximum Tool Diameter: 4.9″ |
| Maximum Tool Weight: 44 Lbs |
| Feedrates: |
|---|
| Rapid Traverse Rate (X/Y/Z): 1,969 IPM |
| B-Axis Indexing Increment: 0.001° |
| General: |
|---|
| Air Required: 72 PSI |
| Power: 220V / 60 Hz / 3 Phase / 75 KVA |
| Overall Dimensions: 250″ L x 180″ W x 145″ H Approx. |
| Machine Weight: 39,500 Lbs Approx. |
