*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mori Seiki |
| Model: | NL2500Y/1250 |
| Year: | 2010 |
| Machine Type: | CNC Lathe / Turning Center |
| Control: | Mori Seiki MSX-850IV CNC Control |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| Mori Seiki MSX-850IV CNC Control |

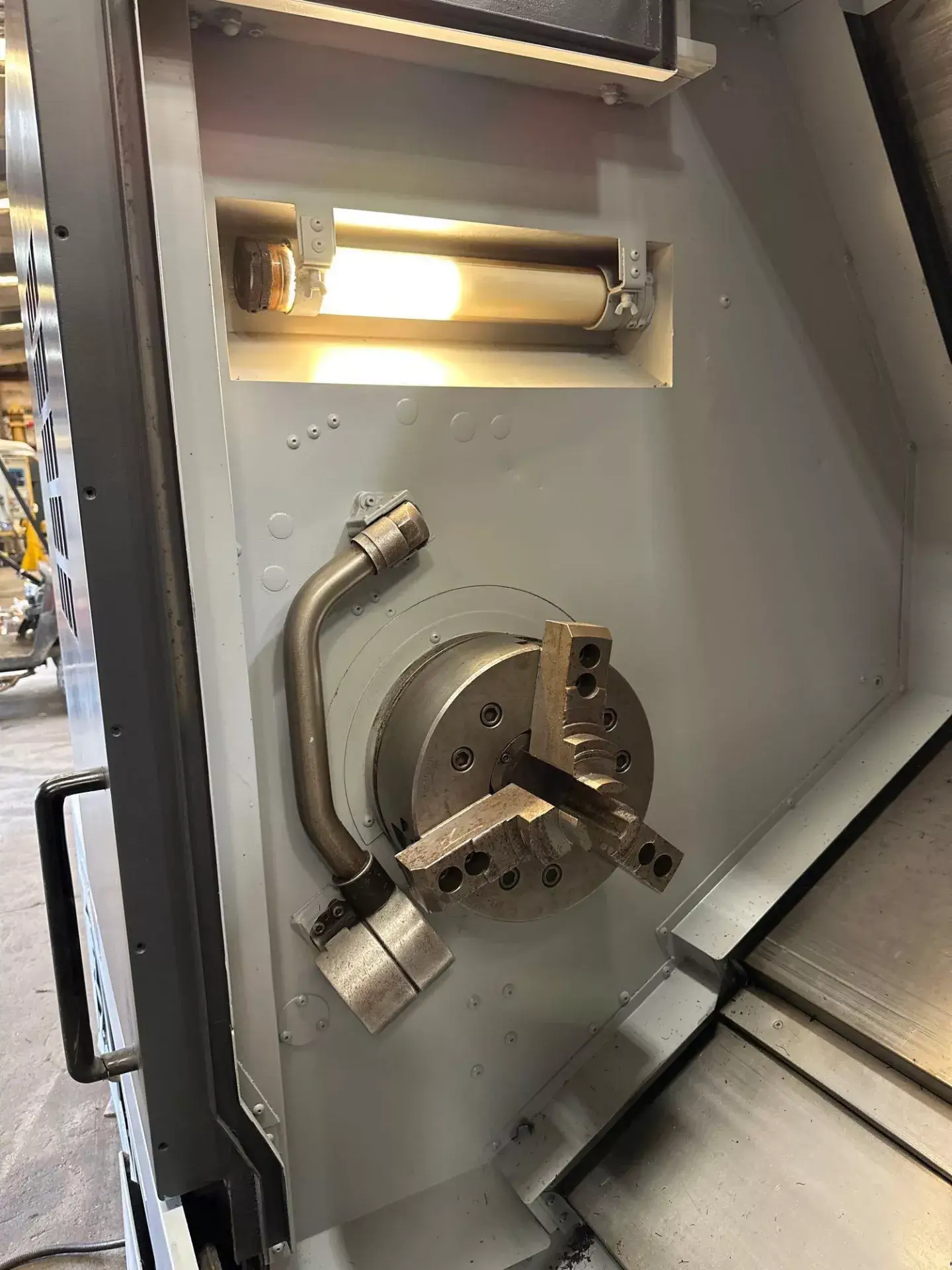

| 12″ Kitagawa Hydraulic Chuck |

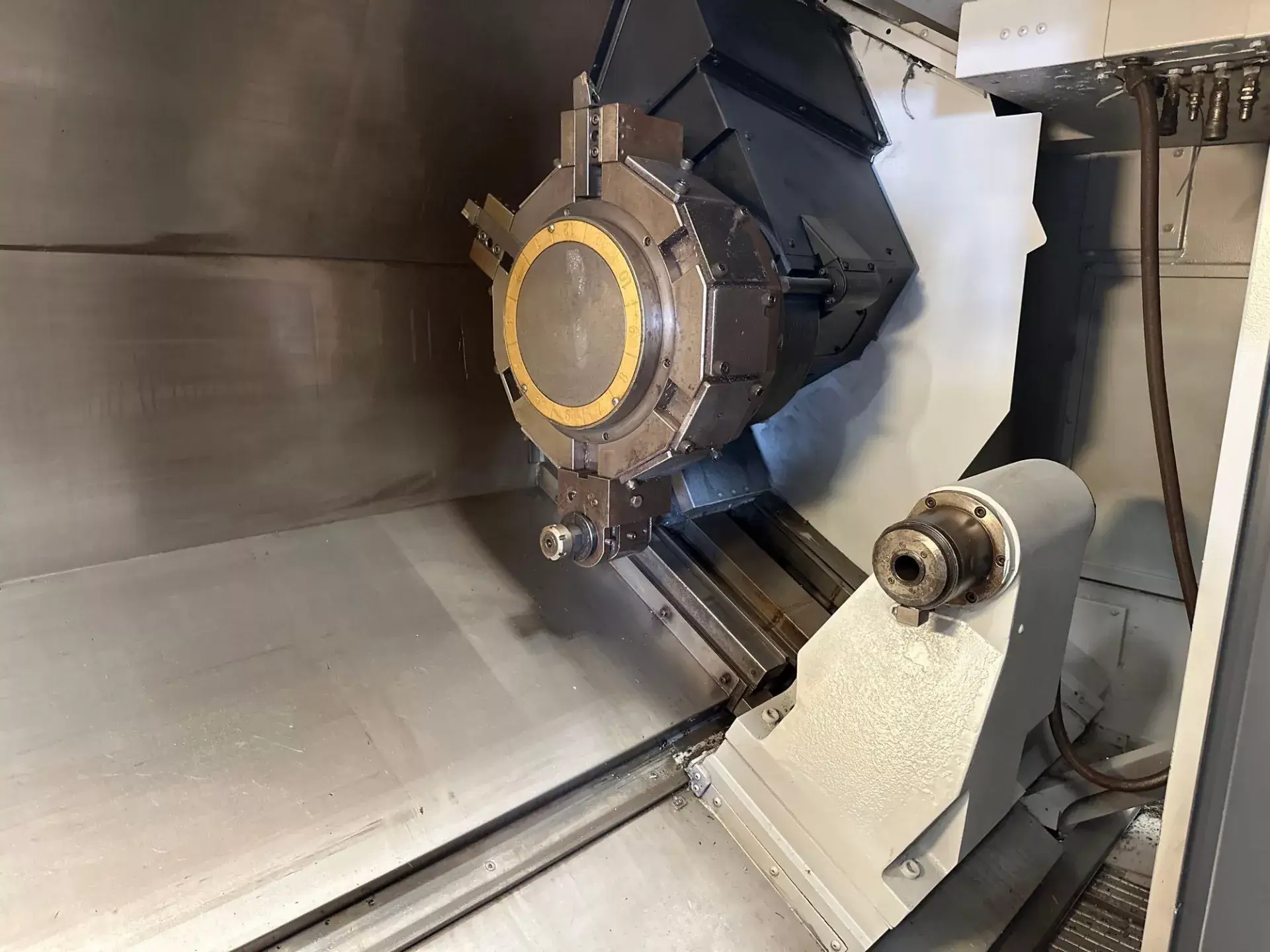

| 12 Position Live Tool Turret |
| Y-Axis Milling Capability |
| Tailstock |
| High Pressure Coolant System |

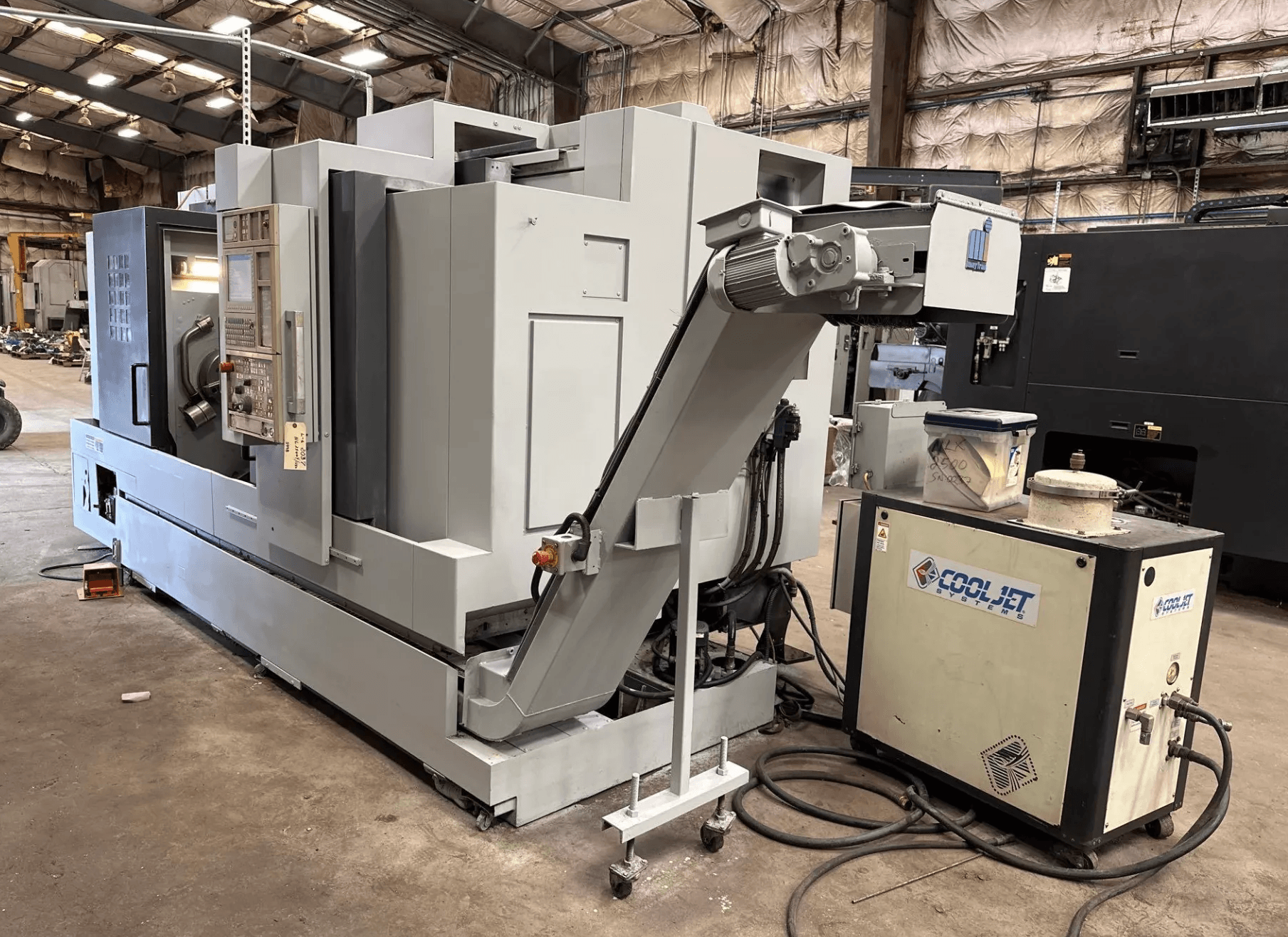

| CoolJet Coolant System |
| Chip Conveyor |
| Coolant Tank |
| Full Enclosure |
| Capacity: |
|---|
| Maximum Turning Length: 48″ |
| Chuck Size: 12″ |
| Maximum Swing: Approx. 36.6″ |
| Maximum Turning Diameter: Approx. 14.2″ |
| Bar Capacity: Approx. 3.1″ |
| Travels: |
|---|
| X-Axis Travel: Approx. 10.2″ |
| Z-Axis Travel: Approx. 51.2″ |
| Y-Axis Travel: Approx. 4.0″ (+/- 2.0″) |
| Spindle: |
|---|
| Main Spindle Speed: Approx. 4,000 RPM |
| Spindle Motor: Approx. 30 HP |
| Spindle Bore: Approx. 3.5″ |
| Spindle Nose: A2-8 |
| Turret: |
|---|
| 12 Position Live Tool Turret |
| Live Tool Speed: Approx. 6,000 RPM |
| Tool Size: Approx. 1.0″ |
| Boring Bar Capacity: Approx. 1.5″ |
| Tailstock: |
|---|
| Programmable Tailstock |
| Tailstock Quill Diameter: Approx. 3.9″ |
| Tailstock Quill Travel: Approx. 3.9″ |

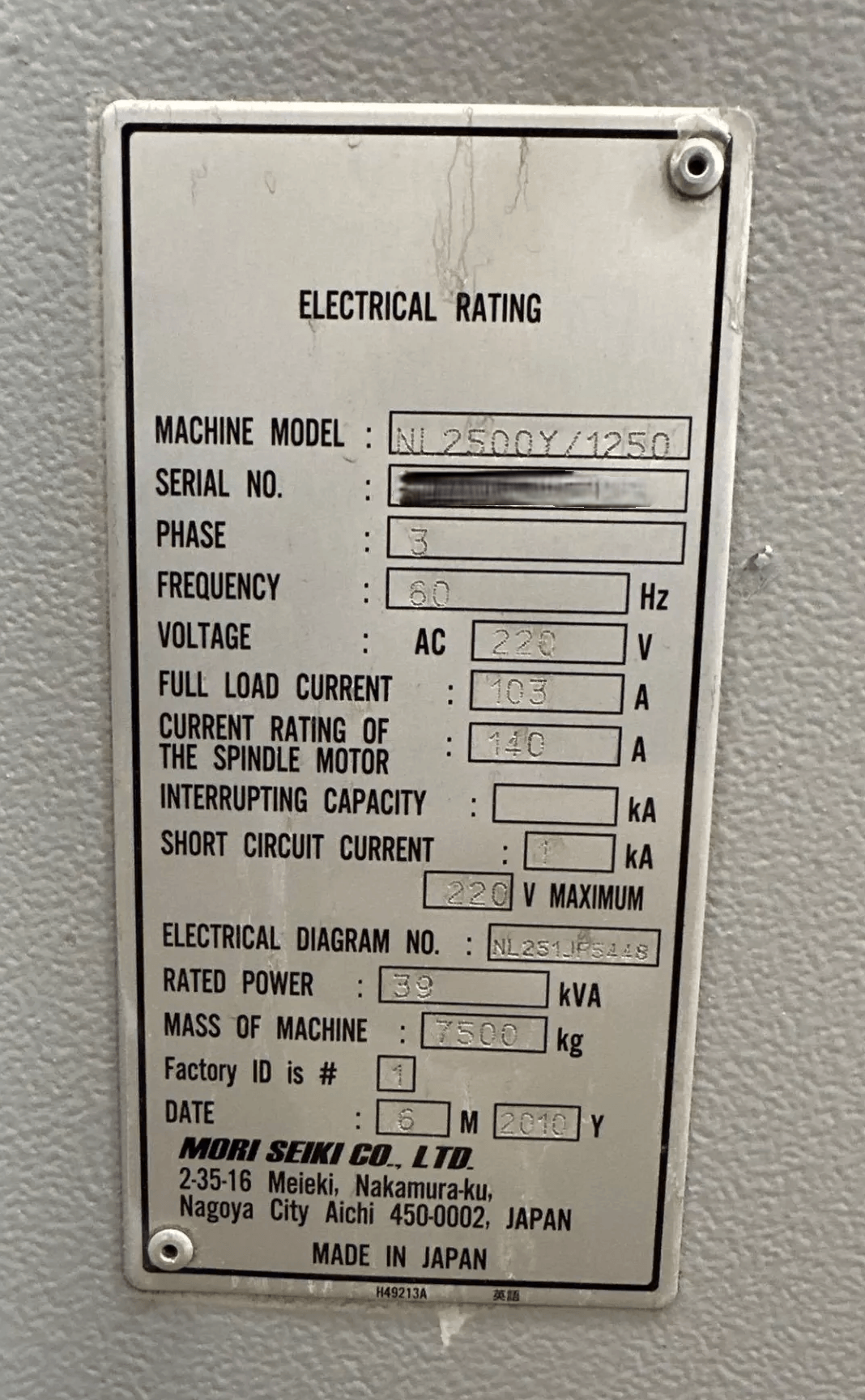

| Electrical: |
|---|
| Voltage: 220V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Rated Power: 39 kVA |
| General: |
|---|
| Machine Weight: Approx. 16,500 Lbs |
| Overall Dimensions: Approx. 185″ x 78″ x 85″ |
| Made In: Japan |
