*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mori Seiki |
| Model: | NL3000MC/700 |
| Year: | 2008 |
| Machine Type: | CNC Lathe / Turning Center |

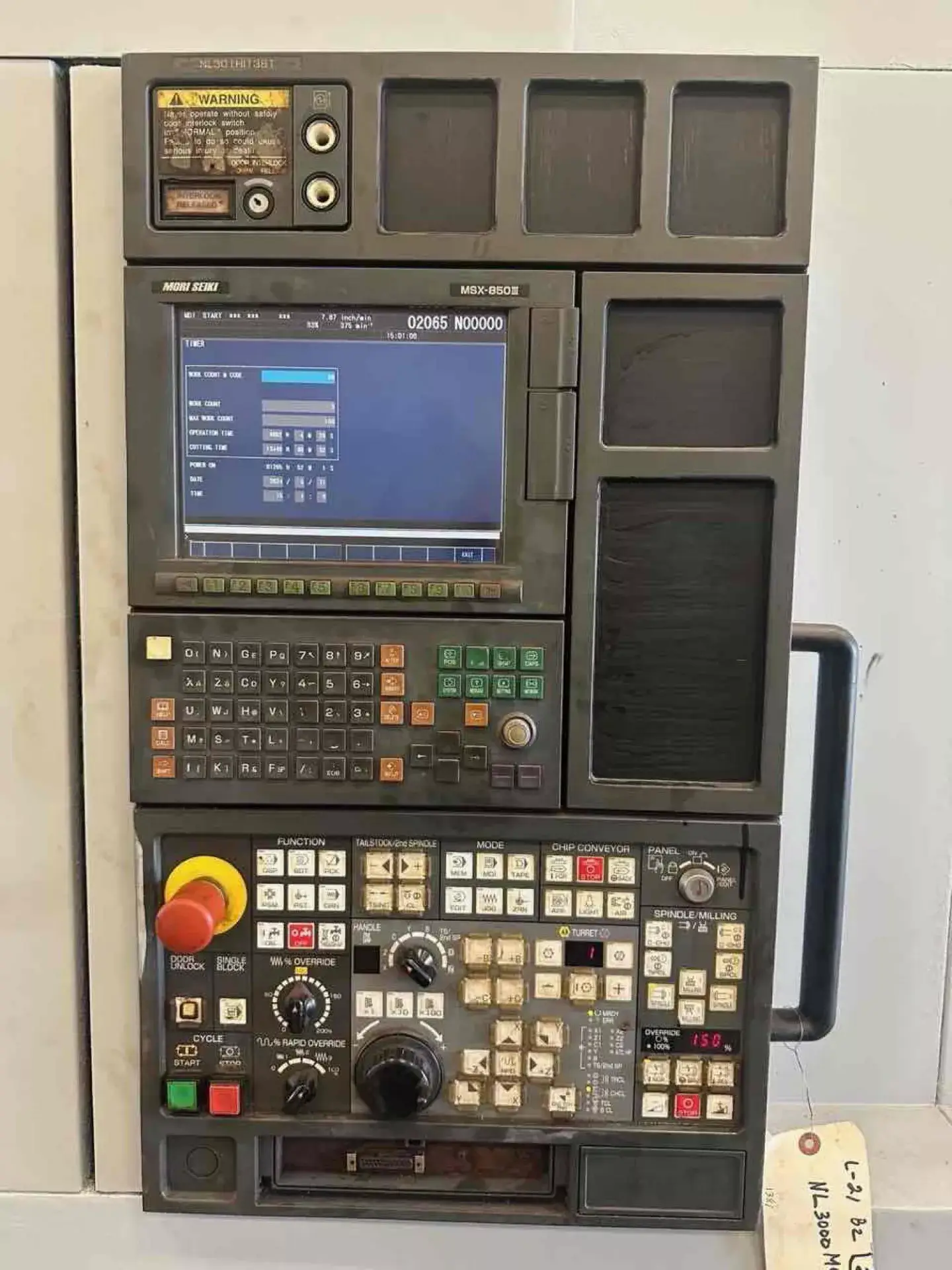

| Control: | Mori Seiki MSX-850 III CNC Control |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| Mori Seiki MSX-850 III CNC Control |

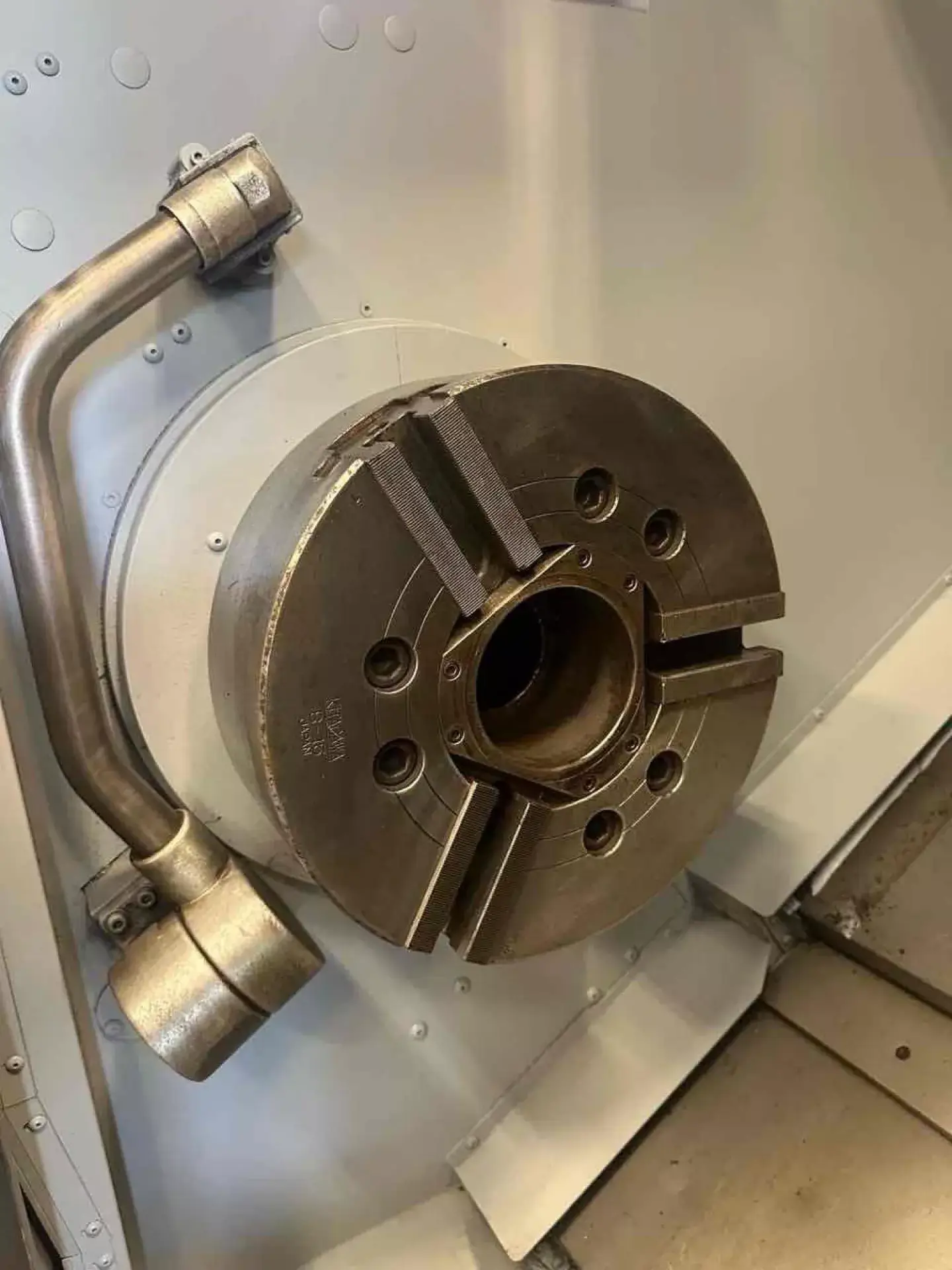

| 15″ Kitagawa Hydraulic Chuck |

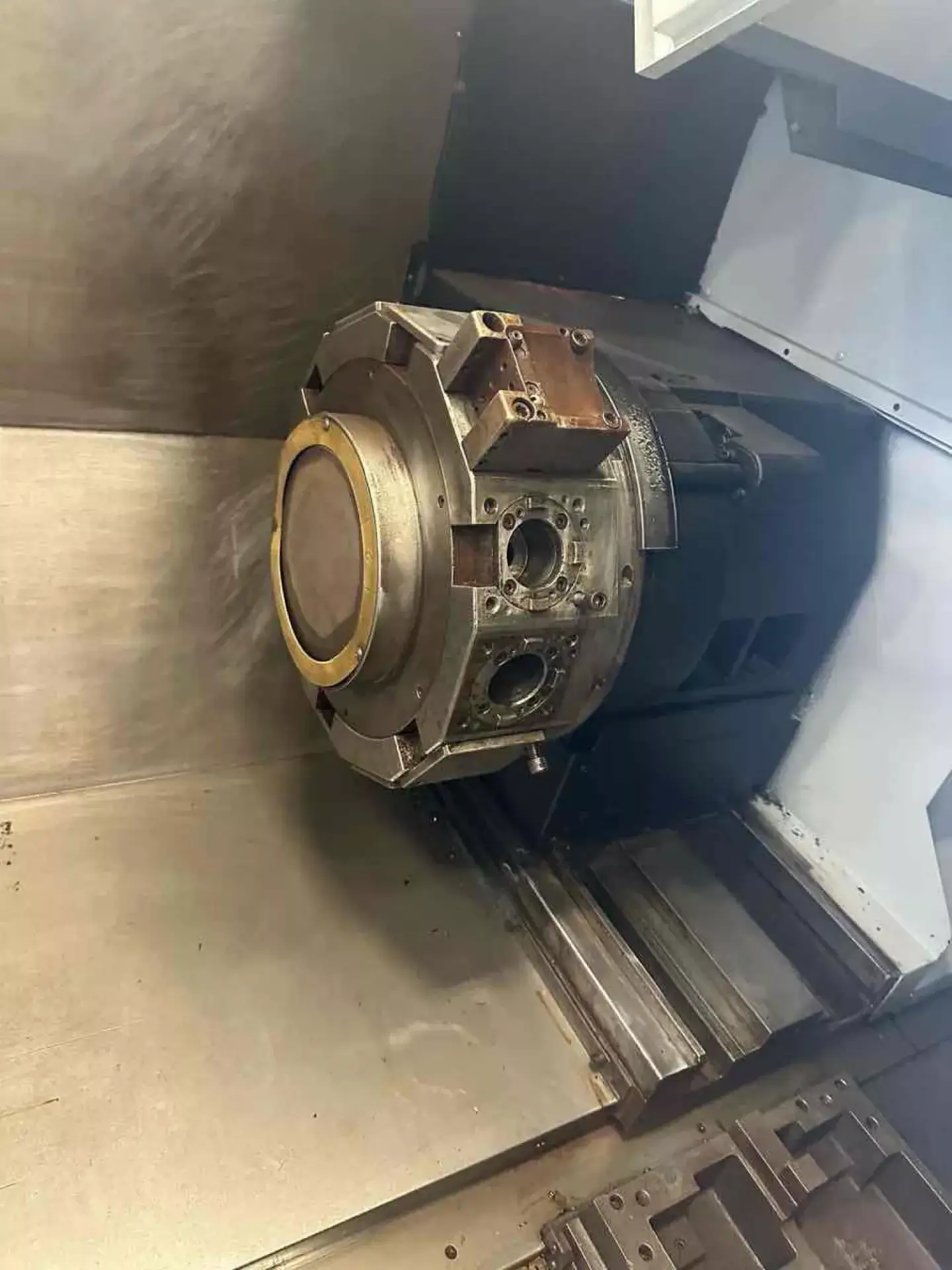

| 10 Position Live Tool Turret |
| Live Milling Capability |
| 3″ Bar Capacity |
| Chip Conveyor |
| Coolant Tank |
| Full Enclosure |
| Tailstock Base Present (No Tailstock Installed) |
| Capacity: |
|---|
| Maximum Turning Length: Approx. 27.6″ |
| Maximum Turning Diameter: Approx. 16.5″ |
| Maximum Swing: Approx. 36.6″ |
| Chuck Size: 15″ |
| Bar Capacity: 3.0″ |
| Travels: |
|---|
| X-Axis Travel: Approx. 12.2″ |
| Z-Axis Travel: Approx. 31.5″ |
| Spindle: |
|---|
| Main Spindle Speed: Approx. 3,500 RPM |
| Spindle Motor: Approx. 40 HP |
| Spindle Bore: Approx. 4.0″ |
| Spindle Nose: A2-11 |
| Turret: |
|---|
| 10 Position Live Tool Turret |
| Live Tool Speed: Approx. 4,000 RPM |
| Tool Size: Approx. 1.25″ |
| Boring Bar Capacity: Approx. 2.0″ |

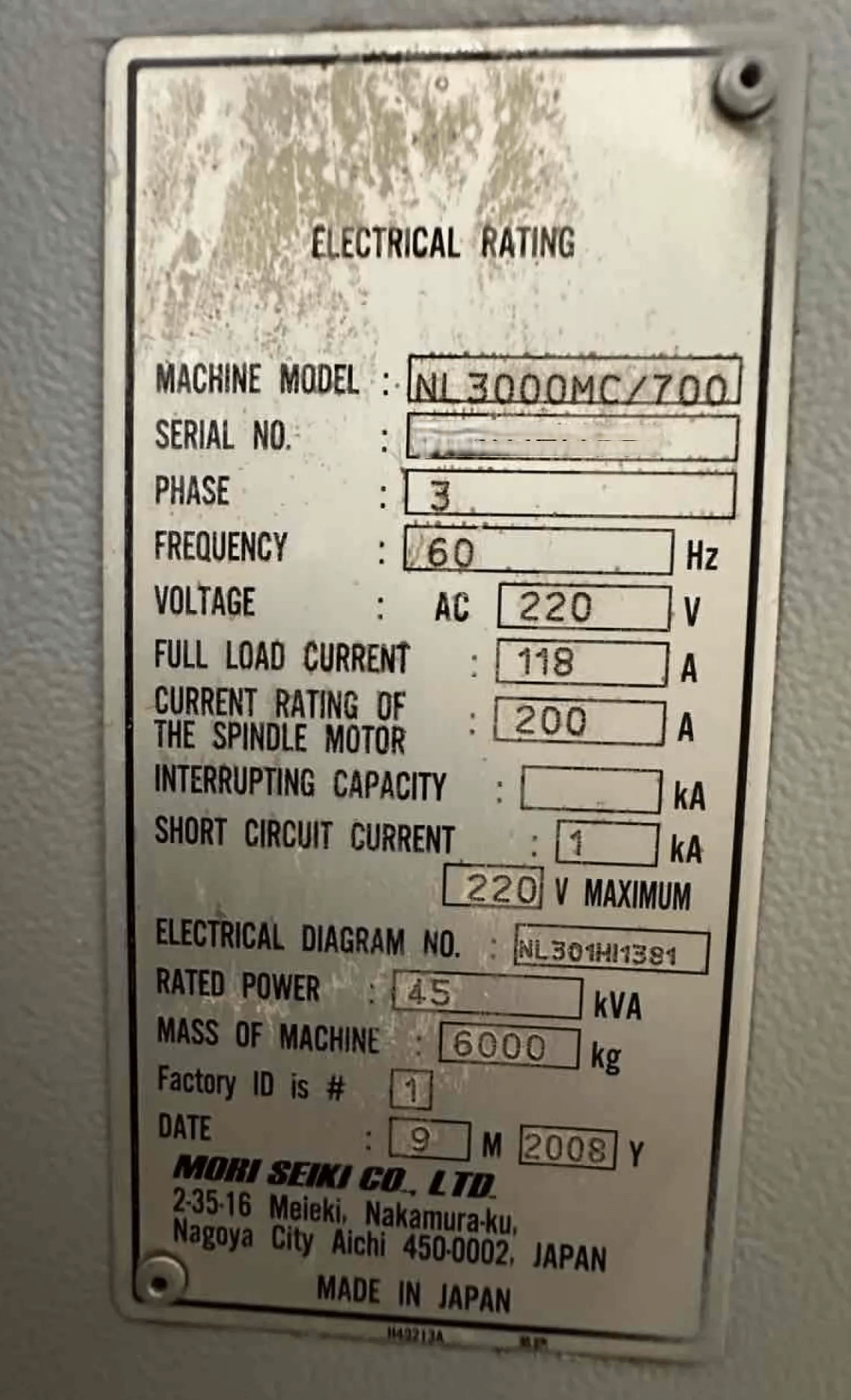

| Electrical: |
|---|
| Voltage: 220V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Rated Power: 45 kVA |
| General: |
|---|
| Machine Weight: Approx. 13,200 Lbs |
| Overall Dimensions: Approx. 165″ x 78″ x 84″ |
| Made In: Japan |
