*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mori Seiki |
| Model: | NT4250/1500SZ |
| Year: | 2006 |
| Machine Type: | CNC Lathe / Turning Center |

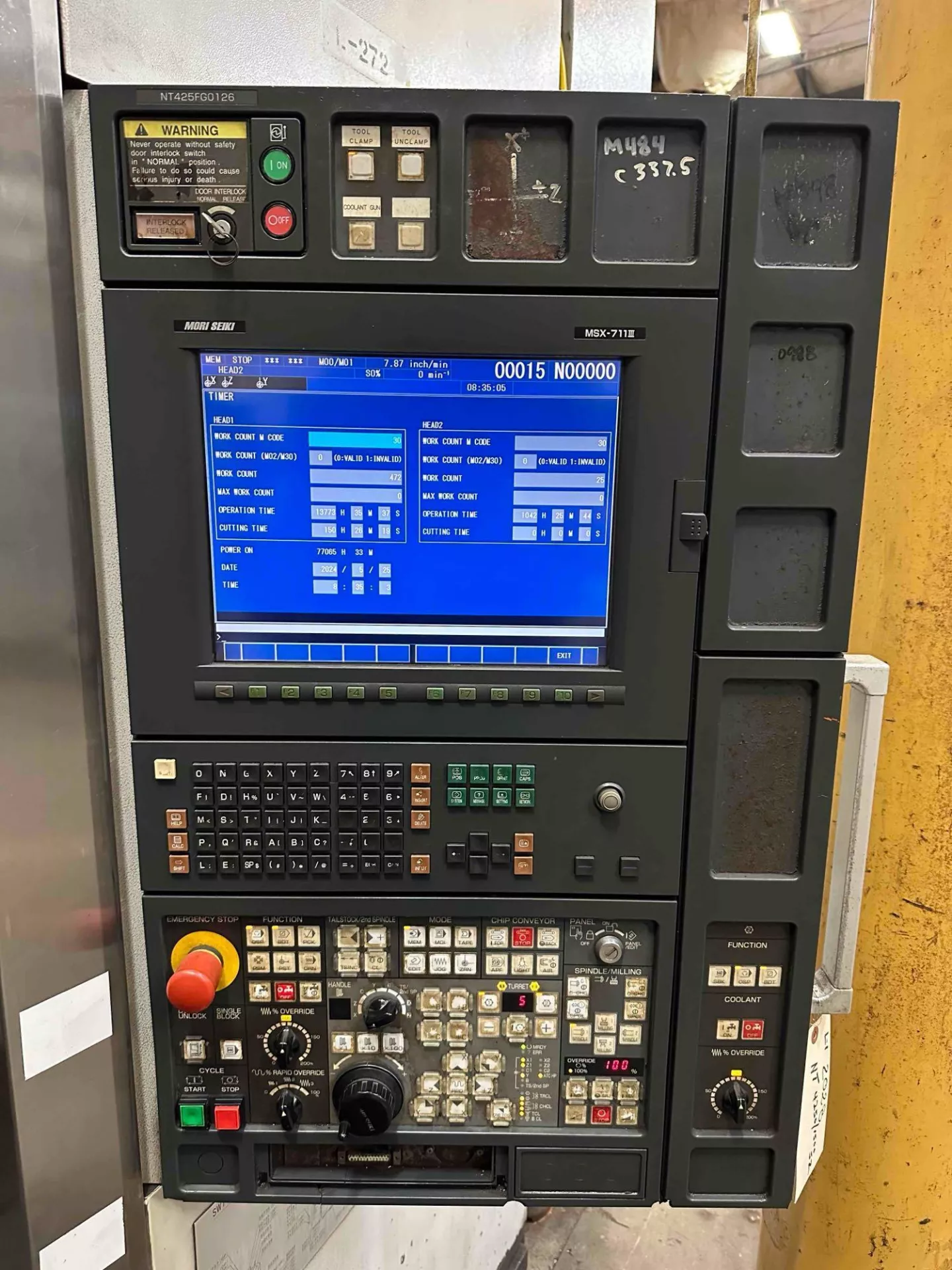

| Control: | Mori Seiki MSX-711 III CNC Control |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| 12″ Chuck on Main Spindle |
| 12″ Chuck on Sub Spindle |
| Capto C6 Milling Spindle |
| 12,000 RPM Milling Spindle |
| B-Axis +/- 120 Degrees |
| 40 Station Automatic Tool Changer |
| Lower Turret |
| High-Pressure Coolant System |
| CoolJet Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Capacity: |
|---|
| Distance Between Centers: 73″ |
| Maximum Turning Length: 60″ |
| Main Chuck Size: 12″ |
| Sub Chuck Size: 12″ |
| Spindles: |
|---|
| Main Spindle Speed: 4,000 RPM |
| Sub Spindle Speed: 4,000 RPM |
| Main Spindle Motor: 30 HP |
| Sub Spindle Motor: 30 HP |
| Milling Spindle Speed: 12,000 RPM |
| Tool Interface: Capto C6 |
| B-Axis: |
|---|
| B-Axis Range: +/- 120 Degrees |
| Automatic Tool Changer: |
|---|
| 40 Station Automatic Tool Changer |
| Lower Turret Included |

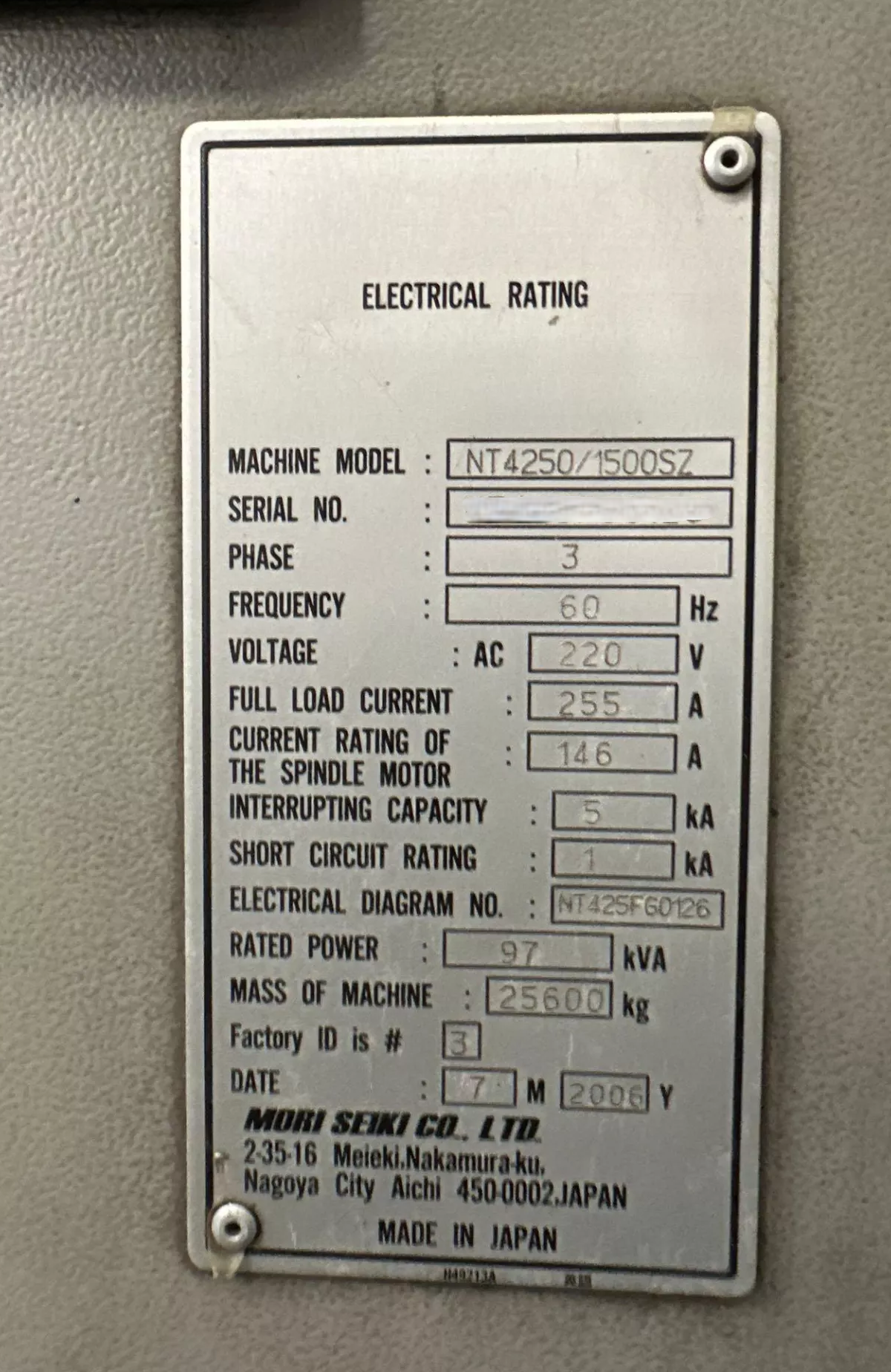

| Electrical: |
|---|
| Voltage: 220V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Rated Power: 97 kVA |
| General: |
|---|
| Machine Weight: Approx. 56,400 Lbs |
| Overall Dimensions: Approx. 260″ x 120″ x 130″ |
| Made In: Japan |
