*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2278 |

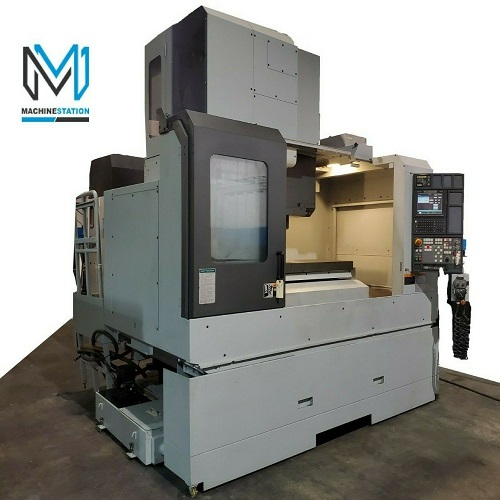

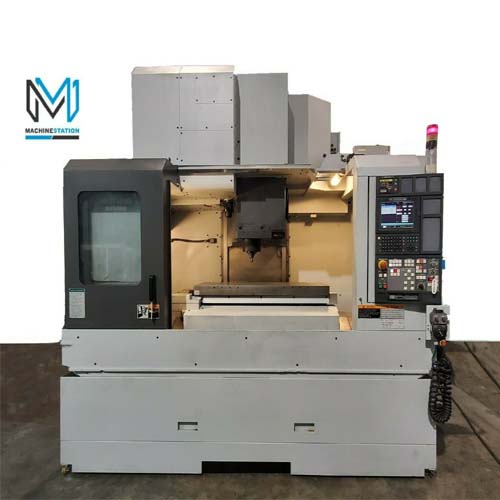

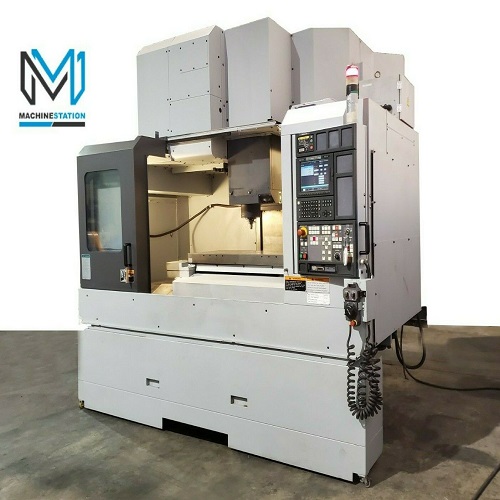

| Make: | Mori Seiki |
| Model: | NV-5000B |
| Serial: | 1230 |
| Year: | 2004 |
| Condition: | Very Good |
| Running Hours: | 6589 |
| Equipped With: |
|---|

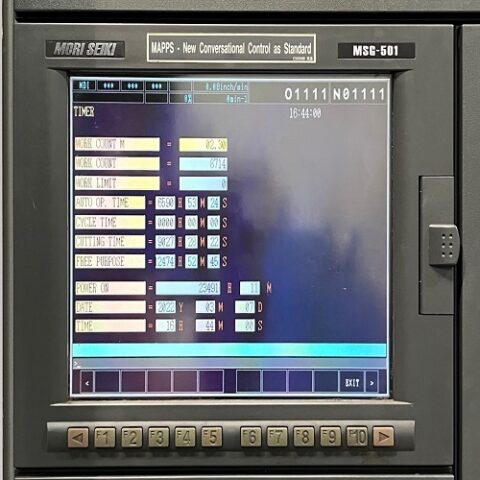

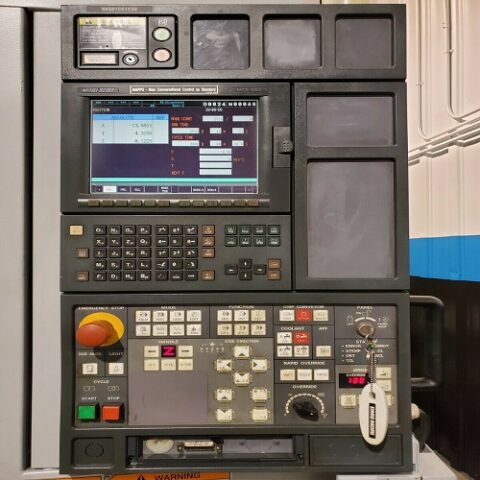

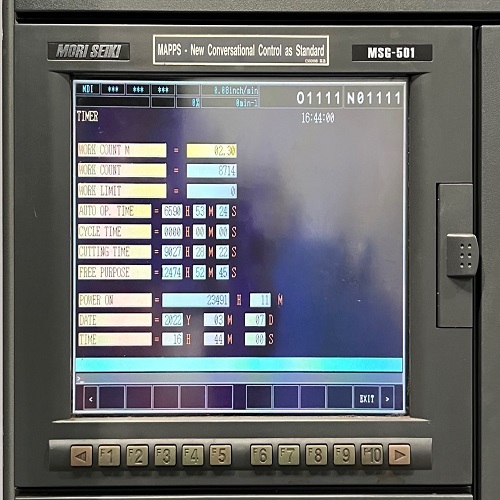

| MSG 501 ( FANUC 18iM ) CNC Control |
| MAPPS Conversational Control |
| 5 Axis MPG Control |
| 40 Taper 12000 RPM Spindle |
| Thru Spindle Coolant Ready (Needs Pump) |
| 30 Tools Side Mount Bidirectional Tool Changer |
| Powerful 50 HP high torque Spindle Motor |
| Spindle Orientationt |
| Rigid Tapping |
| Coolant System with tank |
| Books & Manuals |
| Travels: |
|---|
| X-Axis: 40.5″ |
| Y-Axis: 20.1″ |
| Z-Axis: 20.1″ |
| Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″ |

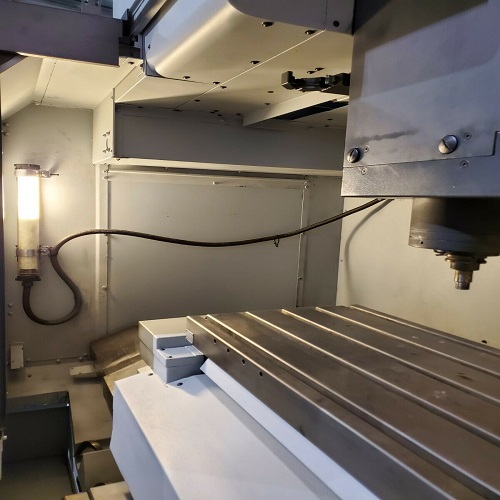

| Table: |
|---|
| Length: 52.31″ |
| Width: 23.62″ |
| Max Weight on Table: 2600 lbs |
| Spindle: |
|---|
| Taper Size: BT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 50 HP |
| Feed Rate: |
|---|
| Rapid X, Y & Z: 1653 inch/PM |
| Cutting Feed rate: 630 inch/PM |
| Automatic Tool Changer: |
|---|
| 40 Taper |
| Capacity: 30 |
| Max Tool Weight: 33 lbs |
| Max Tool Length: 11.8″ |
| Max Tool Dia: 5.2″ |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 205-220v / 66FLA / 3-Phase |
| Overall Dimensions: 120″ L X 102″ W X 120″ High |
| Weight: 22000 lbs |
