*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mori Seiki |
| Model: | NV7000/50 |
| Year: | 2010 |
| Condition: | Used – Good |
| Machine Type: | Vertical Machining Center (VMC) |
| Control: | Mori Seiki MSX-701 IV CNC Control |
| Country of Origin: | Japan |
| Features: |
|---|
| Mori Seiki MSX-701 IV CNC Control |
| 30″ x 67″ Table |
| CAT 50 Spindle Taper |
| 10,000 RPM Spindle |
| 30 Position Automatic Tool Changer |
| 40 HP Spindle Motor |
| MORI DDRT-400 4th Axis Rotary Table |
| 16″ 3 Jaw Chuck Installed |
| 4.5″ Through Bore on 4th Axis |
| High Pressure Coolant System |
| Left Discharge Chip Conveyor |
| Coolant Tank |
| Full Enclosure |
| Capacity: |
|---|
| Table Size: 30″ x 67″ |
| Maximum Table Load: Approx. 3,300 Lbs |
| X-Axis Travel: Approx. 60″ |
| Y-Axis Travel: Approx. 30″ |
| Z-Axis Travel: Approx. 28″ |
| Spindle Nose to Table: Approx. 7.9″ – 35.8″ |

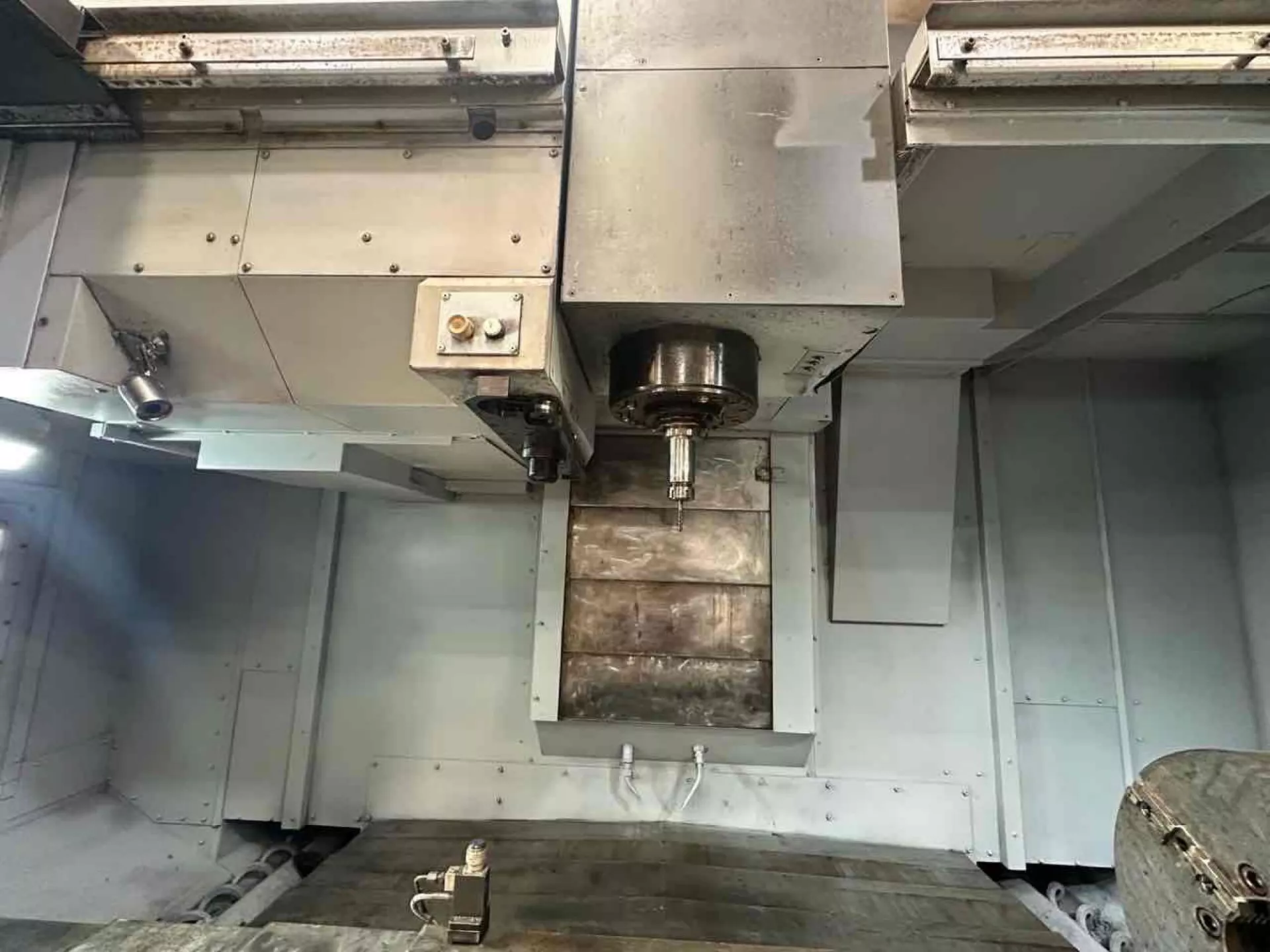

| Spindle: |
|---|
| Spindle Taper: CAT 50 |
| Spindle Speed: 10,000 RPM |
| Spindle Motor: 40 HP |
| Spindle Cooling System |
| Rigid Tapping |
| Automatic Tool Changer: |
|---|
| 30 Position Automatic Tool Changer |
| Maximum Tool Diameter: Approx. 5.1″ |
| Maximum Tool Length: Approx. 15.7″ |
| Maximum Tool Weight: Approx. 44 Lbs |
| 4th Axis Rotary Table: |
|---|
| MORI DDRT-400 Rotary Table |
| 16″ 3 Jaw Chuck Installed |
| Through Bore Capacity: 4.5″ |
| Full 4th Axis Contouring Capability |

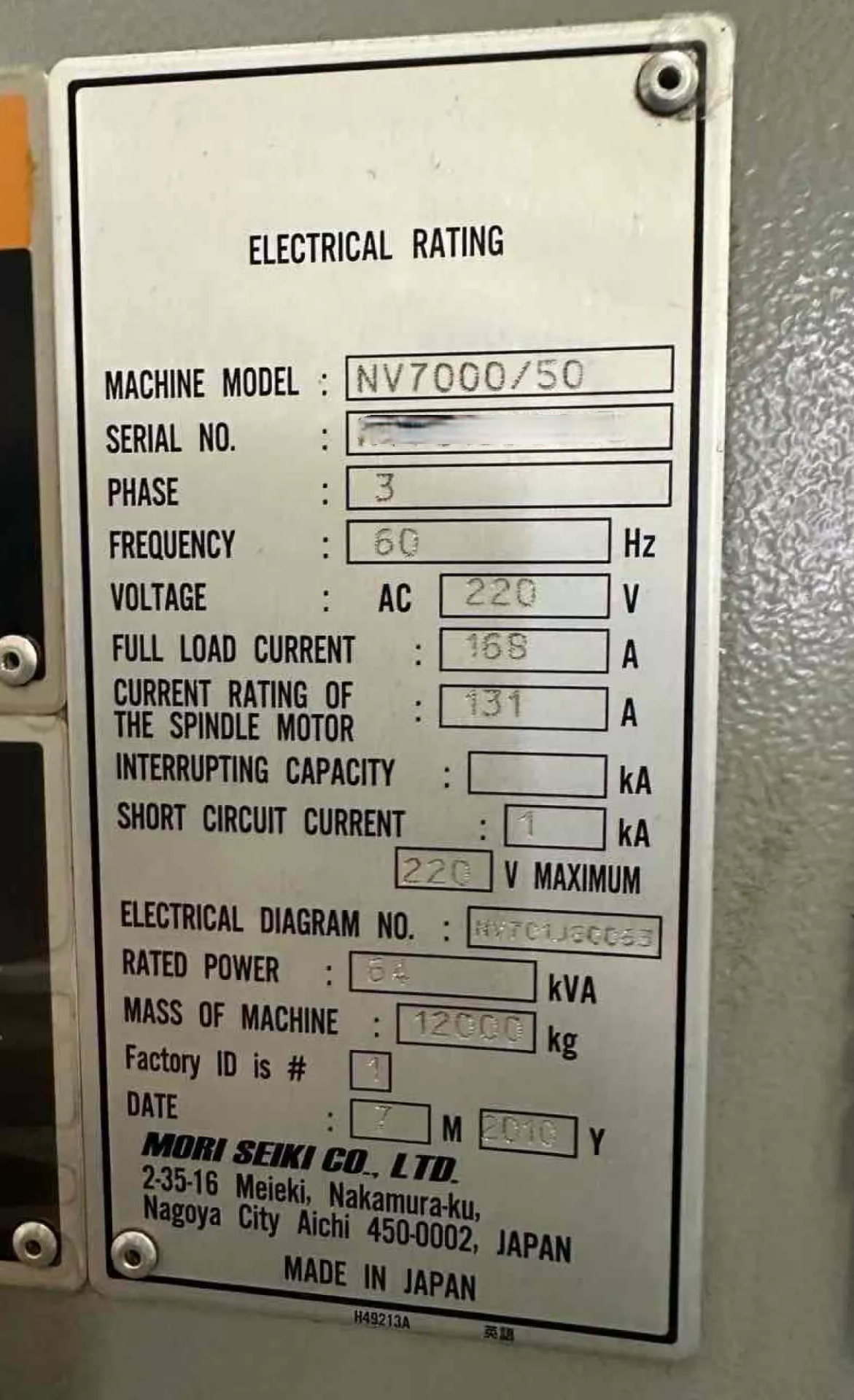

| Electrical: |
|---|
| Voltage: 220V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Rated Power: Approx. 60 kVA |
| General: |
|---|
| Machine Weight: Approx. 33,000 Lbs |
| Overall Dimensions: Approx. 190″ x 135″ x 125″ |
| Made In: Japan |
