*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

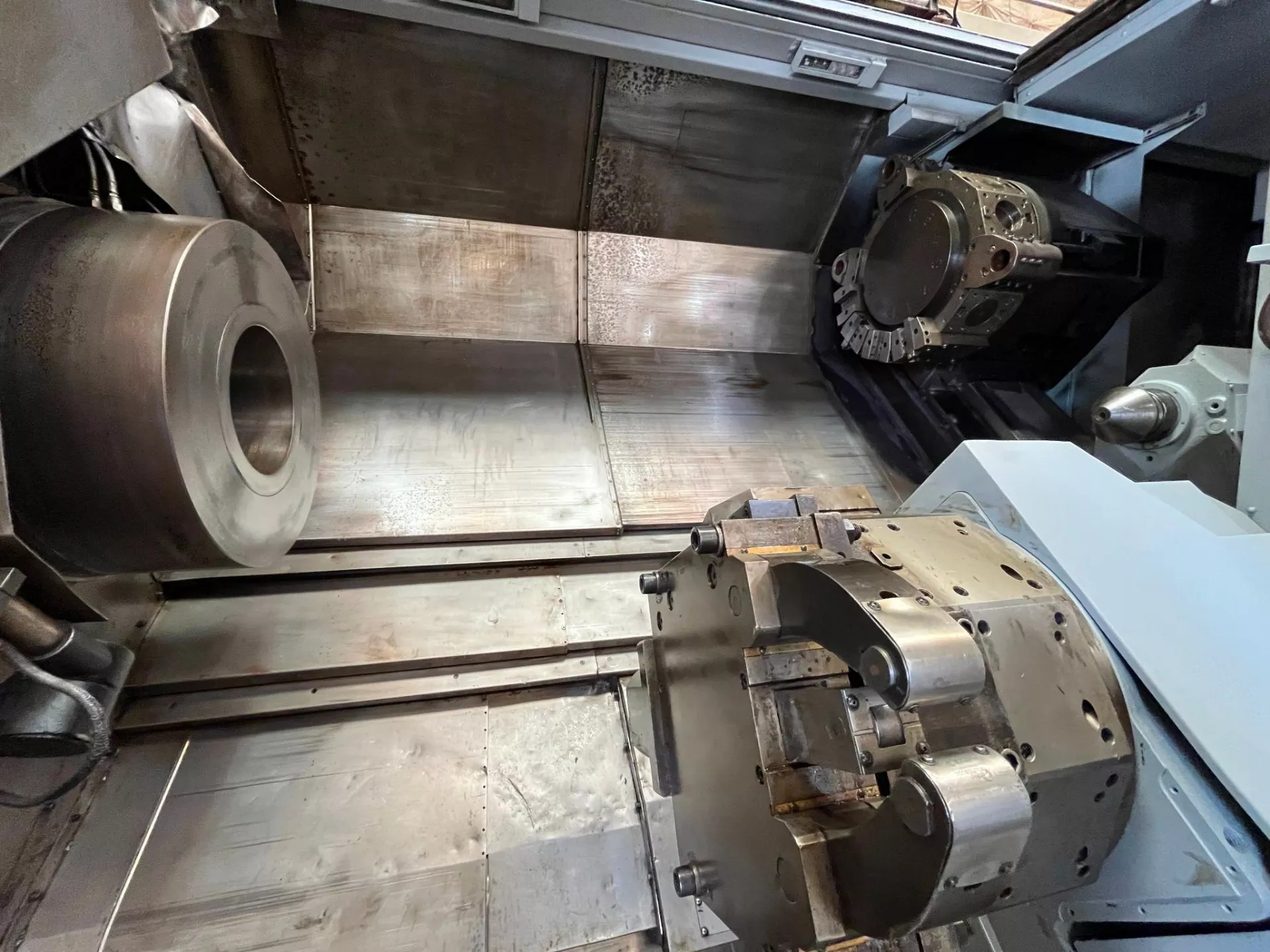

| Make: | Mori Seiki |
| Model: | NZL6000CY/2000 |
| Year: | 2009 |
| Machine Type: | CNC Lathe / Turning Center |
| Control: | Mori Seiki MSX-853 III CNC Control |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| Upper 12 Position Live Tool Turret with Y-Axis |
| Lower 10 Position Turret |
| 24″ ATS BT 10.8 ES Air Chuck |
| Extended Stroke Front Chuck |
| 22″ Kitagawa UBR560 Rear Air Chuck |
| SMW Steady Rest Mounted on Lower Turret |
| Hydraulic Tailstock |
| Marposs Probe |
| Tool Presetter |
| Auto Door |
| LNS Turbo HB Chip Conveyor |
| Coolant System |
| Full Enclosure |
| Capacity: |
|---|
| Maximum Turning Length: 80″ |
| Bar Capacity: 10.8″ |
| Main Chuck Size: 24″ |
| Rear Chuck Size: 22″ |
| Front Chuck Through Hole: 10.8″ |
| Rear Chuck Through Hole: 10.8″ |
| Travels: |
|---|
| Y-Axis Capability: Yes |
| Upper Turret: Live Tooling with Y-Axis |
| Turrets: |
|---|
| Upper Turret: 12 Position Live Tool Turret |
| Lower Turret: 10 Position Turret |
| Live Tool Capability: Yes |
| Y-Axis Capability: Yes |
| Tailstock: |
|---|
| Hydraulic Programmable Tailstock |
| Steady Rest: |
|---|
| SMW Steady Rest Mounted on Lower Turret |
| General: |
|---|
| Chip Conveyor: LNS Turbo HB |
| Machine Weight: Approx. 45,000 Lbs |
| Overall Dimensions: Approx. 300″ x 120″ x 120″ |
| Made In: Japan |
