Mori Seiki SH-503/40 CNC Horizontal Machining Center – 4th Axis, Dual Pallet, 12K RPM
Out of stock
| SKU: | 11267 |
| Make/Model: | Mori Seiki SH-503/40 |
| Year: | 2000 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mori Seiki |
| Model No.: | SH-503/40 |
| Year of Manufacture: | 2000 |
| Condition: | Used |
| Machine Type: | CNC Horizontal Machining Center (HMC) |

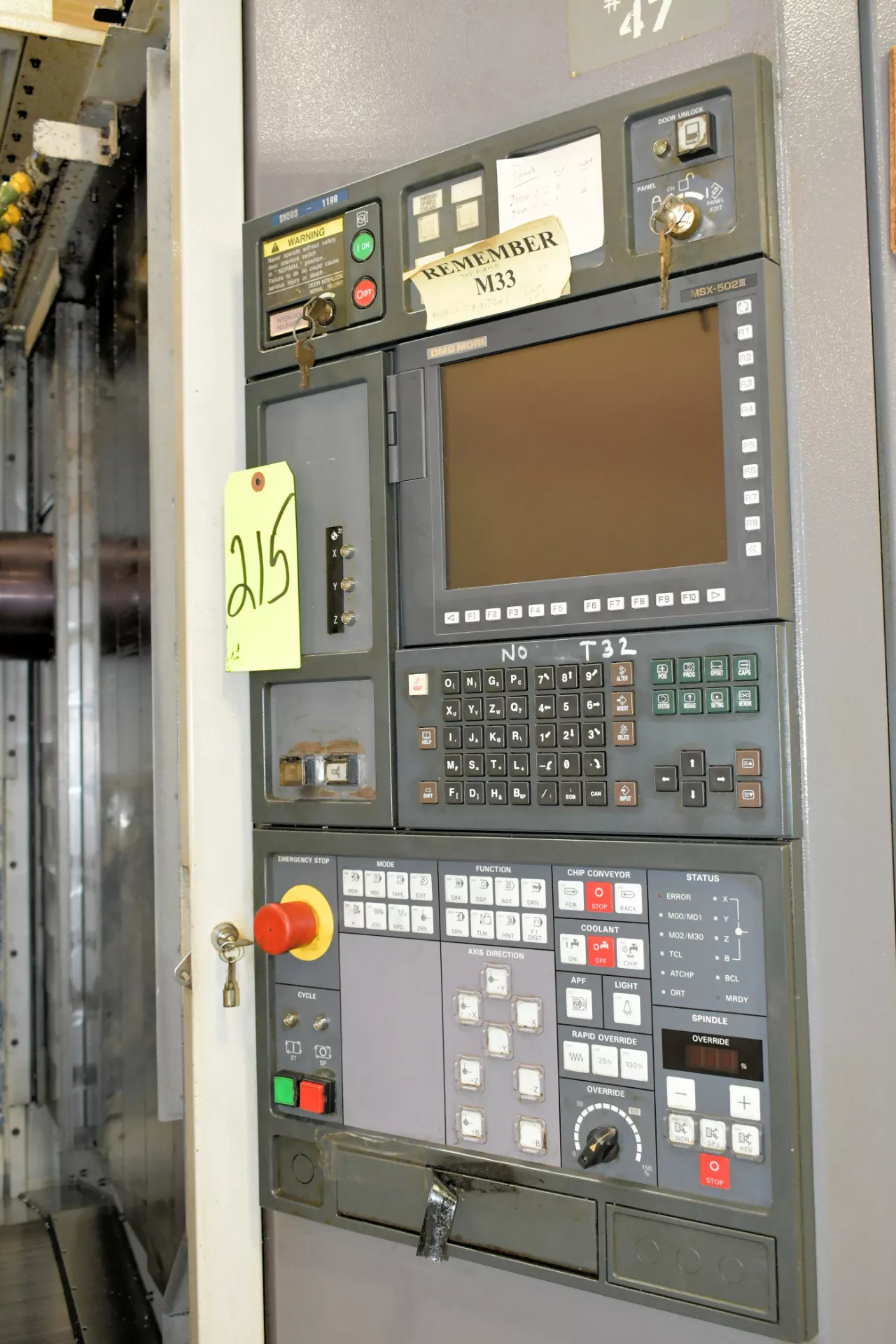

| CNC Control: | Fanuc MSG-502 (MAPPS) |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| Dual Pallet Automatic Pallet Changer (APC) |
| Full 4th Axis Rotary Table |
| Fanuc MSG-502 / MAPPS CNC Control |
| Through-Spindle Coolant (~213 PSI) |
| Rigid Tapping Capability |
| Automatic Tool Length Measurement |
| 40 Station Automatic Tool Changer |
| Chip Conveyor System |
| Helical Interpolation |
| Multiple Work Offsets & Tool Offsets |
| Hydraulic Pallet Clamping System |
| Remote Jog / Handwheel |
| Fully Enclosed Splash Guard |
| Heavy-Duty Cast Iron Construction |
| Capacity: |
|---|
| Pallet Size: 19.7″ × 19.7″ (500 × 500 mm) |
| Number of Pallets: 2 (APC) |
| Max Pallet Load: ~2,200 lbs (1,000 kg) |
| B-Axis Indexing: 1° (Full 4th Axis) |
| Max Workpiece Diameter: 28.7″ (729 mm) |
| Max Workpiece Height: 27.6″ |
| Travels: |
|---|
| X-Axis Travel: 24.8″ (630 mm) |
| Y-Axis Travel: 23.6″ (600 mm) |
| Z-Axis Travel: 25.6″ (650 mm) |
| Rapid Traverse: ~1,650 IPM (~32 m/min) |
| Cutting Feed Rate: Up to 1,650 IPM |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Taper: CAT 40 |
| Spindle Motor: 30 HP (22 kW) |
| Tooling System: |
|---|
| Tool Capacity: 40 Tools |
| Tool Change Time: ~1.3 sec (tool-to-tool) |

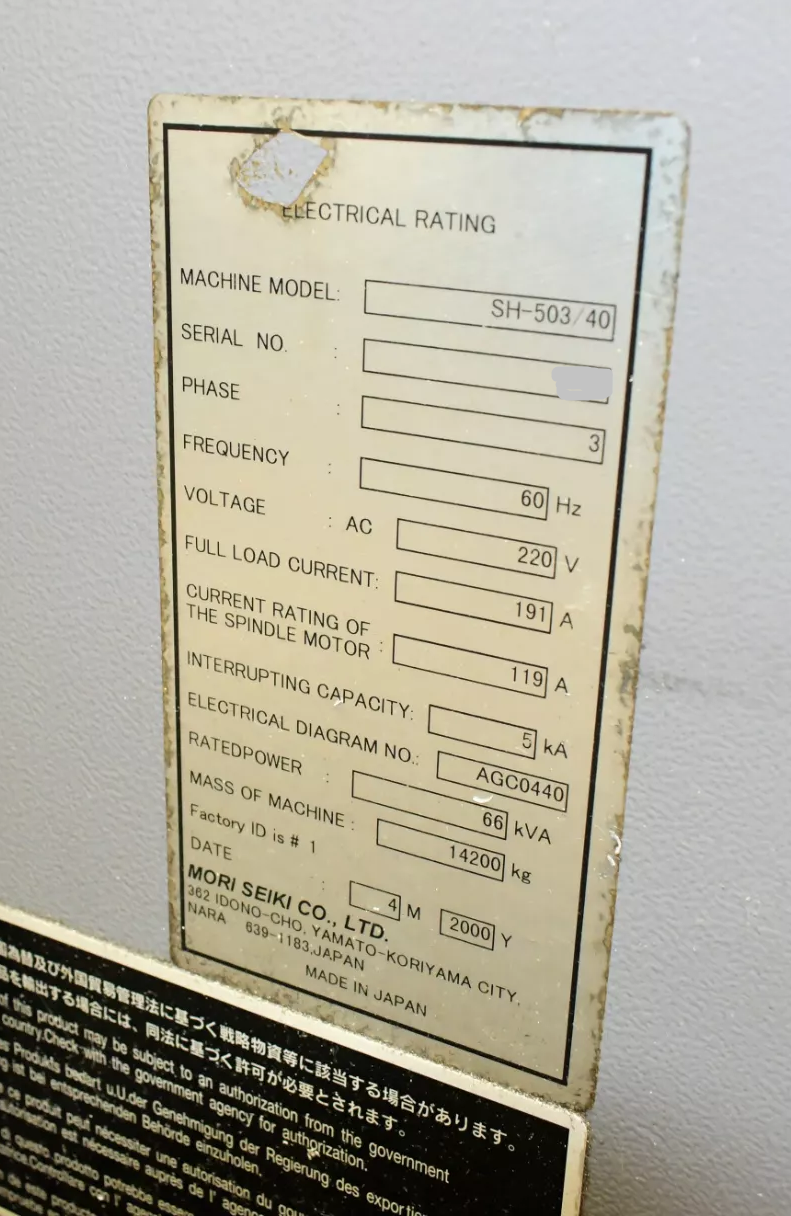

| Electrical: |
|---|
| Voltage: 220V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Full Load Current: 191 Amps |
| Spindle Motor Current: 119 Amps |
| Power Requirement: ~50–66 kVA |
| General: |
|---|
| Machine Weight: ~33,800 lbs (15,300 kg) |
| Categories | CNC Horizontal Machining Center |
|---|---|
| Make | |
| Model | SH-503/40 |
