All specifications are approximations and are subject to verification.
| Equipped With: |

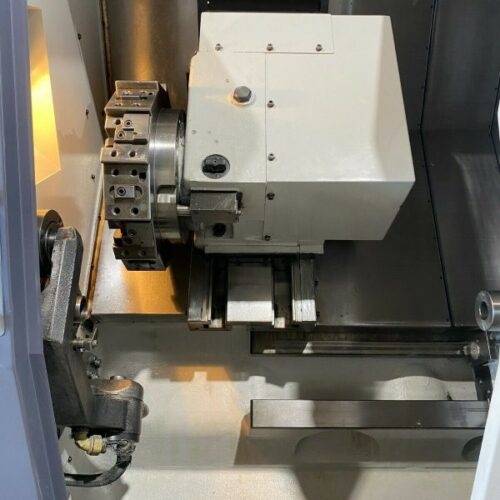

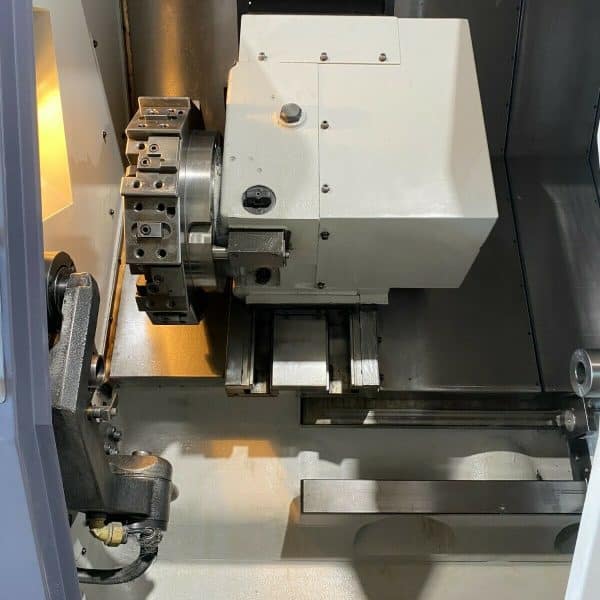

| 10 -Station Turret with Tool Holders |

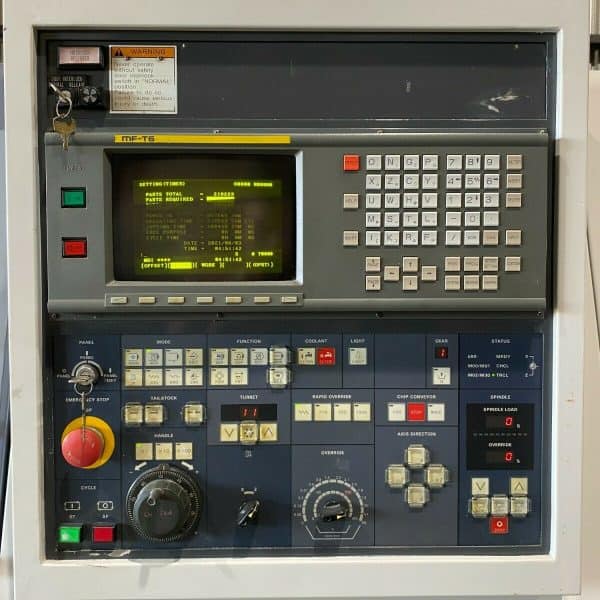

| MF-T6 (Fanuc 16T) CNC Control |
| 3 Jaw 8″ Hydraulic Chuck |
| 2 Step gear spindle for powerful torque |
| Hydraulic Tailstock with Power Quill |
| Foot Switch |
| Chip Pan |
| Coolant System |
| Automatic Lubrication system |
| Specifications: |
| Capacity: |
| Max Turning Diameter: 8.3″ |
| Max Turning Length: 20.7″ |
| Max Bar Capacity: 1.65″ |
| Swing Over Slide: 11.8″ |
| Swing Over Bed: 17.7″ |
| Distance Between Centers: 23.4″ |
| Travel: |
| X Axis Travel: 5.3″ |
| Z Axis Travel: 22.2″ |
| Rapid Traverse X Axis: 790 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
| Spindle Nose: A2-5 |
| Spindle Bore: 2.1″ |
| Spindle Speed: 5000 RPM |
| Spindle Motor: 20 HP |
| Turret: |
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Tailstock: |
| Tailstock Body Travel: 17.3″ |
| Tailstock Quill Dia.: 3.0″ |
| Tailstock Quill Stroke: 3.1″ |
| Tailstock Taper: MT-4 |
| General: |
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Overall Dimensions: 110″ x 70″ x 80″ High |
| Overall Dimensions: 130″ x 70″ x 80″ High with Chip Conveyor |
| Weight : 7500 lbs Approx. |
