*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2255 |

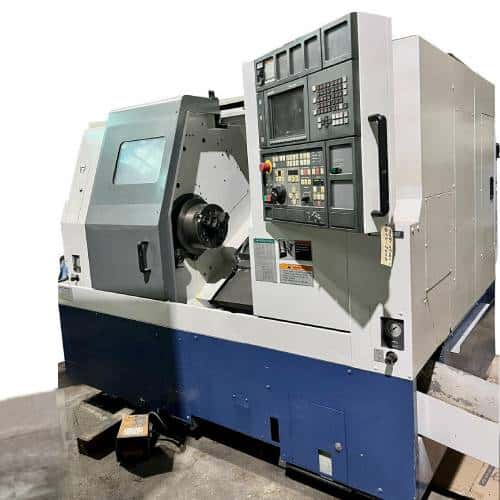

| Make: | Mori Seiki |
| Model: | SL250B |
| Condition: | Very Good |
| Equipped With: |
|---|

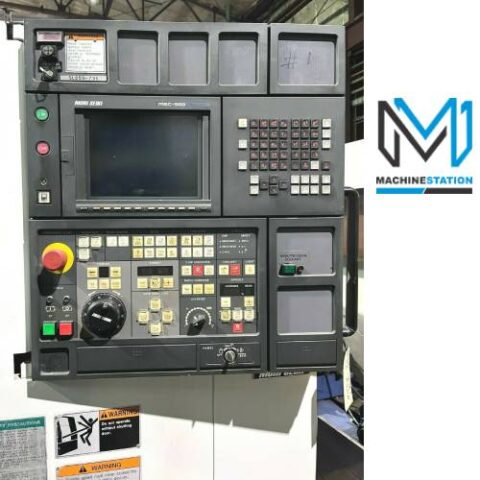

| Fanuc MSC-500 CNC Control |

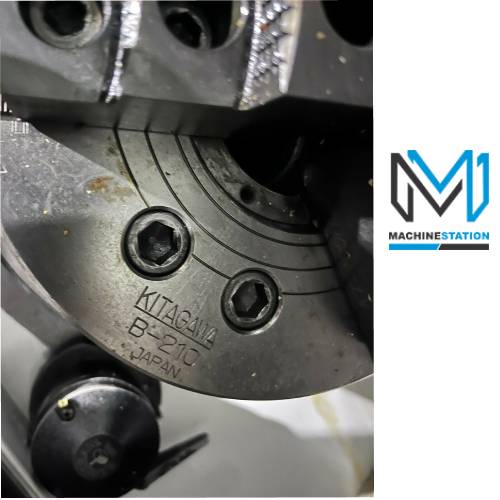

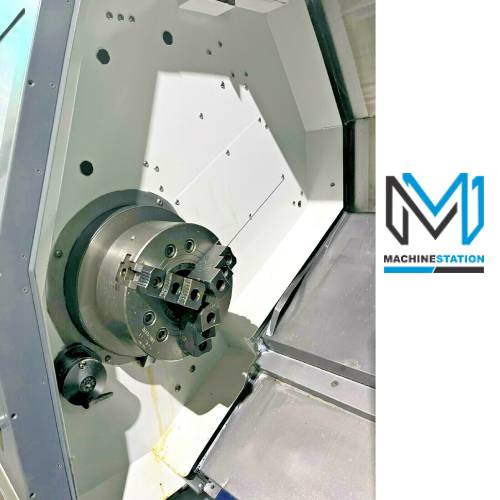

| 10″ 3-Jaw Kitagawa Hydraulic Chuck |

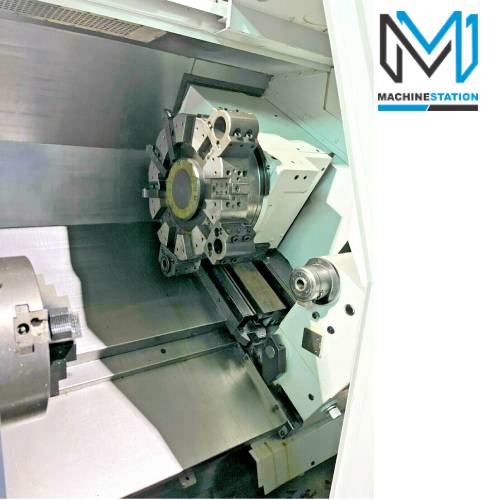

| 10-Station Turret with Tools |
| Tool Presetter |
| 2 Step Gear Spindle for Powerful Torque |
| Hydraulic Tailstock with Power Quill |
| Chip Pan |
| Coolant System |
| Automatic Lubrication System |
| Foot Operated Control |
| Capacity: |
|---|
| Max Turning Diameter: 15.35″ |
| Max Turning Length: 19.9″ |
| Max Bar Capacity: 2.65″ |
| Swing Over Cross Slide: 20.08″ |
| Swing Over Bed: 26.77″ |
| Distance Between Centers: 22.64″ |
| Tailstock: |
|---|
| Tailstock Body Travel: 19.29″ |
| Tailstock Quill Dia.: 3.34″ |
| Tailstock Quill Stroke: 4.72″ |
| Tailstock Taper: MT-5 |
| Travels: |
|---|
| X Axis Travel: 9.25″ |
| Z Axis Travel: 19.49” |
| Rapid Traverse X Axis: 790 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.1″ |
| Spindle Speed: 35-3500 RPM |
| Spindle Motor: 20 HP |
| Turret: |
|---|
| Turret Capacity: 10 Stations |
| Turret Index Time: 0.5 Second |
| General: |
|---|

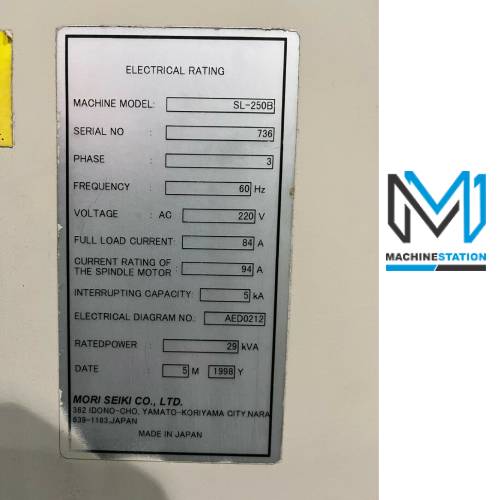

| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 35 kva |
| Overall Dimensions: 94.69″ x 69.29″ x 74.21″ High |
| Weight : 10120 lbs Approx. |
