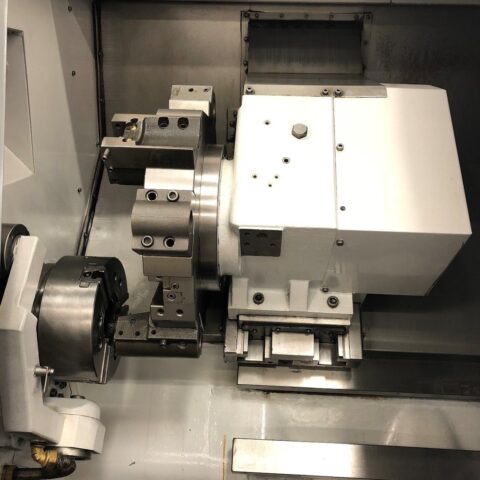

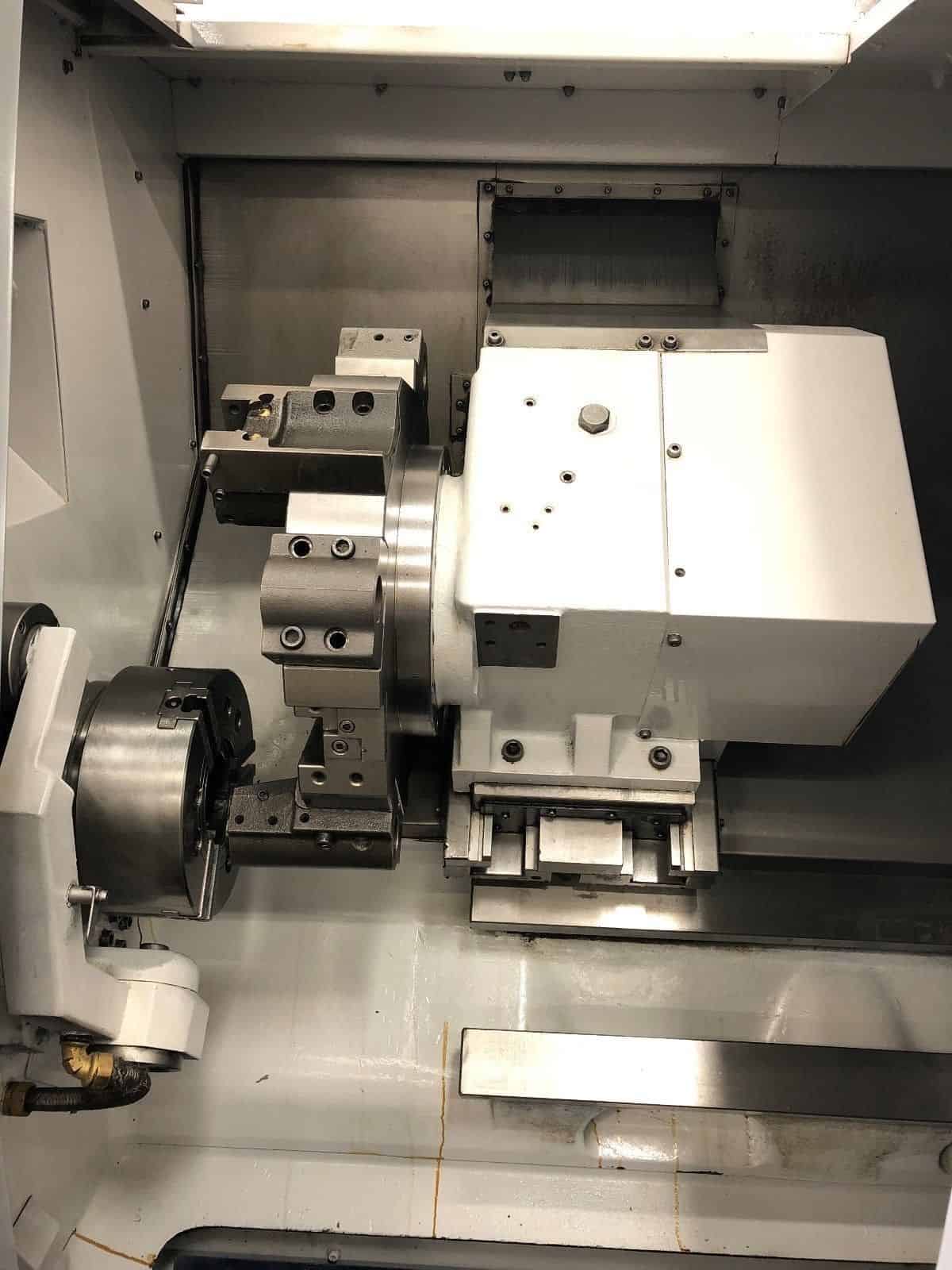

Mori Seiki SL-25B/500 CNC Turning Center

Out of stock
Compare
SKU: 1558
MORI SEIKI SL-25B/500 CNC TURNING CENTER
Make Mori Seiki
Model No. SL-25B/500
Country of Origin: Japan
Serial # 6323
Condition Very Good
  • MORI SEIKI SL-25B/500 CNC Equipped With:
  • 10-Station Turret with Tools

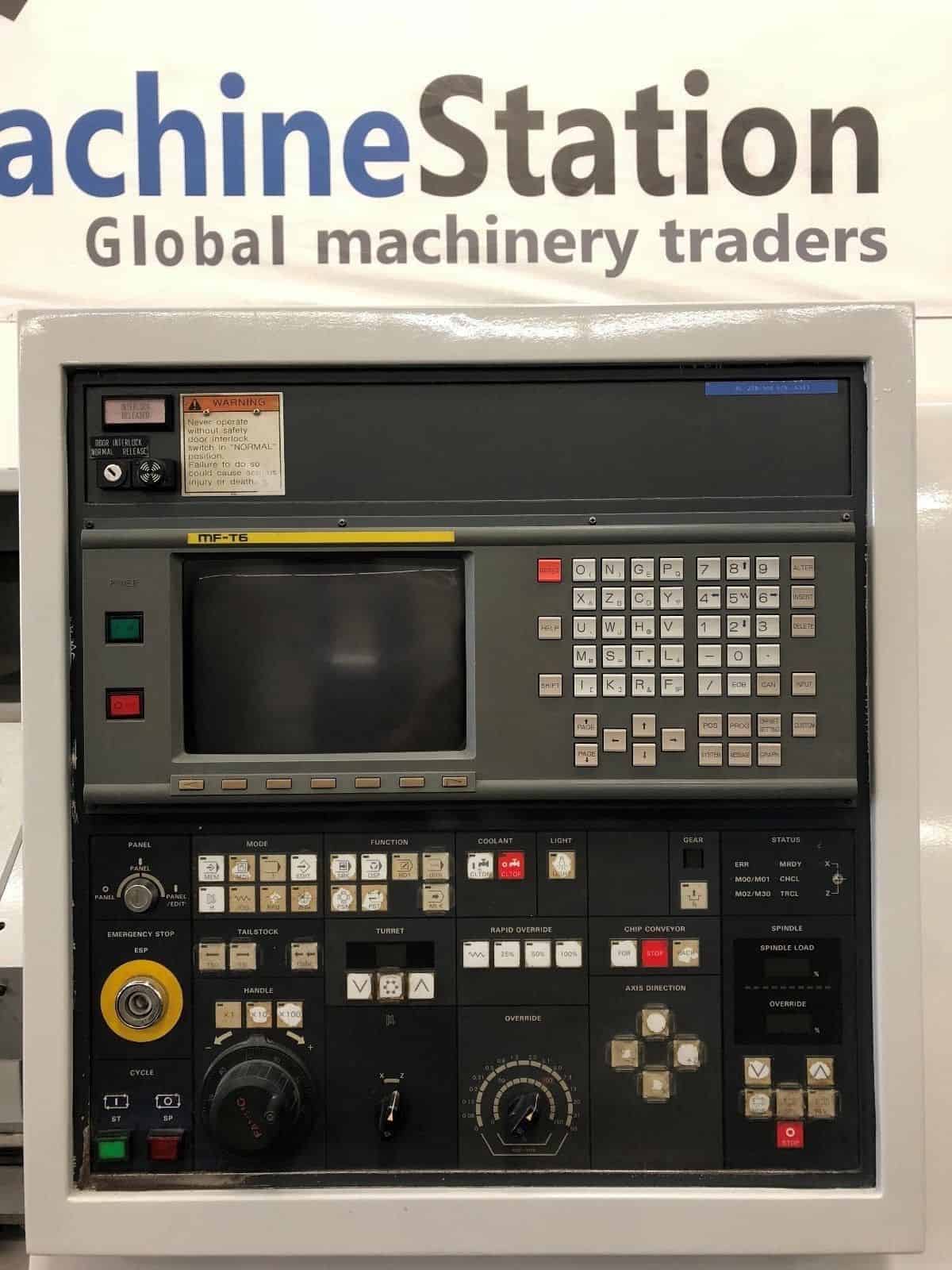

  • MF-T6 (Fanuc 16T) CNC Control
  • 10″ 3-Jaw Kitagawa Hydraulic Chuck
  • 2 Step gear spindle for powerful torque
  • Hydraulic Tailstock with Power Quill
  • Chip Pan and Chip Conveyor
  • Coolant System.
  • Automatic Lubrication system
  • Foot Operated Control for Chuck
  • Original Books and Manuals
  • General:
  • Power Source: AC 220 V, Three Phase, 60 Hz
  • Power Requirement: 68 Amps
  • Overall Dimensions: 110″ x 68″ x 80″ High
  • Overall Dimensions: 150″ x 68″ x 80″ High with Chip Conveyor
  • Weight : 12000 lbs Approx.
  • MORI SEIKI SL-25B/500 CNC Specifications:
  • Max Turning Diameter: 10.2″
  • Max Turning Length: 20.9″
  • Max Bar Capacity: 2.65″
  • Swing Over Slide: 13.8″
  • Swing Over Bed: 22.4″
  • Distance Between Centers: 24.6″
  • X Axis Travel: 6.3″
  • Z Axis Travel: 23.2″
  • Rapid Traverse X Axis: 790 IPM
  • Rapid Traverse Z Axis: 945 IPM
  • Spindle Nose: A2-6
  • Spindle Bore: 3.1″
  • Spindle Speed: 3500 RPM
  • Spindle Motor: 20 HP
  • Turret Capacity: 10 Stations
  • Turret Index Time: 0.5 Second
  • Tailstock Body Travel: 19.3″
  • Tailstock Quill Dia.: 4.33″
  • Tailstock Quill Stroke: 3.93″
  • Tailstock Taper: MT-4
