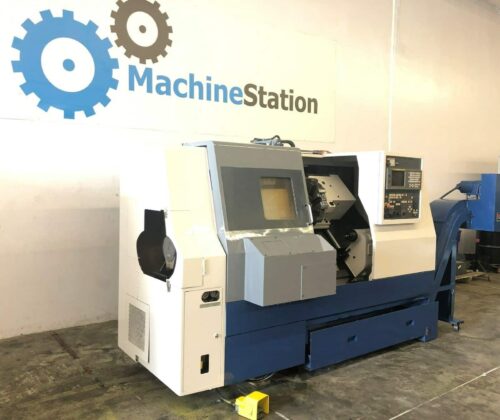

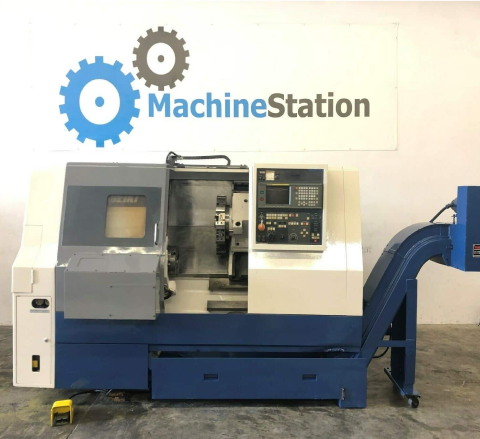

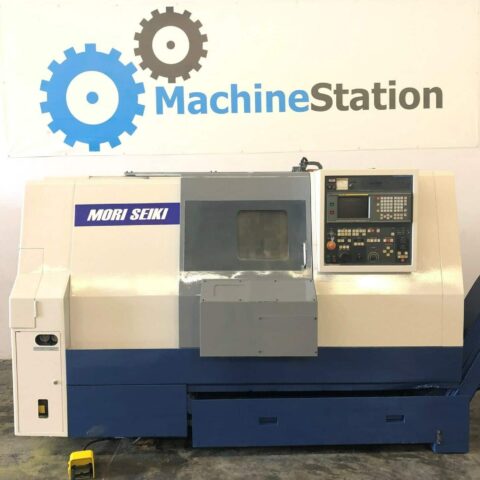

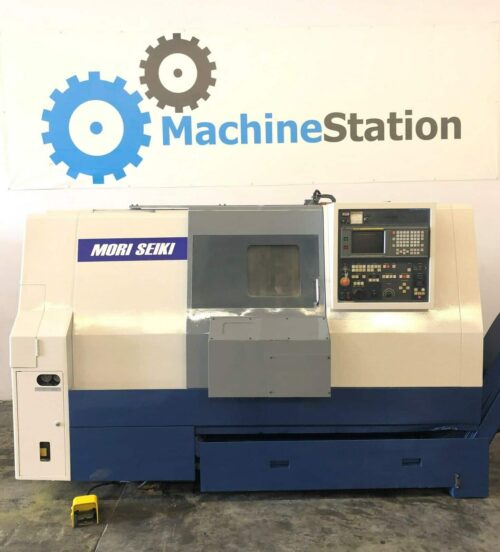

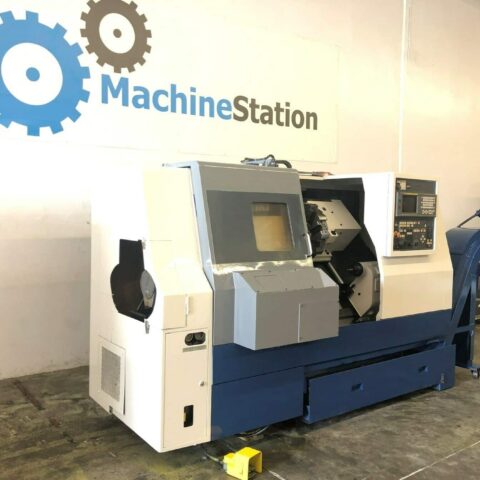

MORI SEIKI SL-25B CNC TURNING CENTER
Make: Mori Seiki
Model No.: SL-25B
Serial No.: 6768
Condition: Very Good
All specifications are approximations, and are subject to verification.

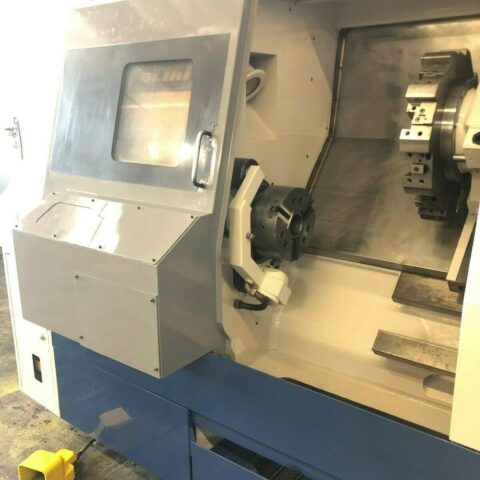

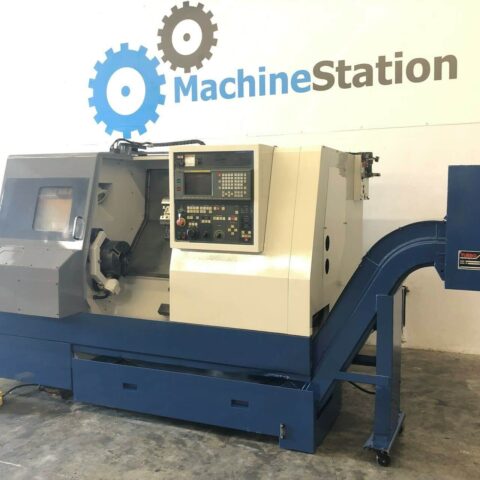

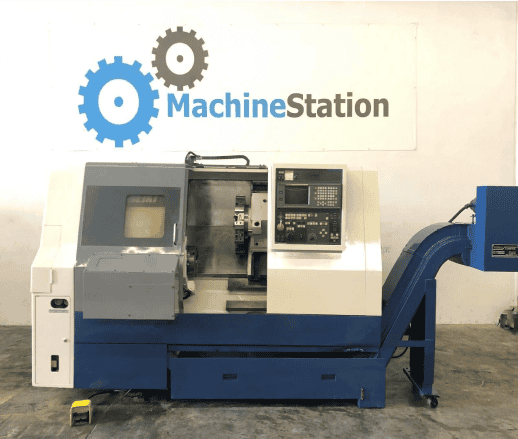

“This machine is in very Good running condition. It is equipped with 10″ Chuck, Tailstock & chip conveyor. On Our Floor fully powered / tested & is in Great working condition.”
MORI SEIKI SL-25B CNC Equipped With:

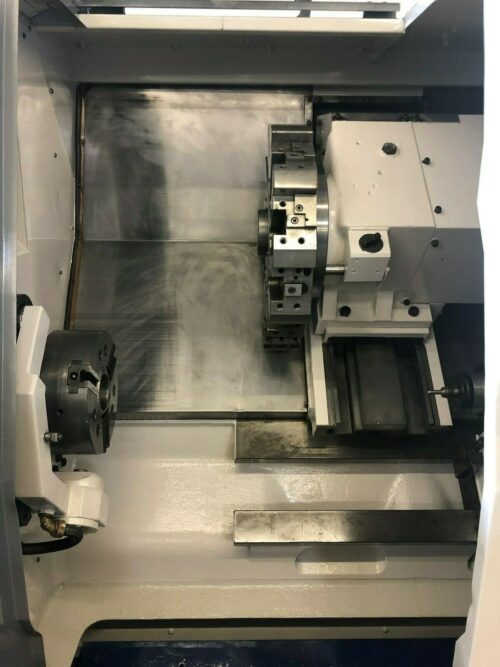

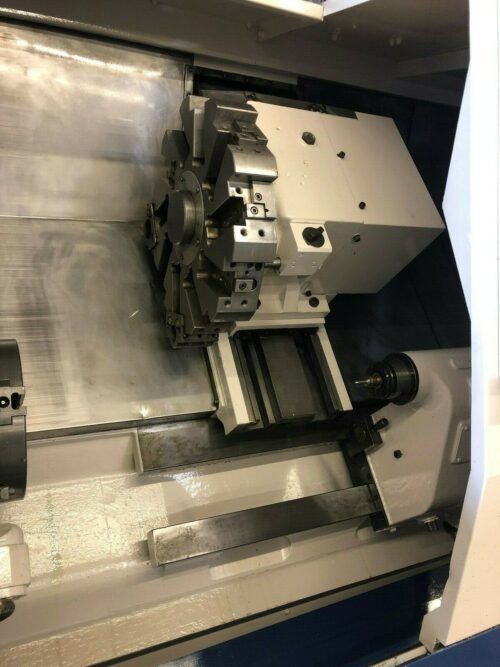

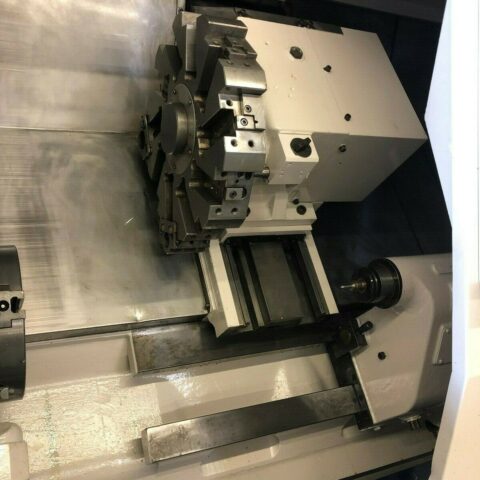

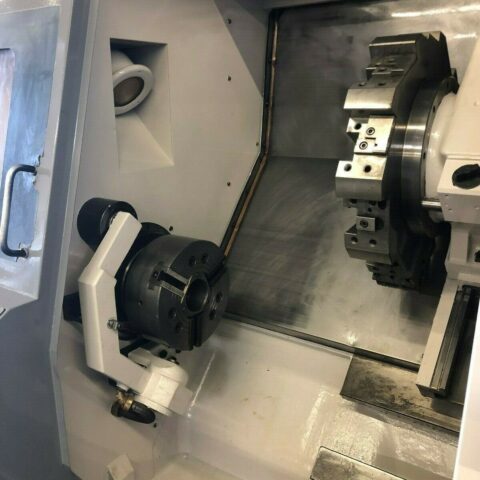

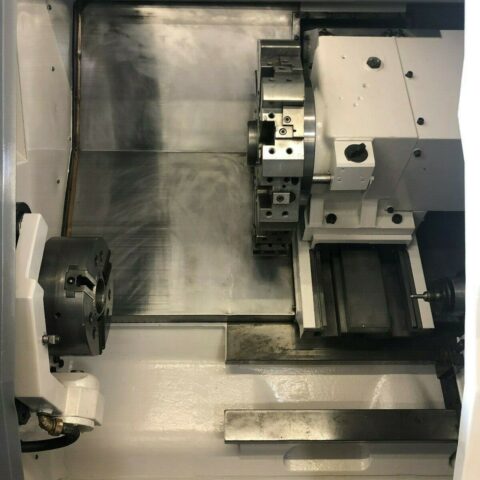

- 10-Station Turret with Tools

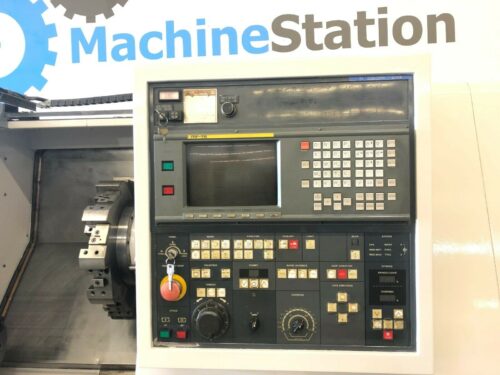

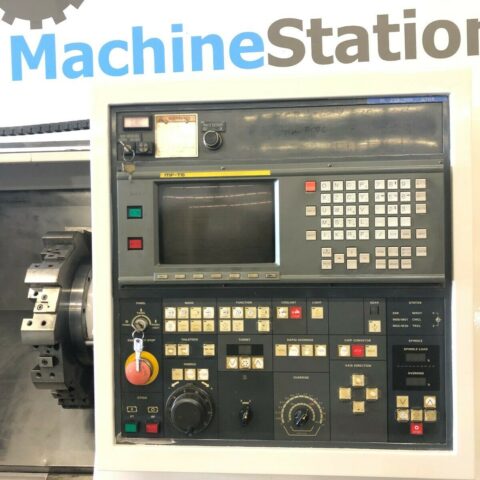

MF-T6 (Fanuc 16T) CNC Control

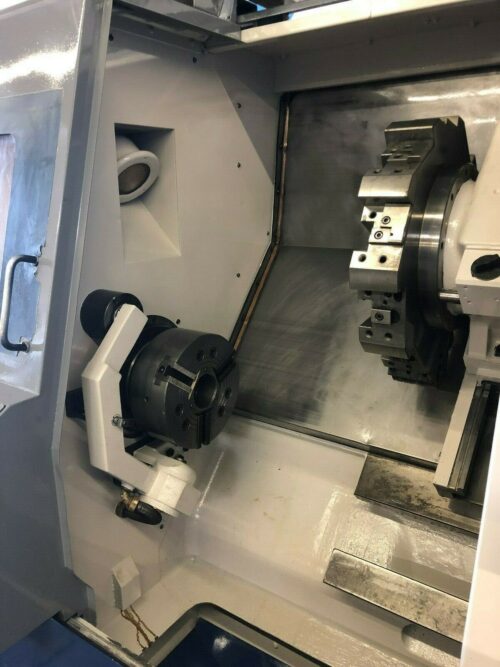

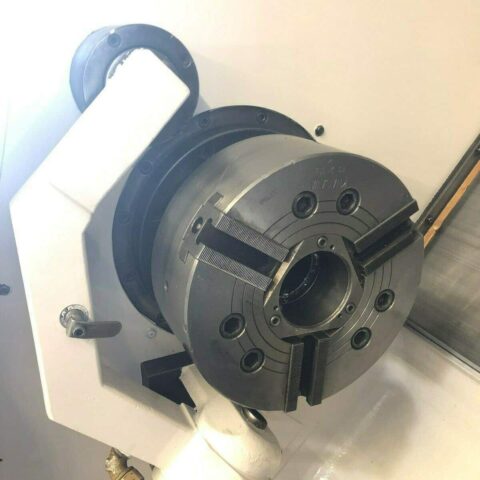

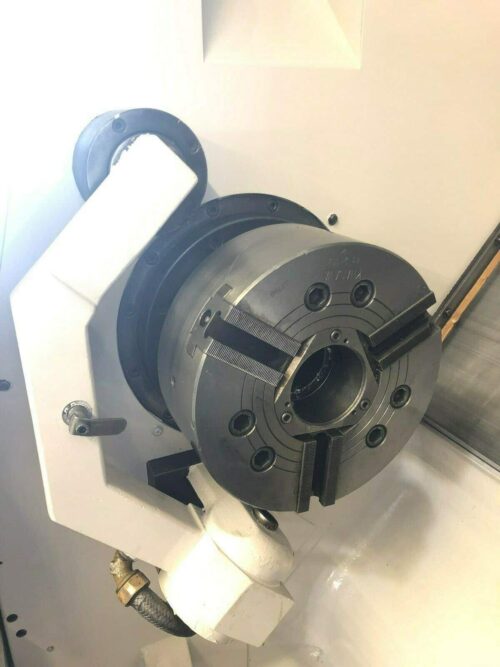

10″ 3-Jaw Kitagawa Hydraulic Chuck
2 Step gear spindle for powerful torque
Hydraulic Tailstock with Power Quill

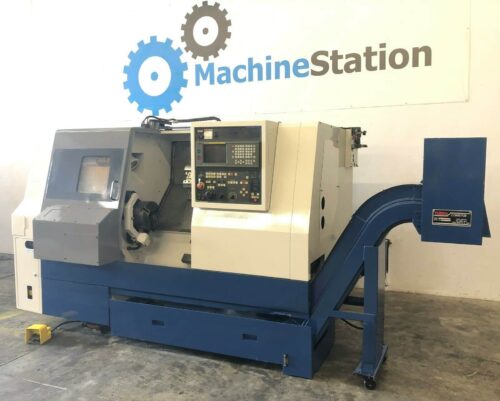

Chip Pan and Chip Conveyor
Automatic Lubrication system

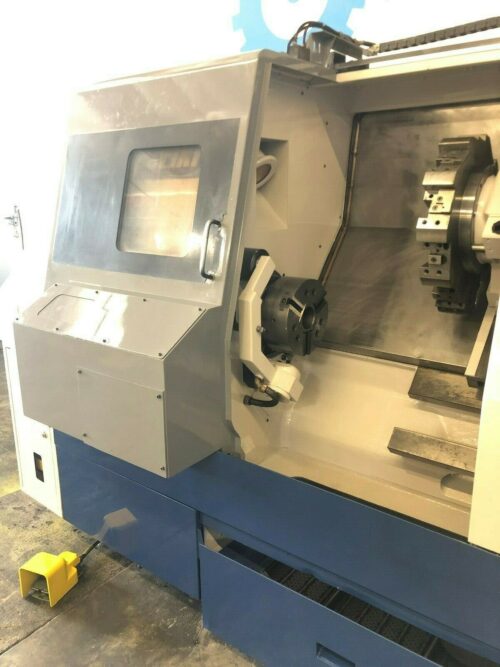

Foot Operated Control for Chuck
MORI SEIKI SL-25B CNC Specifications:
Max Turning Diameter: 10.2″
Max Turning Length: 20.9″
Max Bar Capacity: 2.65″
Swing Over Slide: 13.8″
Swing Over Bed: 22.4″
Distance Between Centers: 24.6″
X Axis Travel: 6.3″
Z Axis Travel: 23.2″
Rapid Traverse X Axis: 790 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-6
Spindle Bore: 3.1″
Spindle Speed: 3500 RPM
Spindle Motor: 20 HP
Turret Capacity: 10 Stations
Turret Index Time: 0.5 Second
Tailstock Body Travel: 19.3″
Tailstock Quill Dia.: 4.33″
Tailstock Quill Stroke: 3.93″
Tailstock Taper: MT-4

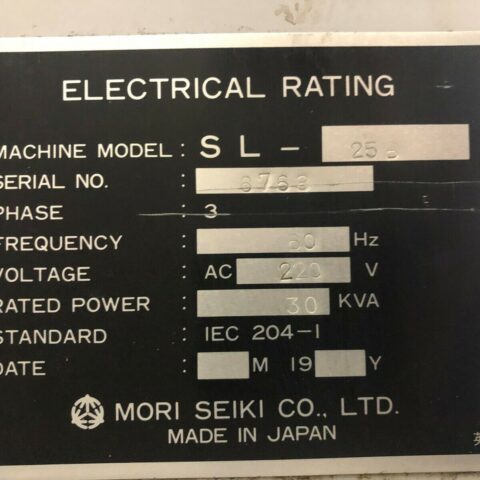

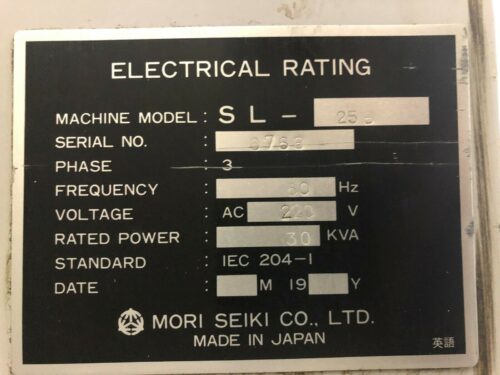

Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 68 Amps
Overall Dimensions: 110″ x 68″ x 80″ High
Overall Dimensions: 150″ x 68″ x 80″ High with Chip Conveyor
Weight : 12000 lbs Approx.
MORI SEIKI SL-25B CNC Comes as shown in pictures..
