All specifications are approximations and are subject to verification.

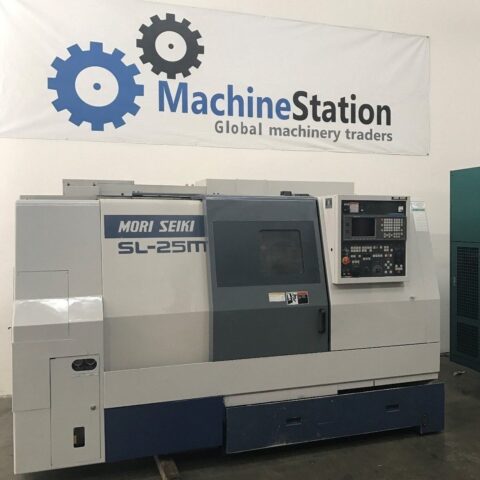

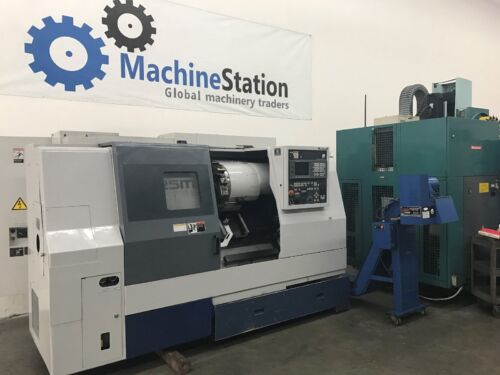

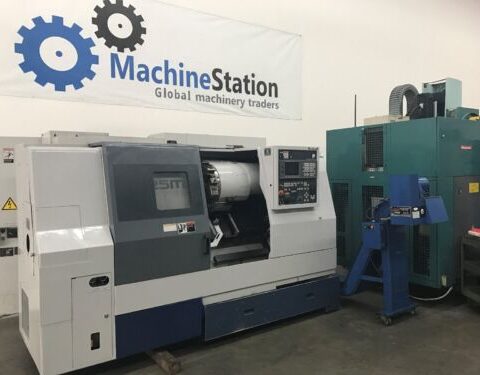

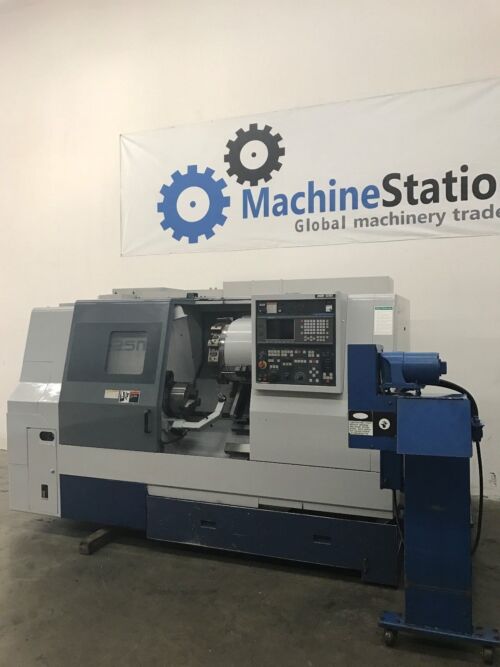

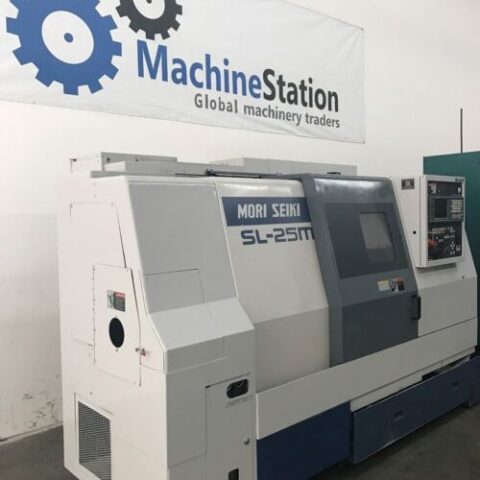

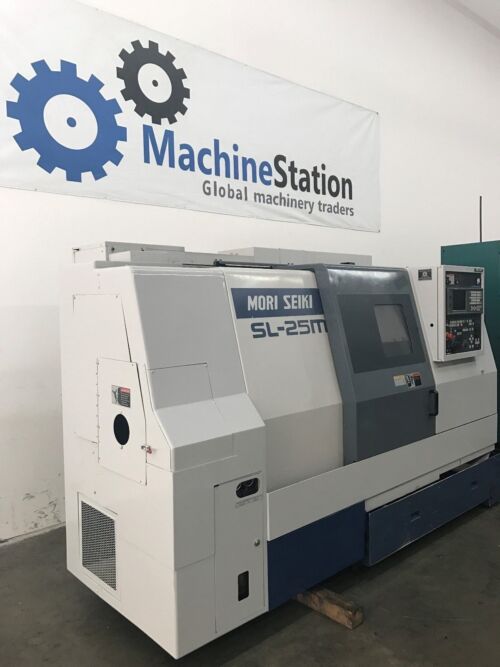

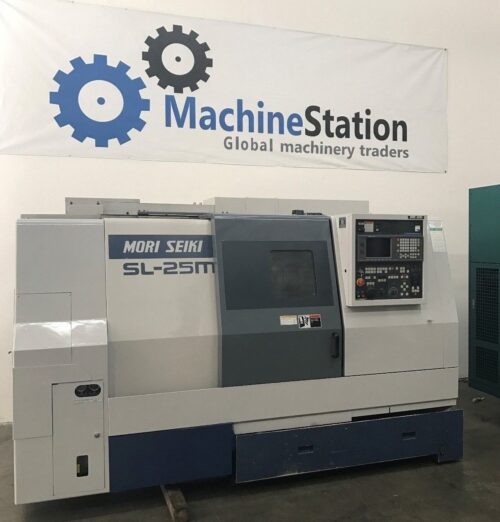

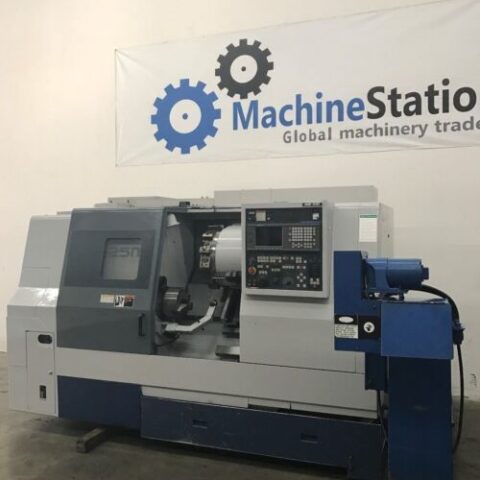

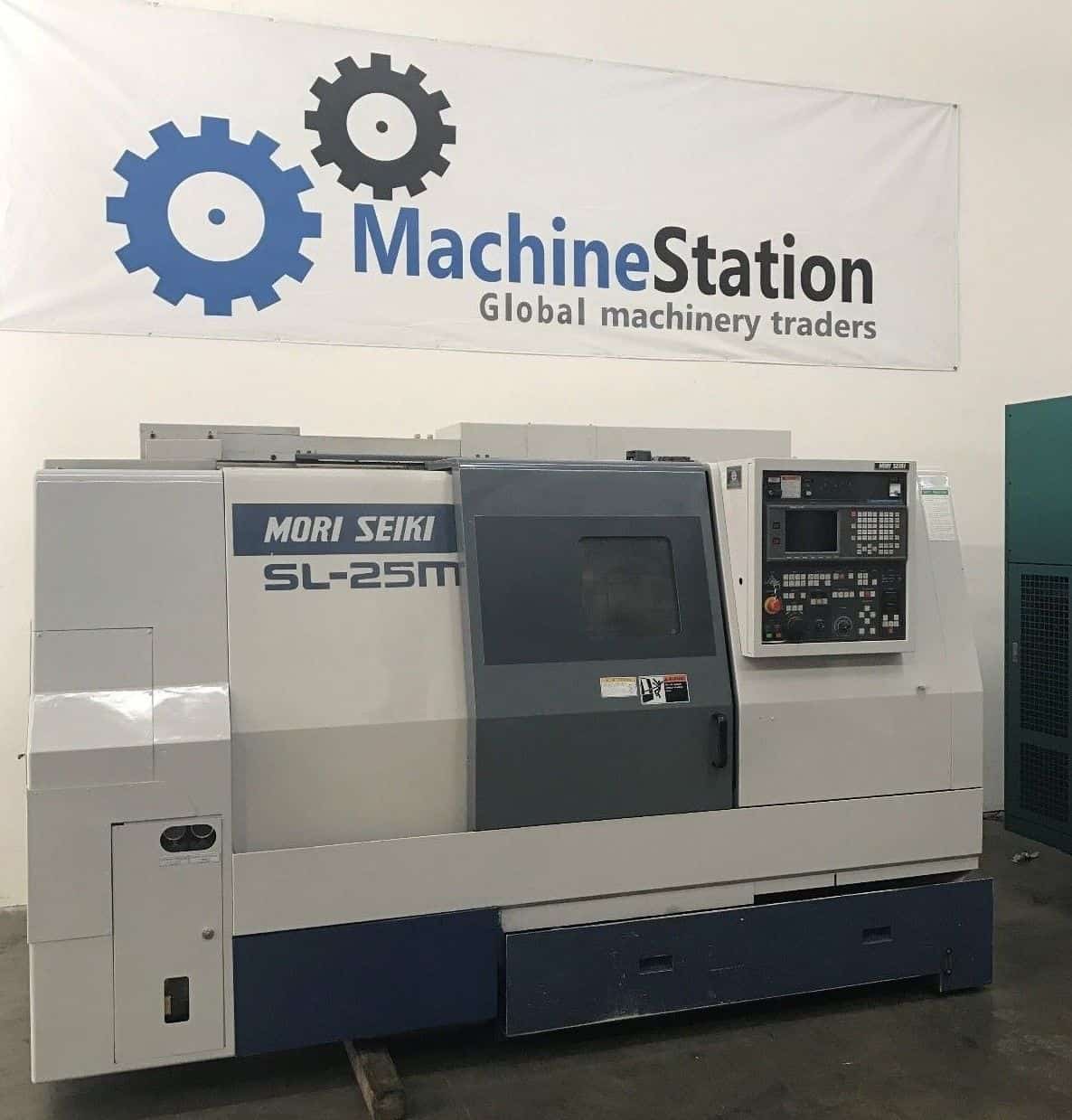

“On Our Floor now Mori Seiki SL-25MC Fully powered / tested & is in Great working condition. 10″ Chuck, Full C Axis, Milling. Comes with chip conveyor, manuals, live tool holders.”
-
MORI SEIKI SL-25MC Equipped With:

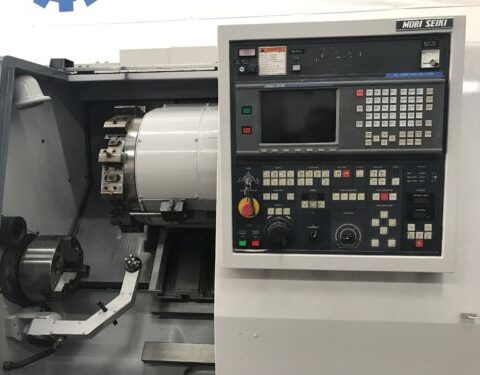

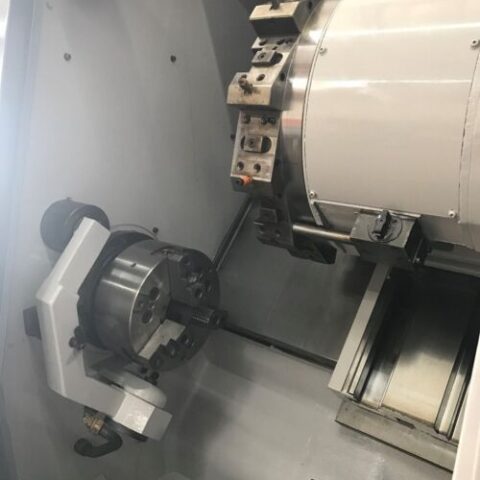

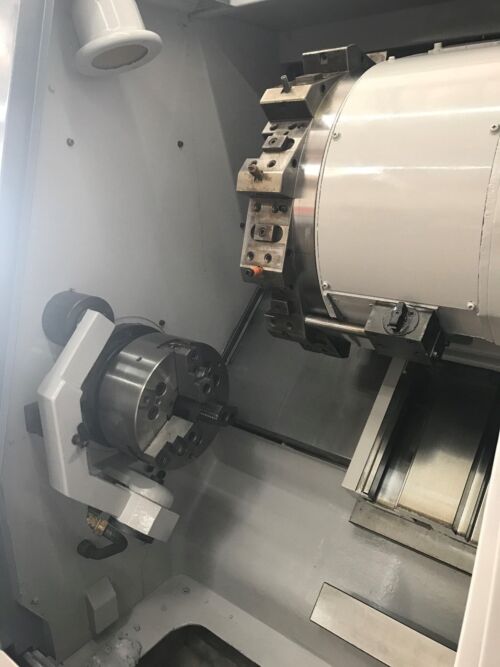

- 12-Station Turret with Live Tools/ Milling
- Box Ways Design

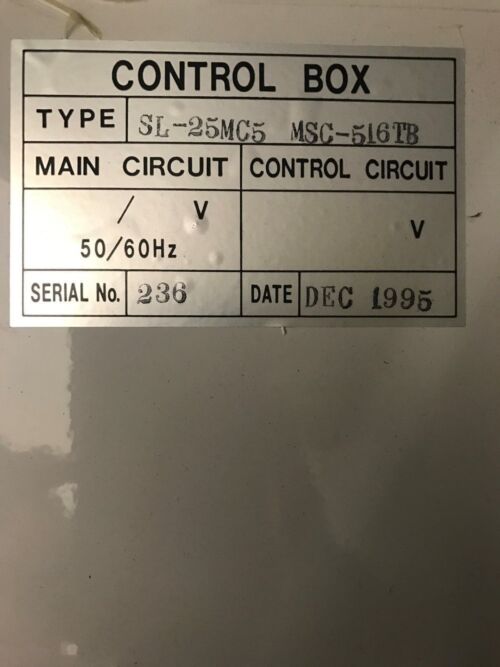

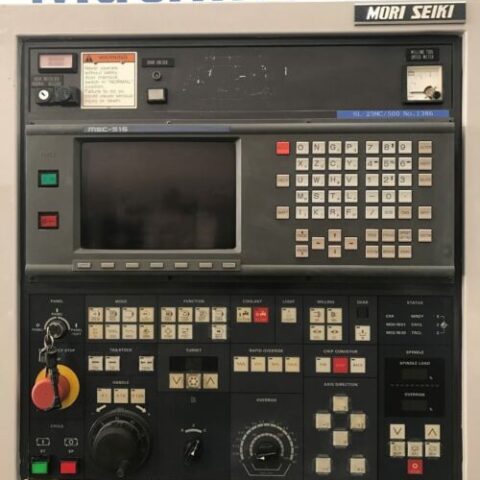

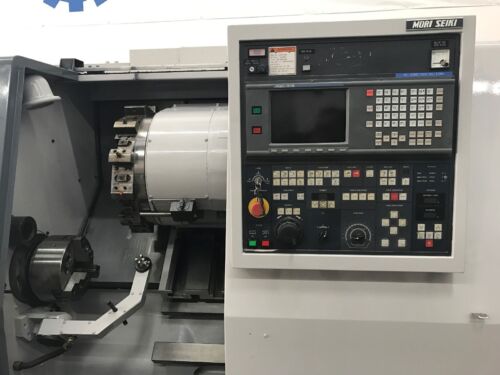

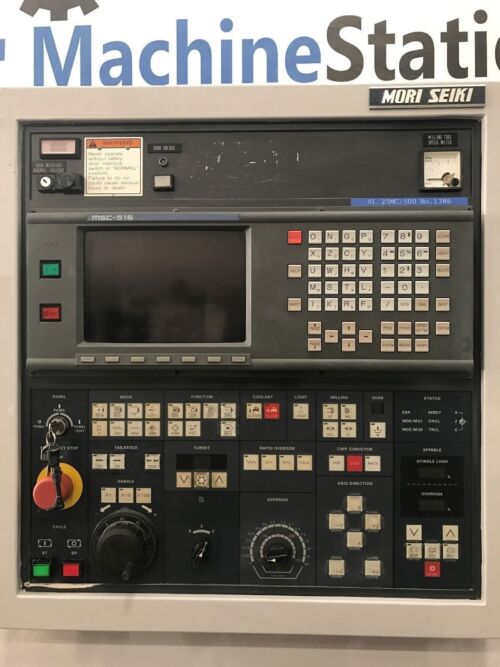

- MSC-516 (Fanuc 16T) CNC Control

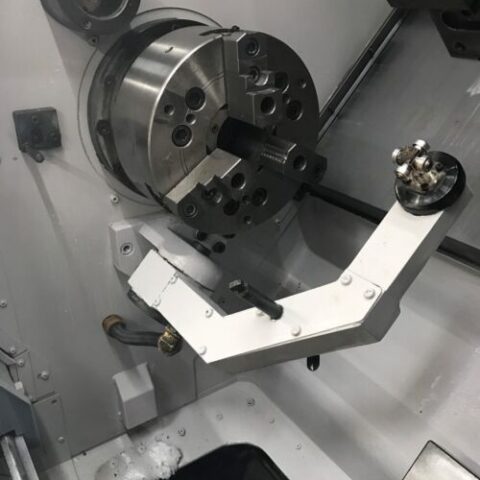

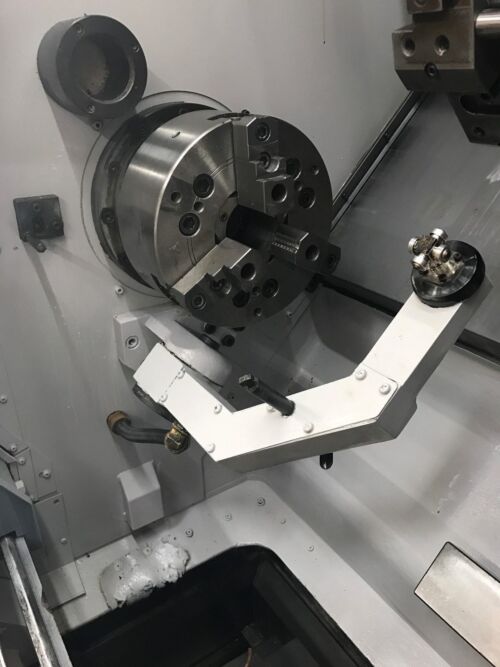

- 10″ 3-Jaw Kitagawa Hydraulic Chuck
- 2 Step gear spindle for powerful torque
- Hydraulic Programmable Tailstock
- Tool Setter
- Turbo Chip Conveyor
- Coolant System.
- Automatic Lubrication system
- Foot Operated Control for Chuck
- Coolant Tank

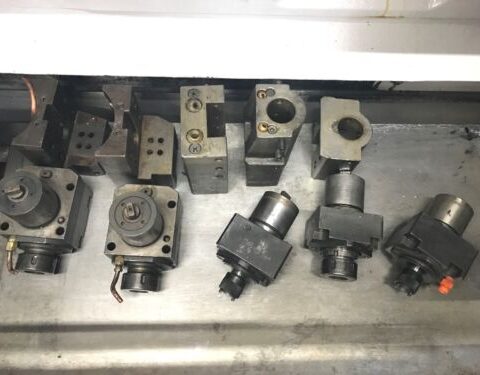

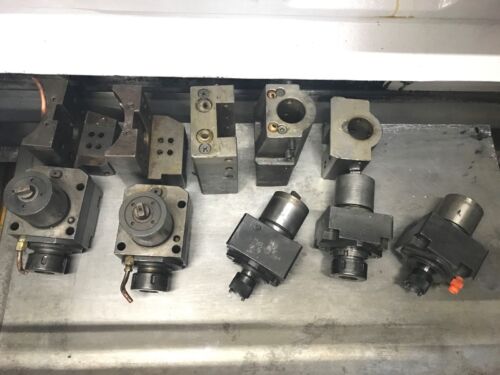

- All Available Books, Manuals, 5 Tool Holders, 5 Live Tools and Parameters Backup.
-
MORI SEIKI SL-25MC Specifications:
- Max Turning Diameter: 13.4″
- Max Turning Length: 20.9″
- Max Bar Capacity: 2.5″
- Swing Over Cross Slide: 13.8″
- Swing Over Bed: 20.5″
- Distance Between Centers: 24.6″
- X Axis Travel: 11.3″
- Z Axis Travel: 43.33″
- Rapid Traverse X Axis: 790 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle Nose: A2-6
- Spindle Bore: 3.1″
- Spindle Speed: 35 – 3500 RPM
- Spindle Motor: 20 HP
- Live Tooling Motor: 5/3 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
- Tailstock Quill Dia.: 4.33″
- Tailstock Quill Stroke: 3.93″
- Tailstock Taper: MT-5
-
General:

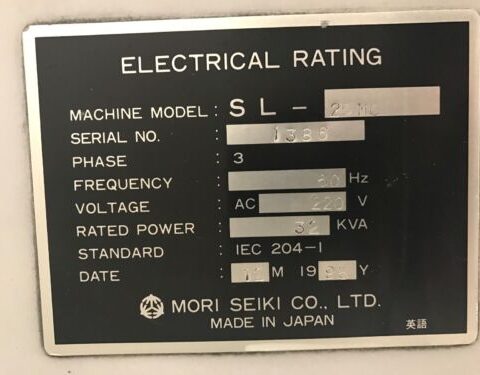

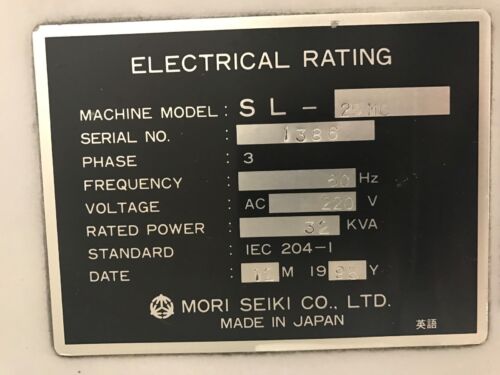

- Power Source: AC 220 V, Three Phase, 60 Hz
- Power Requirement: 32kva
- Overall Dimensions: 110″ x 68″ x 80″ High
- Overall Dimensions: 150″ x 68″ x 80″ High with Chip Conveyor
- Weight : 13000 lbs Approx.
