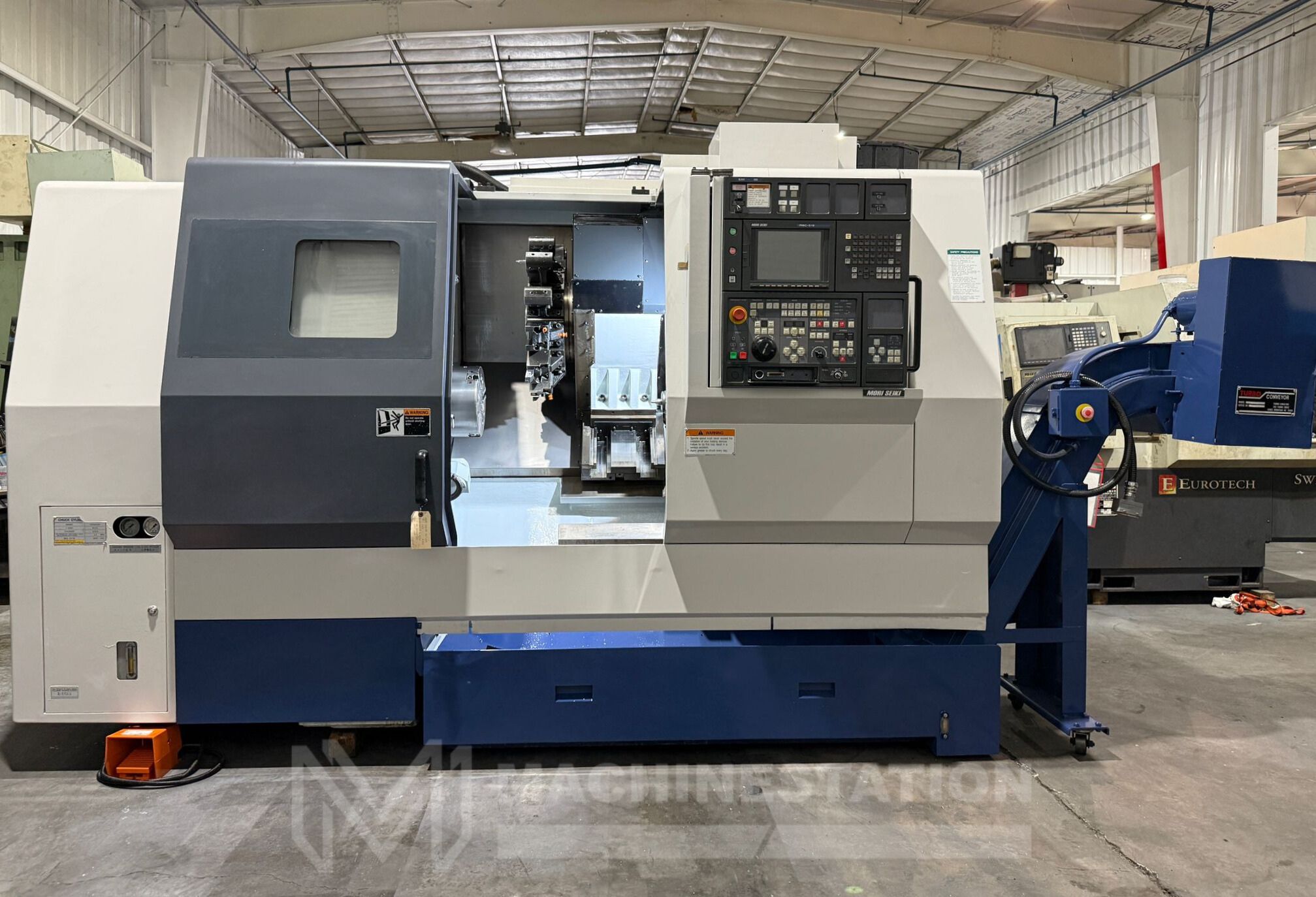

Mori Seiki SL-25Y/500 CNC Turning Center – C & Y Axis Lathe
Out of stock
| Location: |
Lake Elsinore, CA |
| SKU: |
112837 |
| Make/Model: |
MORI SEIKI SL-25Y/500 |
| Year: |
1998 |
| Condition: |
Used – Good |

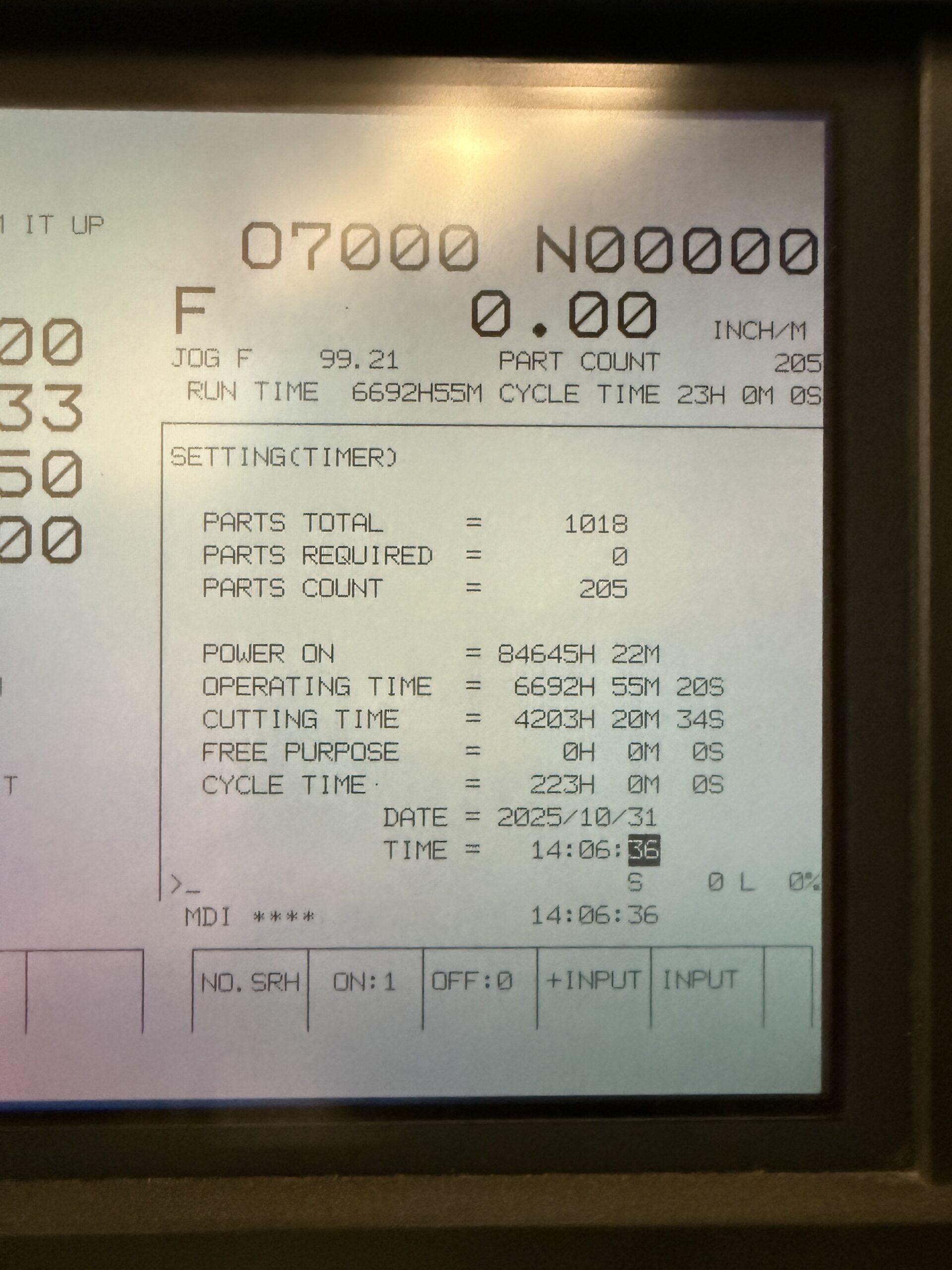

| Cutting Time: |
4,203 Hours |
| Video: |
On Request |
| Make: |
MORI SEIKI |
| Model: |
SL25Y/500 |
| Year: |
1998 |
| Condition: |
Used – Good |
| Equipped With: |

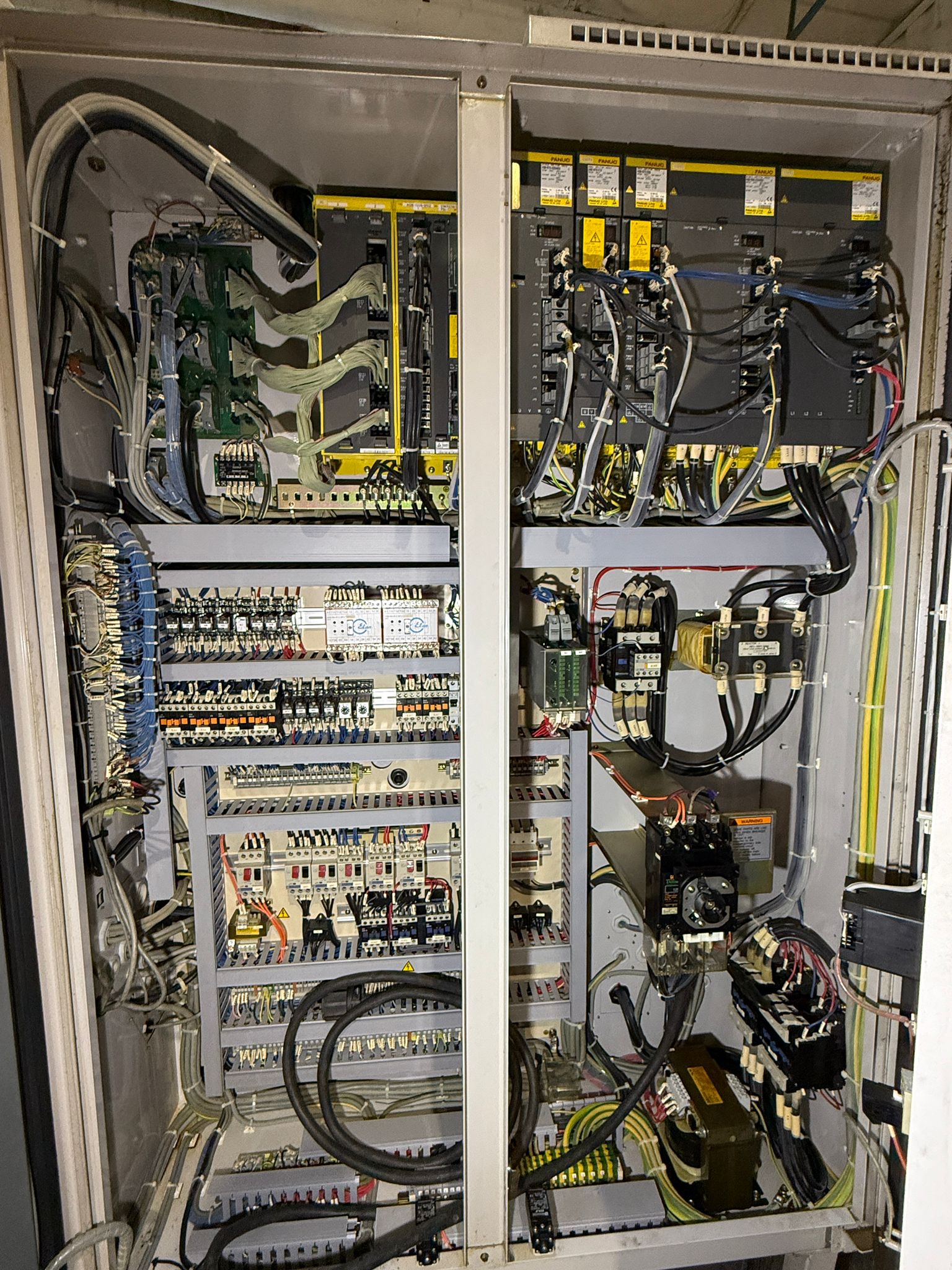

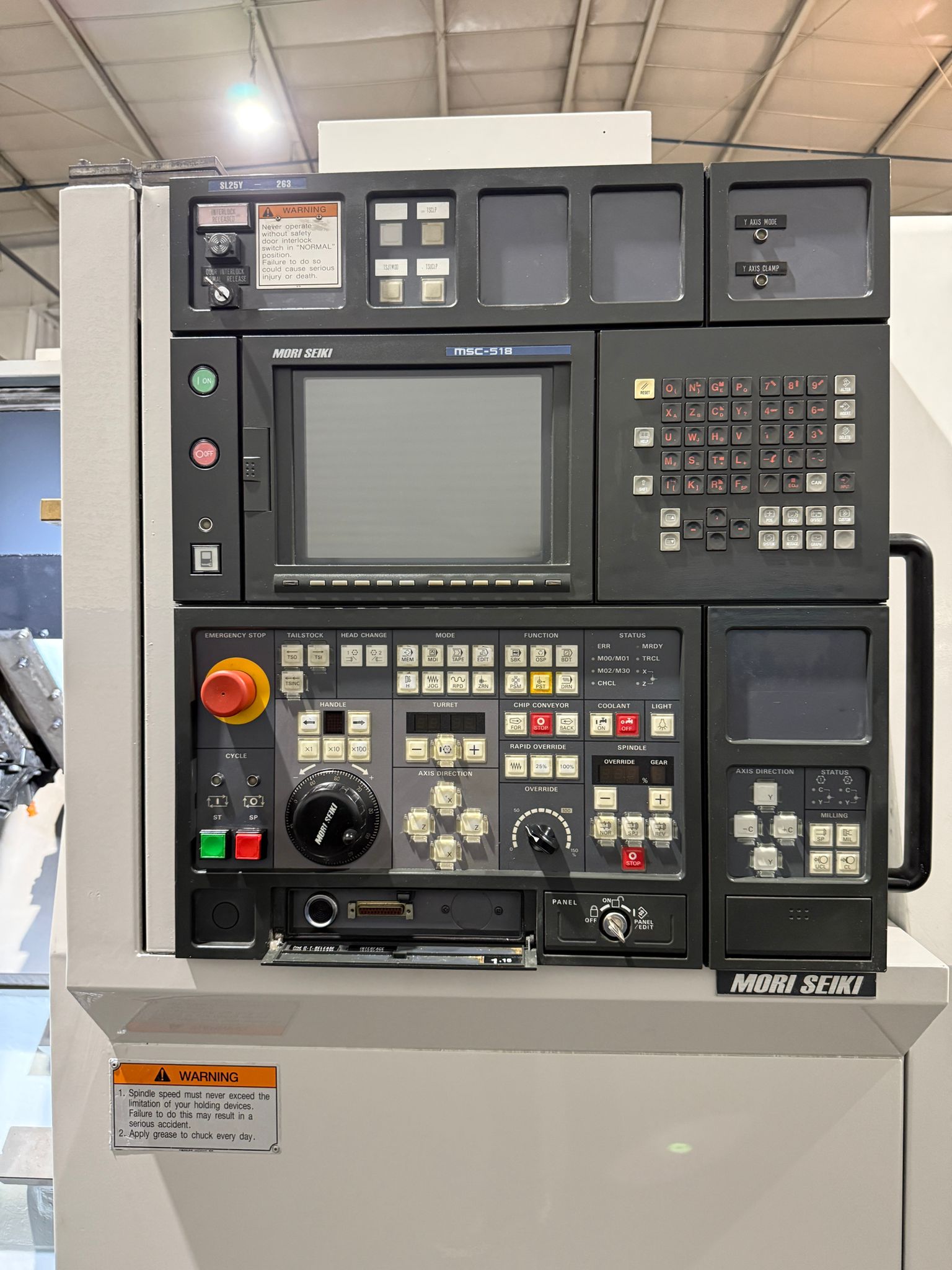

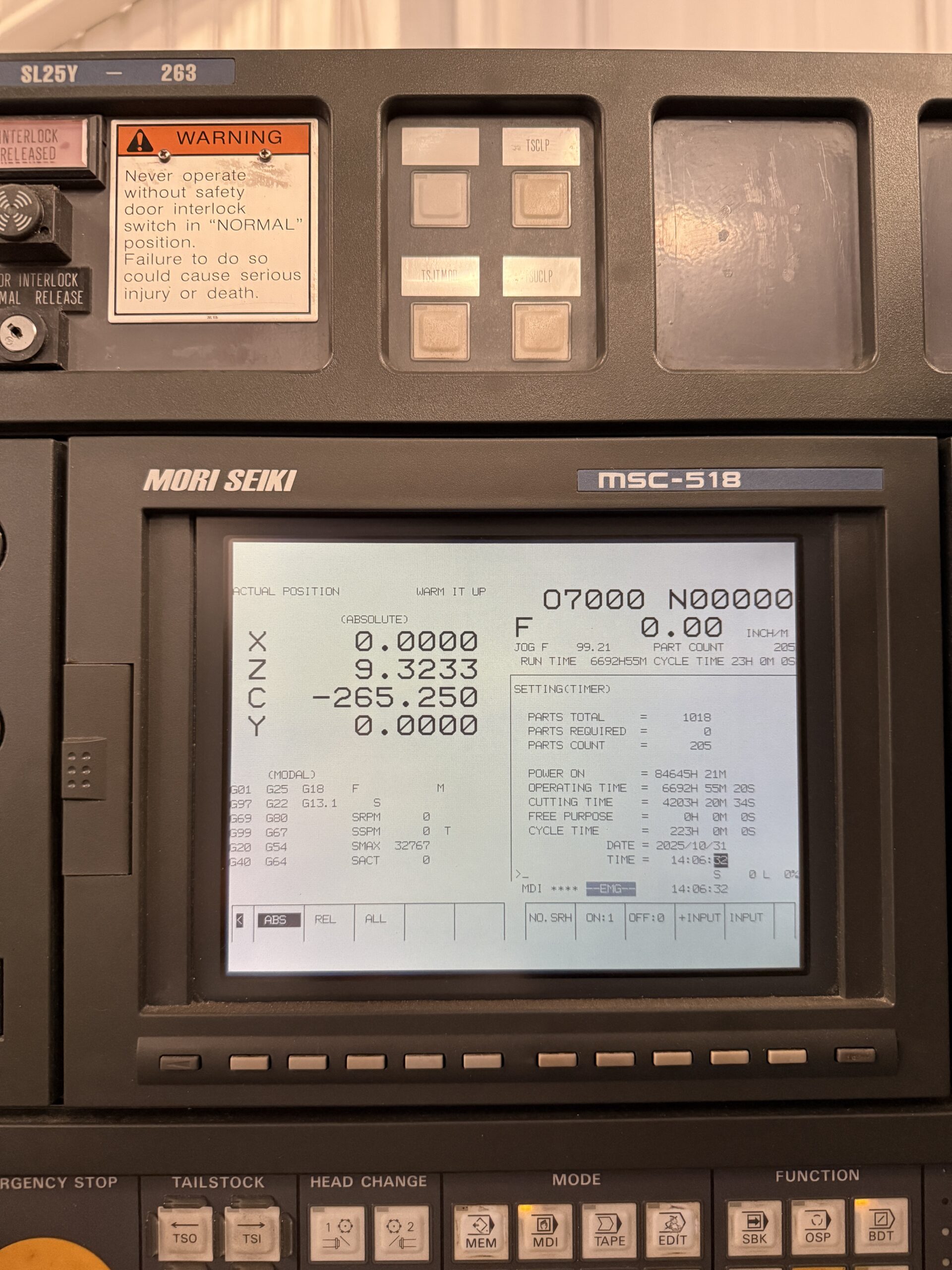

| Mori Seiki MSC-518 (Fanuc) CNC Control |
| Box Way Construction |

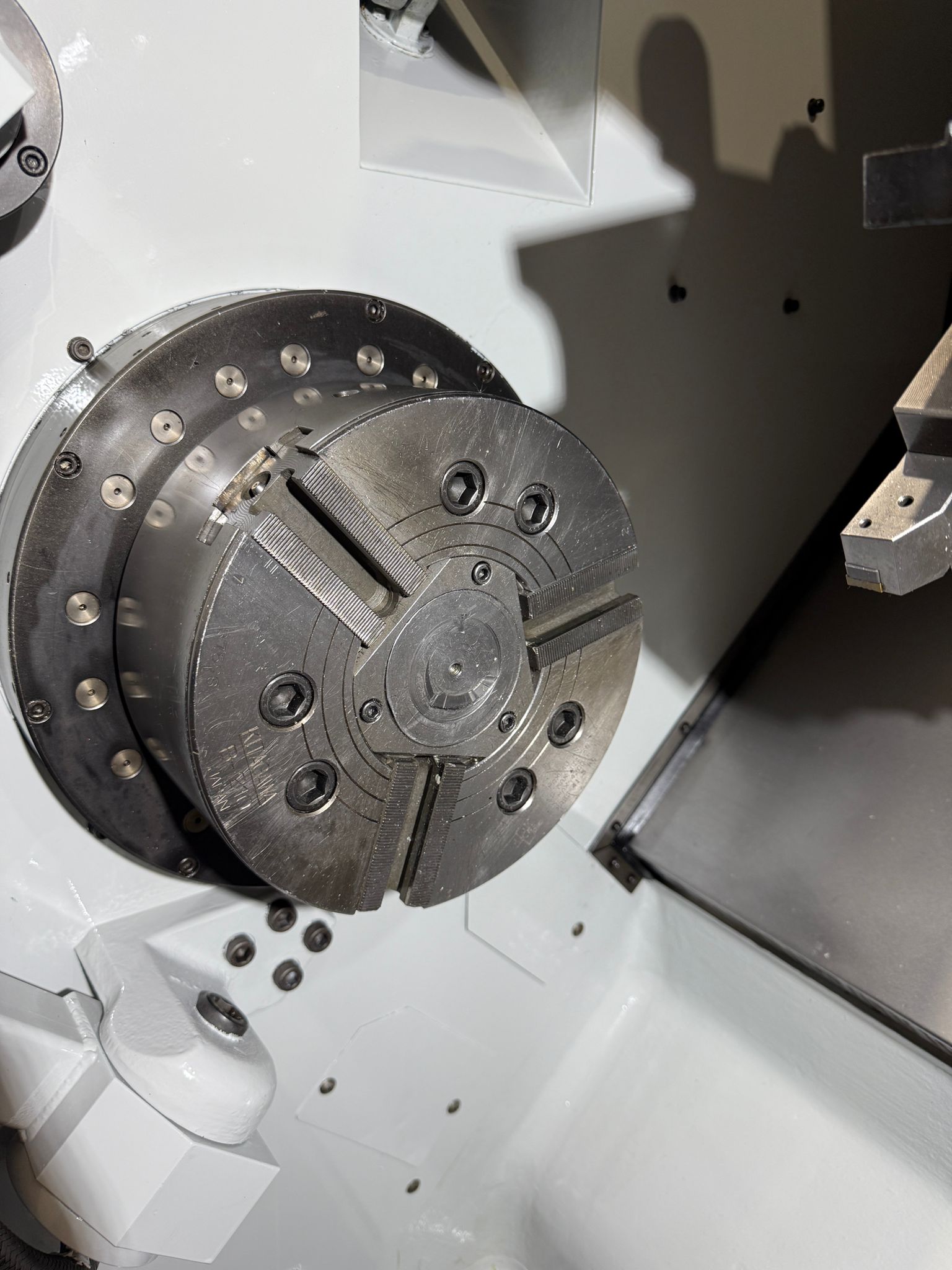

| Kitagawa B-210 10″ 3-Jaw Hydraulic Chuck |
| 12 Station Live Tool Turret |
| C & Y Axis Capable |
| Tool Presetter |
| 2 Step Gear Spindle for Powerful Torque |

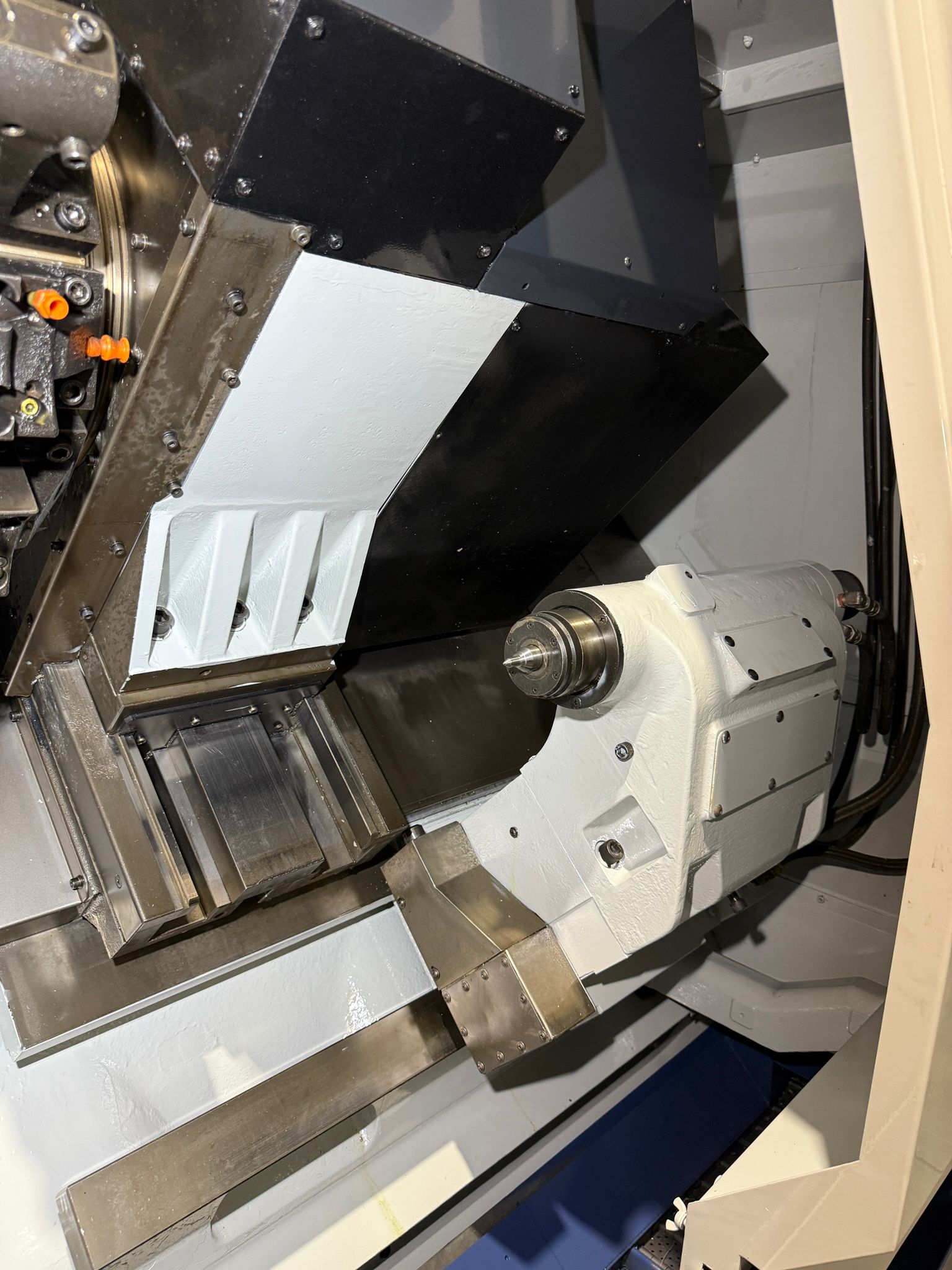

| Tailstock |

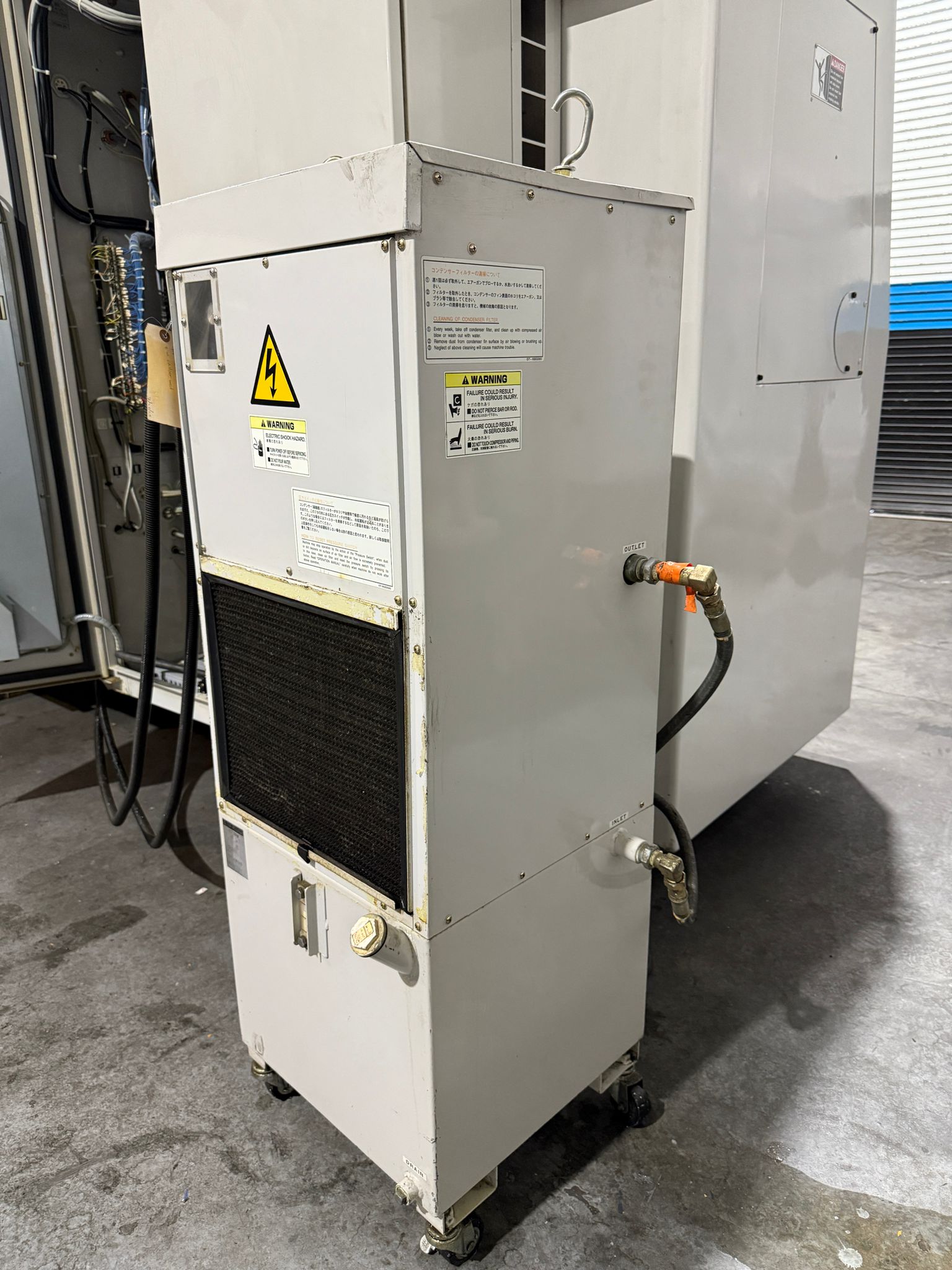

| Chiller Unit |
| Automatic Lubrication System |
| Coolant System |
| Chip Conveyor |
| Foot Switch |
| Misc Tool Holders Mounted on Turret (As shown in the images) |
| Capacity: |
| Max Turning Diameter: 10.2″ |
| Max Turning Length: 20.9″ |
| Max Bar Capacity: 2.56″ |
| Swing Over Cross Slide: 24.4″ |
| Swing Over Bed: 32.1″ |
| Distance Between Centers: 24.4″ |
| Travels: |
| X Axis Travel: 7.7″ |
| Y Axis Travel: 3.9 |
| Z Axis Travel: 23.2″ |
| C Axis: 0.001° |
| Rapid Traverse X Axis: 472 IPM |
| Rapid Traverse Y Axis: 236 IPM |
| Rapid Traverse Z Axis: 590 IPM |
| Cutting Feedrate X Axis: 342 IPM |
| Cutting Feedrate Y Axis: 236 IPM |
| Cutting Feedrate Z Axis: 428 IPM |
| Spindle: |
| Spindle Nose: A2-8 |
| Spindle Bore: 3.1″ |
| Spindle Speed: 35-3500 RPM |
| Spindle Motor: 20 HP |
| Turret: |
| Turret Capacity: 12 Stations |
| Live Tool Spindle Speed: 100 – 2000 RPM |
| Live Tool Spindle Motor: 5 HP |
| Turret Index Time: 1 Second |
| Turret Type: BMT |
| Tailstock: |
| Tailstock Quill Dia: 4.3″ |
| Tailstock Quill Stroke: 3.9″ |
| Tailstock Taper: MT-5 |
| Tailstock Body Travel: 15.9″ |
| General: |

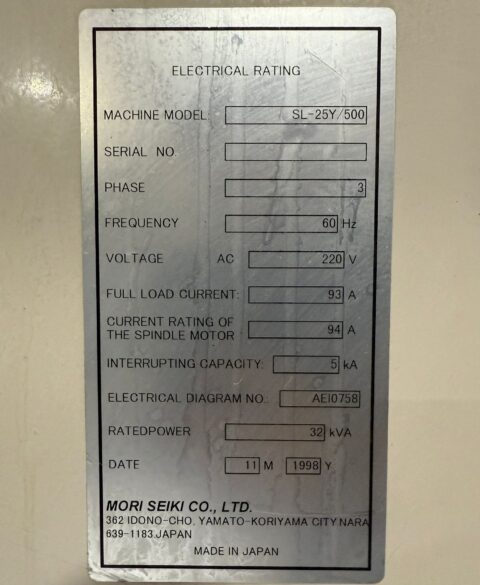

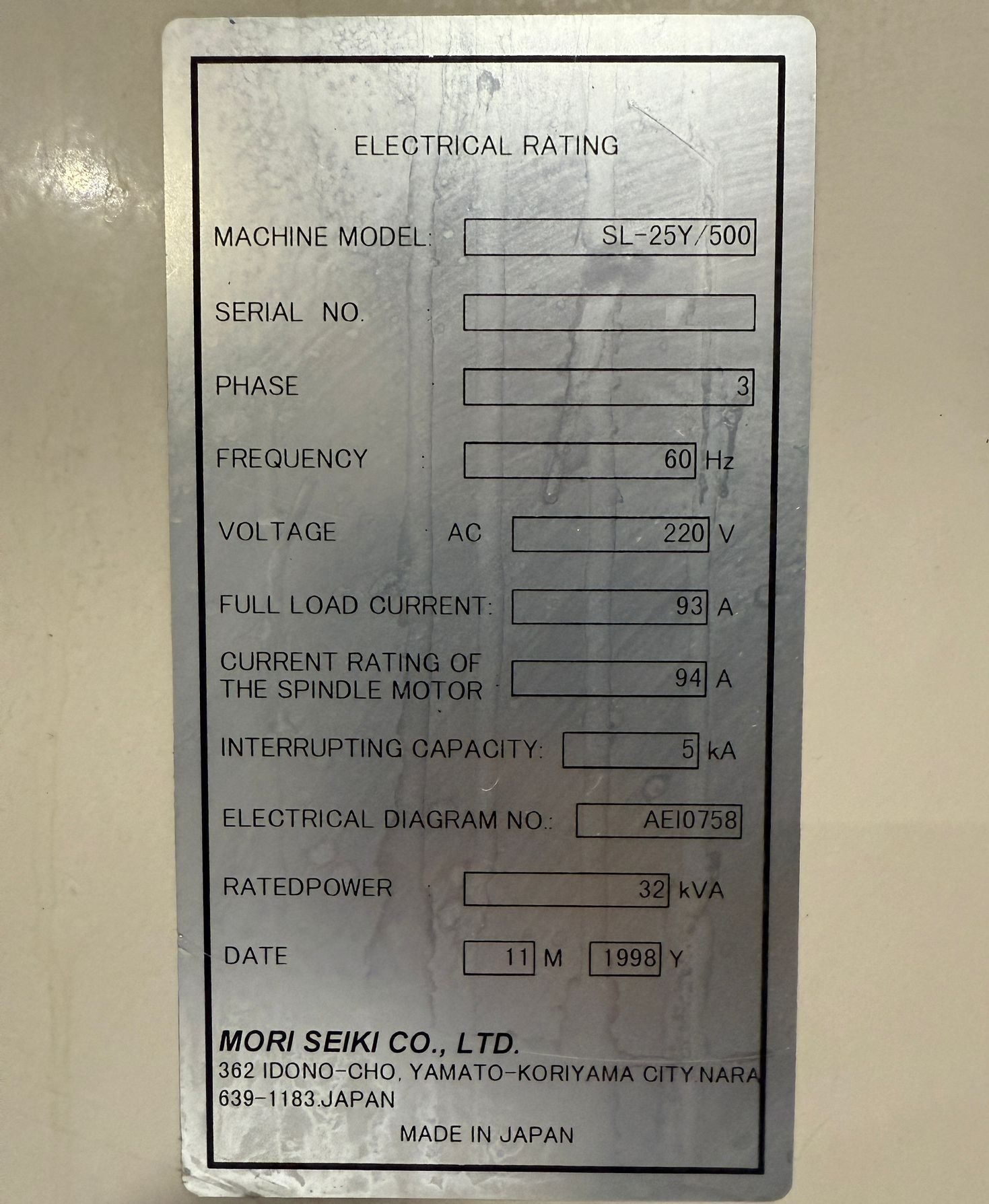

| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 32 kva |
| Overall Dimensions: 125.3″ x 70.8″ x 81.1″ High |
| Weight : 11,880 lbs Approx. |
