*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

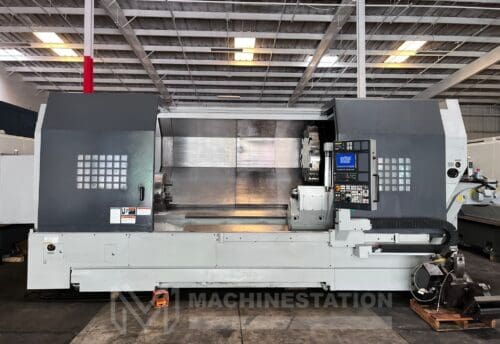

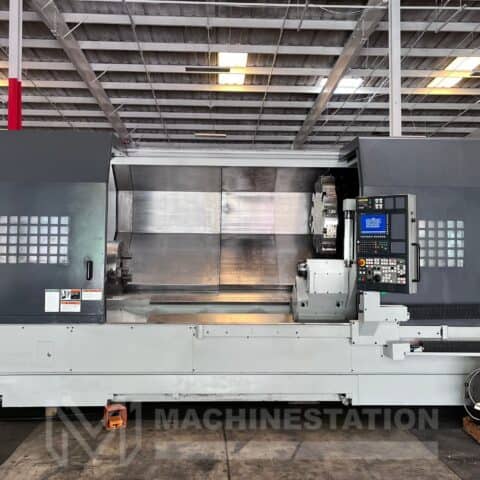

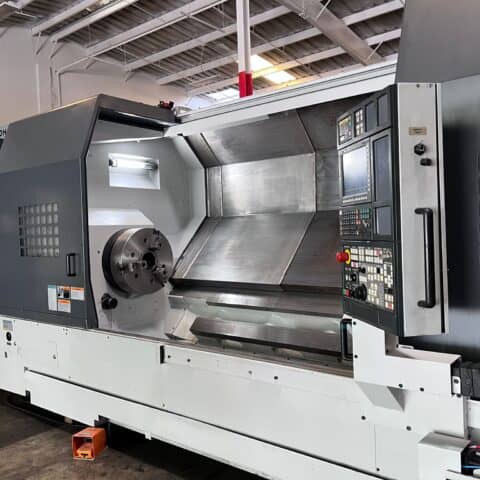

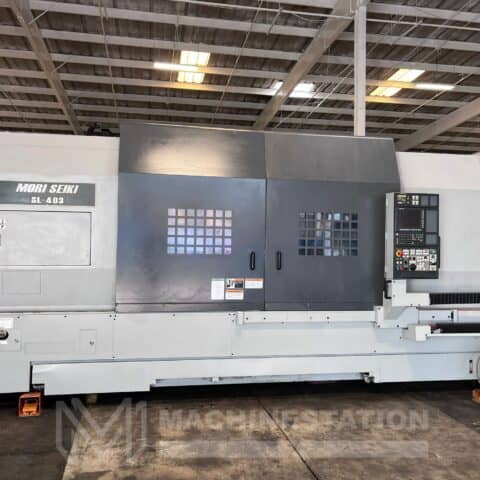

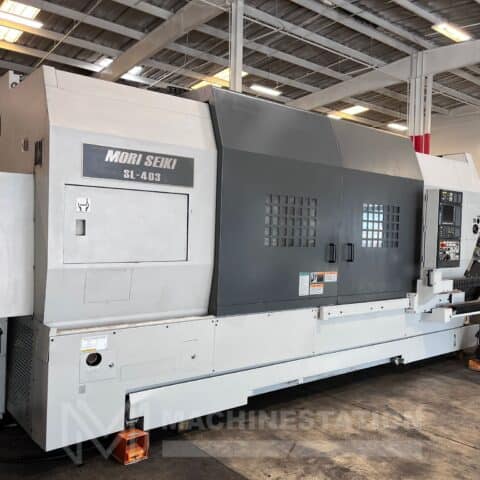

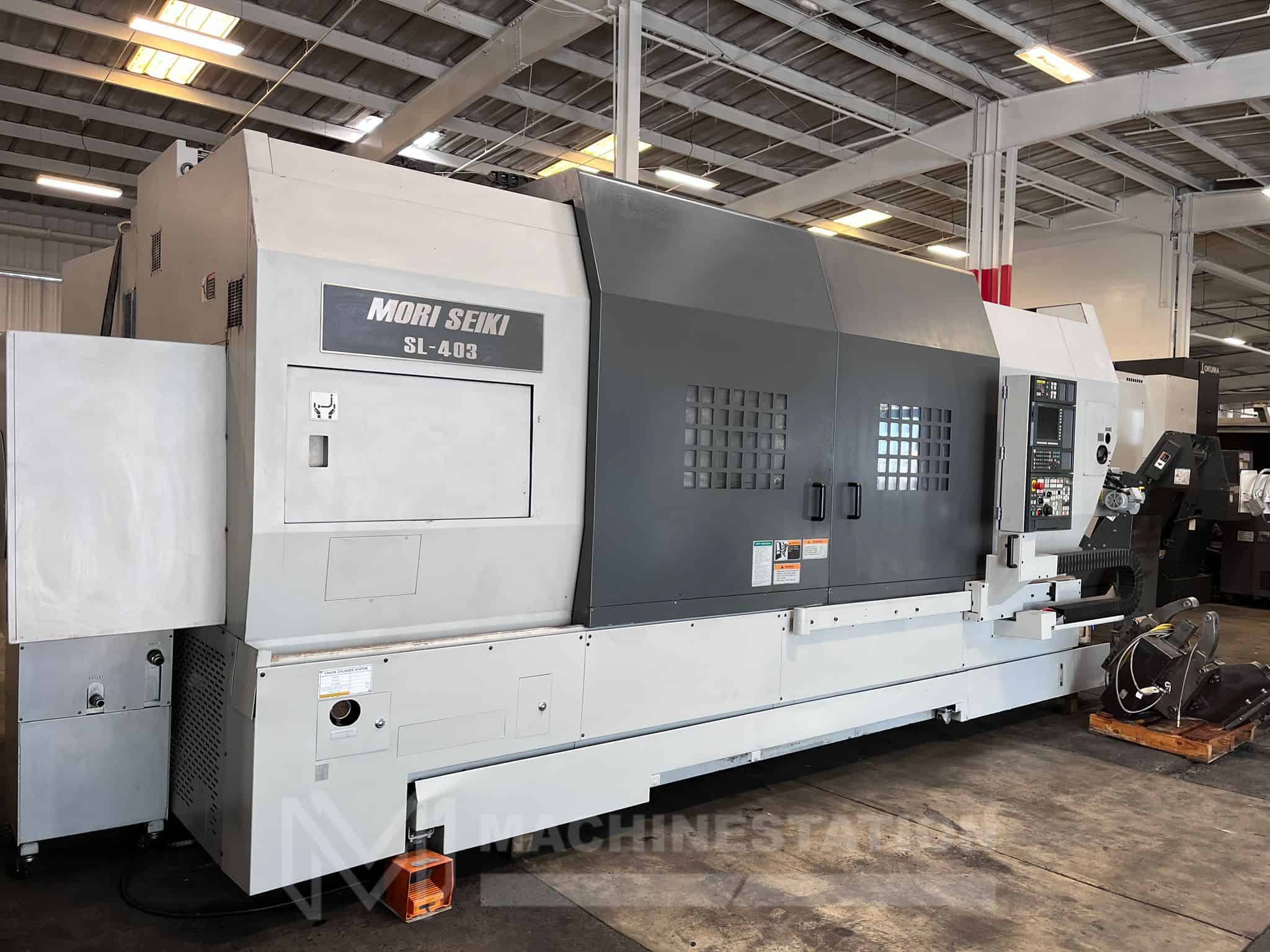

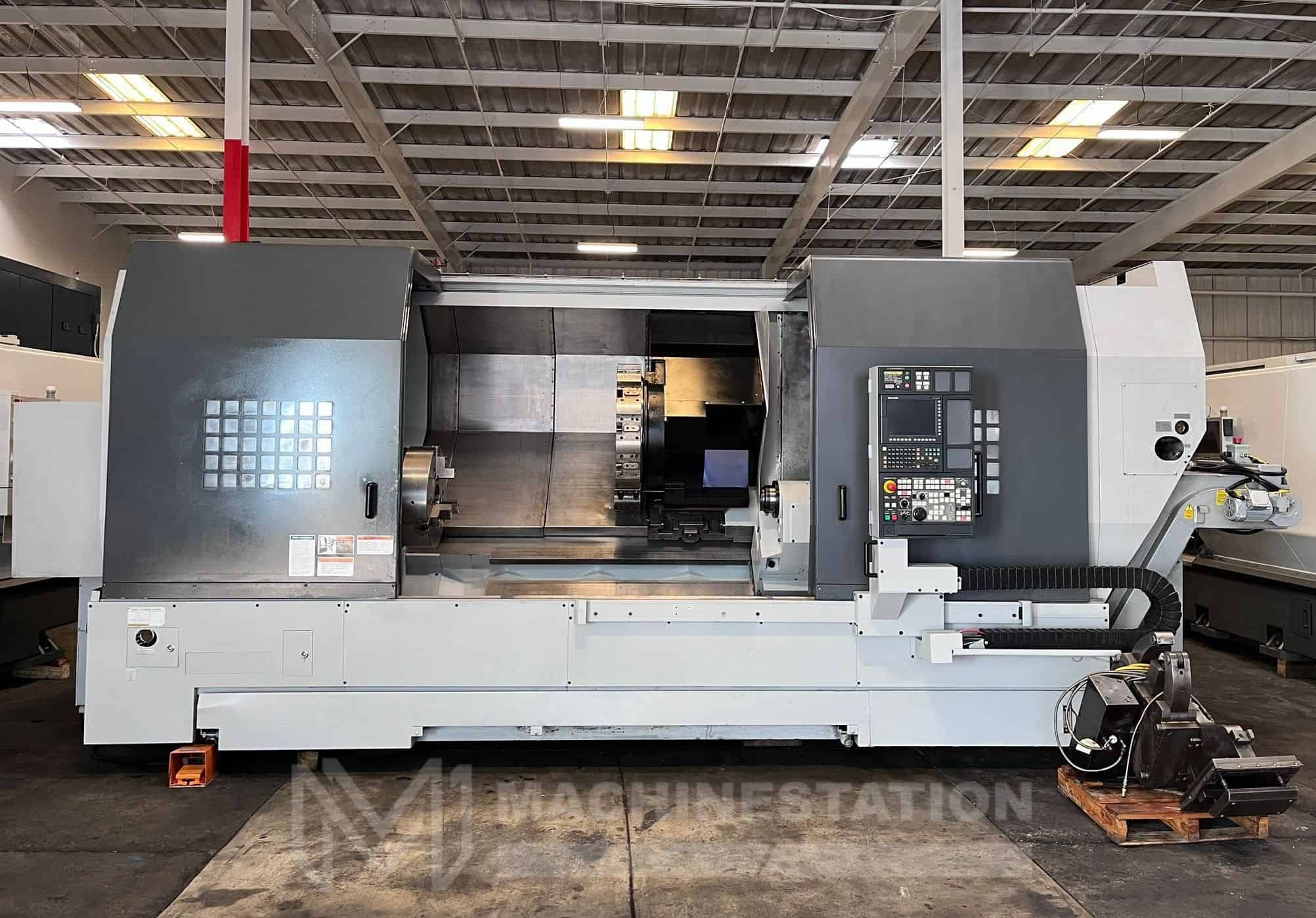

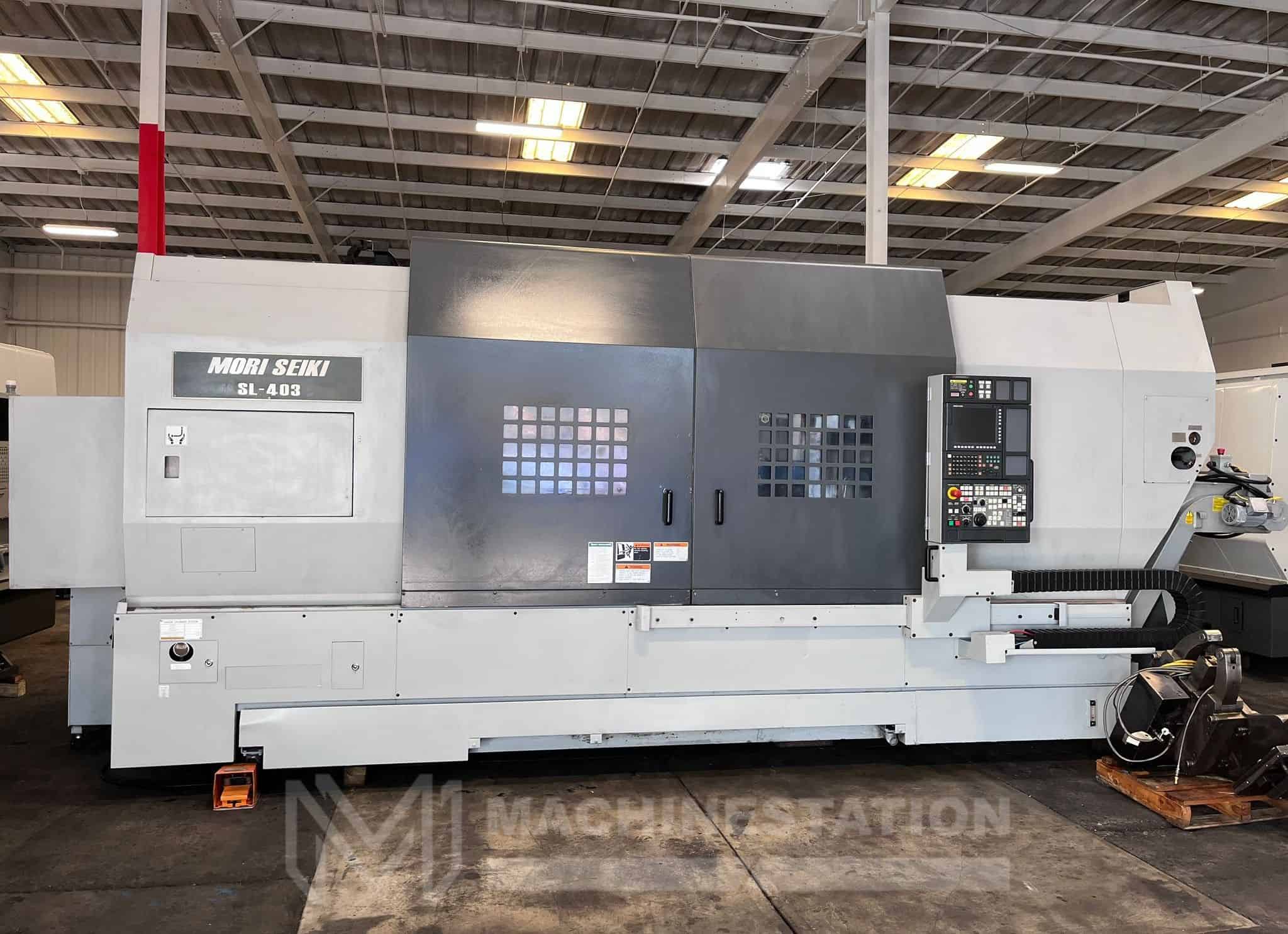

| Make: | Mori Seiki |
| Model: | SL403C/2000 |
| Year: | 2005 |
| Condition: | Used – Good |
| Equipped With: |
|---|

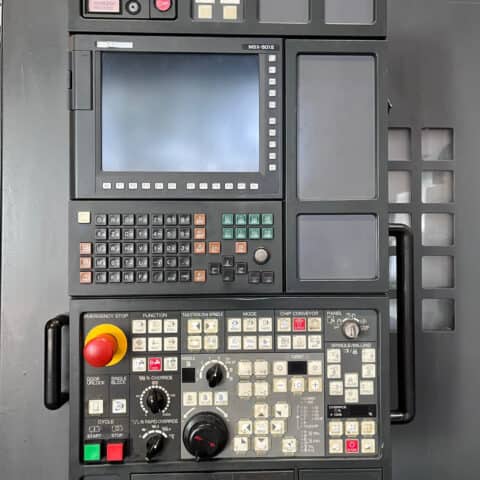

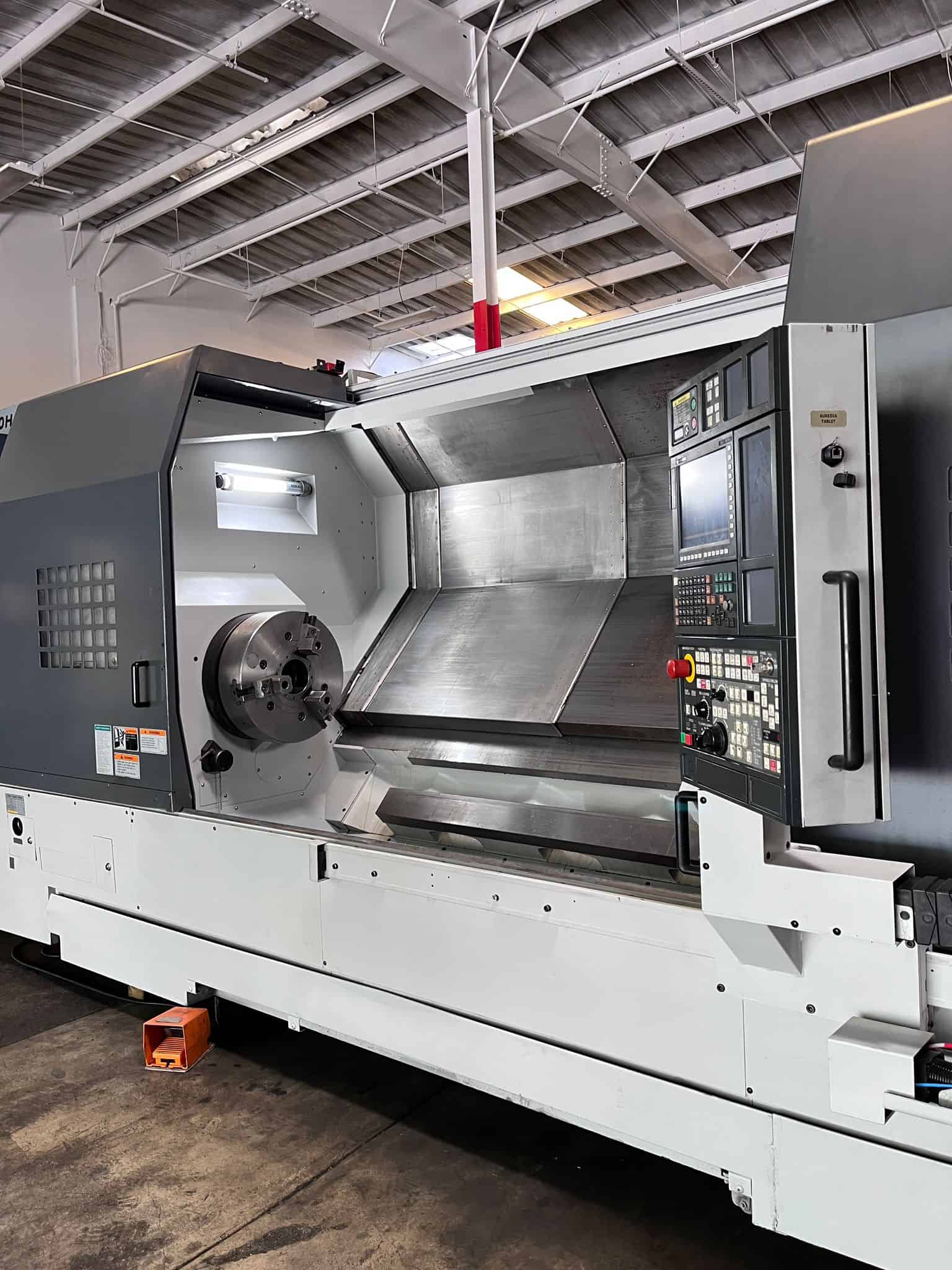

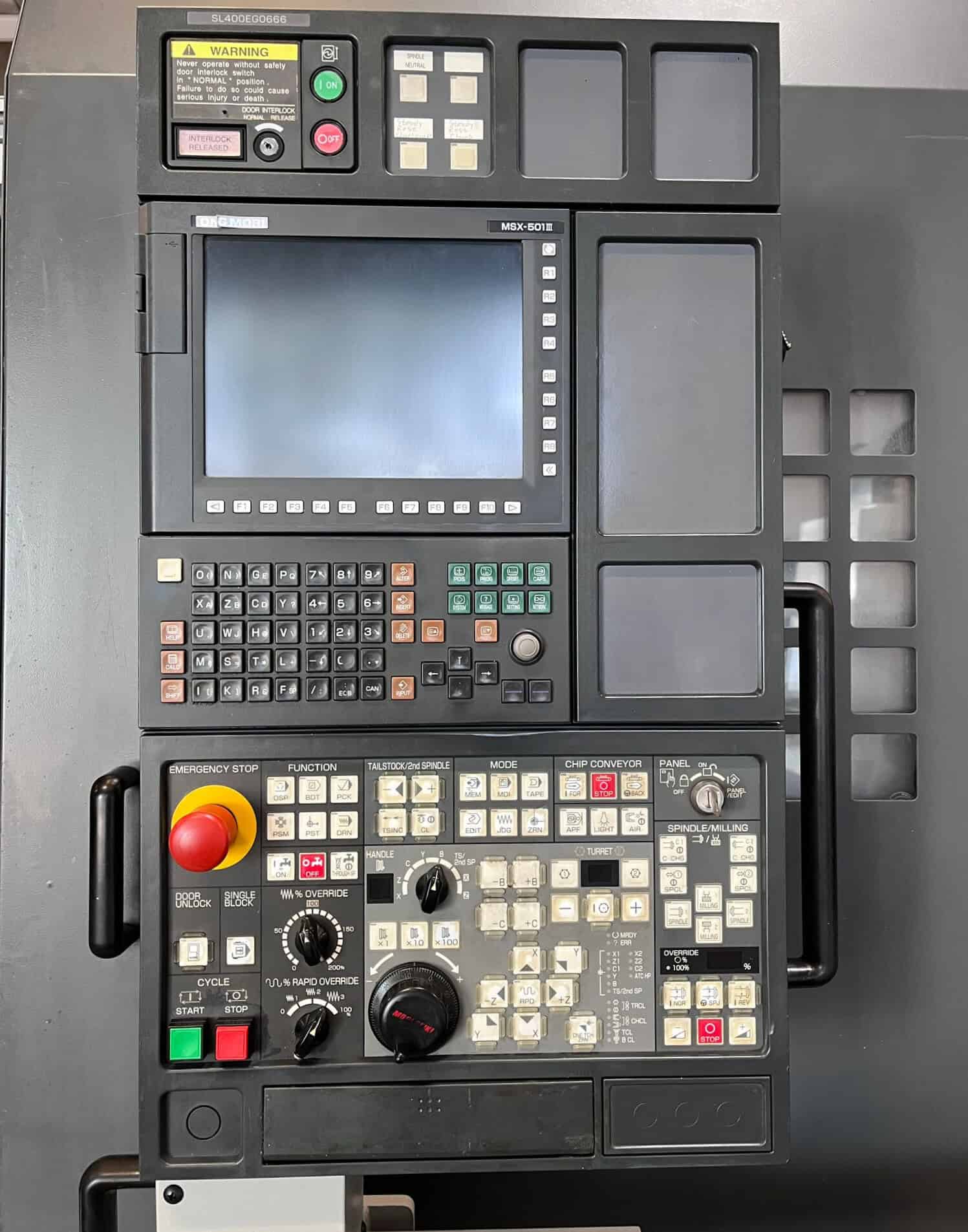

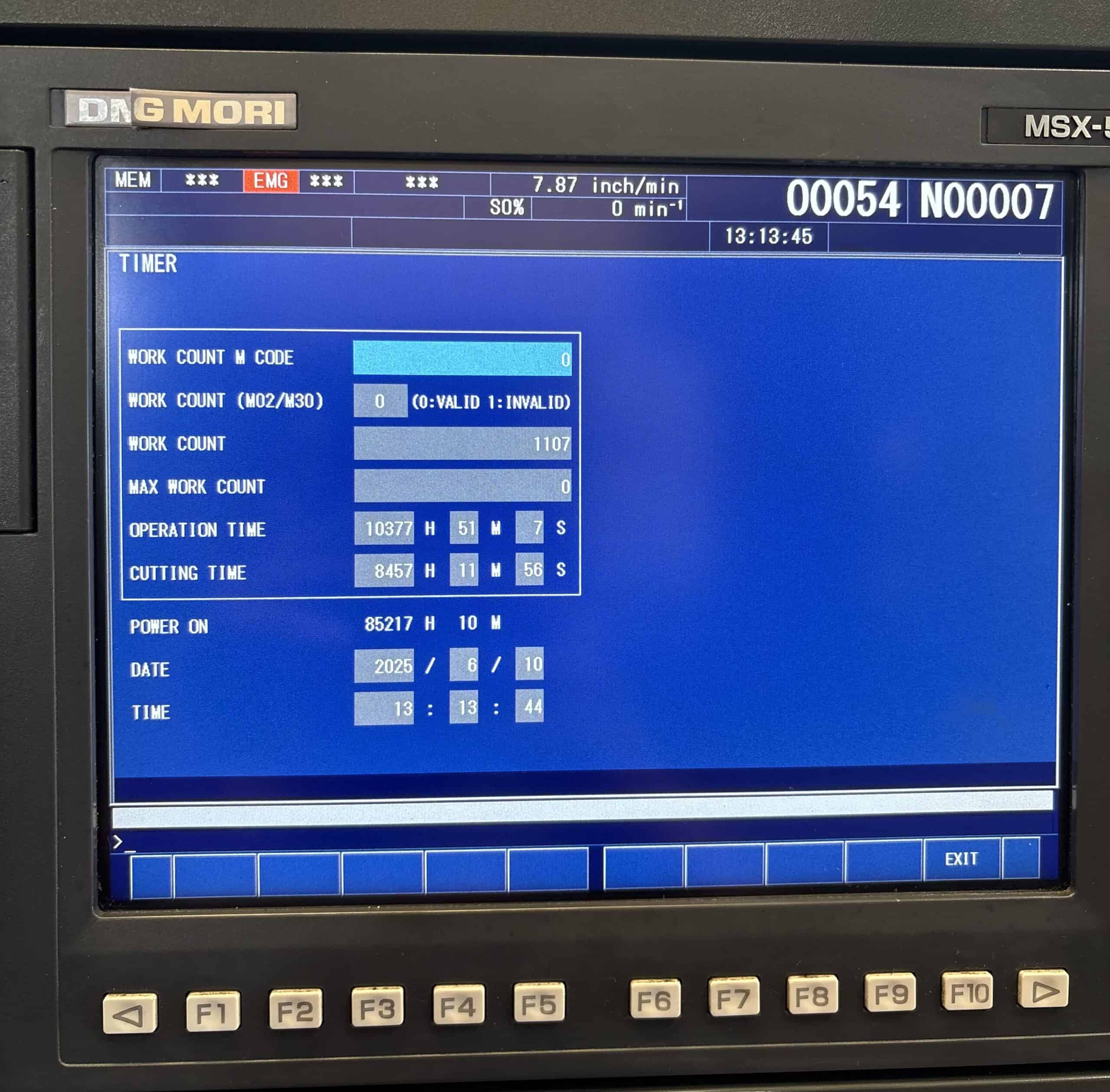

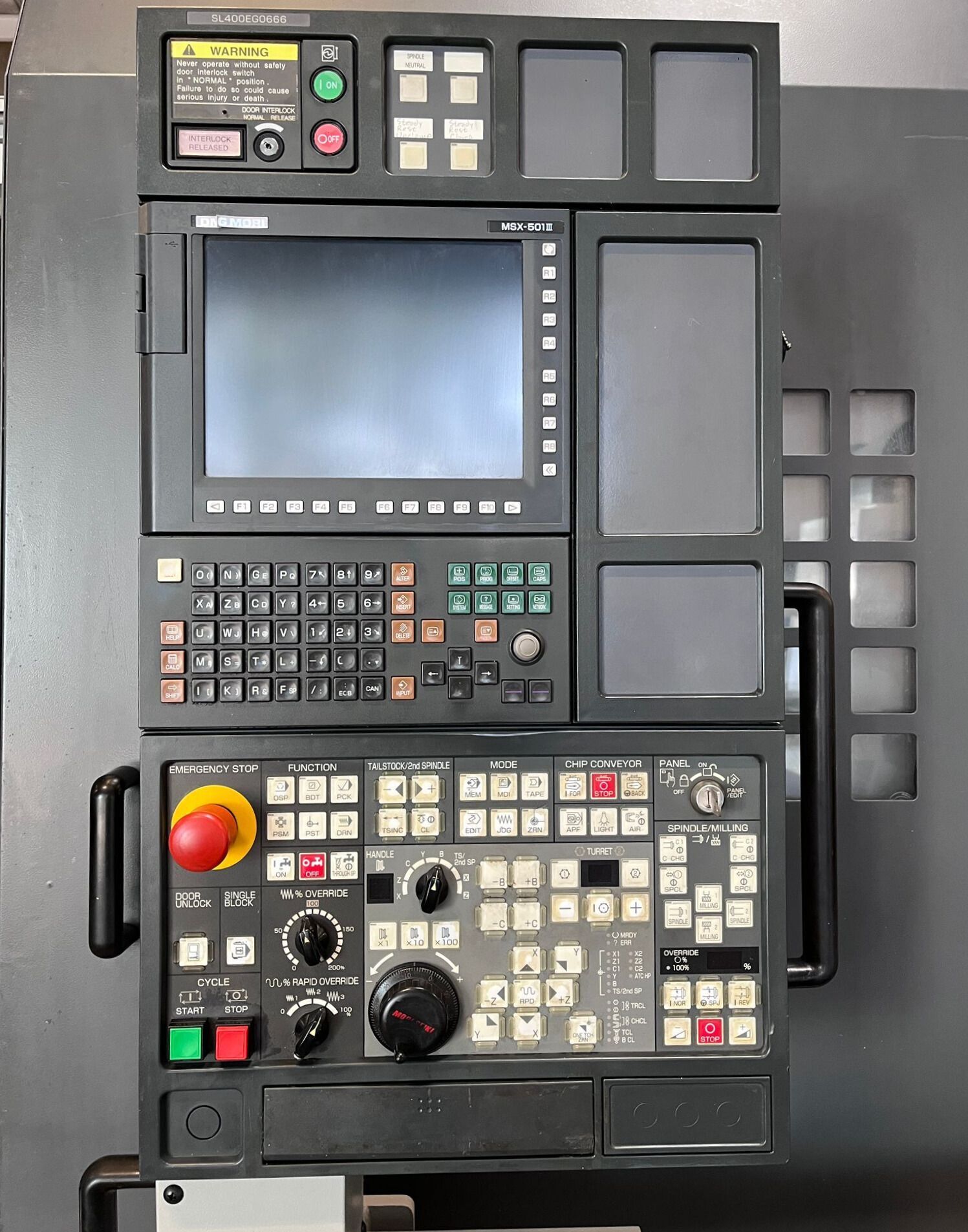

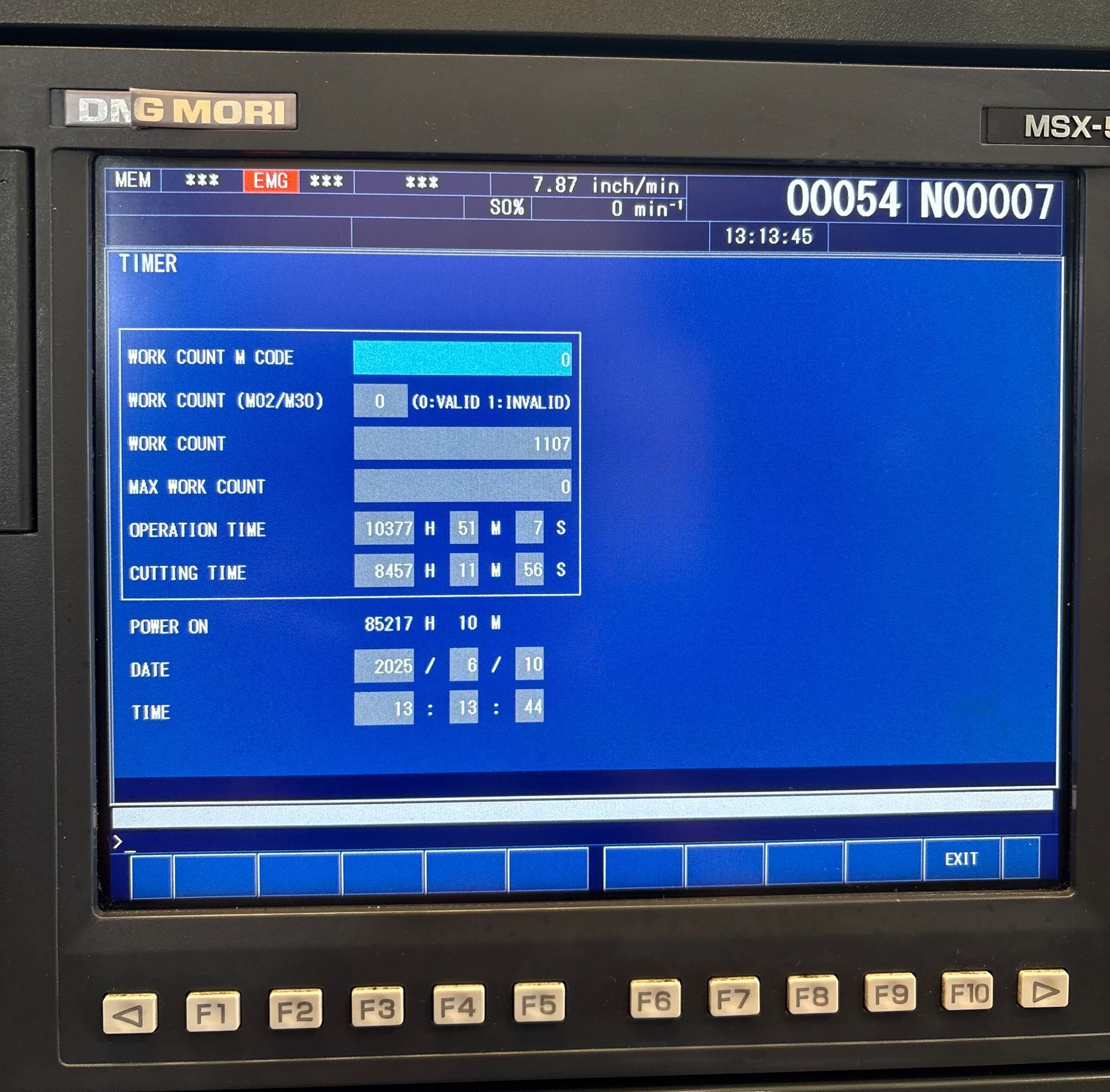

| Mori Seiki MSX-501III (Fanuc) CNC Control |
| Heavy Duty Box Way Design |

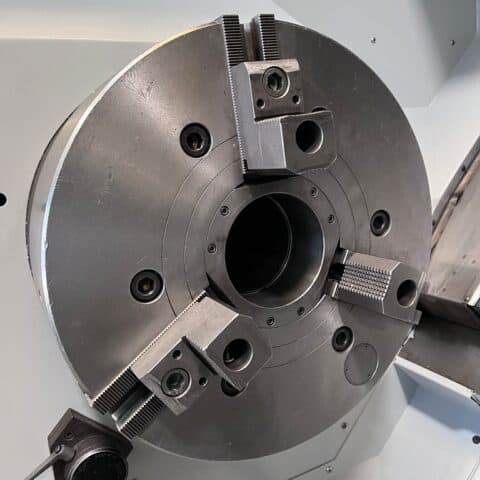

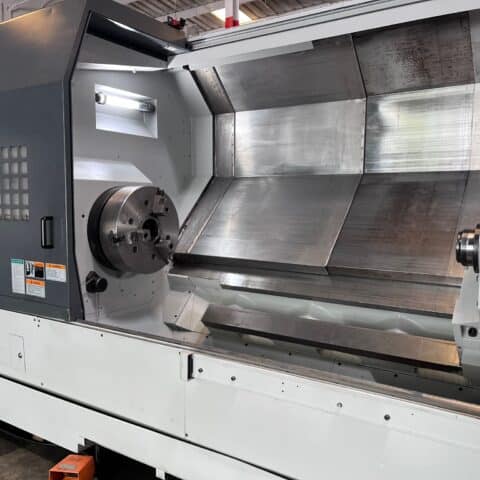

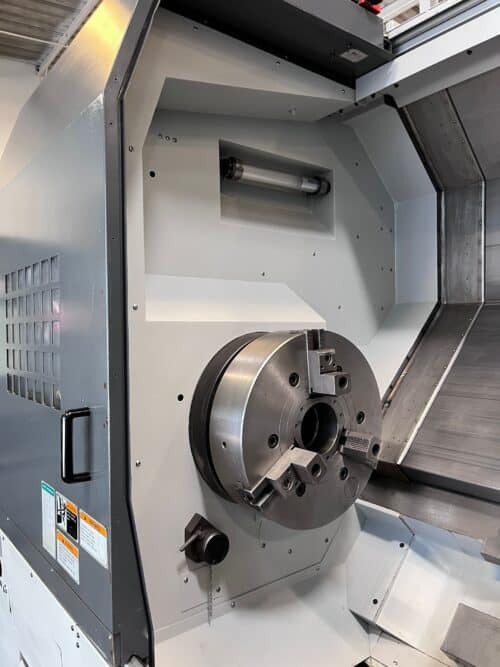

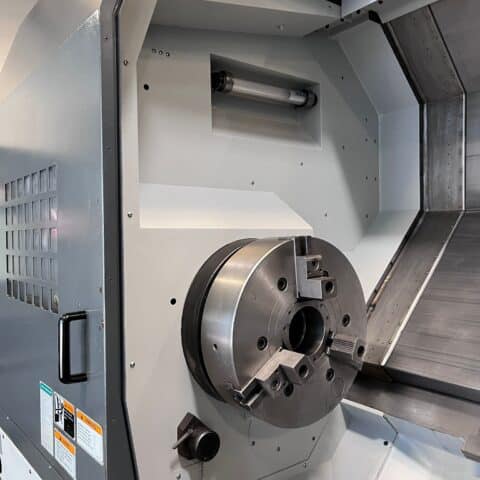

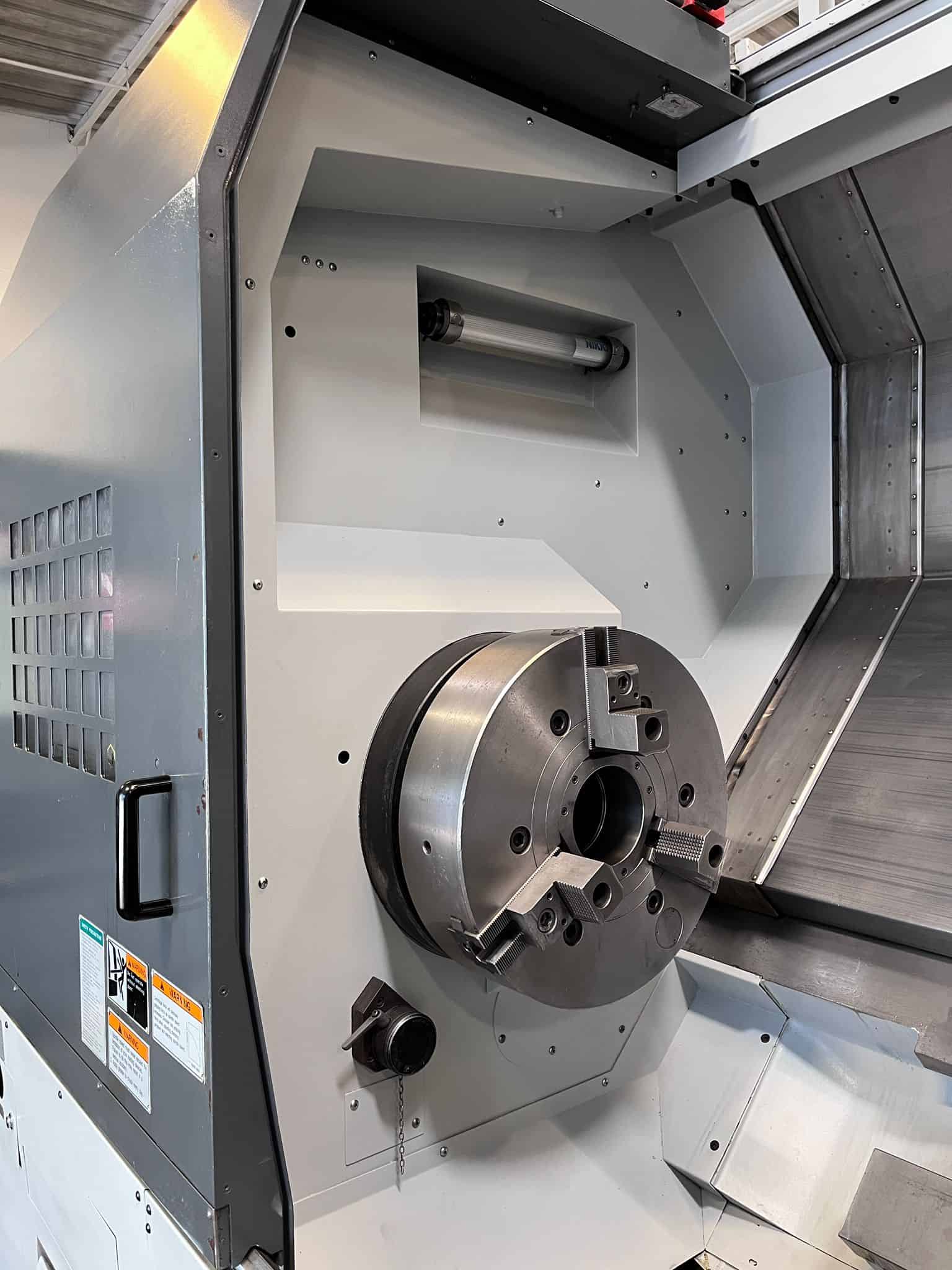

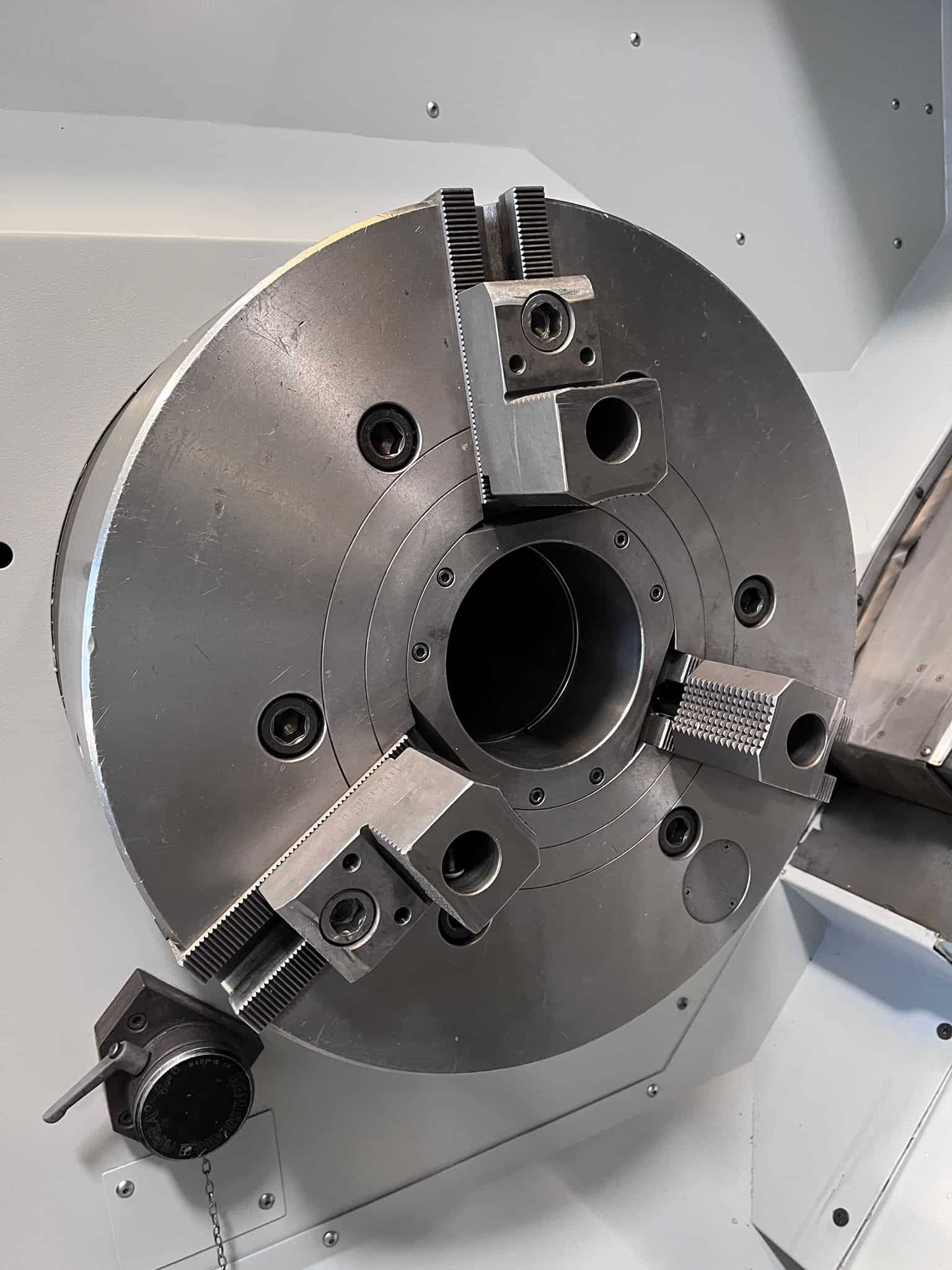

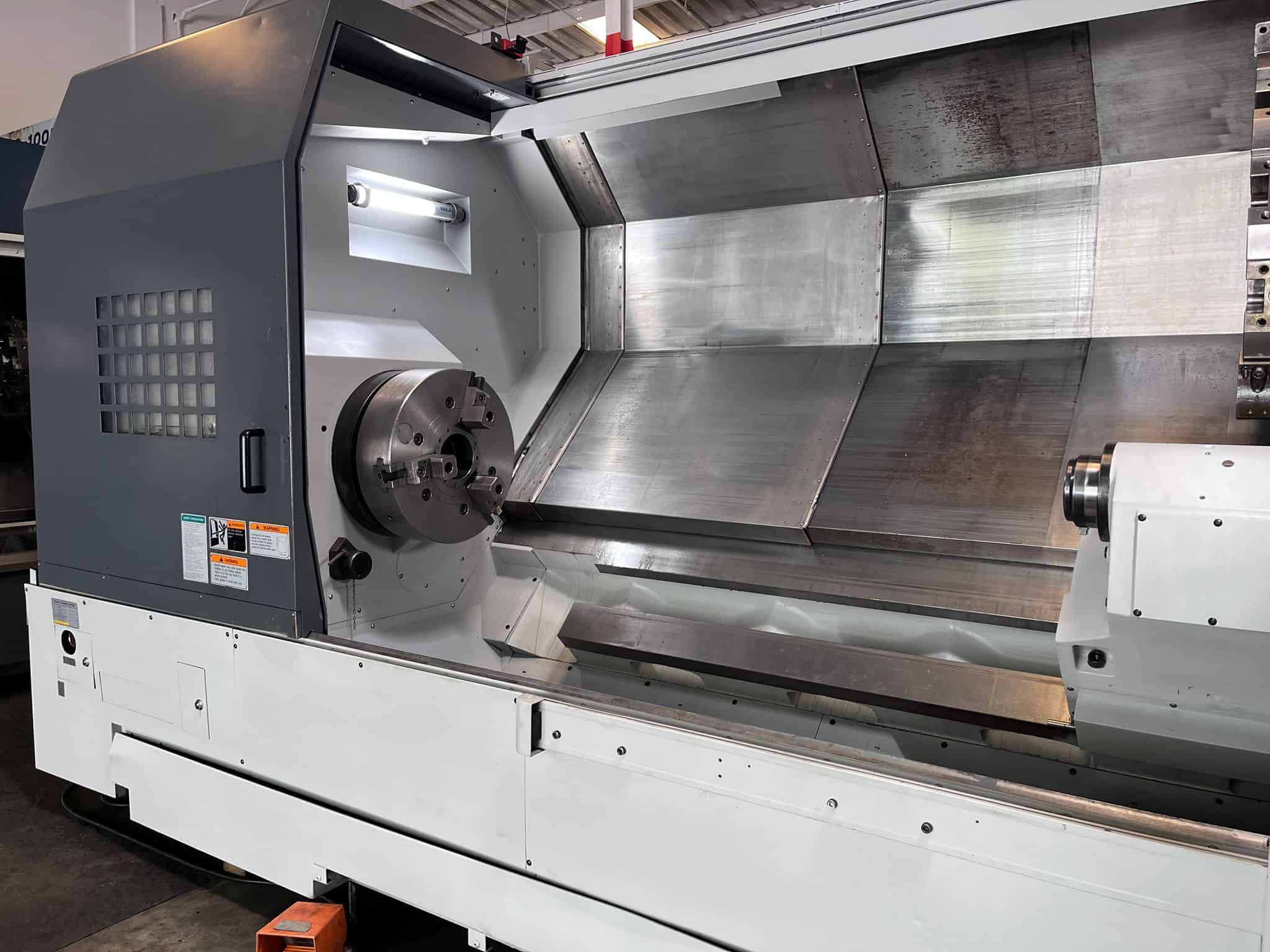

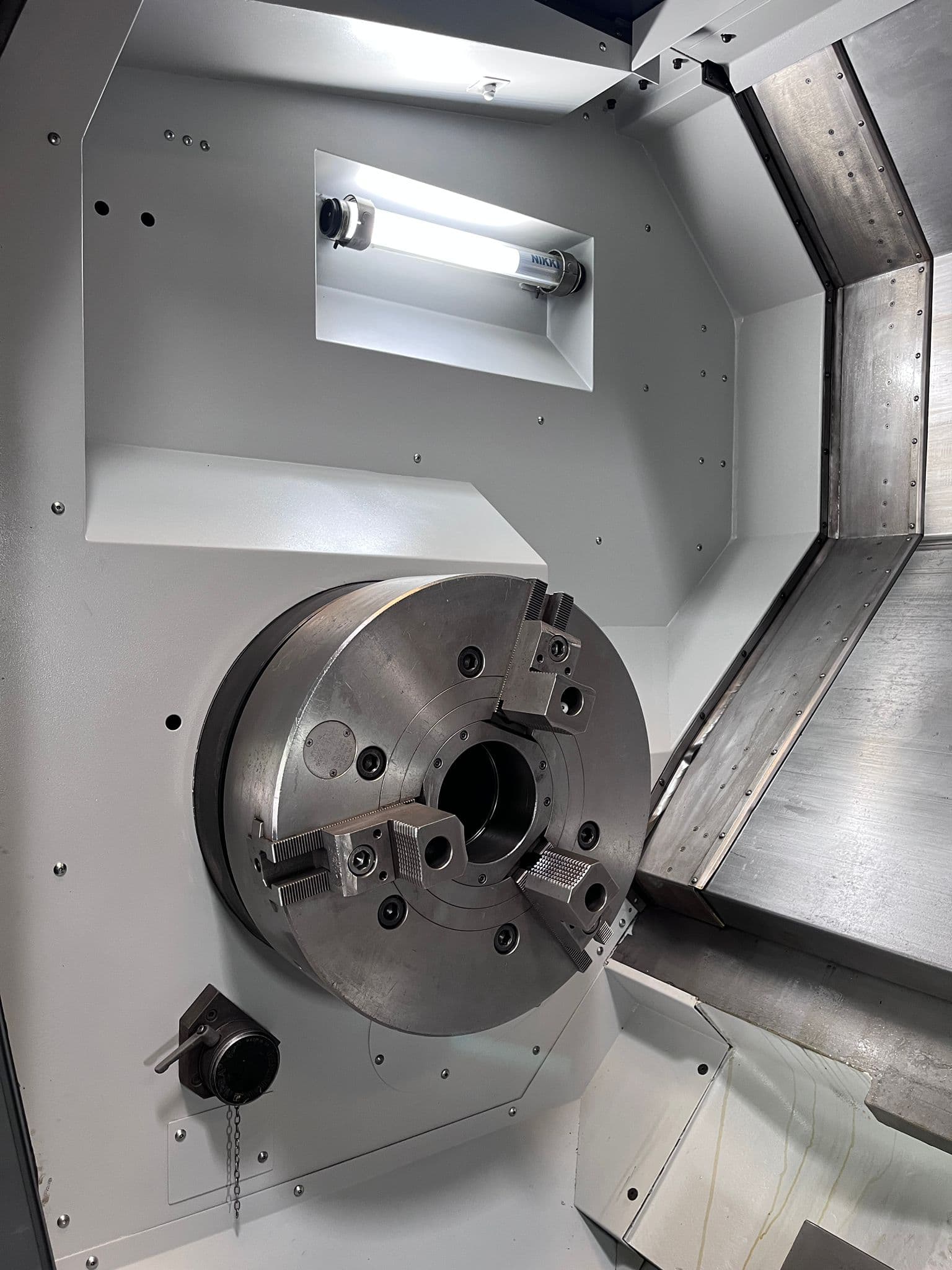

| 21″ 3-Jaw Kitagawa Chuck With 5.5″ Bore |
| 7.28″ Big Bore Capable – With Existing Chuck Setup Spindle Bore is 5.5″ |
| A2-15 Spindle |

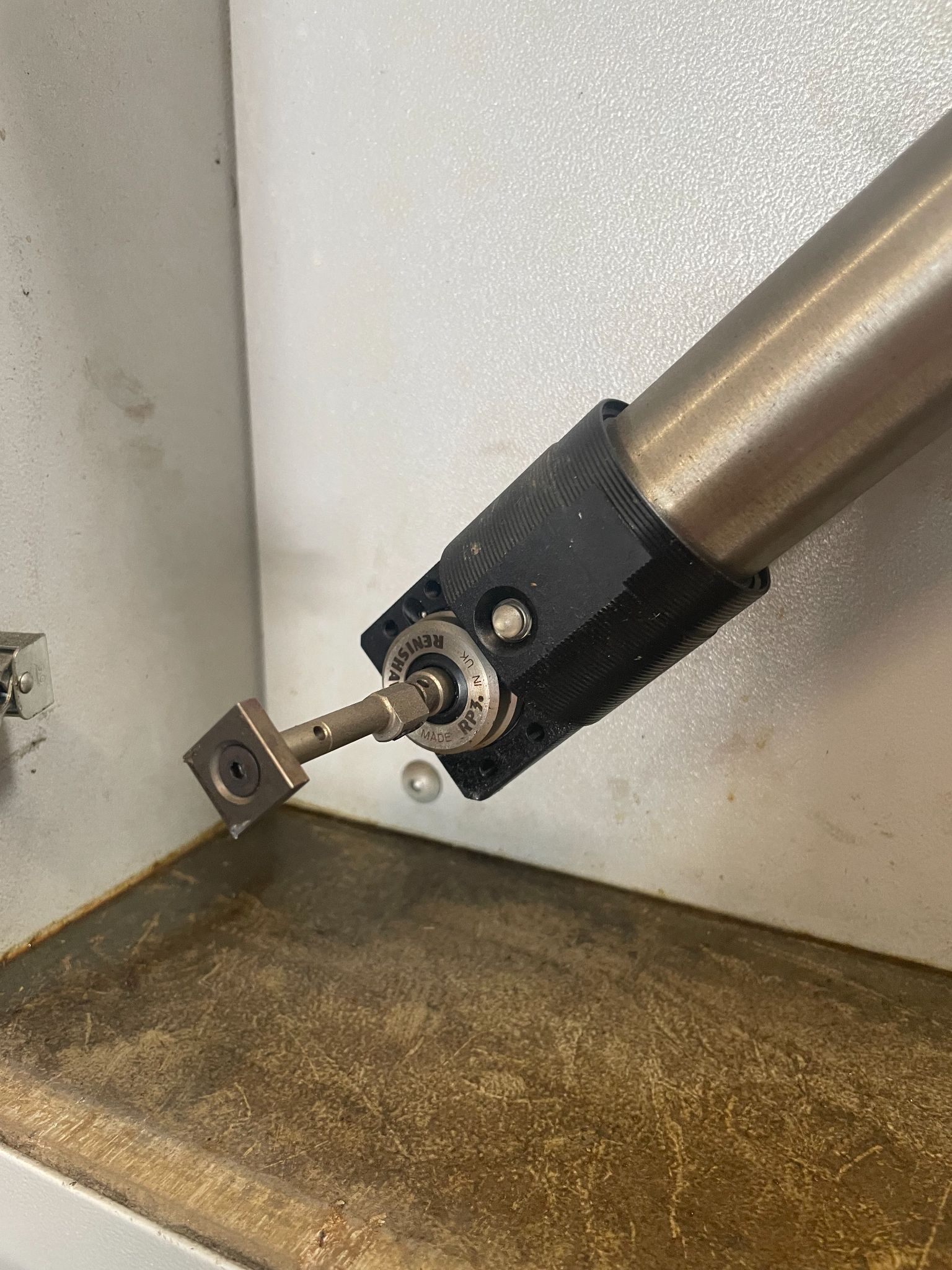

| Tool Presetter |
| 50 HP 2 Speed Gear Head Spindle |

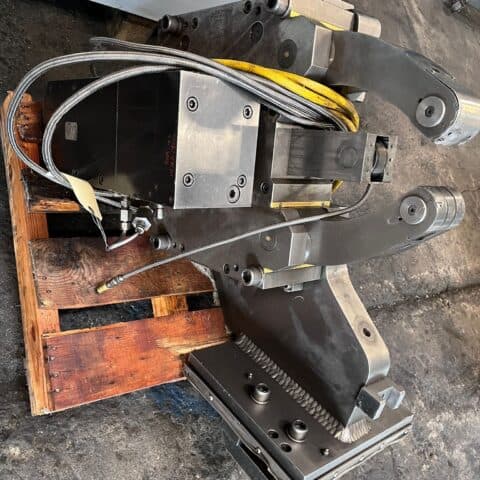

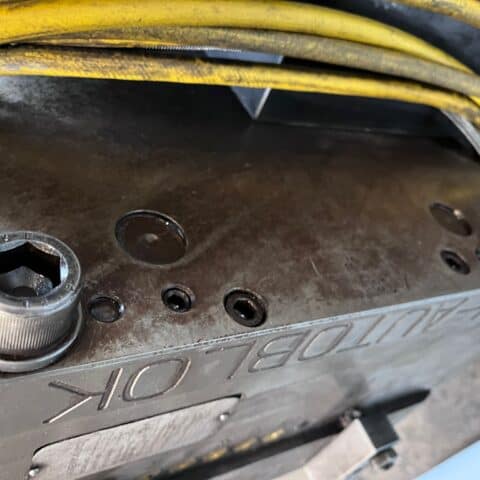

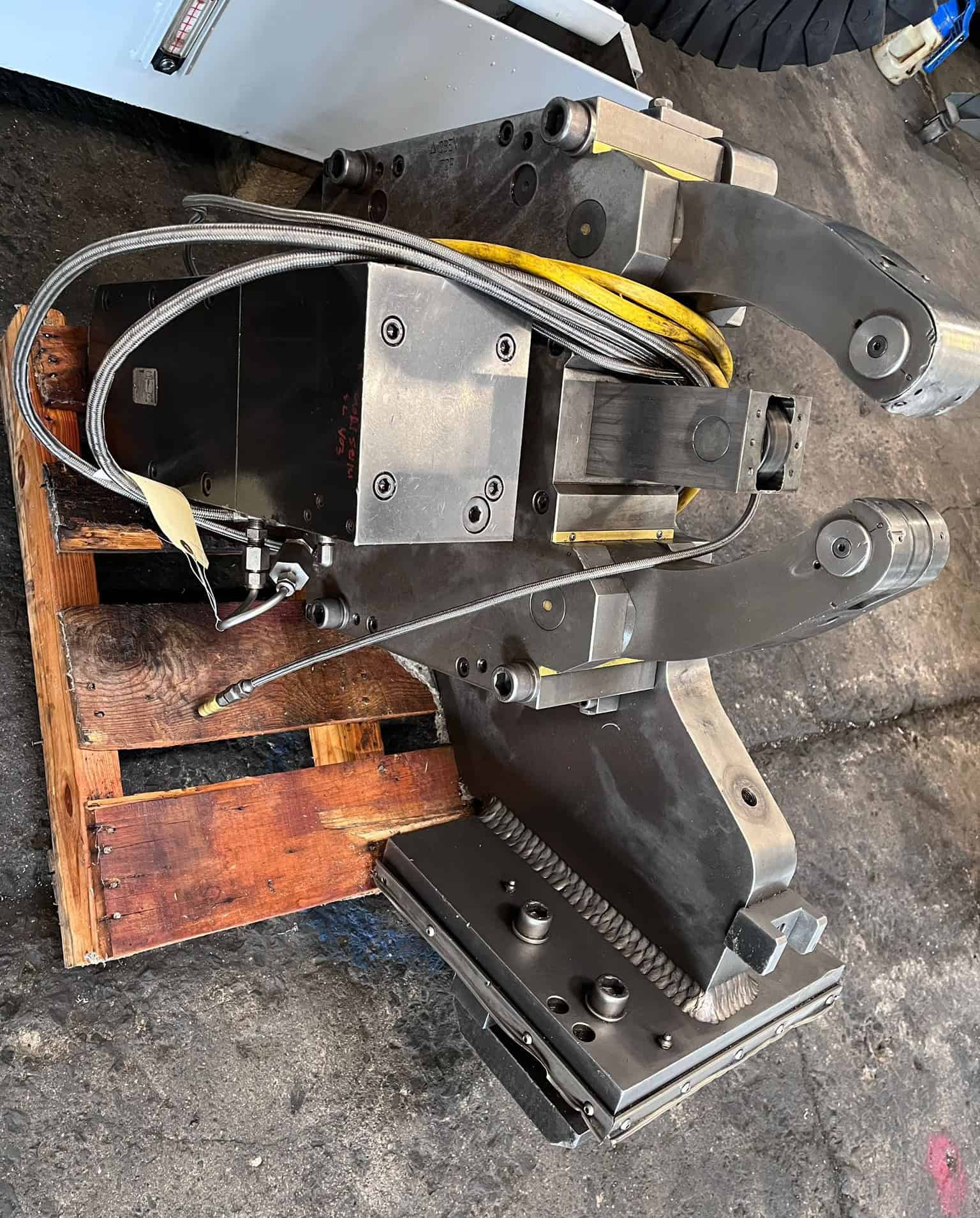

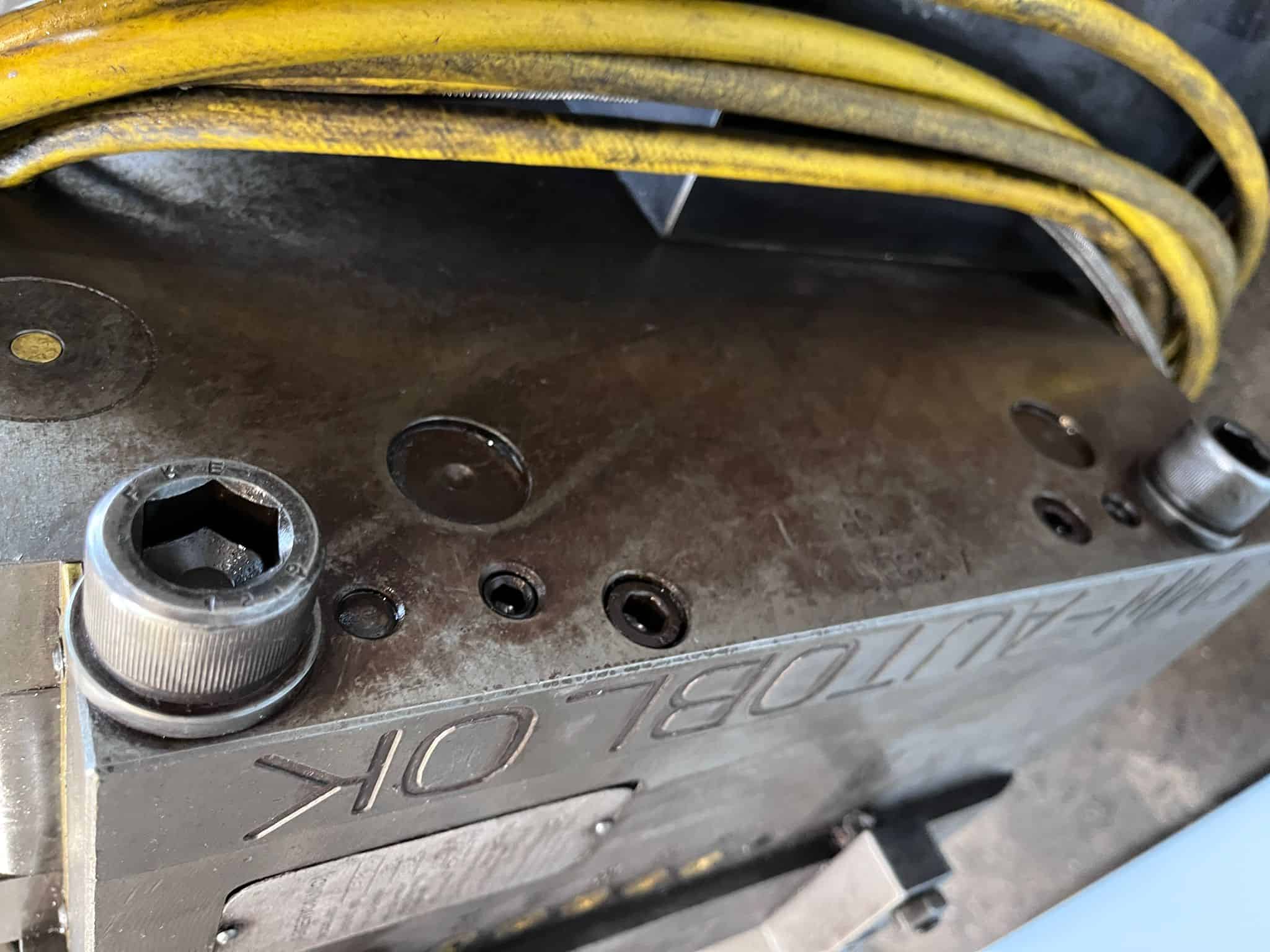

| 3.54″ – 13.78″ (Min – Max) Diameter SMW Autoblock Steady Rest |

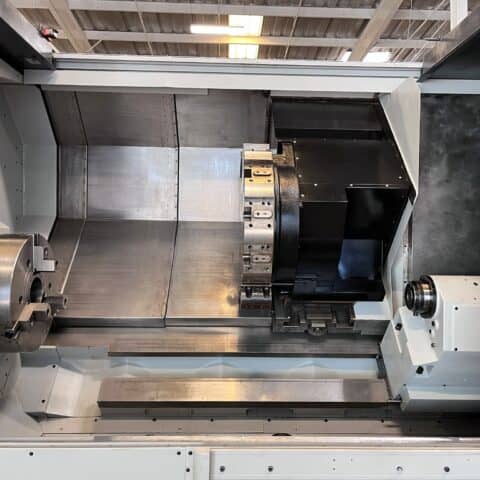

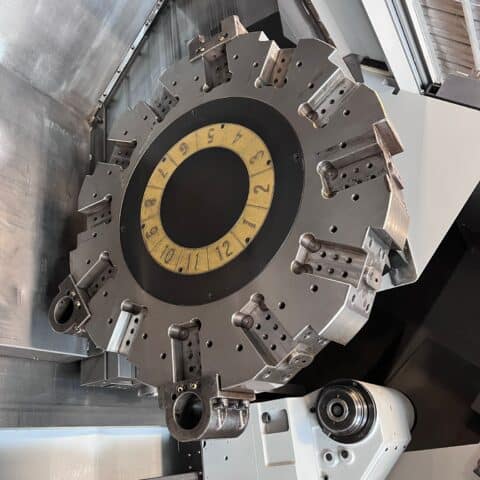

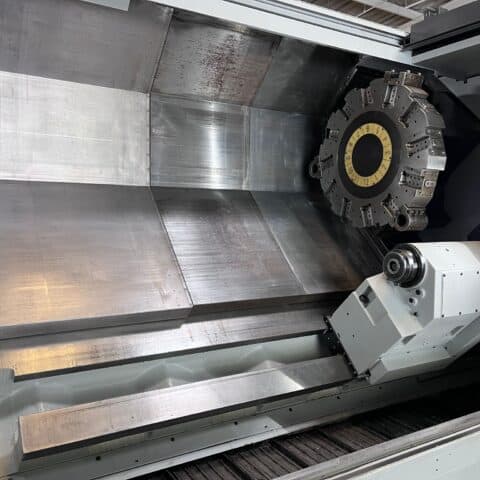

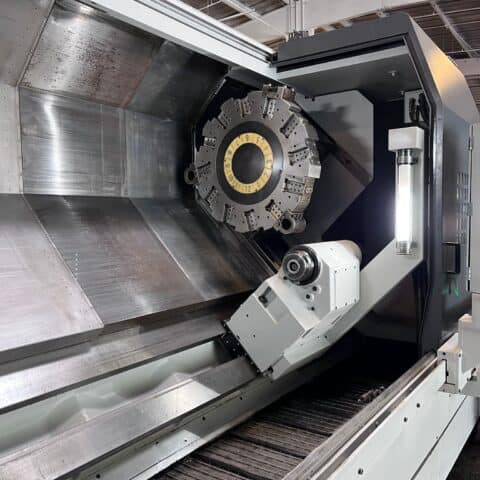

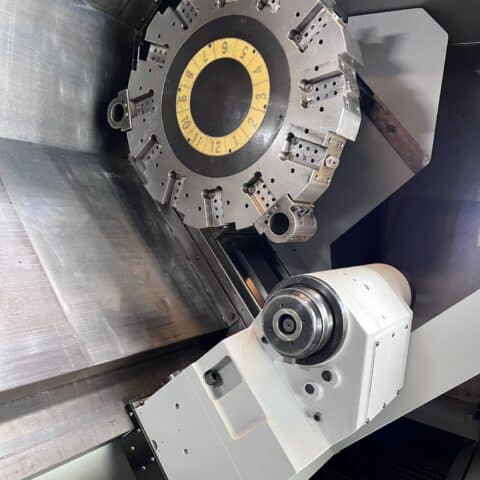

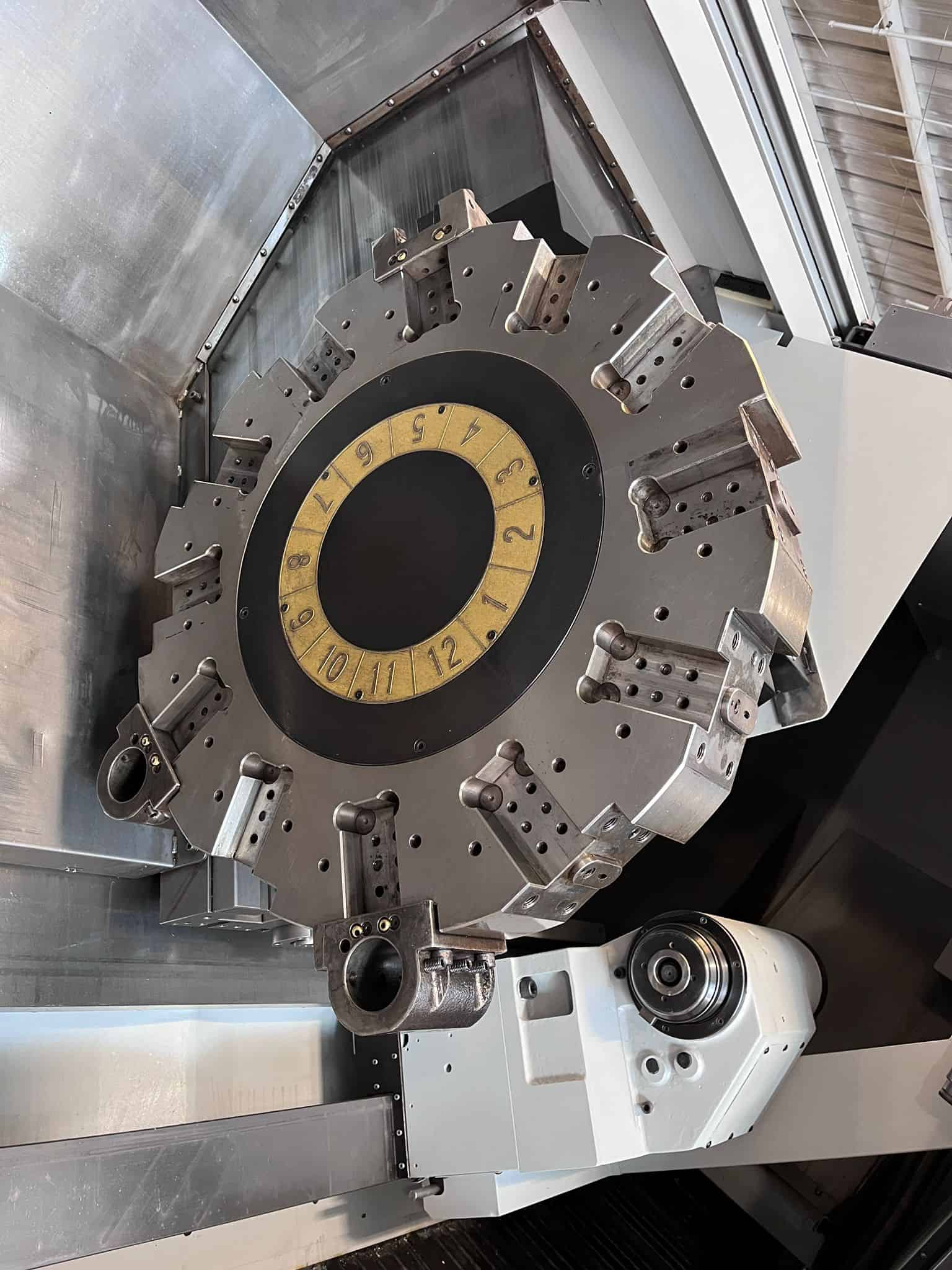

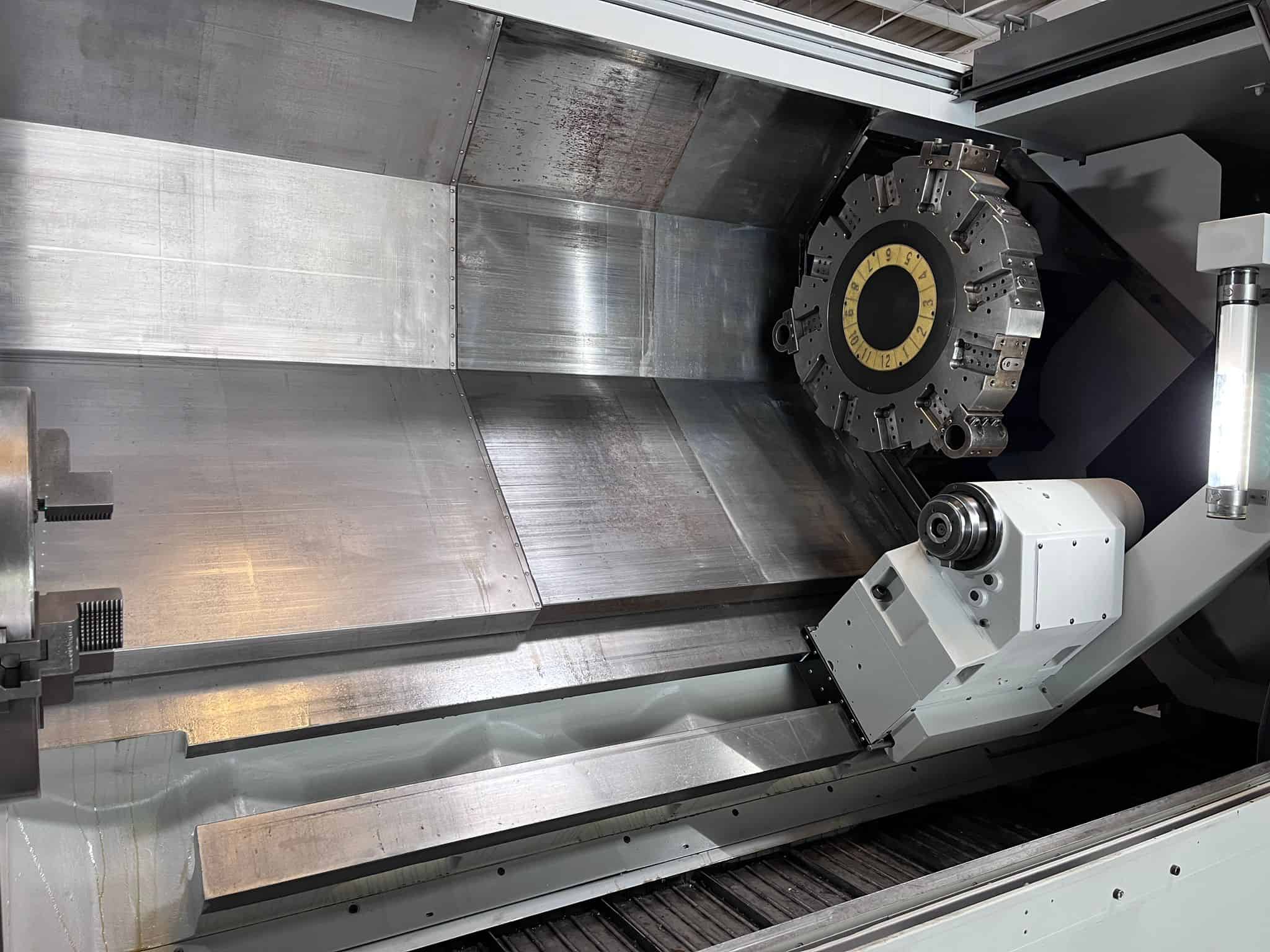

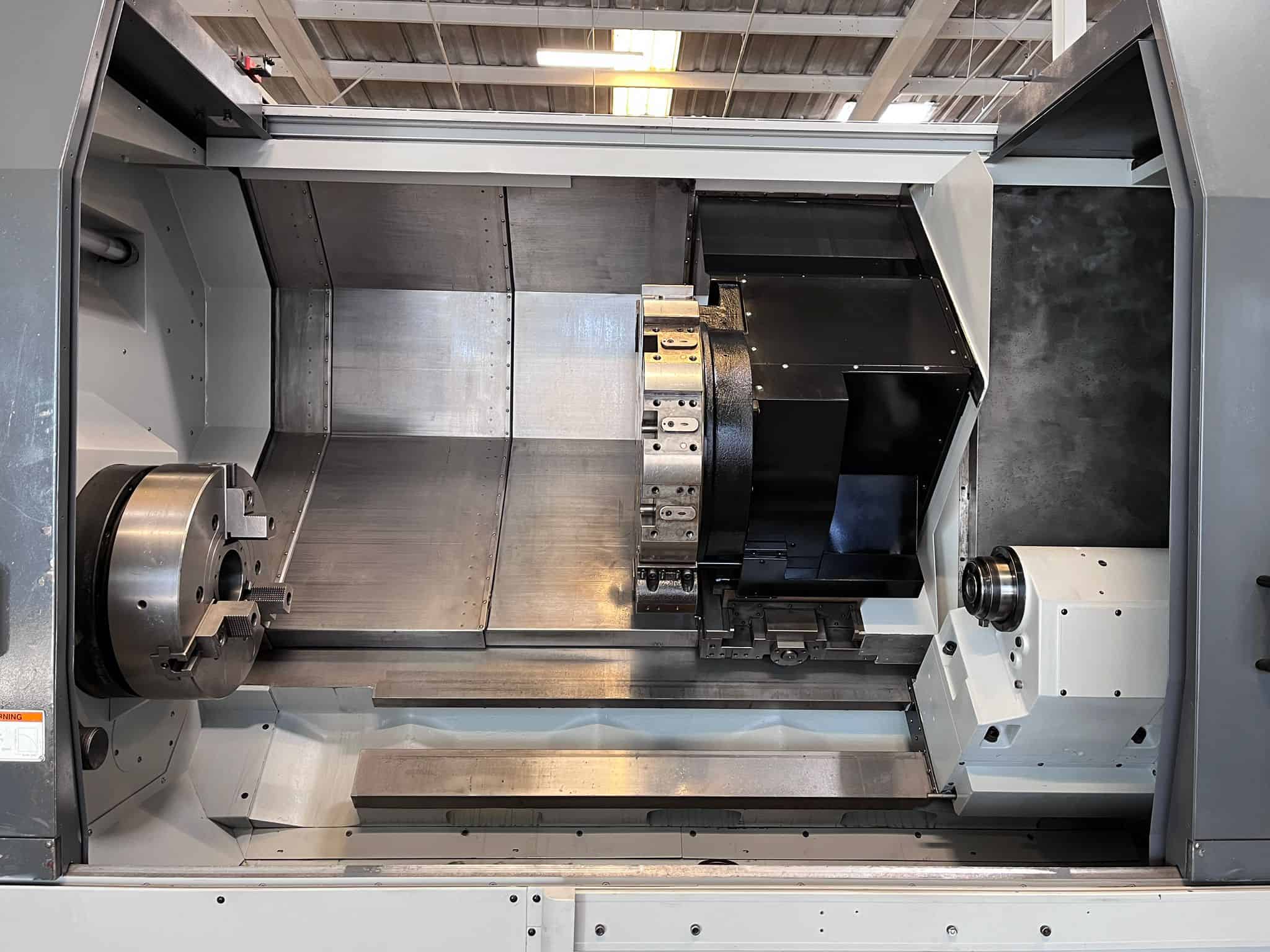

| 12 Station Automatic Turret |

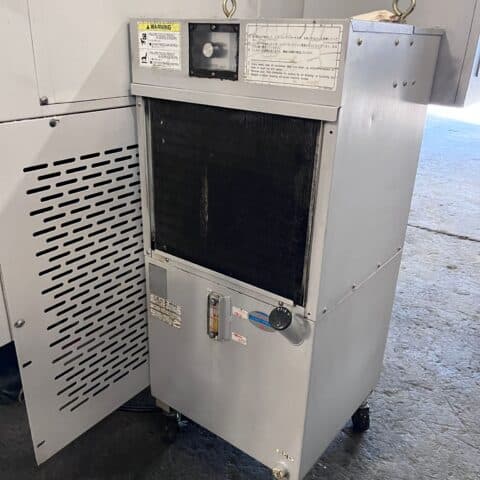

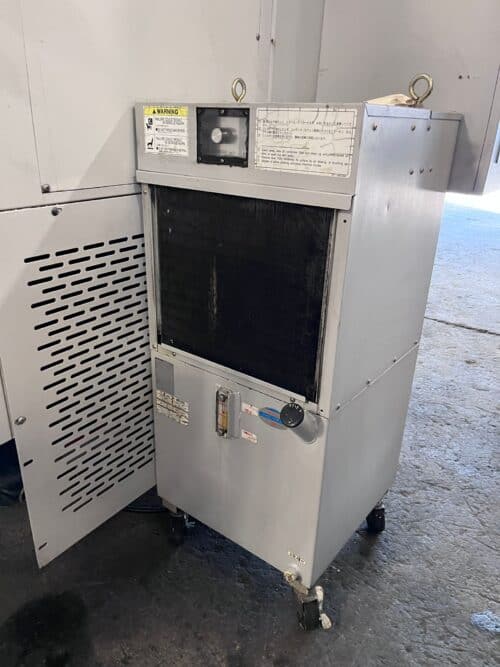

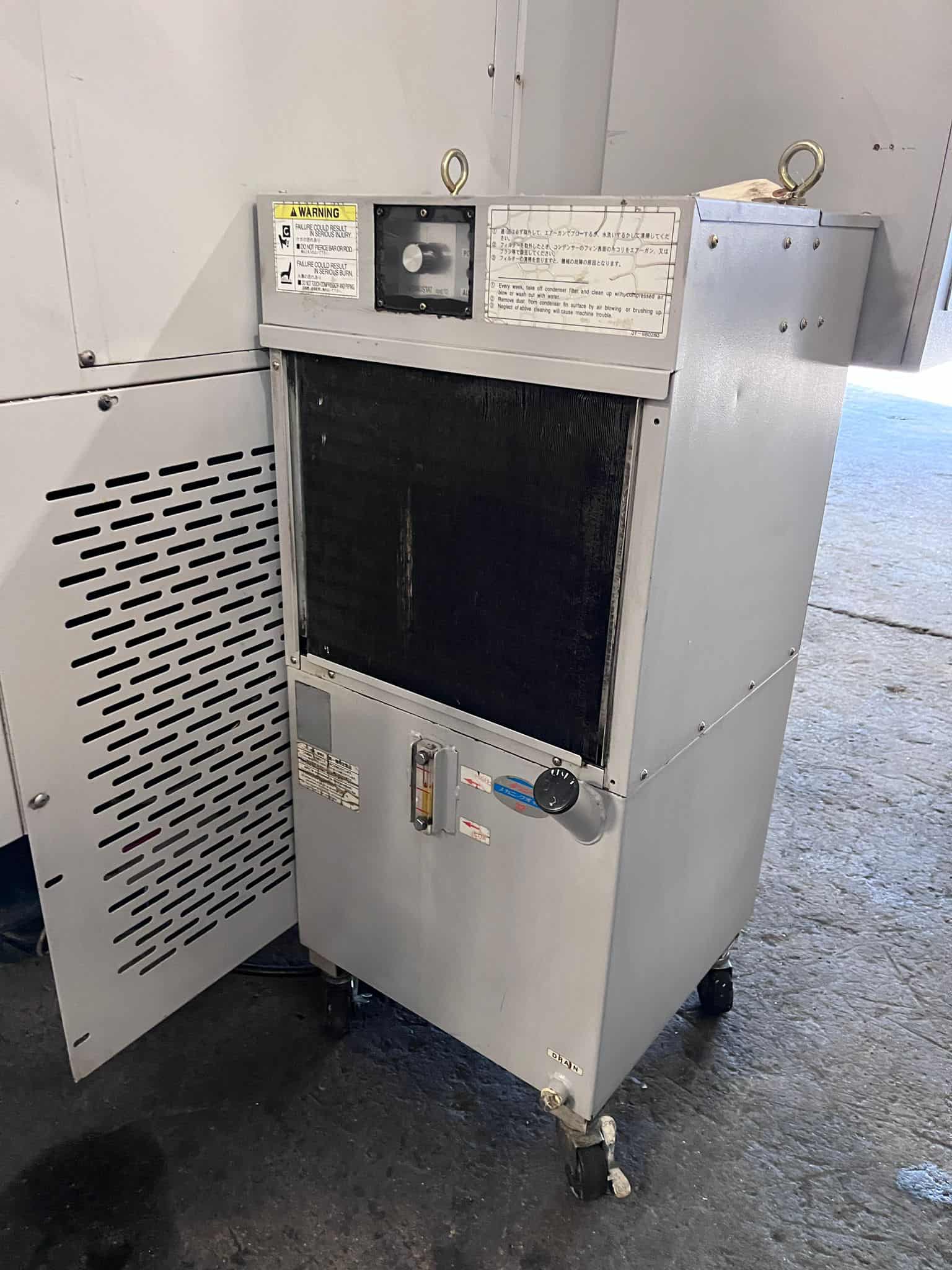

| Spindle Chiller Unit |

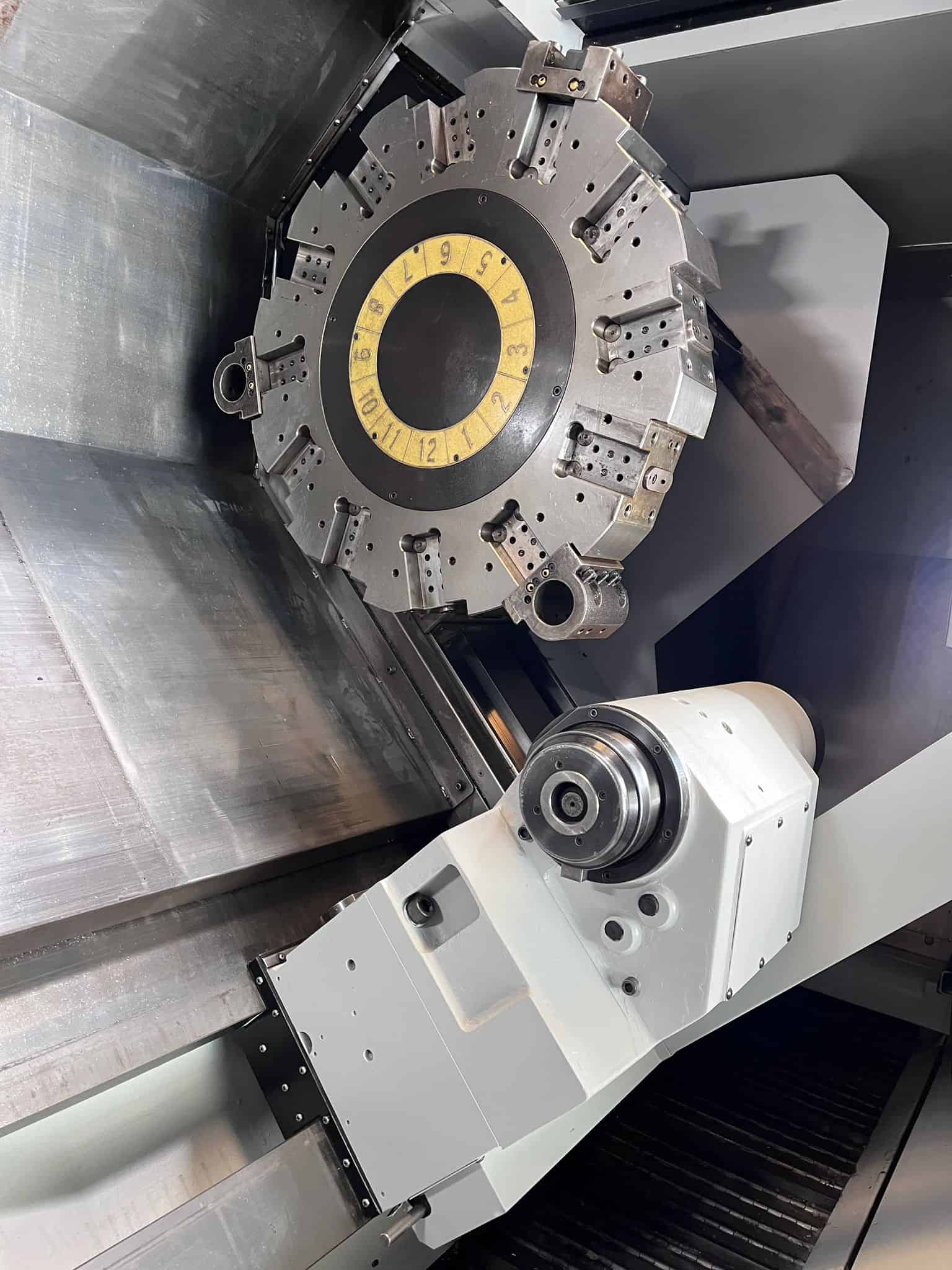

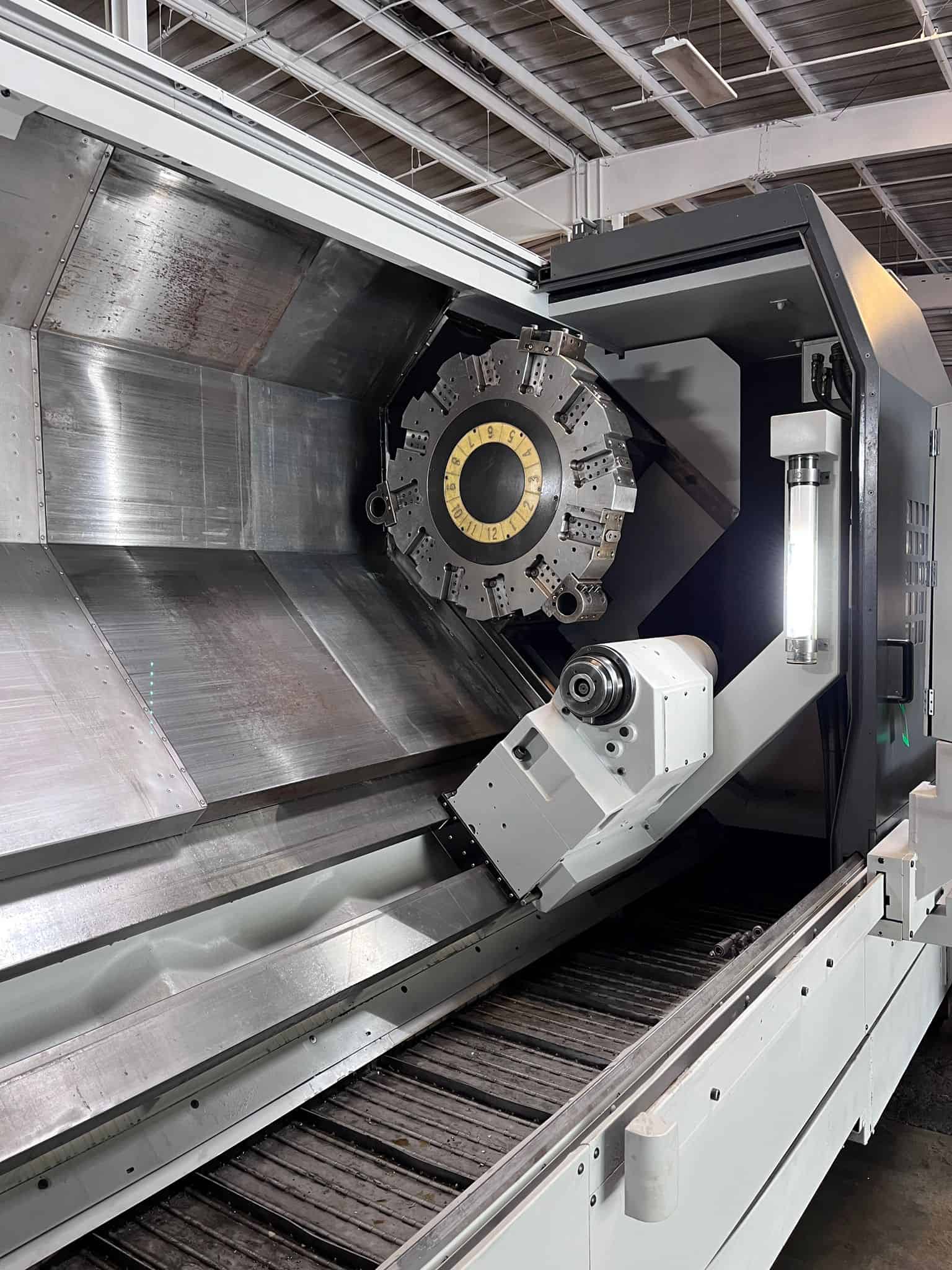

| Hydraulic Tailstock |
| Rigid Tapping |
| Coolant System |

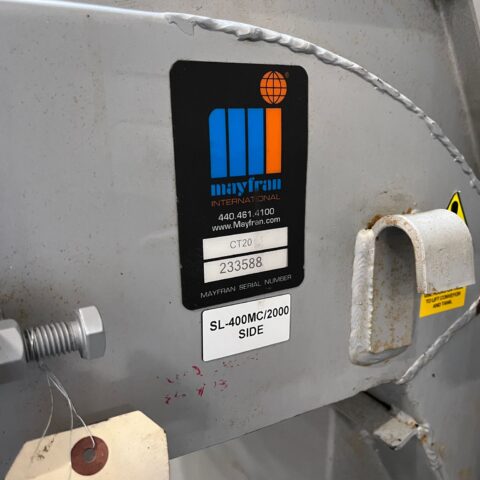

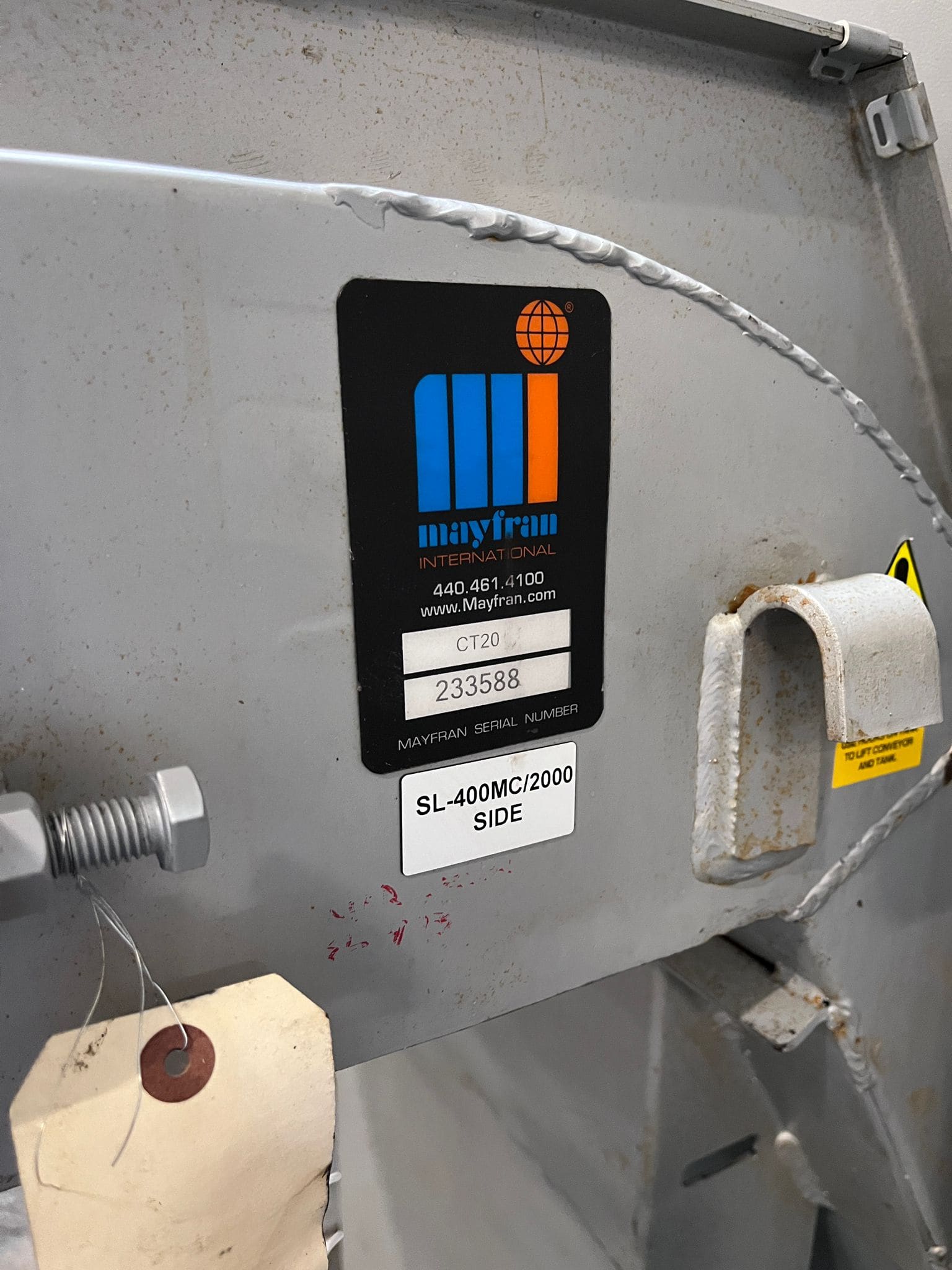

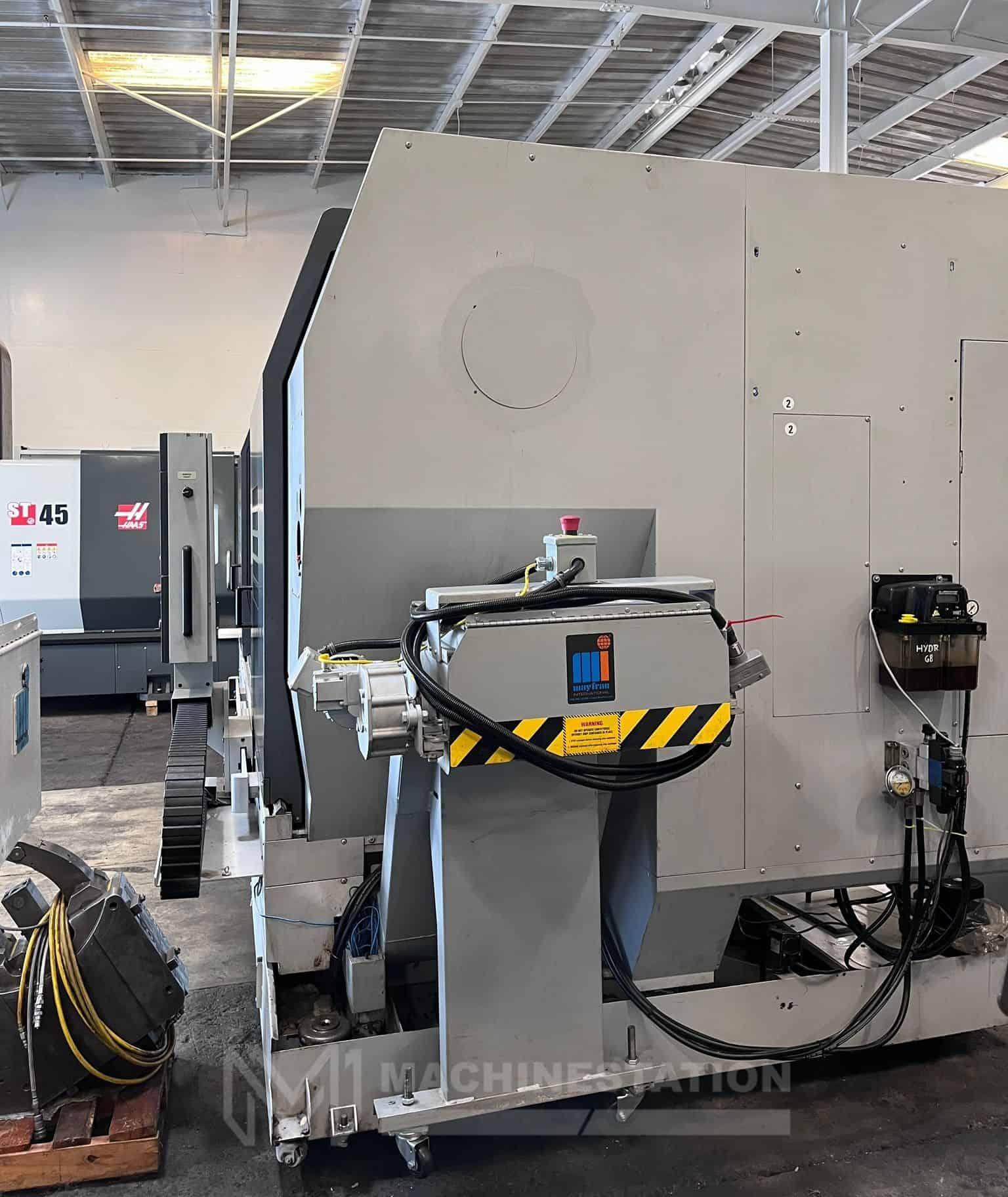

| Chip Conveyor |
| Automatic Lubrication System |
| Foot Switch |
| (2) Boring Tool Holders, (1) Turning Tool Holder Equipped on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 25.6″ |
| Max Turning Length: 81.42″ |
| Swing Over Bed: 36.81″ |
| Swing Over Cross Slide: 29.06″ |
| Bar Capacity: 6.50″ Capable – With Existing Chuck Setup Bar Capacity is 5.0″ (Please Refer the Pictures) |
| Distance Between Centers: 91.54″ |
| Travels: |
|---|
| X Axis Travel: 13.58″ |
| Z Axis Travel: 86.42″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-15 |
| Spindle Bore: 7.28″ Capable – With Existing Chuck Setup Spindle Bore is 5.5″ |
| Spindle Speed: 4-1500 RPM |
| Spindle Motor: 50 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Square Shank Height of Tool: 1.25″ |
| Shank Diameter of Boring Bar: 2.36″ |
| Tool Holders Type: BMT |
| Tailstock: |
|---|
| Tailstock Travel: 78.74 |
| Tailstock Quill Diameter: 5.90″ |
| Tailstock Quill Travel: 5.90″ |
| Tailstock Taper: MT-5 |
| General: |
|---|

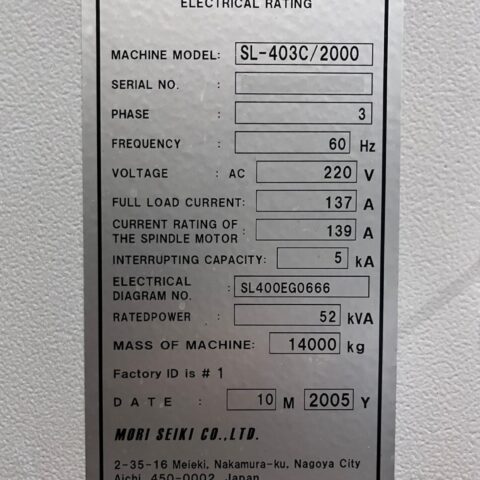

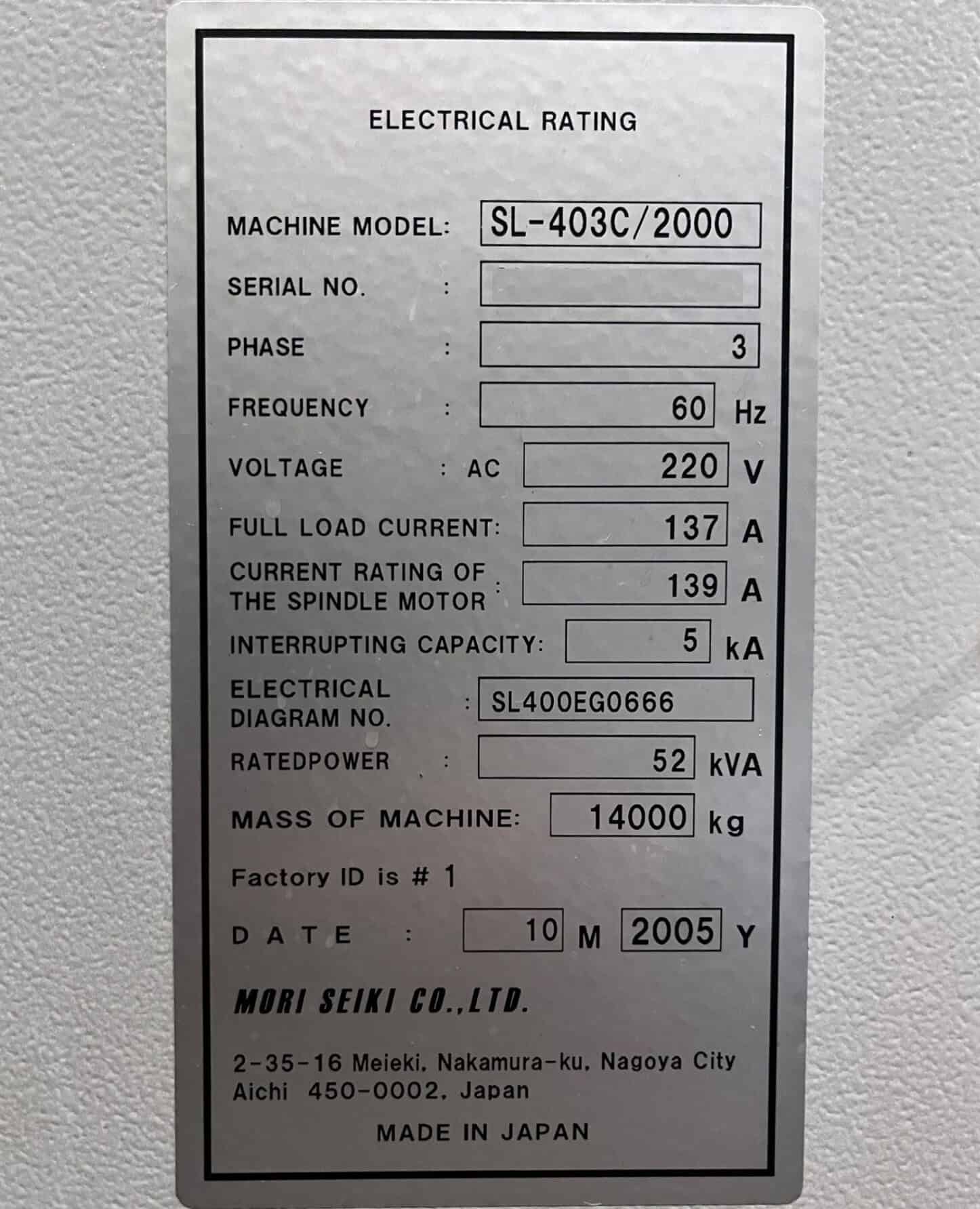

| Power: 220v / 3-Phase / 60 Hz / 52 kva |
| Overall Dimensions: 244.09″ x 132.36″ x 99.92″ High |
| Weight: 30,800 lbs |
