Mori Seiki SL-603CMC/2000 CNC Turn Mill Center

2.00 out of 5 based on 1 customer rating
(1 customer review)

$199,800.00

Qty =

Product Description

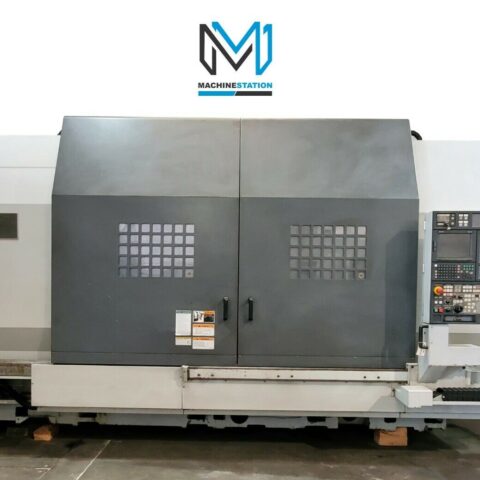

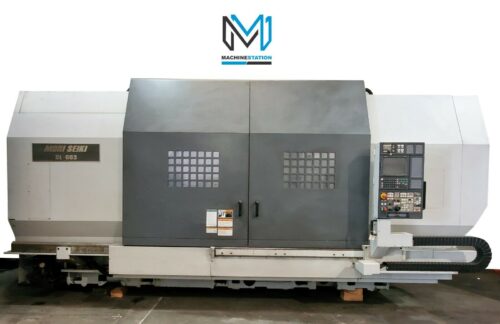

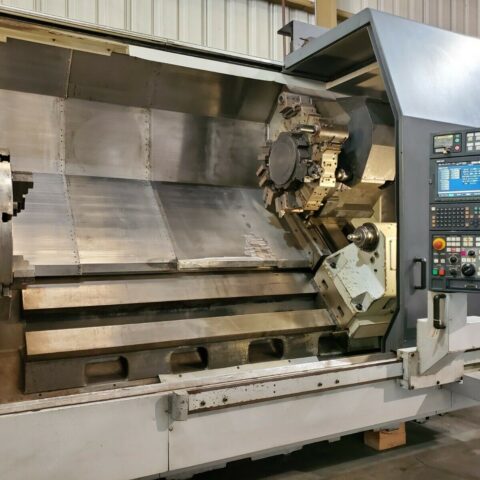

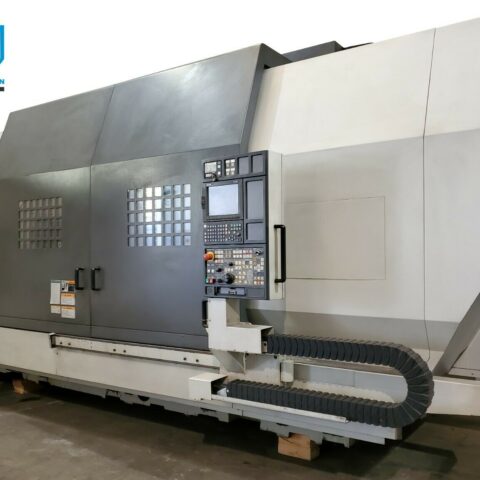

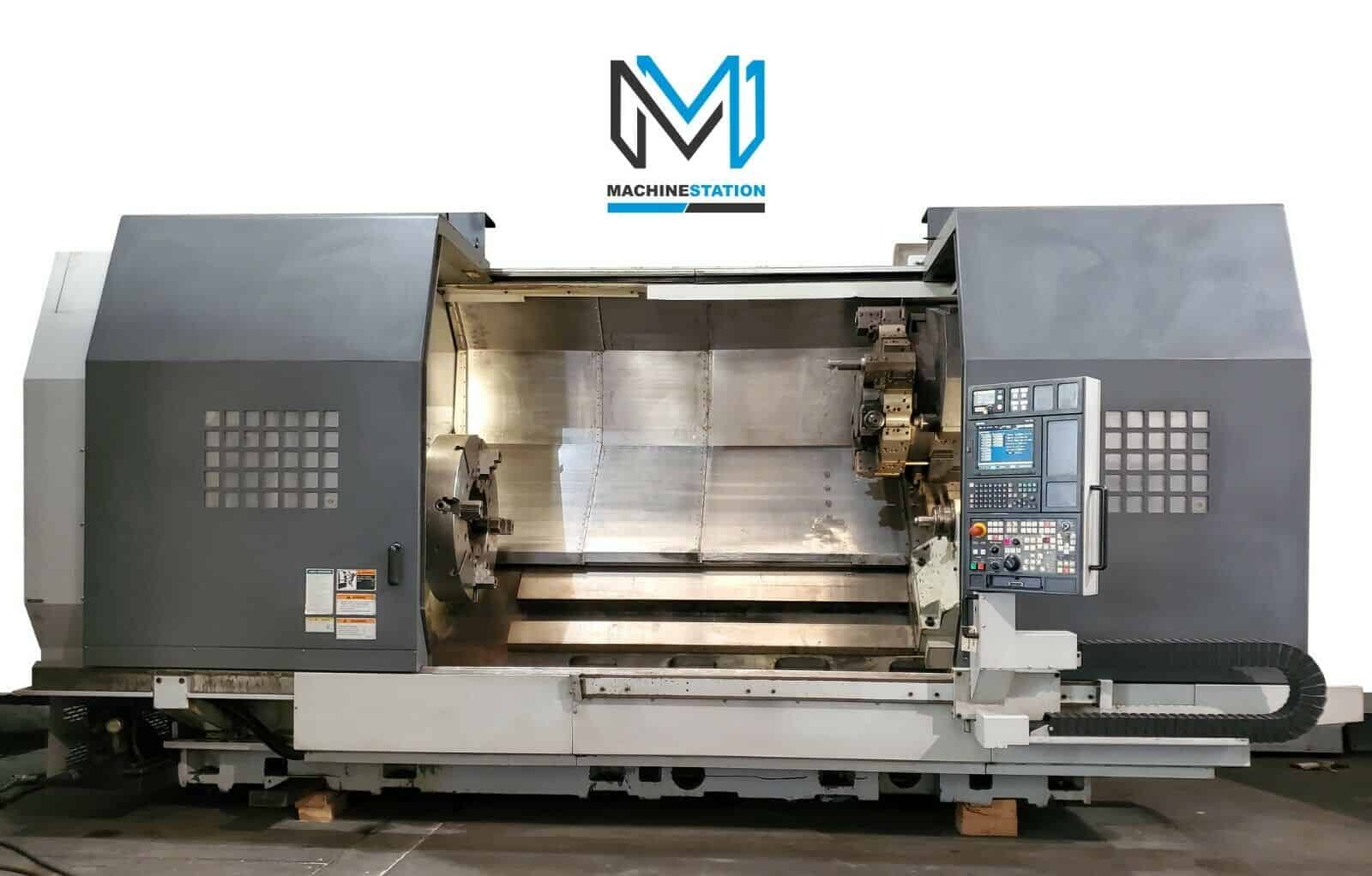

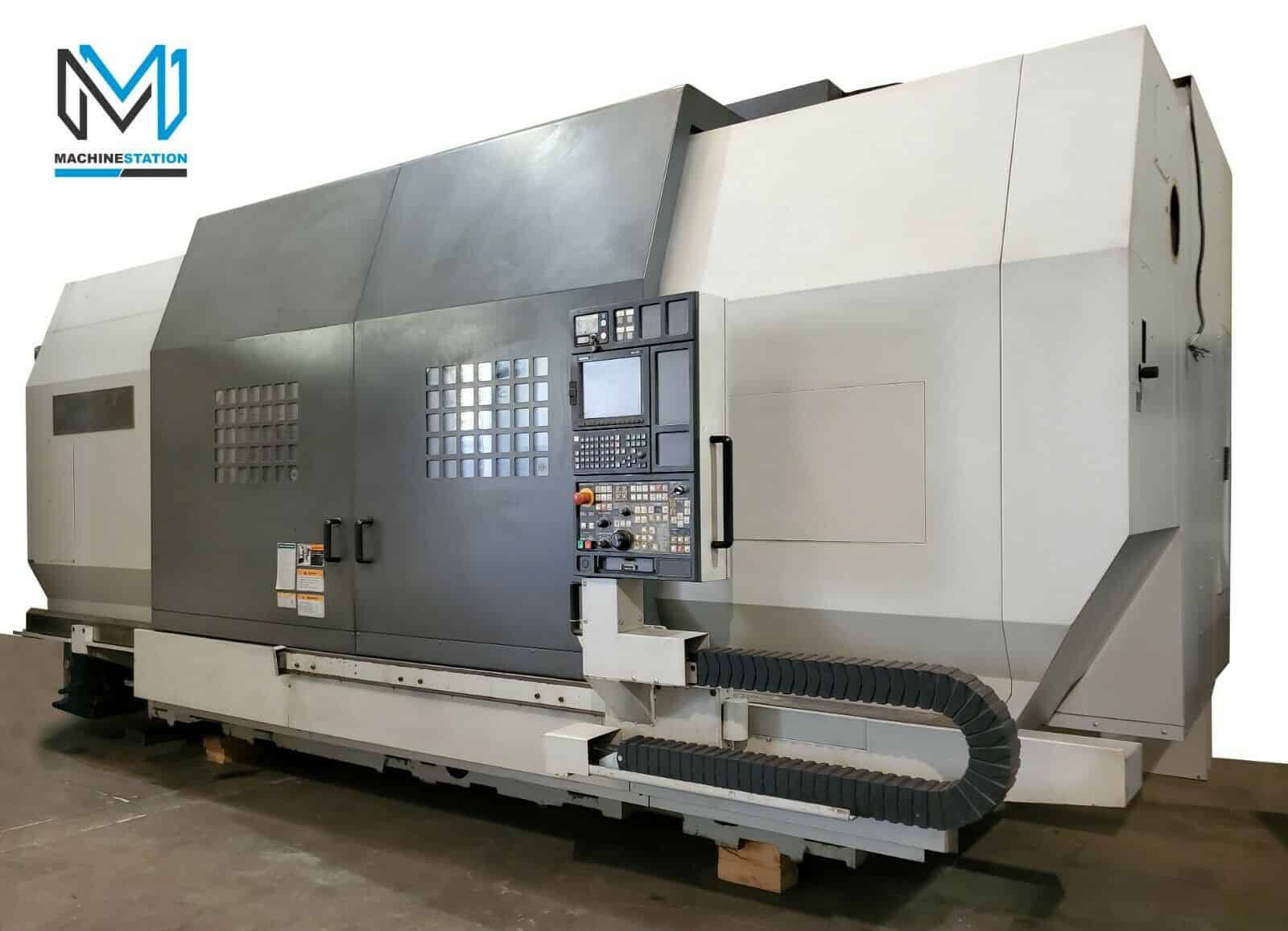

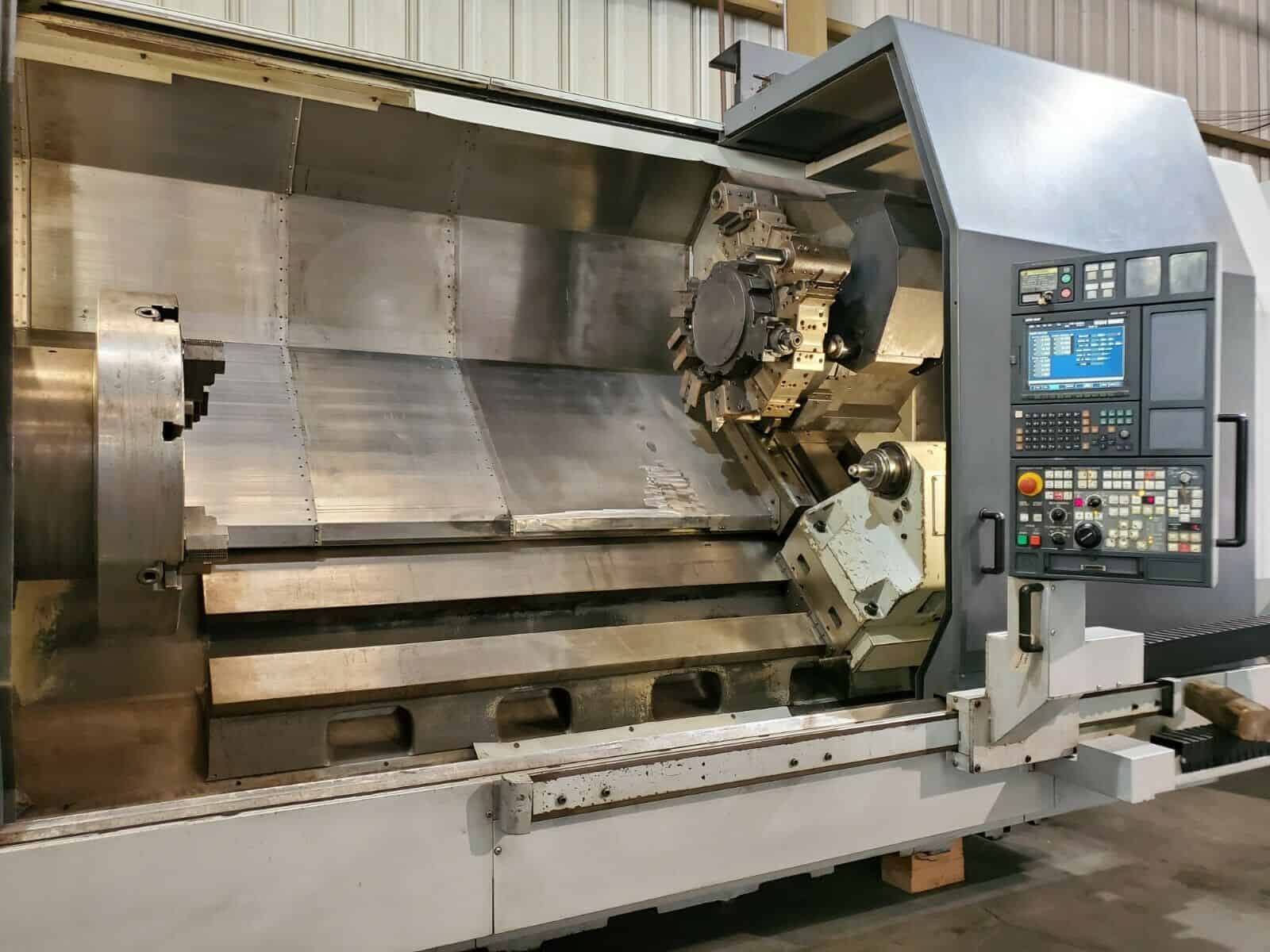

MORI SEIKI SL-603CMC/2000 CNC TURN MILL CENTER

SKU # 1824
Make: Mori Seiki
Model No.: SL-603CMC/2000
Year of Manufacture: 2006
Serial No.: EJ0235
Condition: VERY GOOD

Comes with 32″ Chuck, Live & static Tools, Tailstock & Chip conveyor. Prepared for Steady Rest.

Replacement Cost over $800k

All specifications are approximations, and are subject to verification.

MORI SEIKI SL-603CMC/2000 Features:

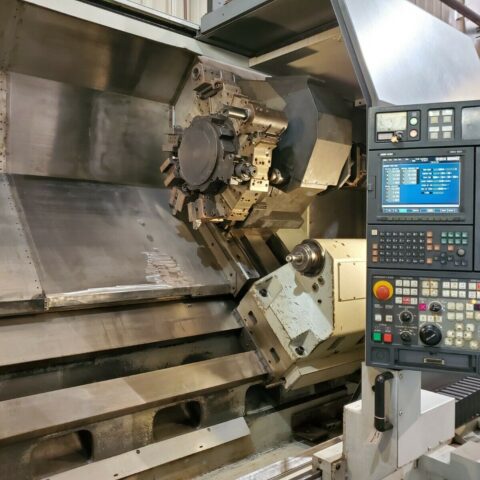

Mori Seiki MSX-501 (Fanuc) CNC Control
Coversational Auto Programming
A1-20 Spindle with 10.8″ Bore

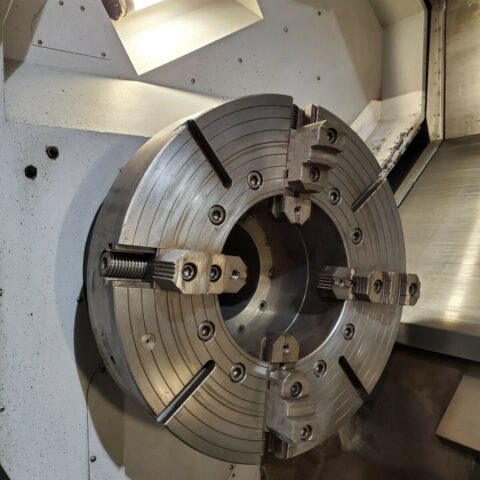

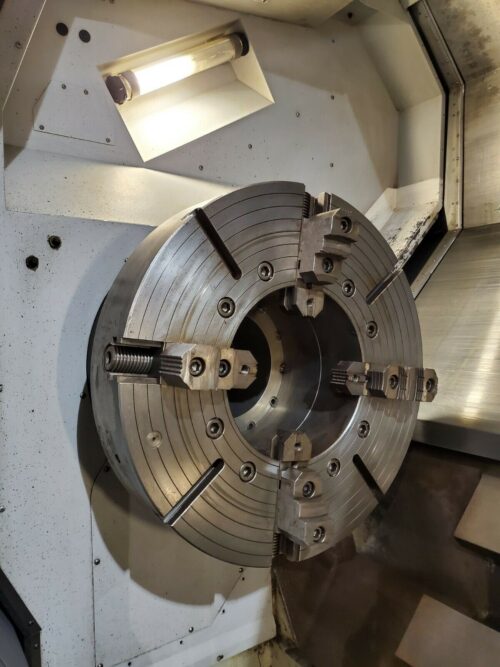

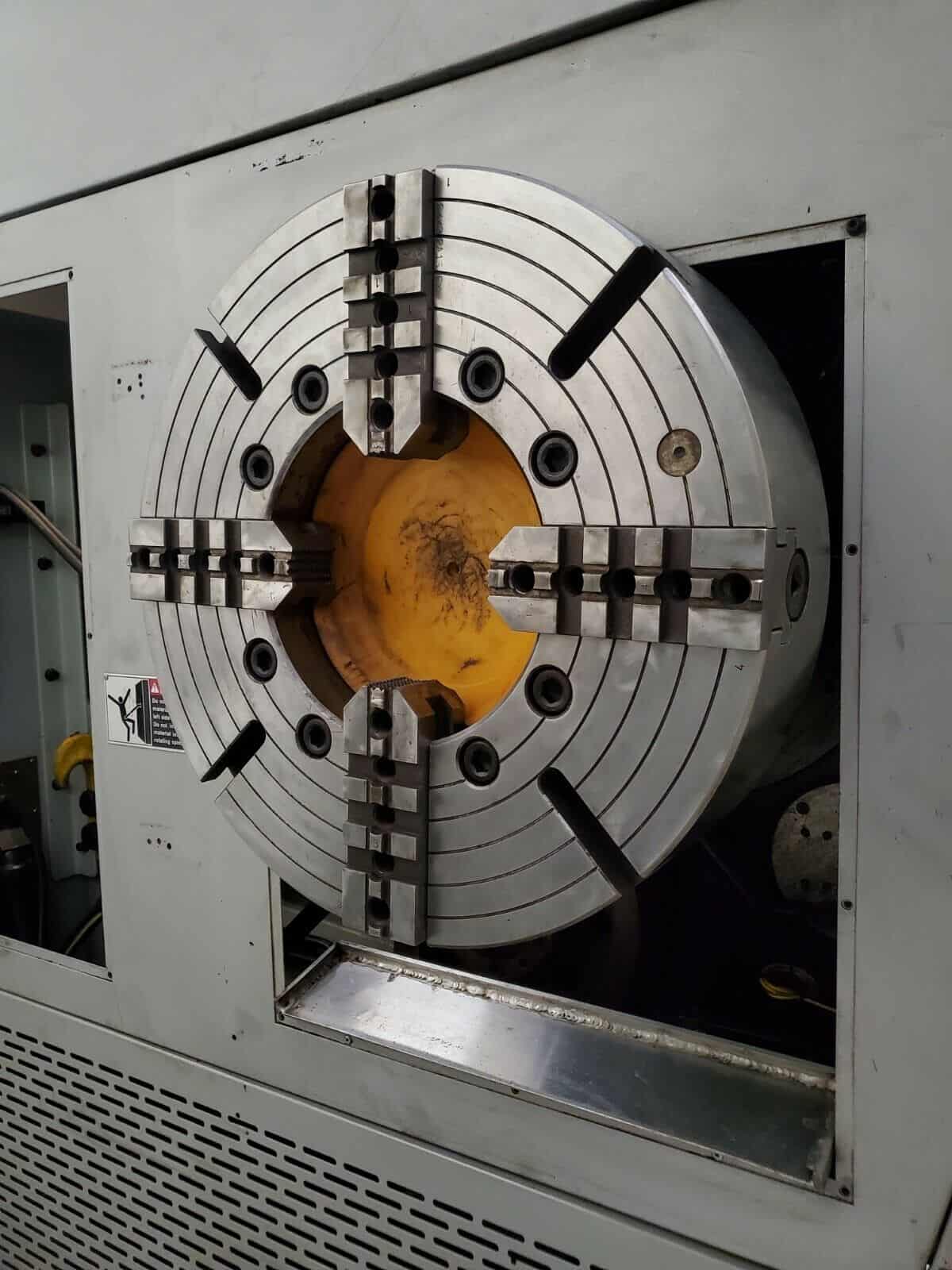

Front 31″ 4 Jaw Chuck

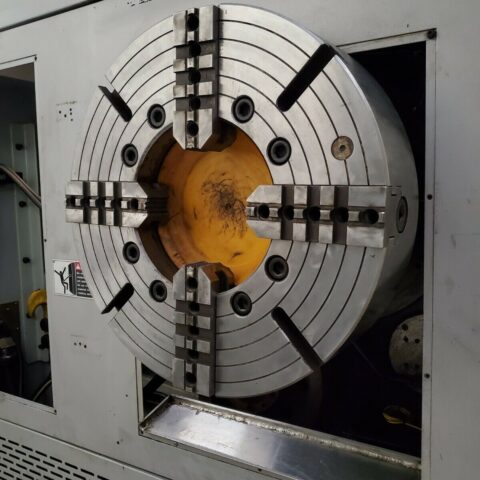

Rear 24″ 4 Jaw Chuck

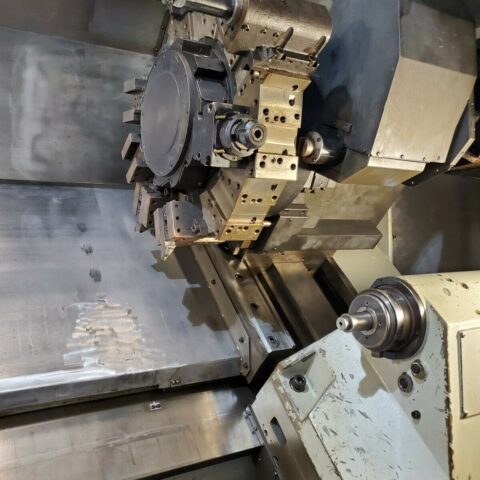

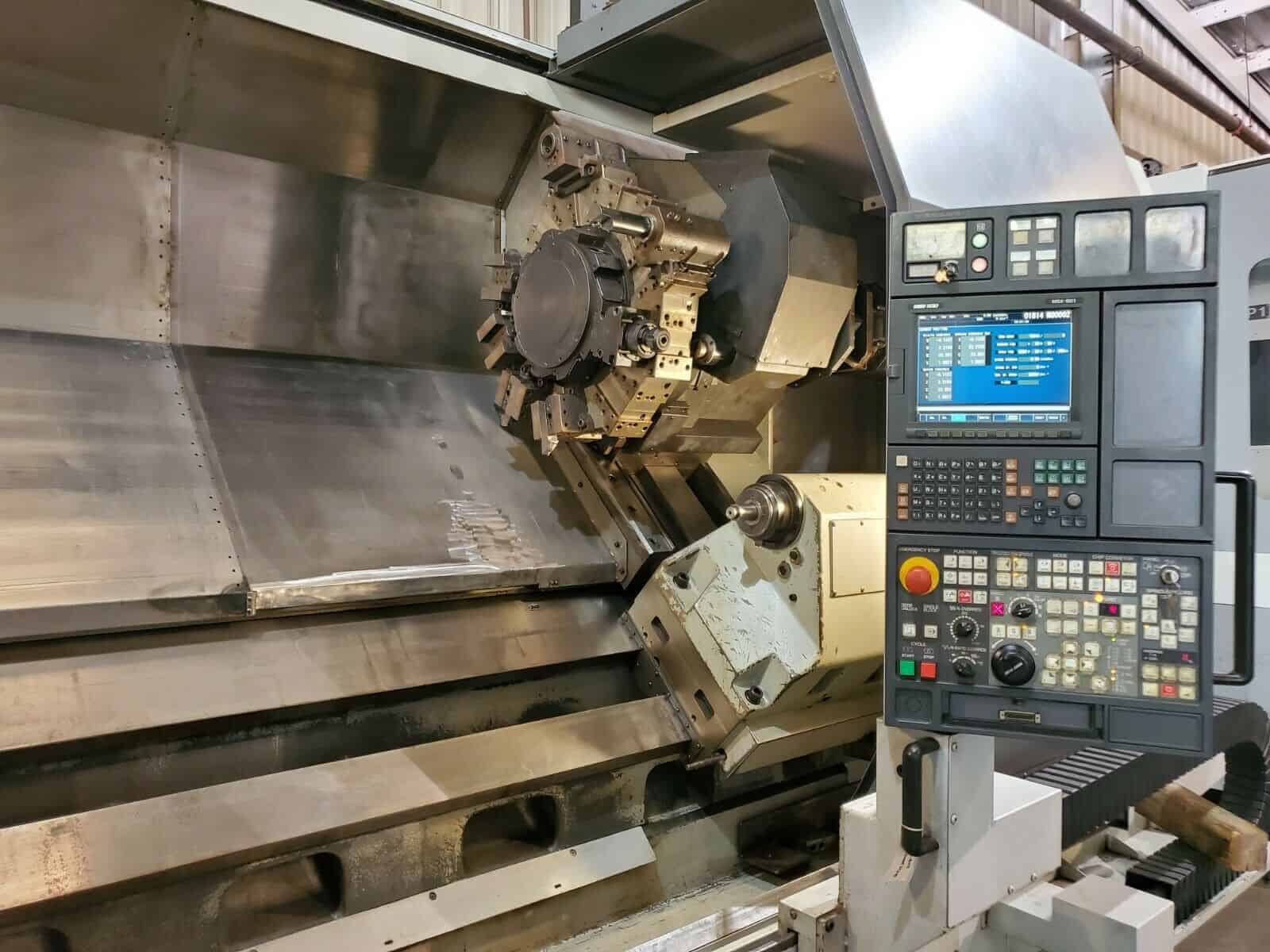

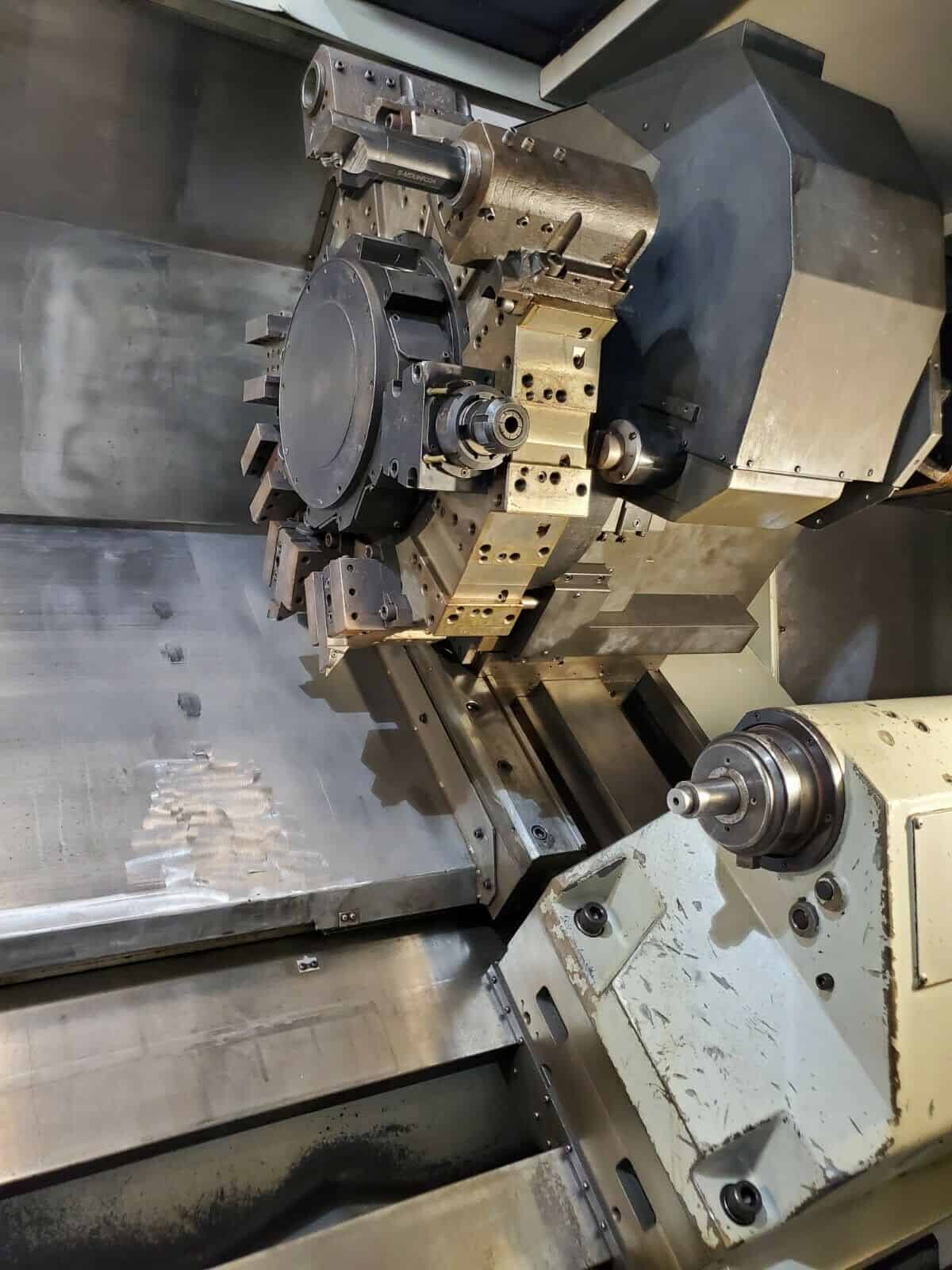

Live Tool 10 Station high speed Turret (0.4 second )
60/50 HP Gearbox Spindle
PCMCIA Card Slot
Prep. for Steady Rest
3000 RPM Milling Turret w/Rigid Tapping
Programmable Tailstock
Rigid Tapping
Coolant System
Foot Switch
Chip Conveyor
Manuals
Live and Static Tool Holders

Specifications:
Capacity:
Max Turning Diameter: 36.6″
Max Turning Length: 78.7″
Max Bar Capacity: 10.8″
Swing Over Bed: 39.1″
Swing Over Cross slide: 28.9″
Distance Between Centers: 90.6″

Travel:
X Axis Travel: 19.1″
Z Axis Travel: 82.7 ”
C Axis : 0.001
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Y Axis: 787 IPM

Spindle:
Spindle Nose: A1-20
Spindle Bore: 10.8″
Spindle Speed: 10-1010 RPM
Spindle Motor: 60/50 HP

Turret:
Turret Capacity: 10 Live Stations
Turret Index Time: 1 Second
Live Tool Speed: 3000 RPM

Tailstock:
Tailstock Body Travel: 82.8″
Tailstock Quill Dia.: 5.9″
Tailstock Quill Stroke: 5.93″
Tailstock Taper: MT-5

General:

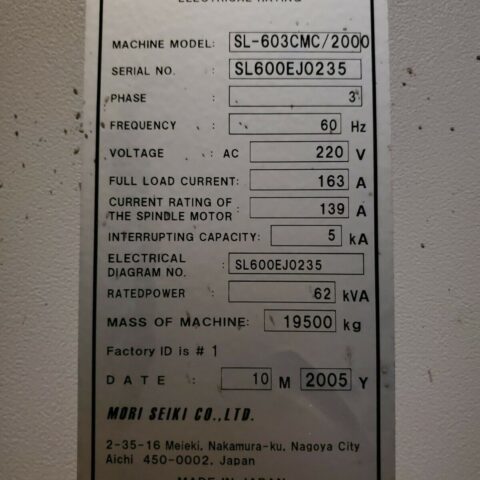

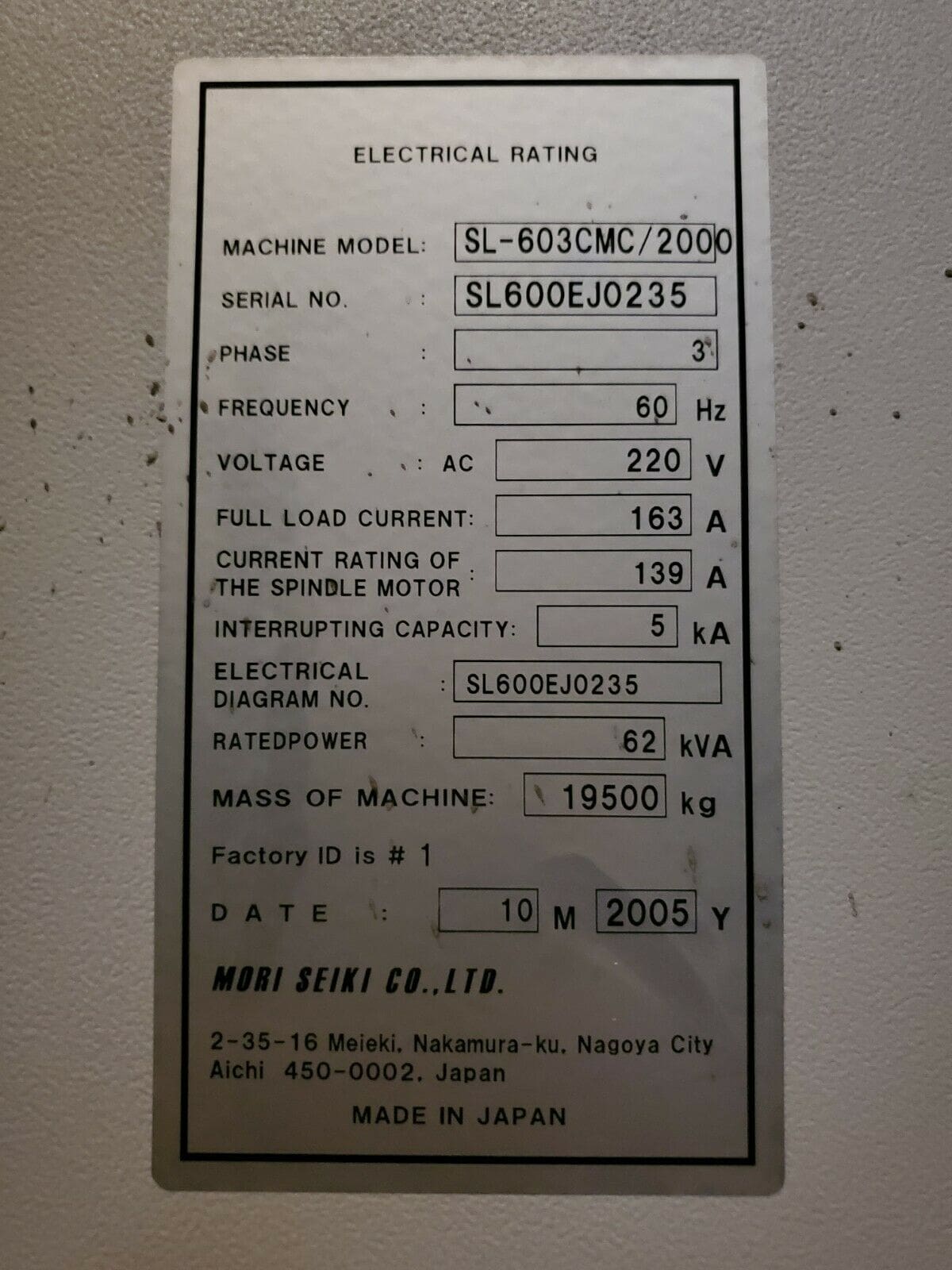

Power Source: AC 220 V, Three Phase, 60 Hz
Overall Dimensions: 275″ x 88″ x 108″ High
Weight : 43,000 lbs Approx.

“No Charges for loading at list Price”
