All specifications are approximations and are subject to verification.

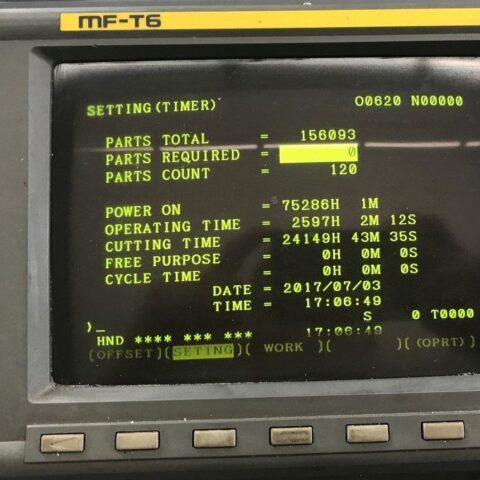

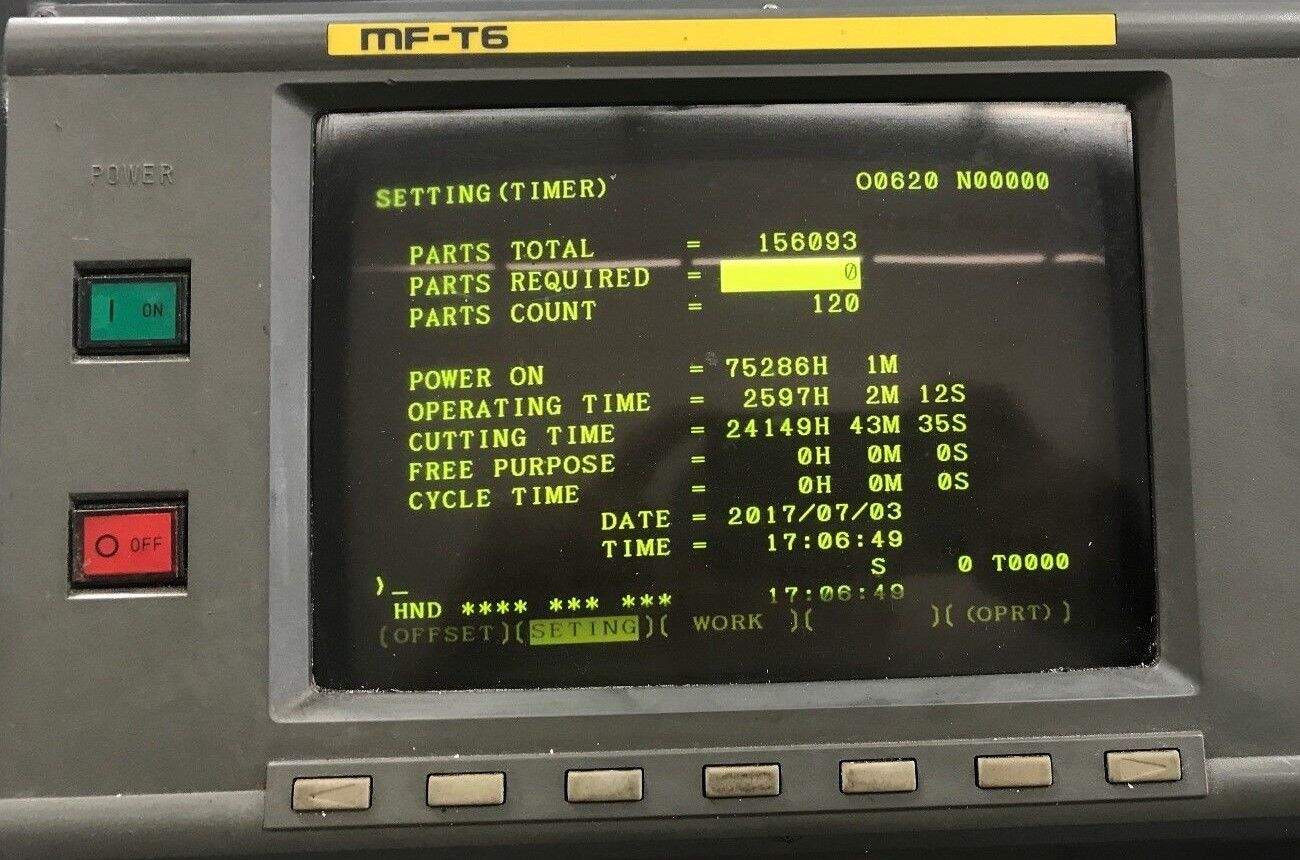

“One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Low Cutting Hours. Equipped with 21″ Hydraulic Chuck, Tailstock. Comes with chip conveyor, Tool holders & some Cutting Tools.”
-

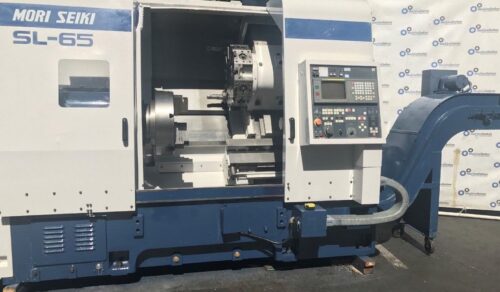

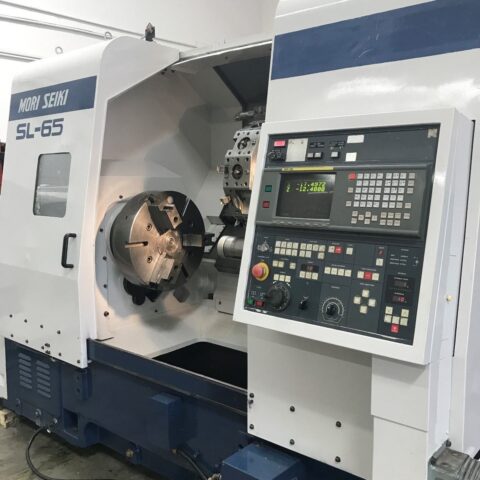

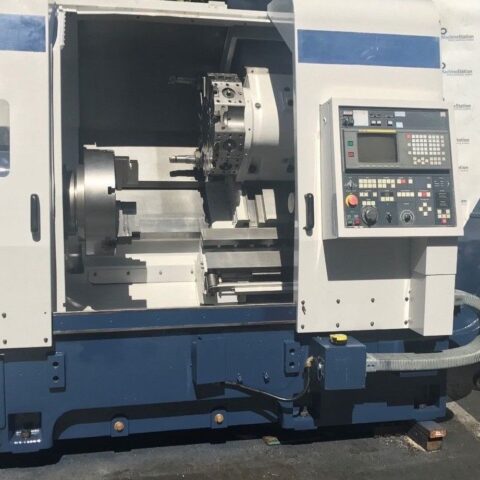

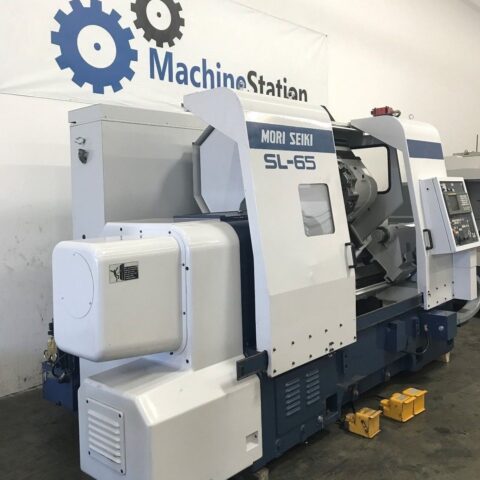

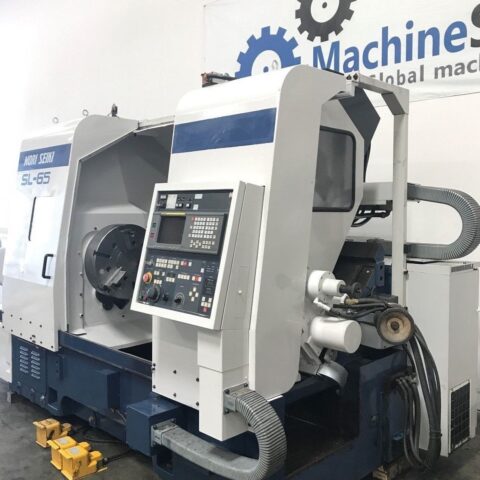

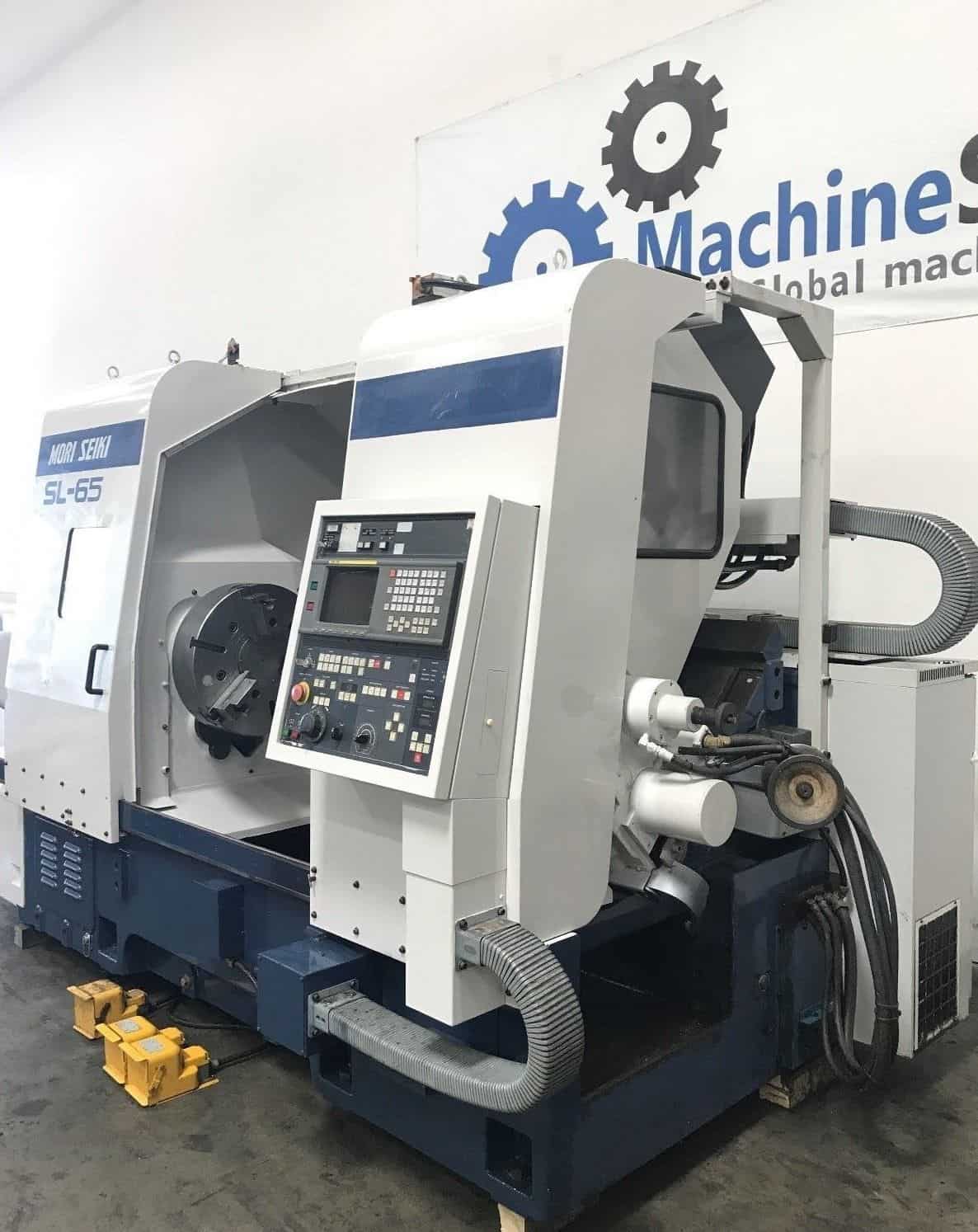

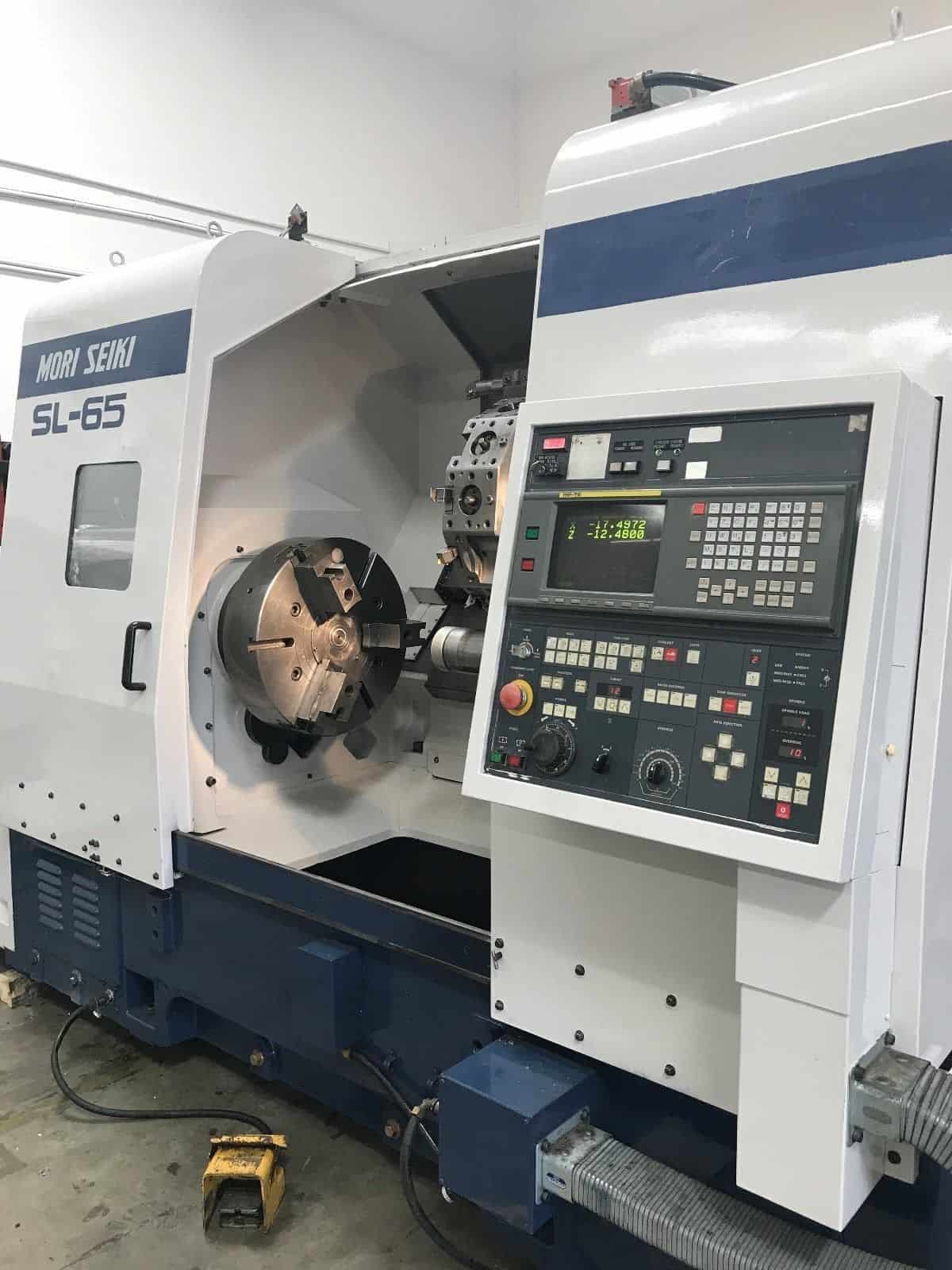

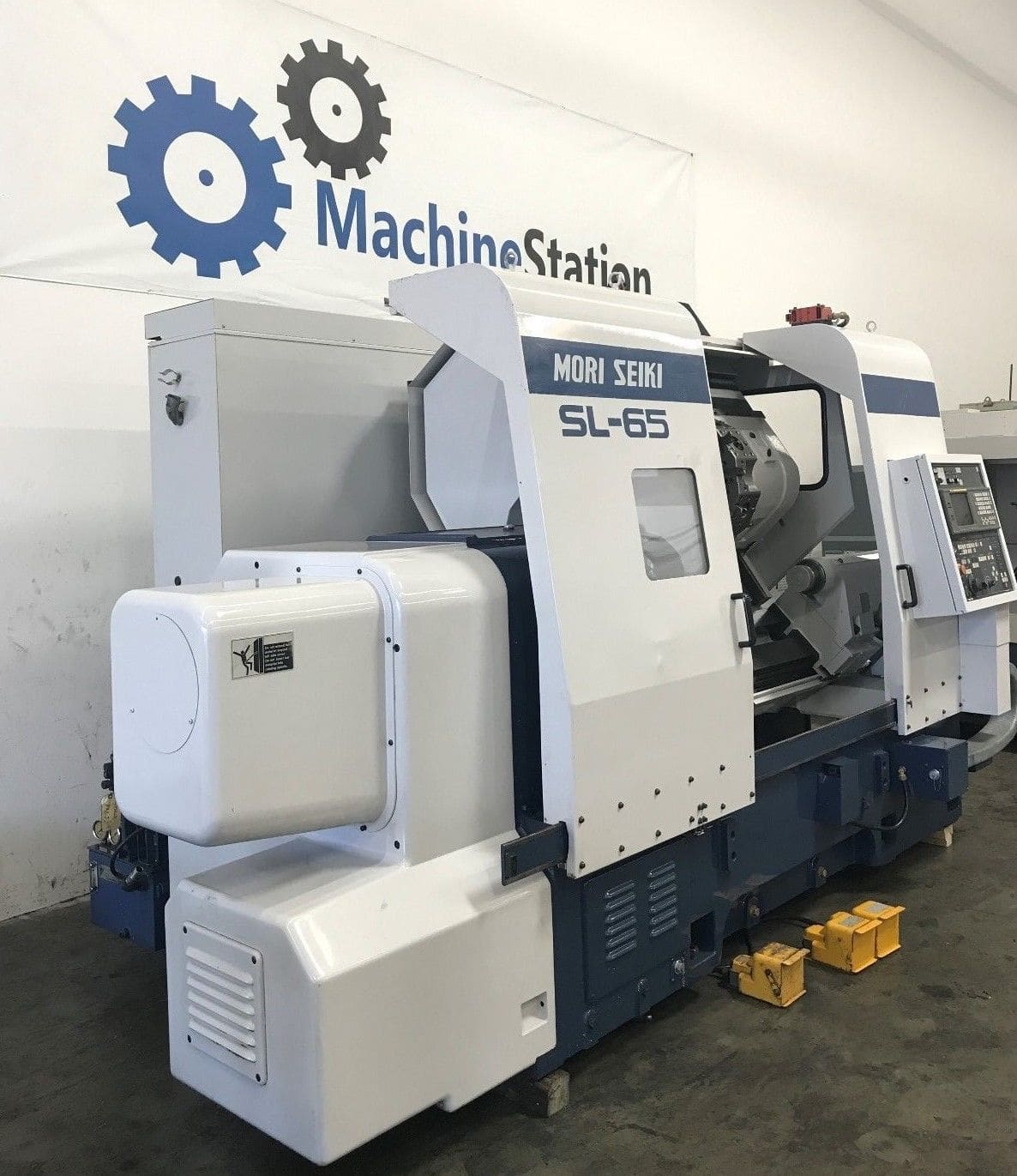

MORI SEIKI SL-65 Equipped With:

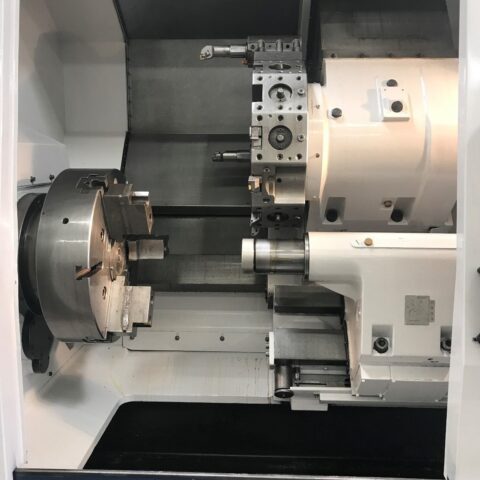

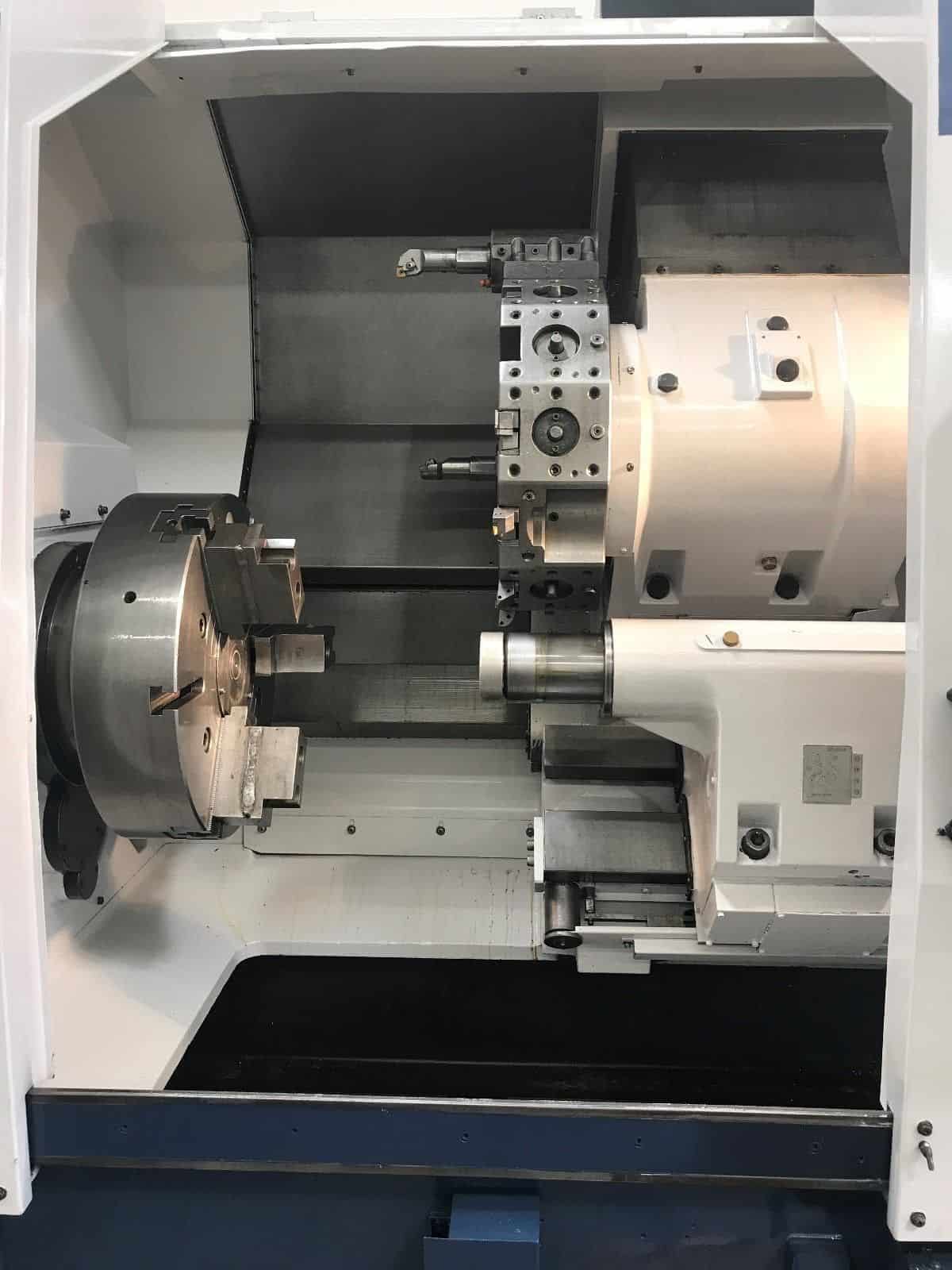

- 12-Station Turret with Tooling
- Box Ways Design Long Bed Machine

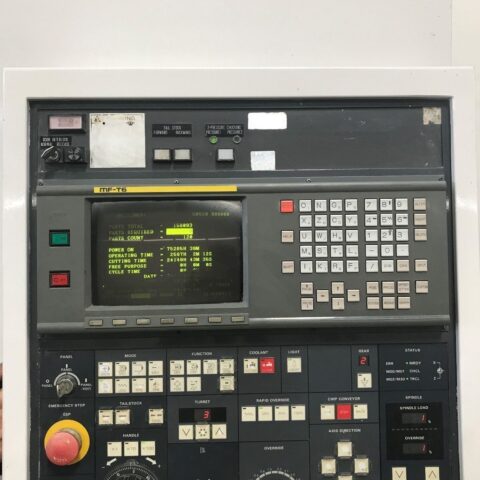

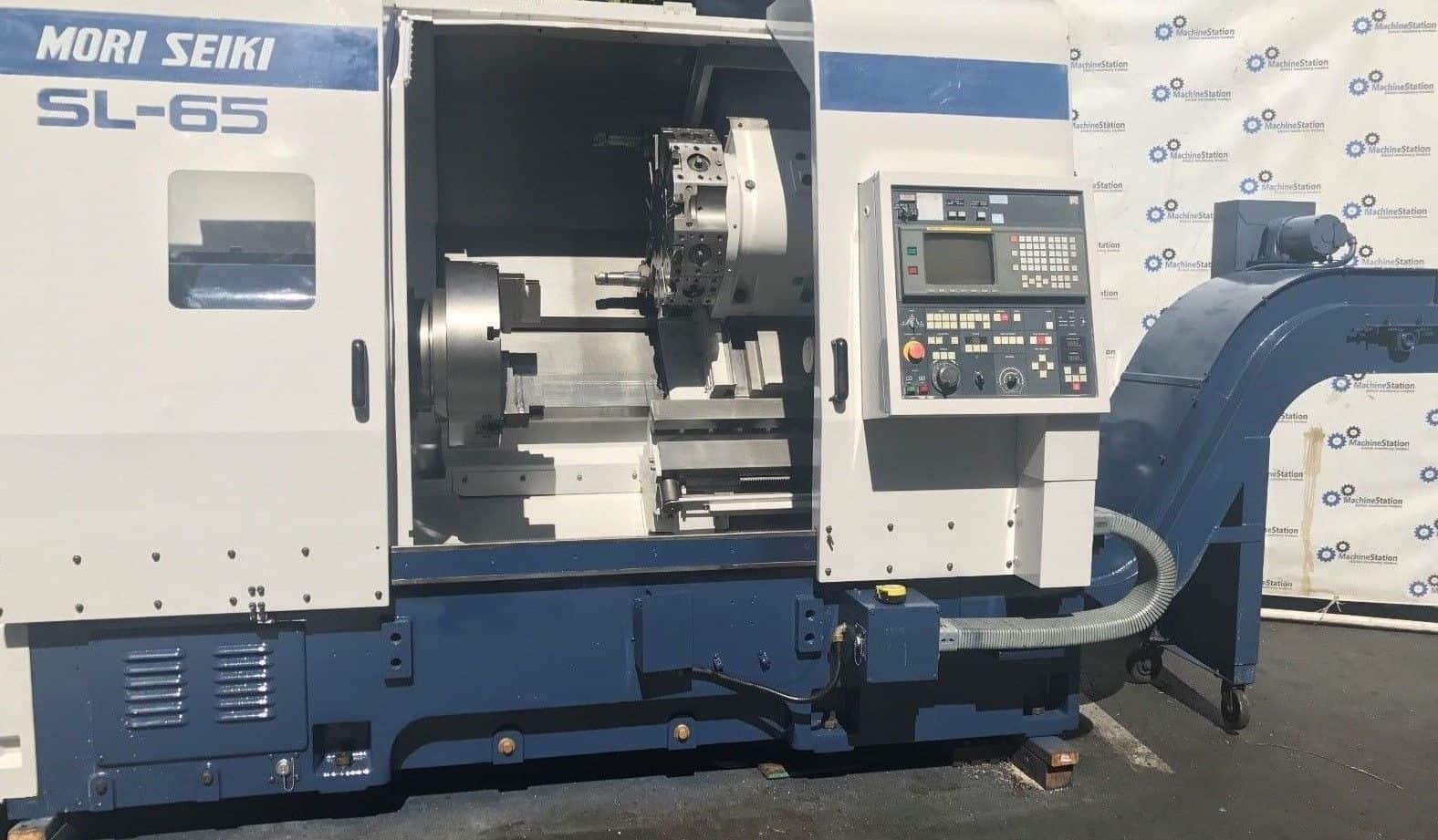

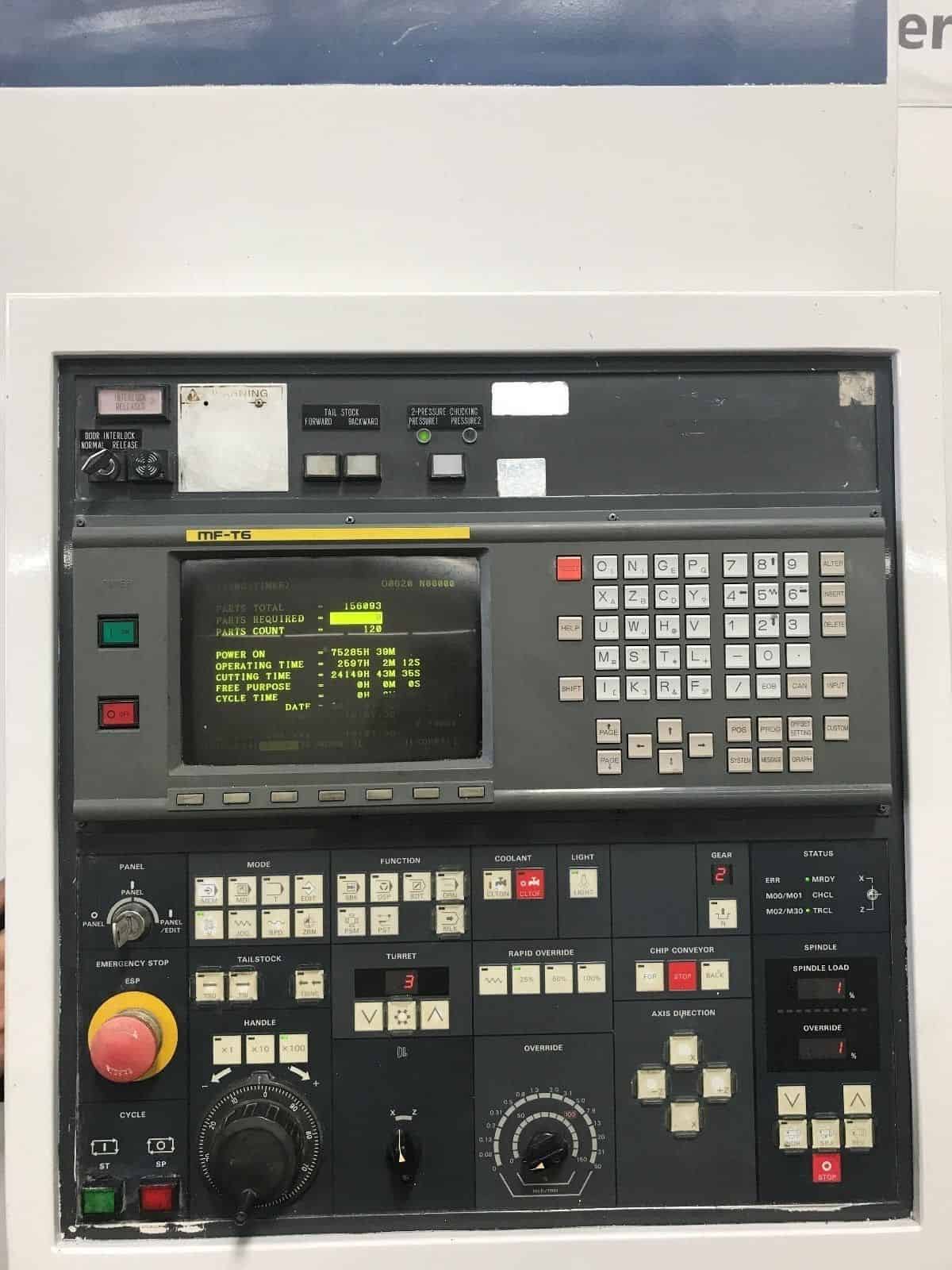

- Fanuc 16T CNC Control

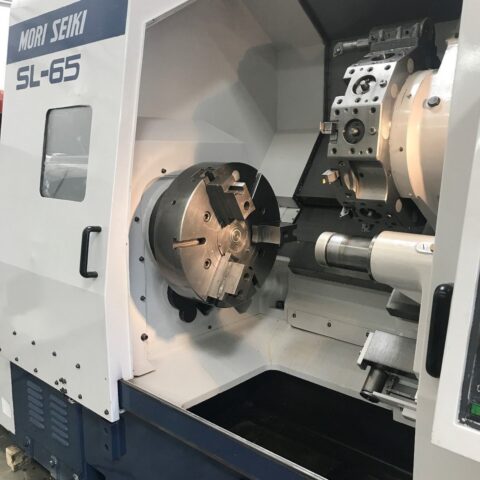

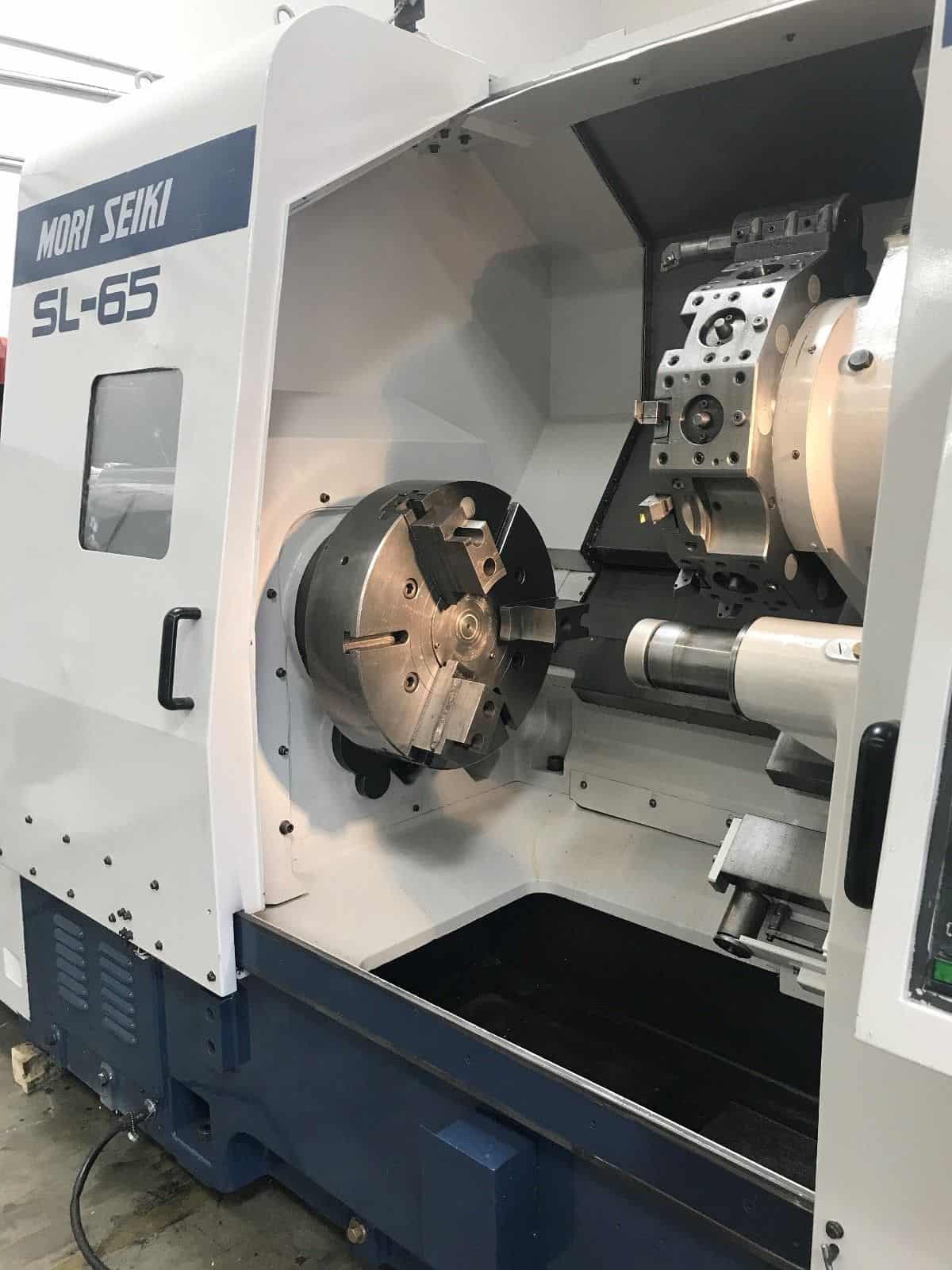

- 21″ 3-Jaw Hydraulic Chuck
- Geared Head spindle for powerful torque
- Hydraulic Tailstock
- Chip Conveyor
- Coolant System.
- Automatic Lubrication system
- Foot Operated Control for Chuck
- Coolant Tank
- Comes with Chip Conveyor, Tool Holders, Manuals and Parameters Backup.
-
MORI SEIKI SL-65 Specifications:
- Max Turning Diameter: 32.3″
- Max Turning Length: 33.9″
- Max Bar Capacity: 3.5″
- Swing Over Carriage: 22.0″
- Swing Over Bed: 35.0″
- Distance Between Centers: 35.4″
- X Axis Travel: 17.1″
- Z Axis Travel: 33.9″
- Rapid Traverse X Axis: 197 IPM
- Rapid Traverse Z Axis: 315 IPM
- Spindle Nose: A1-11
- Spindle Bore: 4.1″
- Spindle Speed: 93 – 1800 RPM
- Spindle Motor: 50 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
- Tailstock Travel: 26.8″
- Tailstock Quill Dia.: 4.3″
- Tailstock Quill Stroke: 3.9″
- Tailstock Taper: MT-4
-
General:

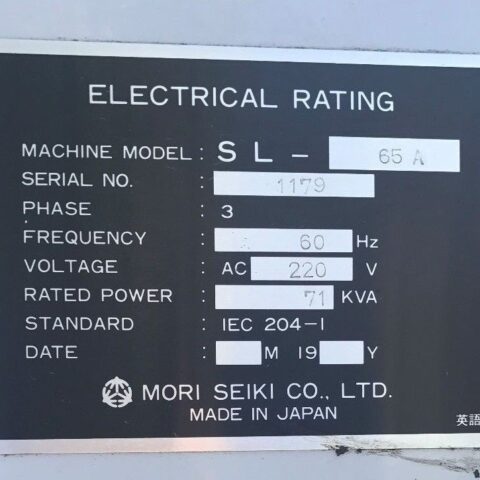

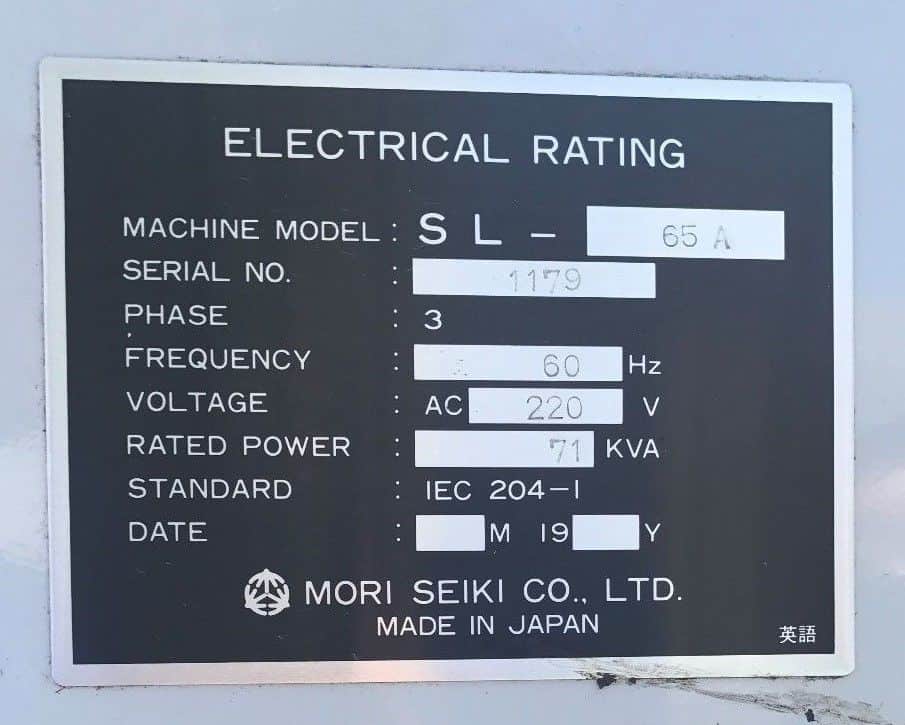

- Power Source: AC 220 V, Three Phase, 60 Hz
- Overall Dimensions: 160″ x 80″ x 98″ High
- Overall Dimensions: 200″ x 80″ x 98″ High with Chip Conveyor
- Weight : 20,000 lbs Approx.
