*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

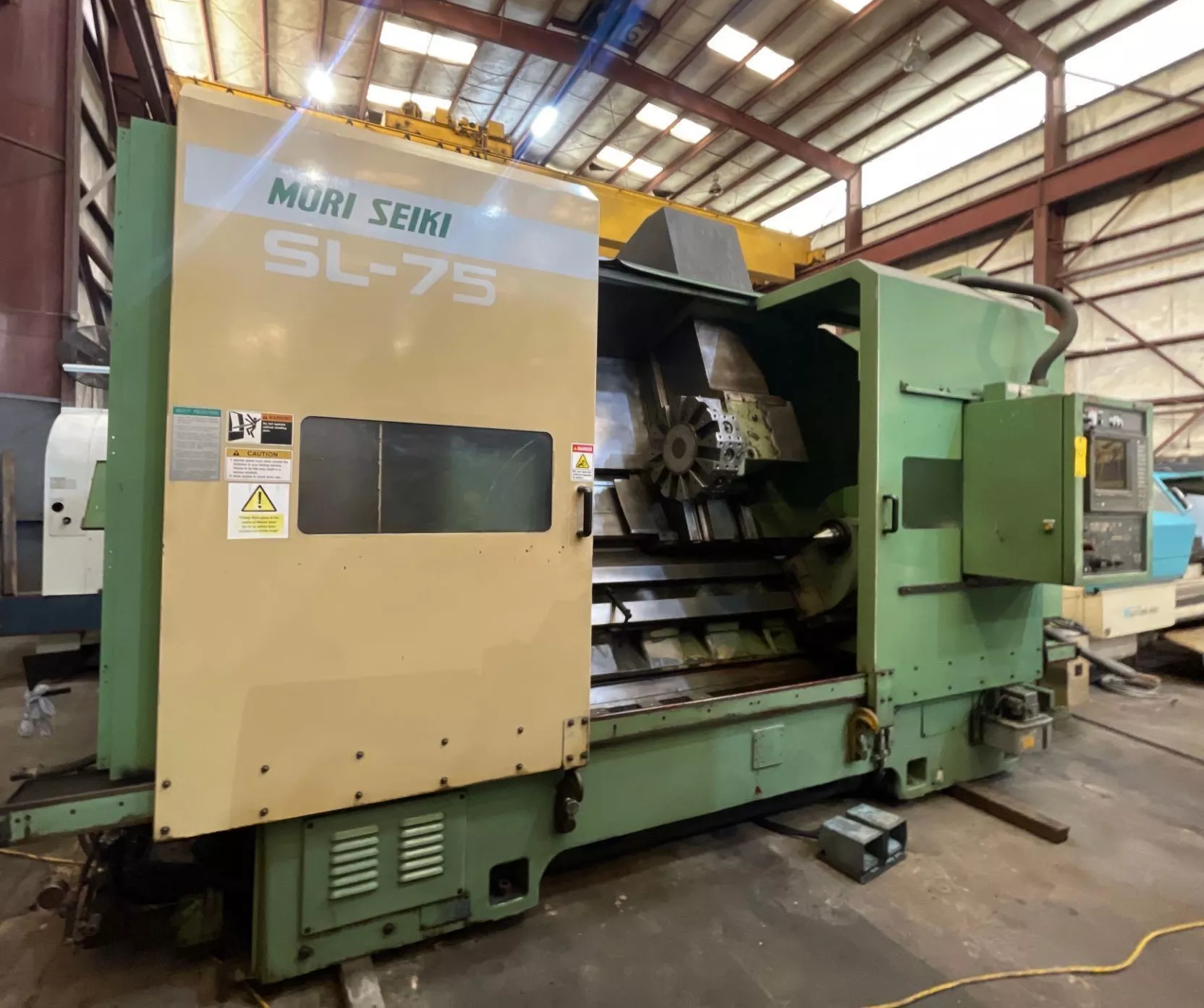

| Make: | Mori Seiki |
| Model: | SL-75 |
| Year: | 1996 |
| Equipped With: |
|---|

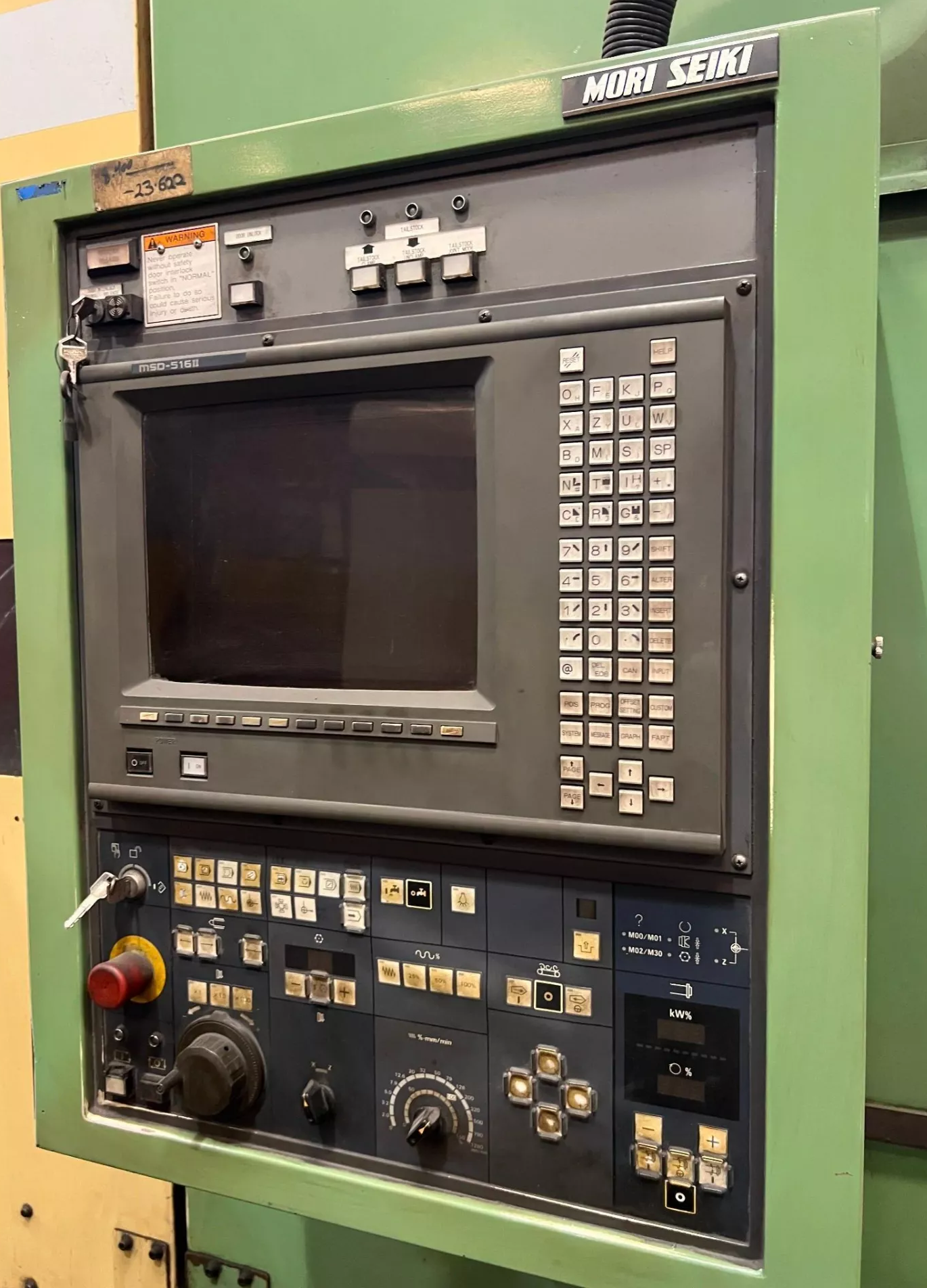

| Mori Seiki MSD-516 II CNC Control |

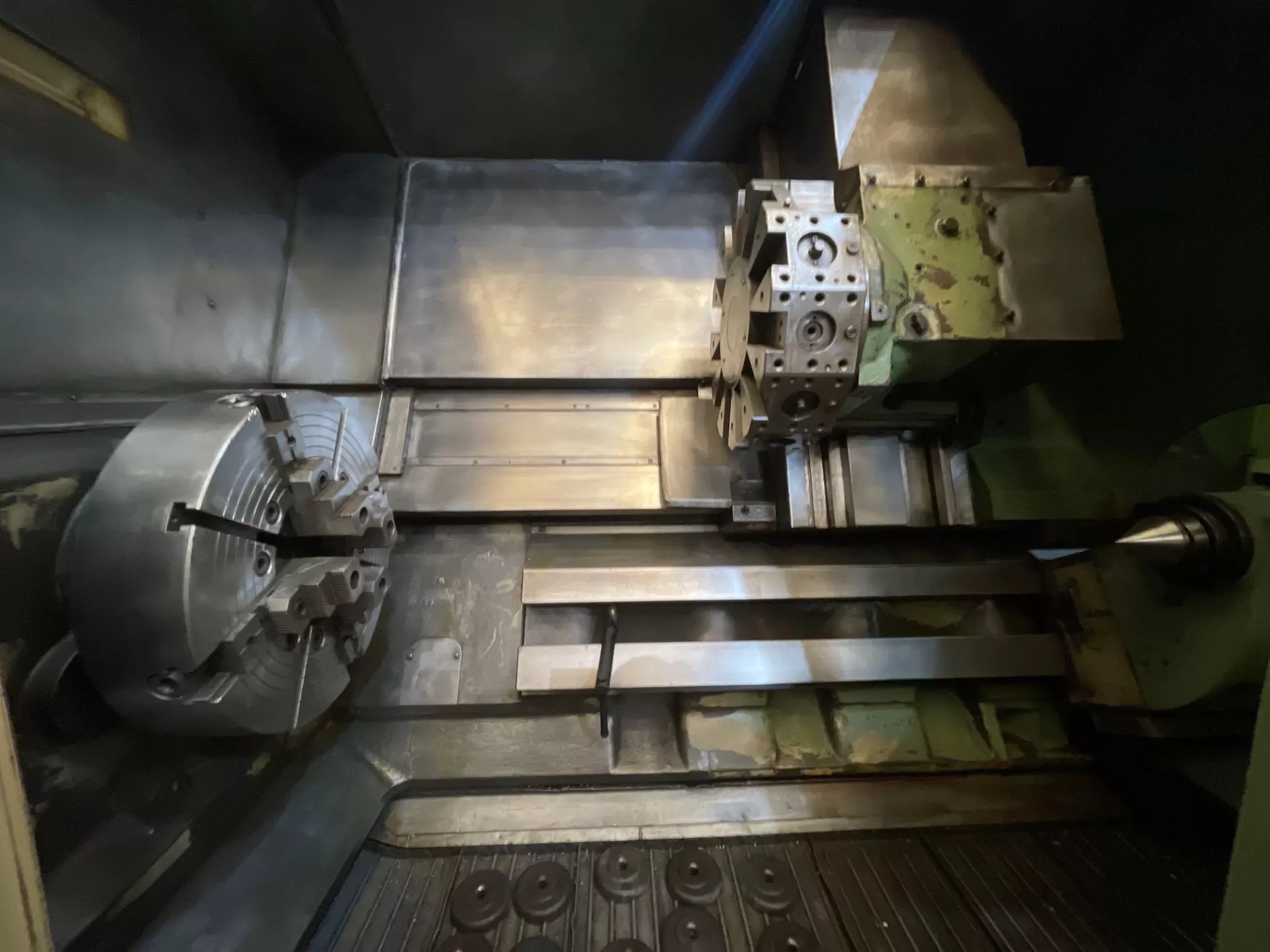

| 24″ 4-Jaw Manual Chuck |
| 12-Position Automatic Turret |
| Hydraulic Tailstock |
| Chip Conveyor |
| Miscellaneous Tool Holders |
| Capacity: |
|---|
| Chuck Size: 24″ |
| Max Swing Over Bed: 35″ |
| Max Turning Diameter: 34″ |
| Max Turning Length: 68″ |
| Spindle Bore: 4.10″ |
| Travels: |
|---|
| X-Axis Travel: 17.00″ Approx. |
| Z-Axis Travel: 72.00″ Approx. |
| Rapid Traverse (X & Z-Axis): 787 IPM |
| Spindle: |
|---|
| Main Motor: 50 HP |
| Spindle Bore: 4.10″ |
| Spindle Speed: 1,000 RPM |
| Spindle Nose: A2-15 |
| Turret: |
|---|
| Turret Type: Automatic |
| Number of Stations: 12 |
| Tool Shank Size: 1.50″ |
| Boring Bar Capacity: 3.00″ |
| Tailstock: |
|---|
| Tailstock Type: Hydraulic |
| Tailstock Quill Diameter: 5.90″ |
| Tailstock Quill Travel: 7.90″ |

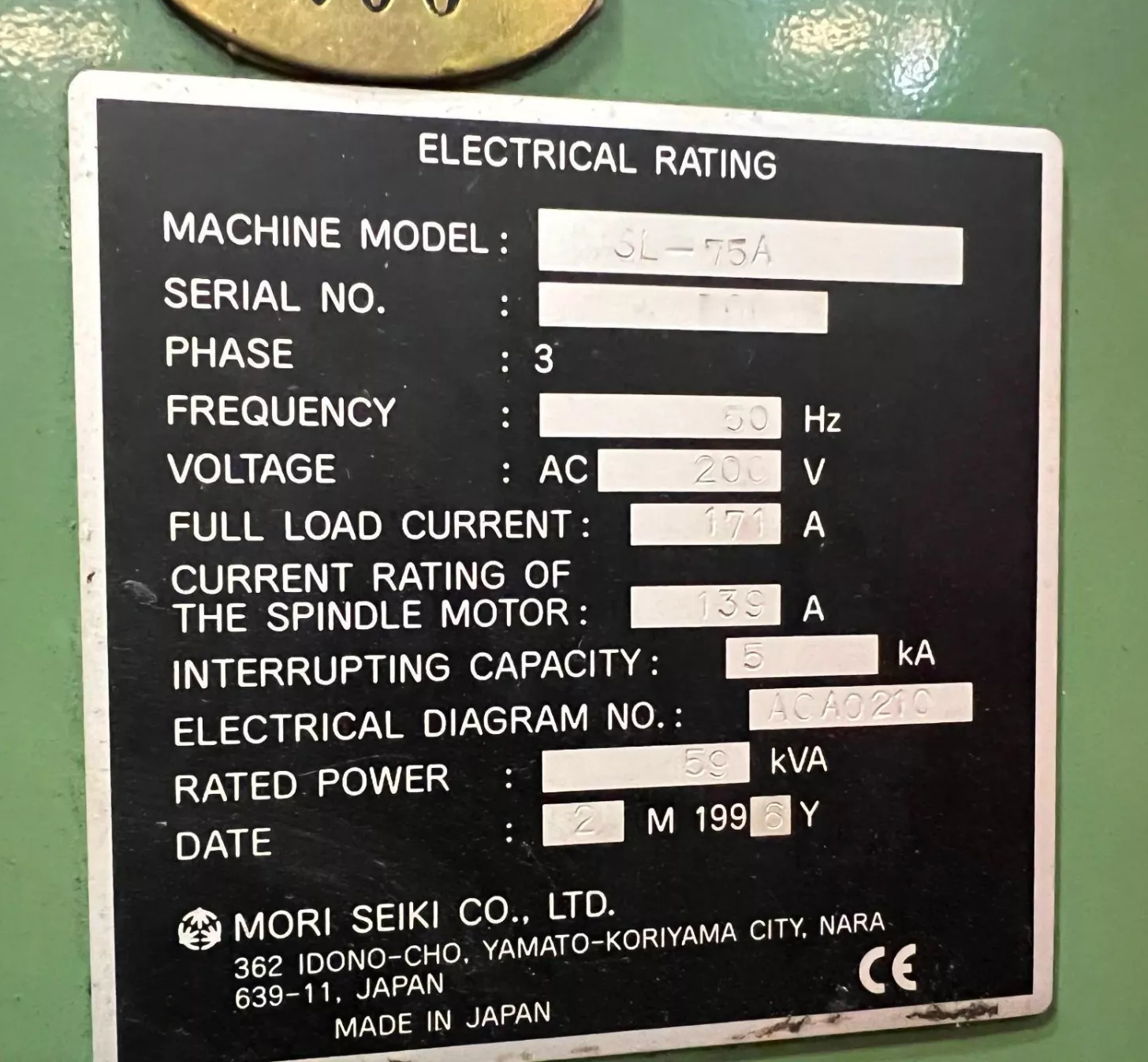

| General: |
|---|
| Power Requirement: 200V AC/ 3-phase/ 50 Hz |
| Rated Power: 59 kVA |
| Machine Dimensions (Approx.): 225″ × 100″ × 95″ |
| Machine Weight (Approx.): 30,000 lbs |
