*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mori Seiki |
| Model: | SL-7B |
| Equipped With: |
|---|

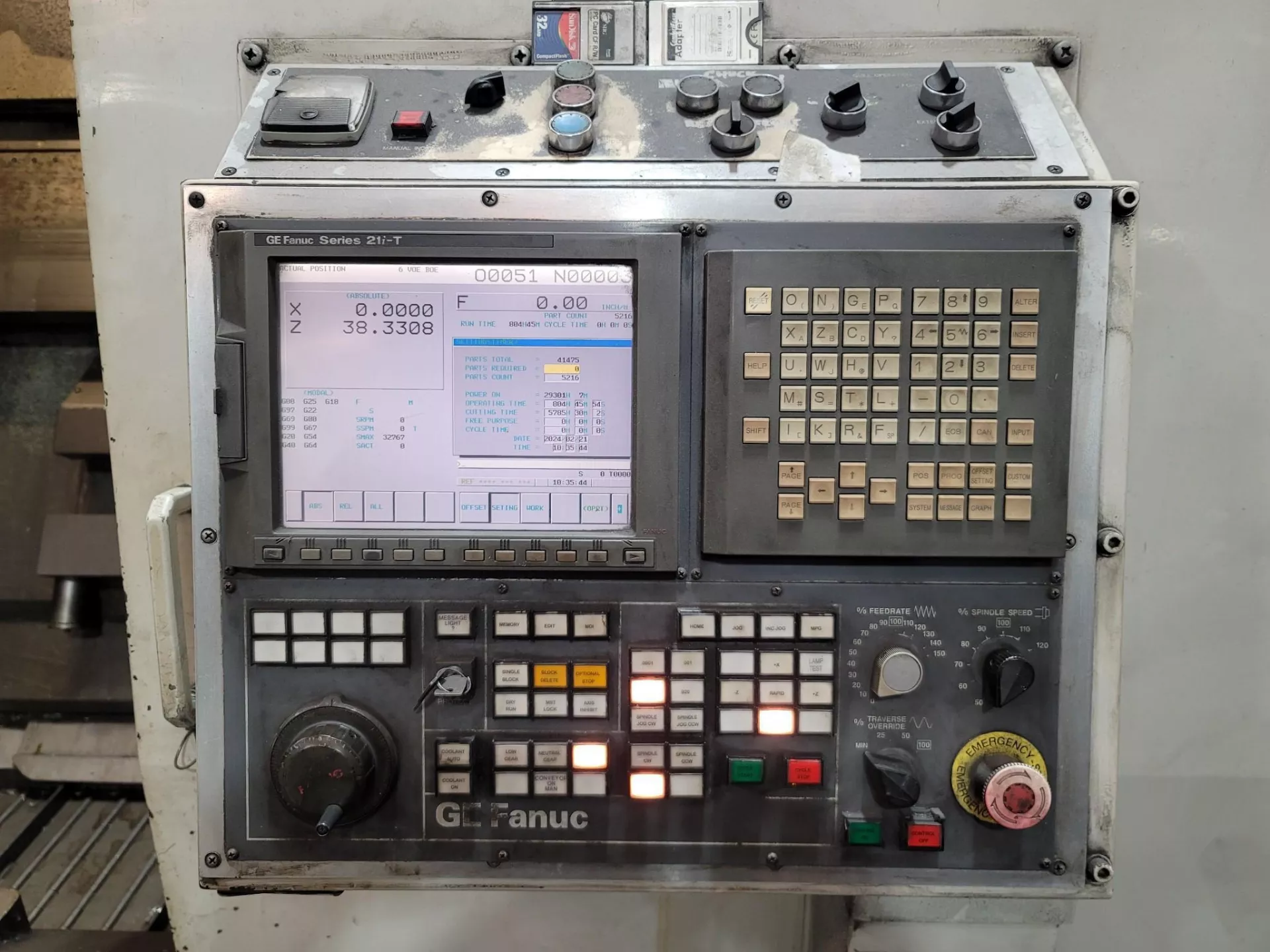

| GE Fanuc Series 21i-T CNC Control (Retrofitted) |

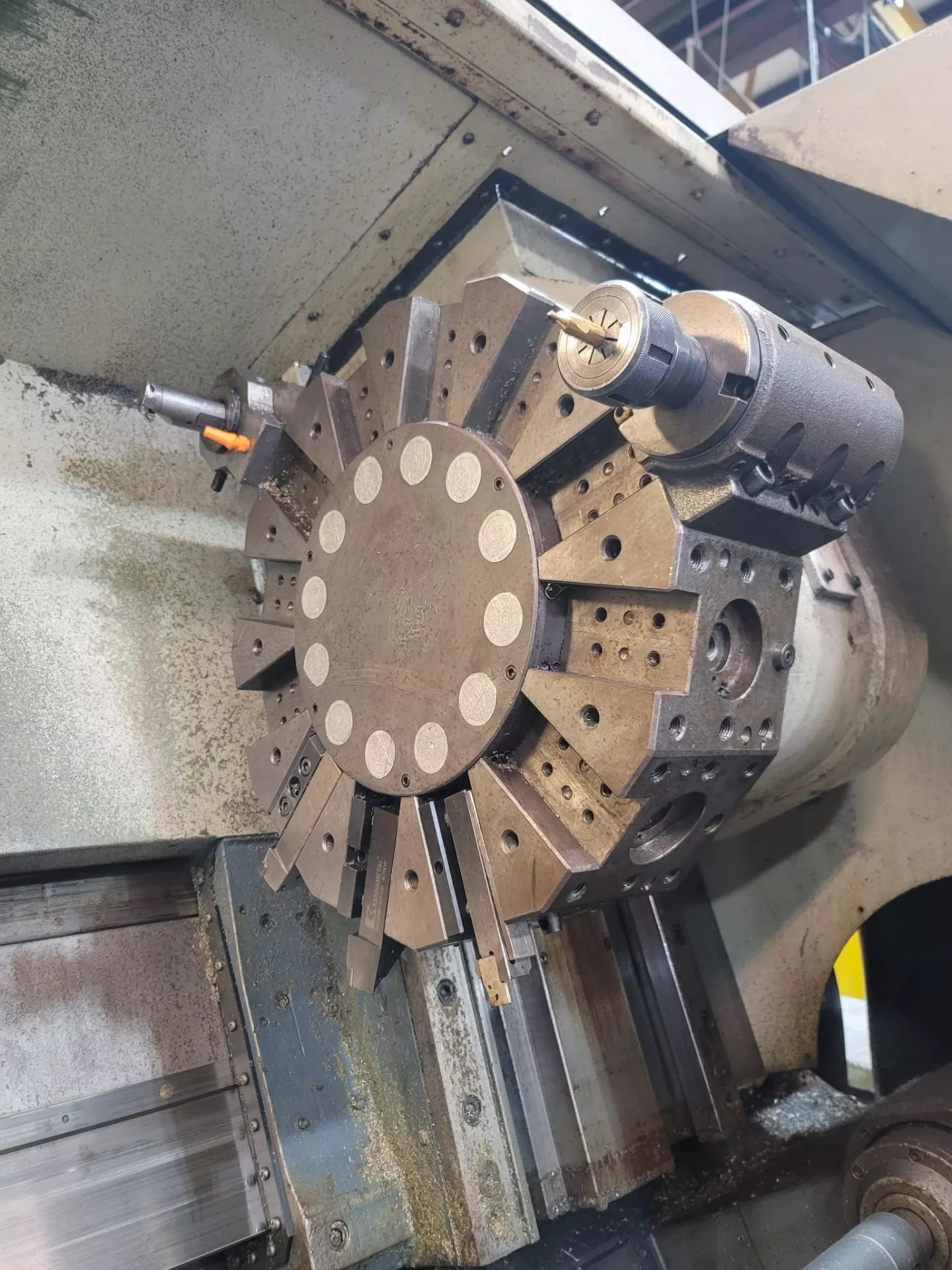

| 12-Station Turret |

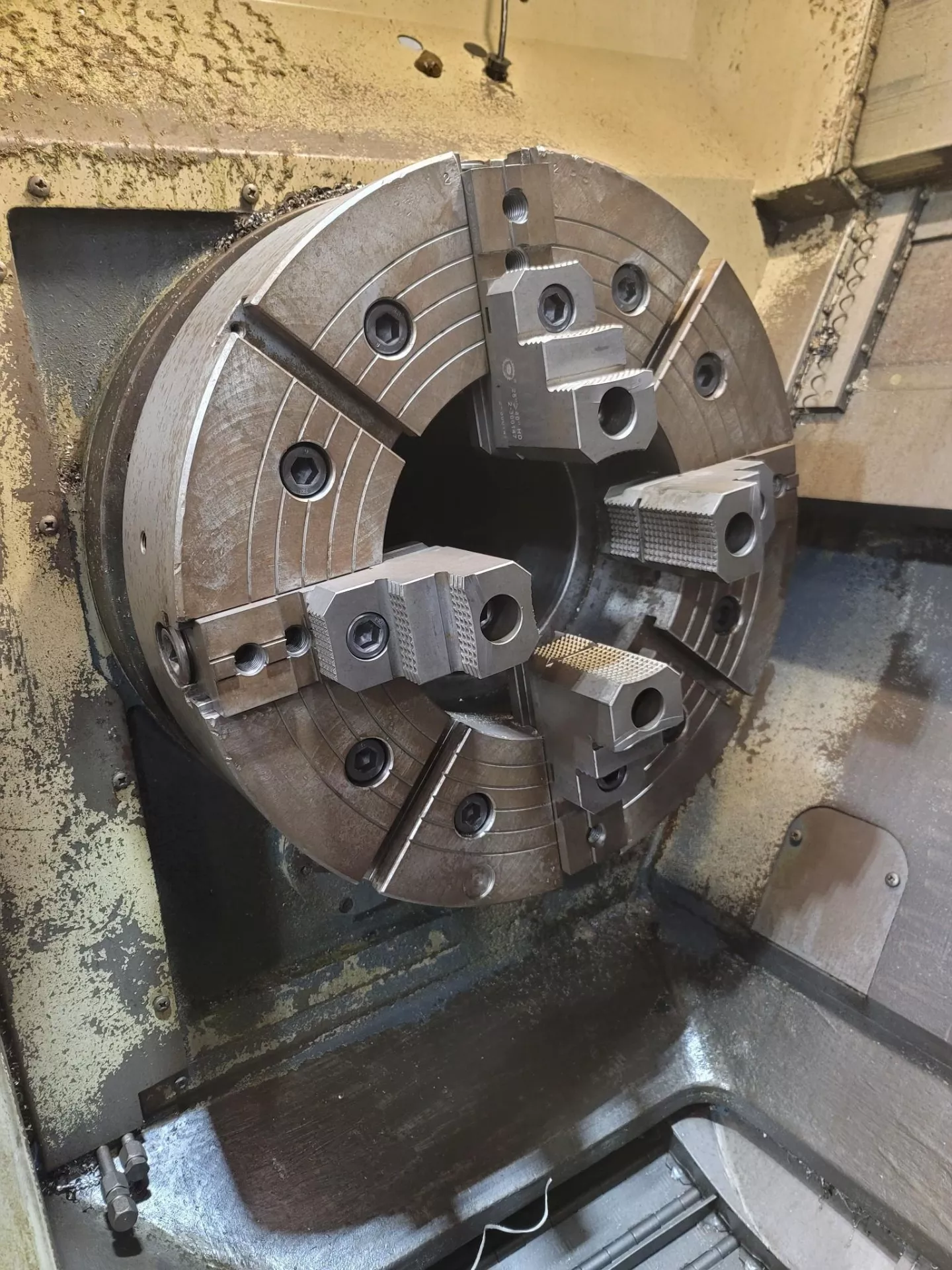

| 4-Jaw Manual Chuck with 12.5″ Through Hole |
| Rear Chuck Mount |
| Tailstock |
| Chip Conveyor |
| CoolJet Model 70-30 Coolant Chiller |
| Coolant System |
| Full Enclosure |
| Work Light |
| Capacity: |
|---|
| Swing Over Bed: 35.8″ |
| Max Turning Diameter: 34.6″ |
| Max Turning Length: 60.0″ |
| Spindle Bore: 10.8″ |
| Travels: |
|---|
| X-Axis Travel: 18.0″ |
| Z-Axis Travel: 60.0″ |
| Rapid Traverse (X-Axis): 394 IPM Approx. |
| Rapid Traverse (Z-Axis): 472 IPM Approx. |
| Spindle: |
|---|
| Spindle Nose: A1-20 |
| Spindle Speed: 1,010 RPM |
| Main Spindle Motor: 50/40 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| General: |
|---|
| Cutting Time: 5,785 Hours |
| Machine Dimensions (Approx.): 240″ × 100″ × 110″ |
| Machine Weight (Approx.): 33,000 lbs |
