*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

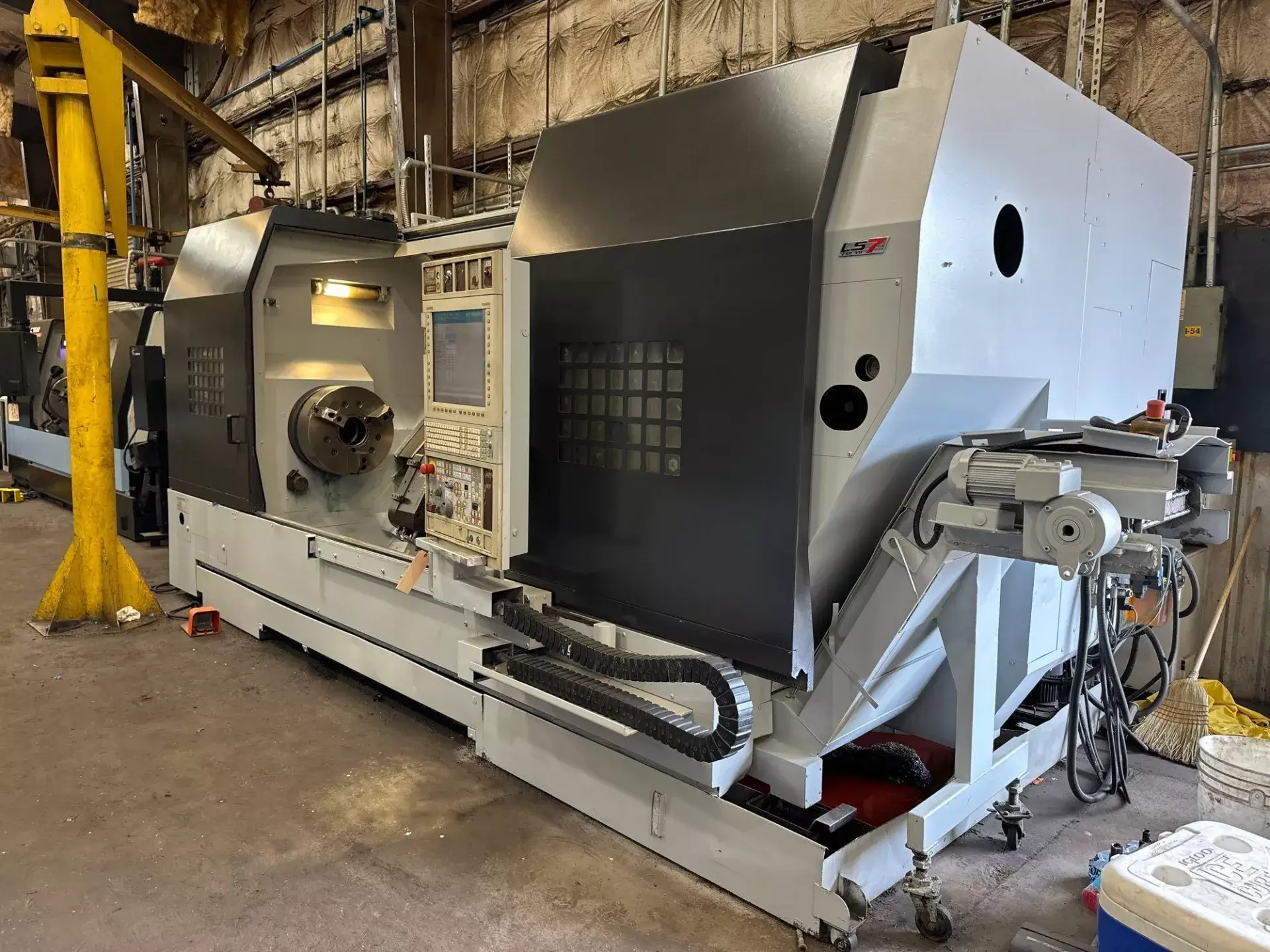

| Make: | Mori Seiki |
| Model: | SL403C/2000 |
| Year: | 2011 |
| Condition: | Used – Good |
| Machine Type: | CNC Lathe / Turning Center |

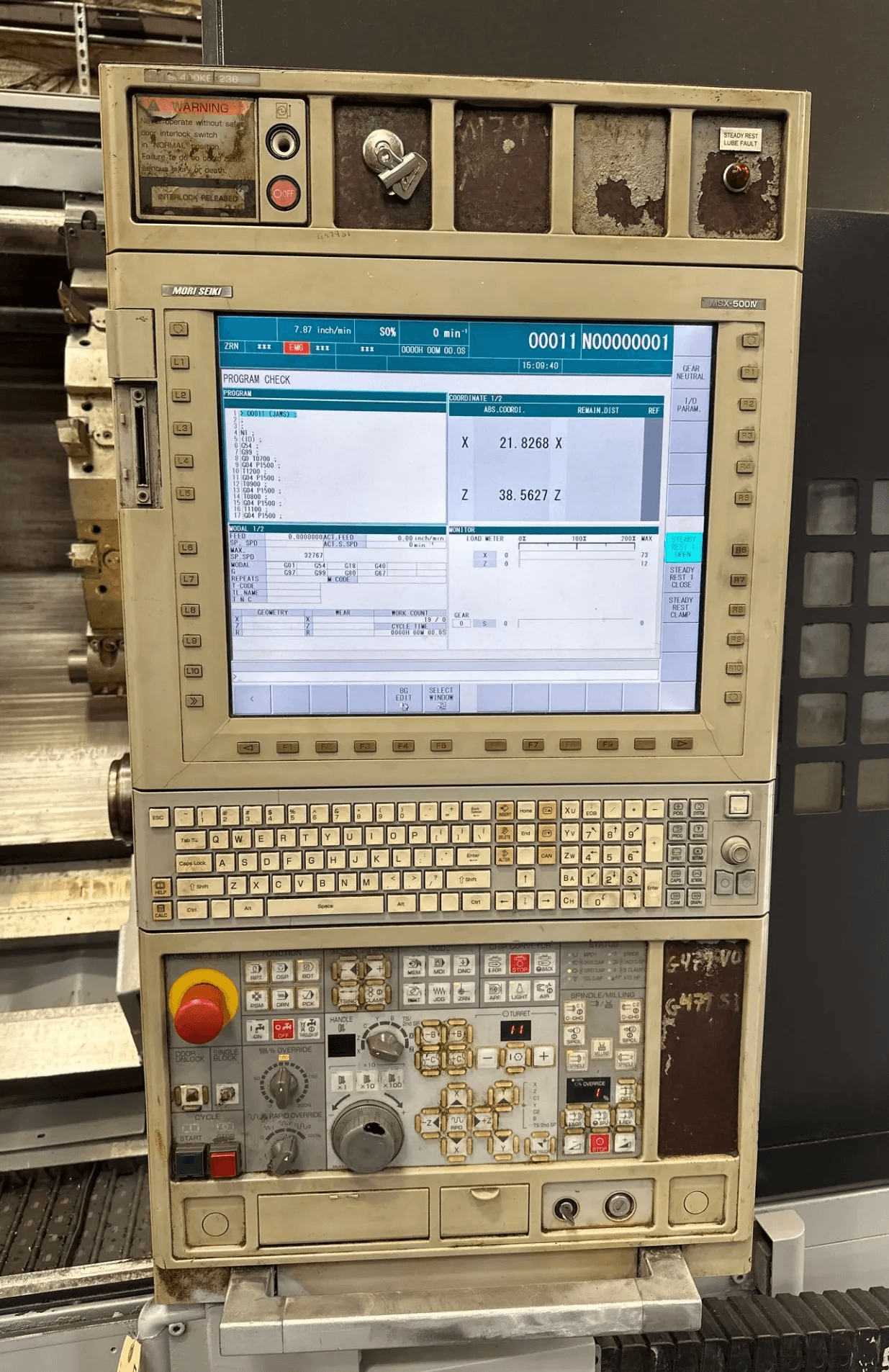

| Control: | Mori Seiki MSX-500IV CNC Control |
| Country of Origin: | Japan |
| Equipped With: |
|---|

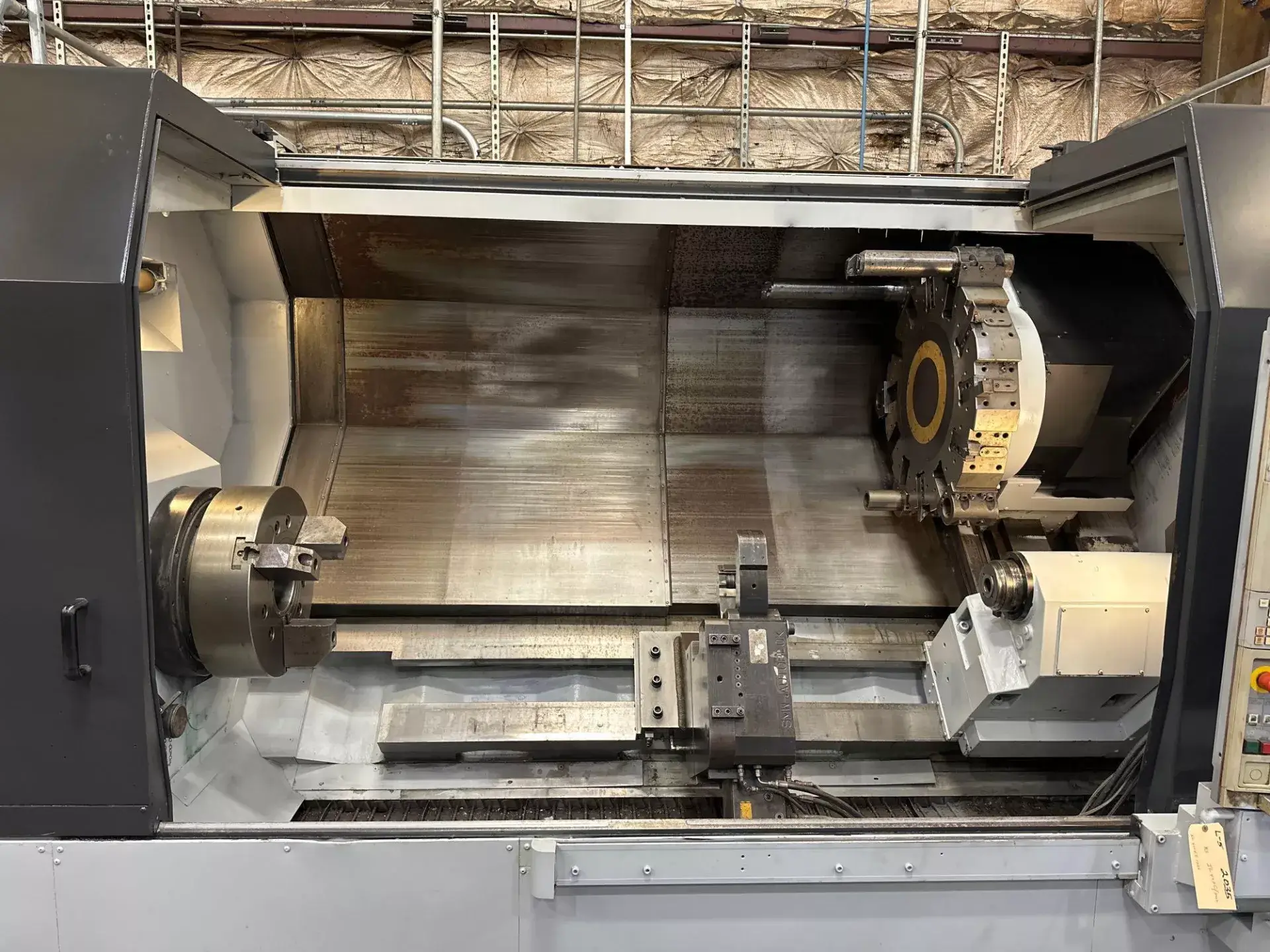

| 21″ Kitagawa Hydraulic Chuck |
| 12 Position Turret |
| SMW Hydraulic Steady Rest |
| Approx. 12″ Steady Rest Capacity |
| Hydraulic Tailstock |
| High-Pressure Coolant System |
| Chip Conveyor |
| Coolant Tank |
| Full Enclosure |
| Capacity: |
|---|
| Maximum Swing Over Bed: Approx. 35.4″ |
| Maximum Turning Diameter: Approx. 20.9″ |
| Distance Between Centers: 80″ |
| Maximum Turning Length: Approx. 80″ |
| Bar Capacity: 6.5″ |
| Chuck Size: 21″ |
| Travels: |
|---|
| X-Axis Travel: Approx. 15.0″ |
| Z-Axis Travel: Approx. 83.5″ |
| Spindle: |
|---|
| Main Spindle Speed: Approx. 2,000 RPM |
| Spindle Bore: Approx. 7.0″ |
| Spindle Nose: A2-11 |
| Main Spindle Motor: Approx. 40 HP |
| Turret: |
|---|
| 12 Position Turret |
| Tool Size: Approx. 1.25″ |
| Boring Bar Capacity: Approx. 2.0″ |
| Tailstock: |
|---|
| Hydraulic Programmable Tailstock |
| Tailstock Quill Diameter: Approx. 5.1″ |
| Tailstock Quill Travel: Approx. 5.9″ |

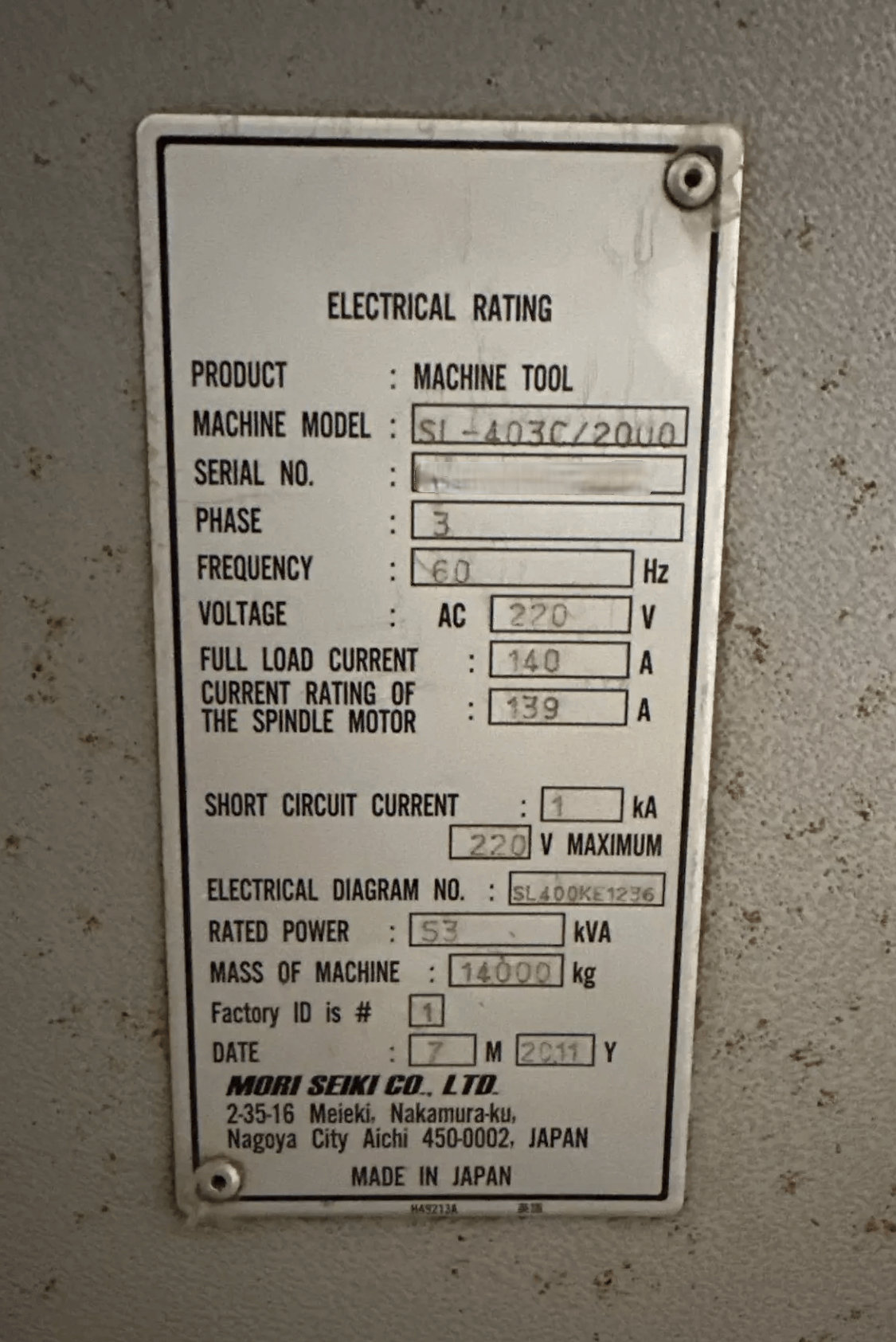

| Electrical: |
|---|
| Voltage: 220V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Rated Power: 53 kVA |
| General: |
|---|
| Machine Weight: Approx. 30,800 Lbs |
| Overall Dimensions: Approx. 240″ x 95″ x 95″ |
| Made In: Japan |
