*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

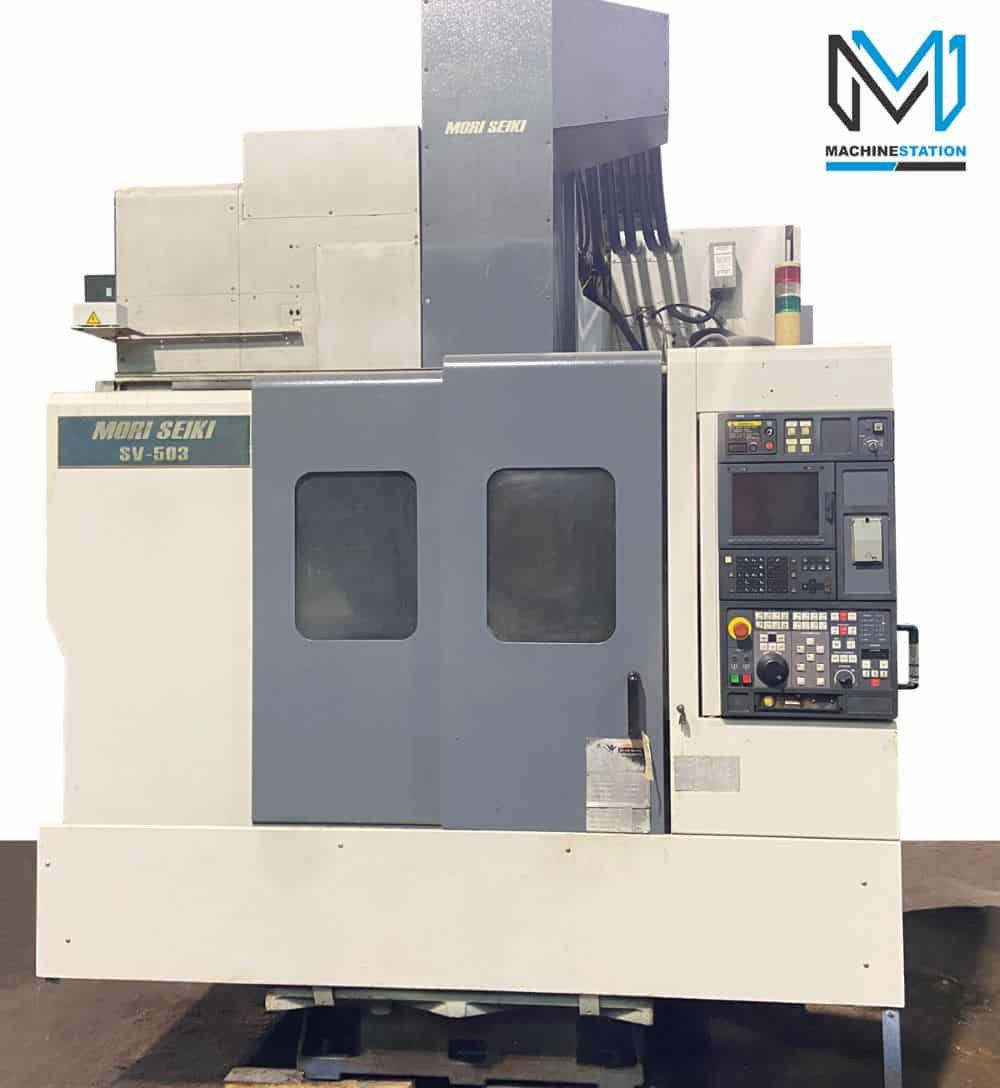

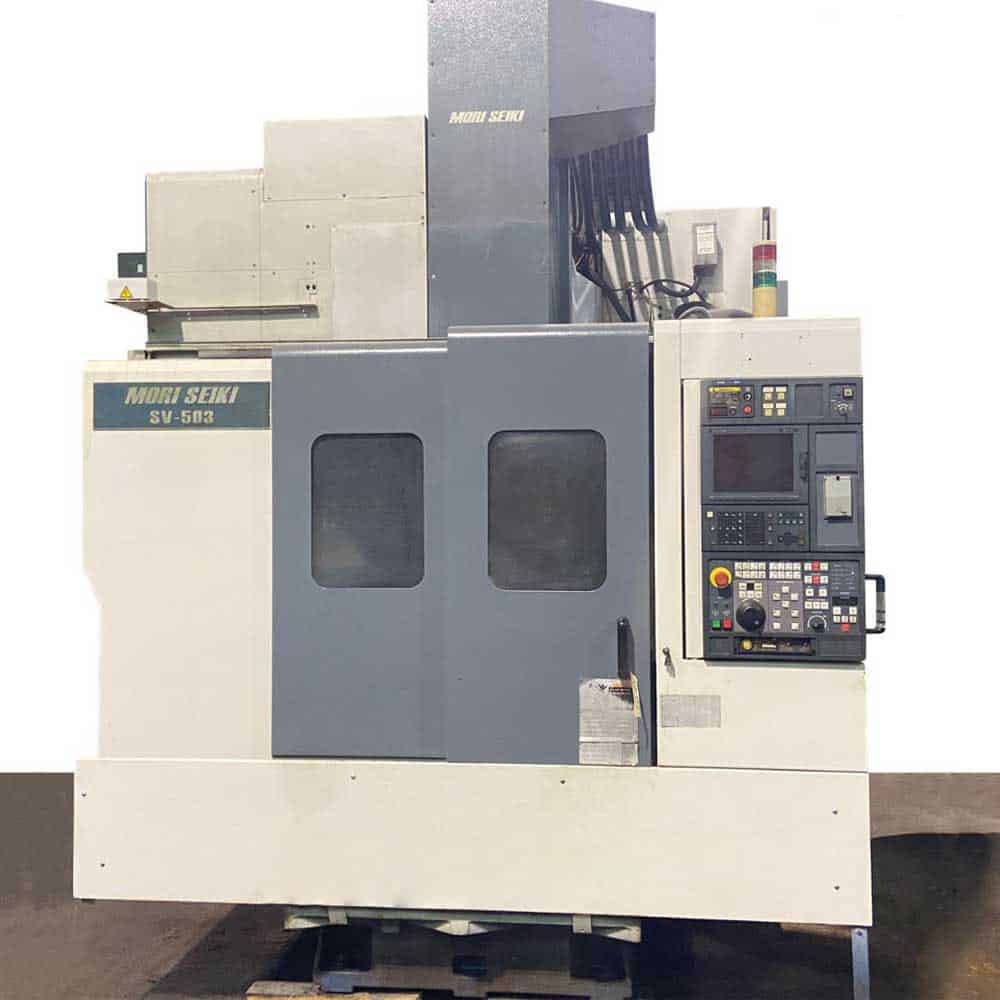

| Make: | MORI SEIKI |
| Model: | SV-503/50 |
| Year: | 2000 |
| Condition: | Used – Good |
| Equipped With: |
|---|
| MSC 501 ( FANUC 18iM ) CNC Control |
| Box Way Construction |
| 50 Taper 6000 RPM Spindle |
| Thru Spindle Coolant ?? |
| 30 Tools Side Mount Bidirectional Tool Changer |
| Powerful 30 HP high torque Spindle Motor |
| Spindle Orientation |
| Rigid Tapping |
| Coolant System with tank |
| Chip Conveyor |
| Travels: |
|---|
| X-Axis: 31.5″ |
| Y-Axis: 20.1″ |
| Z-Axis: 20.1″ |
| Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″ |
| Table: |
|---|
| Length: 43.31″ |
| Width: 23.62″ |
| Max Weight on Table: 2200 lbs |
| Spindle: |
|---|
| Taper Size: 50 |
| Speed Range: 6000 RPM |
| Spindle Power: 30 HP |
| Feed Rate: |
|---|
| Rapid X Y & Z: 1260 inch/PM |
| Cutting Feed rate: 630 inch/PM |
| Automatic Tool Changer: |
|---|
| 50 Taper |
| Capacity: 30 |
| Max Tool Weight: 33 lbs |
| Max Tool Length: 11.8″ |
| Max Tool Dia: 5.2″ |
| General: |
|---|
| Air Required: 80 psi 4 scfm |
| Power: 205-220v / 66FLA / 3-Phase |
| Overall Dimensions: 180″ L X 102″ W X 120″ High |
| Weight: 17000 lbs |
| “No Charges for loading at list Price” |
| Comes as shown in pictures.. |
