*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Mori Seiki |
| Model No.: |
ZT-2500Y |
| Year of Manufacture: |
2000 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Turning Center |

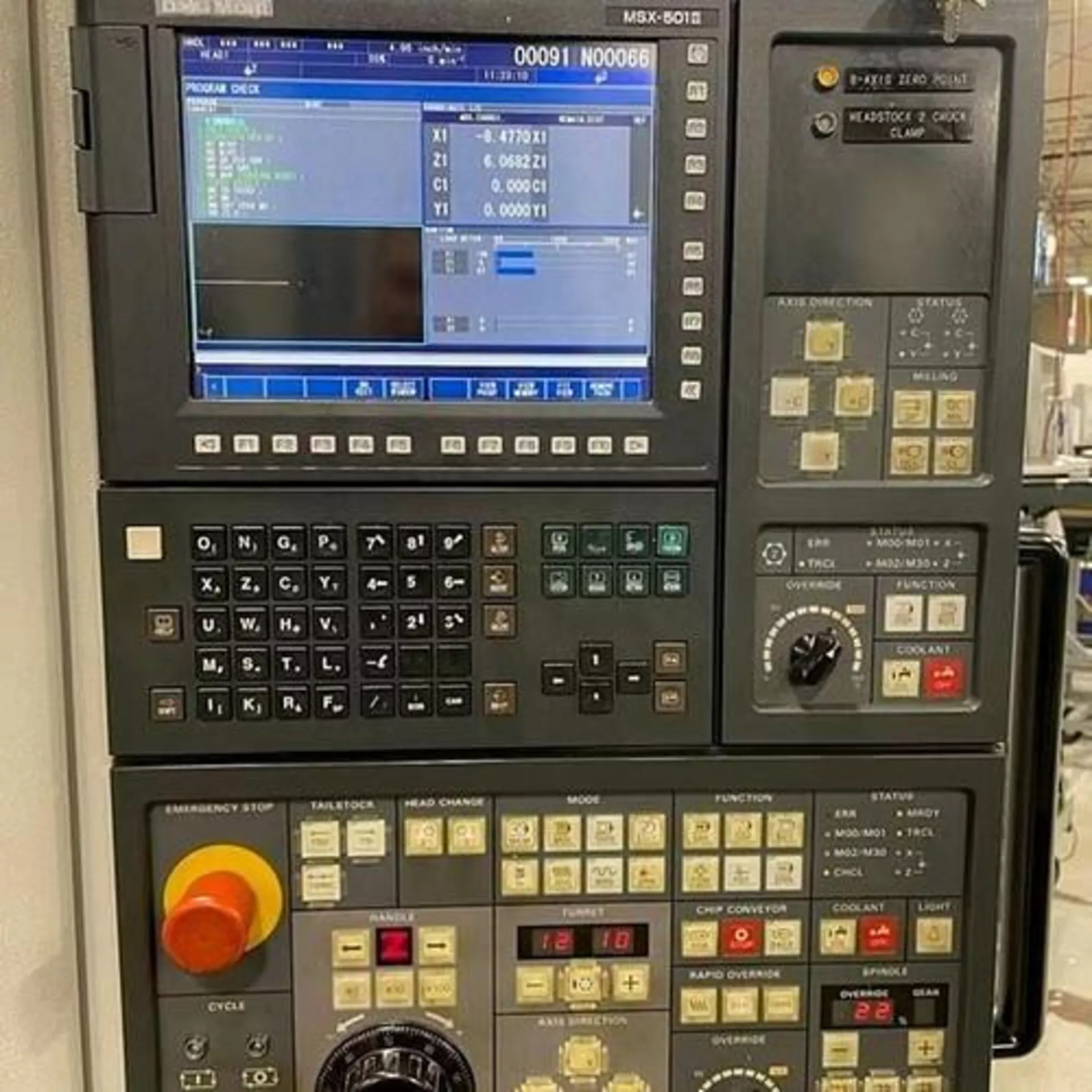

| CNC Control: |
Mitsubishi MSC-501 |
| Country of Origin: |
Japan |
| Capacity: |
| Chuck Size: 10″ |
| Max Turning Diameter: 14.9″ |
| Max Turning Length: 14″ |
| Max Distance Between Spindles: 51.2″ |
| Bar Capacity: 2.8″ |
| Spindle Bore: 3.5″ |
| Travels: |
| X1-Axis Travel: ~10″ |
| X2-Axis Travel: 7.9″ |
| Z1-Axis Travel: 38.8″ |
| Z2-Axis Travel (Lower Turret): 37.8″ |
| Y-Axis Travel: ±2.9″ |
| Spindle: |
| Spindle Speed: 4,000 RPM |
| Main Spindle Motor: 30 HP |
| C-Axis Indexing: 0.001° |
| Turret / Tooling: |
| Upper Turret: 12 Station |
| Lower Turret: 12 Station |
| Live Tooling Speed: 6,000 RPM |
| Live Tooling Motor: 6 HP |
| Included Tooling: |
| – 12 Live Tool Holders |
| – Additional Static & Live Tooling (Crated) |
| – (2) Tool Pre-Setters |
| General: |
| Rapid Traverse Rate (X, Z, B): 945 IPM |
| Rapid Traverse Rate (Y): 472 IPM |
| Bar Feeder Interface: Yes |
| Parts Catcher: Yes |
| Coolant System: Flood Coolant |
| Chuck Air Blast: Both Spindles |
| Foot Pedals: Dual Electric |
| Machine Weight: ~13,500 kg |
| Equipped With: |
| Twin Turret Configuration |
| Sub Spindle |
| Y-Axis Capability |
| Live Tooling |
| Chip Conveyor |
| Bar Feed Interface |
| Parts Catcher |
| Flood Coolant System |
| Complete Tooling Package (As Pictured) |
