*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

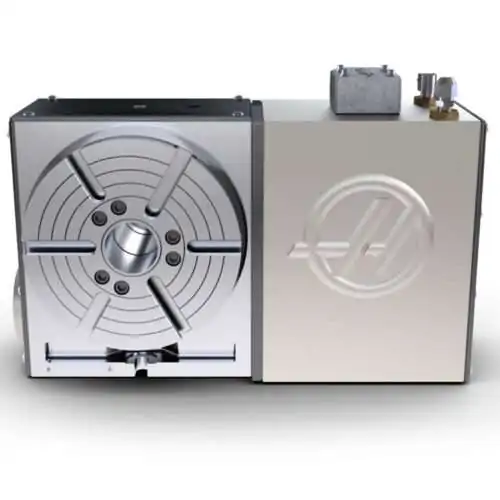

| Make: | HAAS |
| Model: | HRT210 |
| Year: | 2020 |
| Condition: | Used Excellent |
| Equipped with: |
|---|
| 8.0″ 3-Jaw Chuck (Upgraded $2095 value Included) |
| Tailstock (Upgraded $1695 value Included) |
| Cable & Connector |
| Platter: |
|---|
| Platter Diameter: 8.30″ |
| Max Weight on Platter (w/support): 170 lb |
| Max Weight on Platter (unsupported): 85 lb |
| Number of Std T-Slots: 6 @ 60° |
| Spindle: |
|---|
| Max Speed: 100 °/sec |
| Max Torque: 210 ft-lbf |
| Runout Max: 0.0005″ |
| Center Height: 6.000″ |
| Backlash: 30 arc-sec |
| Brake Torque @ 100 psi/6.9 bar: 200 ft-lbf |
| Gear Ratio: 90:1 |
| Timing: 2:1 |
| Indexing: |
|---|
| Accuracy (±): ± 15 arc-sec |
| Repeatability: 10 arc-sec |
| Resolution: 0.001° |
| Worm Gear Dia: 6.3″ |
| Max Rotation/Step (with rotary control): 999.999° |
| General: |
|---|
| Power Requirement: 115 VAC ±10% @ 15 A |
| Air Requirement: 150 psi |
| Dimensions: 27″ x 21″ x 21″ |
| Weight: 205 lb |
