*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

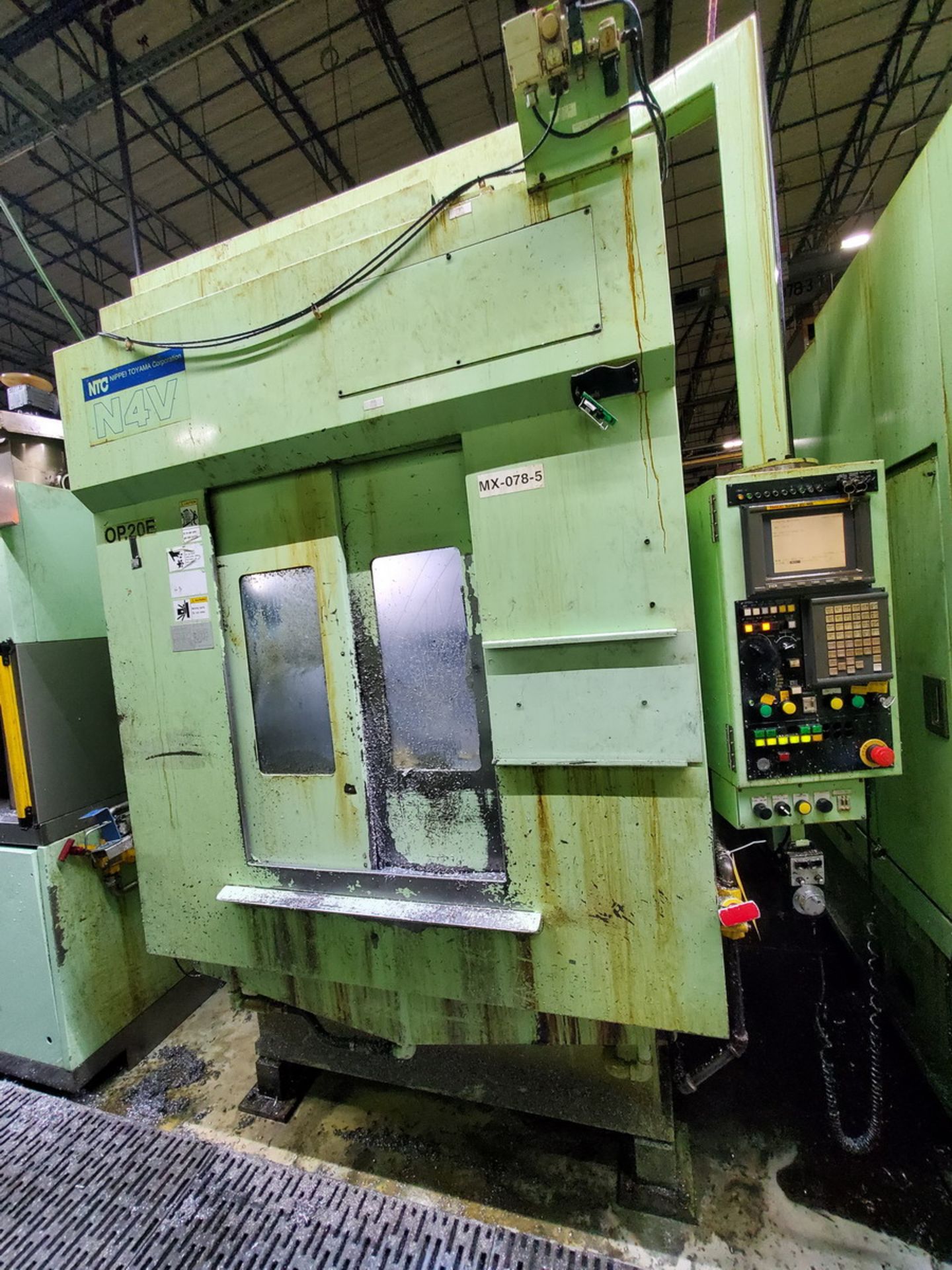

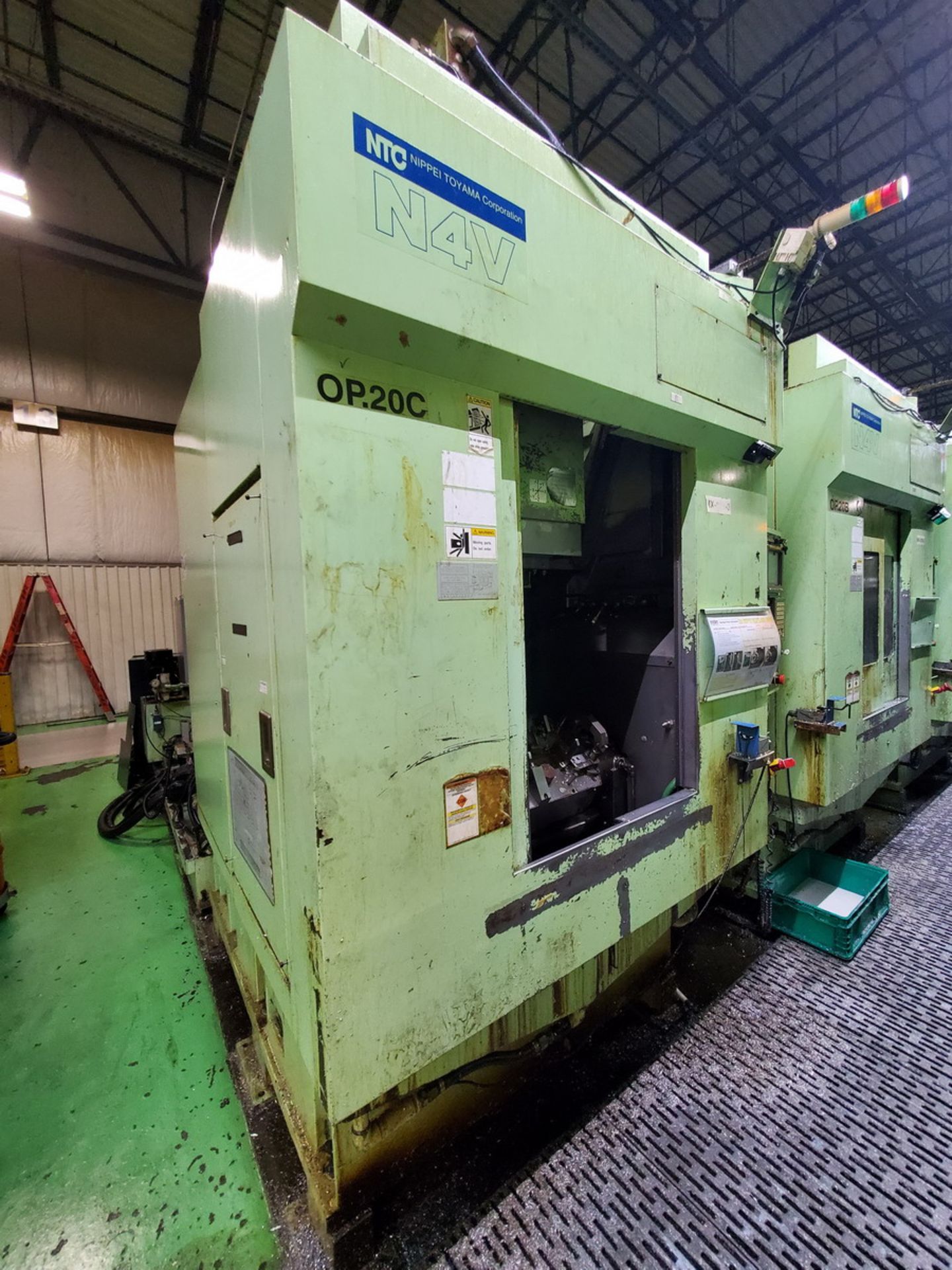

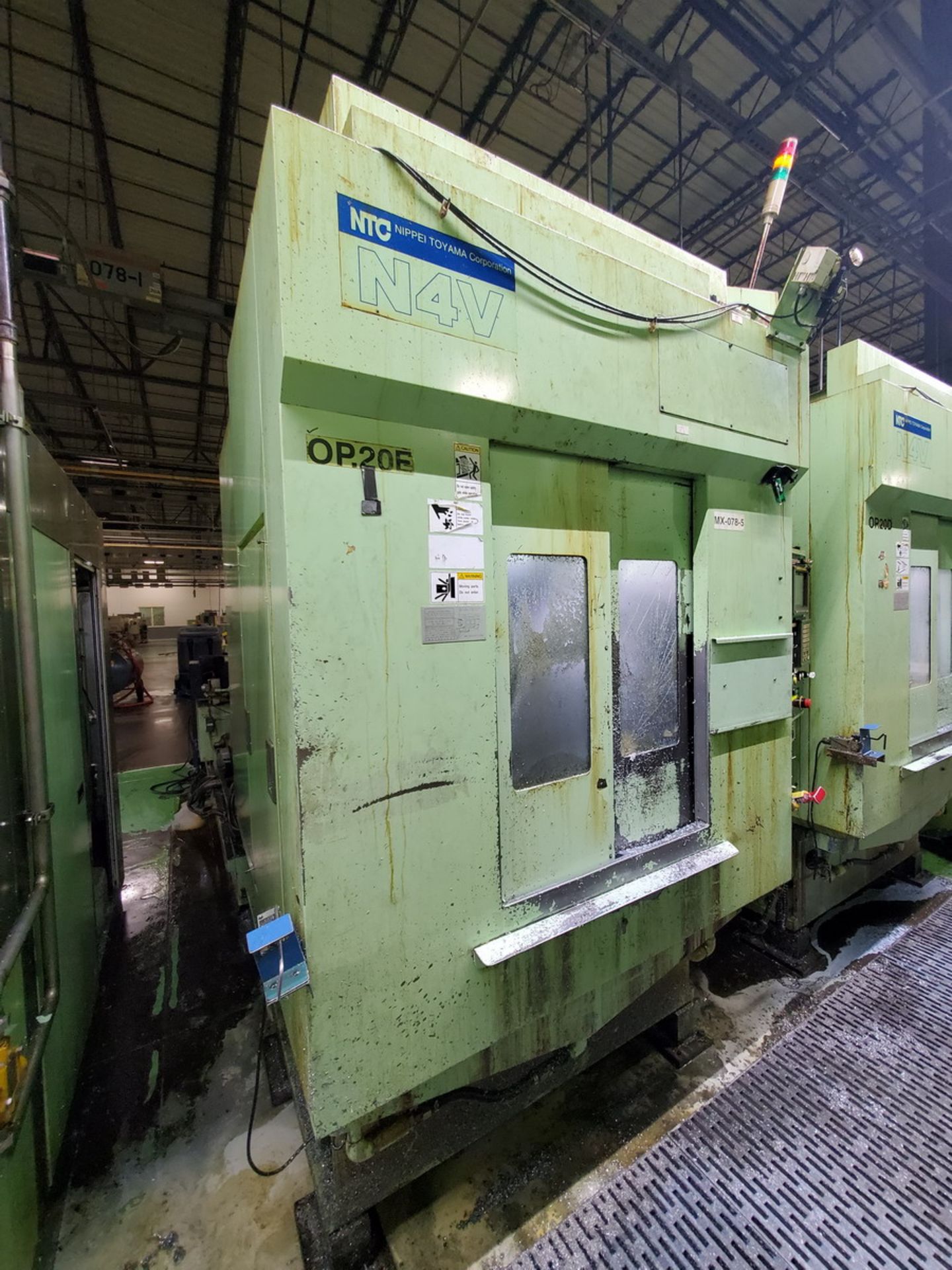

| Make: | NTC America |
| Model: | N4V |
| Year: | 2005 |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | Fanuc 21i-MB |
| Features: |
|---|
| Fanuc 21i-MB CNC Control |
| 180° Rotary Table |
| Hydraulic Clamping |
| Through-Spindle Coolant |
| Chip Conveyor |
| Coolant System |
| Oil Chiller Unit |
| Capacity: |
|---|
| Maximum Workpiece Weight: 442 lbs. |
| Rotary Table Size: 20.4″ × 18.5″ |
| Rotary Table Indexing: 180° |
| Travels: |
|---|
| X-Axis Travel: 19.6″ |
| Y-Axis Travel: 17.7″ |
| Z-Axis Travel: 17.7″ |
| Rapid Traverse: 1,575 IPM |
| Cutting Feed: 394 IPM |
| Spindle: |
|---|
| Spindle Taper: 40 |
| Spindle Speed: 10,000 RPM |
| Spindle Motor: 10 HP |
| Rotary Table: |
|---|
| Table Type: Rotary Table |
| Table Size: 20.4″ × 18.5″ |
| General: |
|---|
| Machine Dimensions (Approx.): 145″ W × 59″ L × 118″ H |
| Machine Weight (Approx.): 17,180 lbs. |
