*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

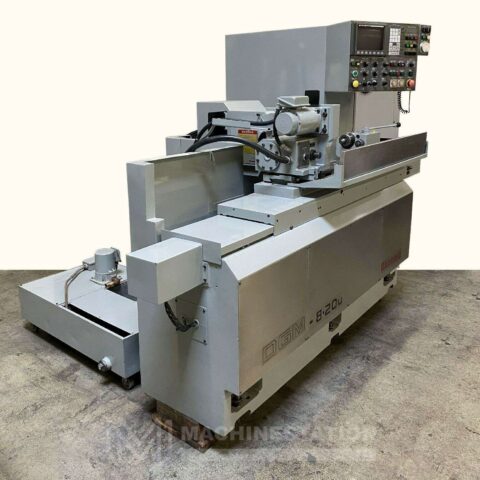

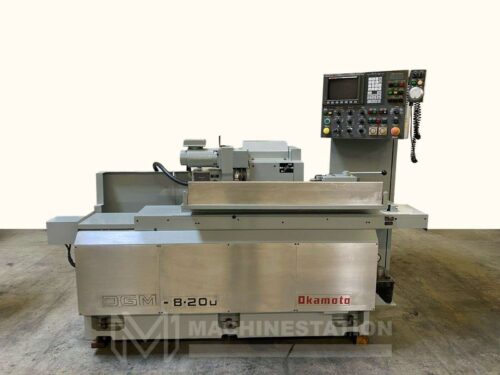

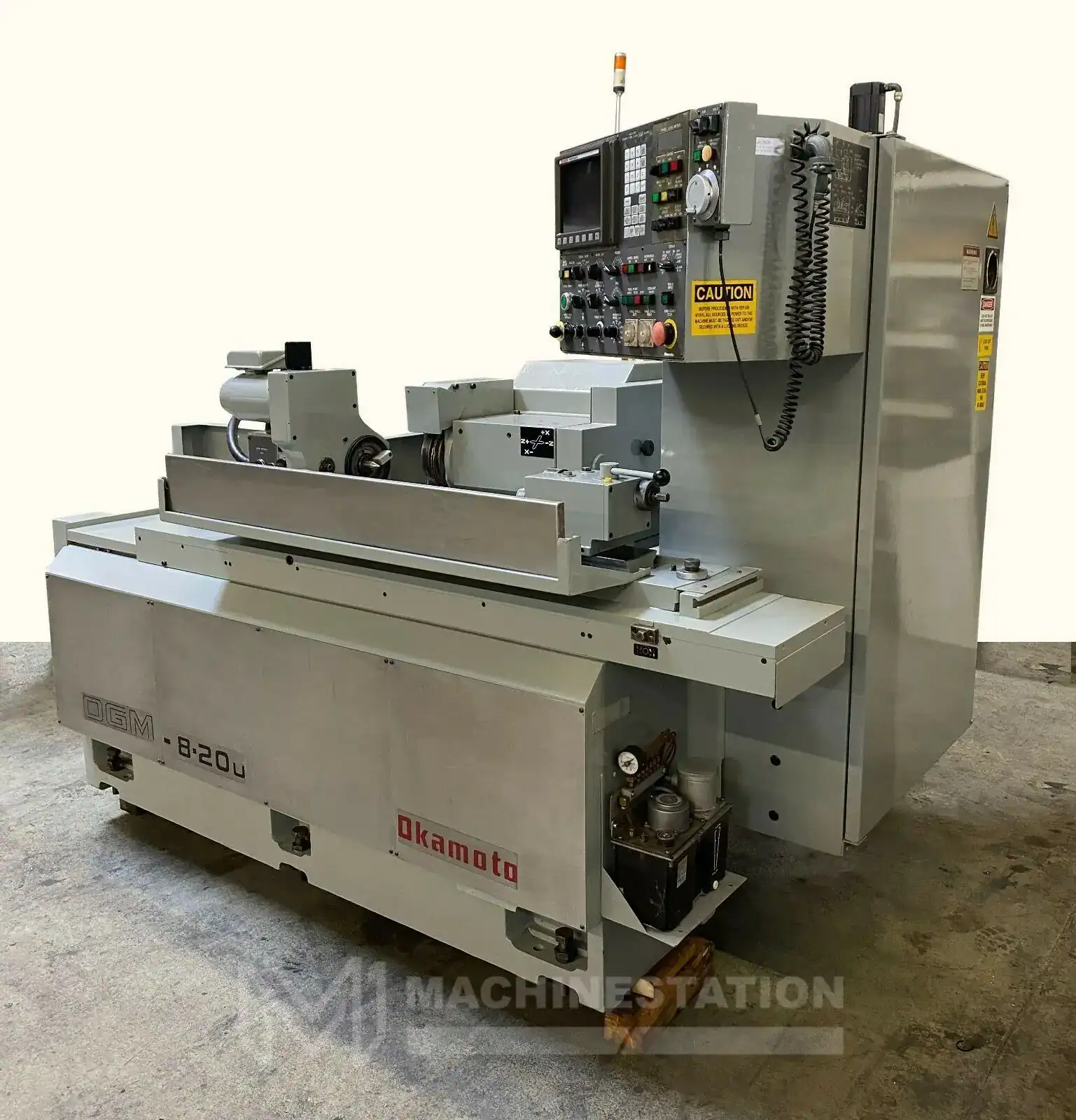

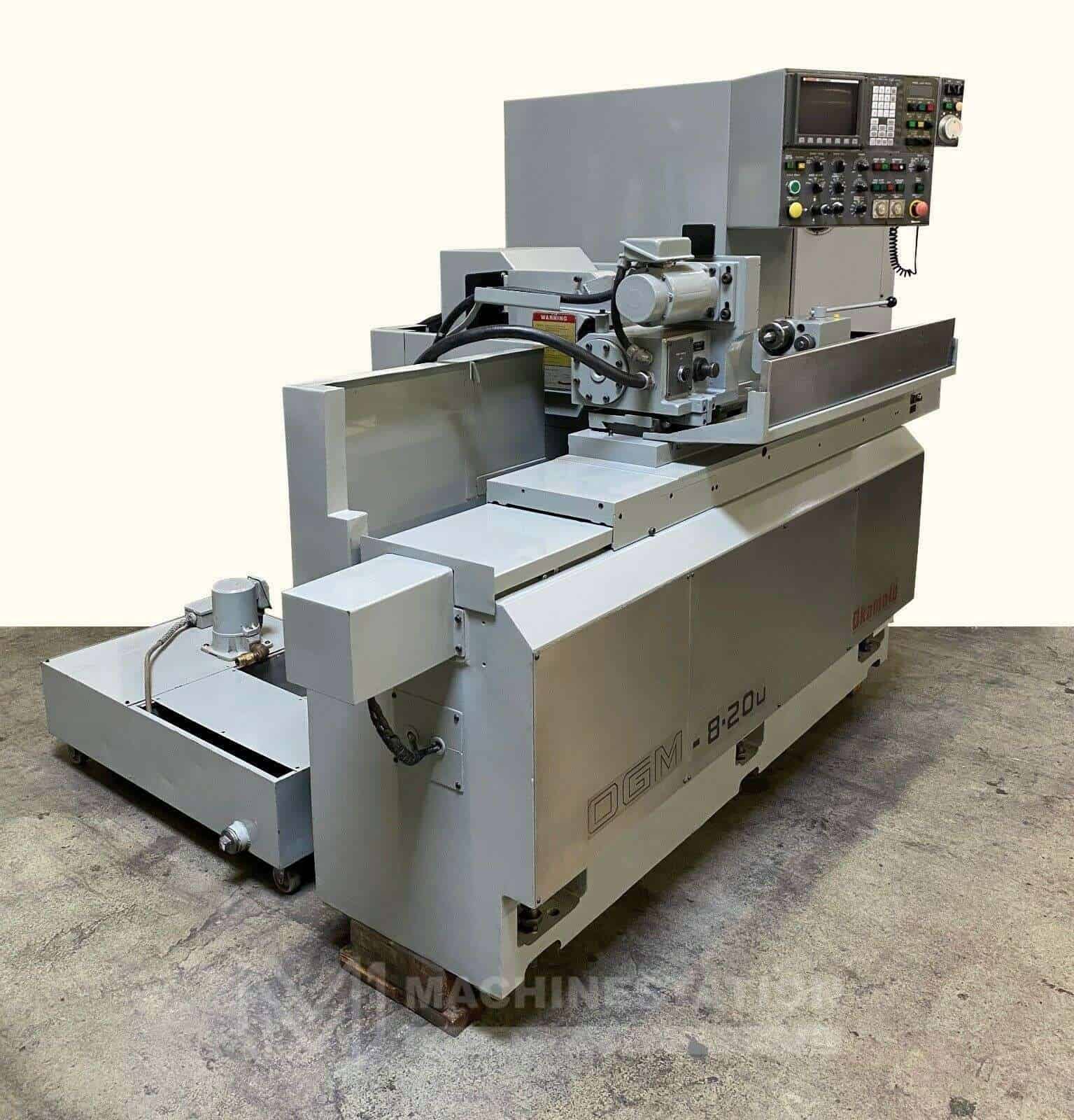

| Make: | OKAMOTO |

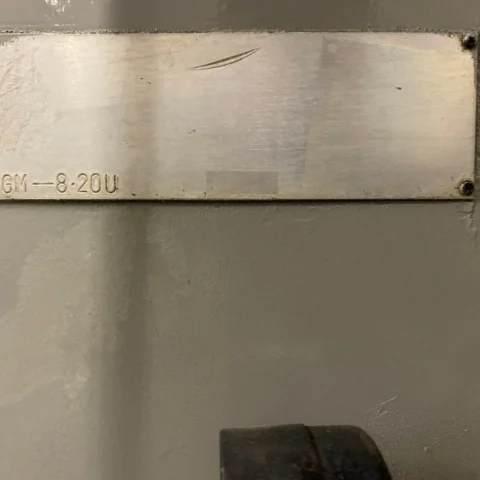

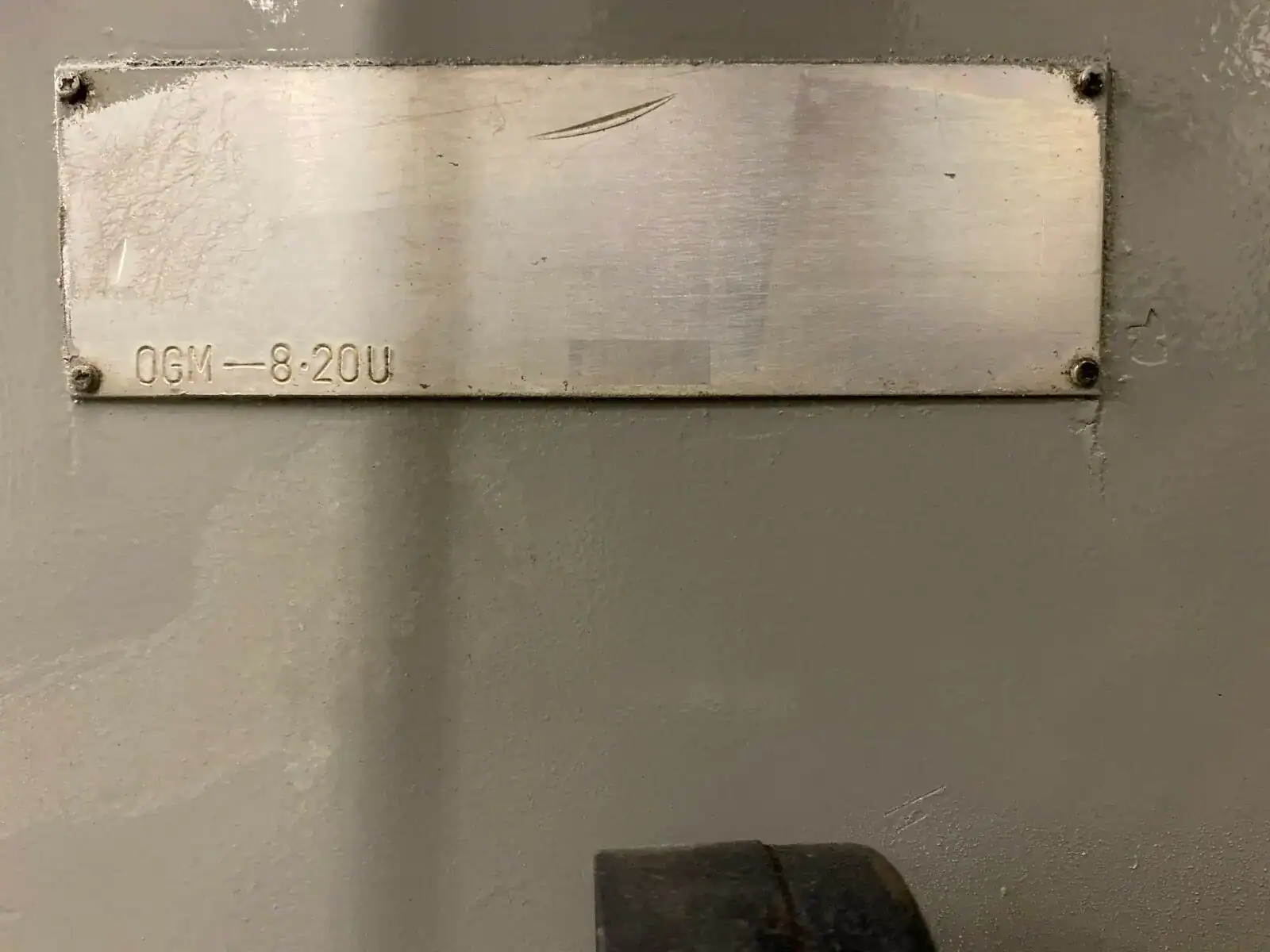

| Model: | OGM 8-20U |
| Year: | |
| Condition: | Used – Good |
| Equipped With: |
|---|

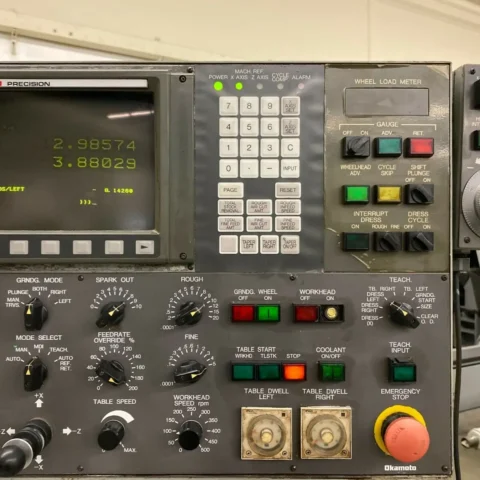

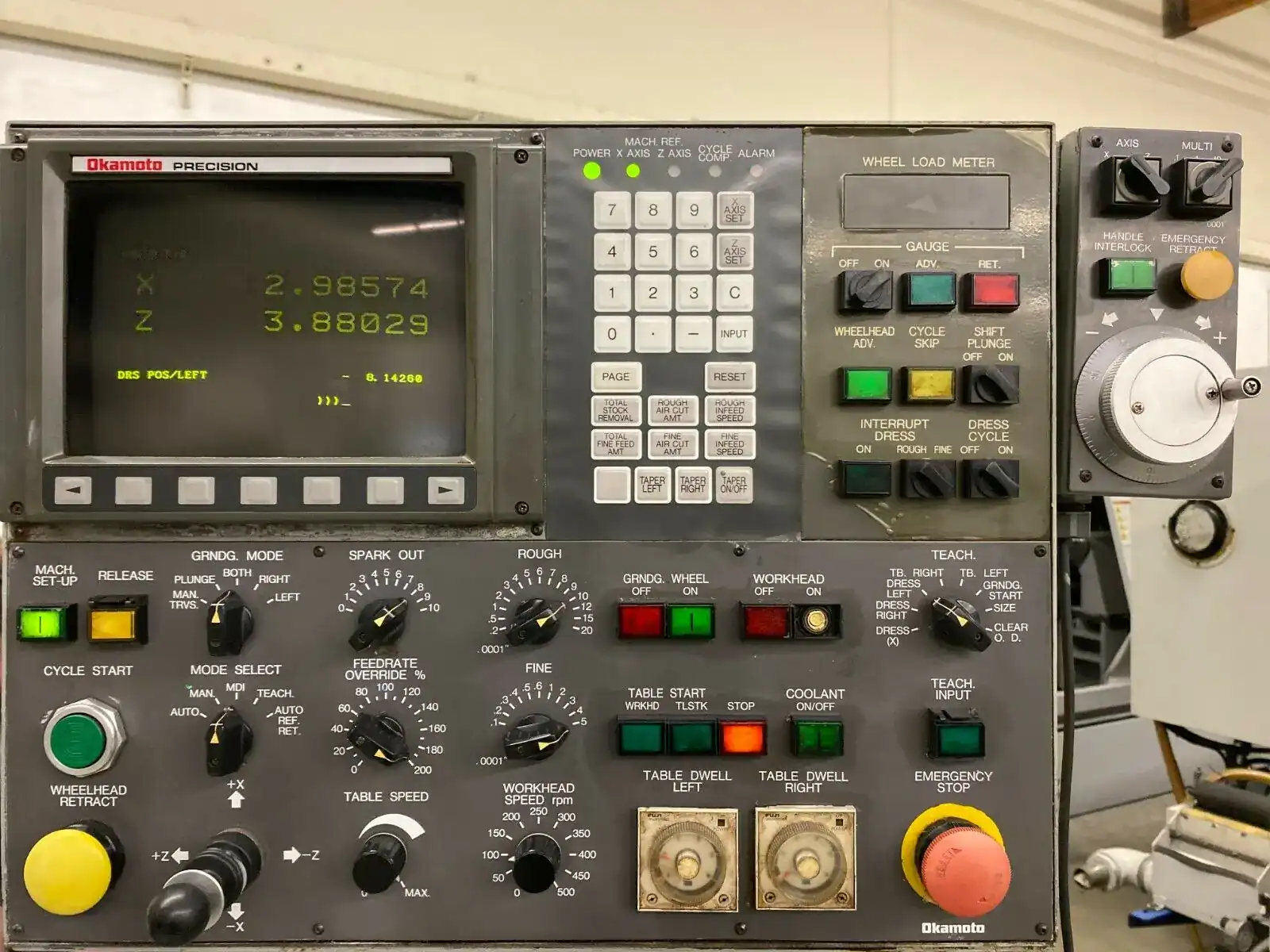

| Fanuc 21-GA |
| Absolute/Incremental Combined Programming |
| 4 x Subprograms |
| Swivelable Table & Wheel-Head |
| MPG Control |
| Inch / Metric Conversion |
| Stored Stroke Check |
| Auto Reference Point Return |
| Automatic Acceleration & Deceleration |
| Coolant System |
| Automatic Lubrication system |
| Manuals |
| Capacity: |
|---|
| Max Grinding Diameter: 7.87″ |
| Max Grinding Length: 19.68″ |
| Max load Capacity: 44 lbs |
| Swing Over Table: 8.66″ |
| Distance Between Centers: 19.68″ |
| Grinding Wheel: |
|---|
| Speed: 2010 RPM |
| wheel Size: 12″ X 1″ X 5″ |

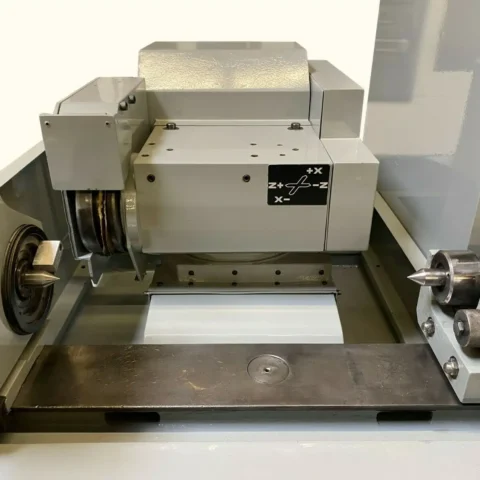

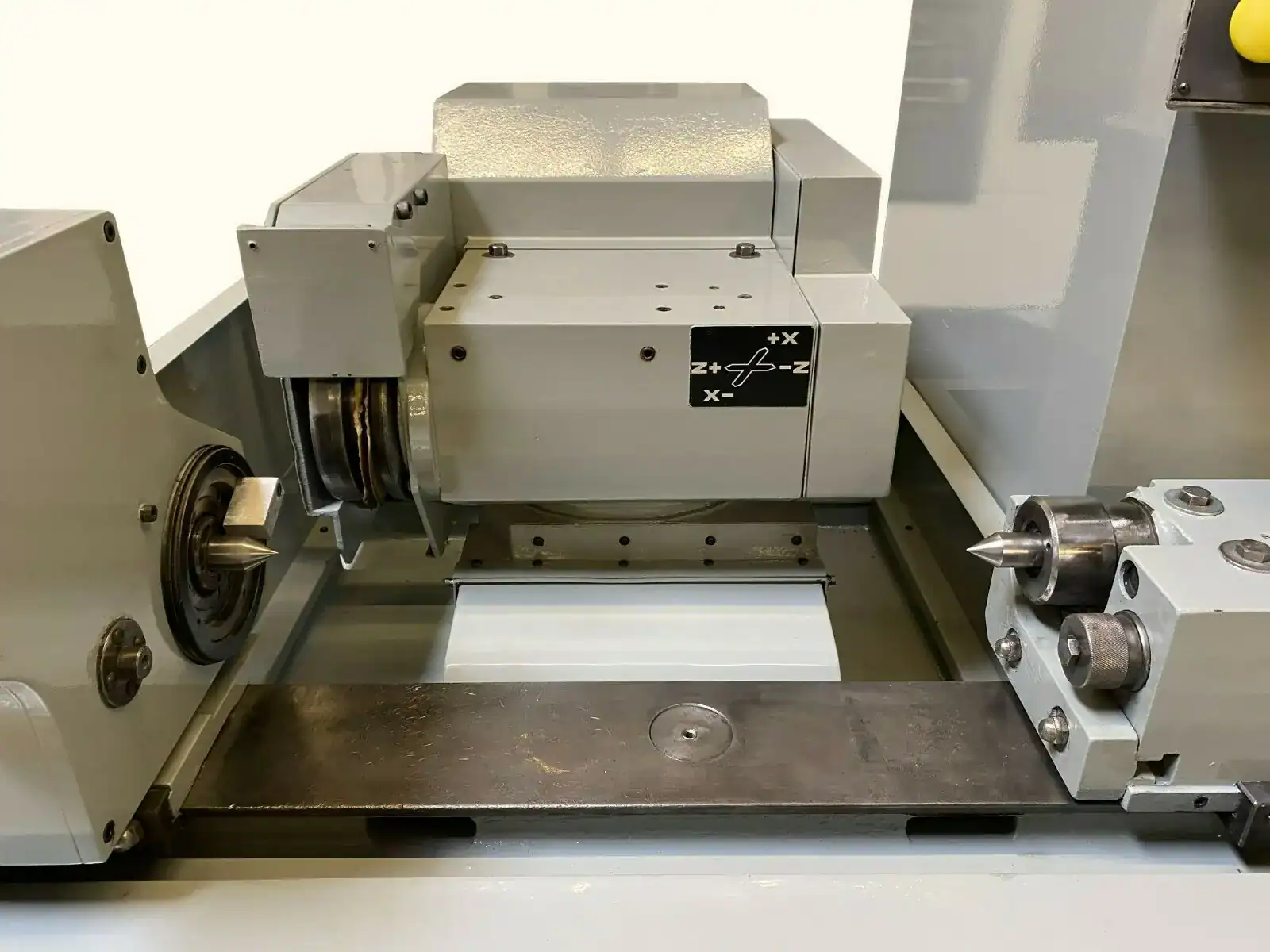

| Wheelhead: |
|---|
| X Axis Infeed Travel: 7.87″ |
| Swivel Angle: +/- 30° |
| Least Travel Increment: 0.0001” |
| Rapid Feed Rate: 158″ |
| Cont. Feed Rate: 0.0001″ to 158″ |
| Motor: 5 HP |
| Workhead: |
|---|
| Swivel Angle: +30 – 90° |
| Center Taper: MT-3 |
| Spindle Bore Dia.: 0.68″ |
| Speed: 15-500 RPM |
| Motor: 1 HP |
| Table: |
|---|
| Z Axis Travel: 25.59″ |
| Swivel Angle: +4 /-9° |
| Least Travel Increment: 0.0001” |
| Rapid Feed Rate: 158″ |
| Cont. Feed Rate: 0.0001″ to 158″ |
| Tailstock: |
|---|
| Tailstock Quill Stroke: 0.78″ |
| Tailstock Taper: MT-3 |
| General: |
|---|
| Power Source: AC 220 V Three Phase 60 Hz |
| Power Requirement: 15 kva |
| Overall Dimensions: 106″ x 63″ x 66″ High |
| Weight : 5500 lbs Approx. |
