*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

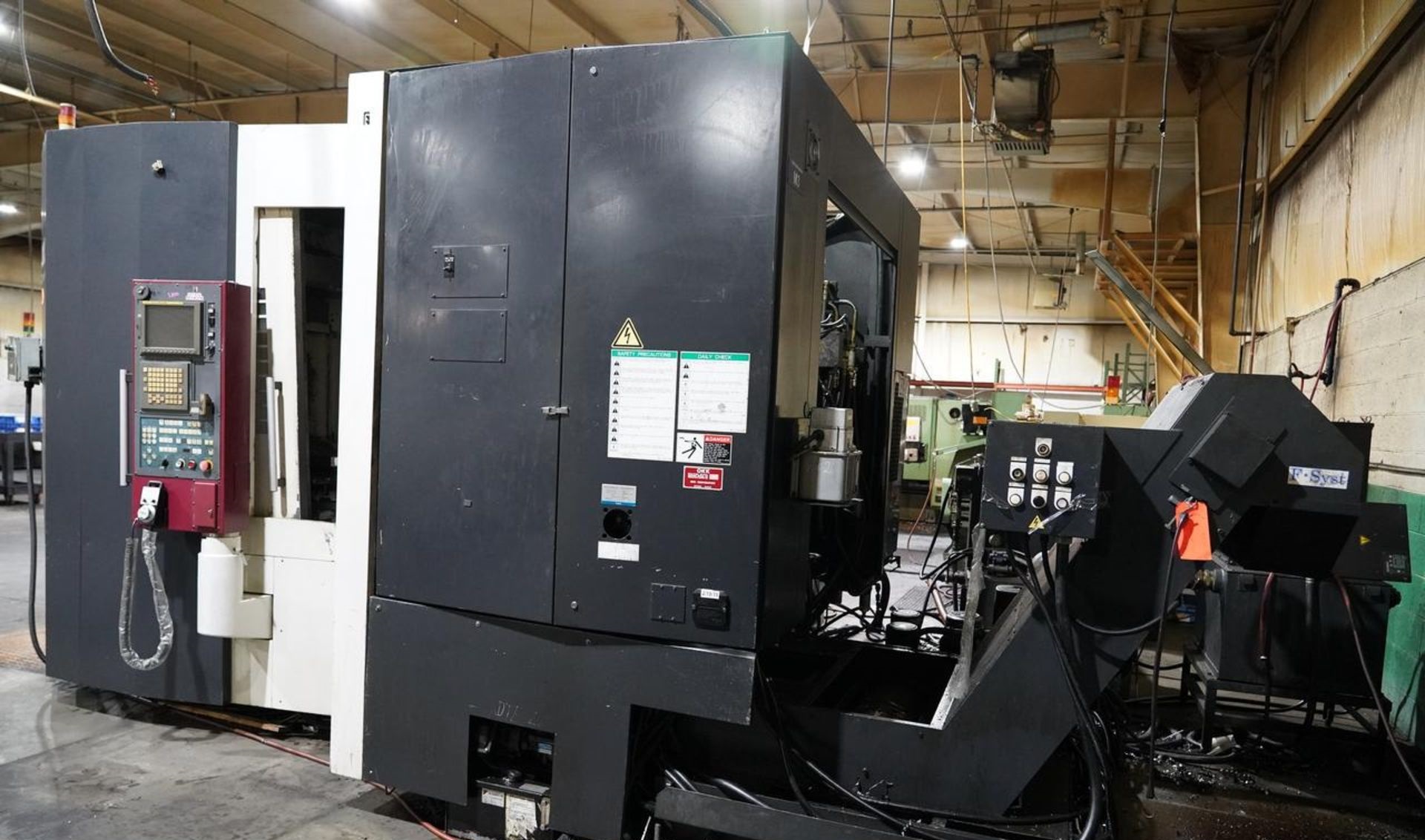

| Make: | OKK |
| Model: | HP500S |
| Condition: | Used |
| Equipped With: |
|---|

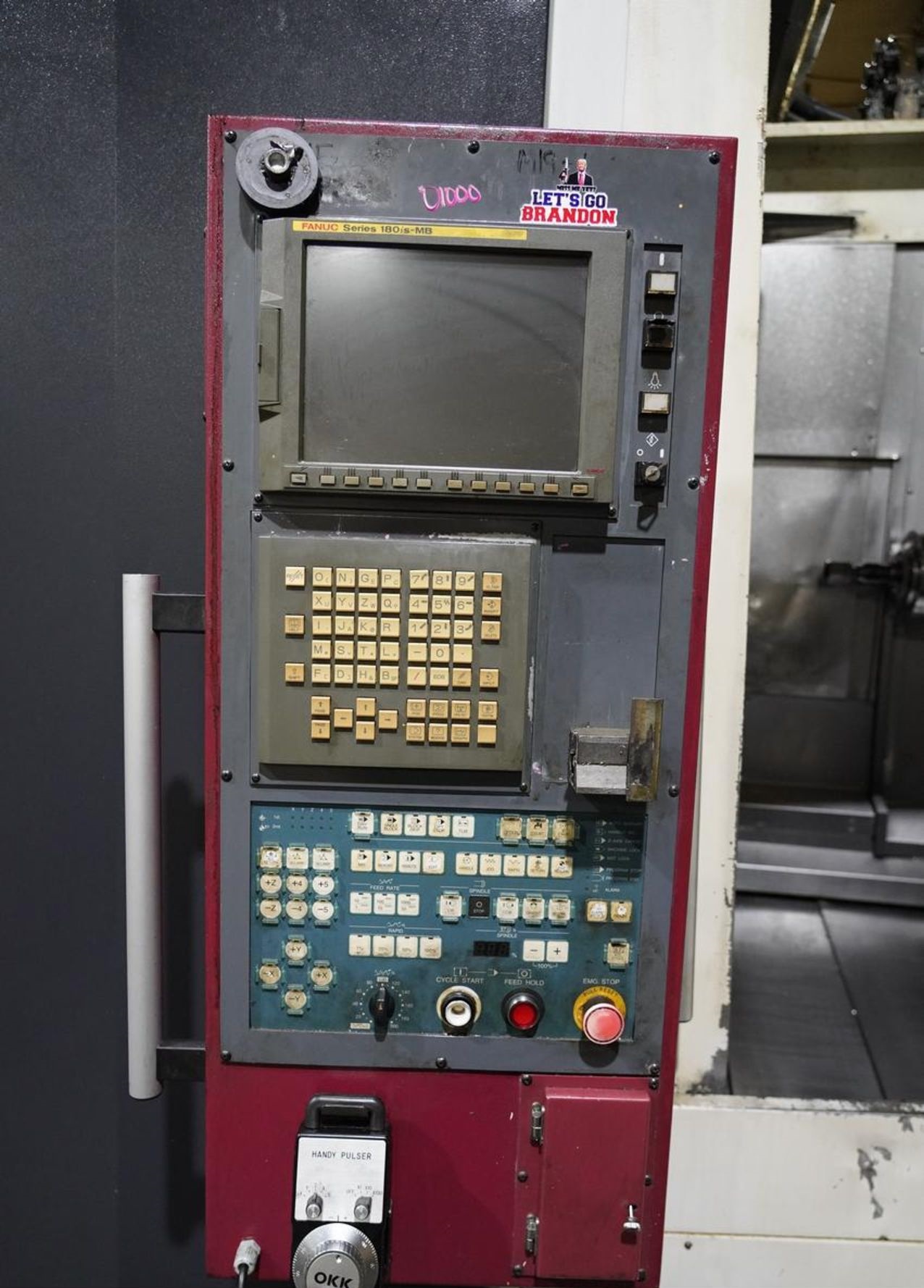

| Fanuc CNC Control |
| 2-Pallet Automatic Pallet Changer |
| Full 4-Axis Machining Capability |
| Rigid Box-Way Construction |
| High-Torque Gear-Driven Spindle |
| Automatic Tool Changer |
| Coolant System |

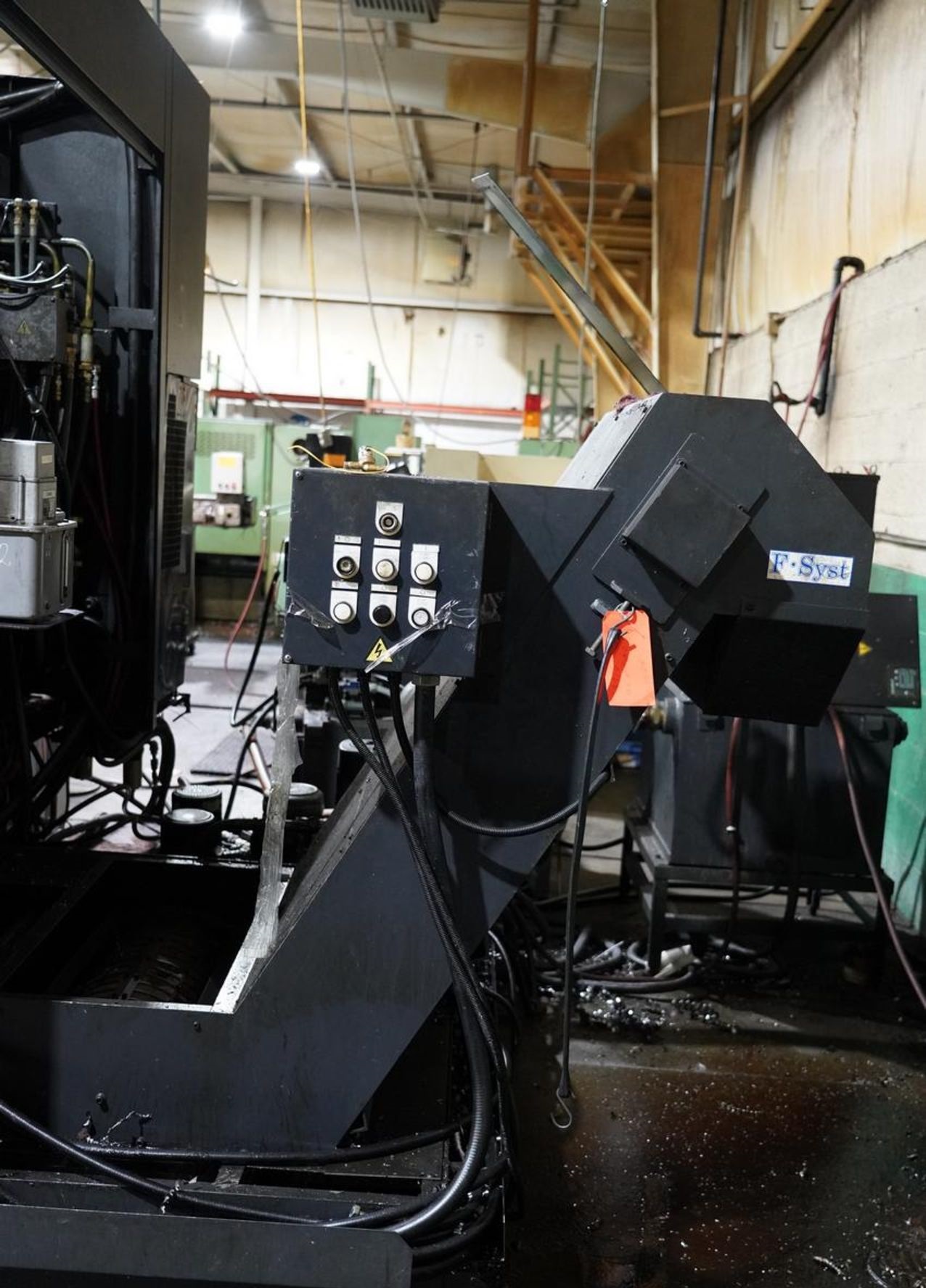

| Chip Conveyor |
| Full Enclosure |
| Capacity: |
|---|
| Pallet Size: 19.7″ × 19.7″ |
| Max Workpiece Diameter: 31.5″ |
| Max Workpiece Height: 39.4″ |
| Max Pallet Load: 1,984 lbs |
| Travels: |
|---|
| X-Axis Travel: 29.9″ |
| Y-Axis Travel: 29.9″ |
| Z-Axis Travel: 29.9″ |
| B-Axis Indexing: 1° (Optional 0.001°) |
| Spindle: |
|---|
| Spindle Taper: CAT-50 |
| Spindle Speed: 6,000 RPM |
| Spindle Motor: 40 HP |
| Gear-Driven Spindle |
| Feedrates: |
|---|
| Rapid Traverse X/Y/Z: 1,575 IPM |
| Cutting Feedrate: 0 – 787 IPM |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 40 Tools |
| Max Tool Diameter: 6.3″ |
| Max Tool Length: 19.7″ |
| Max Tool Weight: 33 lbs |
| General: |
|---|

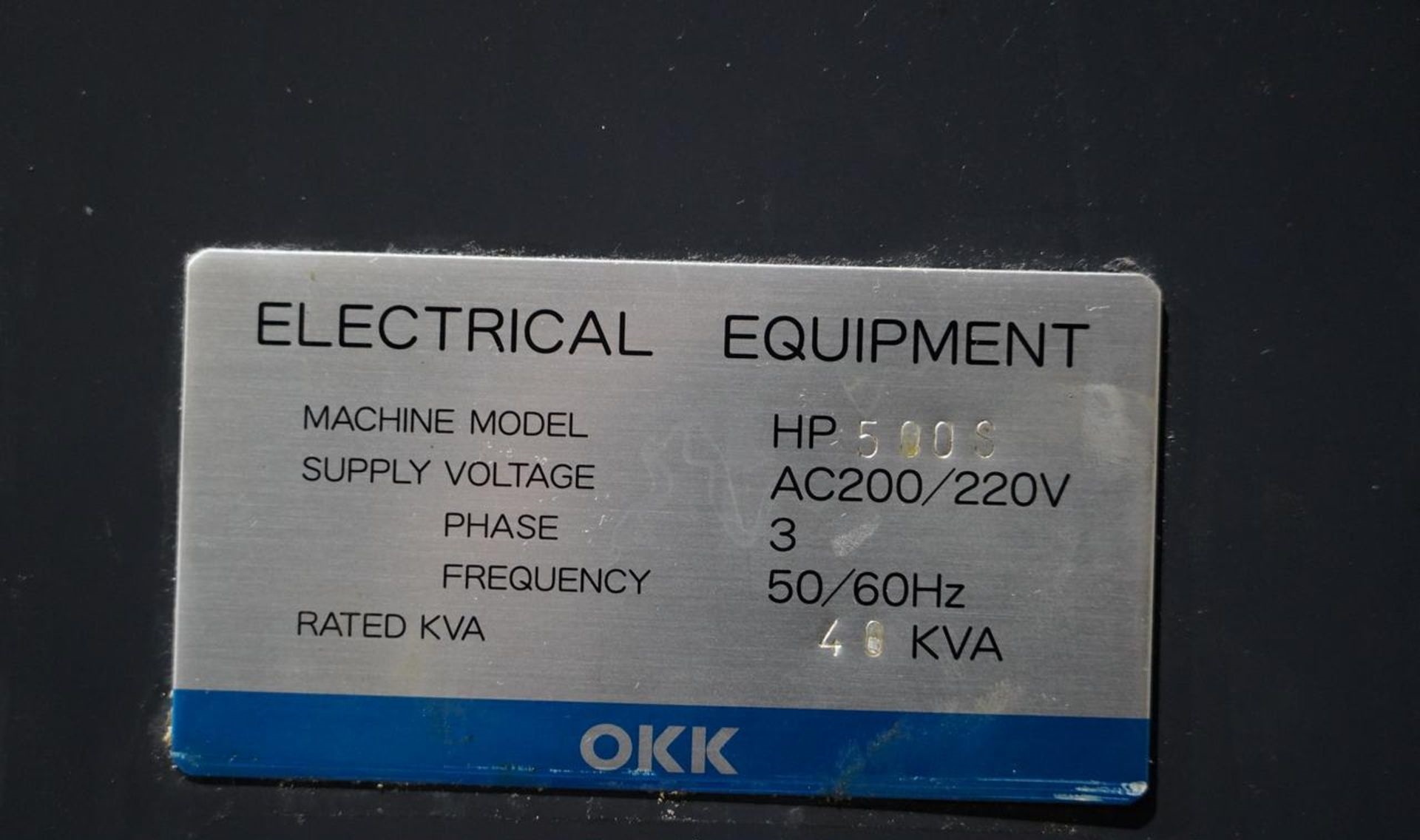

| Power Requirement: 220V / 3-Phase |
| Machine Weight (Approx.): 26,500 lbs |
| Overall Dimensions (Approx.): 205″ × 118″ × 118″ |
