*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

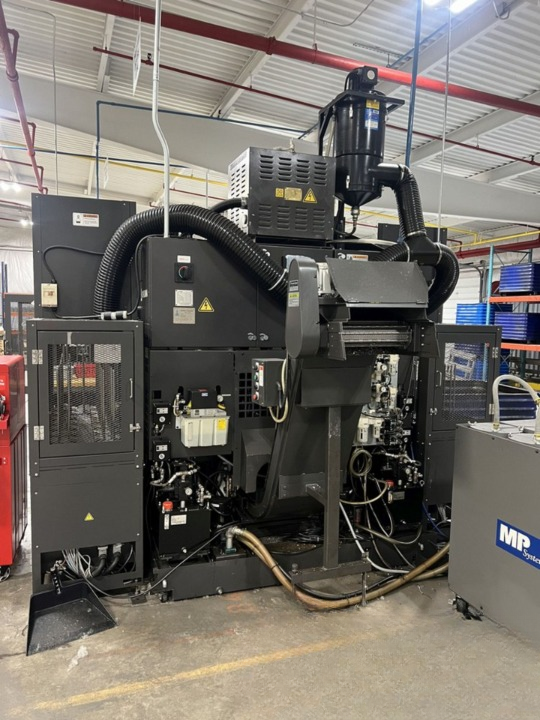

| Make: | Okuma |
| Model: | 2SP-150H |
| Year: | 2015 |
| Condition: | Used – Good |
| Machine Type: | Twin-Spindle CNC Turning Center |
| Country of Origin: | Japan |
| Machine Configuration: |
|---|
- Dual Spindle CNC Turning Center
- Main Spindle + Sub Spindle (Opposed Spindle Design)
- Simultaneous Front & Back Machining
- Single Turret, High-Rigidity Layout
- Designed for High-Volume Production
|

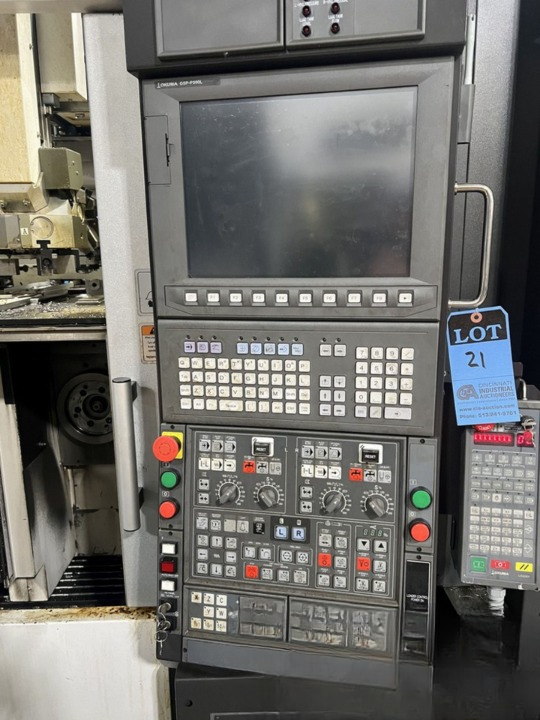

| CNC Control: |
|---|
- Okuma OSP-P300 CNC Control (OSP-P200 on Some Builds)
- Okuma Proprietary CNC Platform
- 15″ Color LCD Display
- Conversational & G-Code Programming
- High-Speed Program Processing
- Thermo-Friendly Concept
- Collision Avoidance System (CAS – Optional)
- Ethernet & USB Connectivity
- Tool Life Management
- Graphic Simulation & Alarm Diagnostics
|
| Axis Travels: |
|---|
- X-Axis Travel: Approx. 6.3″ (160 mm)
- Z-Axis Travel: Approx. 15.7″ (400 mm)
- C-Axis: Full C-Axis on Main & Sub Spindle
|
| Spindle Specifications: |
|---|
- Main Spindle
- Chuck Size: 6″
- Spindle Nose: A2-5
- Maximum Spindle Speed: Approx. 6,000 RPM
- Spindle Motor Power: Approx. 15 HP
- C-Axis Indexing
- Sub Spindle
- Chuck Size: 6″
- Spindle Nose: A2-5
- Maximum Spindle Speed: Approx. 6,000 RPM
- Spindle Synchronization (Main ↔ Sub)
|

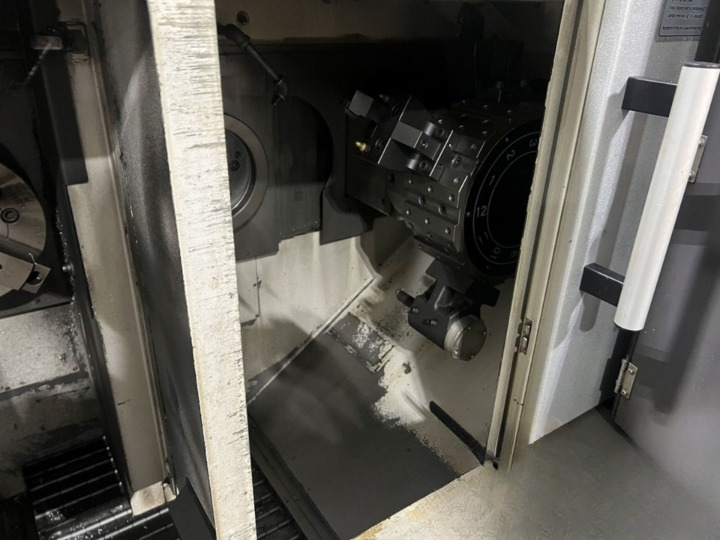

| Turret & Tooling: |
|---|
- Turret Type: Servo-Driven Turret
- Number of Stations: 12
- Tool Size: Turning Tools
- Live Tooling: Optional (Configuration Dependent)
- Rapid Tool Indexing
- Rigid Tool Clamping
|
| Turning Capacity: |
|---|
- Maximum Turning Diameter: Approx. 9.8″ (250 mm)
- Maximum Turning Length: Approx. 13.8″ (350 mm)
- Bar Capacity: Approx. 1.6″ (40 mm)
|
| Feedrates & Rapids: |
|---|
- Rapid Traverse (X / Z): Approx. 945 IPM (24 m/min)
- High-Precision AC Servo Drives
|
| Coolant & Chip Management: |
|---|
- Flood Coolant System
- Programmable Coolant Nozzles
- Chip Conveyor (Standard / Optional)
- Automatic Chip Disposal Design
|
| Electrical Specifications: |
|---|
- Power Supply: 220 / 400 / 480 V
- Phase: 3-Phase
- Frequency: 50 / 60 Hz
- Control Voltage: AC / DC via Okuma CNC
- Industrial-Grade Electrical Cabinet
|
| Safety & Reliability: |
|---|
- Full Machine Enclosure
- Interlocked Safety Doors
- Emergency Stop System
- Overload & Servo Monitoring
- Automatic Central Lubrication System
- Okuma Thermo-Friendly Structure for Accuracy
|
| Key Features & Advantages: |
|---|
- True Twin-Spindle Productivity
- Complete Front & Back Machining in One Cycle
- Reduced Cycle Time & Part Handling
- Excellent Accuracy & Thermal Stability
- Ideal for Automotive, Medical & Precision Parts
- Proven Okuma Reliability & Long Service Life
|
| Typical Applications: |
|---|
- High-Volume Production Turning
- Automotive Components
- Hydraulic & Pneumatic Parts
- Precision Shafts & Bushings
- Medical & Industrial Fittings
|
