Used Okuma Captain L370 CNC Turning Center (2005)

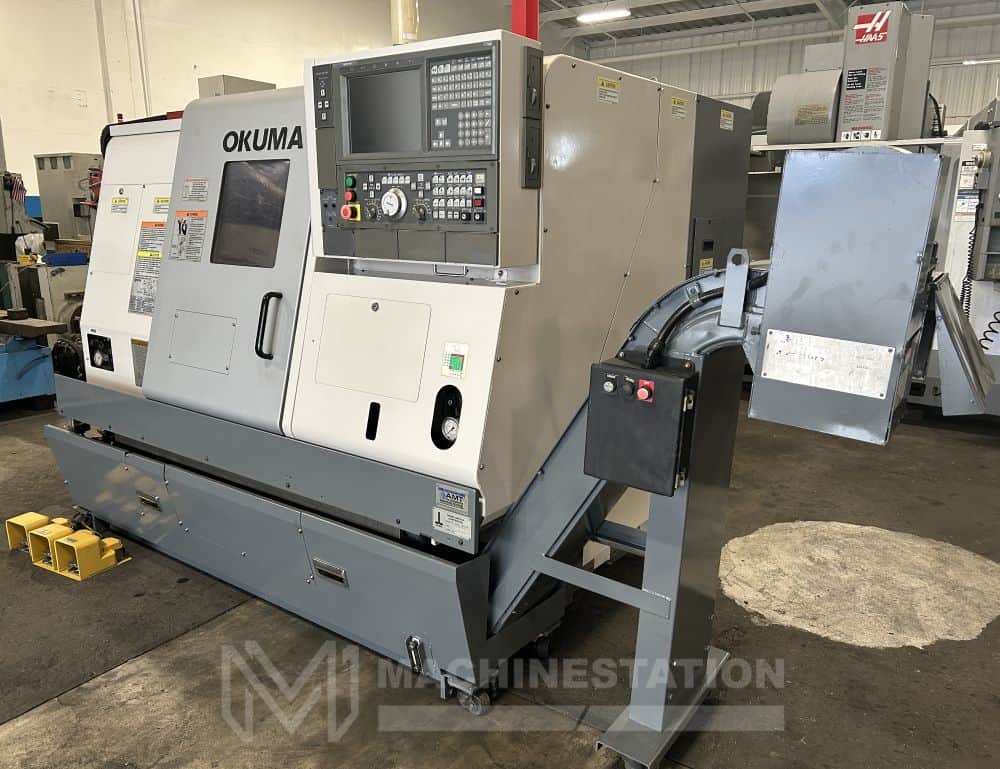

Okuma Captain L370 CNC Turning Center

Location Lake Elsinore, CA

SKU 112489

Make & Model Okuma Captain L370

Year 2005

Video No Video

Out of stock

Location:	Lake Elsinore, CA
SKU:	112489
Make & Model:	Okuma Captain L370
Year:	2005
Video:	No Video

SKU: 112489

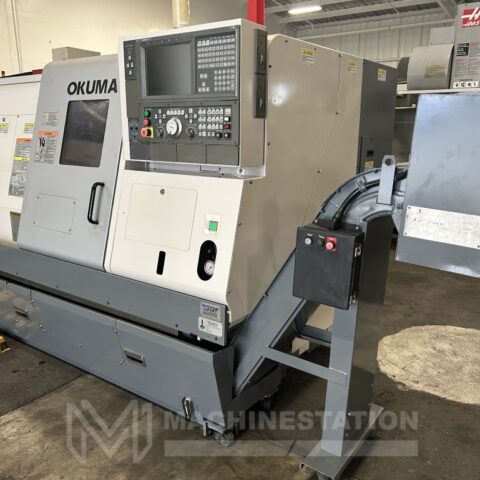

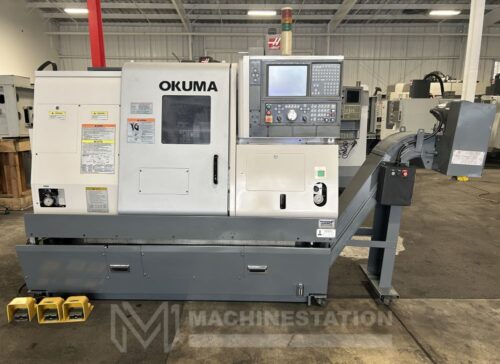

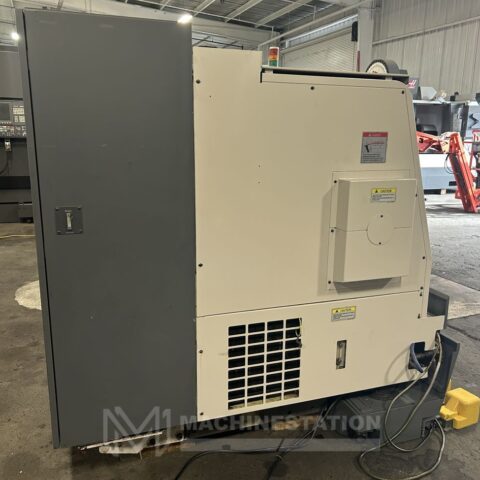

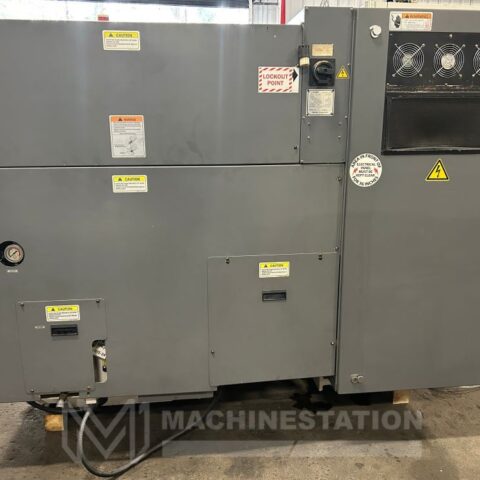

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Okuma
Model:	Captain L-370
Year:	2005
Condition:	Used – Good

Equipped With:

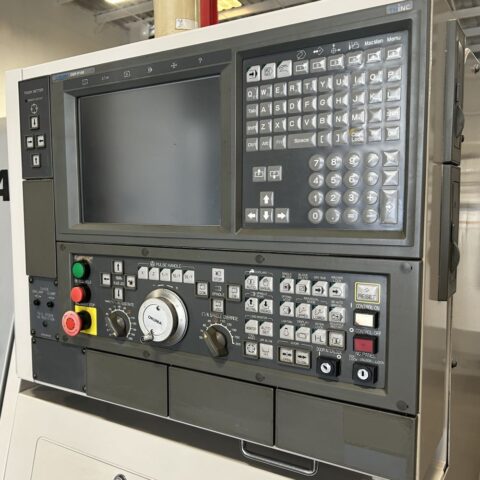

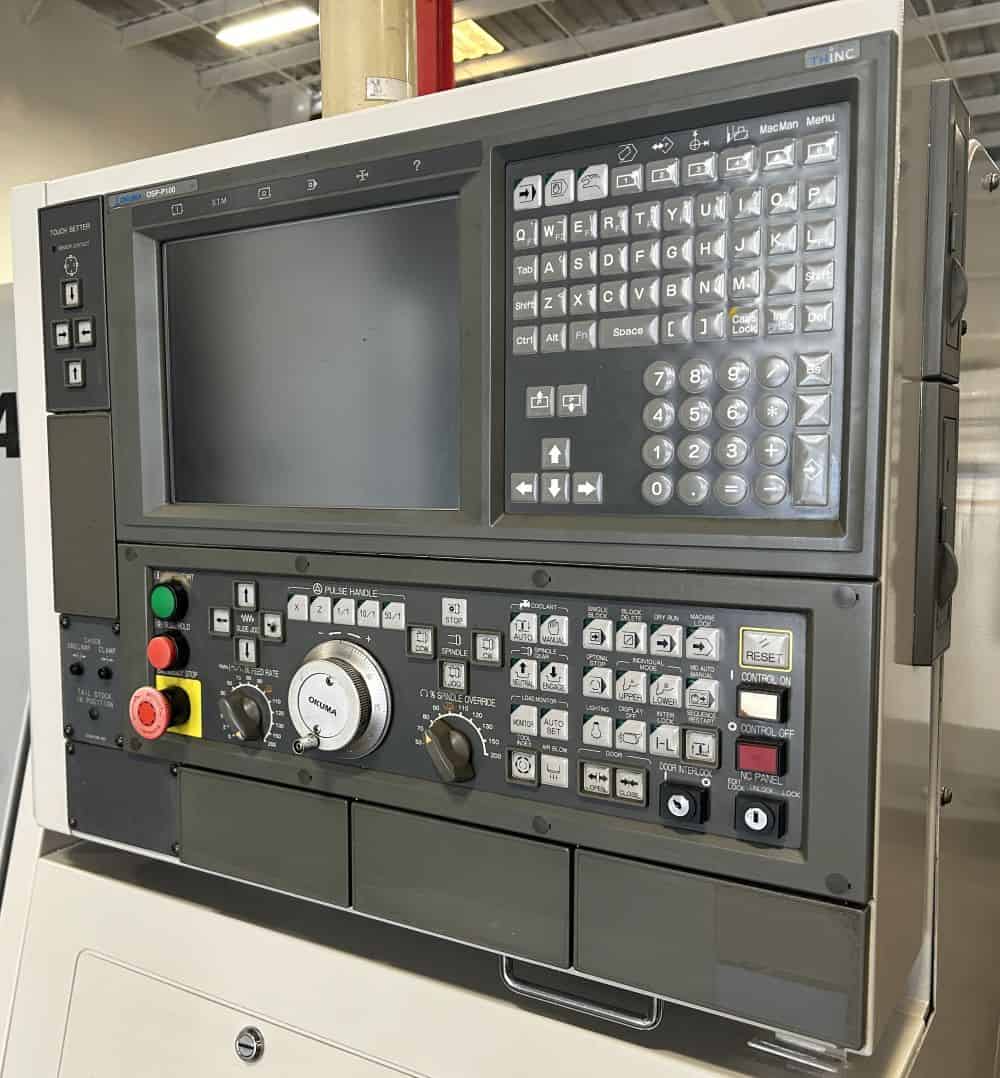

OSP-P100 CNC Control

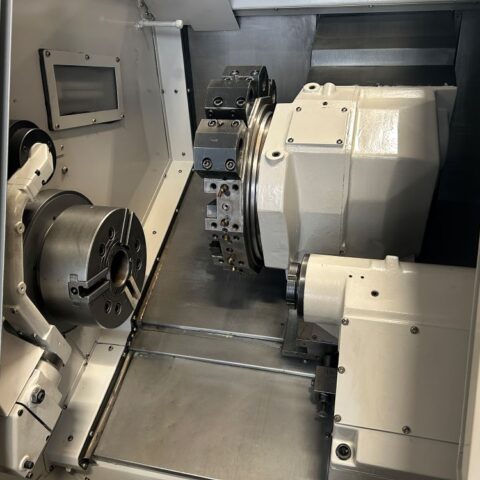

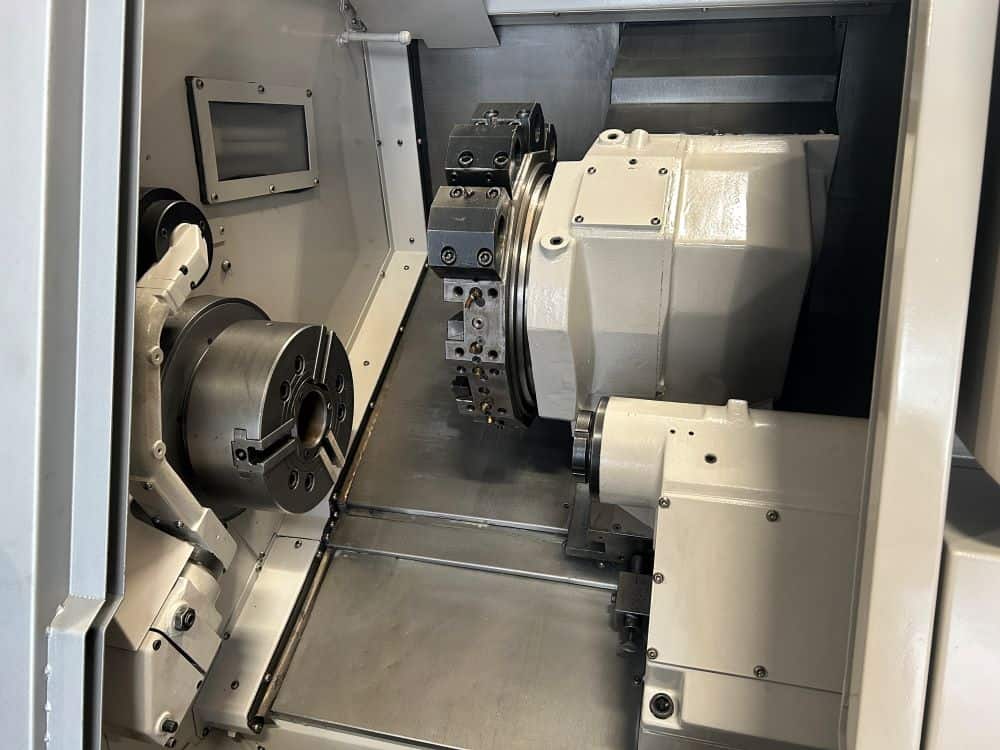

10″ 3-Jaw Hydraulic Chuck

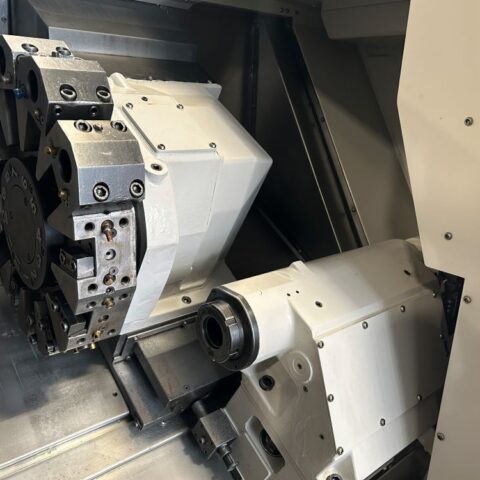

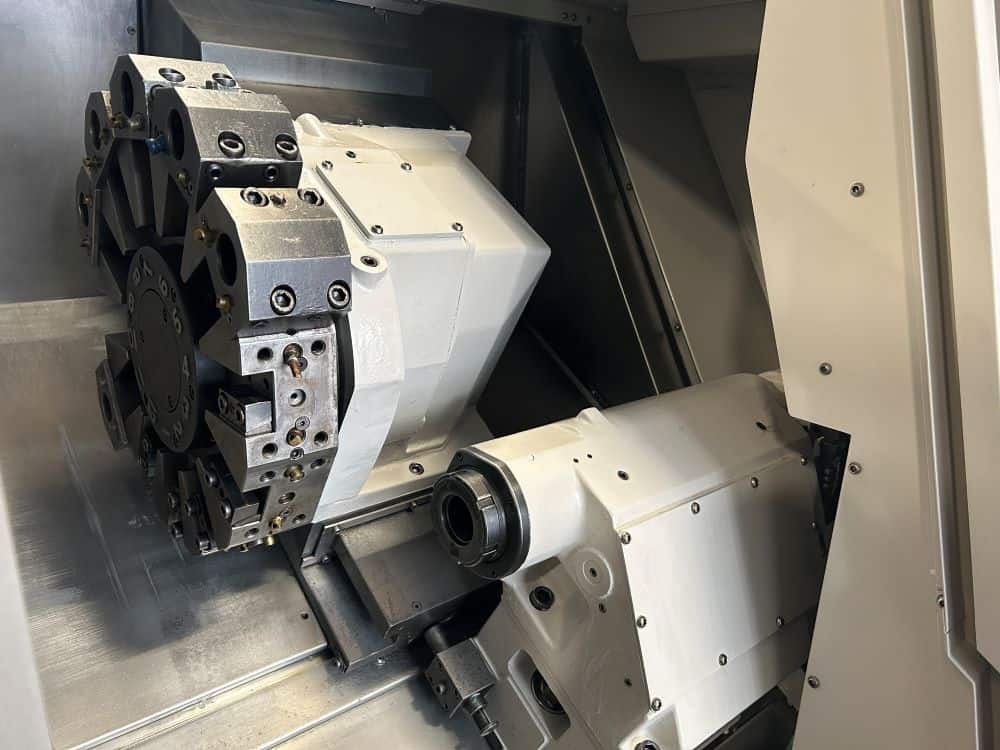

12-Station Automatic Turret
One Touch IGF Programming
Floppy Drive
Hydraulic Tailstock with Power Quill
Tool Presetter
Coolant System

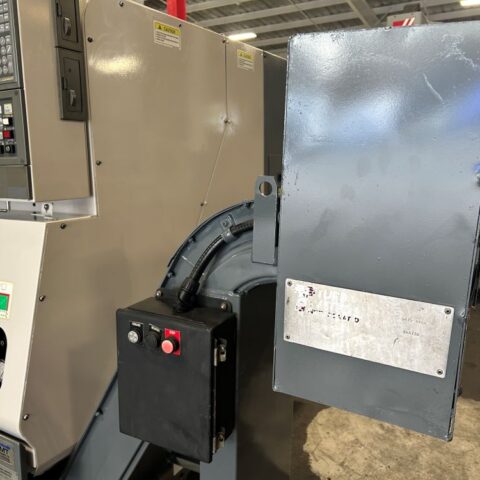

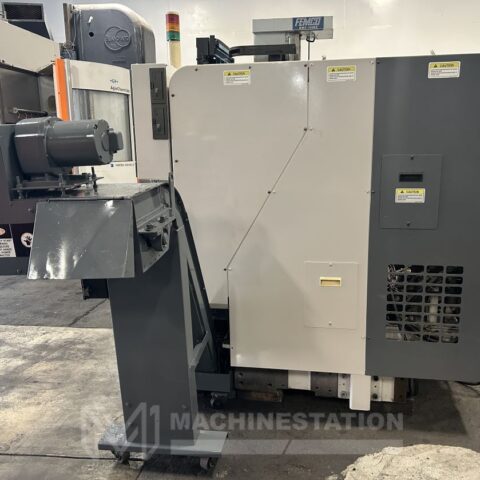

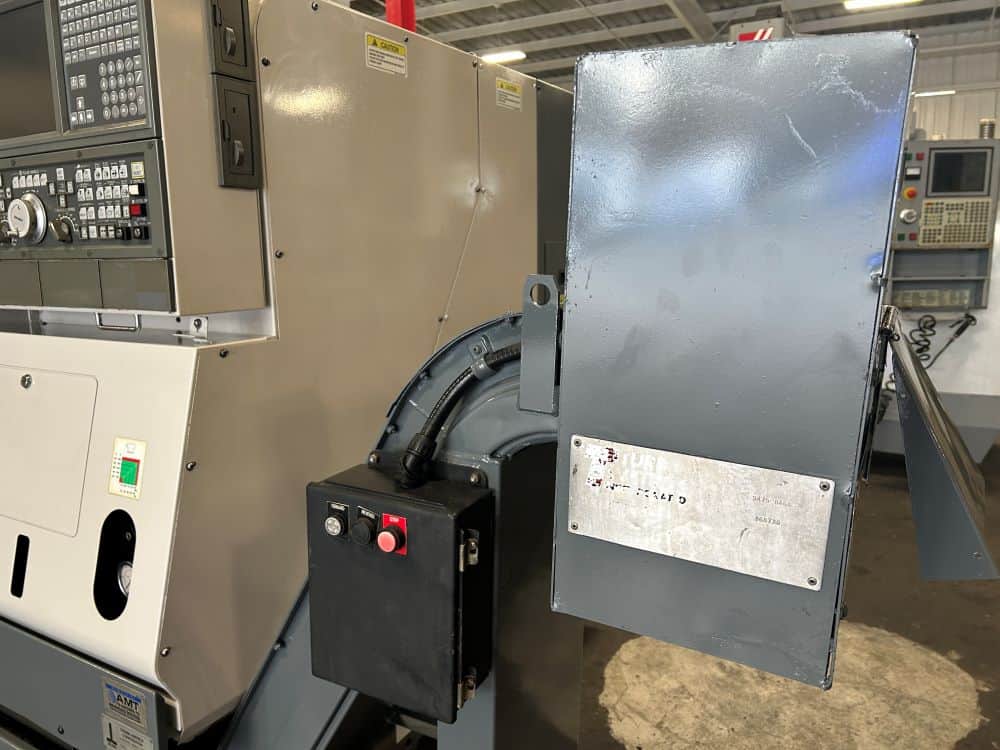

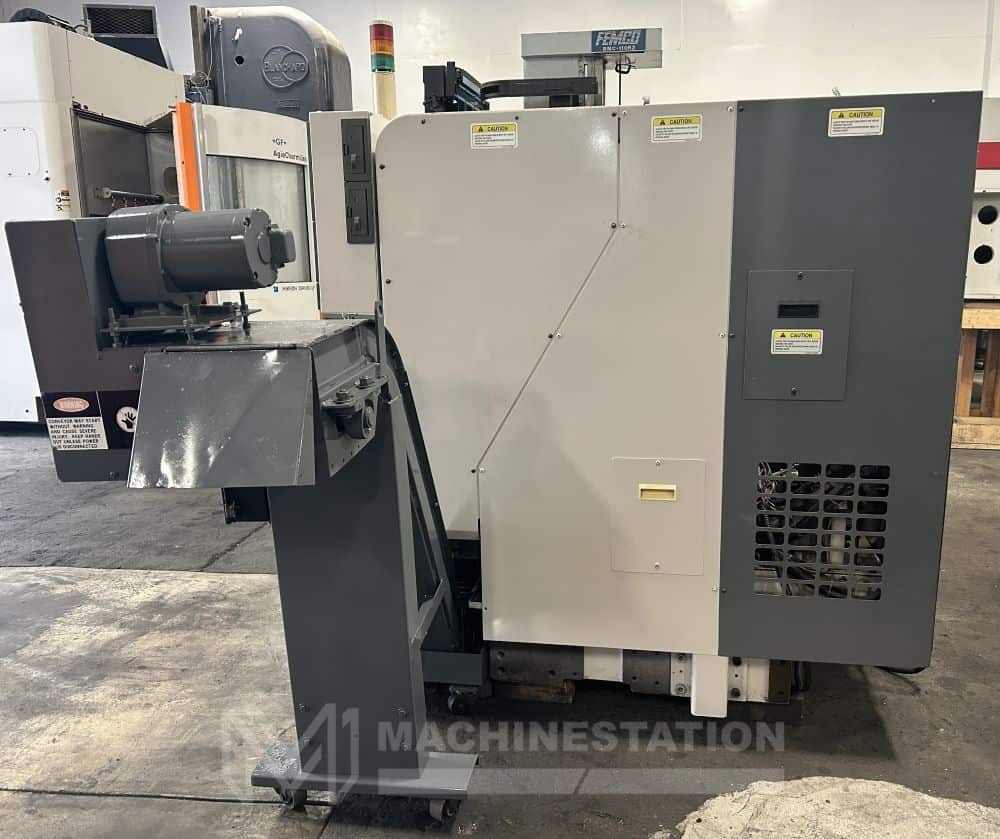

Chip Conveyor
Automatic Lubrication system

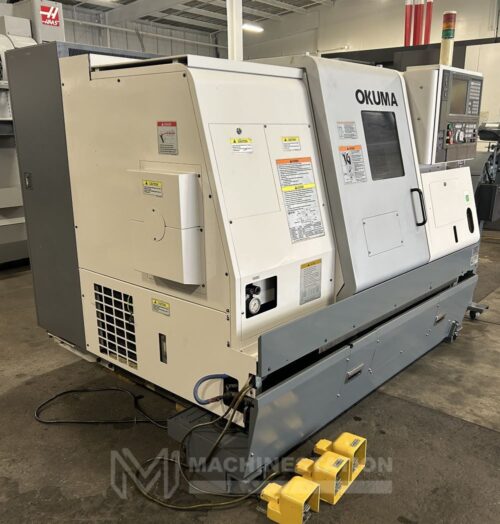

Foot Operated Control for Chuck and Tailstock
(6) Boring Tool Holders Equipped on Turret (As Shown in the Images)

Capacity:
Max Turning Diameter : 14.57″
Max Swing Over Bed : 20.86″
Max Turning Length: 19.68″
Max Bar Capacity : 2.54″
Distance Between Center: 20.0″

Travels:
X Axis Travel : 10.23″
Z1 Axis Travel : 20.47″

Feedrate:
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 984 IPM

Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.15″
Spindle Speed: 4500 RPM
Spindle Motor: 20 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second

Tailstock:
Tailstock Body Travel: 14.3″
Tailstock Taper: MT-5
Tailstock Quill Dia.: 3.54″
Tailstock Quill Travel: 3.93″

General:
Power Source: AC 220v/480v / 3-Phase / 60 Hz
Power Requirement: 28.2 kva
Machine Dimensions: 88″ x 68″ x 70″ High
Machine Weight: 9,500 lbs Approx.
