*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

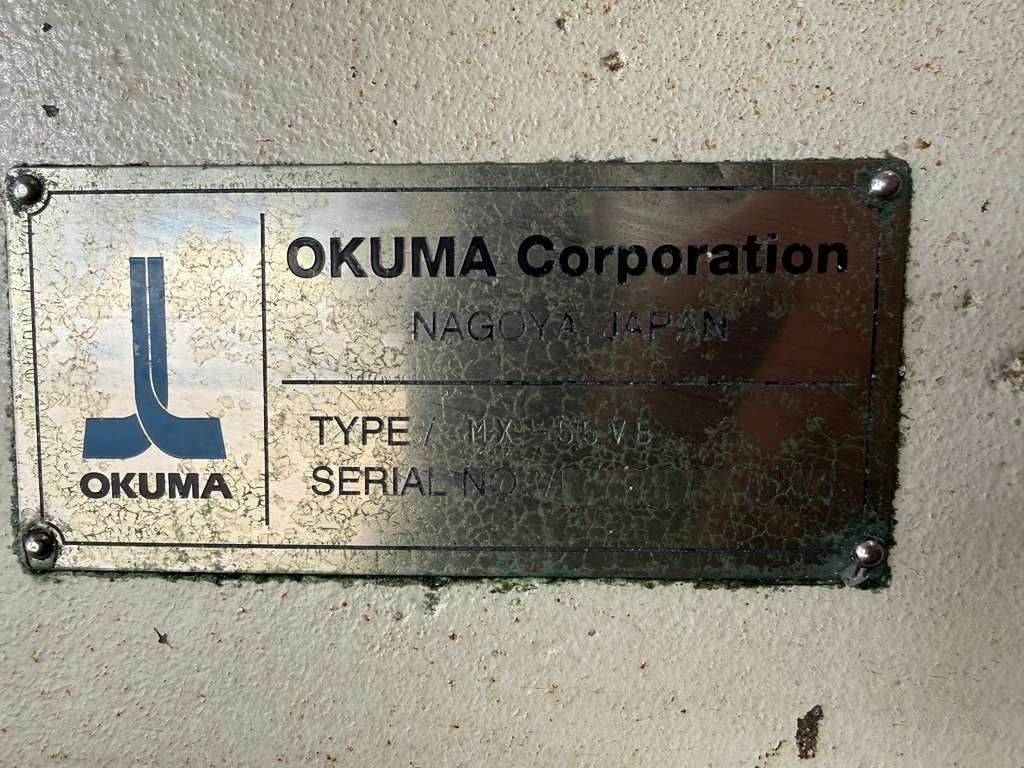

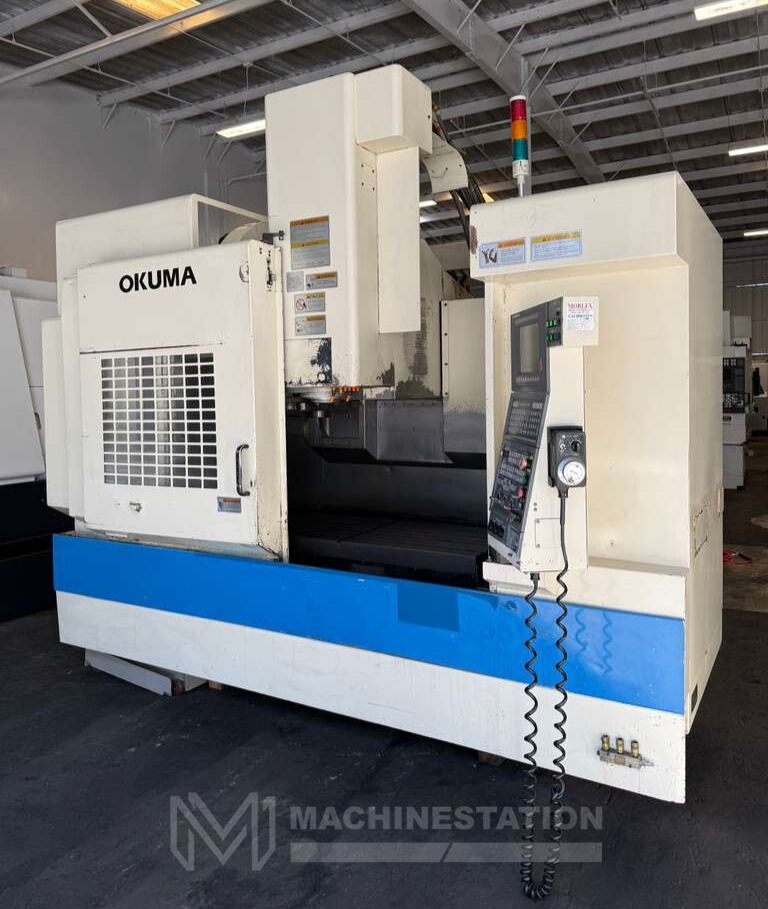

| Make: | Okuma |
| Model: | MX-55VB |
| Year: | 1997 |
| Features: |
|---|

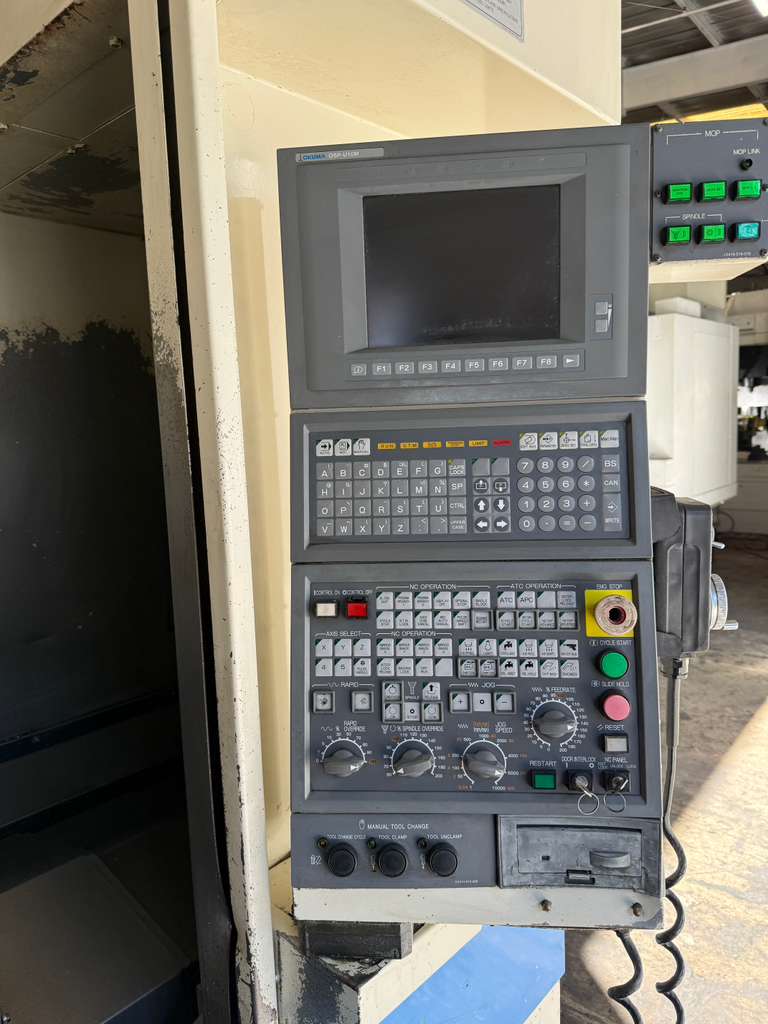

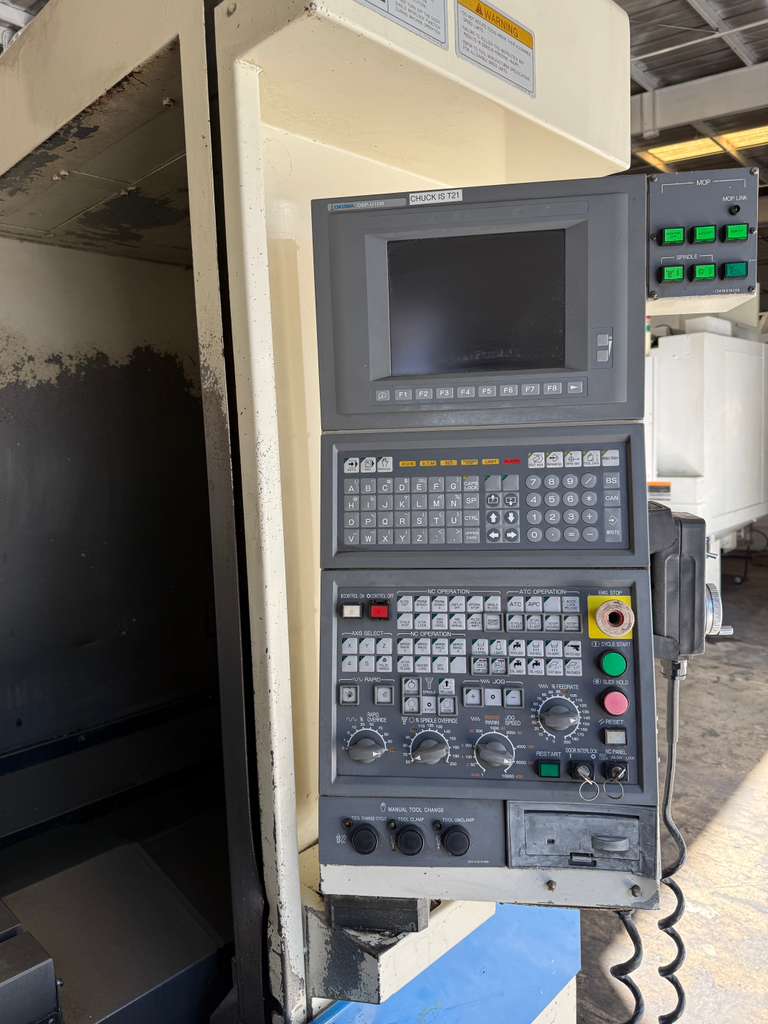

| Okuma OSP-U10M Series CNC Control |
| 20 Station Automatic tool changer |
| 6,000 RPM, CAT-50 Taper Spindle |
| Through Spindle Coolant ? |
| RS-232 Port |

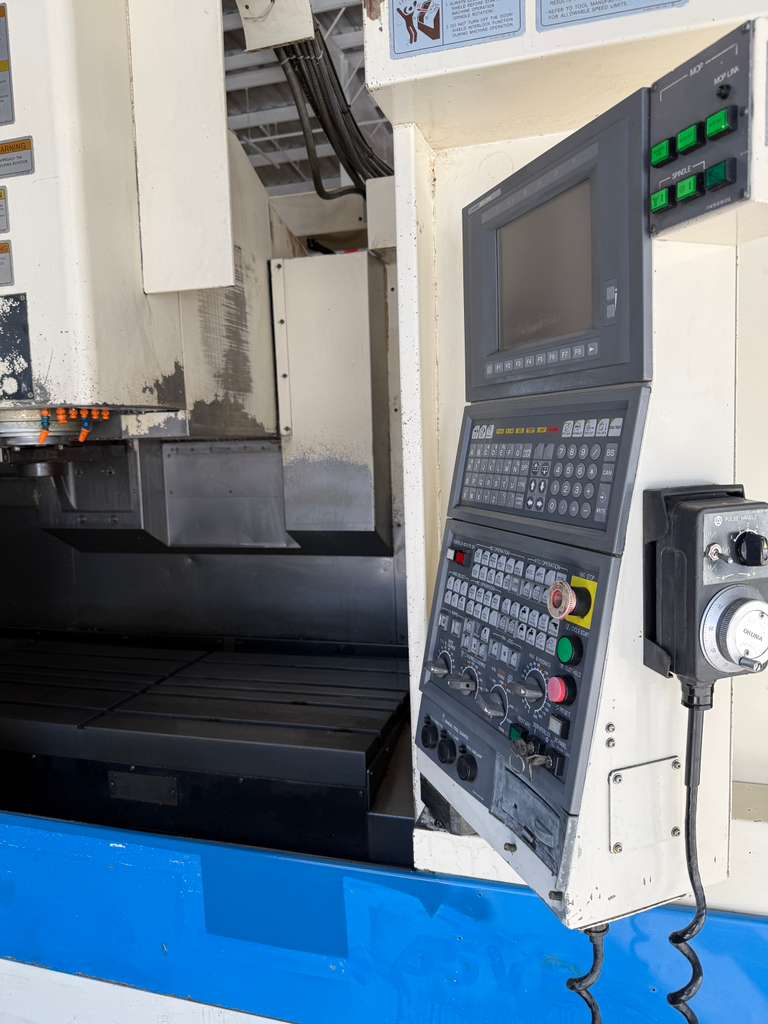

| MPG Handwheel Control |
| Rigid Tapping |

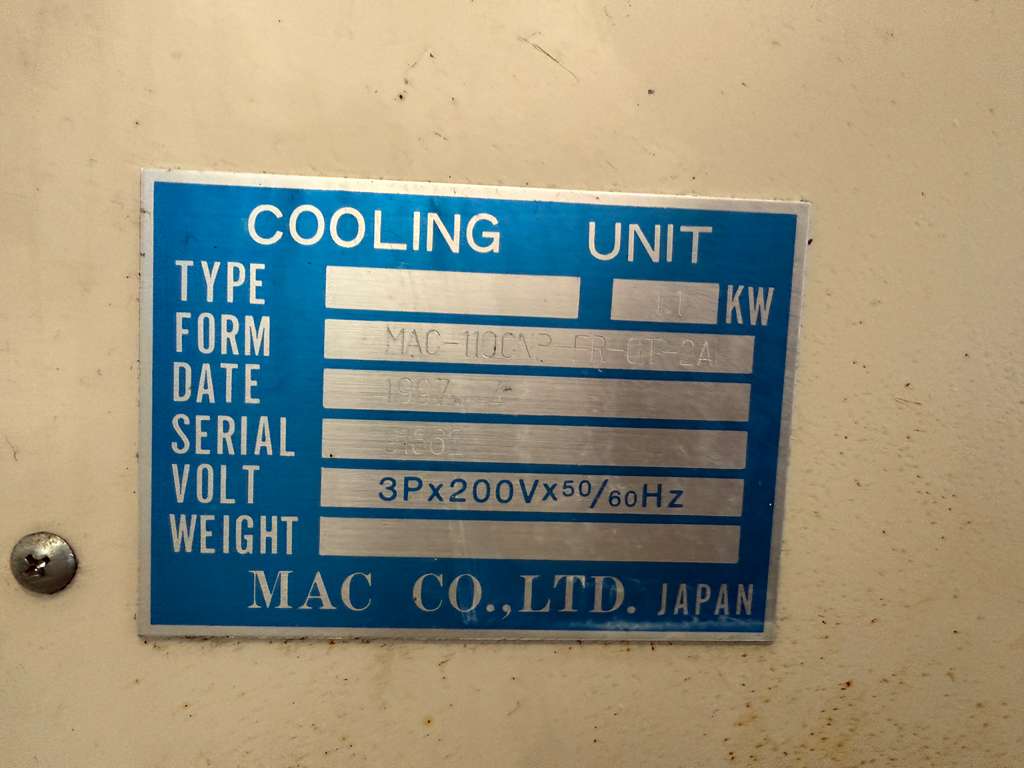

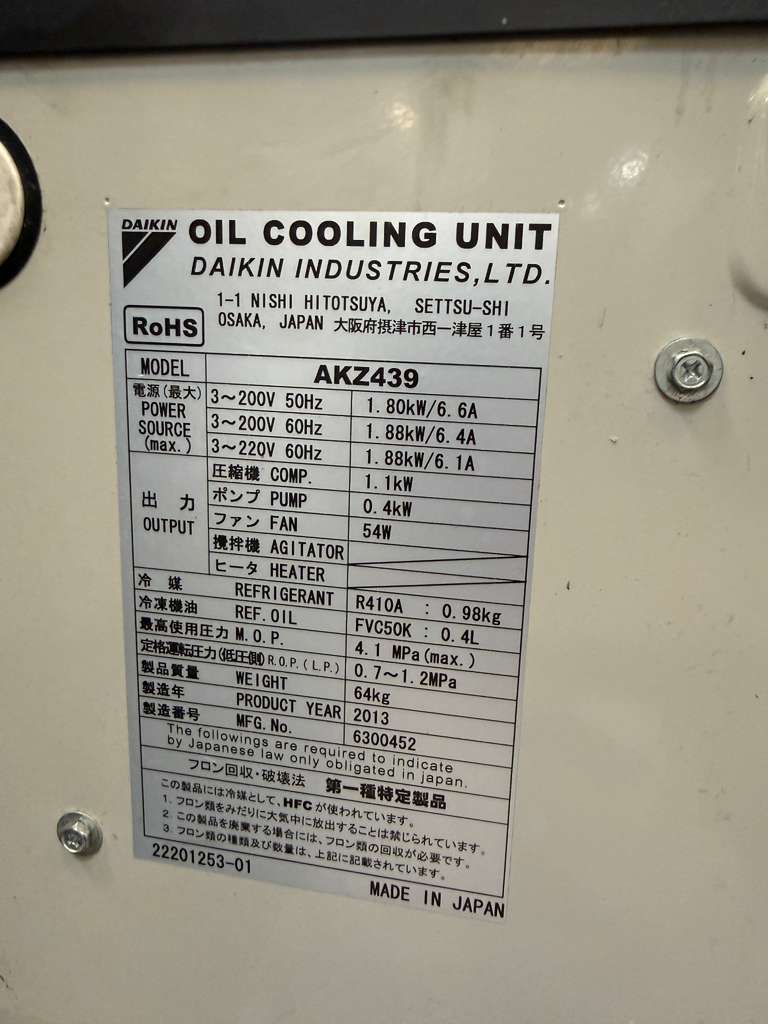

| Spindle Chiller Unit |
| Coolant System |
| Chip Conveyor |

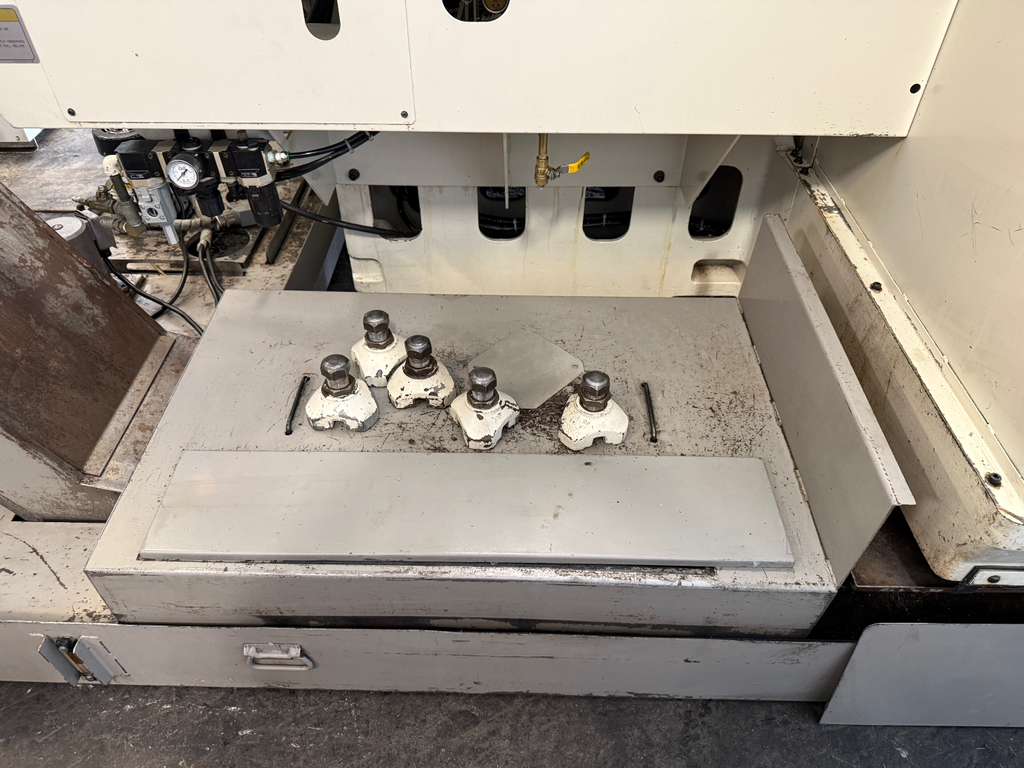

| Levelling Pads |

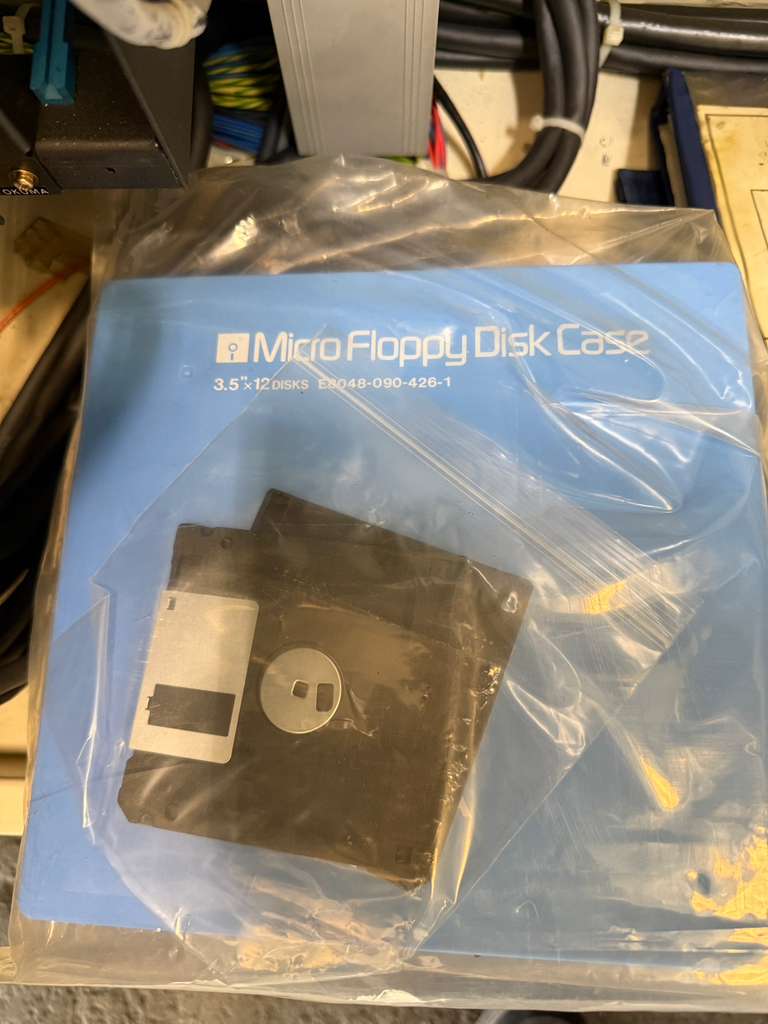

| Floopy Disc |
| Manuals |
| Transformer |
| Travels: |
|---|
| X-Axis: 41.30″ |
| Y-Axis: 22.05″ |
| Z-Axis: 17.72″ |
| Spindle Nose to Table (Min.- Max.): 7.8″ – 28.6″ |
| Rapid Traverse Rates X, Y Axis: 1181″ Per Minute |
| Rapid Traverse Rates Z Axis: 945″ Per Minute |

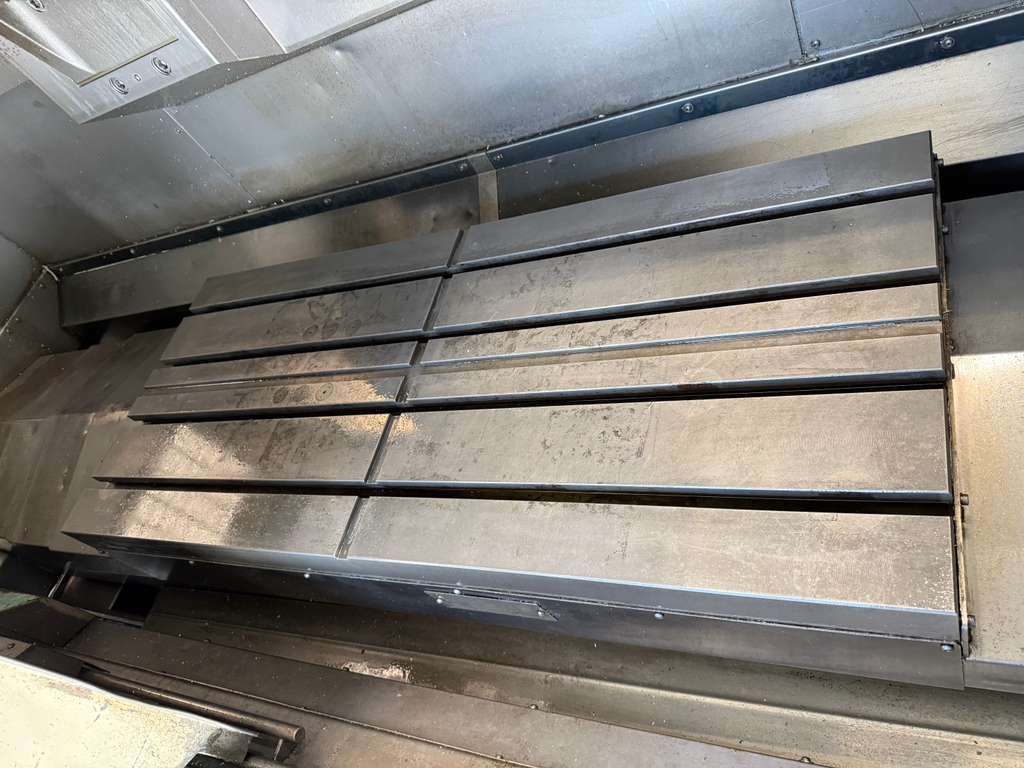

| Table: |
|---|
| Length: 51.18″ |
| Width: 22.05″ |
| Number of Std T-Slots: 4 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1500 lbs |
| Spindle: |
|---|
| Taper Size: CAT-50 |
| Speed Range: 6,000 RPM |
| Spindle Power: 20 HP |

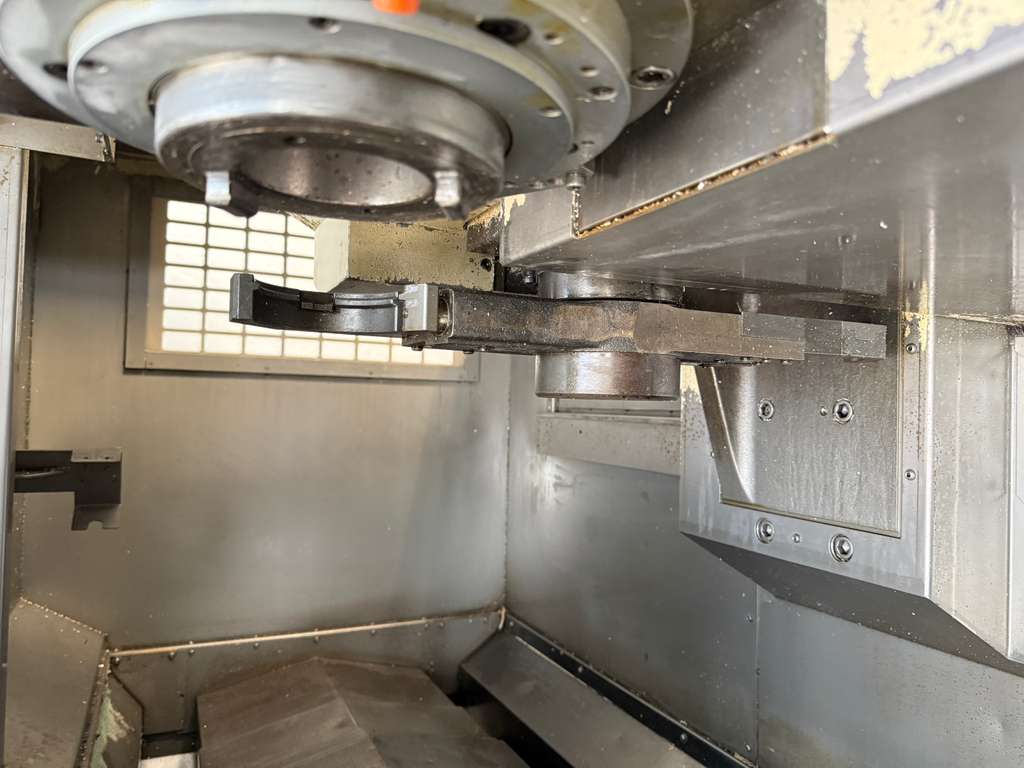

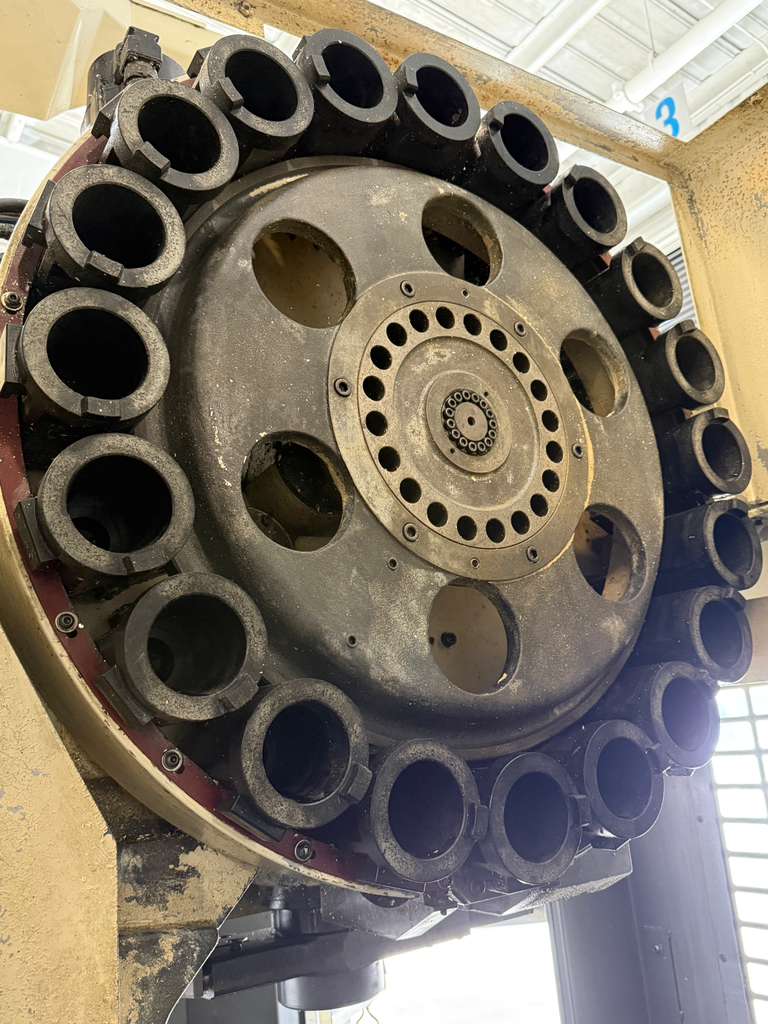

| Automatic Tool Changer: |
|---|
| Capacity: 20 Station Side Mounted |
| Tool Weight: 26 lbs |
| Tool Change Time: 2 Sec. |
| Max Tool Length: 11.81″ |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

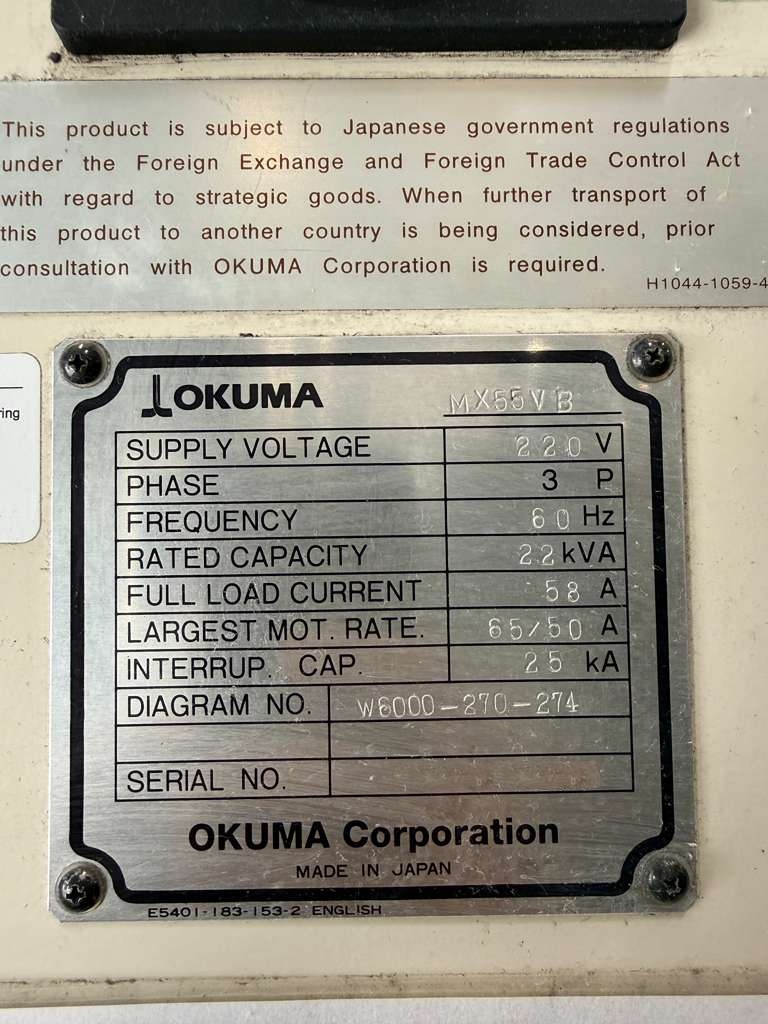

| Power: 220v / 3-Phase / 22 kva |
| Overall Dimensions: 90″ x 104″ x 105″ High Approx. |
| Weight: 14,500 lbs Approx. |
