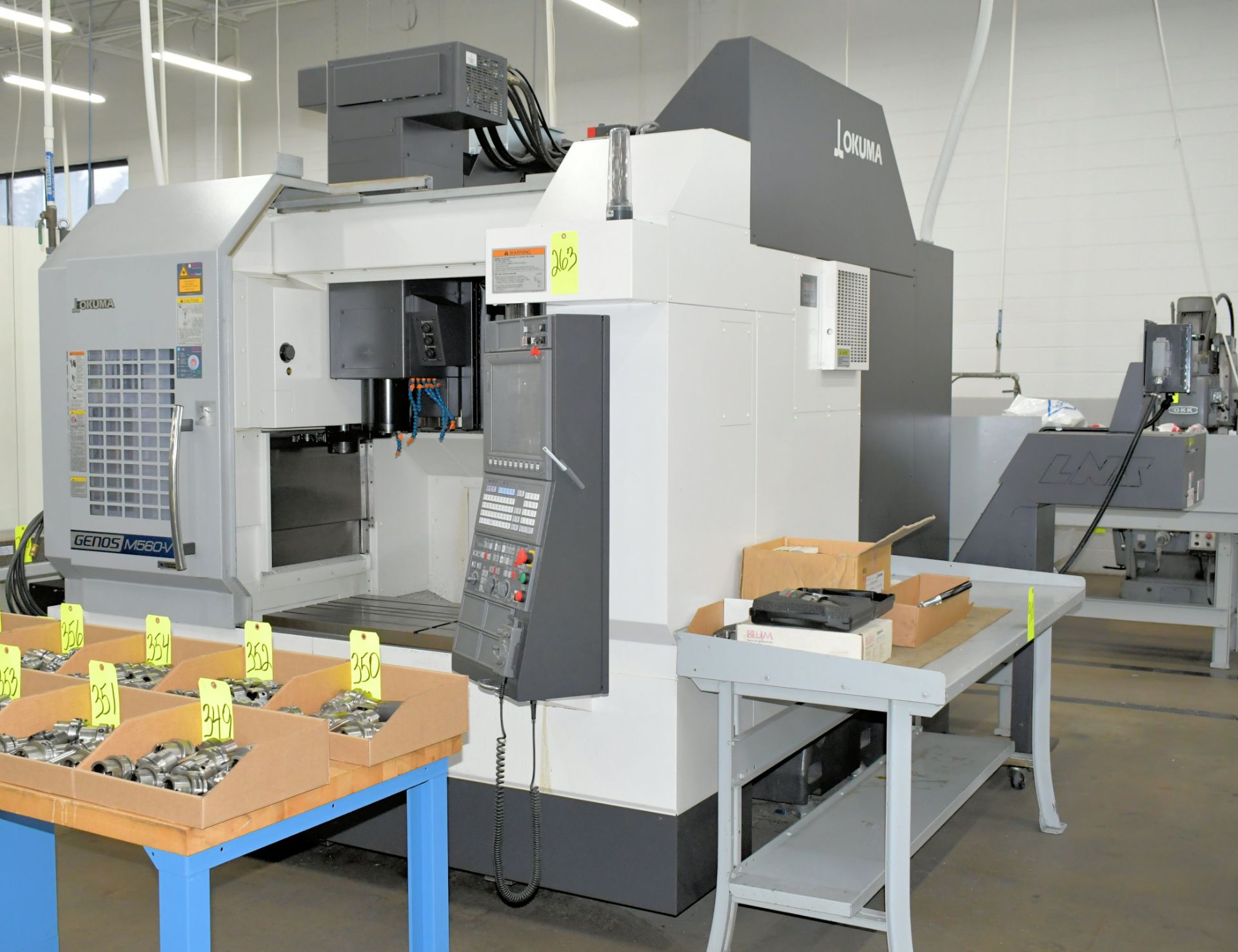

Okuma Genos M560V CNC Vertical Machining Center-2017
Out of stock
| SKU: | 11009 |
| Make/Model: | Okuman GENOS M560-V |
| Year: | 2017 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Okuma |
| Model: | GENOS M560-V |
| Year: | 2017 |
| Condition: | Used – Good |
| Equipped With: |
|---|

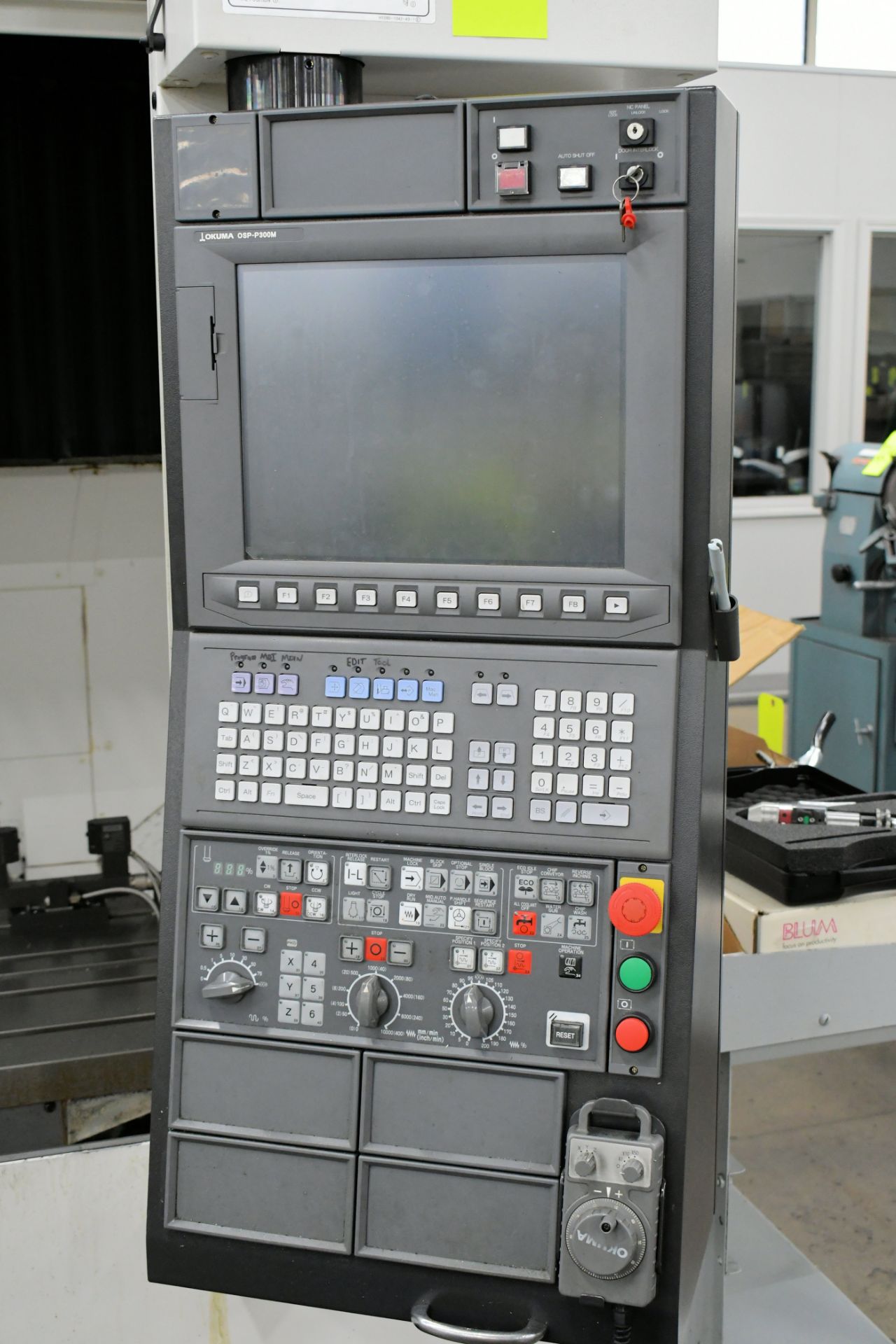

| OSP-P300MA CNC Control |
| Thermo-Friendly Concept (TAS-S + TAS-C) |
| High-Speed 15,000 RPM Spindle (CAT40 BIG-PLUS) |
| Hi-G Control |
| Hi-Cut Pro High Accuracy Control |
| 32-Tool ATC (Standard) |
| Oil-Air Spindle Lubrication |
| Full Enclosure |
| Work Lamp & Status Light Tower |
| Coolant System with 230L Tank |
| Chip Pan (69L Effective) |
| Capacity: |
|---|
| Table Size: 51.18″ × 22.05″ |
| Maximum Table Load: 3,300 lbs |
| Table Top to Spindle Nose: 5.91″ – 24.02″ |
| Max Workpiece Size: 51.18″ × 25.98″ |
| Floor to Table Height: 31.50″ |
| Travels: |
|---|
| X-Axis Travel: 41.34″ |
| Y-Axis Travel: 22.05″ |
| Z-Axis Travel: 18.11″ |
| Rapid Traverse (X/Y): 1,575 IPM |
| Rapid Traverse (Z): 1,260 IPM |
| Cutting Feedrate: 1,260 IPM |
| Spindle: |
|---|
| Spindle Speed: 15,000 RPM |
| Spindle Motor Power: 30 HP / 25 HP (10 min/cont) |
| Spindle Torque: 146 ft-lbs (Continuous) |
| Spindle Taper: CAT40 BIG-PLUS |
| Bearing Diameter: 2.76″ |
| ATC: |
|---|
| Tool Capacity: 32 Tools |
| Max Tool Diameter (w/adjacent tool): 3.54″ |
| Max Tool Diameter (w/o adjacent): 4.92″ |
| Max Tool Length: 18″ |
| Max Tool Weight: 18 lbs |
| Tool Selection: Random Memory |
| General: |
|---|

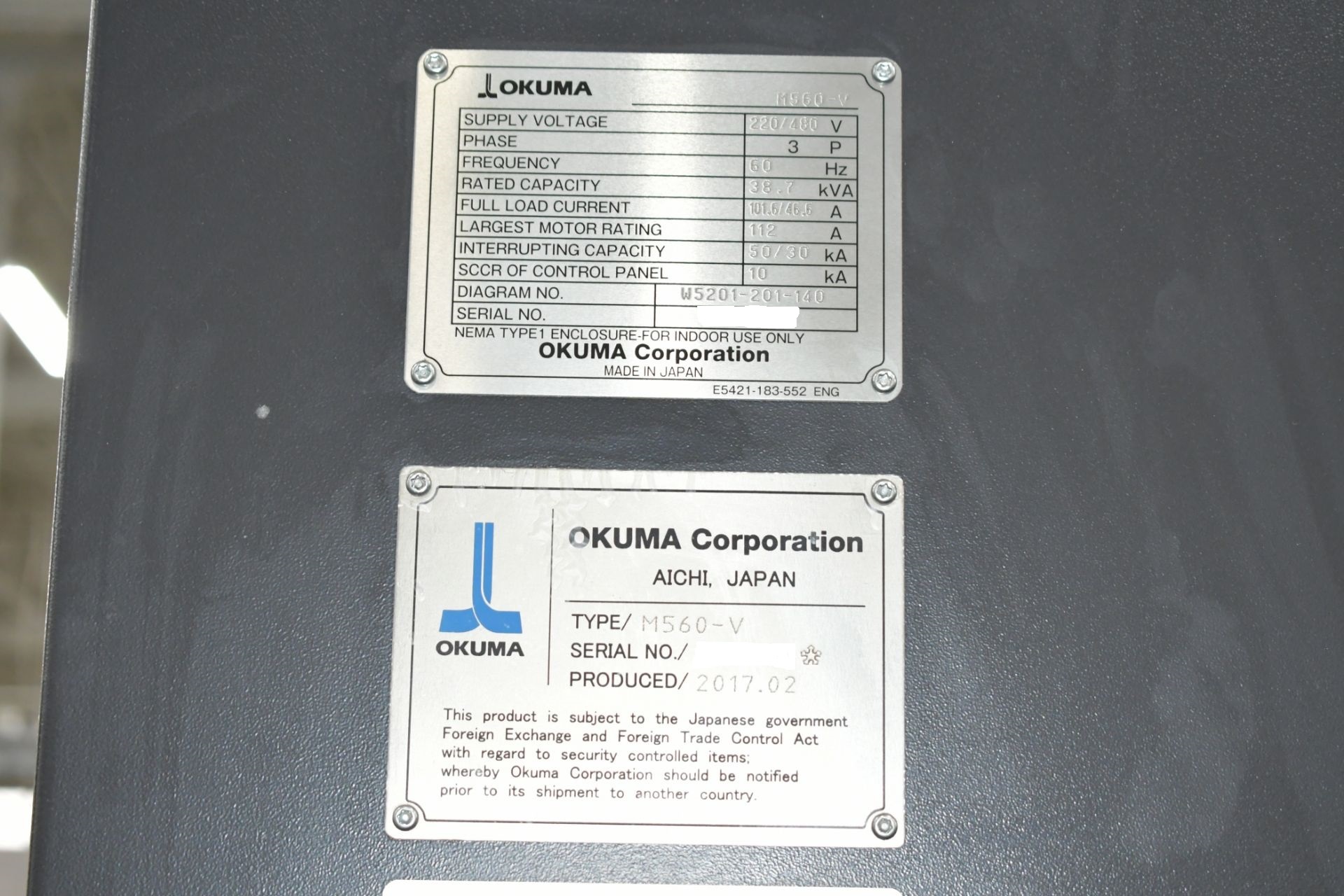

| Power Requirement: 37 kVA, 220V / 3-Phase |
| Coolant Tank Capacity: 61 gal (230 L) |
| Chip Pan Capacity: 18 gal (69 L Effective) |
| Machine Dimensions: 139″ × 152″ Approx. |
| Machine Weight: 18,260 lbs |
| Categories | CNC Vertical Machining Center |
|---|---|
| Make | |
| Model | GENOS M560-V |
