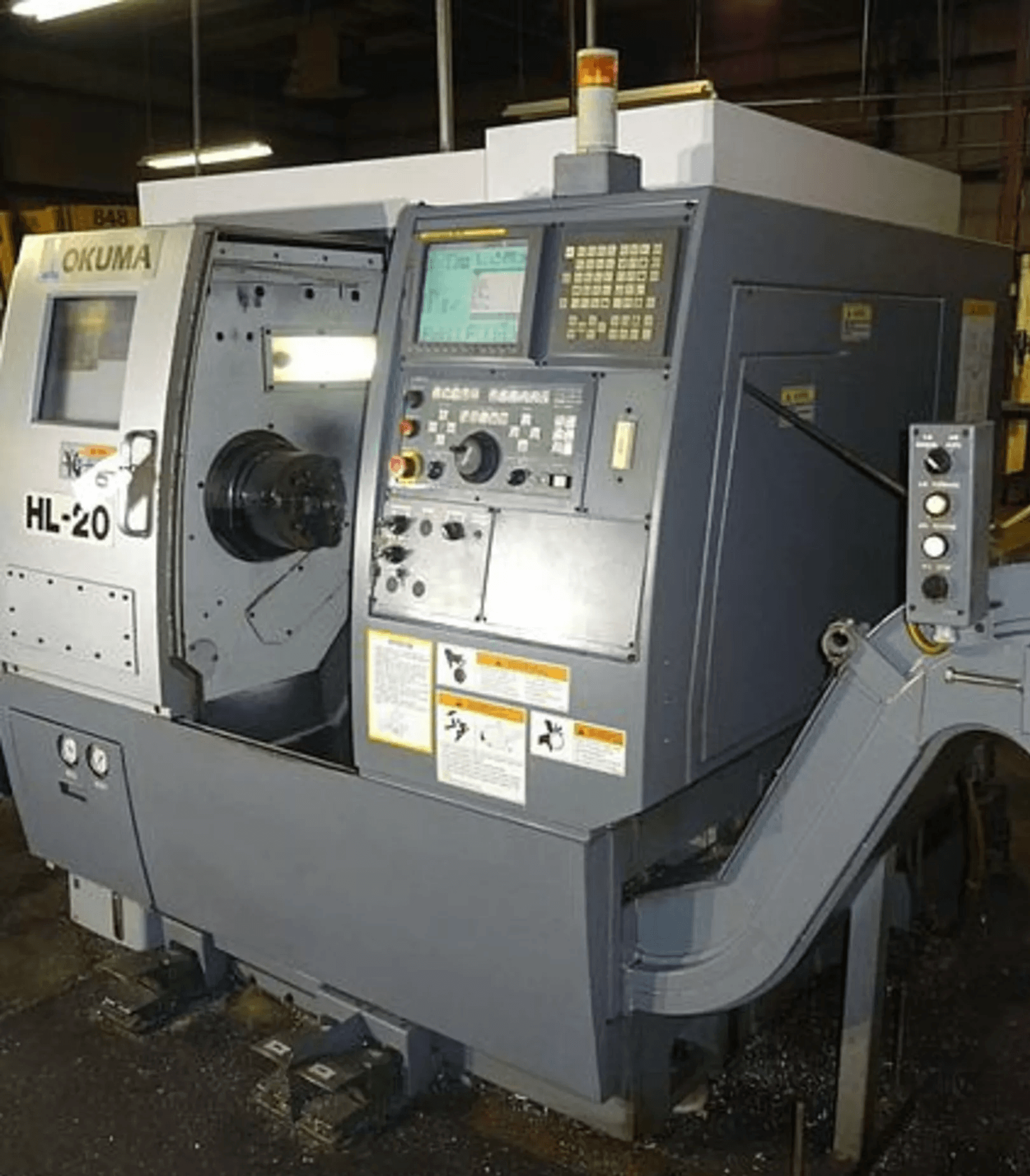

OKUMA HL-20 CNC Turning Center (2007) - Fanuc 18i-TB, 12 Station Turret

OKUMA HL-20 CNC Turning Center (2007) – Fanuc 18i-TB, 12 Station Turret

SKU 11332

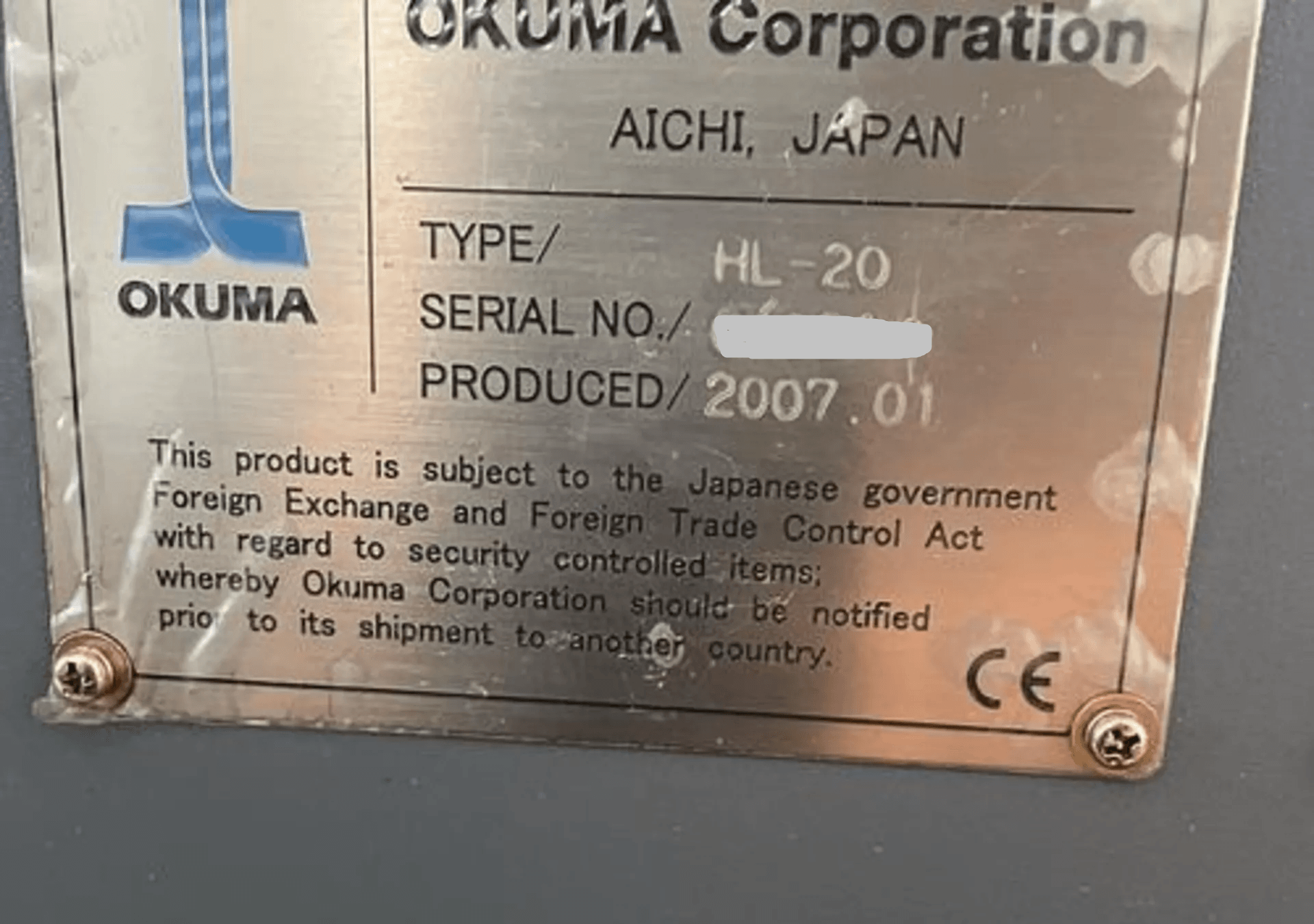

Make/Model Okuma HL-20

Year 2007

Video On Request

Out of stock

SKU:	11332
Make/Model:	Okuma HL-20
Year:	2007
Video:	On Request

SKU: 11332

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Okuma
Model:	HL-20
Year:	2007
Machine Type:	CNC Turning Center (Lathe)

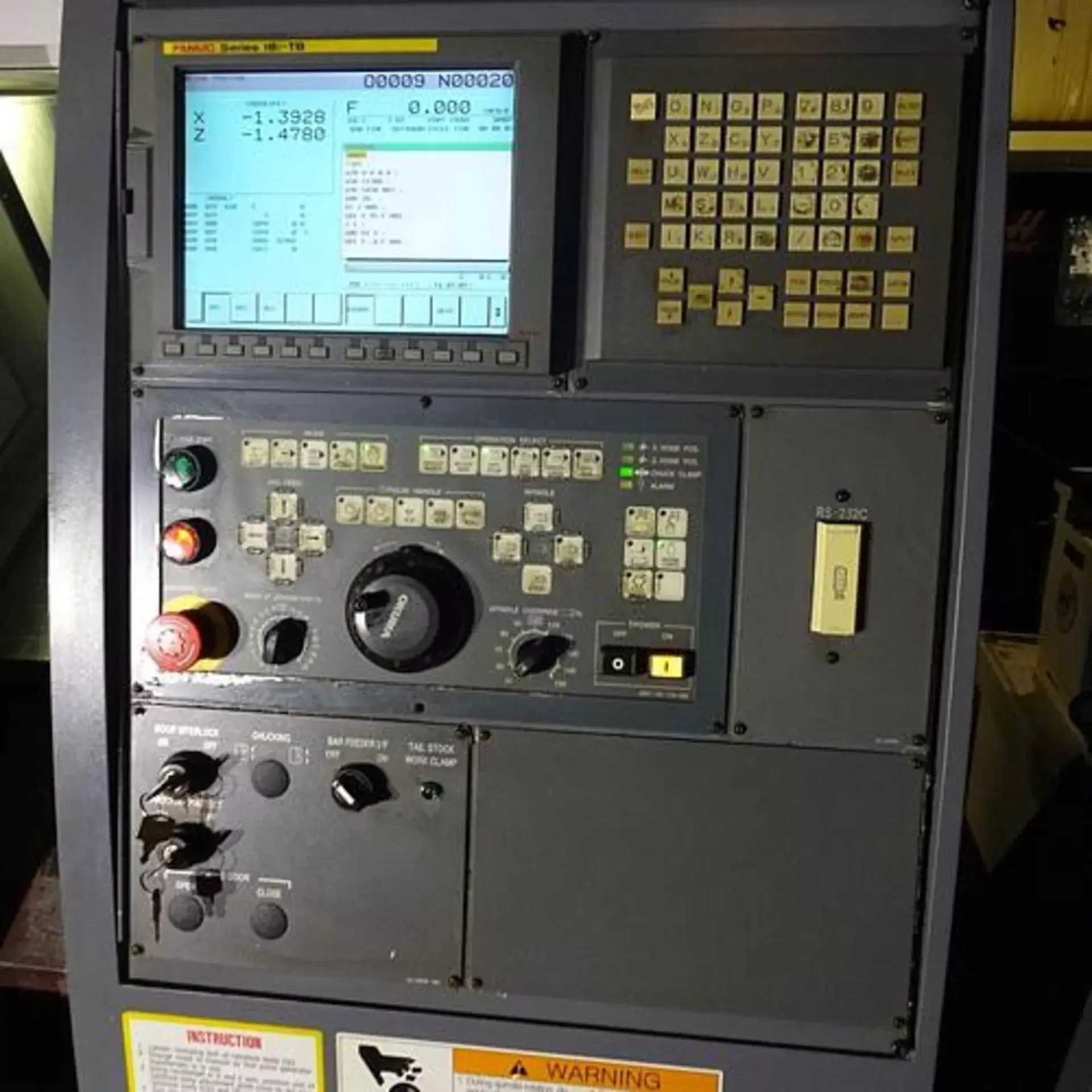

CNC Control:	Fanuc 18i-TB CNC Control
Country of Origin:	Japan

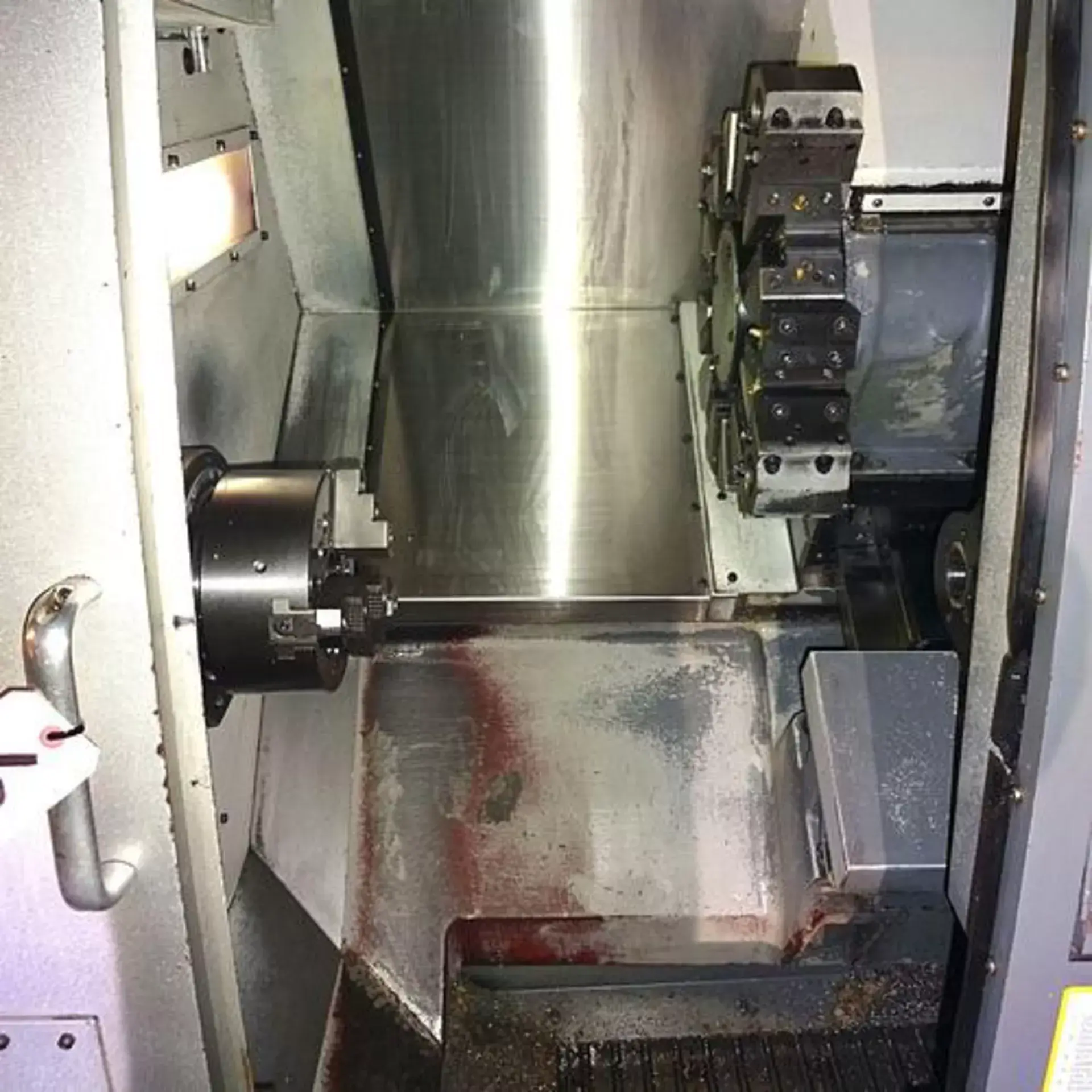

Equipped With:
8″ 3-Jaw Chuck
12-Station Turret
Programmable Tailstock
Chip Conveyor
Coolant Tank and Pump

Capacity:
Max Turning Diameter: 13.78″
Max Work Length: 18.11″
Swing Over Bed: 19.6″
Swing Over Cross Slide: 11.8″

Travel:
X Axis Travel: 7.1″
Z Axis Travel: 18.1″

Spindle:
Spindle Speed: 3,200 RPM
Spindle Bore: 2.37″
Bar Capacity: 2″

Turret:
Stations: 12

General:
Air Required: 90 PSI Approx.
Power: 220V / 3-Phase
Overall Dimensions: ~98″ x 65″ x 70″ High
Weight: ~9,000 lbs

Equipped With:
203 mm 3-Jaw Chuck
12-Station Turret
Programmable Tailstock
Chip Conveyor
Coolant Tank and Pump

Capacity:
Max Turning Diameter: 350 mm
Max Work Length: 460 mm
Swing Over Bed: 498 mm
Swing Over Cross Slide: 300 mm

Travel:
X Axis Travel: 180 mm
Z Axis Travel: 460 mm

Spindle:
Spindle Speed: 3,200 RPM
Spindle Bore: 60 mm
Bar Capacity: 51 mm

Turret:
Stations: 12

General:
Air Required: 90 PSI Approx.
Power: 220V / 3-Phase
Overall Dimensions: ~2,489 mm x 1,651 mm x 1,778 mm High
Weight: ~9,000 lbs
