Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
| SKU: | 113633 |
| Make: | Okuma |

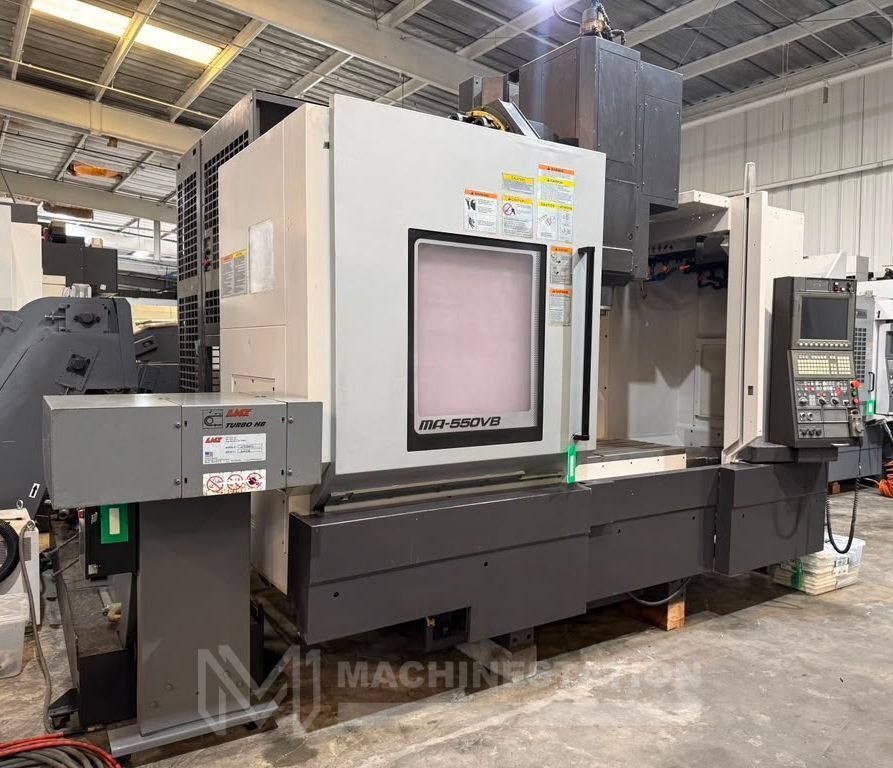

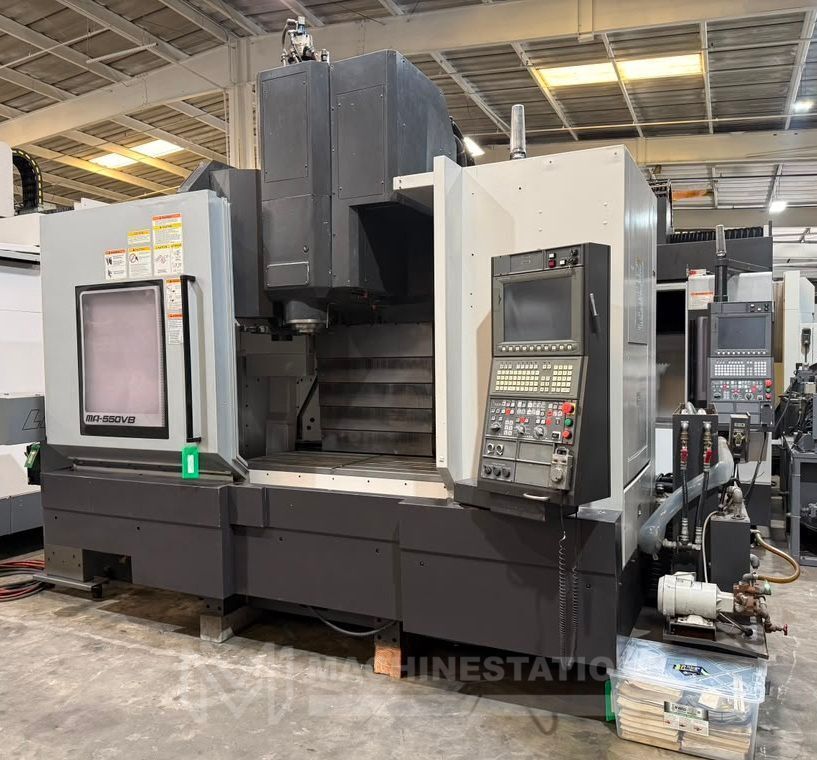

| Model: | MA-550VB |
| Year: | 2014 |
| Equipped With: |
|---|

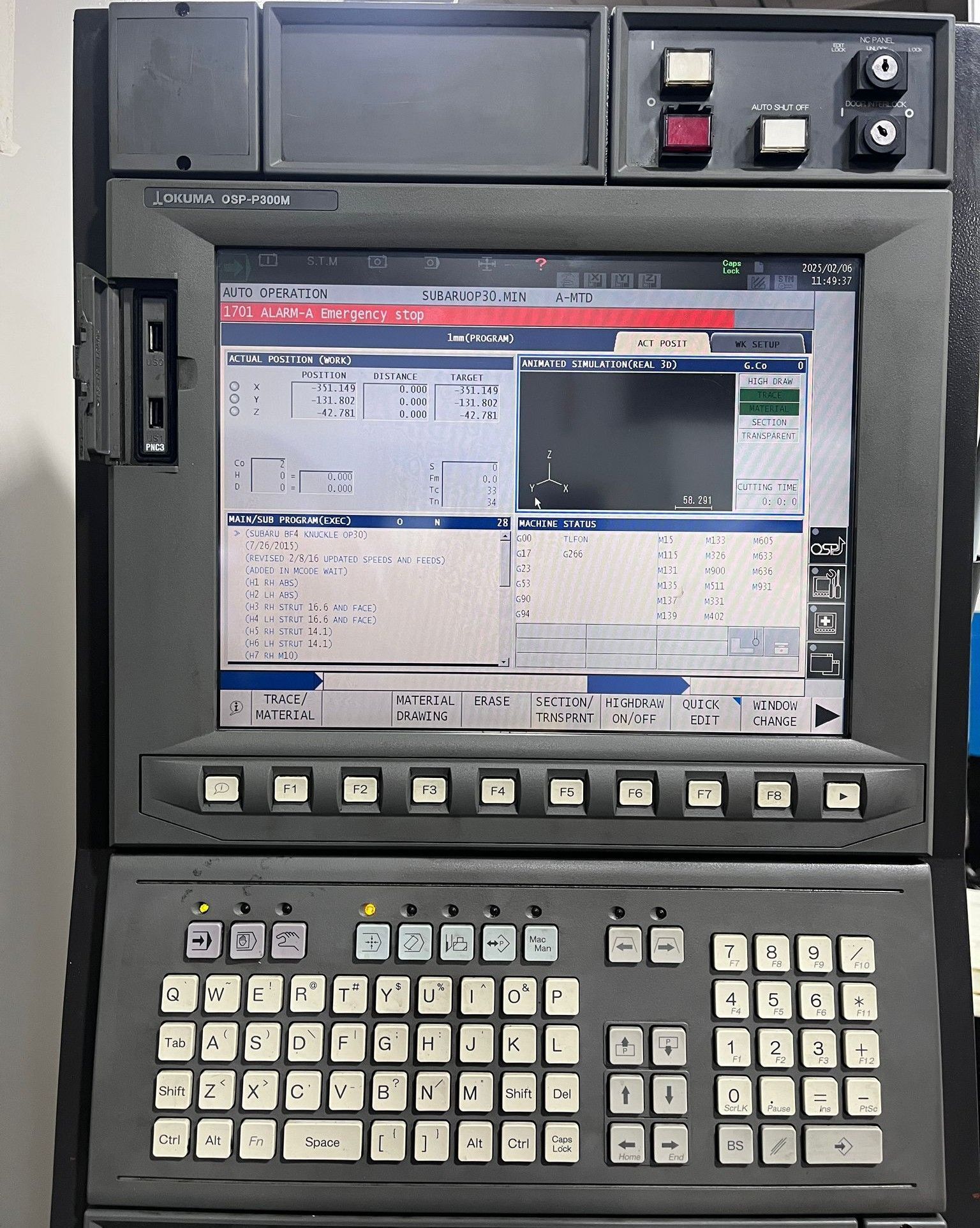

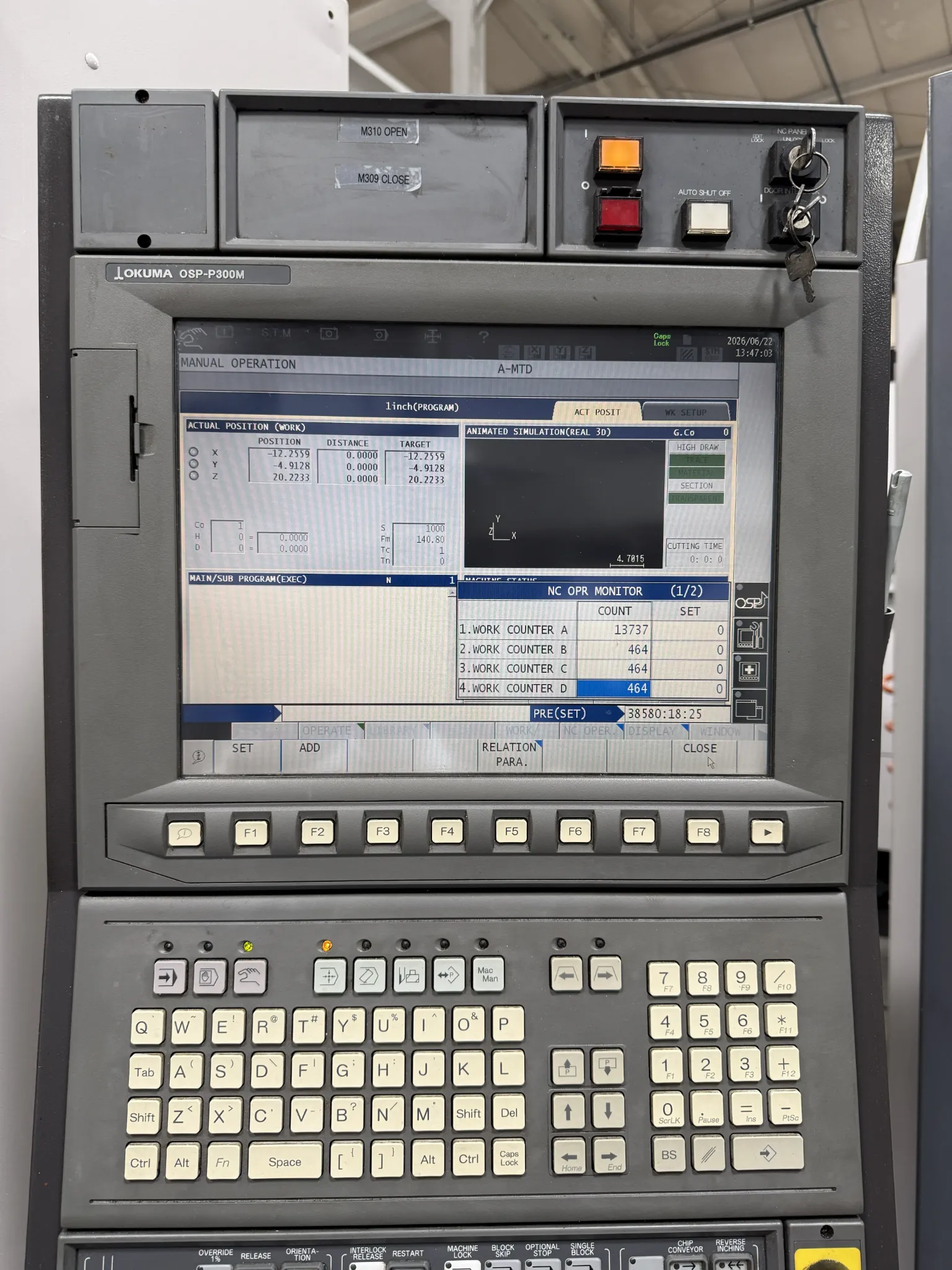

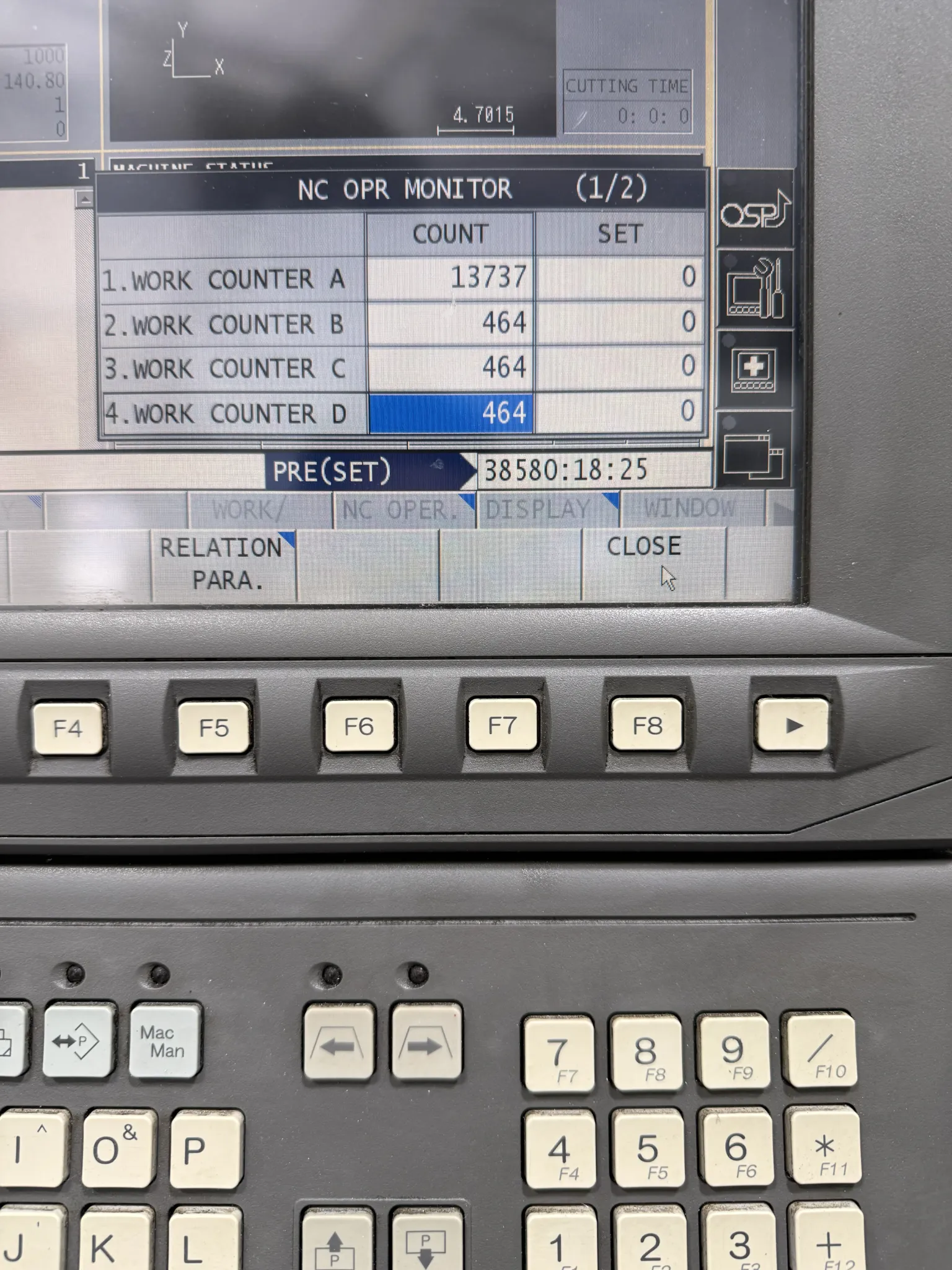

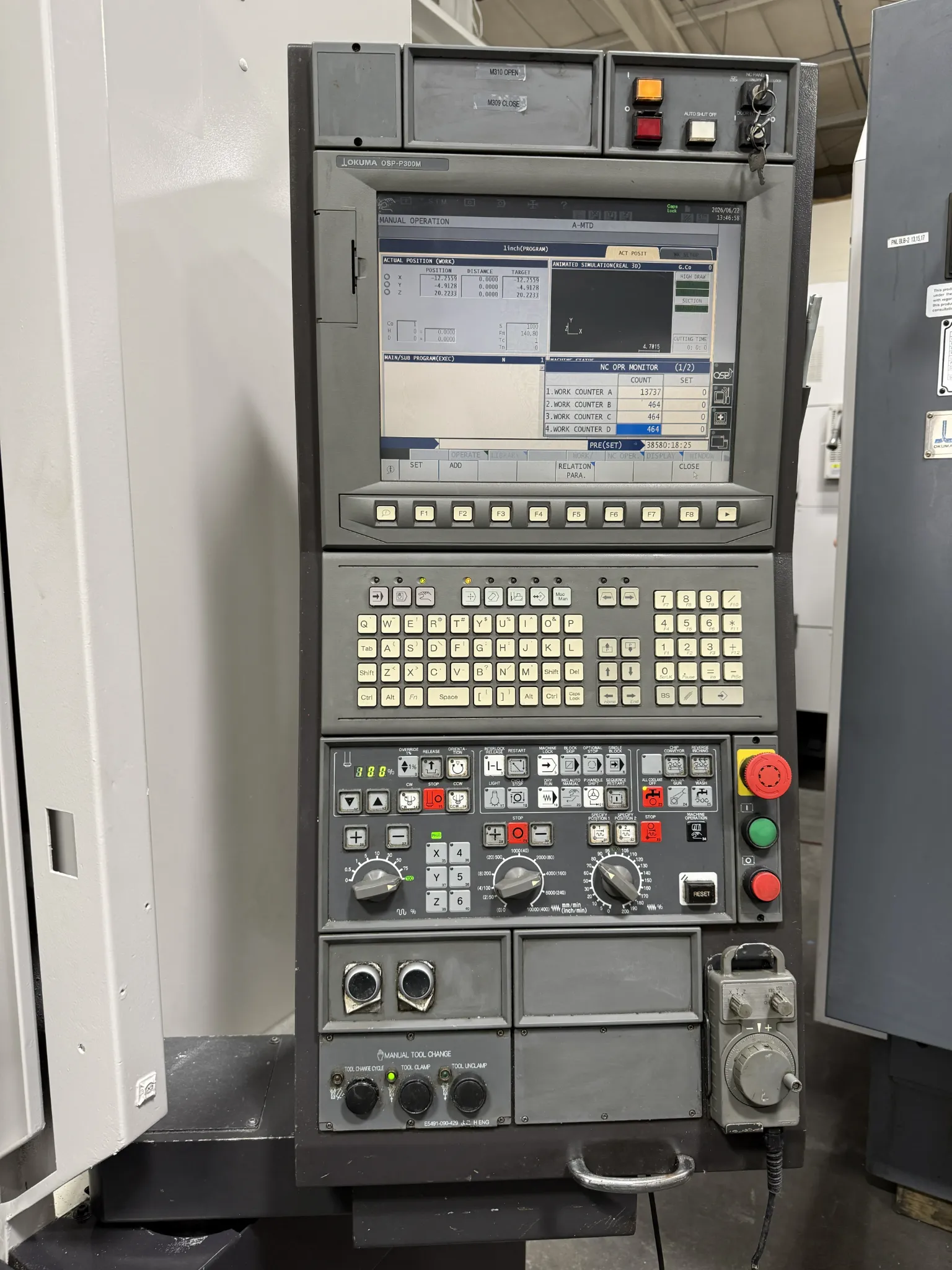

| Okuma OSP-P300M CNC Control |
| 6,000 RPM Gear Head Spindle |
| 32-Station Automatic Tool Changer |
| Through-Spindle Coolant |
| CAT-50 Big Plus Taper Spindle |
| Spindle Chiller Unit |
| MPG Handwheel Control |
| USB Ports |
| Rigid Tapping |
| Coolant Tank |
| Chip Conveyor |

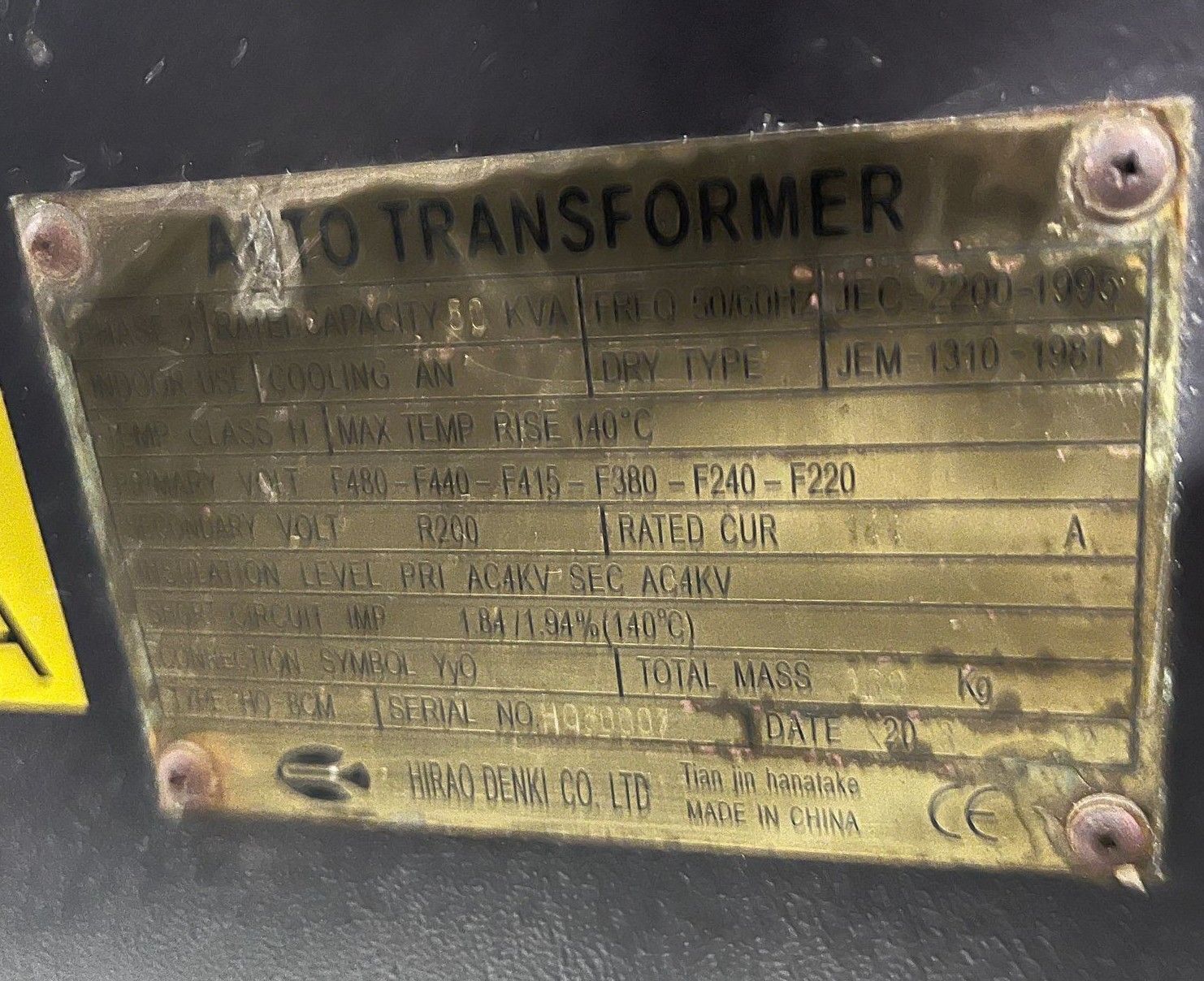

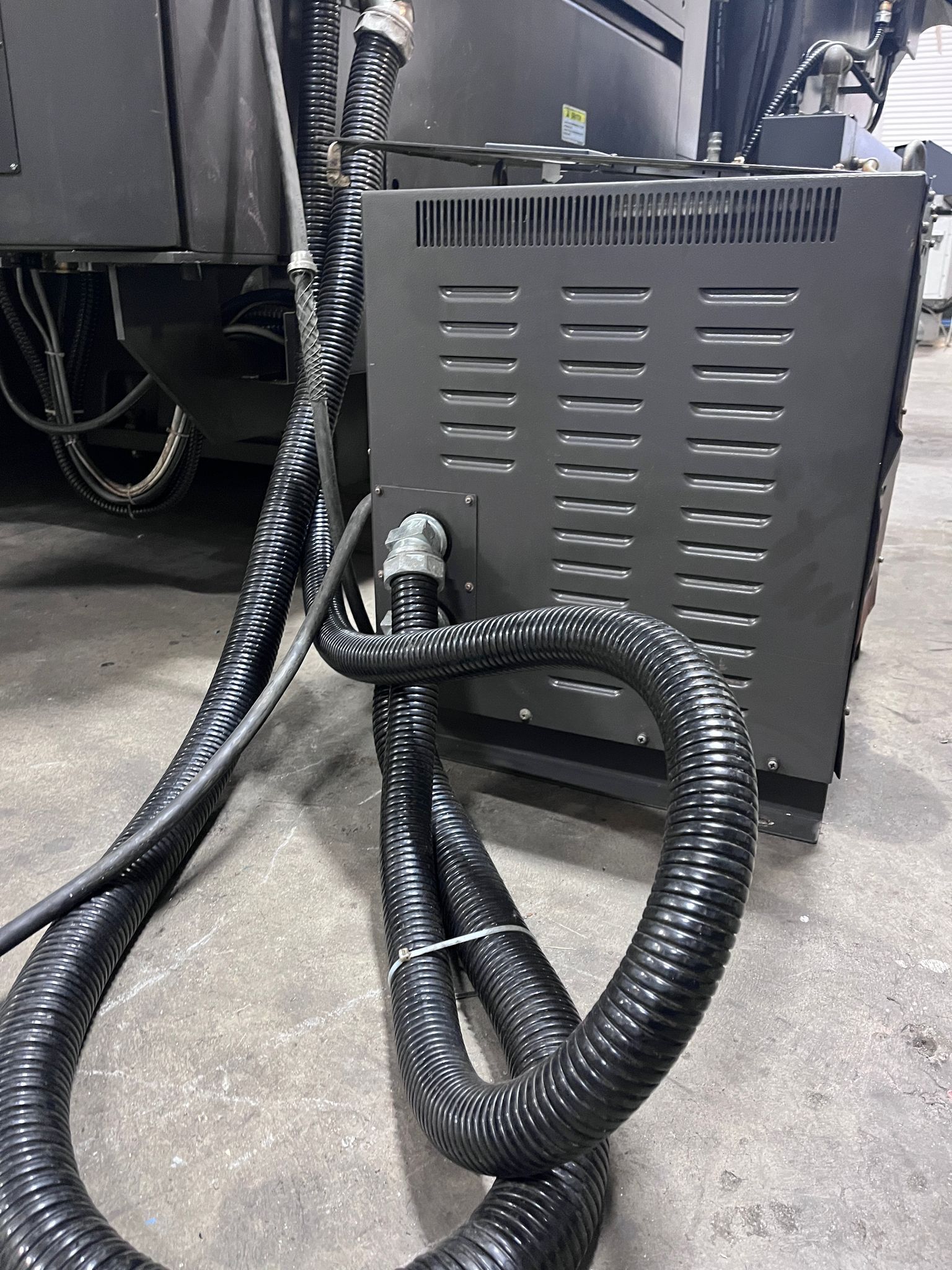

| Transformer |
| Books & Manuals |
| Travels: |
|---|
| X-Axis Travel: 51.18″ |
| Y-Axis Travel: 22.04″ |
| Z-Axis Travel: 22.04″ |
| X & Y Axis Rapid Traverse Rates: 1,575 IPM |
| Z-Axis Rapid Traverse Rate: 1,181 IPM |
| Cutting Feed Rate: 1,181 IPM |
| Spindle Nose to Table (Min.-Max.): 7.87″ – 29.92″ |
| Table: |
|---|
| Length: 51.18″ |
| Width: 22.04″ |
| Number of T-Slots: 5 |
| T-Slot Width: 0.7″ |
| Maximum Weight on Table: 2,204 lbs |

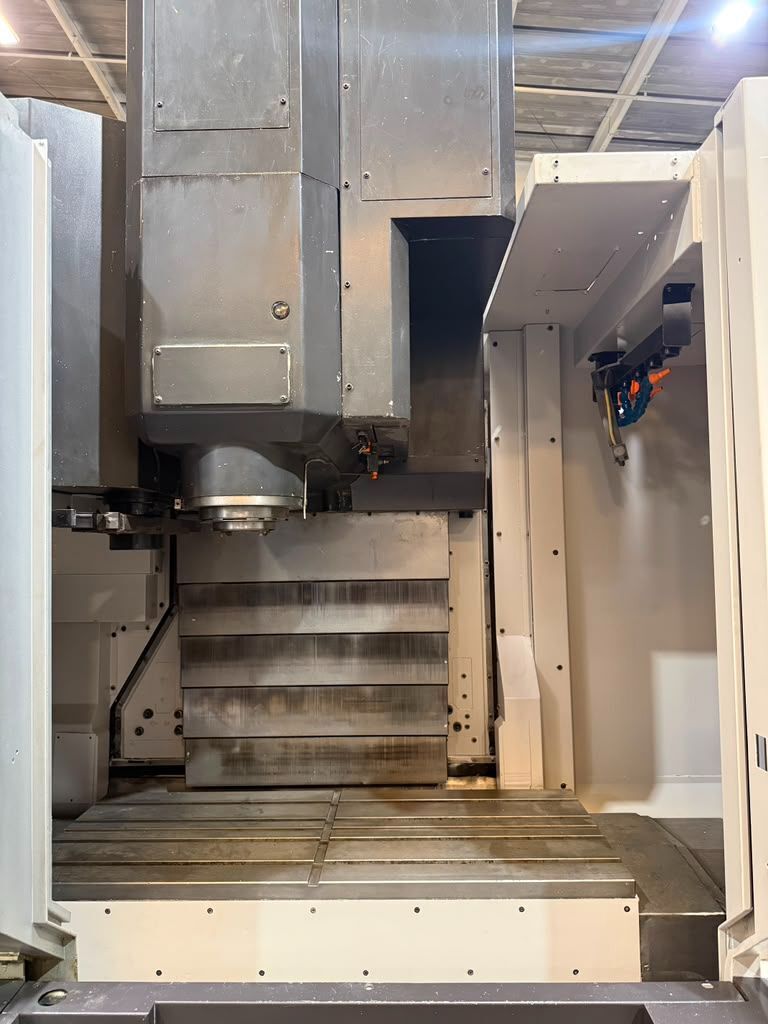

| Spindle: |
|---|
| Spindle Type: Gear Head |
| Taper Size: CAT-50 Big Plus |
| Speed Range: 6,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 32-Station Side Mounted |
| Maximum Tool Weight: 44 lbs |
| Maximum Tool Length: 15.74″ |
| Maximum Tool Diameter: 5.31″ |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |

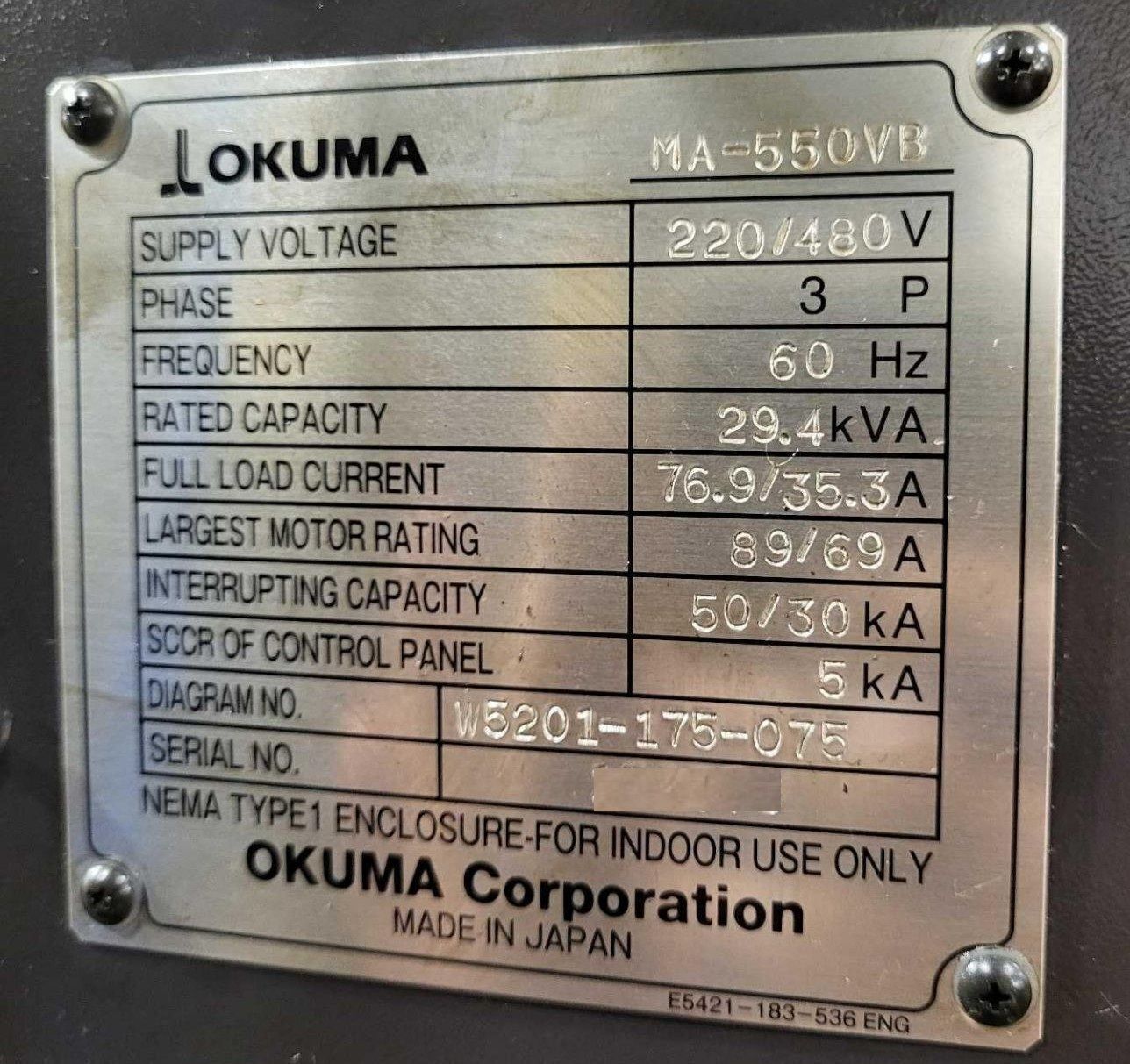

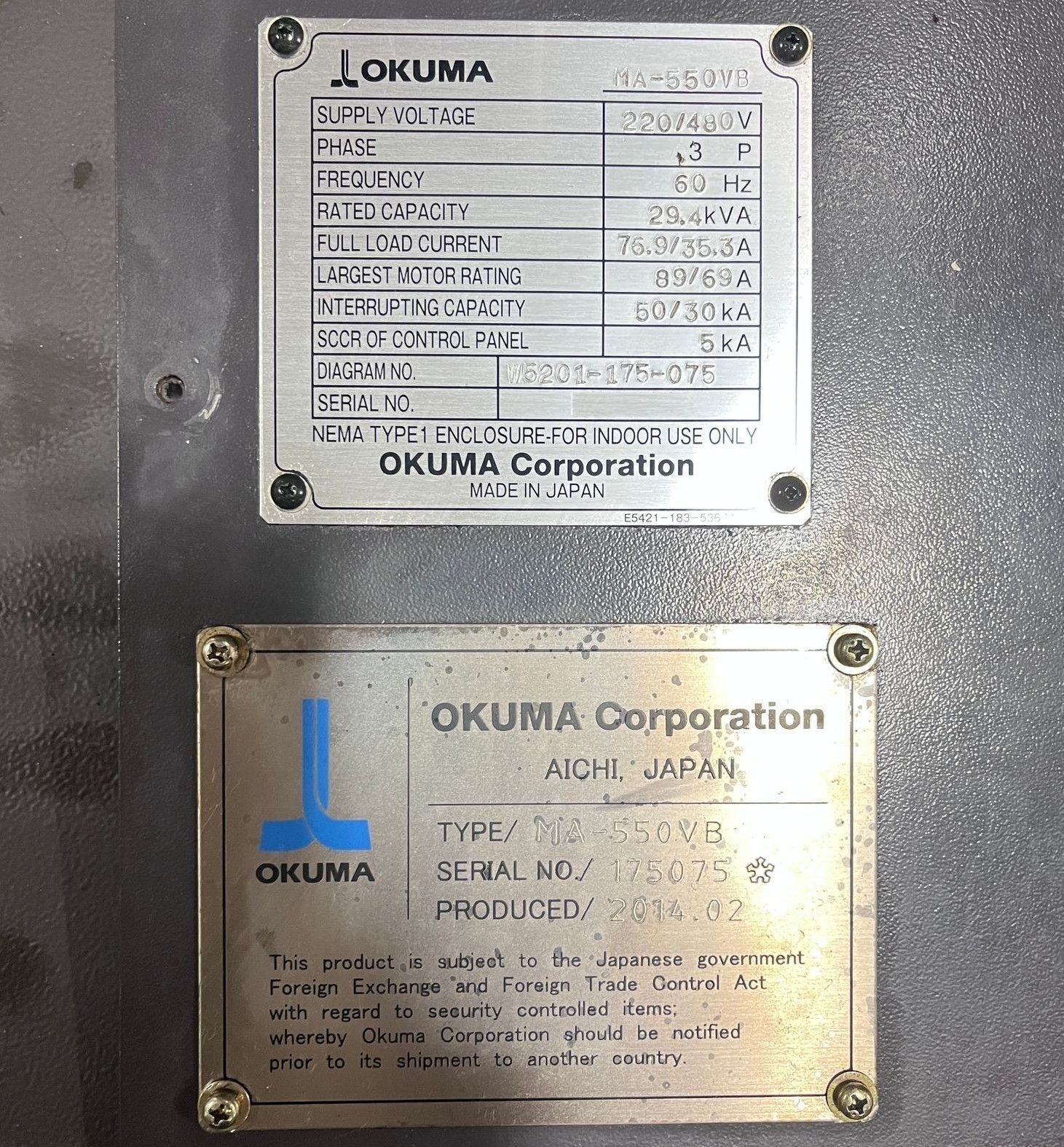

| Power: 440V / 220V / 29.4 kVA / 3-Phase |
| Overall Dimensions: 126″ × 112″ × 114″ High |
| Weight: 29,960 lbs Approx. |
