*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Okuma & Howa |
| Model No.: |
2SP-V55 |
| Year of Manufacture: |
1999 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Vertical Turning Center (Twin Spindle) |

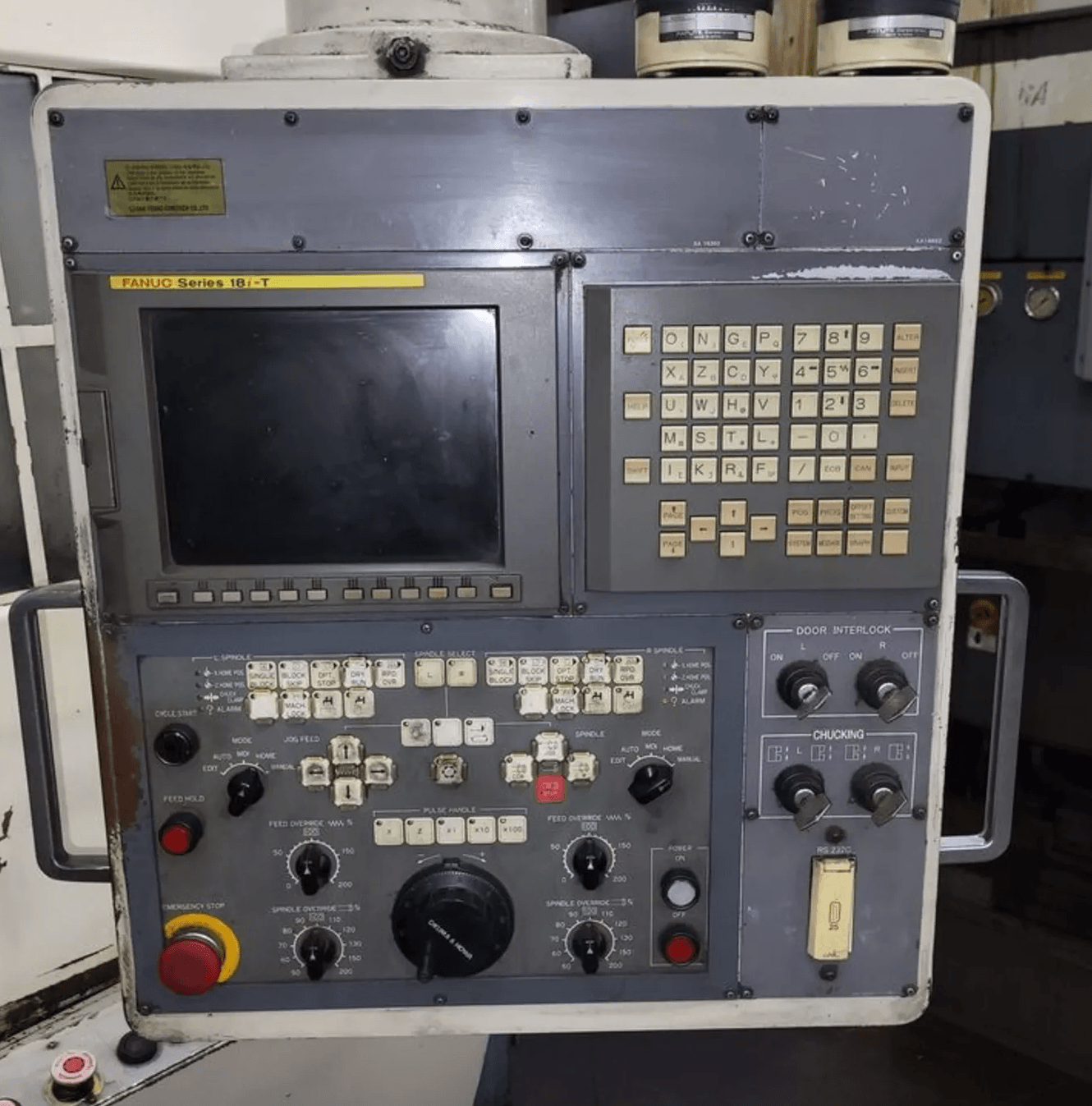

| CNC Control: |
Fanuc Series 18i-T |
| Country of Origin: |
Japan |
| Equipped With: |
| Twin Spindle Configuration |
| (2) 12-Position Turrets |
| (2) 24″ 3-Jaw Chucks |
| Through-Spindle Coolant |
| Coolant & Filtration System |
| (2) Enomoto Chip Conveyors |
| Transformer |
| Full Enclosure |
| Capacity: |
| Max Turning Diameter: 21.7″ |
| Max Swing: ~28″ – 30″ |
| Chuck Size: 24″ |
| Travels: |
| X-Axis Travel: 13.5″ |
| Z-Axis Travel: 26.1″ |
| Spindle: |
| Spindle Speed: 2,000 RPM |
| Spindle Motor: 40 / 40 HP (Dual) |
| Turret: |
| Number of Turrets: 2 |
| Stations per Turret: 12 |
| Tool Change Time: ~3 sec |
| Feed Rates: |
| Rapid Traverse (X-Axis): 787.4 IPM |
| Rapid Traverse (Z-Axis): 787.4 IPM |
| Cutting Feed Rate: Programmable |
| General: |
| Power: AC 220V, 3-Phase, 50/60 Hz |
| Overall Dimensions: ~180″ x 120″ x 130″ High |
| Weight: ~35,000 lbs |
