All specifications are approximations and are subject to verification.
“On Our Floor now, Fully powered / tested & is in Great working condition. Low Cutting Hours. Equipped with 12″ Chuck, Tool holders and Tailstock.”
| Make | Okuma Howa |
| Model No. | ACT-35 |
| Country of Origin: | Japan |
| Serial # | 00120 |
| Condition | Very Good |
| Okuma Howa ACT-35 Equipped With: |
|---|

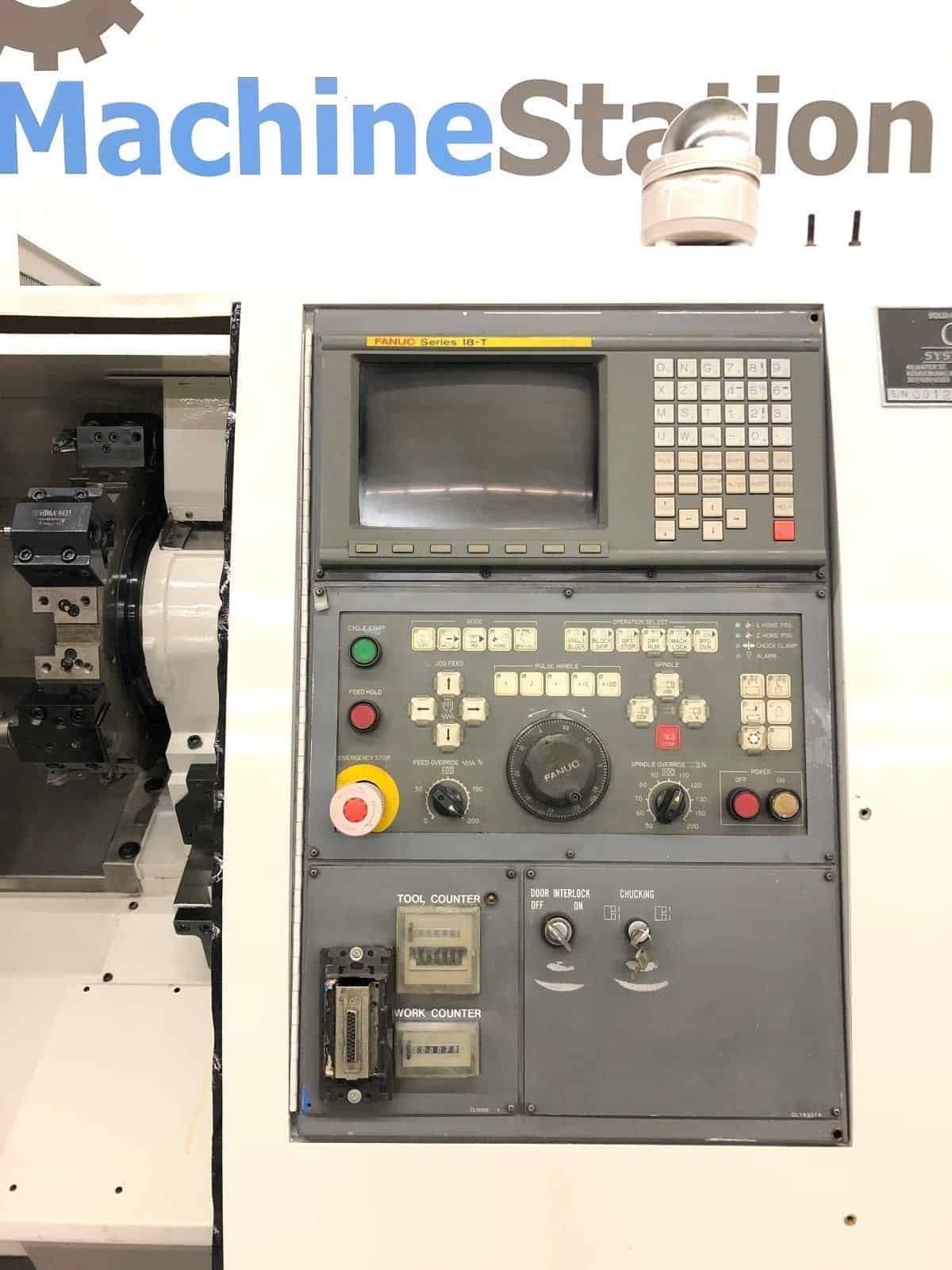

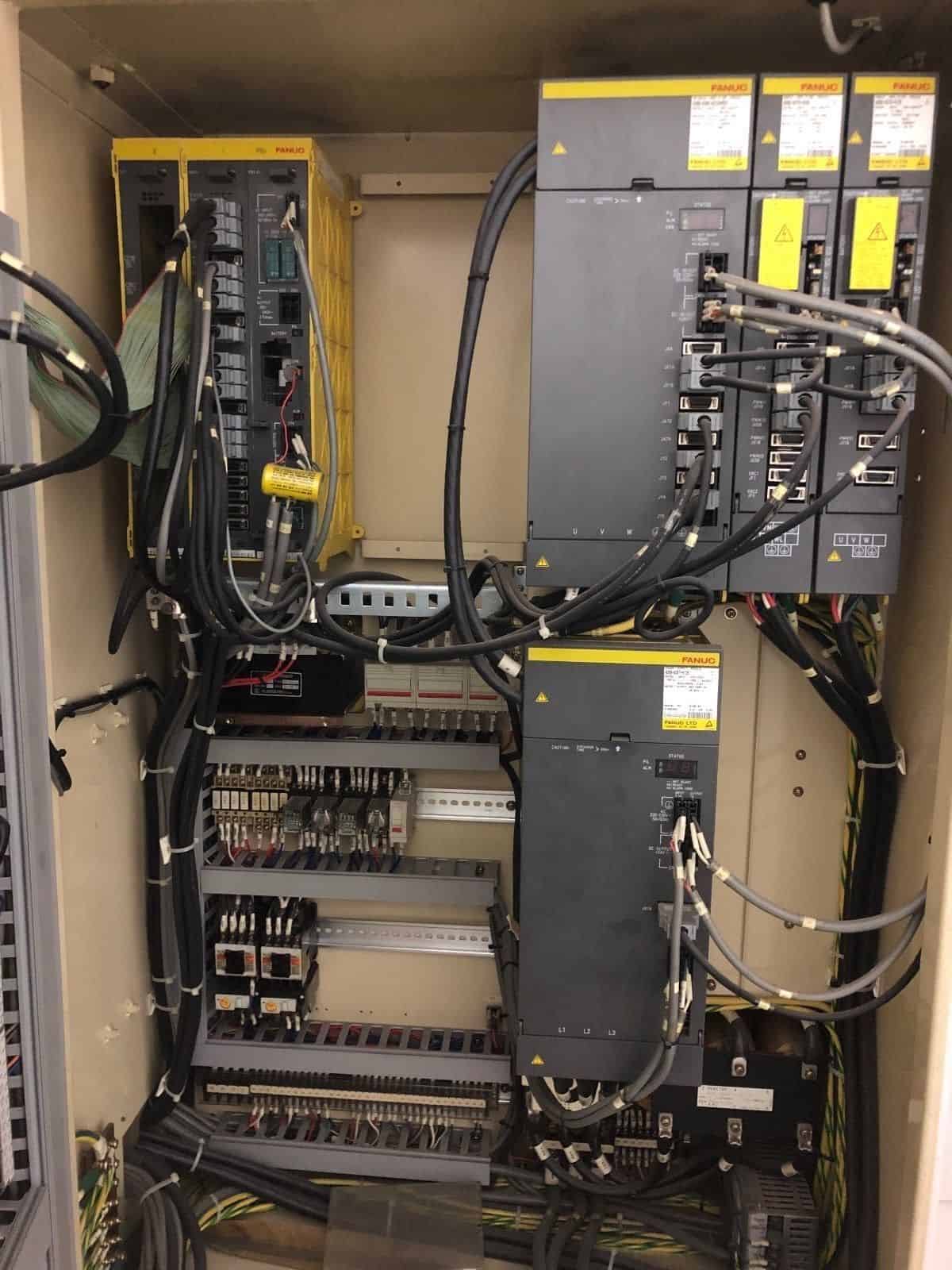

| Fanuc 18T CNC Control |

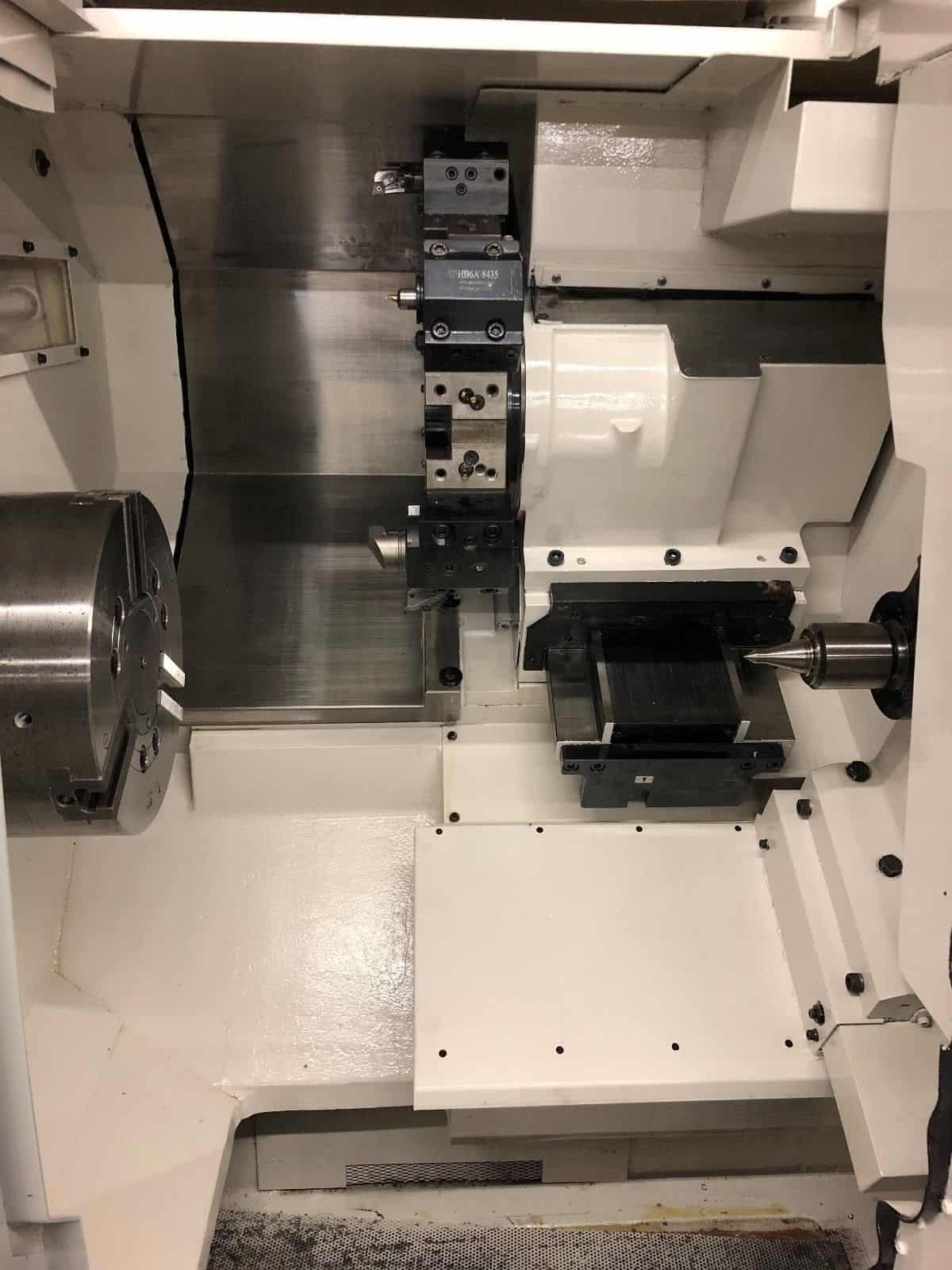

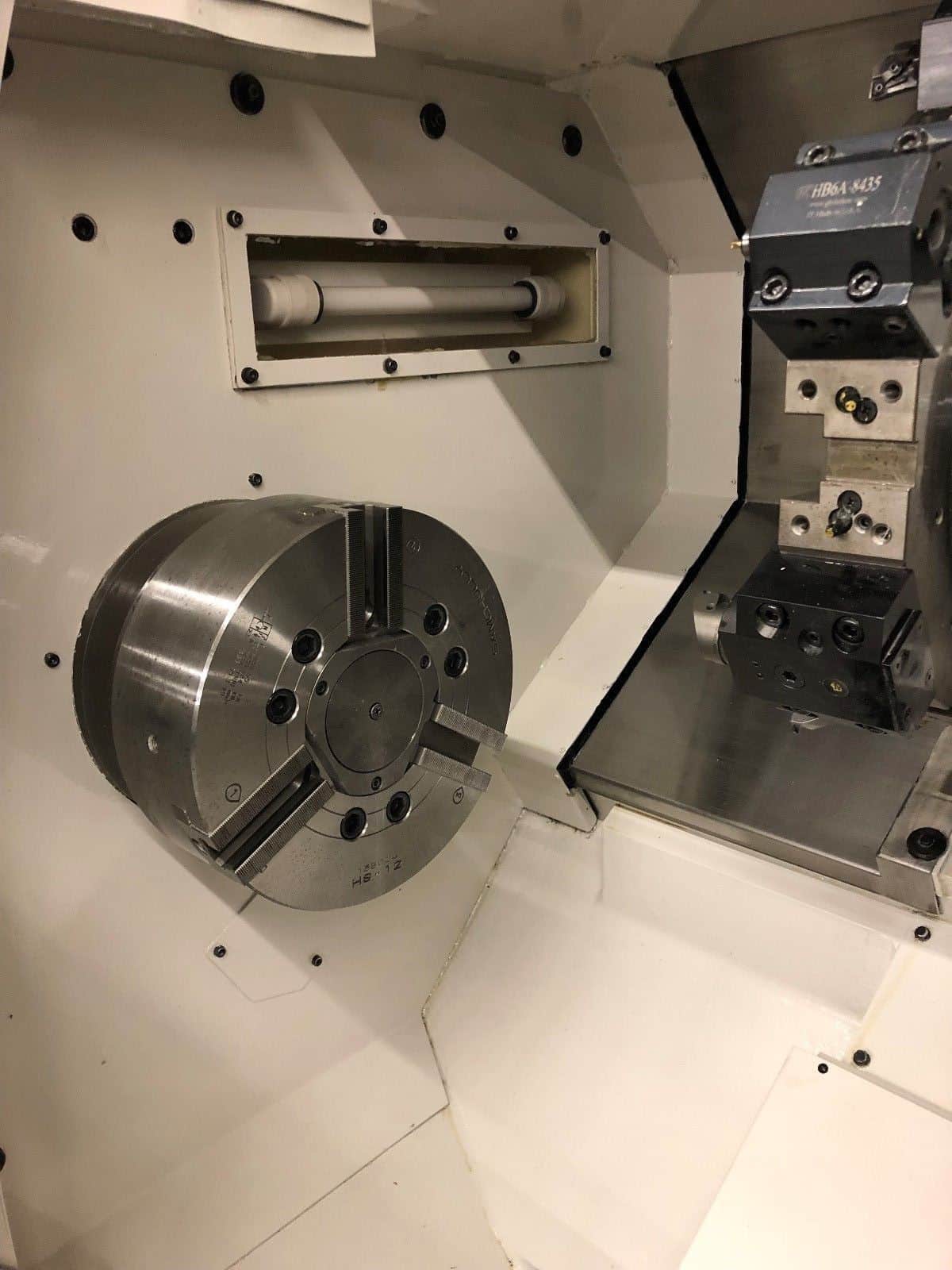

| 12″ 3 Jaw Hydraulic Chuck |
| Hydraulic Tailstock with Programmable Body & Quill |
| Box Way construction |

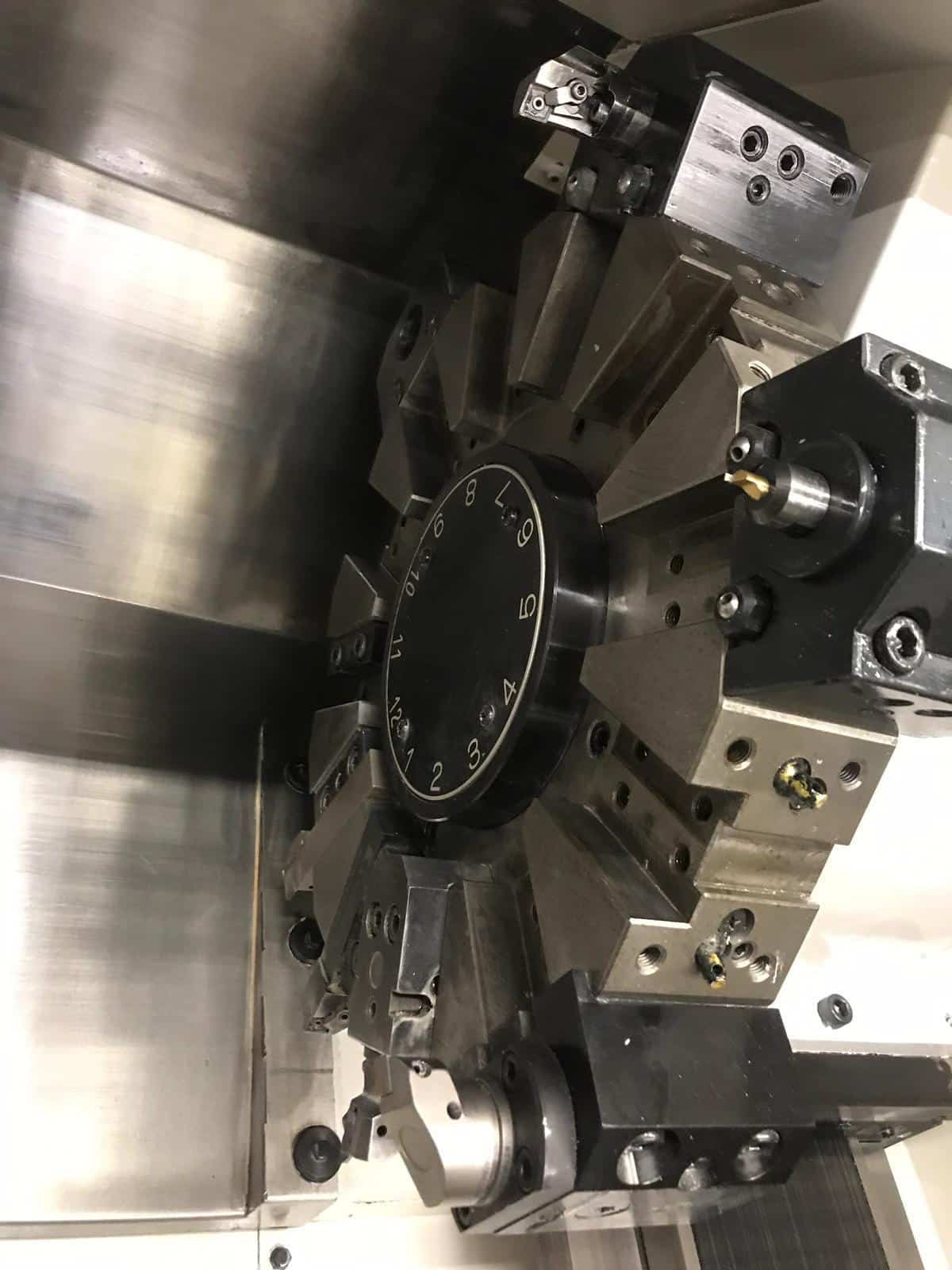

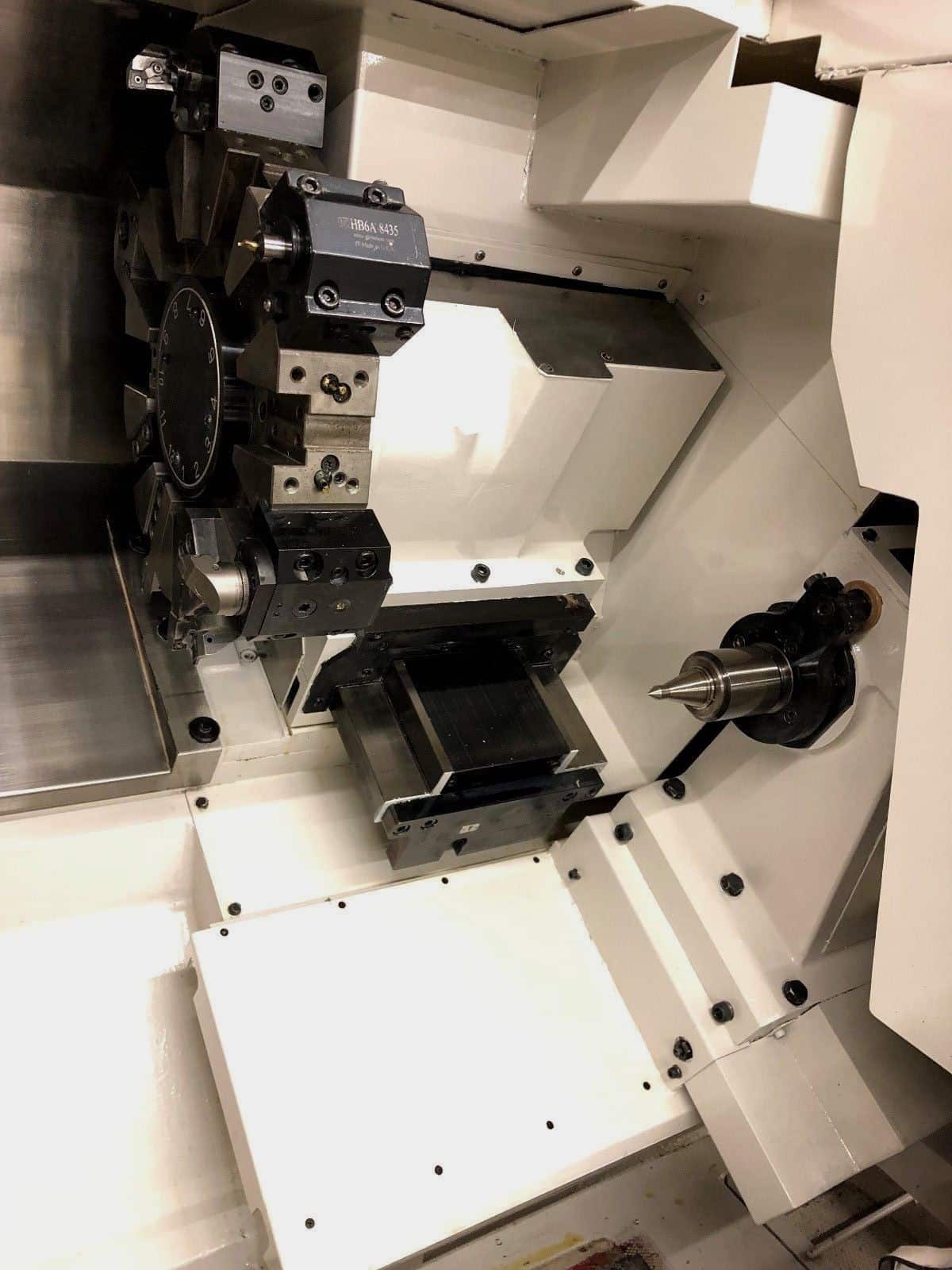

| 12 Station Automatic Turret |
| Coolant System & Tank |
| Barfeed Interface |
| RS-232 Interface |
| Okuma Howa ACT-35 Specifications: |
|---|
| Capacity |
| Max Turning Diameter: 13.77″ |
| Max Turning Length: 24.02″ |
| Distance Between Centers: 24.29″ |
| Max Bar Capacity: 3.07″ |
| Swing Over Bed: 19.68″ |
| Swing Over Cross Slide: 15.75″ |
| X Axis Travel: 7.87″ |
| Z Axis Travel: 24.01″ |
| Rapid Traverse X Axis: 944 IPM |
| Rapid Traverse Z Axis: 1180 IPM |
| Spindle Nose: A2-8 |
| Spindle Bore: 3.62″ |
| Spindle Speed: 35 – 3500 RPM |
| Spindle Motor: 25HP |
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.18 Second |
| Tailstock Taper: MT-5 |
| Tailstock Quill Dia.: 3.54″ |
| Tailstock Quill Travel: 4.72″ |
| General: |
|---|
| Power: 220v / 3-Phase |
| Overall Dimensions: 104″ x 74″ x 72″ High |
| Weight: 10,000 lbs |

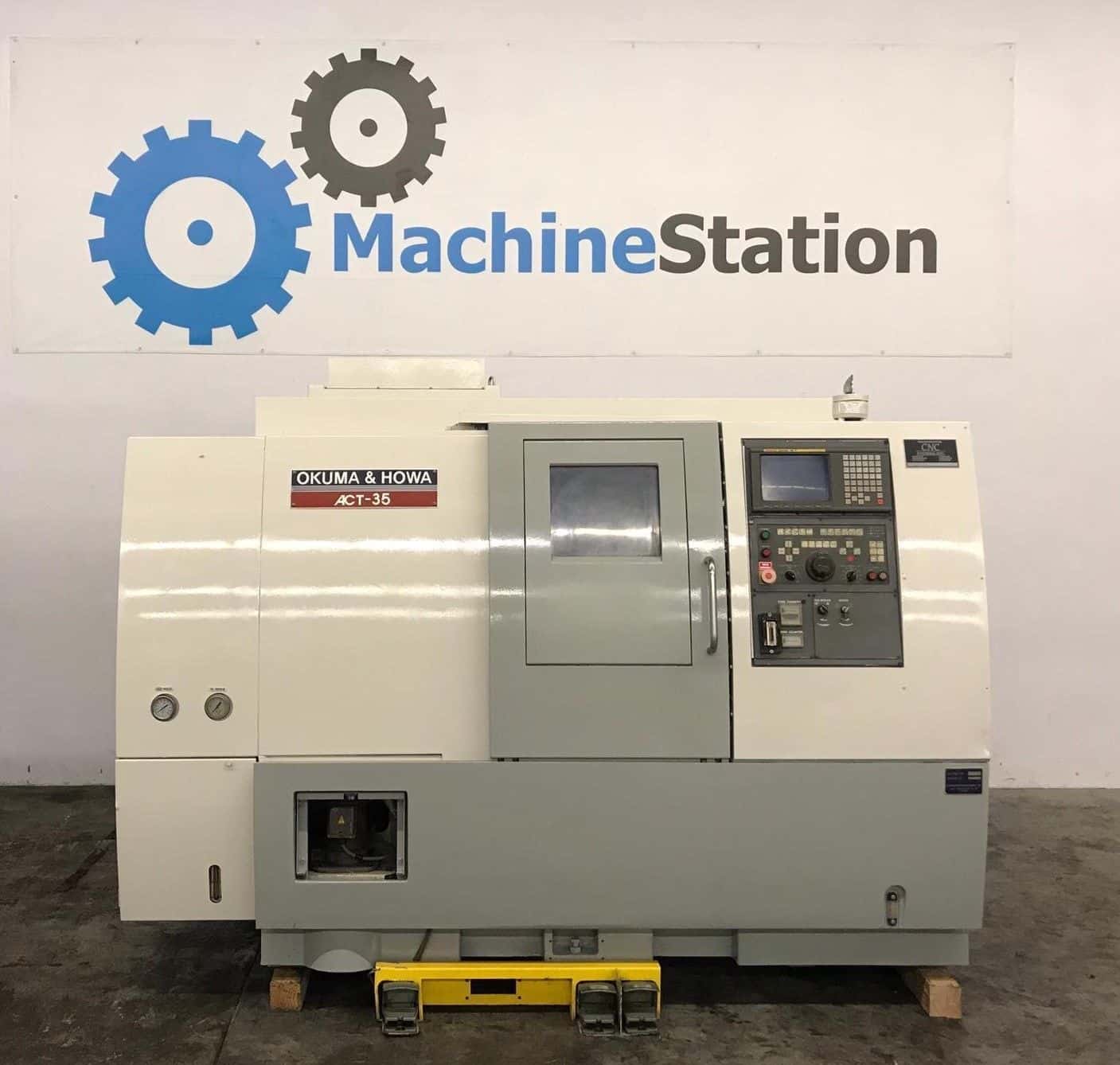

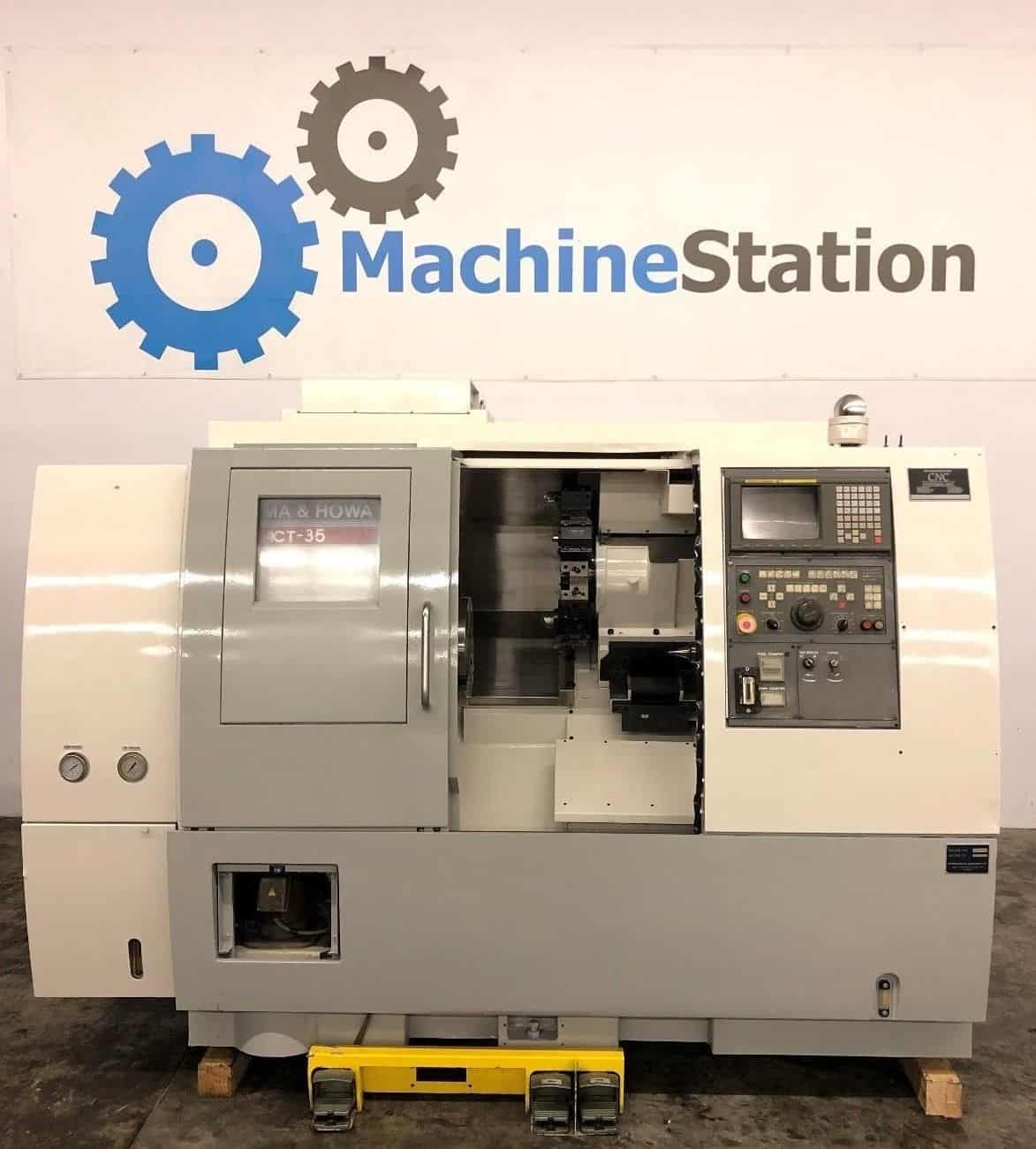

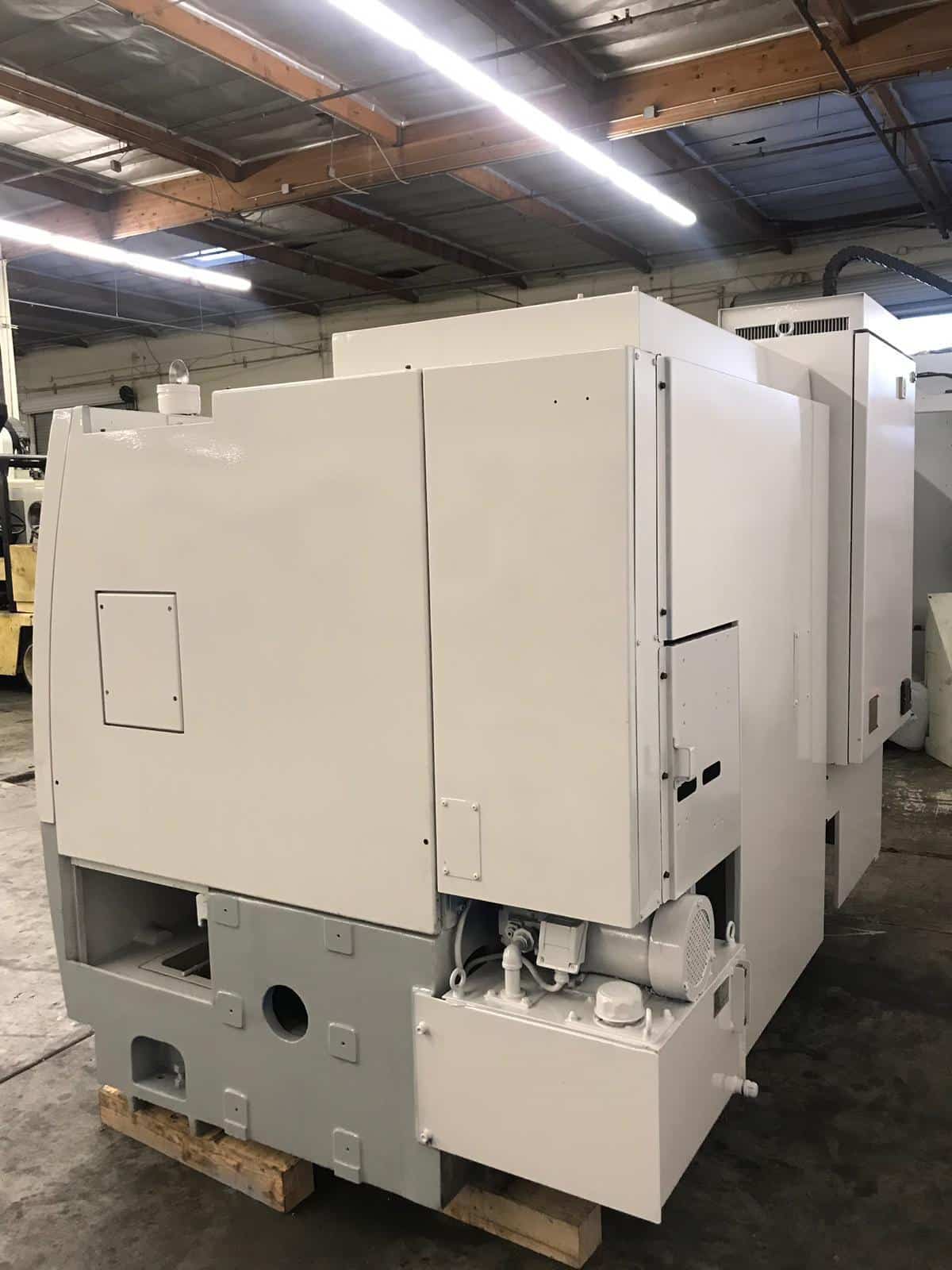

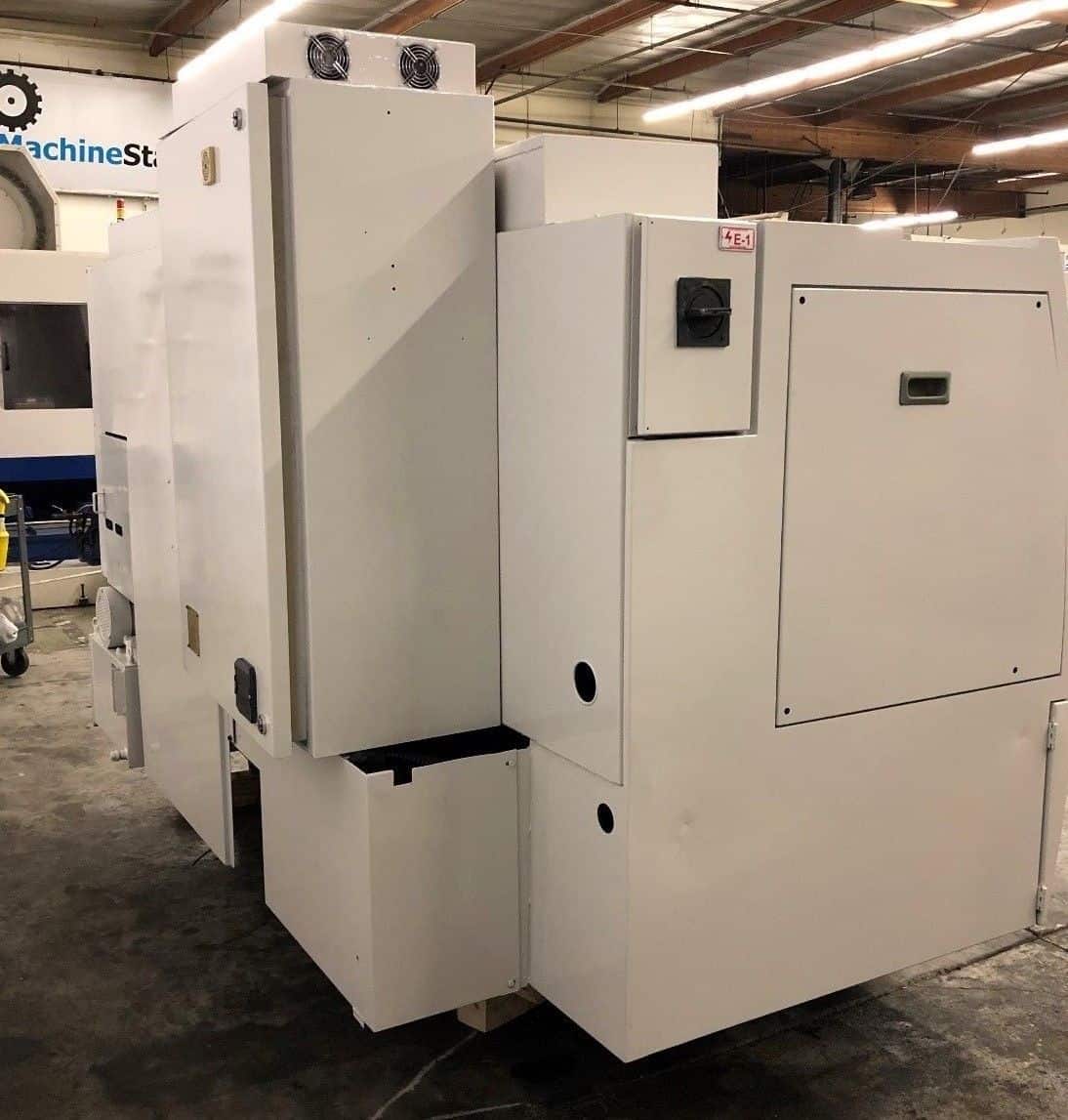

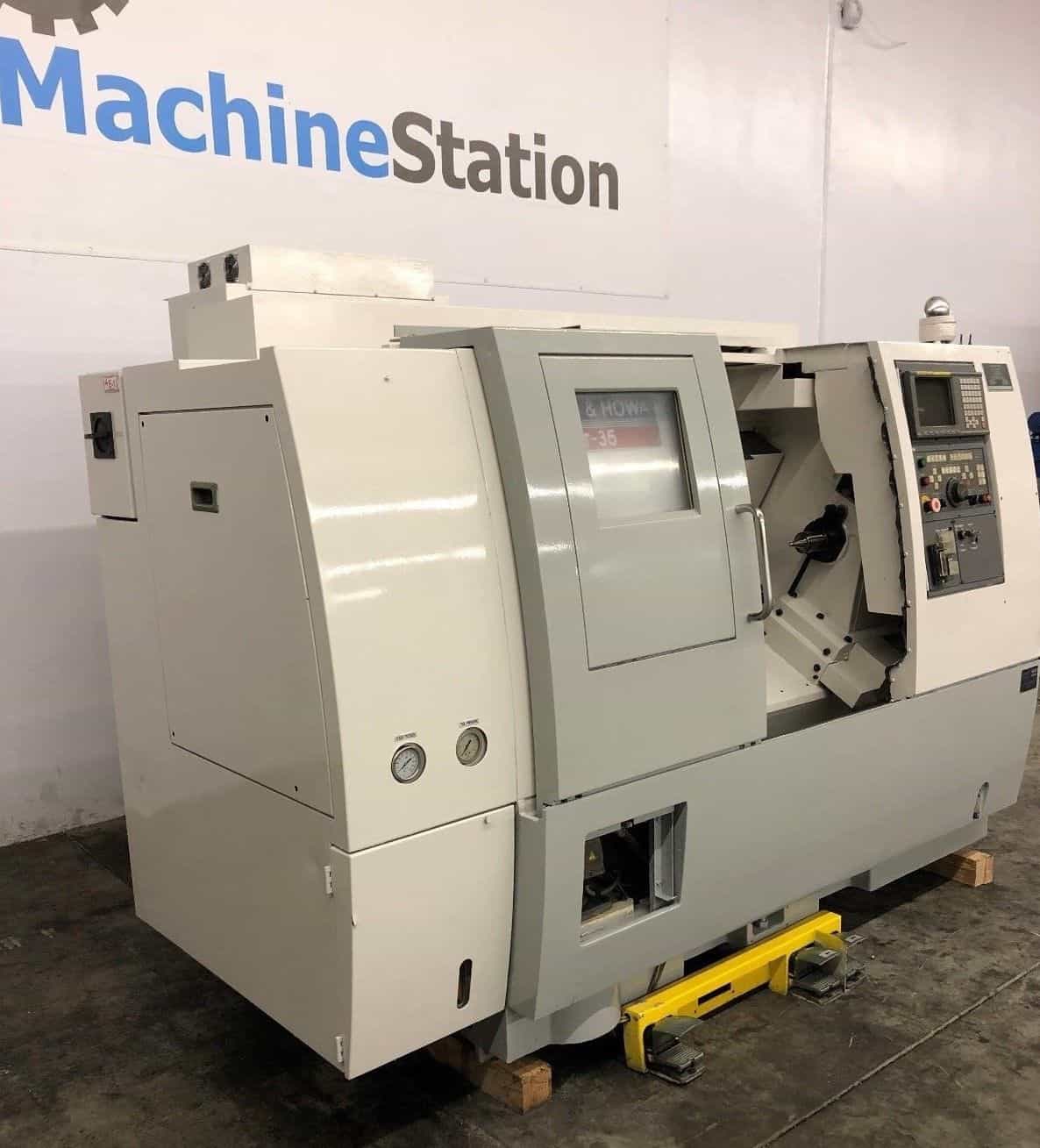

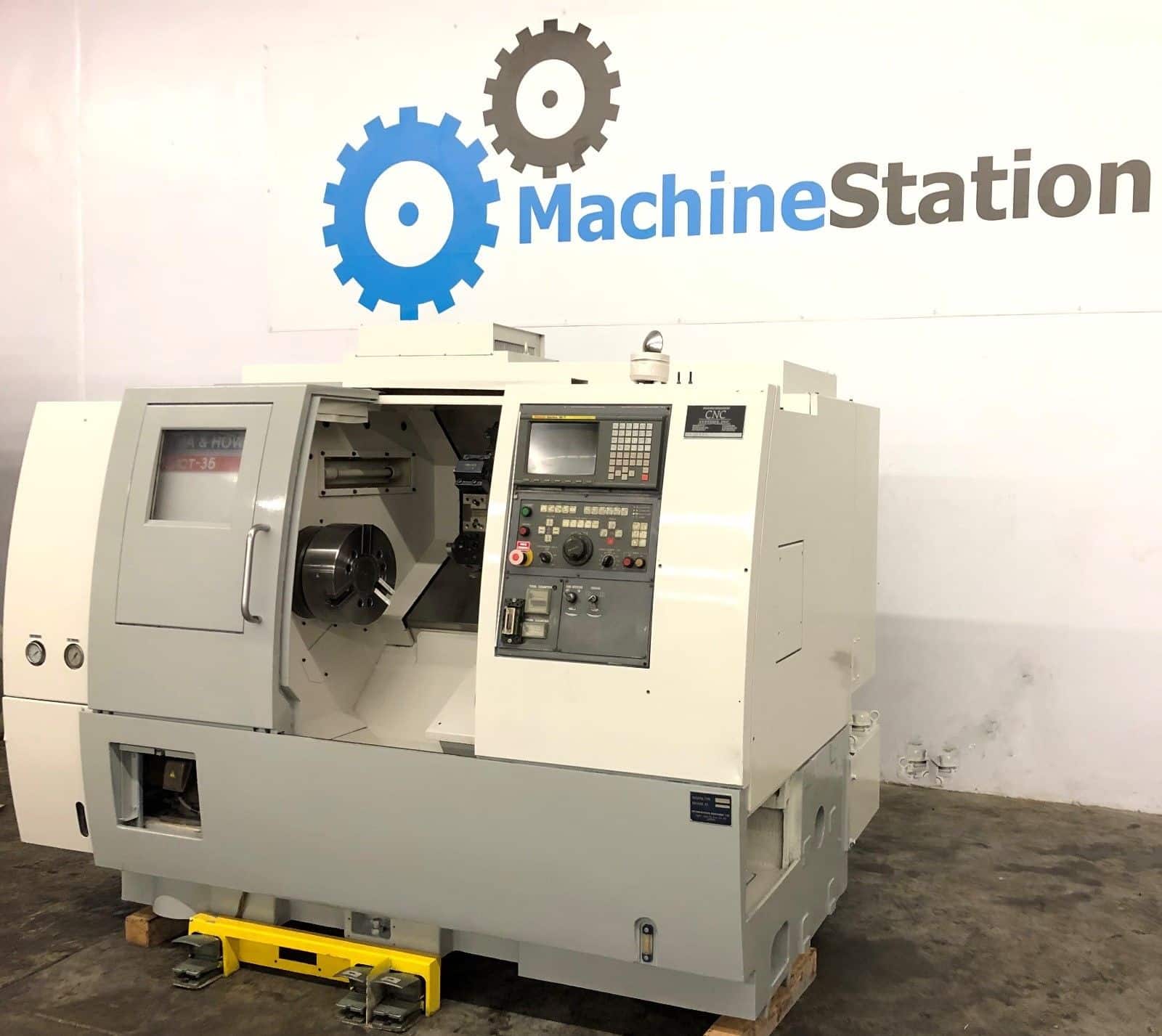

Okuma Howa ACT-35 Comes as shown in pictures..
