*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*

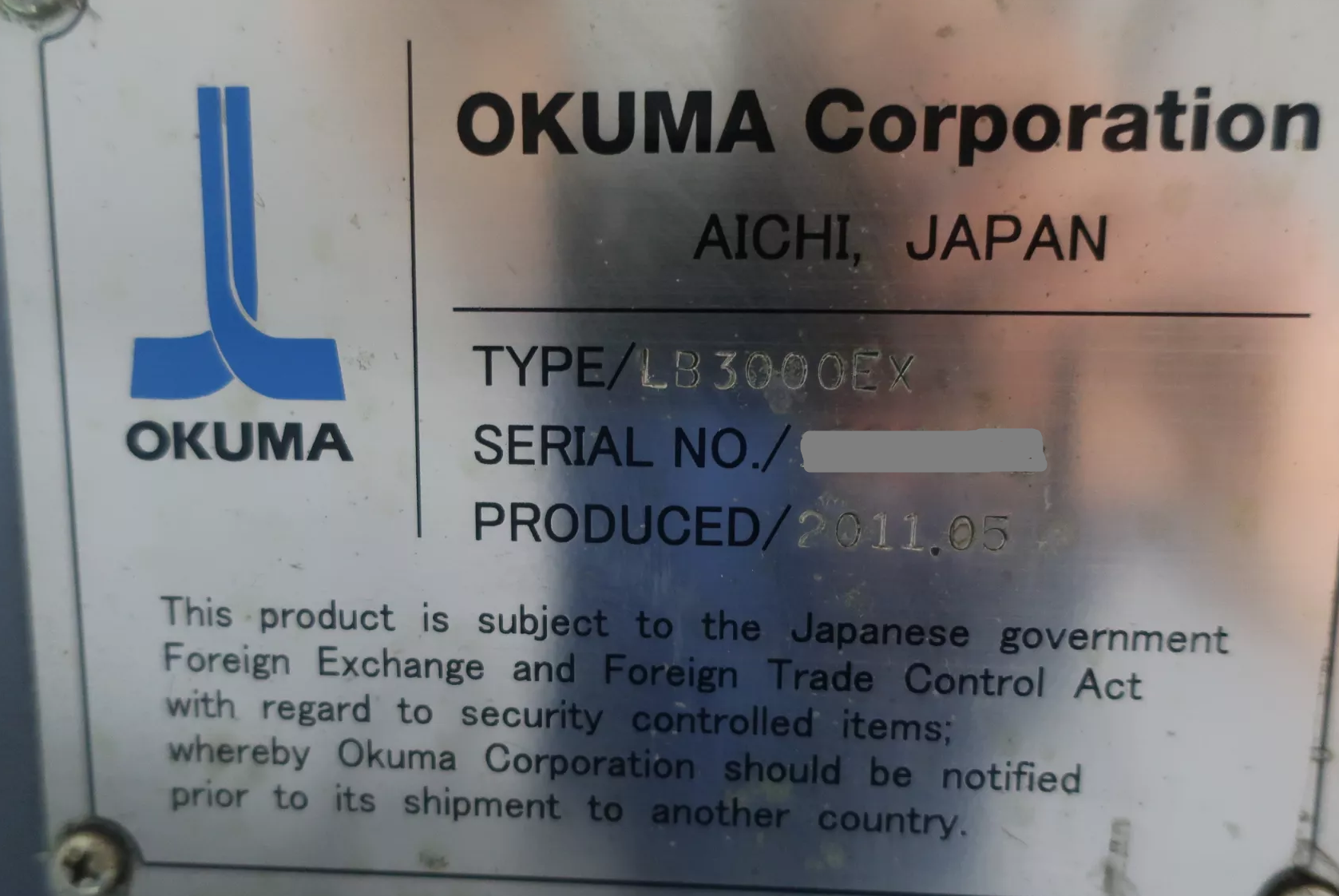

| Make: |
Okuma |
| Model No.: |
LB3000EX |
| Year of Manufacture: |
2011 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Turning Center |
| CNC Control: |

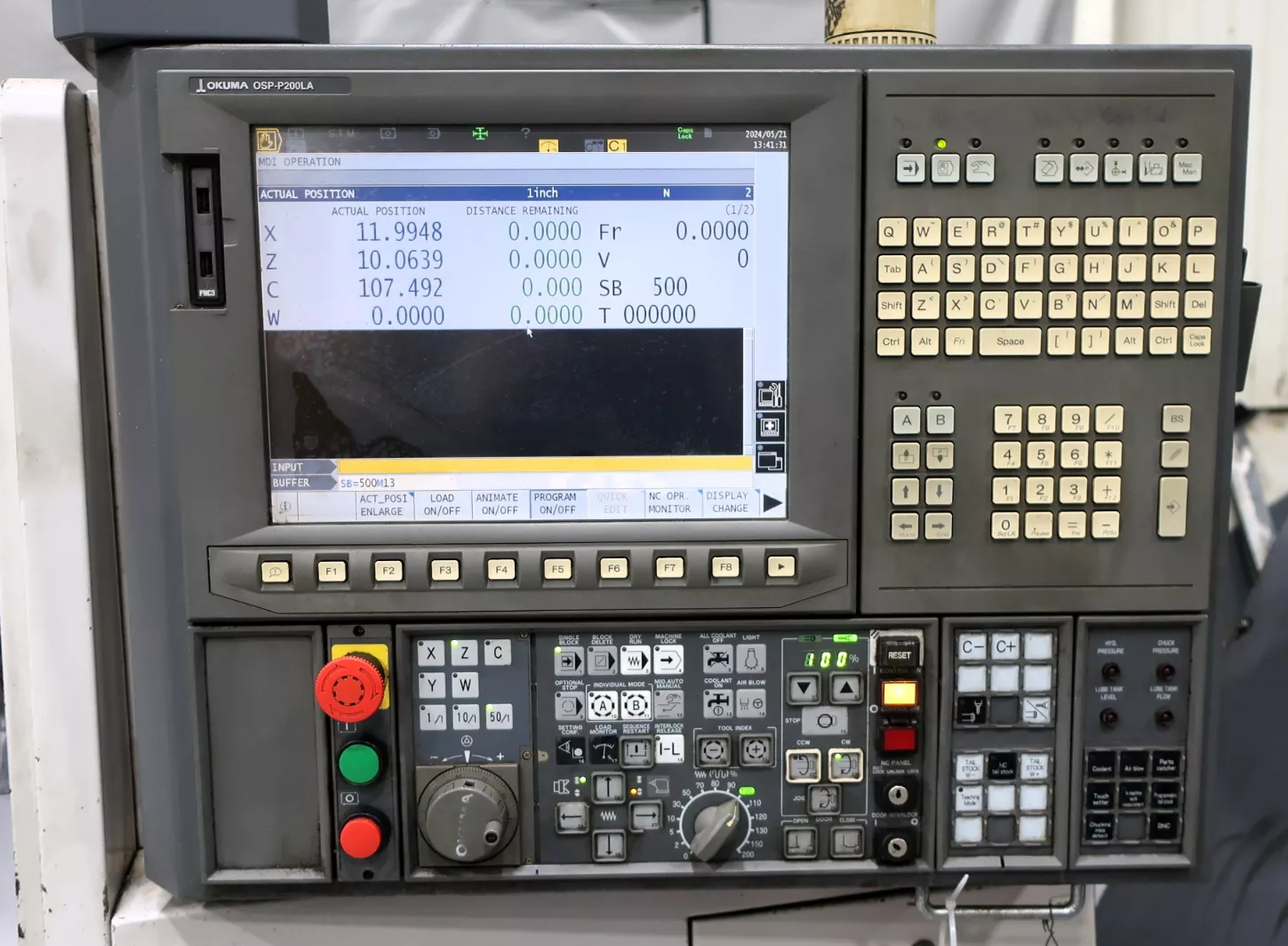

Okuma OSP-P200L CNC Control |
| Equipped With: |
| Okuma OSP CNC Control |
| Live Tooling (M-Function) |
| C-Axis (0.001° Indexing) |

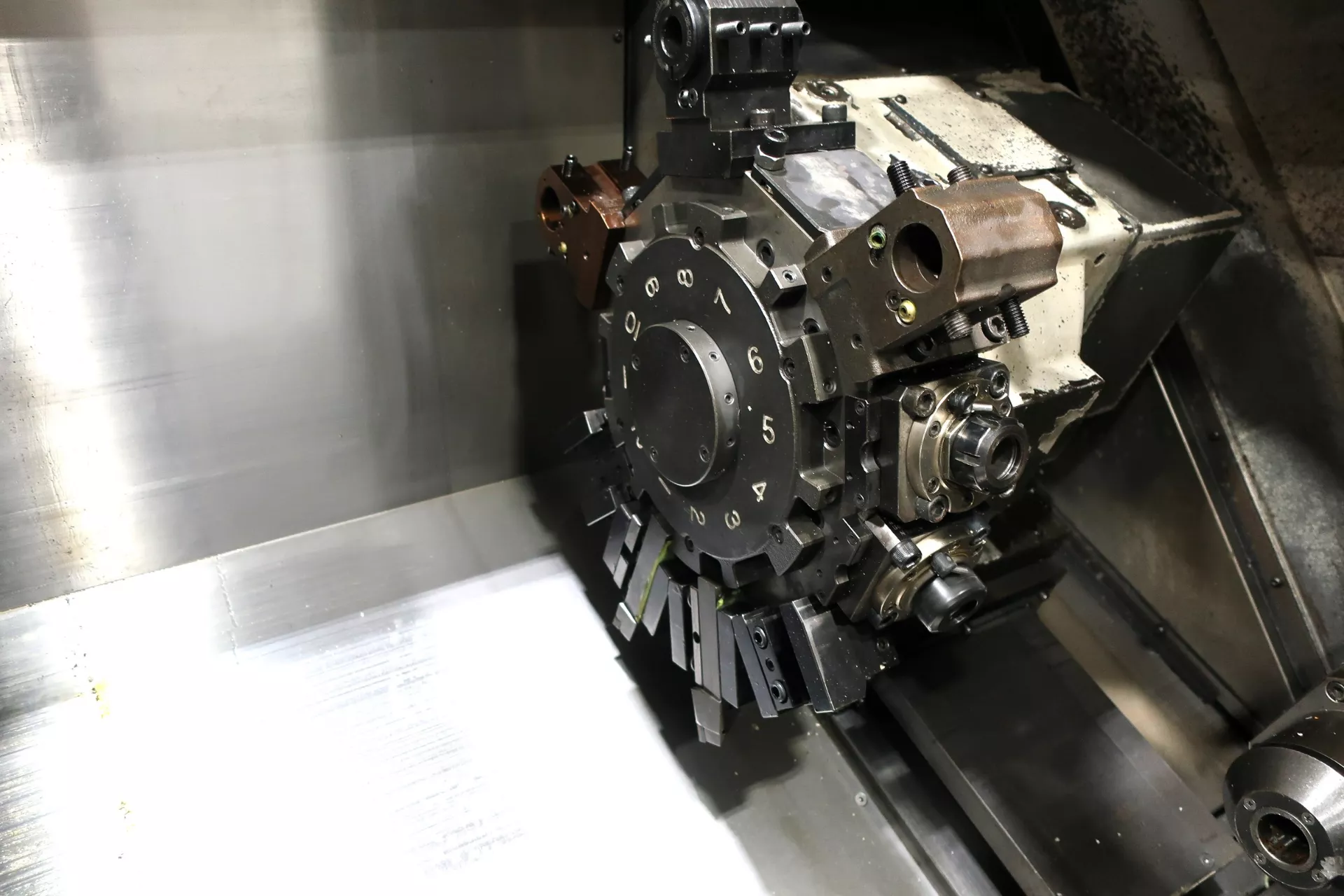

| 12-Station VDI Turret |

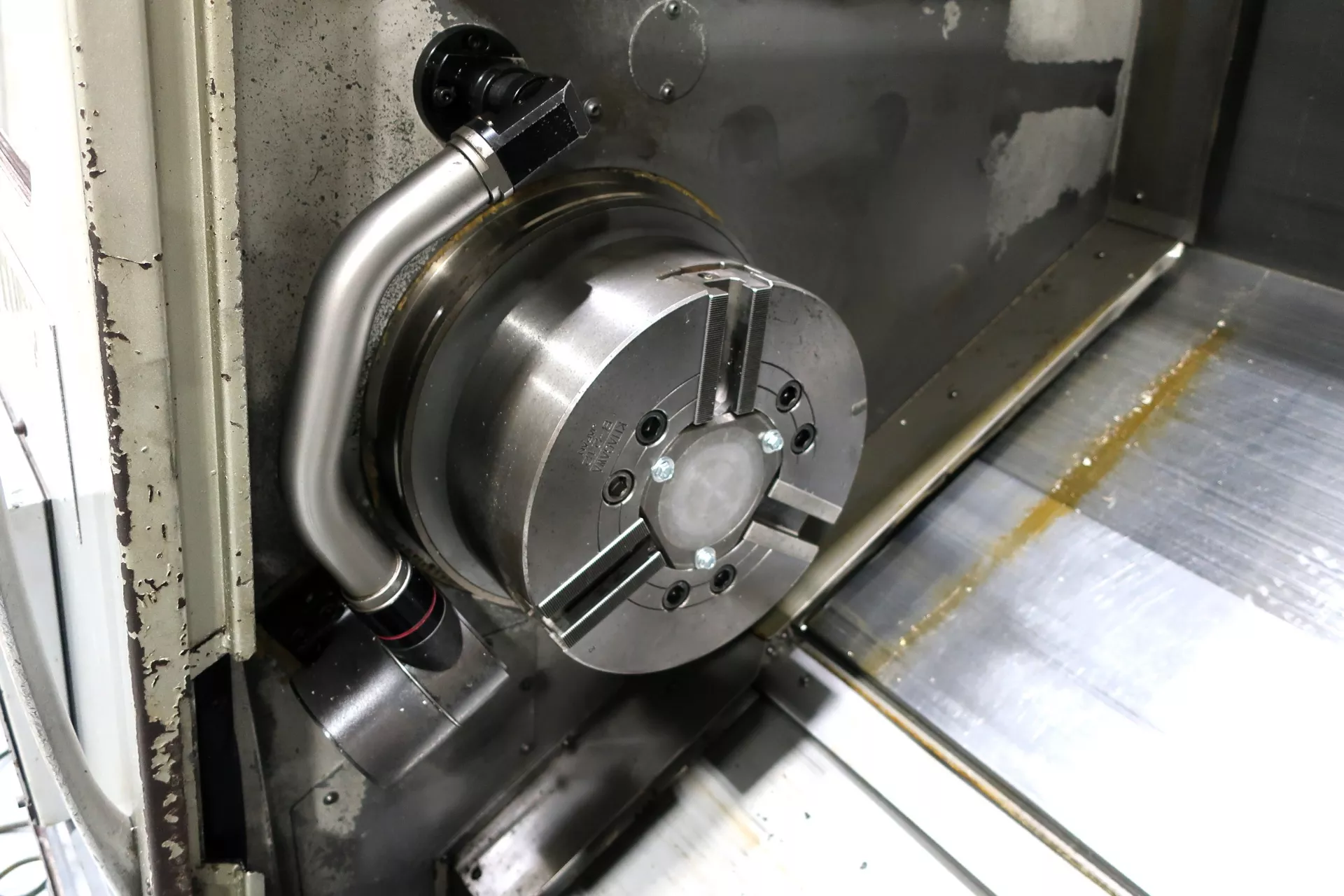

| 10”–12” Hydraulic Chuck (Kitagawa) |
| Tailstock |
| Tool Presetter |
| Chip Conveyor |
| Coolant System |
| Rigid Tapping |
| Auto Tool Setter |
| USB / RS232 Connectivity |
| Capacity: |
| Maximum Turning Diameter: 13.39″ (340 mm) |
| Maximum Turning Length: 19.69″ (500 mm) |
| Swing Over Bed: 22.8″ |
| Swing Over Carriage: 18.5″ |
| Distance Between Centers: 20.47″ |
| Bar Capacity: ~3.14″ (80 mm approx.) |
| Travels: |
| X-Axis Travel: ~10″ (approx.) |
| Z-Axis Travel: 22.2″ (564 mm) |
| C-Axis Rotation: 360° (0.001° Increment) |
| Spindle: |
| Spindle Nose: A2-6 |
| Spindle Speed: 45 – 5,000 RPM |
| Spindle Motor: 30 / 20 HP (22 / 15 kW) |
| Spindle Bore: 3.14″ (80 mm approx.) |
| 2-Speed Gear Range (Automatic) |
| Tooling: |
| Turret Type: V12 |
| Tool Capacity: 12 Stations |
| Live Tool Speed: Up to 6,000 RPM |
| OD Tool Size: 25 mm |
| ID Tool Size: 40 mm |
| Feed Rates: |
| Rapid Traverse (X/Z): 984 / 1,181 IPM (25 / 30 m/min) |
| Cutting Feedrate: Programmable |
| Electrical: |
| Voltage: 220 / 380 / 440V |
| Phase: 3-Phase |
| Frequency: 50/60 Hz |
| General: |
| Machine Weight: ≈4,500 – 5,000 kg |
| Floor Space: Approx. 134″ × 82″ |
| Machine Height: ≈72″ |
| Features: |
| High-performance turning center with live tooling capability |
| C-axis allows milling, drilling, and tapping in one setup |
| Rigid slant-bed construction ensures stability and accuracy |
| Thermal stability design for consistent precision |
| Fast turret indexing and rapid traverse for reduced cycle time |
| Compact footprint with high productivity output |
| Ideal for automotive, oil & gas, and precision component manufacturing |
| Reliable Okuma OSP control with advanced programming features |
