*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: |
Okuma |
| Model: |
LB4000 EXII BB |
| Condition: |
Used |
| Equipped With: |

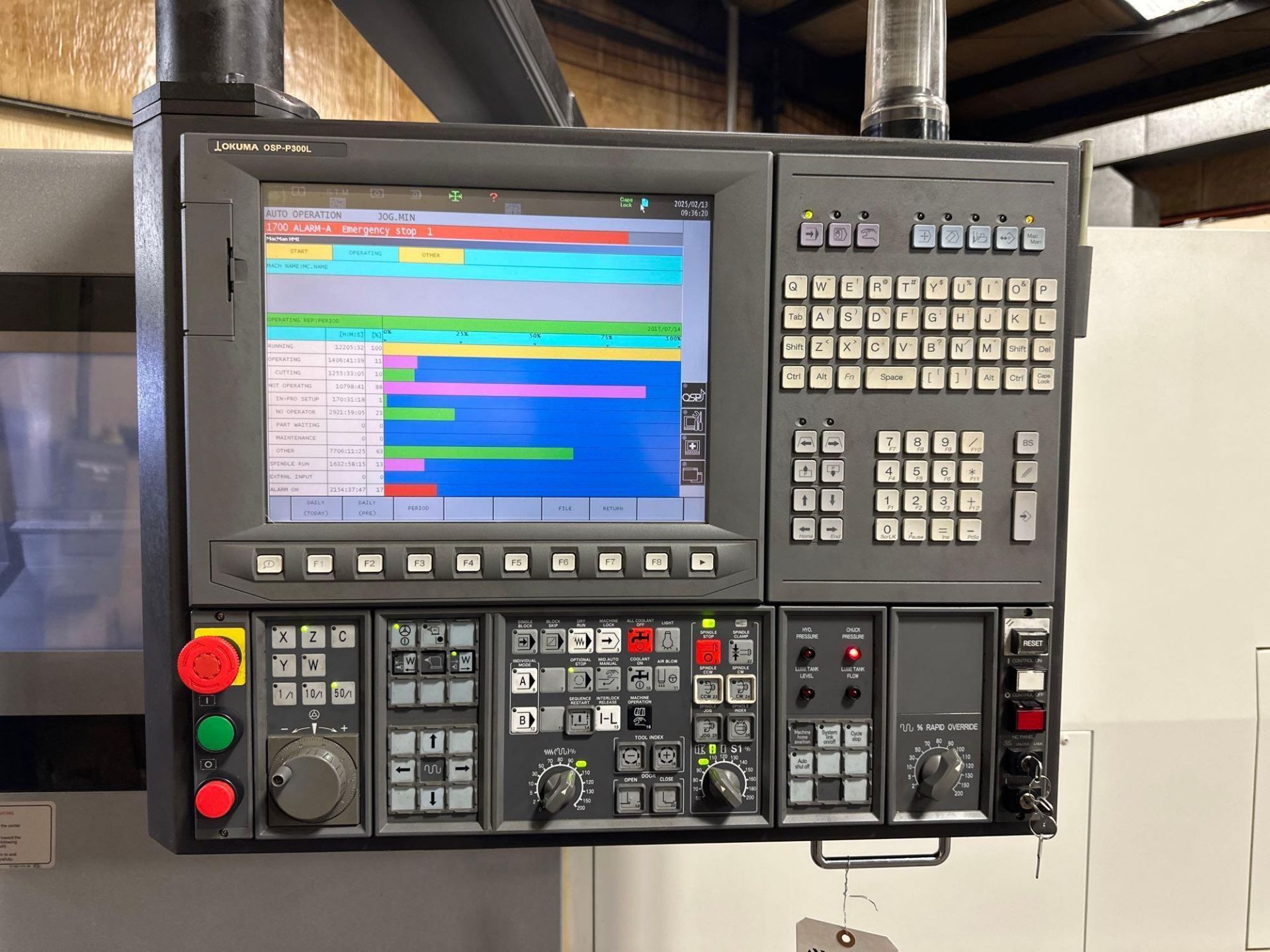

- Okuma OSP-P300LA CNC Control
- Thermo-Friendly Concept
- Slant-Bed Box Construction
- Big-Bore Main Spindle
- 12-Station V-Turret (Bolt-Clamp)
- NC Programmable Tailstock
- C-Axis Control
- Full Enclosure
- Coolant System
- LED Work Light
|
| Capacity: |
- Swing Over Bed: 26.38″
- Swing Over Saddle: 23.62″
- Max Turning Diameter: 16.93″
- Max Turning Length: 29.53″
- Distance Between Centers: 29.53″
|
| Travels: |
- X-Axis Travel: 11.81″
- Z-Axis Travel: 33.07″
- Y-Axis Travel (MY models): ±2.76″
- C-Axis Minimum Index: 0.001°
|
| Main Spindle: |
- Spindle Nose: JIS A2-15
- Spindle Speed Range: 12 – 1,400 RPM
- Spindle Motor: 40 HP (30-min) / 30 HP (Continuous)
- Spindle Bore: 9.45″
- Max Torque: 702 ft-lbs
|
| Turret: |
- Turret Stations: 12
- Tool Shank Type: Bolt-Clamp
- OD Tool Shank Size: 1.97″
- ID Tool Shank Diameter: 1.57″
- Turret Indexing: NC Controlled
|
| Feedrates: |
- Rapid Traverse X-Axis: 984 IPM
- Rapid Traverse Z-Axis: 1,181 IPM
- Cutting Feedrate: 0 – 472 IPM
|
| Tailstock: |
- Tailstock Type: NC Programmable
- Quill Taper: MT #5
- Quill Travel: 5.91″
|
| General: |
- Power Requirement: 220V / 3-Phase
- Floor Space (Approx.): 217″ × 99″
- Machine Weight (Approx.): 26,400 lbs
|
