*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

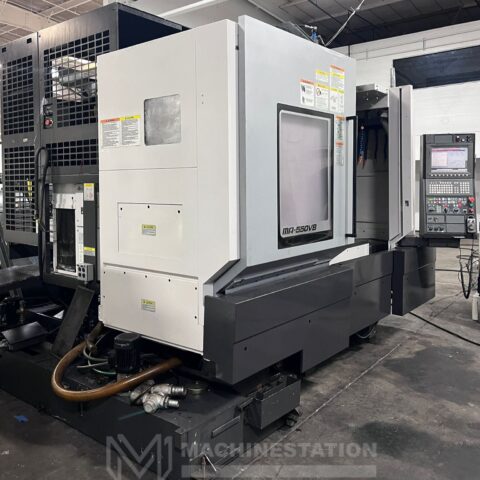

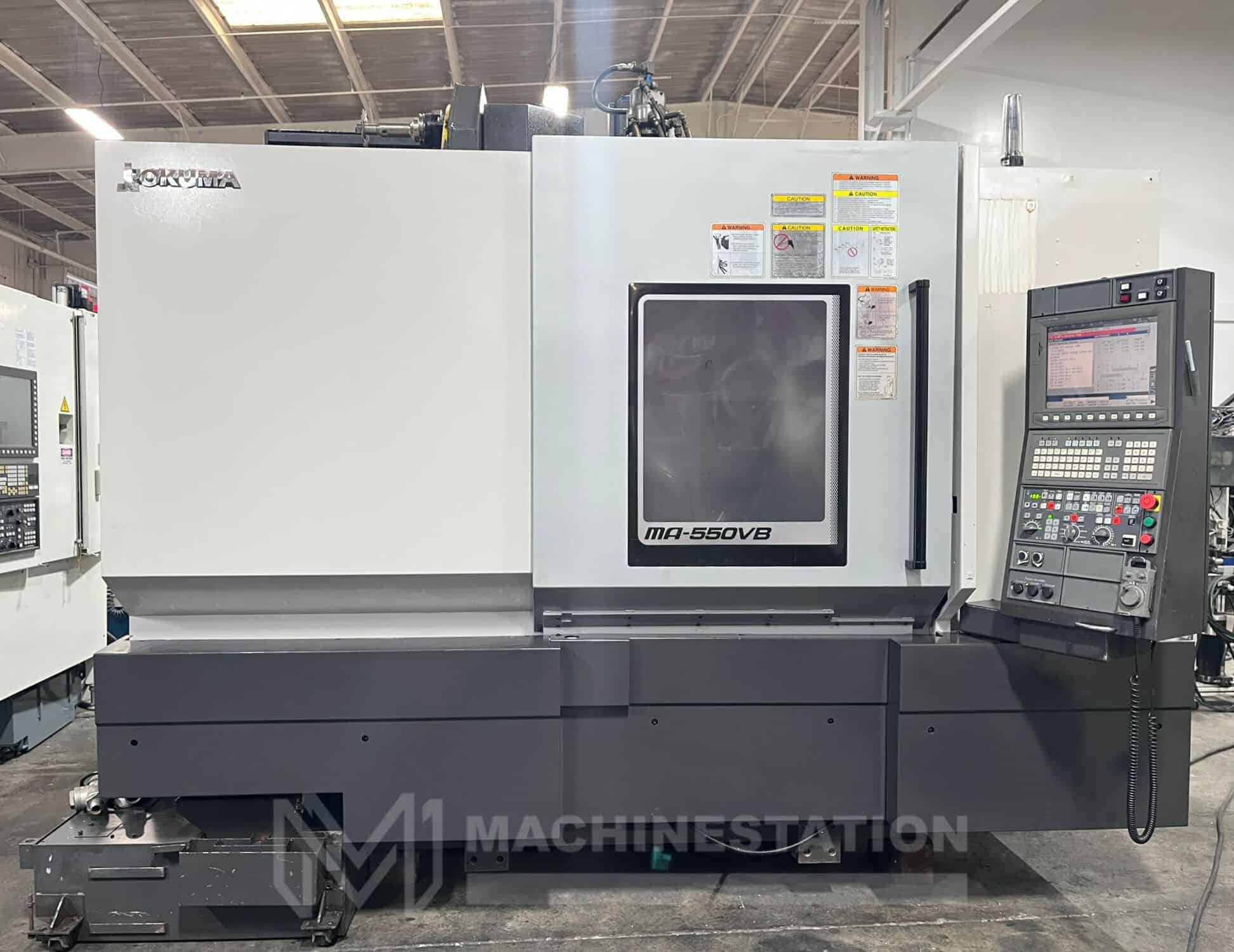

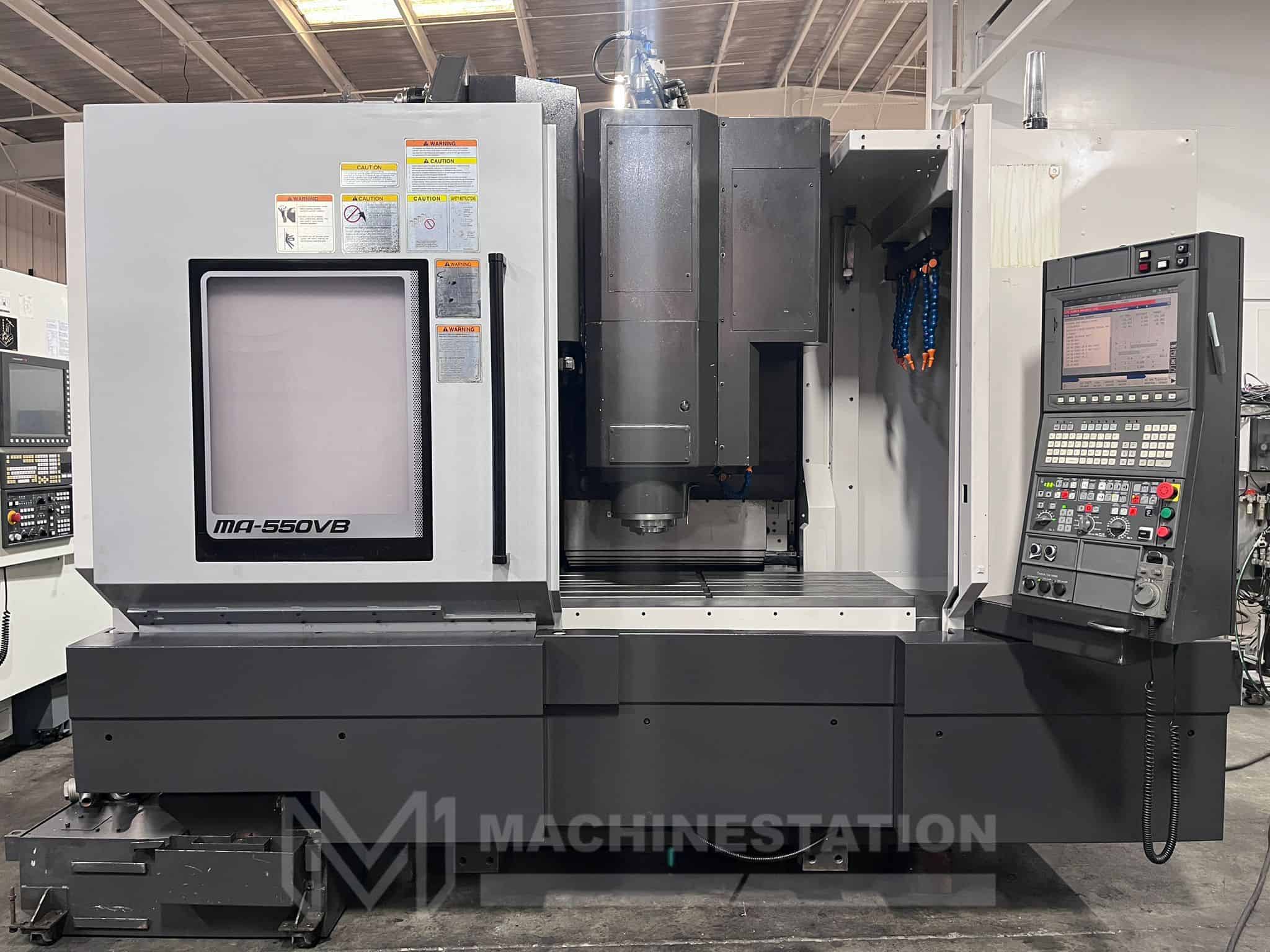

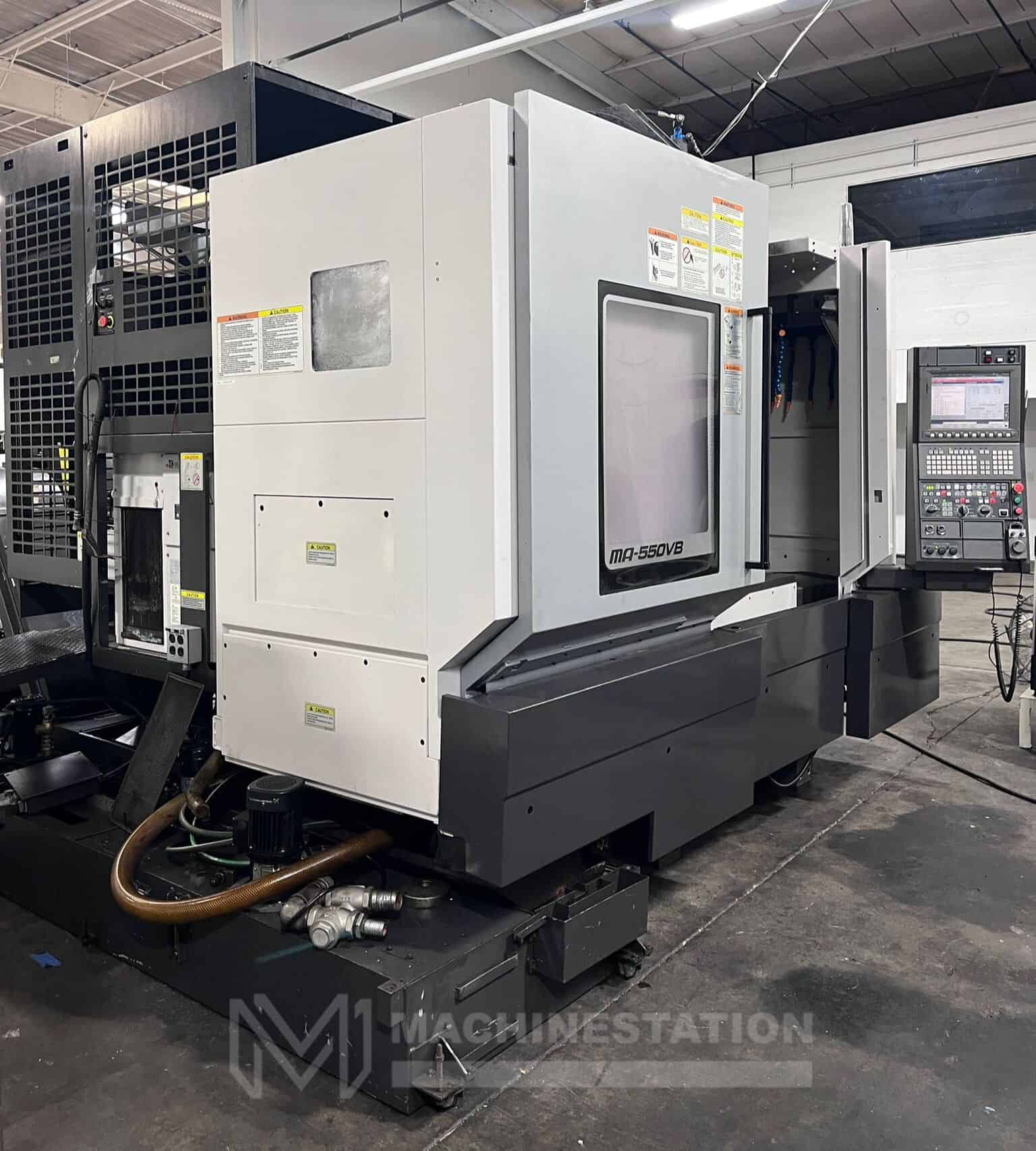

| Make: | Okuma |

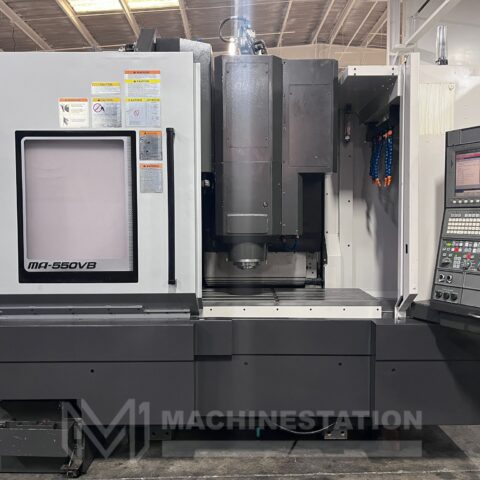

| Model: | MA550VB |
| Year: | 2014 |
| Condition: | Used – Good |
| Features: |
|---|

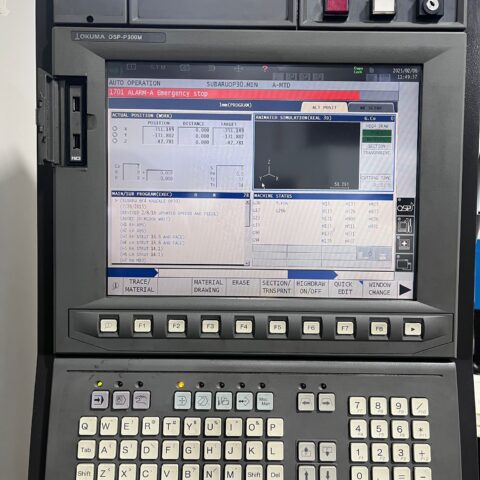

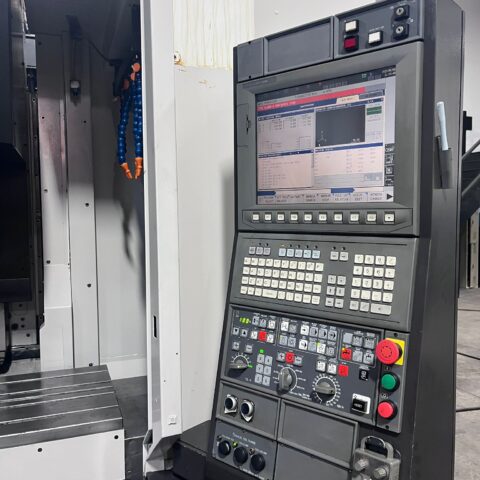

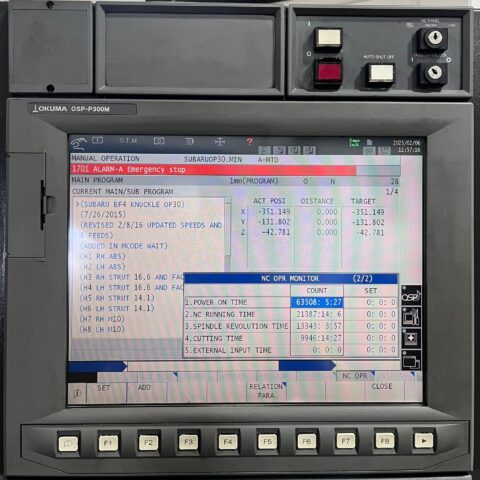

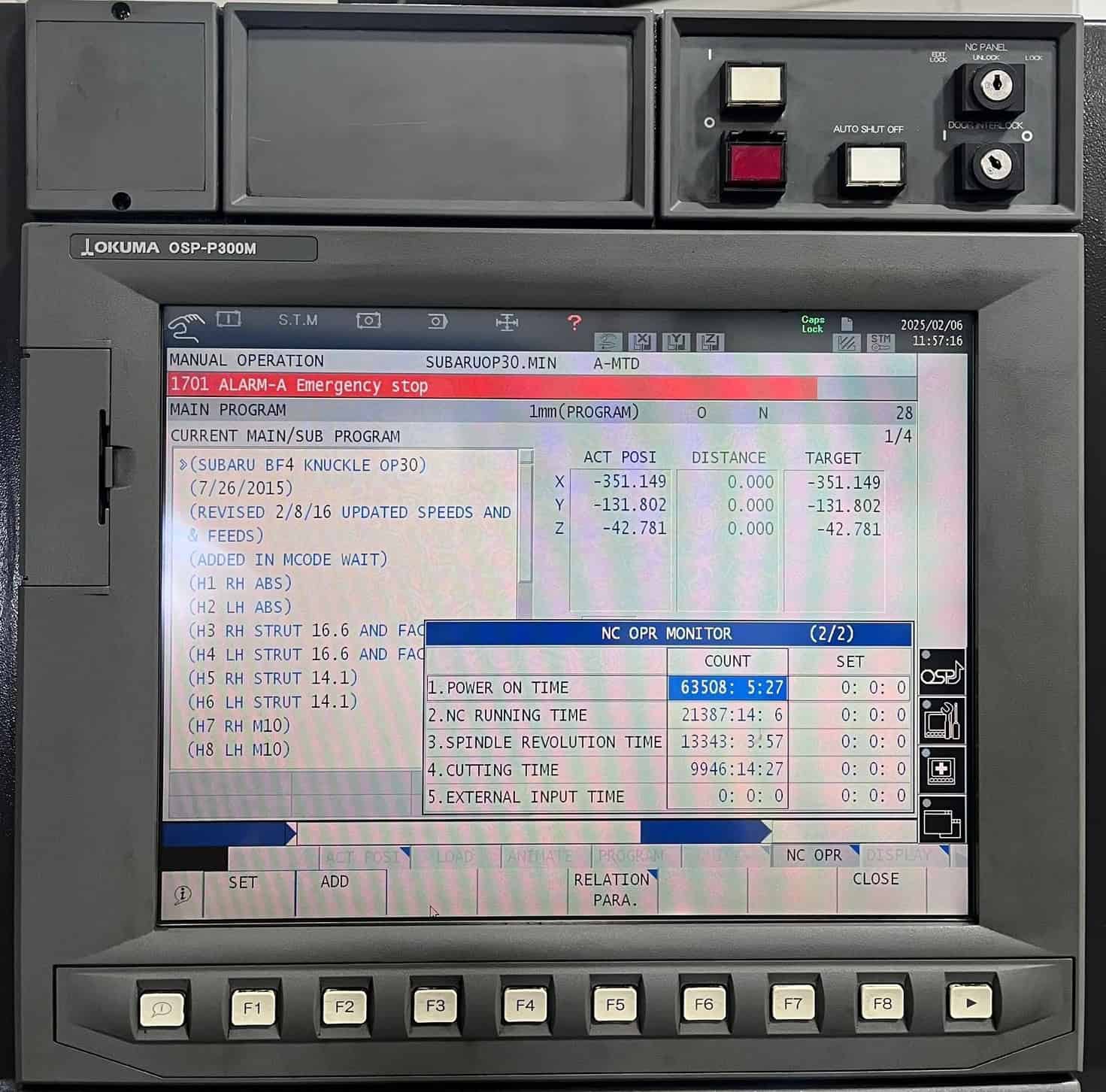

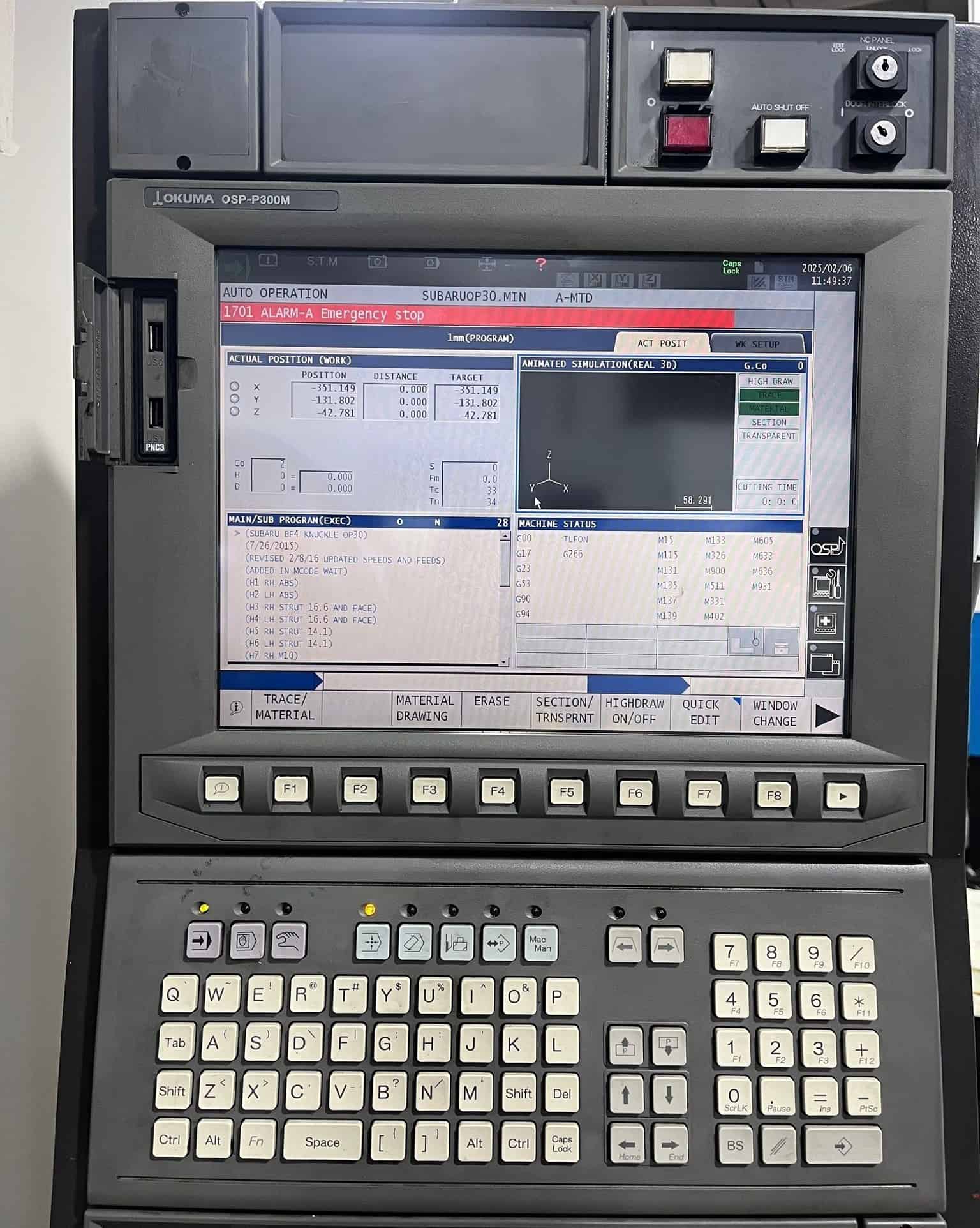

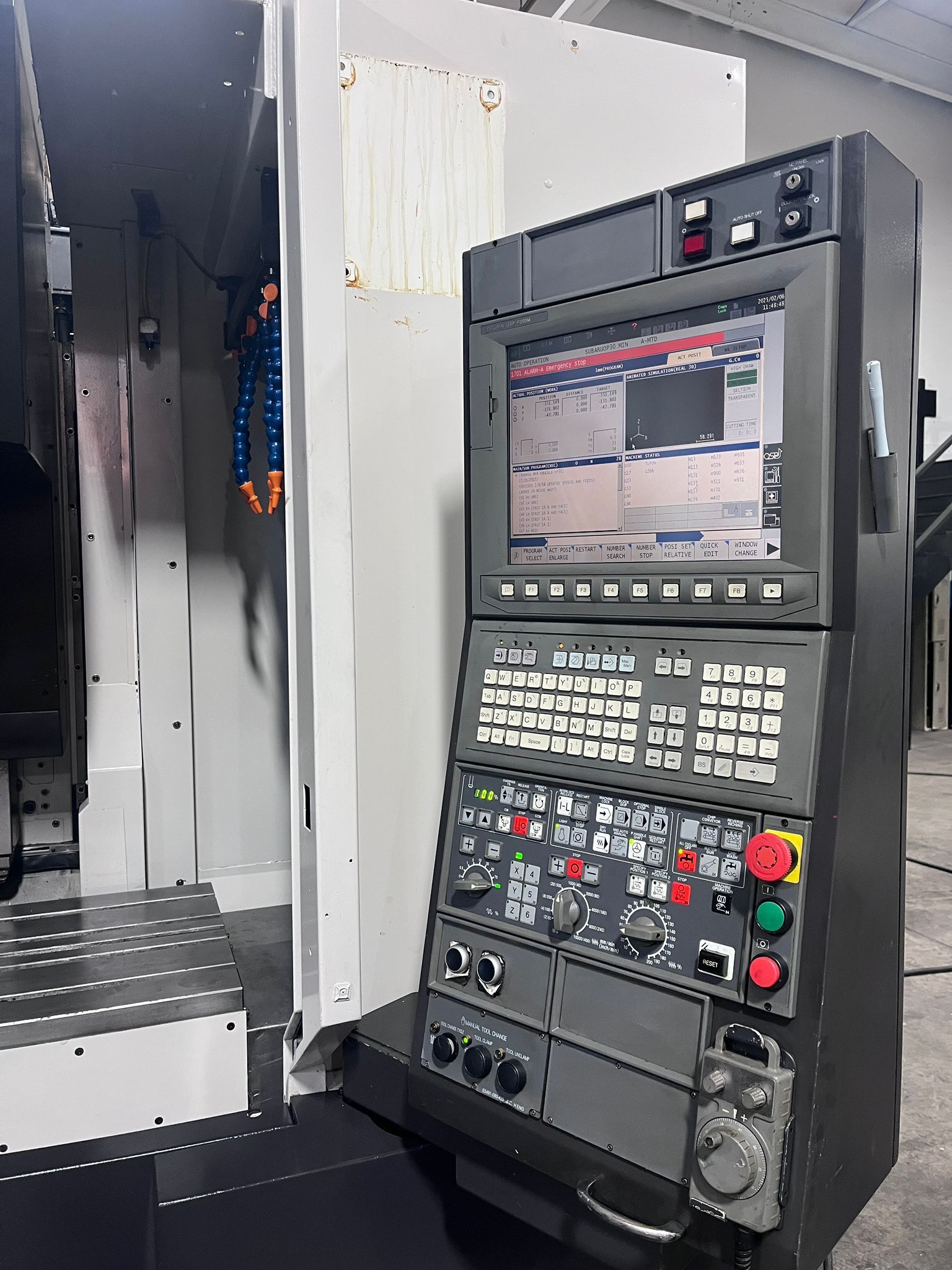

| Okuma OSP-P300M CNC Control |
| 6,000 RPM Gear Head Spindle |
| Through Spindle Coolant Ready |
| 32 Station Automatic tool changer |
| CAT-50 Big Plus Taper Spindle |

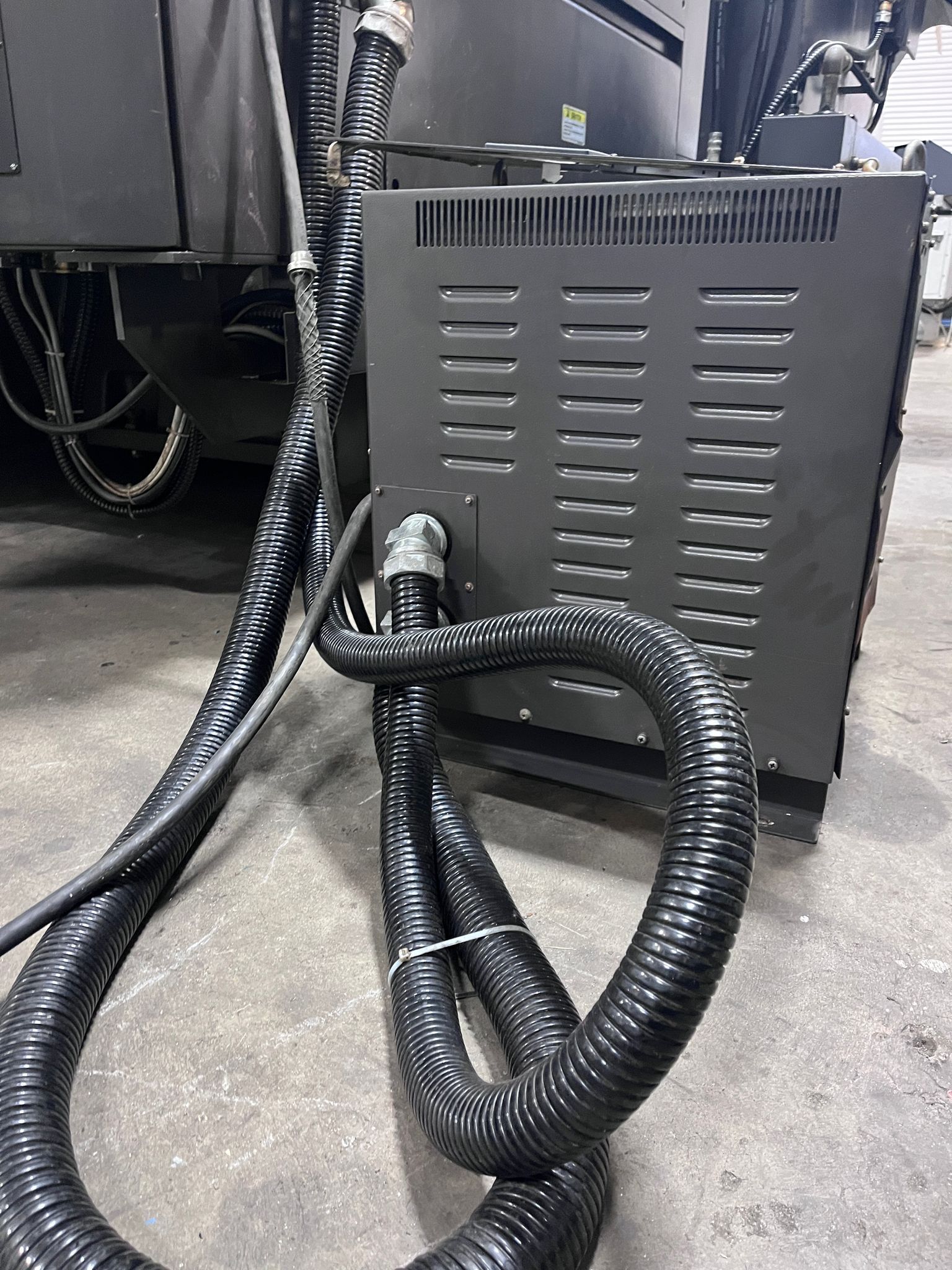

| Spindle Chiller Unit |
| USB Ports |
| MPG Control |
| Rigid Tapping |

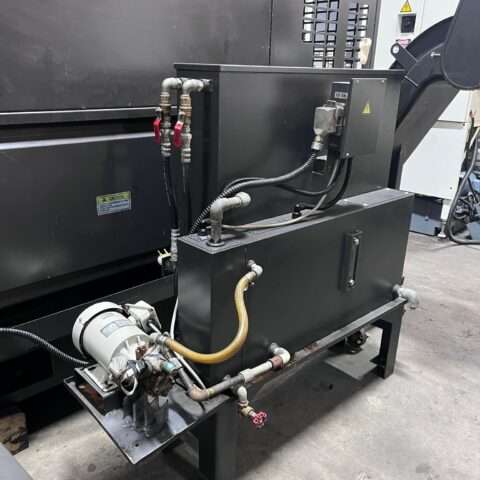

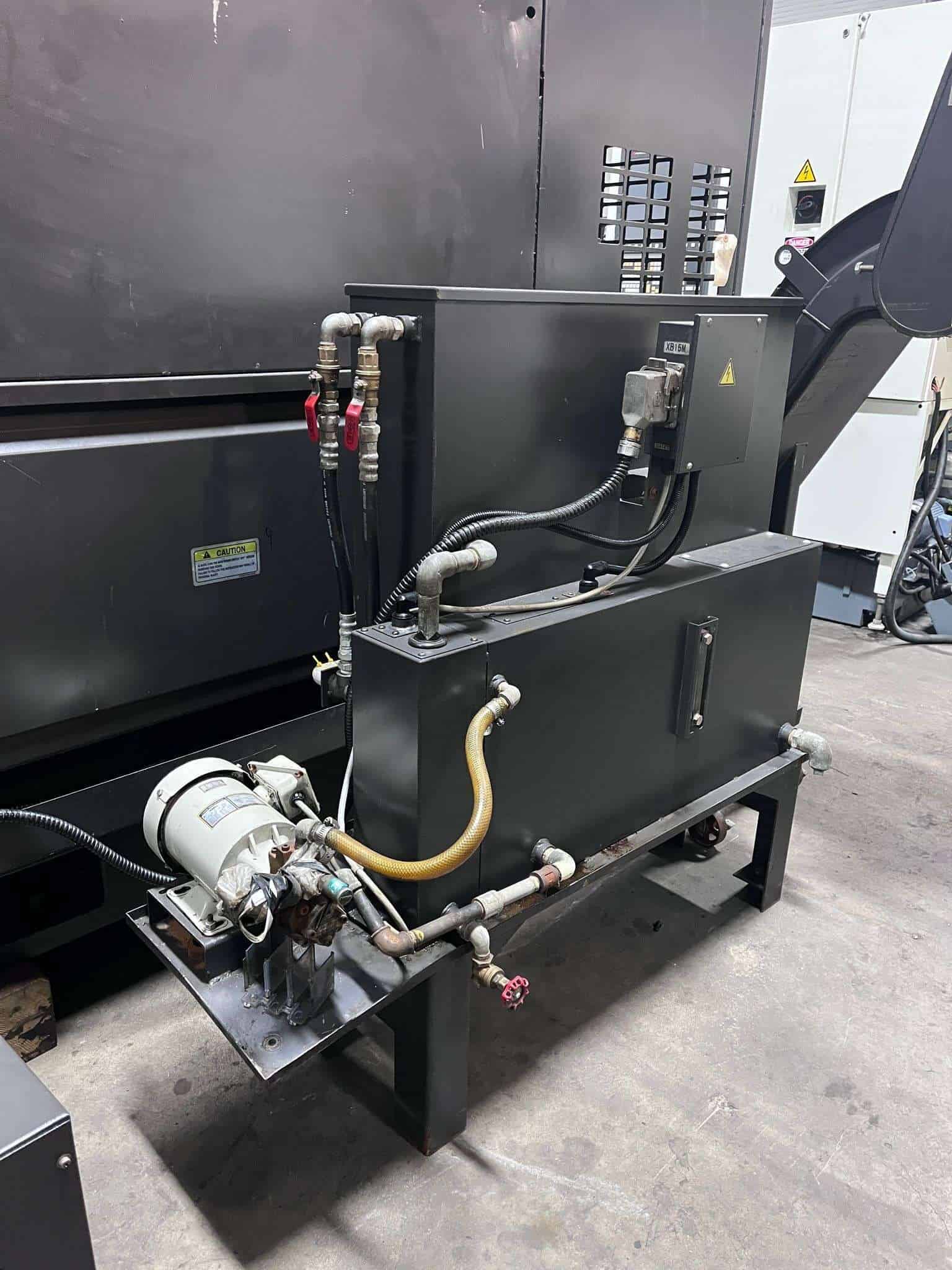

| Coolant System |
| Telescopic Way Covers |
| Automatic Lubrication System |
| Chip Conveyor |

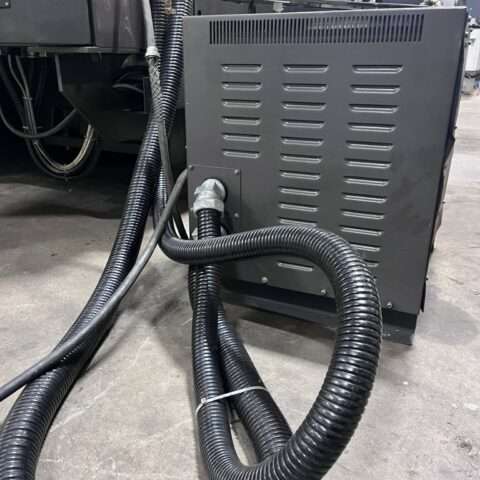

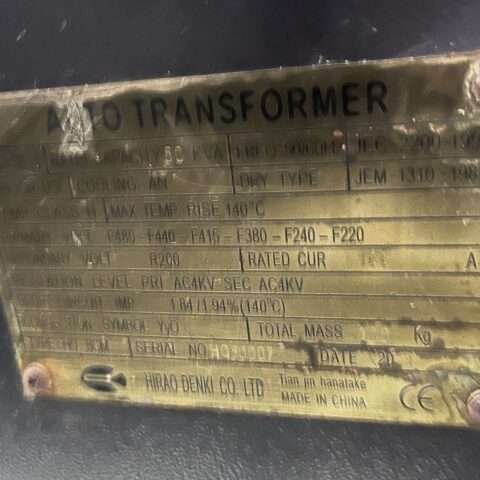

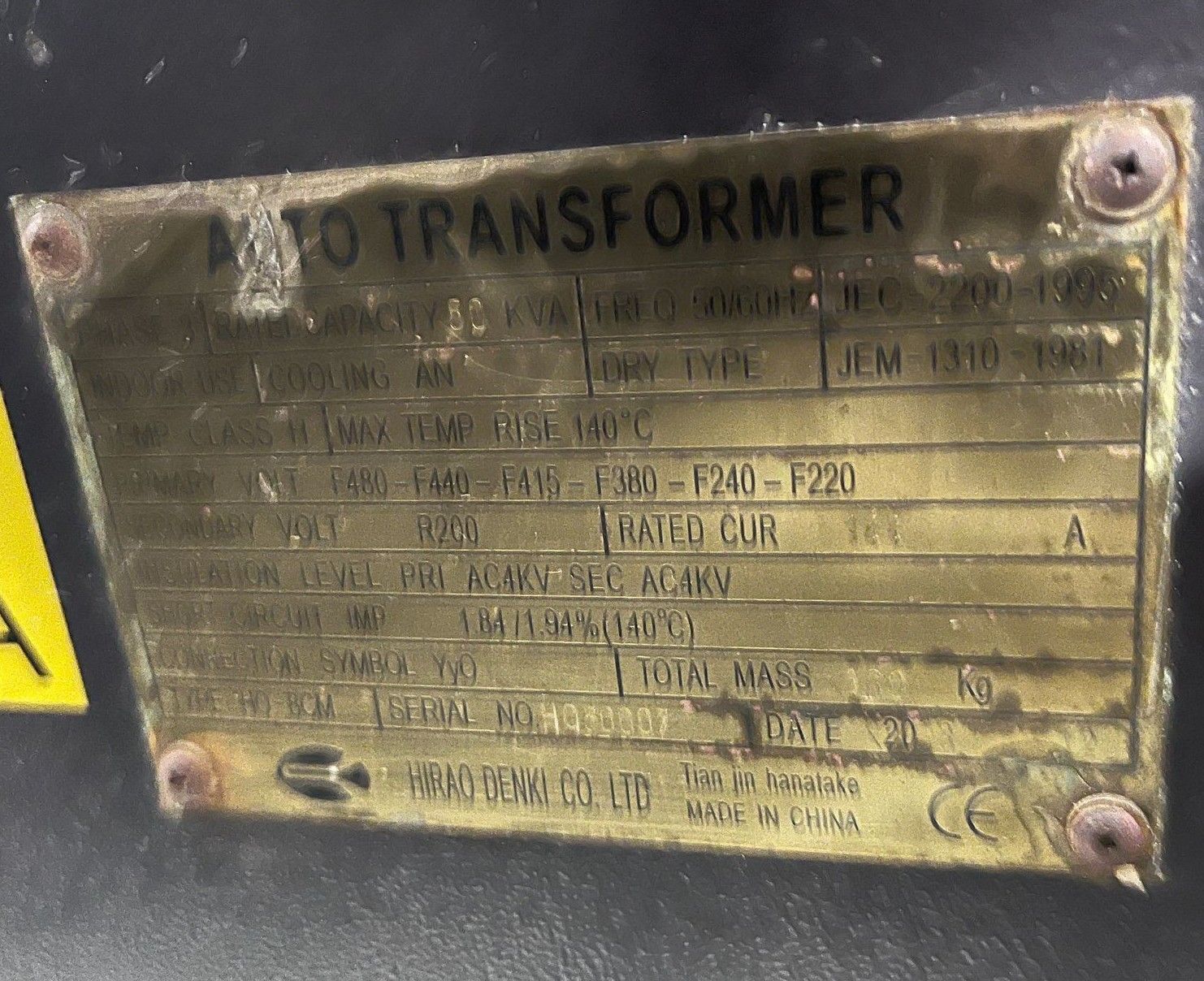

| Transformer |
| Books and Manuals |
| Travels: |
|---|
| X-Axis: 51.18″ |
| Y-Axis: 22.04″ |
| Z-Axis: 22.04″ |
| X, Y Axis Rapid Traverse rates: 1575 IPM |
| Z Axis Rapid Traverse rates: 1181 IPM |
| Cutting Feedrate: 1181 IPM |
| Spindle Nose to Table (Min.- Max.): 7.87″ – 29.92″ |
| Table: |
|---|
| Length: 51.18″ |
| Width: 22.04″ |
| T-Slot no. & Width: 5 X 0.7″ |
| Max Weight on Table: 2204 lbs |
| Spindle: |
|---|
| Spindle Type: Gear Head |
| Taper Size: CAT-50 Big Plus |
| Speed Range: 6,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 32 Station Side Mounted |
| Max Tool Weight: 44 lbs |
| Max Tool Length: 15.74″ |
| Max Tool Diameter: 5.31″ |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |

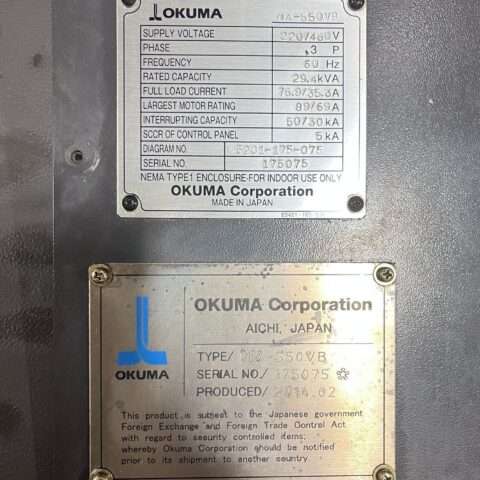

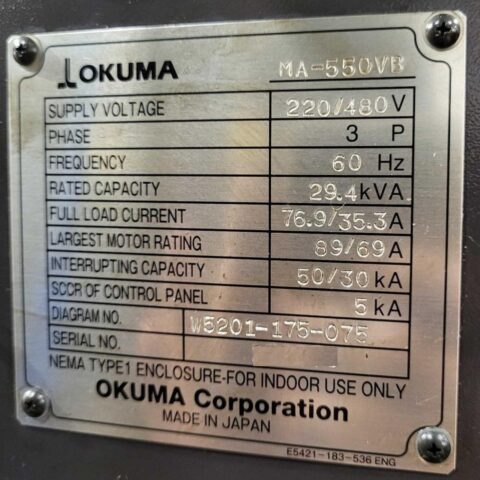

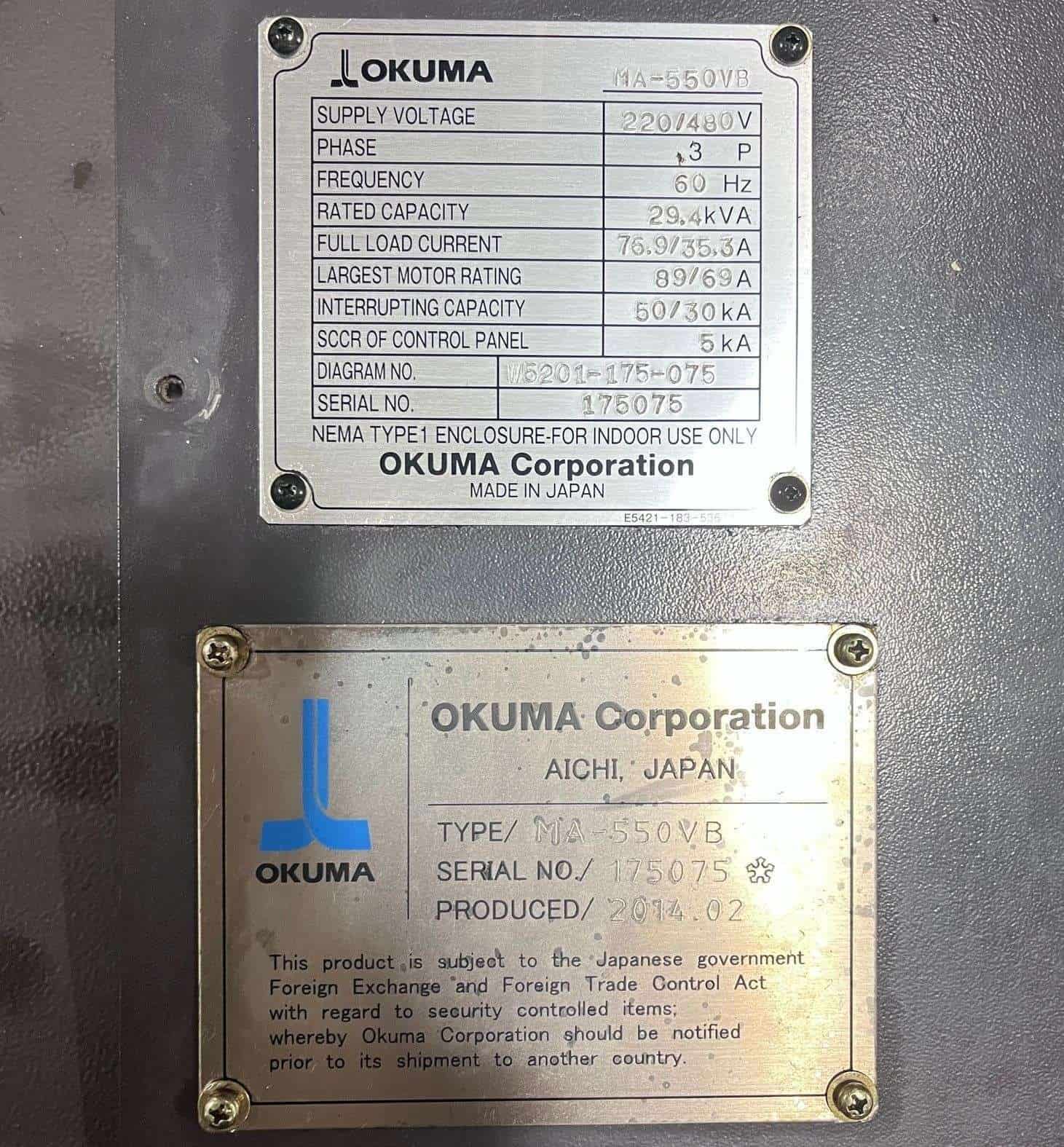

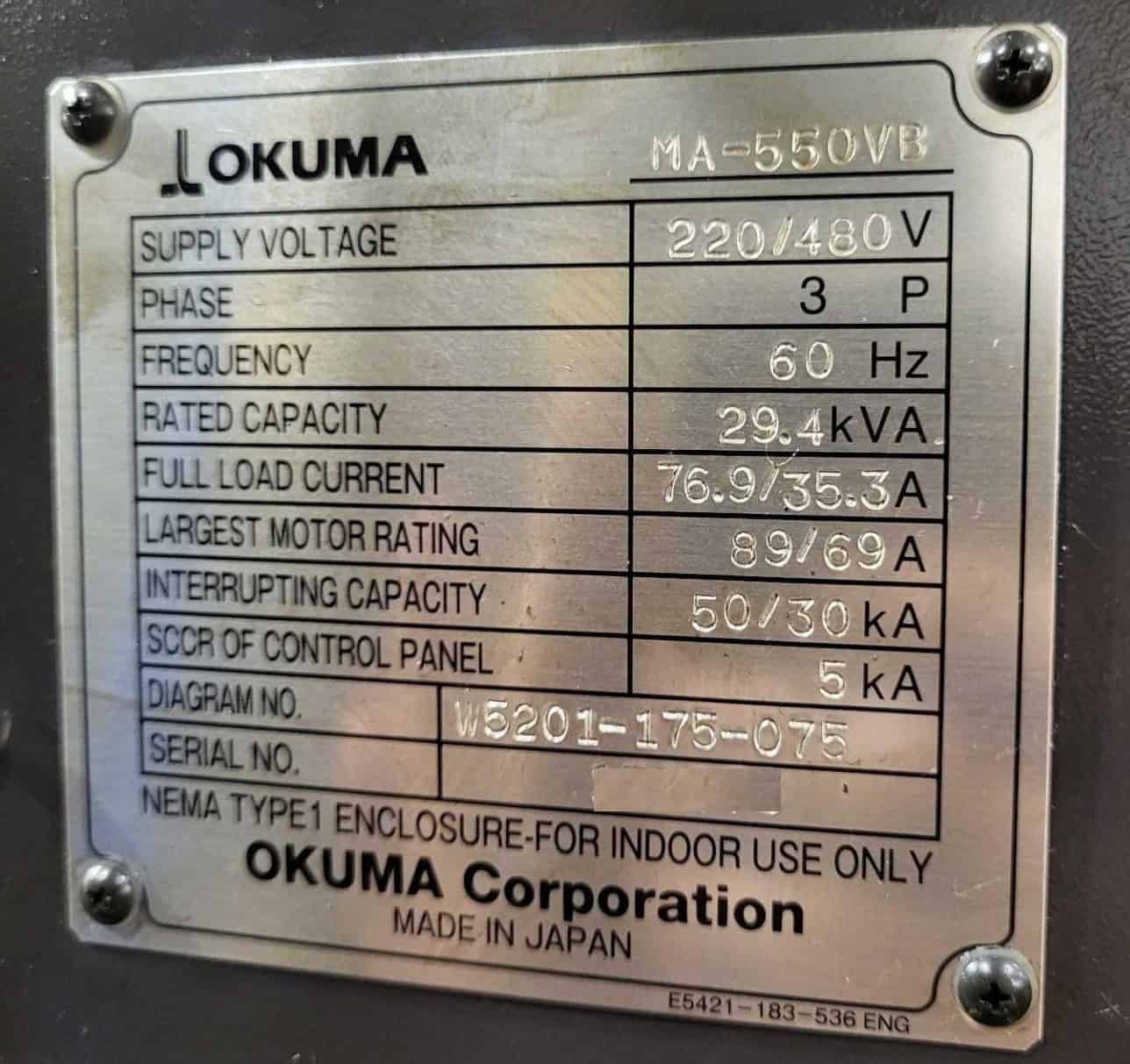

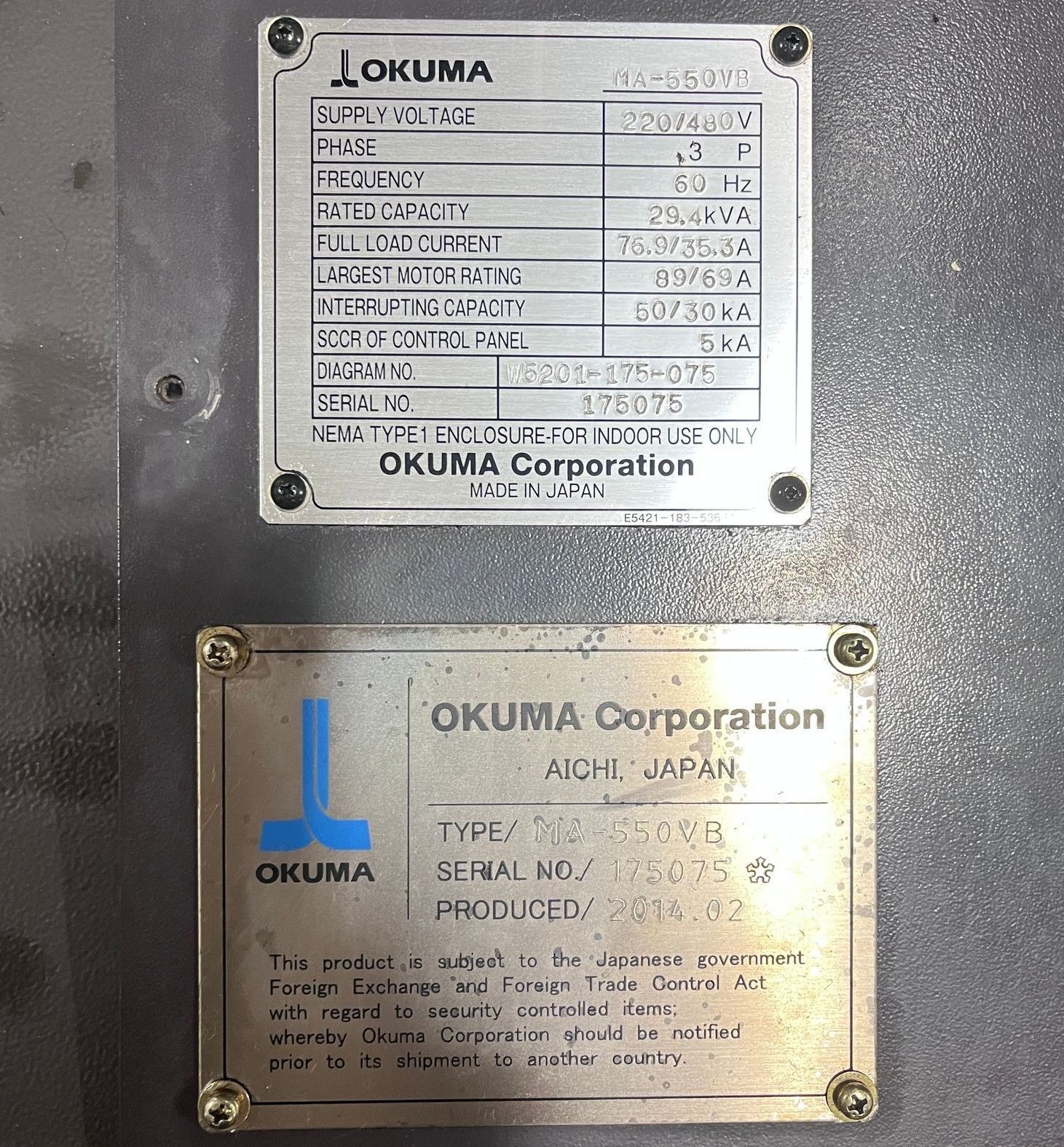

| Power: 440v/220v / 29.4kva / 3-Phase |
| Overall Dimensions: 126″ x 112″ x 114″ High |
| Weight: 29,960 lbs. Approx. |
