*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

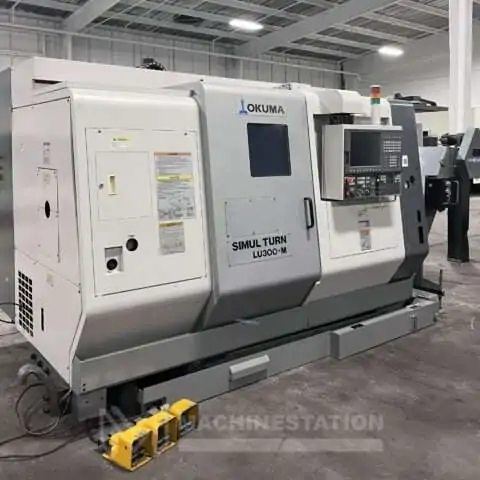

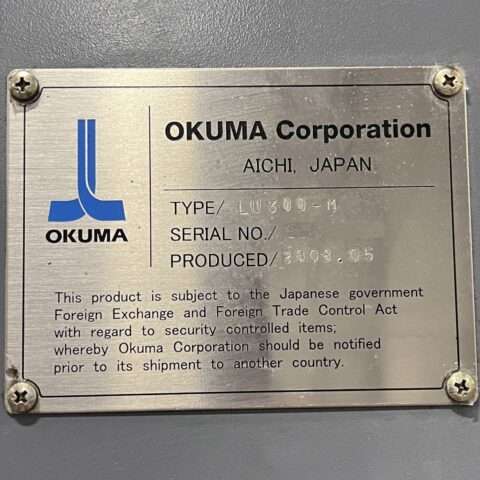

| Make: | Okuma |

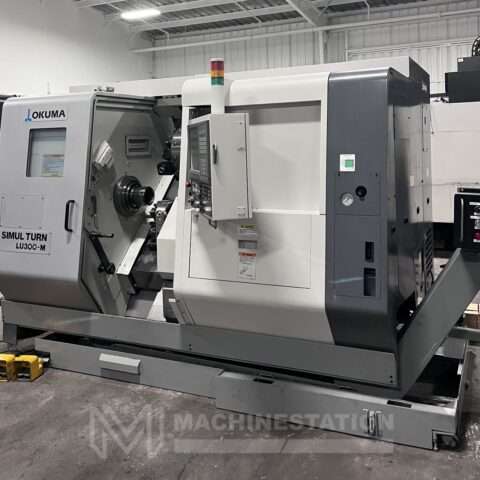

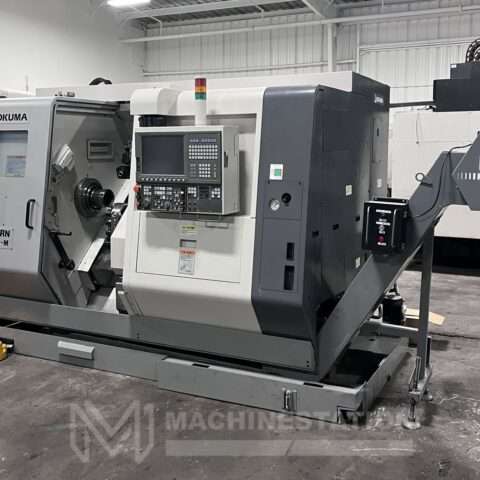

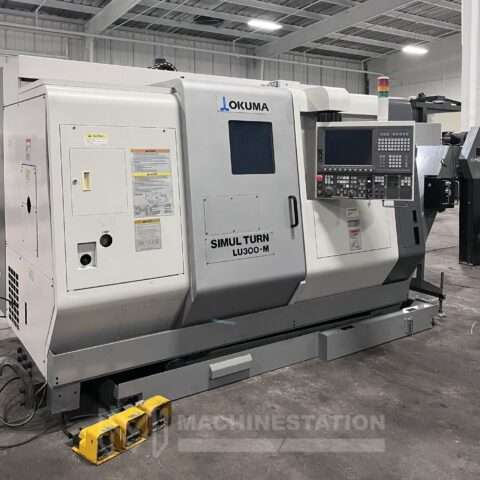

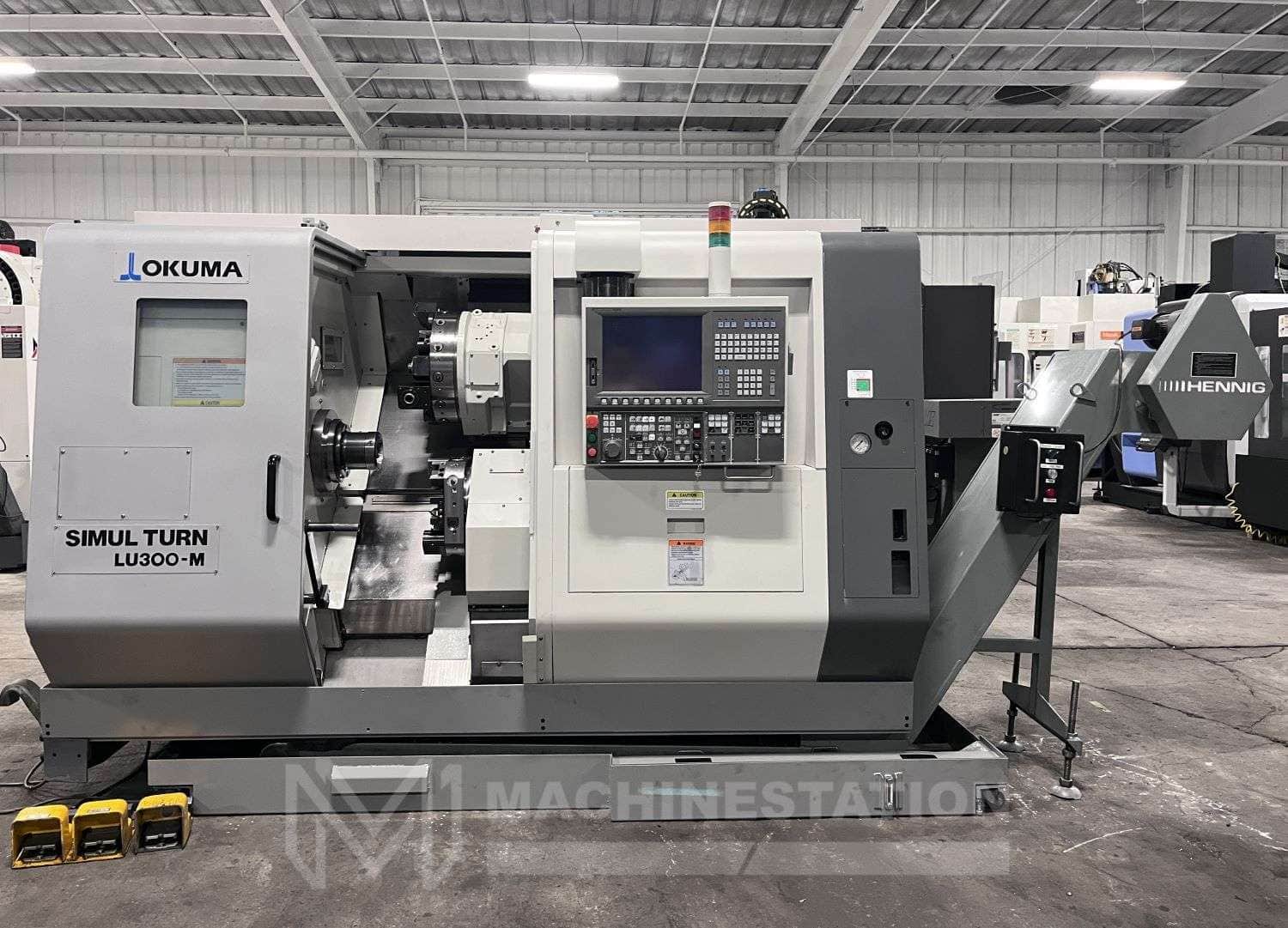

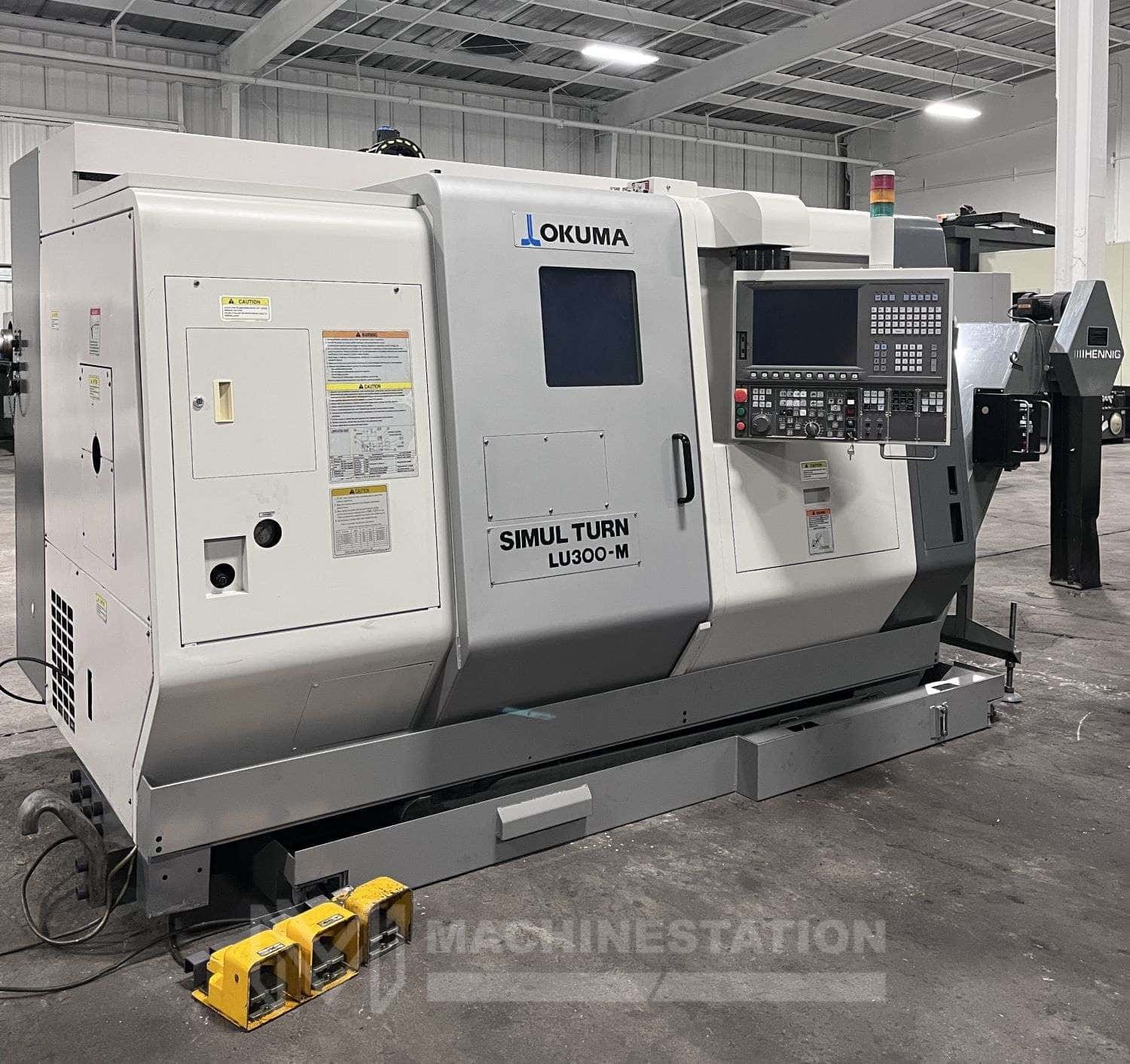

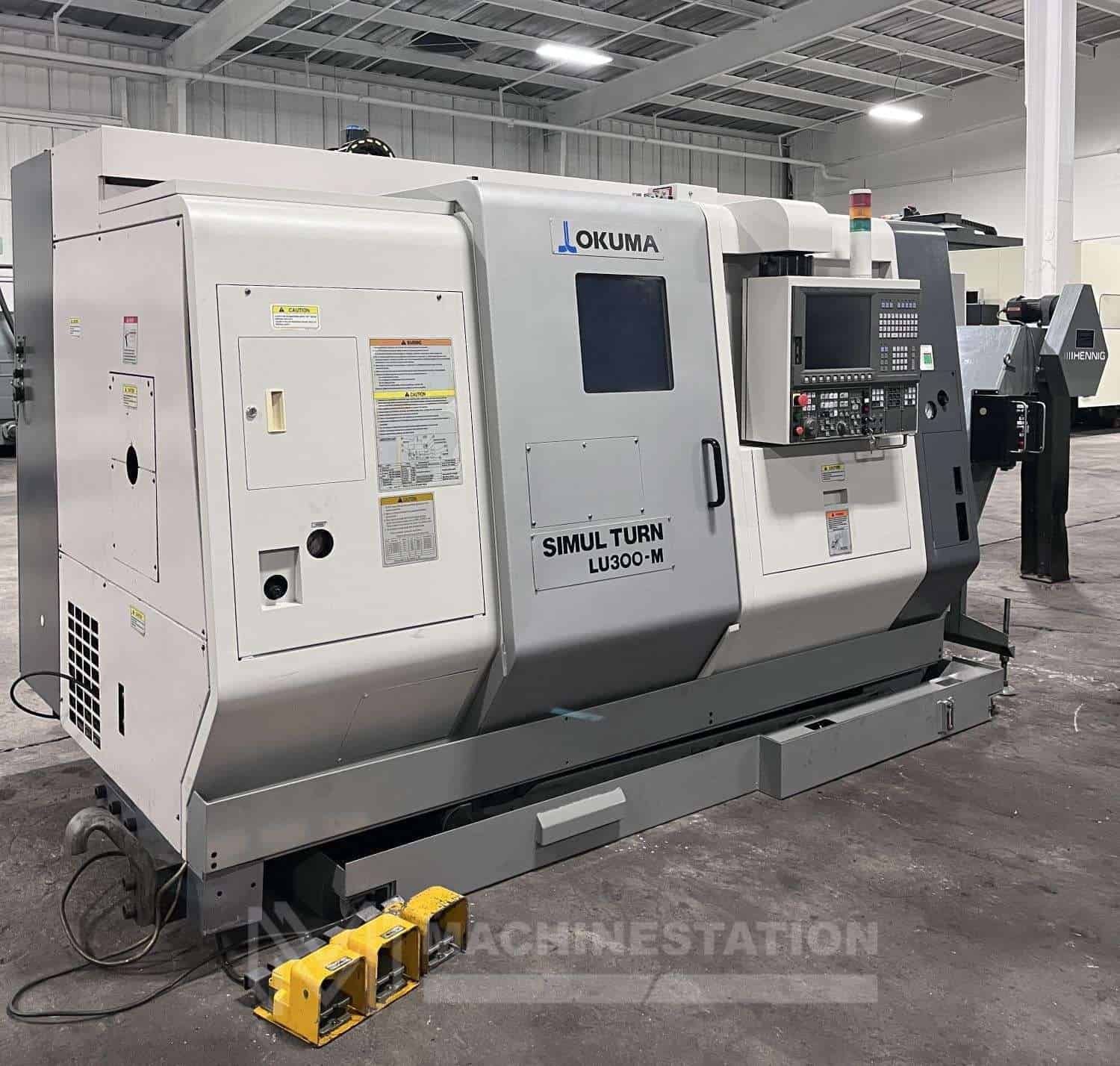

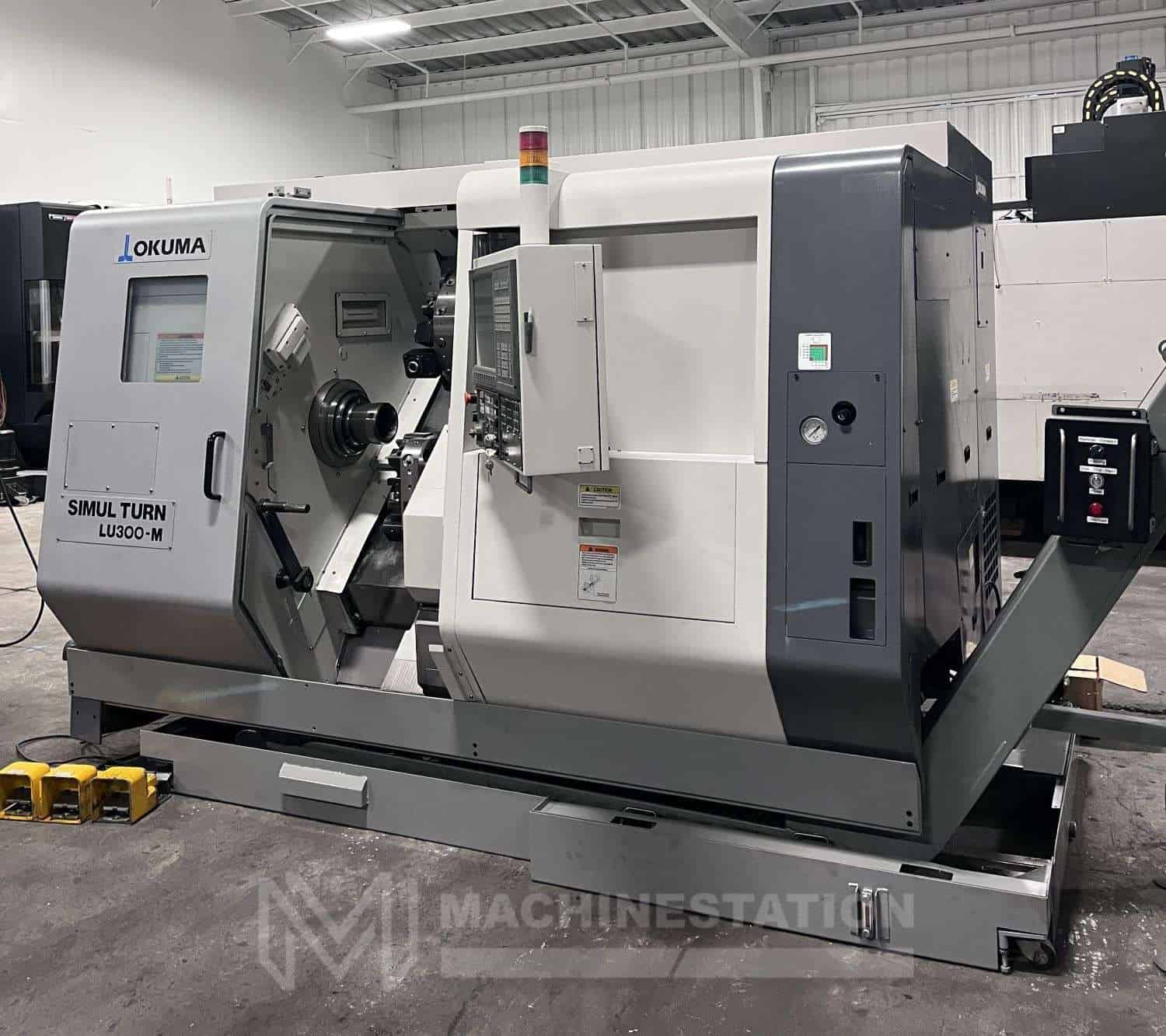

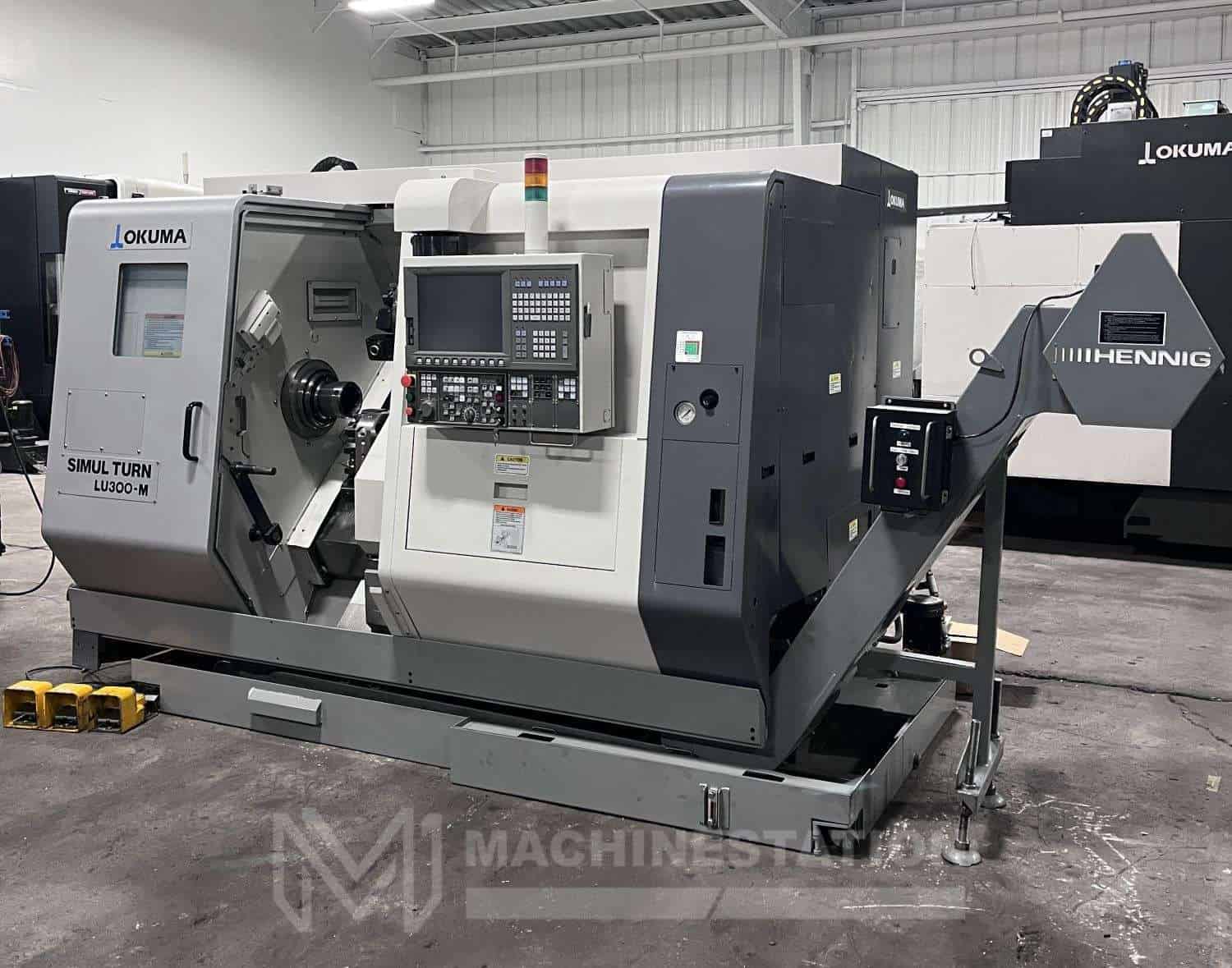

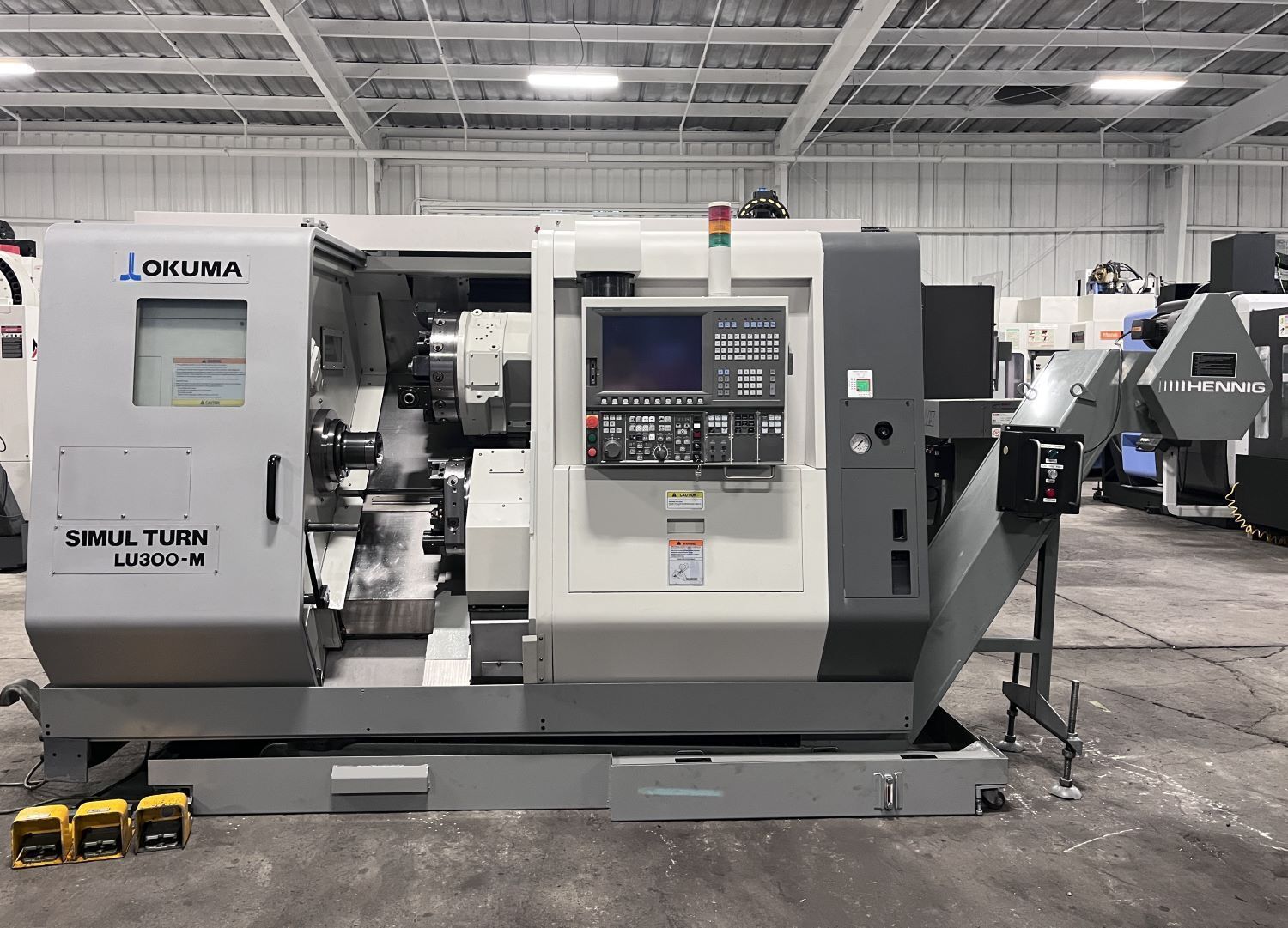

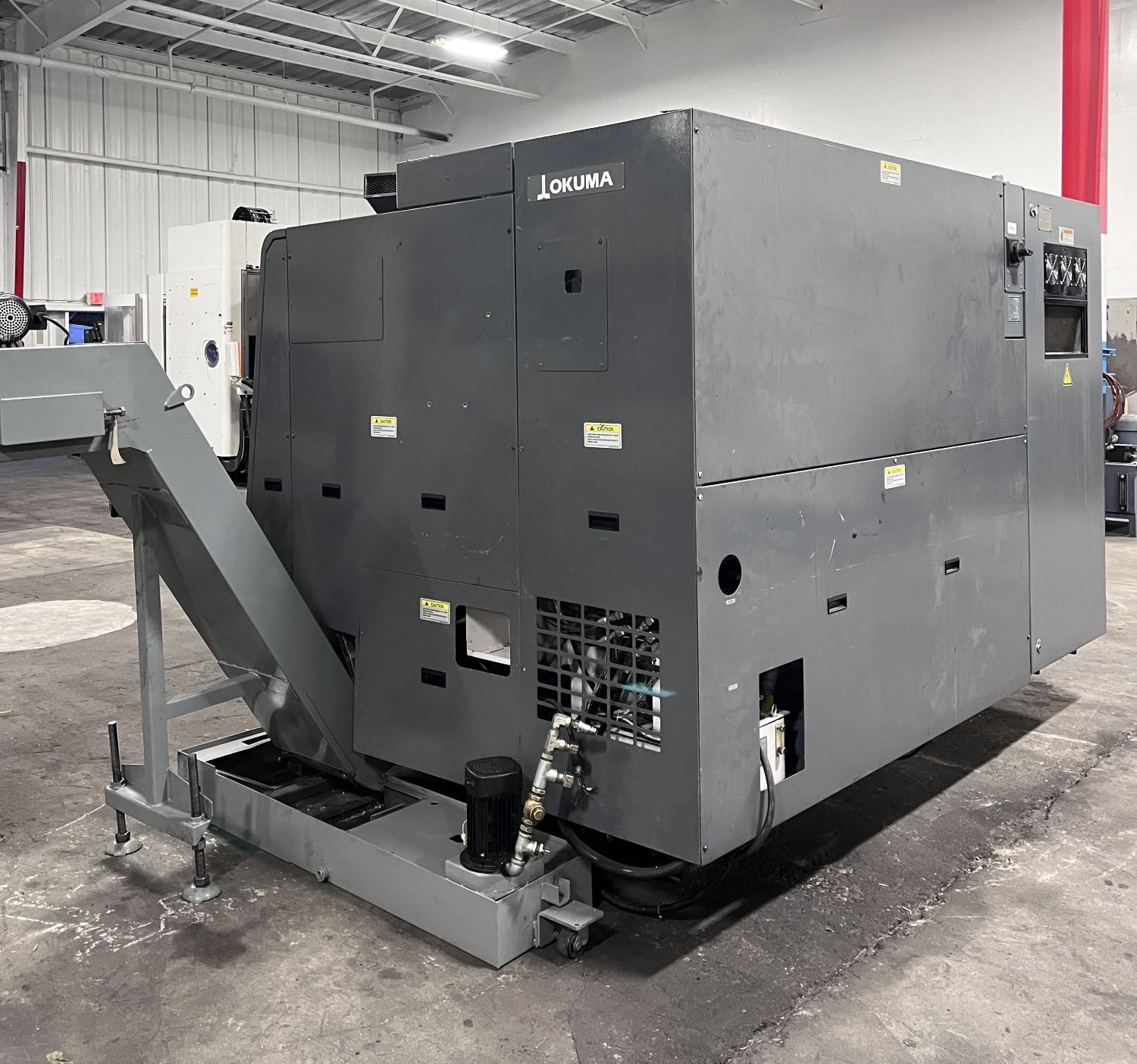

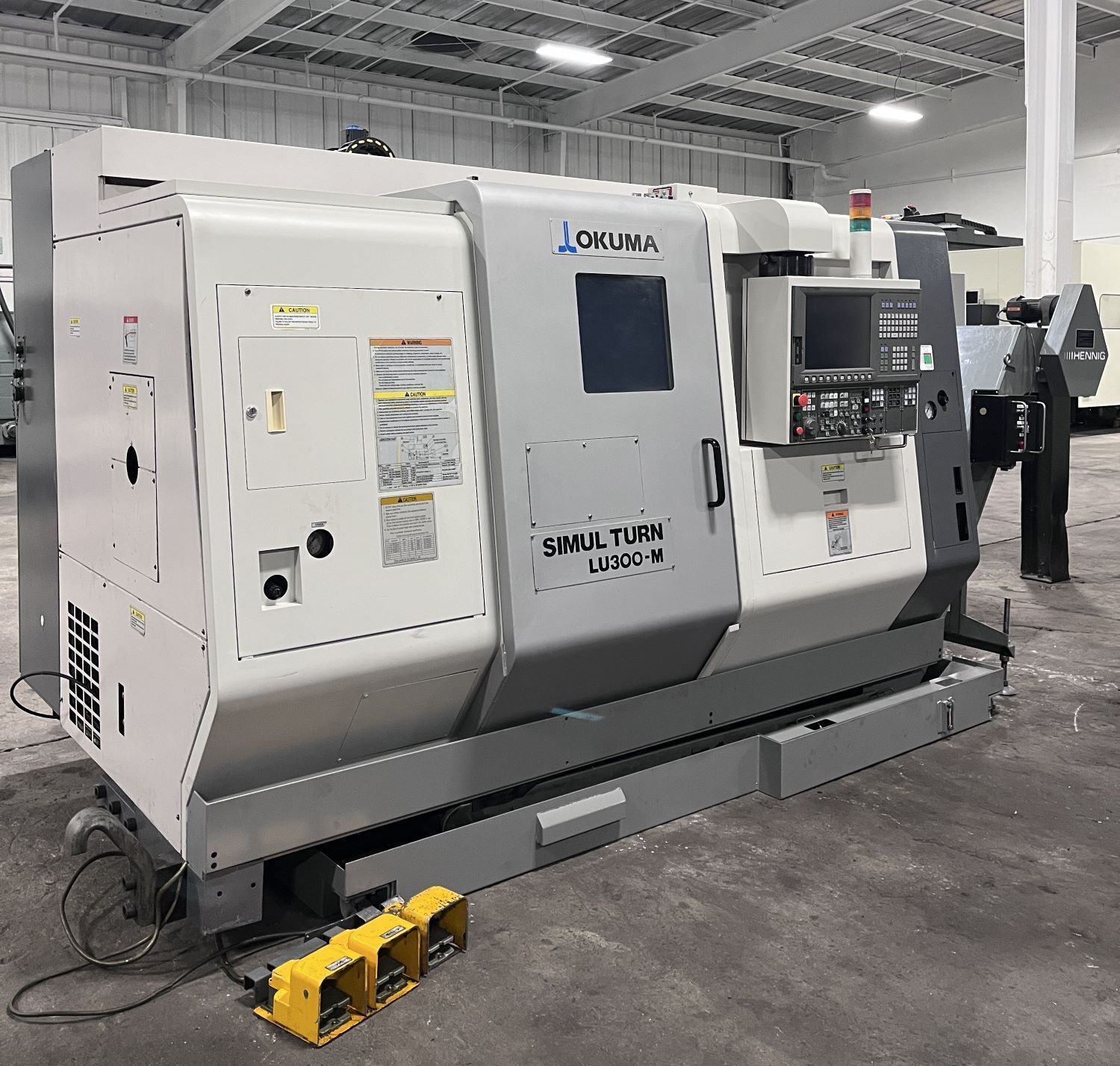

| Model: | Simul Turn LU300-M |

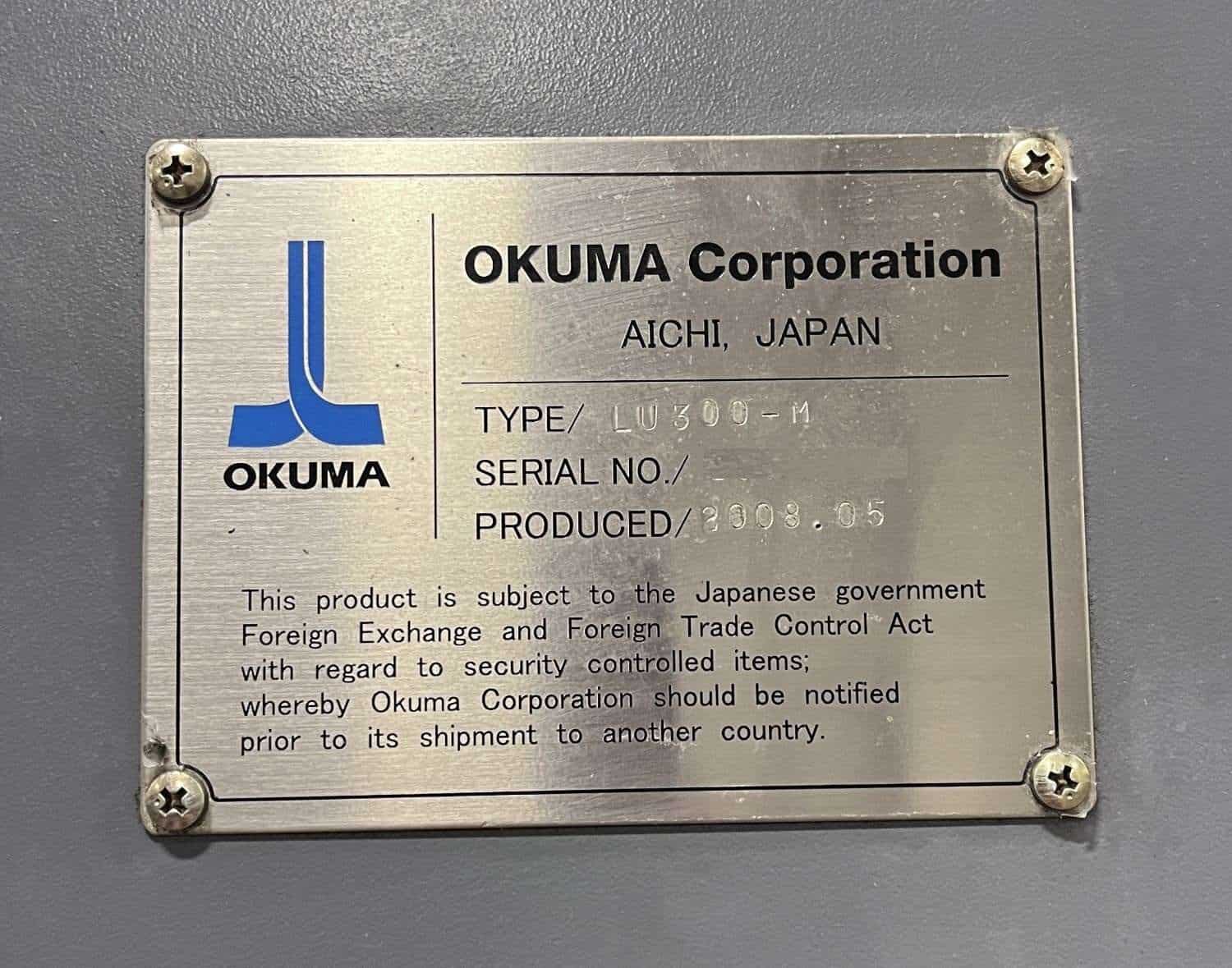

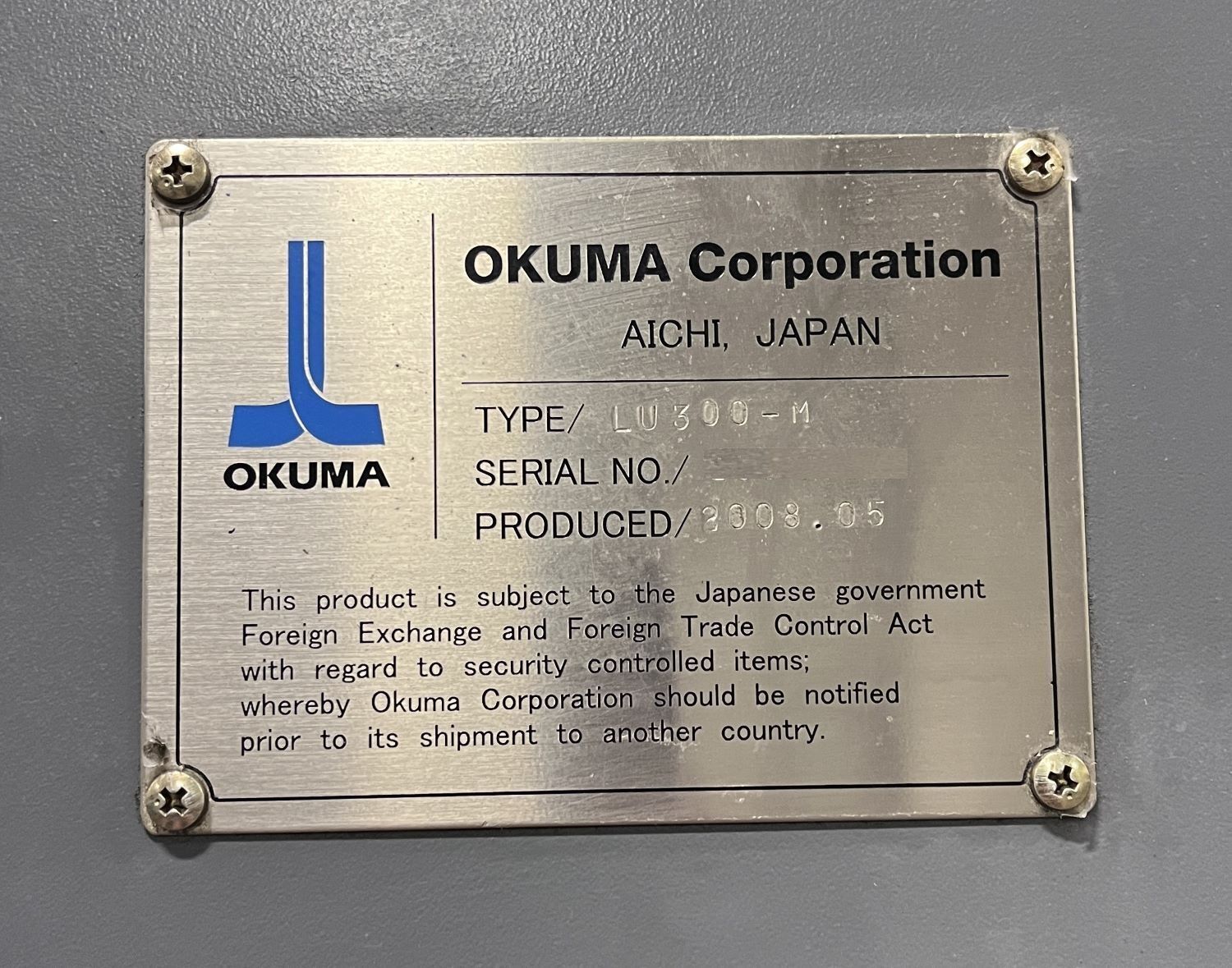

| Year: | 2008 |
| Condition: | Used – Good |
| Equipped With: |
|---|

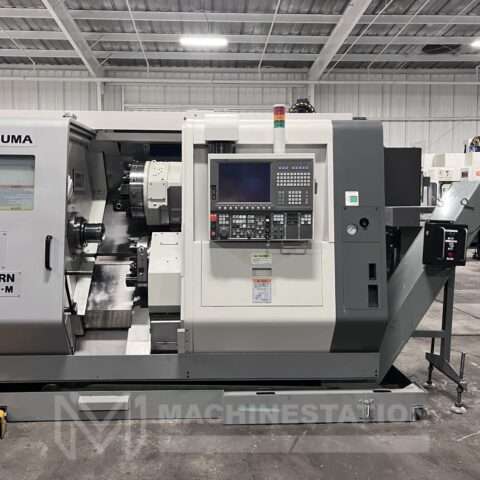

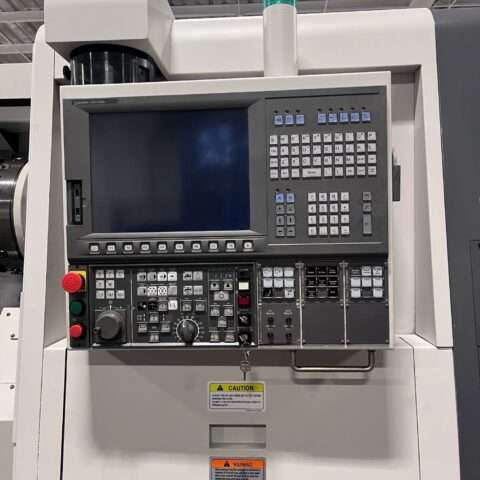

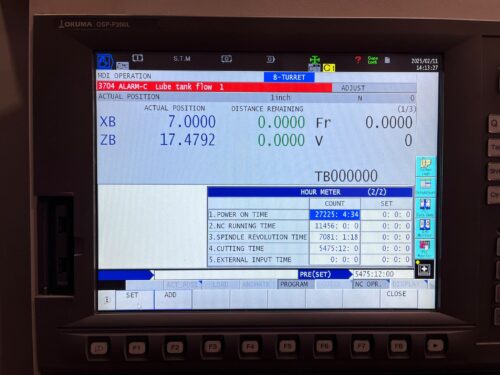

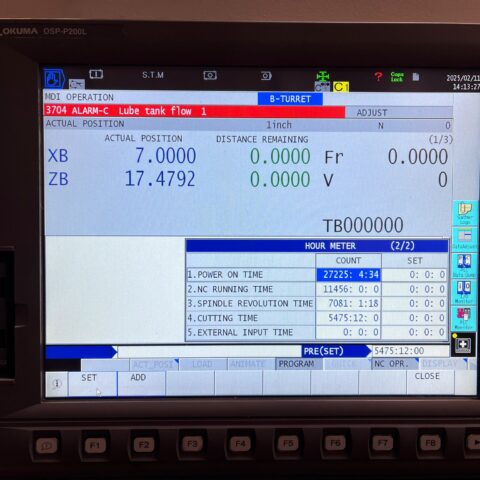

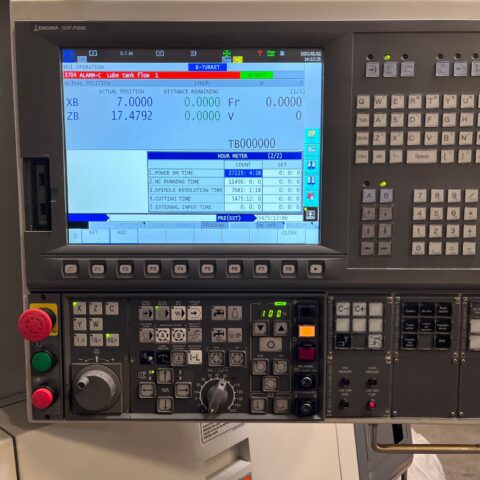

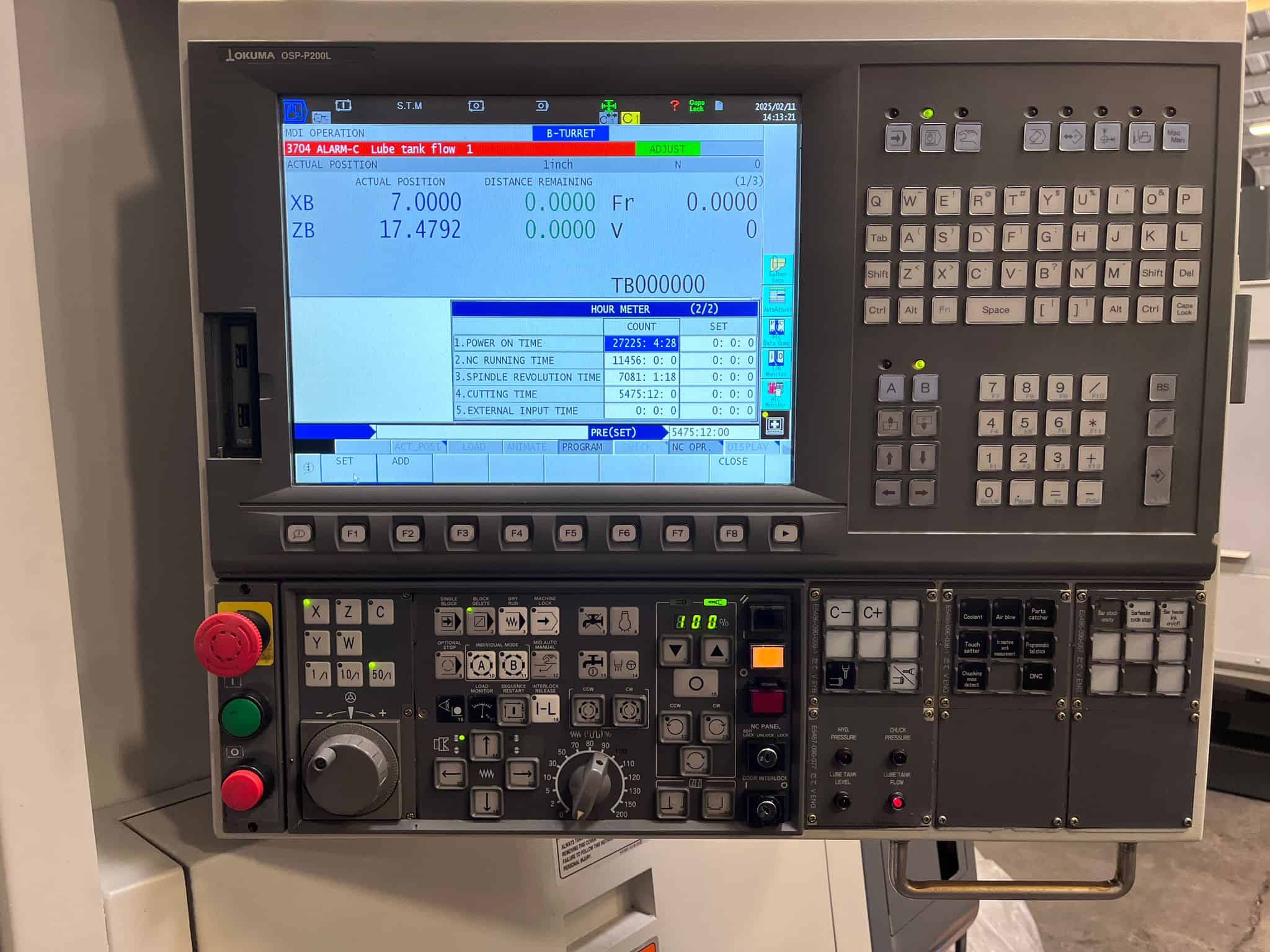

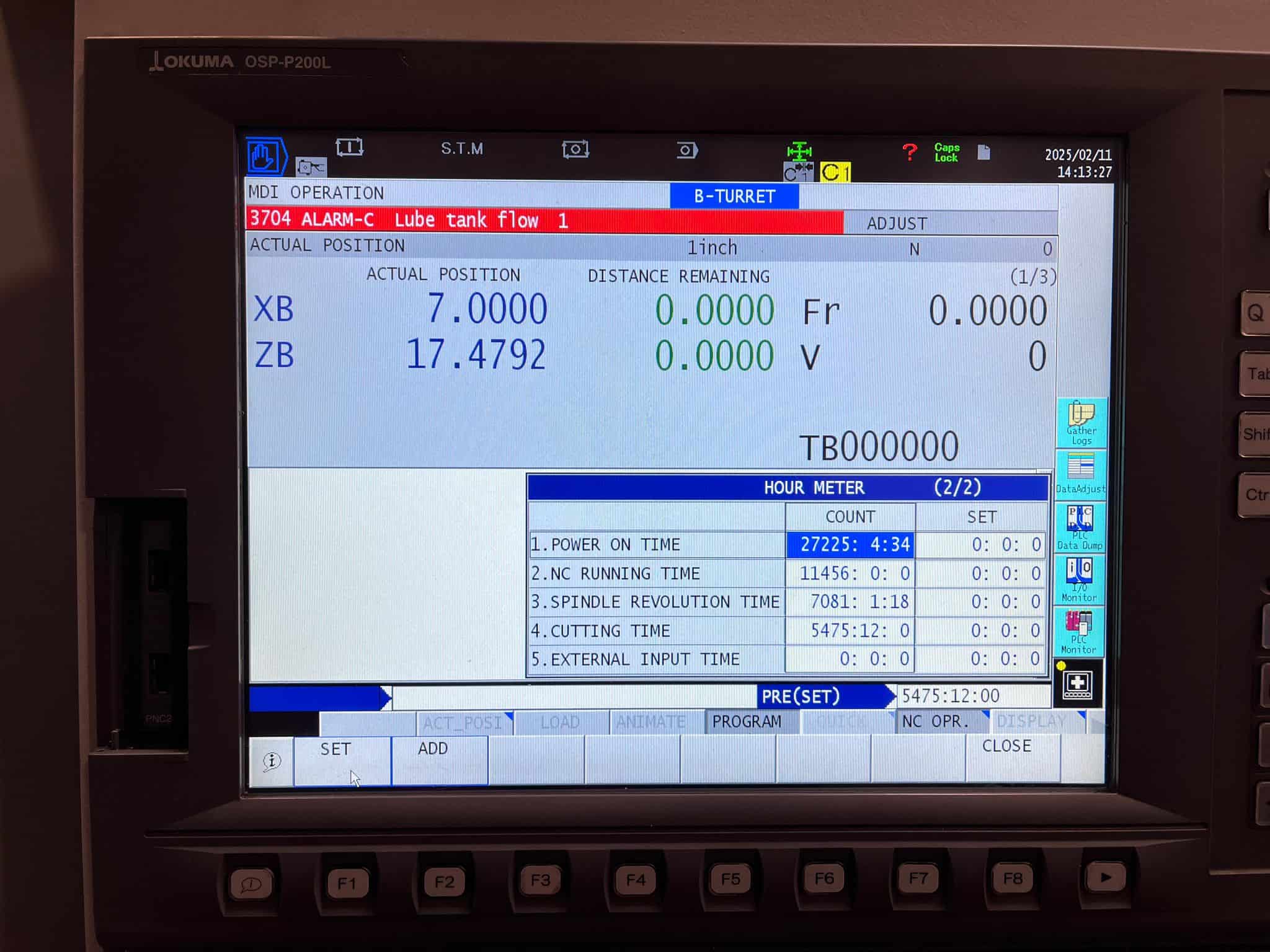

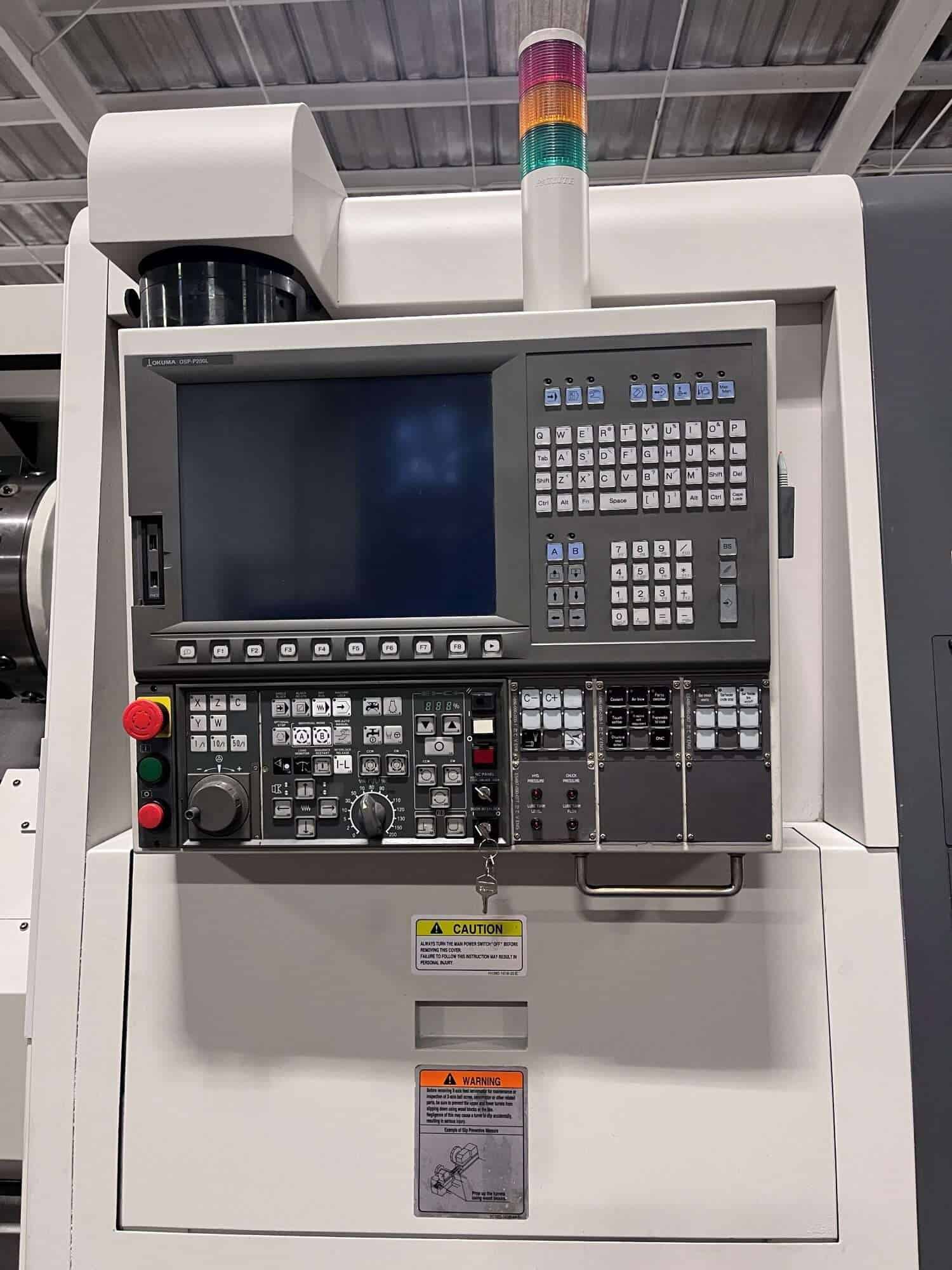

| Okuma OSP-P200L CNC Control |

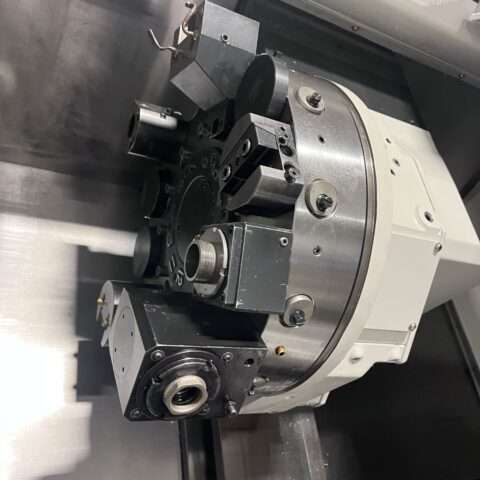

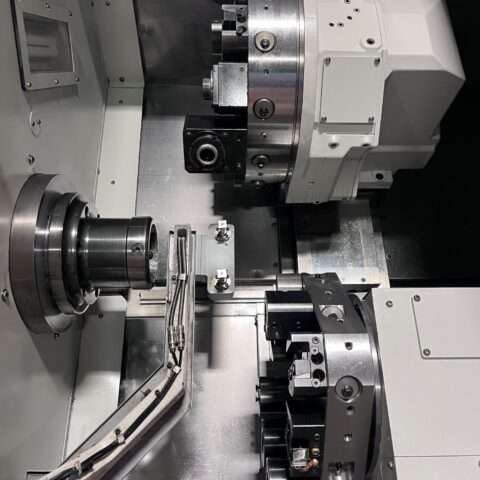

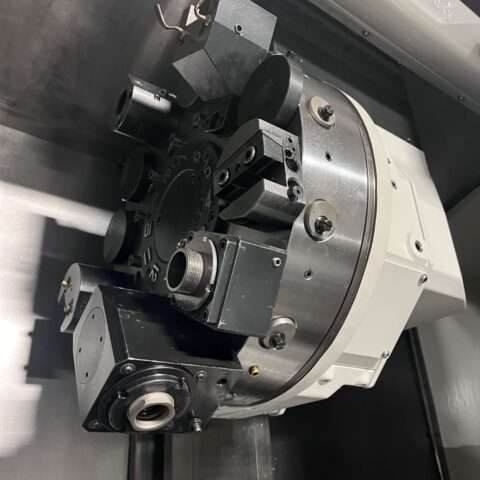

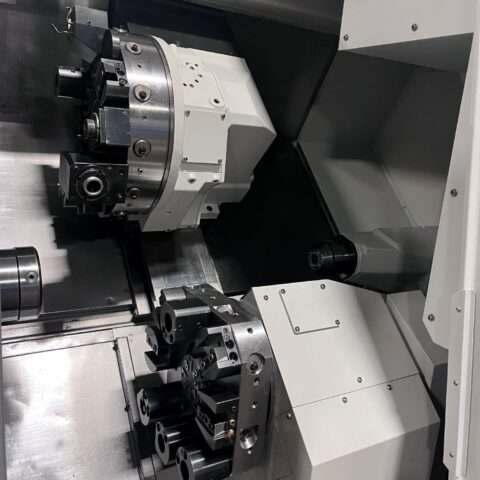

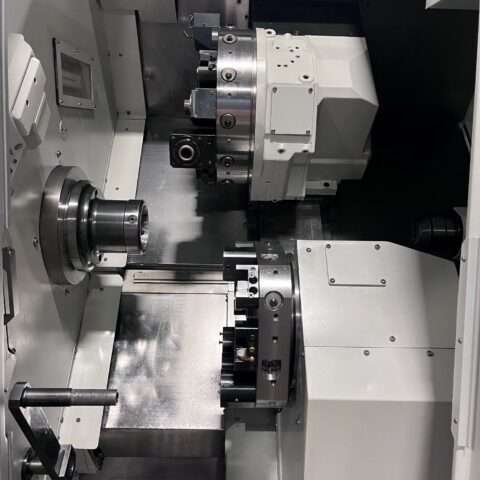

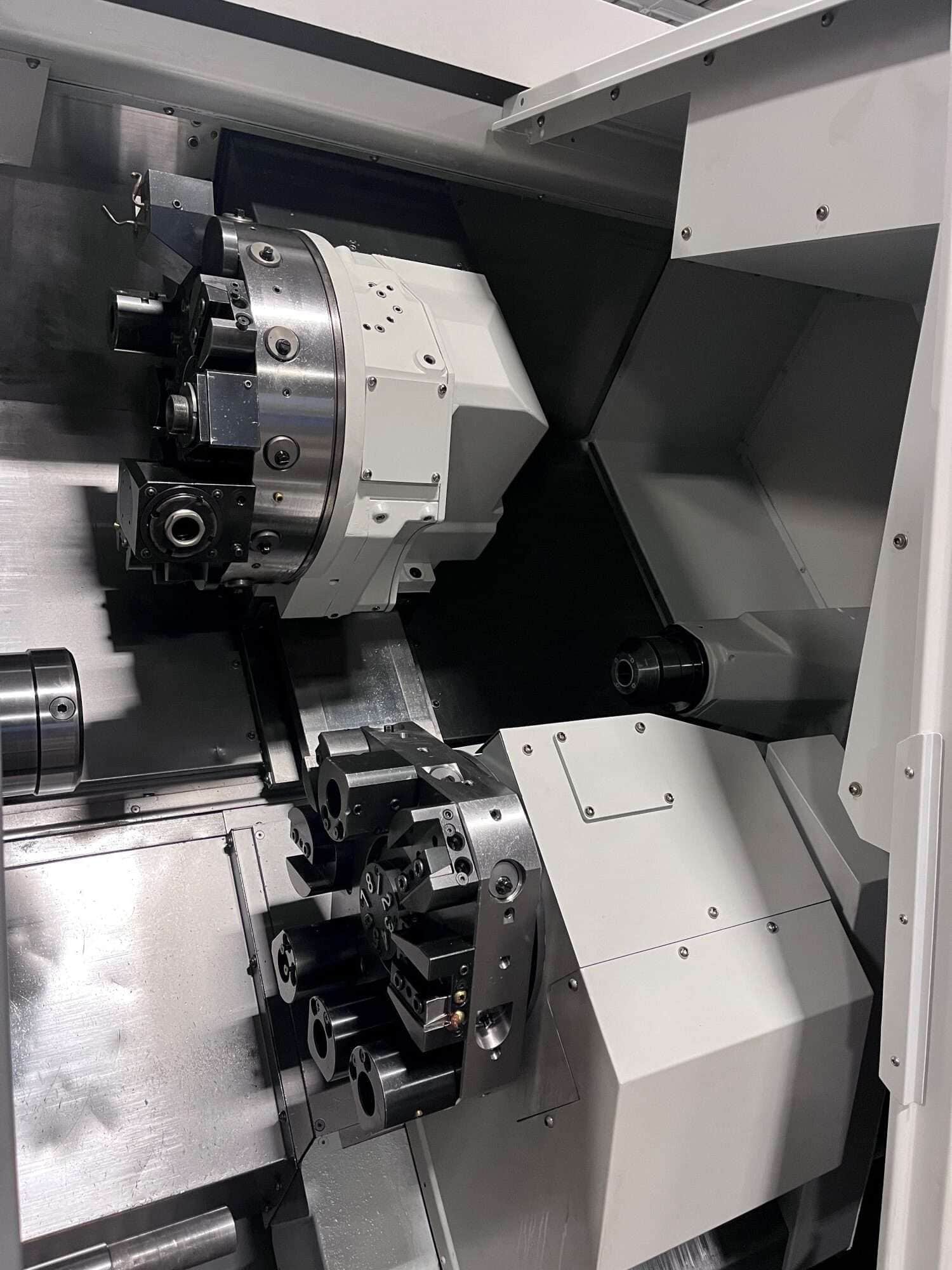

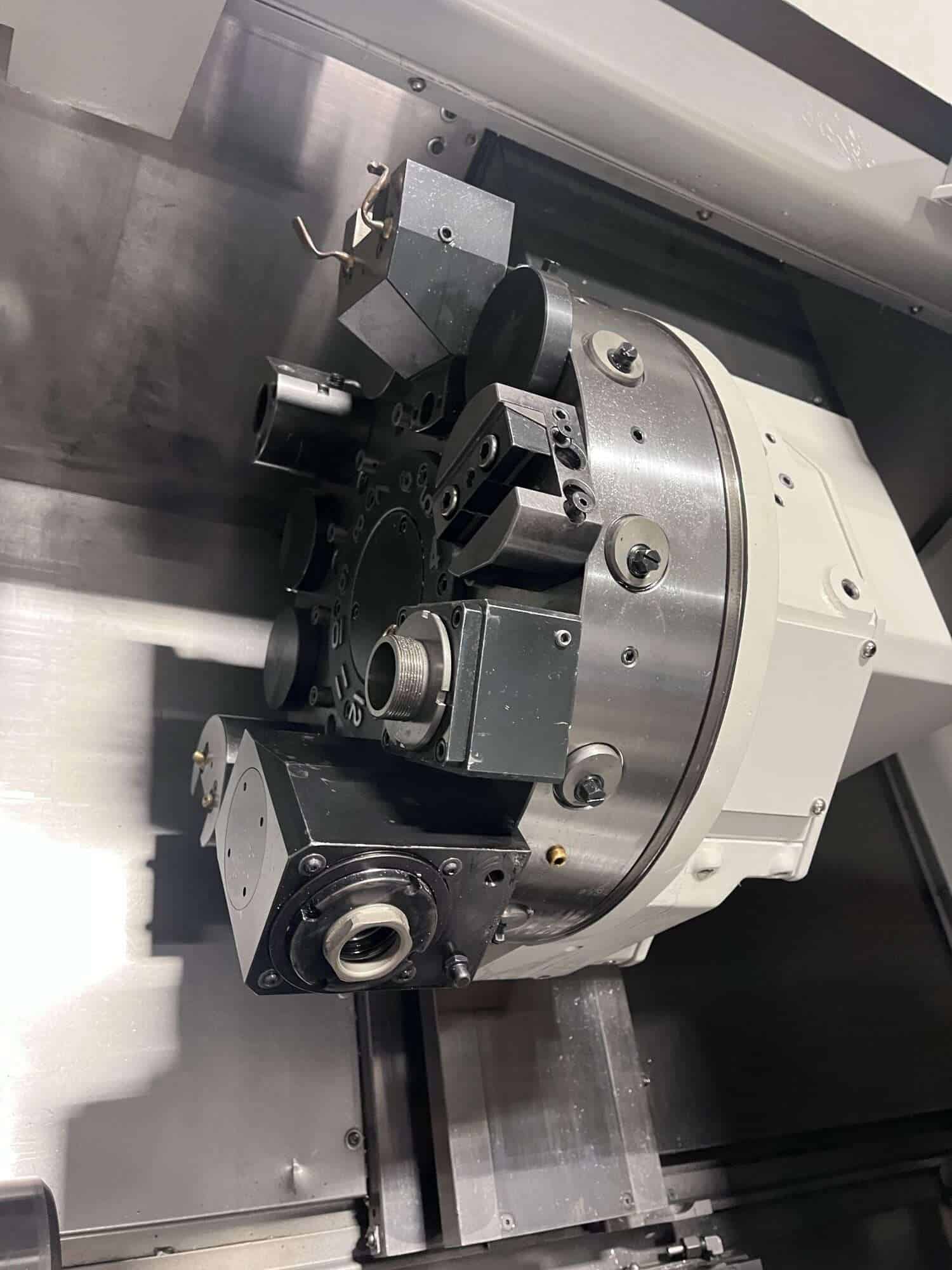

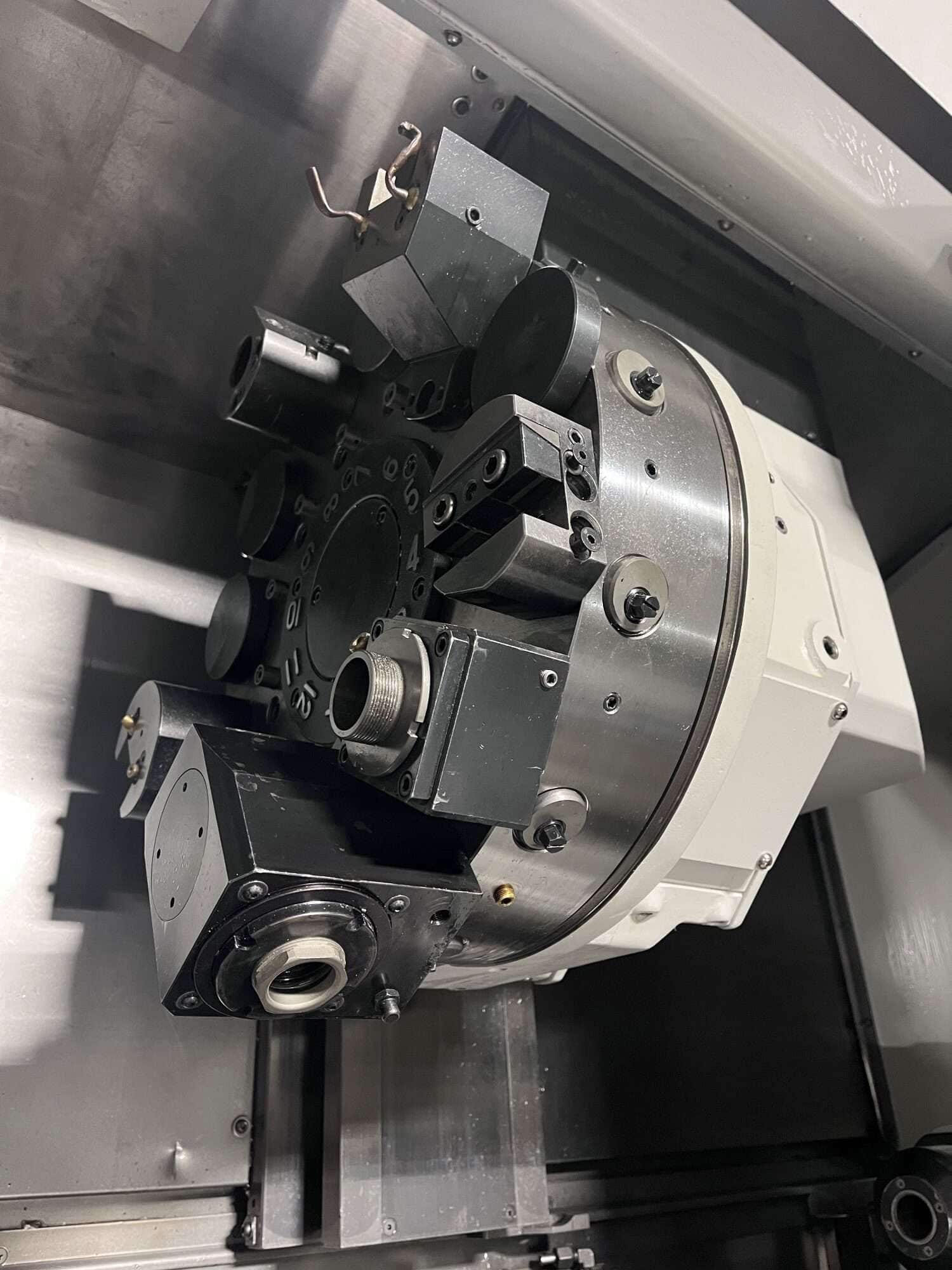

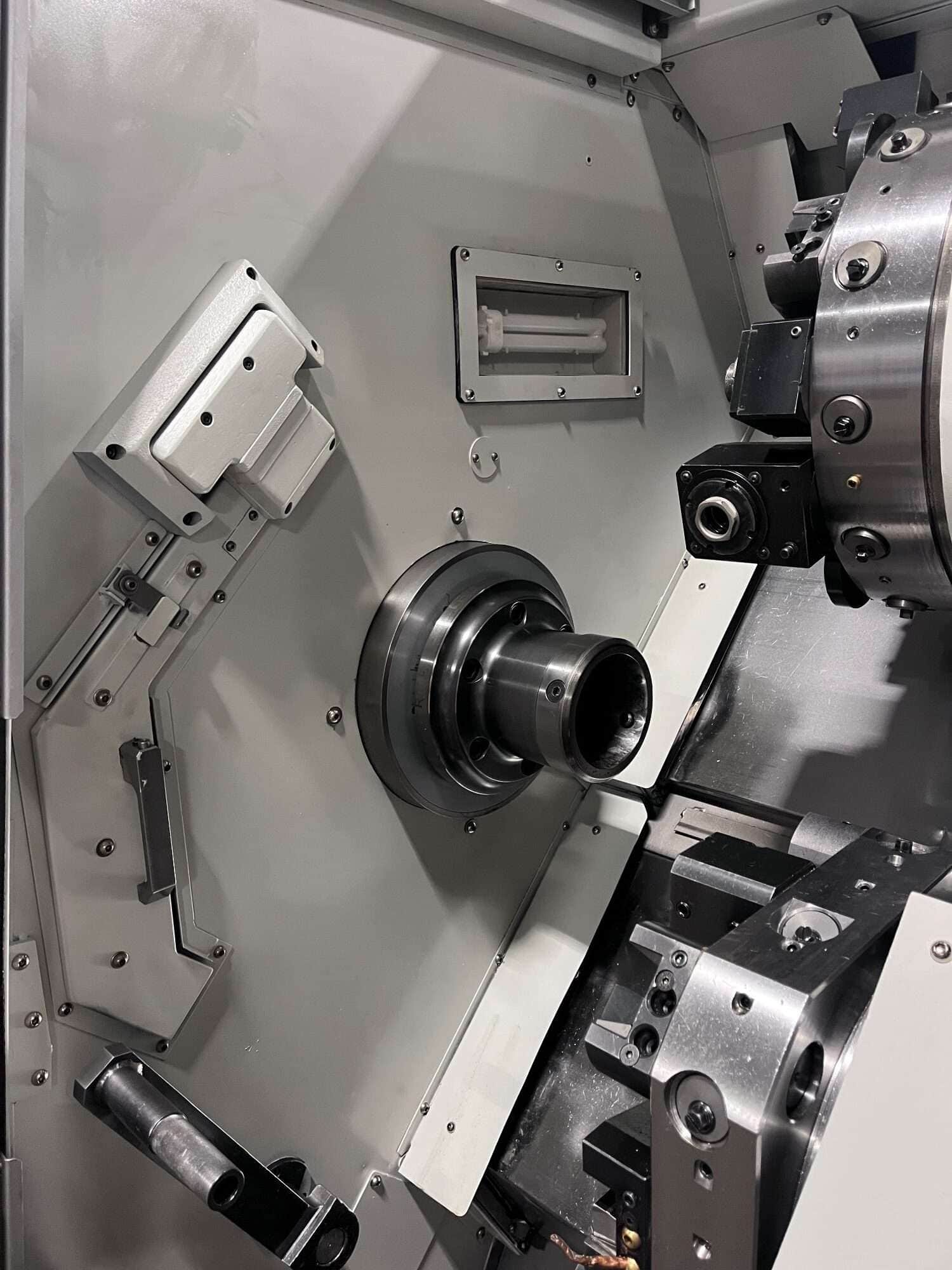

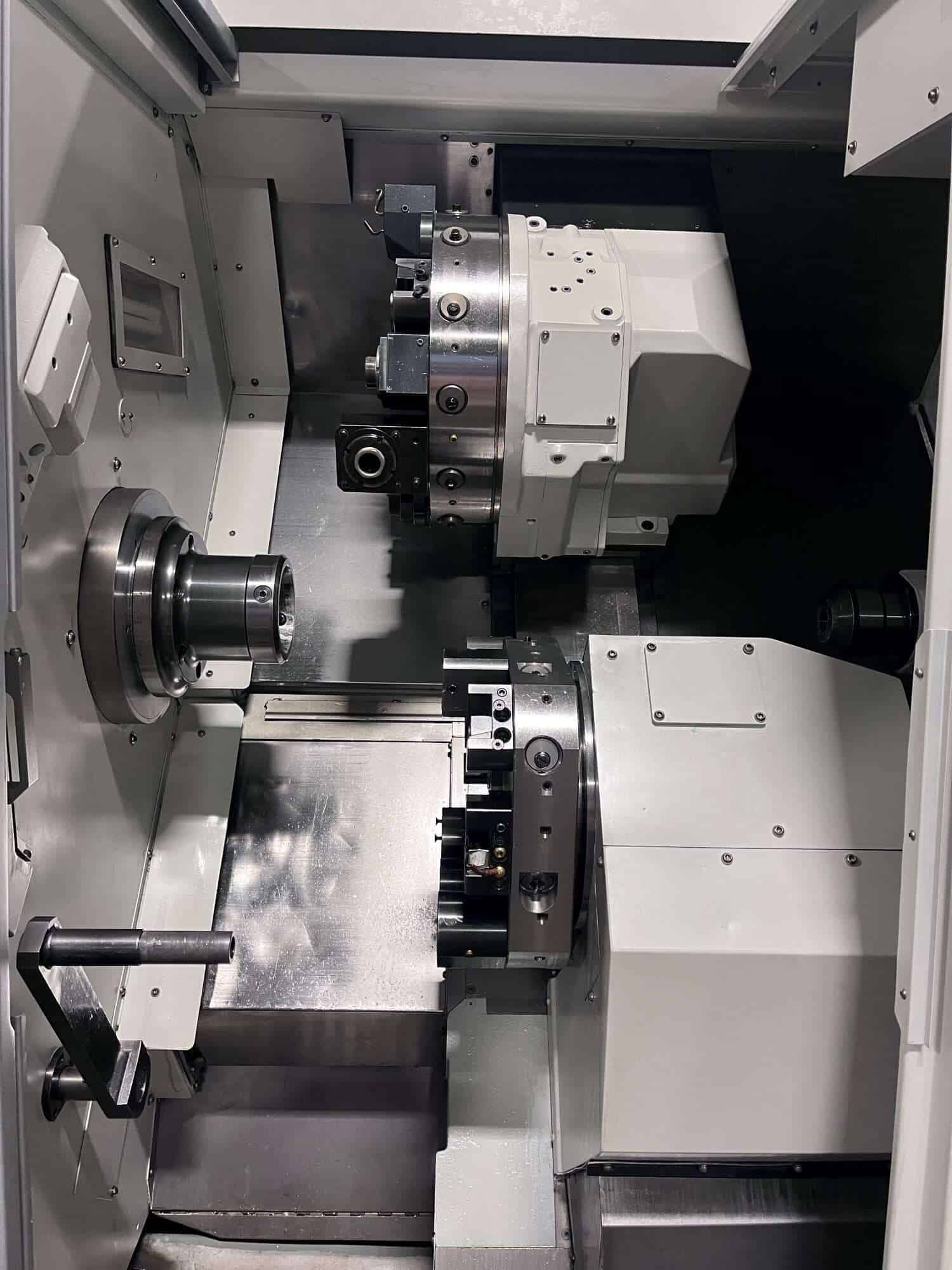

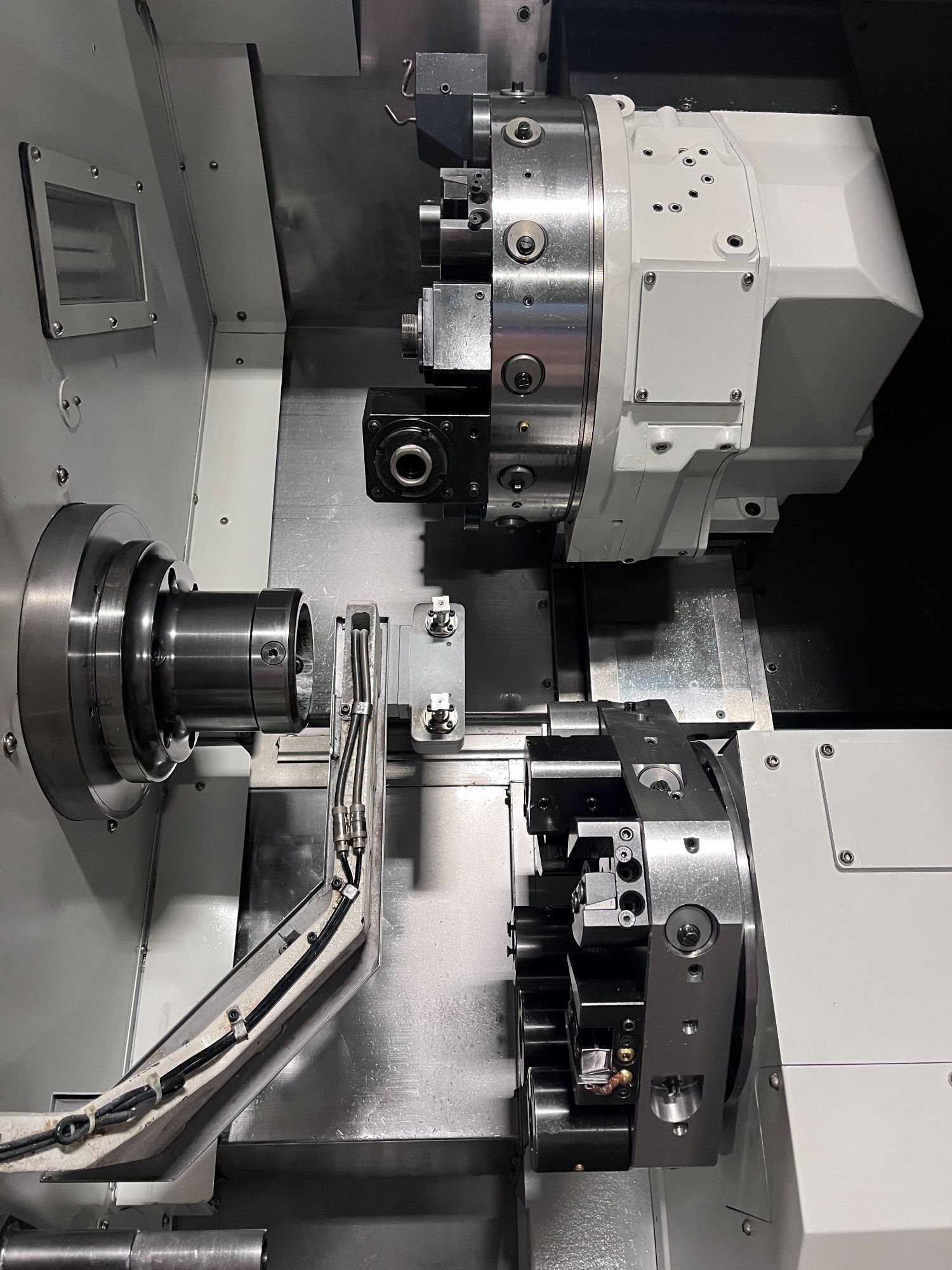

| 12 Station Upper Live Tool Turret with Tool Holders |

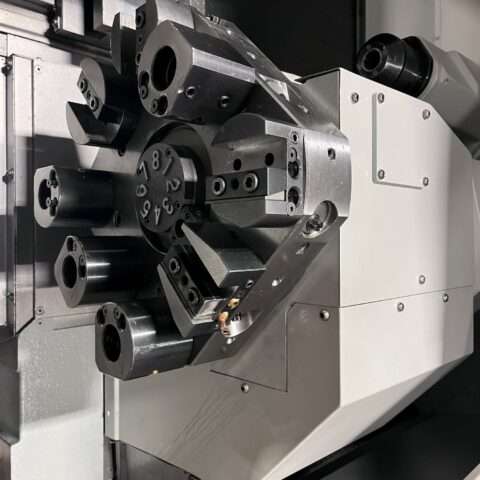

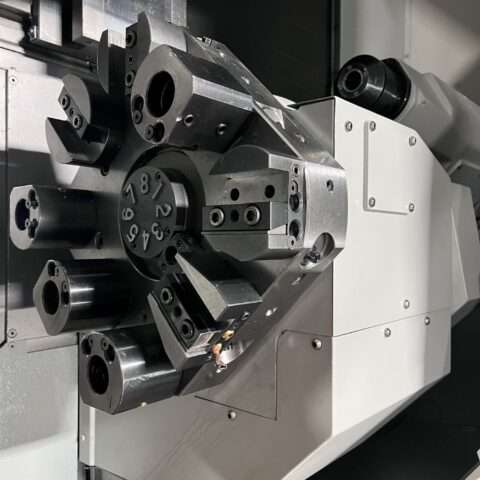

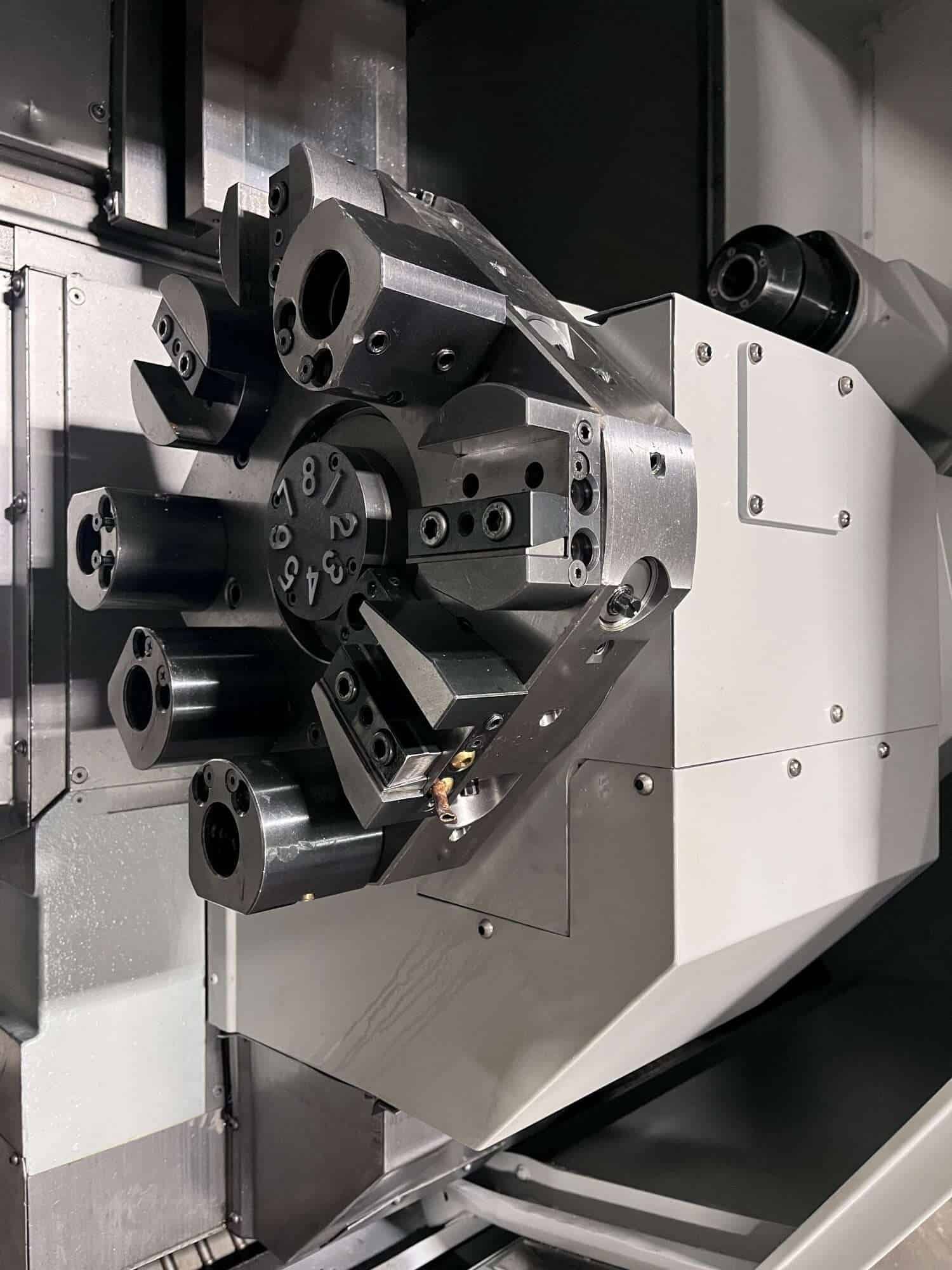

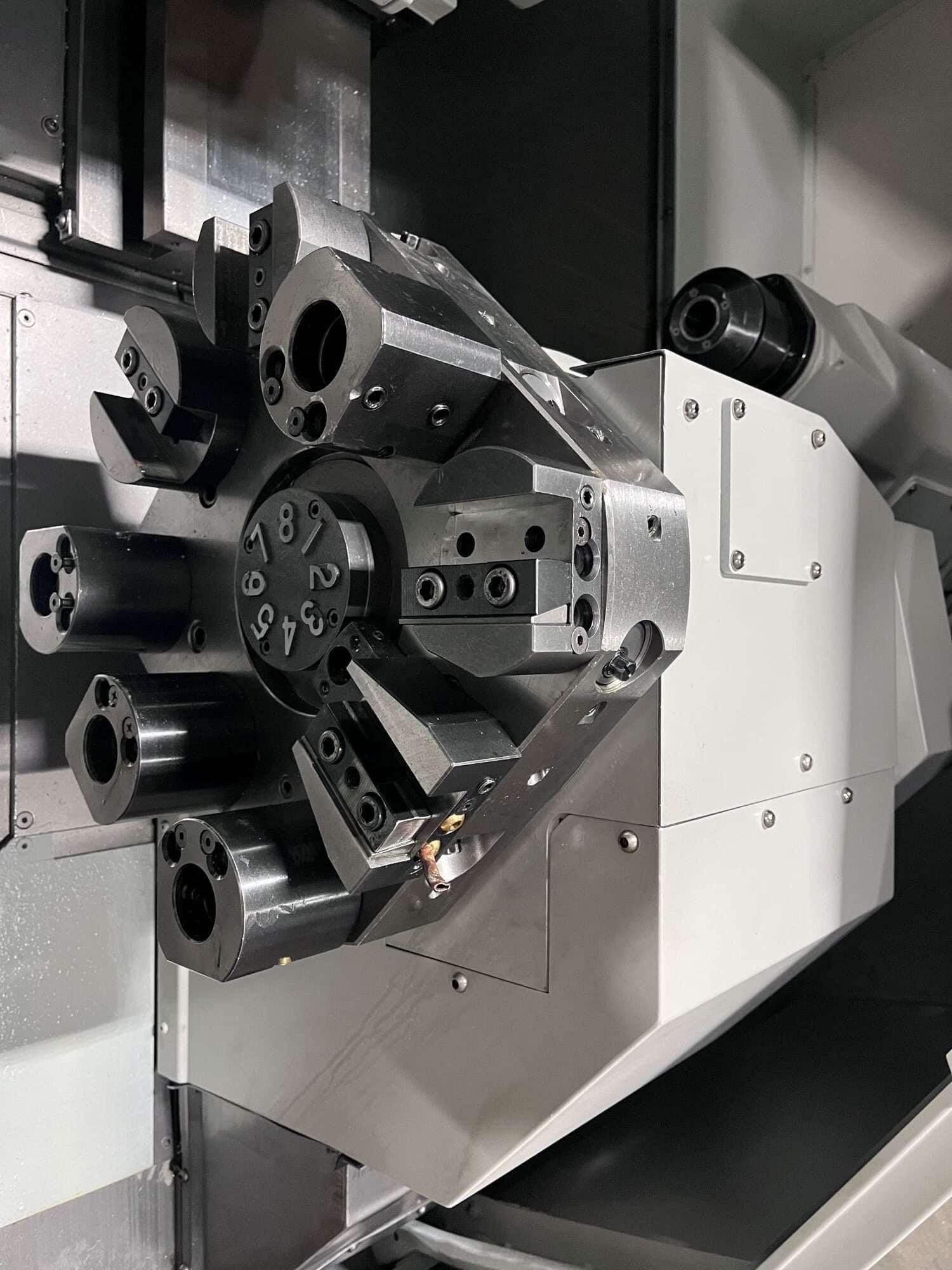

| 8 Station Lower Turret with Tool Holders |
| Servo Controlled Full C-Axis on Spindle |

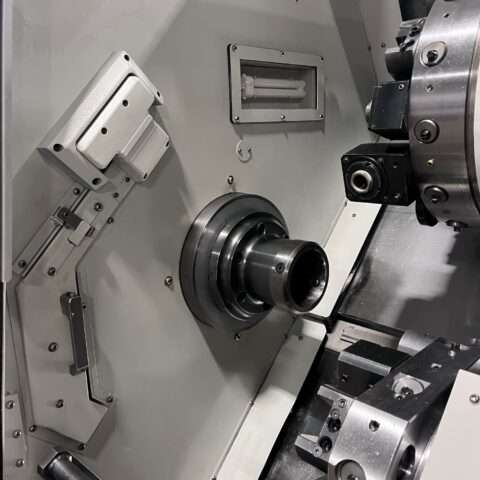

| Collet Chuck (Capable 8″ to 10″ Chuck) |
| Rigid Tapping |
| Foot Operated Control for Chuck |
| Coolant System |
| Tool Pre-setter |

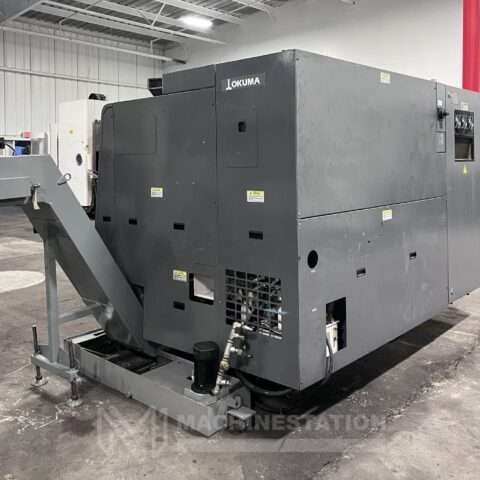

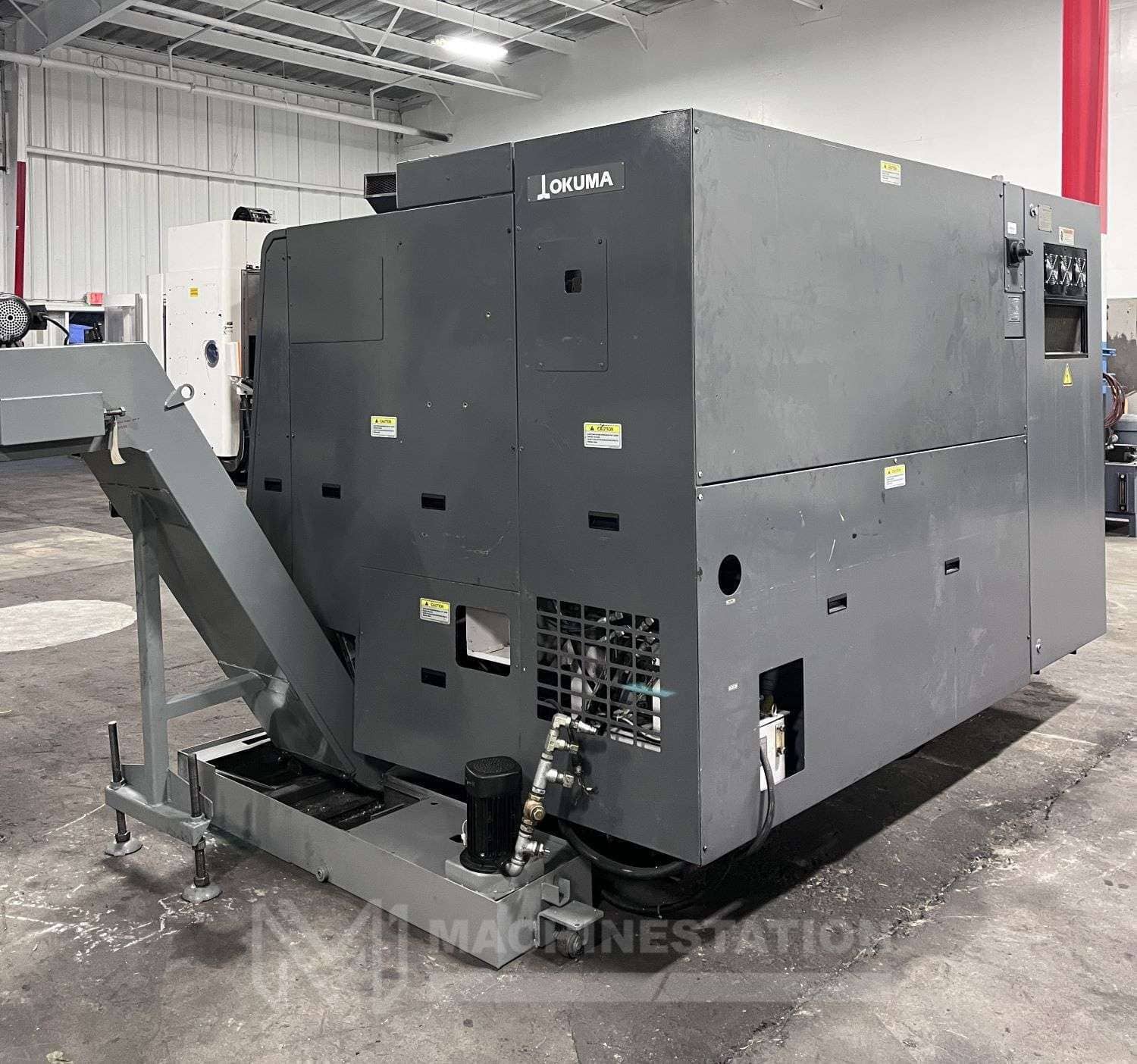

| Chip Conveyor |

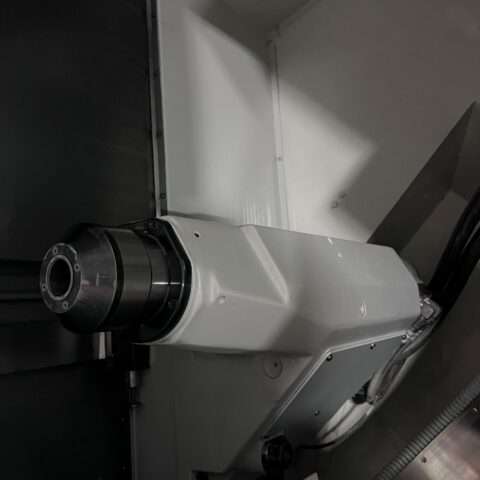

| Tailstock |
| (2) Milling Tool Holders (14) Static Tool Holders (Equipped on Turrets as shown in the pictures) |
| Capacity: |
|---|
| Max Turning Diameter Upper Turret: 13.39″ ? |
| Max Turning Diameter Lower Turret: 8.66″ |
| Max Swing Over Bed : 22.84″ |
| Max Turning Length: 23.63″ |
| Max Bar Capacity : 2.46″ |
| Travels: |
|---|
| X1 Axis Travel Upper : 10.24″ ? |
| X2 Axis Travel Lower : 6.30″ |
| Z1 Axis Travel Upper : 26.97″ |
| Z2 Axis Travel Lower : 24.22″ |
| C Axis: 360° (0.001°) |
| Feedrate: |
|---|
| X Axis: 984 IPM Rapid Traverse |
| Z Axis: 1181 IPM Rapid Traverse |
| Spindle: |
|---|
| Main Spindle Bore: 3.15″ |
| Main Spindle Nose: A2-6 |
| Main Spindle Speed: 50-5000 RPM |
| Main Spindle Power: 30 HP |
| Turret: |
|---|
| Upper Turret Capacity: 12 Stations |
| Lower Turret Capacity: 8 Stations |
| Live Tool Speed: 6,000 RPM |
| Live Tool Motor : 5 HP |
| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Quill Diameter: 3.54″ |
| Quill Travel: 4.72″ |
| General: |
|---|

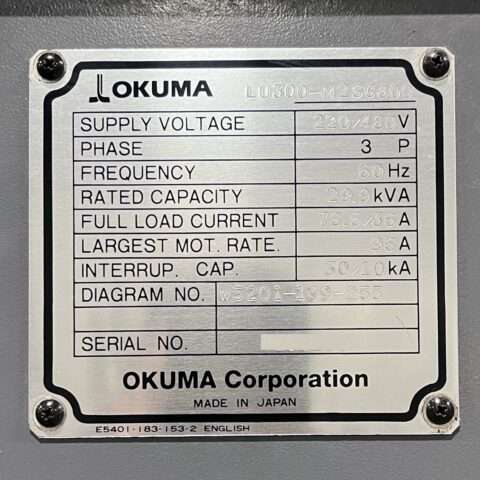

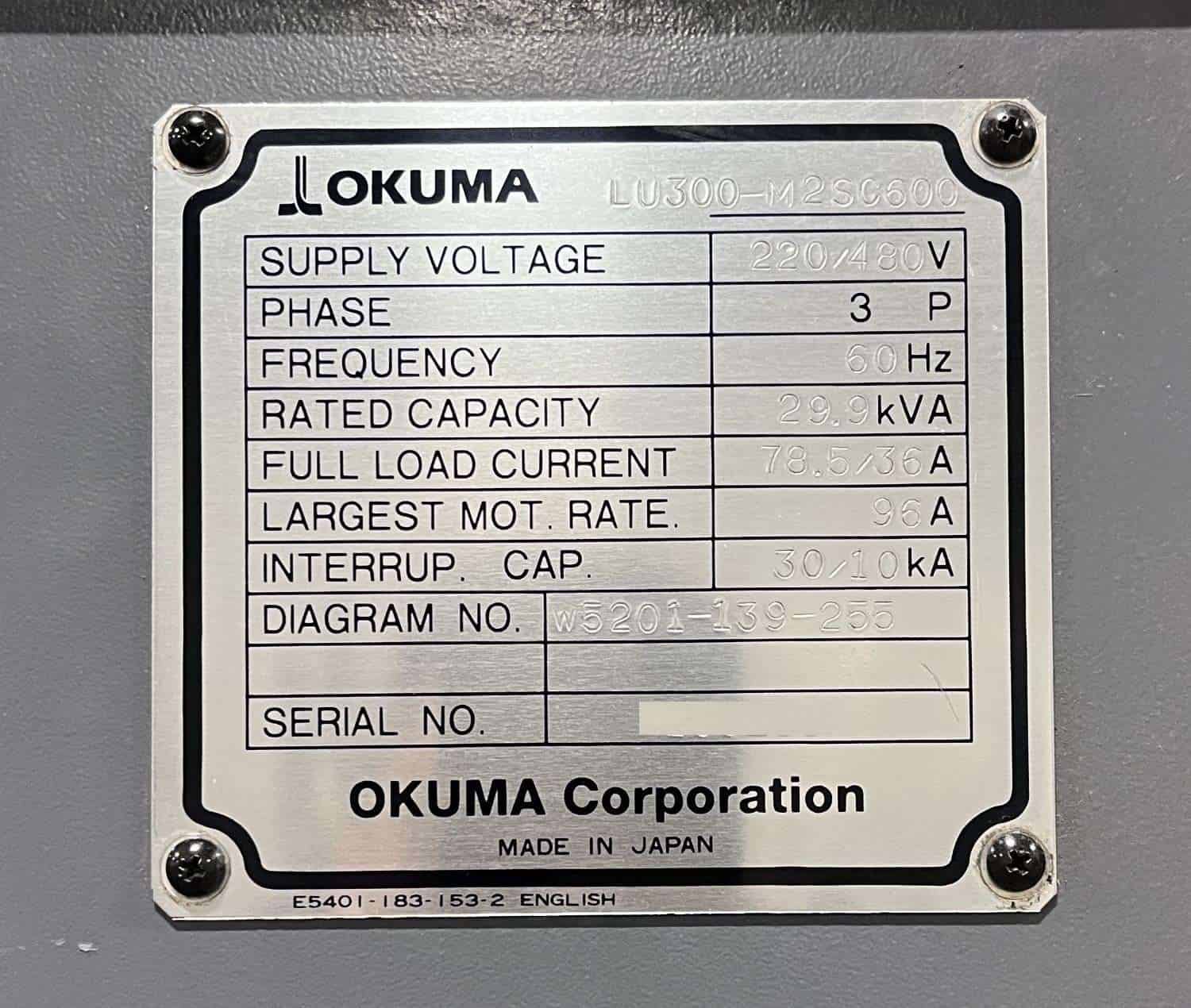

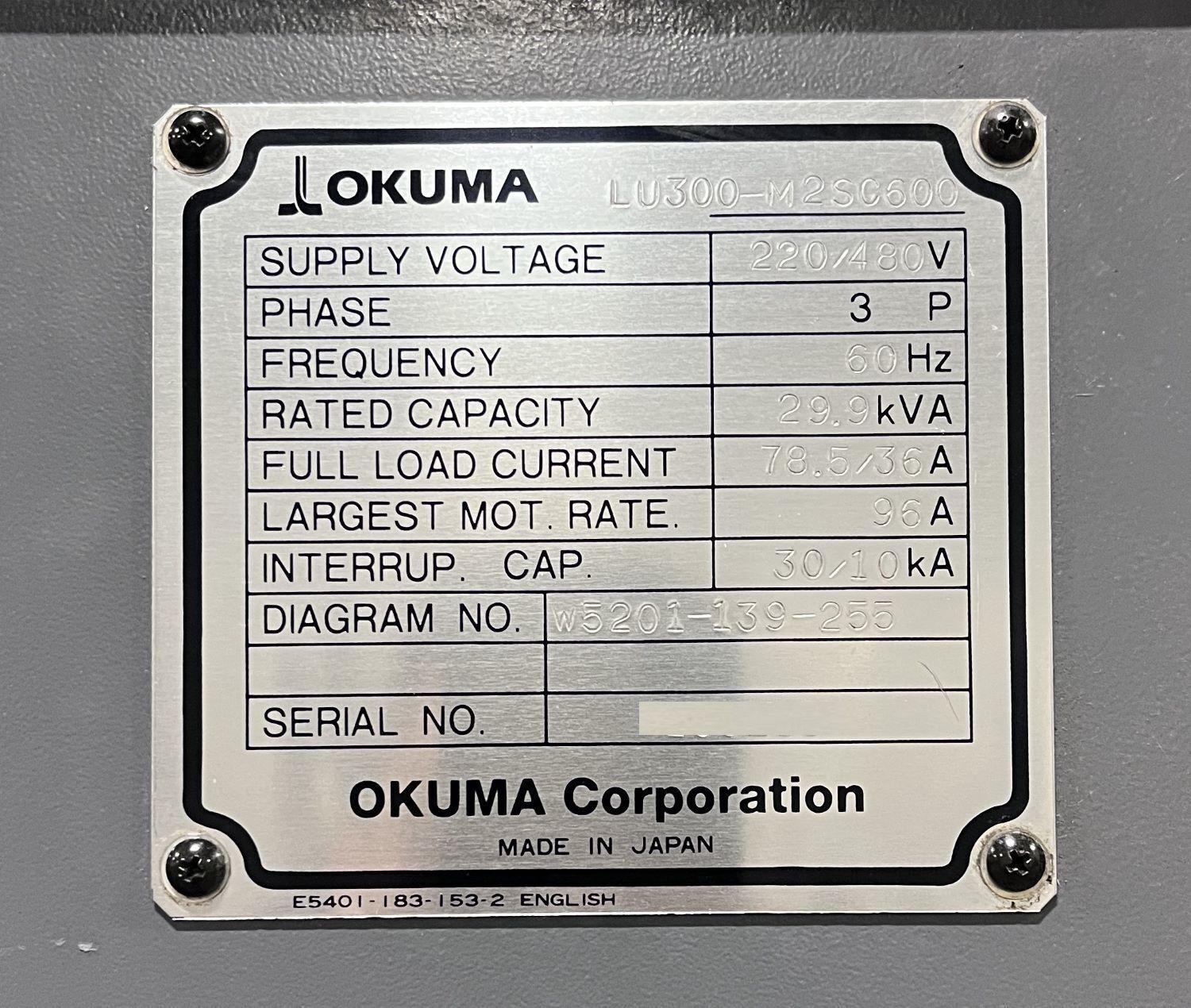

| Power Source: AC 220v/480v / 3-Phase / 60 Hz |
| Power Requirement: 29.9 kva |

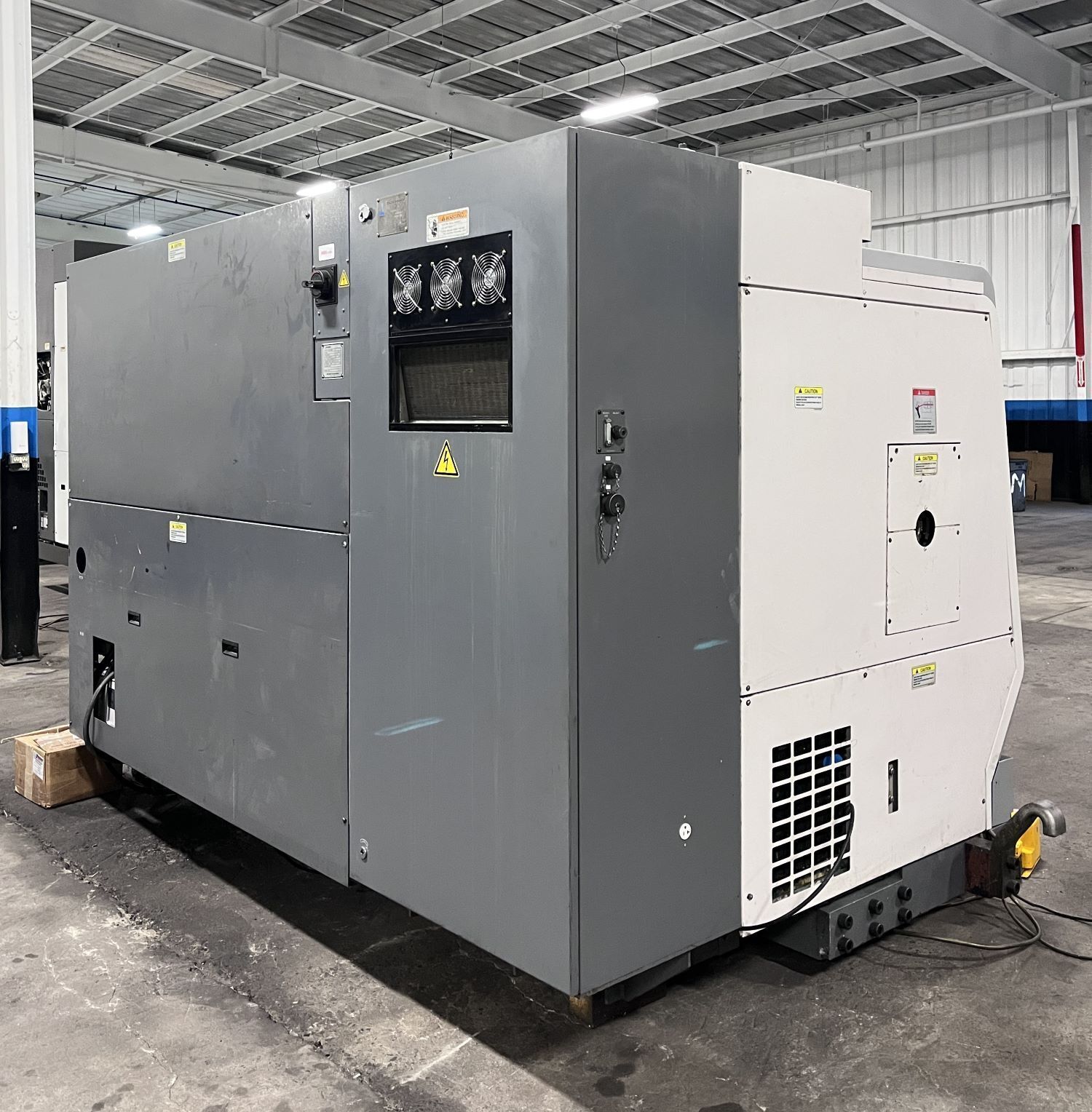

| Overall Dimensions: 116″ x 85″ x 83″ High |
| Weight: 14,960 lbs Approx. |
