*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Quaser |

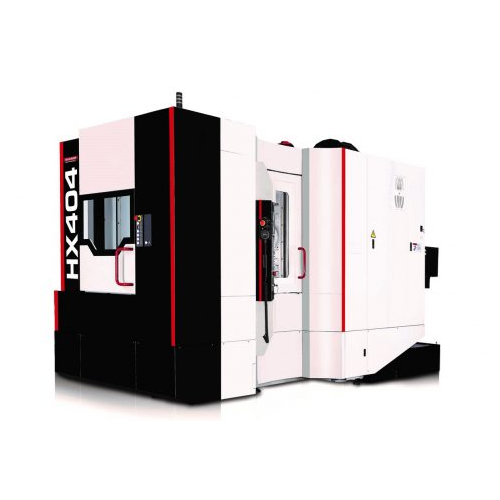

| Model: | HX404 |
| Condition: | Brand New |
| Specification: |
|---|
| Pallet size (mm) : 400 |
| Max. work swing diameter (mm) : Φ630 |
| Max. Work Piece height (mm) : 900 |
| Travel X (mm) : 560 |
| Travel Y (mm) : 640 |
| Travel Z (mm) : 640 |
| B minimum indexing (degree) : 1/0.001 |
| Table load capacity (kg) : 400 |
| Pallet Changer |
|---|
| Number of Pallet : 2 |
| Method of Pallet Changer : Arm Type |
| Main spindle |
|---|
| Spindle taper : 40 taper |
| Max. spindle speed : 12K |
| Tool Changer |
|---|
| Magazine positions : 60 (std.) |
| Max. tool diameter (mm) : 76.2 |
| Max. tool dia. Due to neighbor pots are empty (mm) : 125 |
| Max. tool length (mm): 350 |
| NOTE: Different Configuration of Same Model Available. Similar but not Identical. |
|---|
| HX404P |
| E =Standard |
| P =Performance |
