*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 113543 |

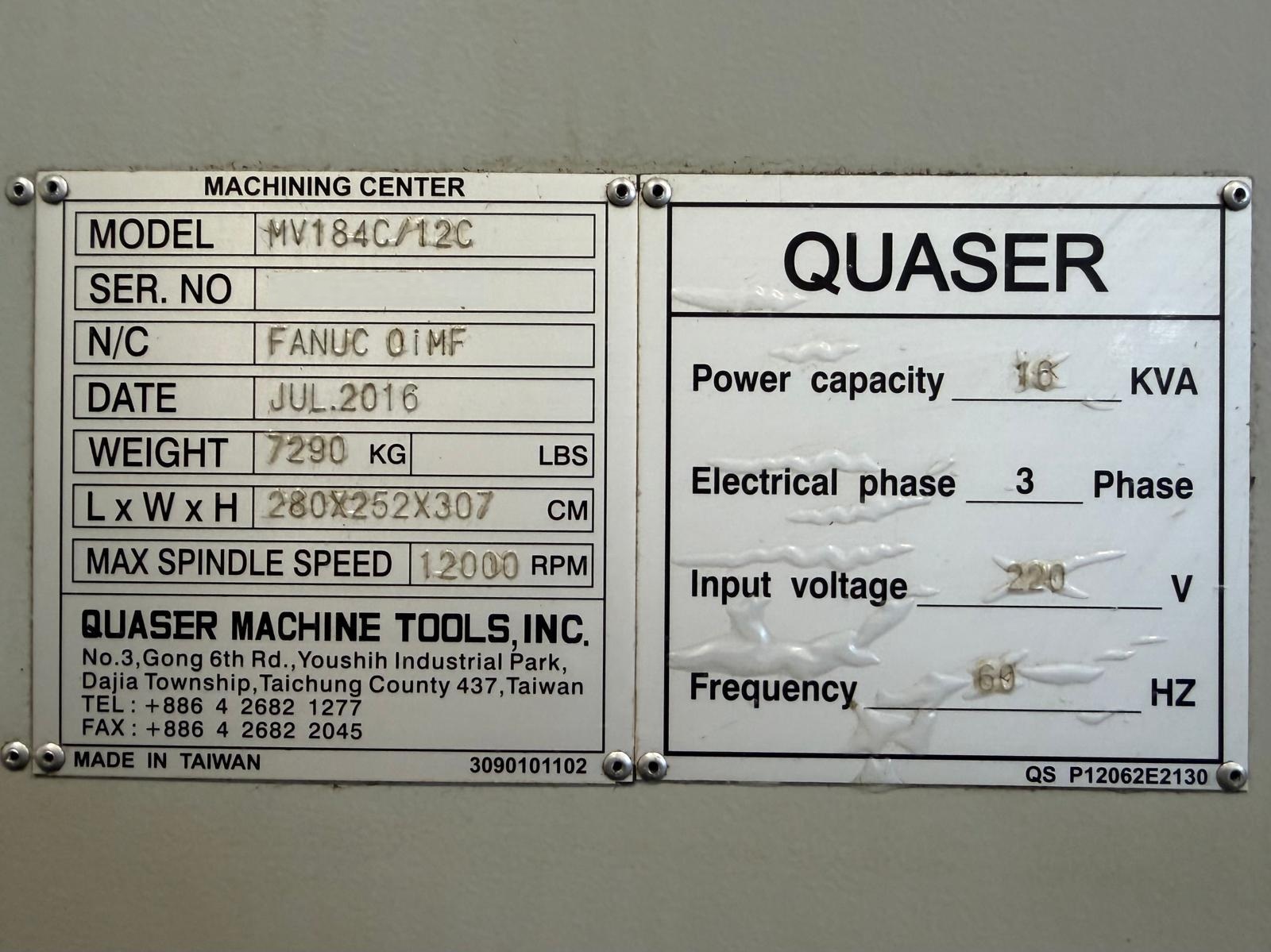

| Make: | Quaser |
| Model: | MV184C/12C |
| Year: | 2016 |
| Condition: | Used – Excellent |
| Features: |
|---|

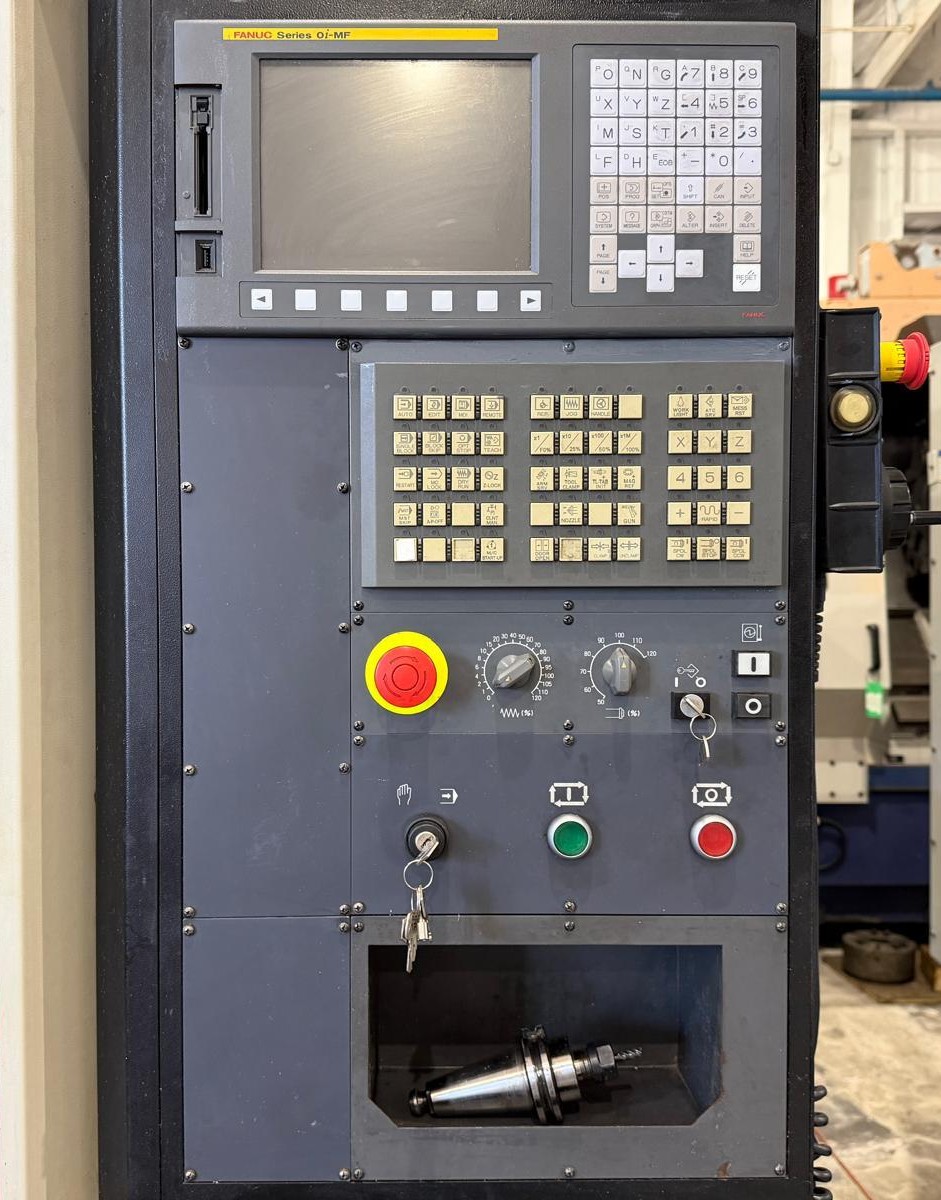

| Fanuc Oi-MF Series CNC Control |
| Linear Ways Construction |
| 12000 RPM High Speed Spindle |
| 30 Station Side Mounted Automatic Tool changer |
| Through Spindle Coolant |

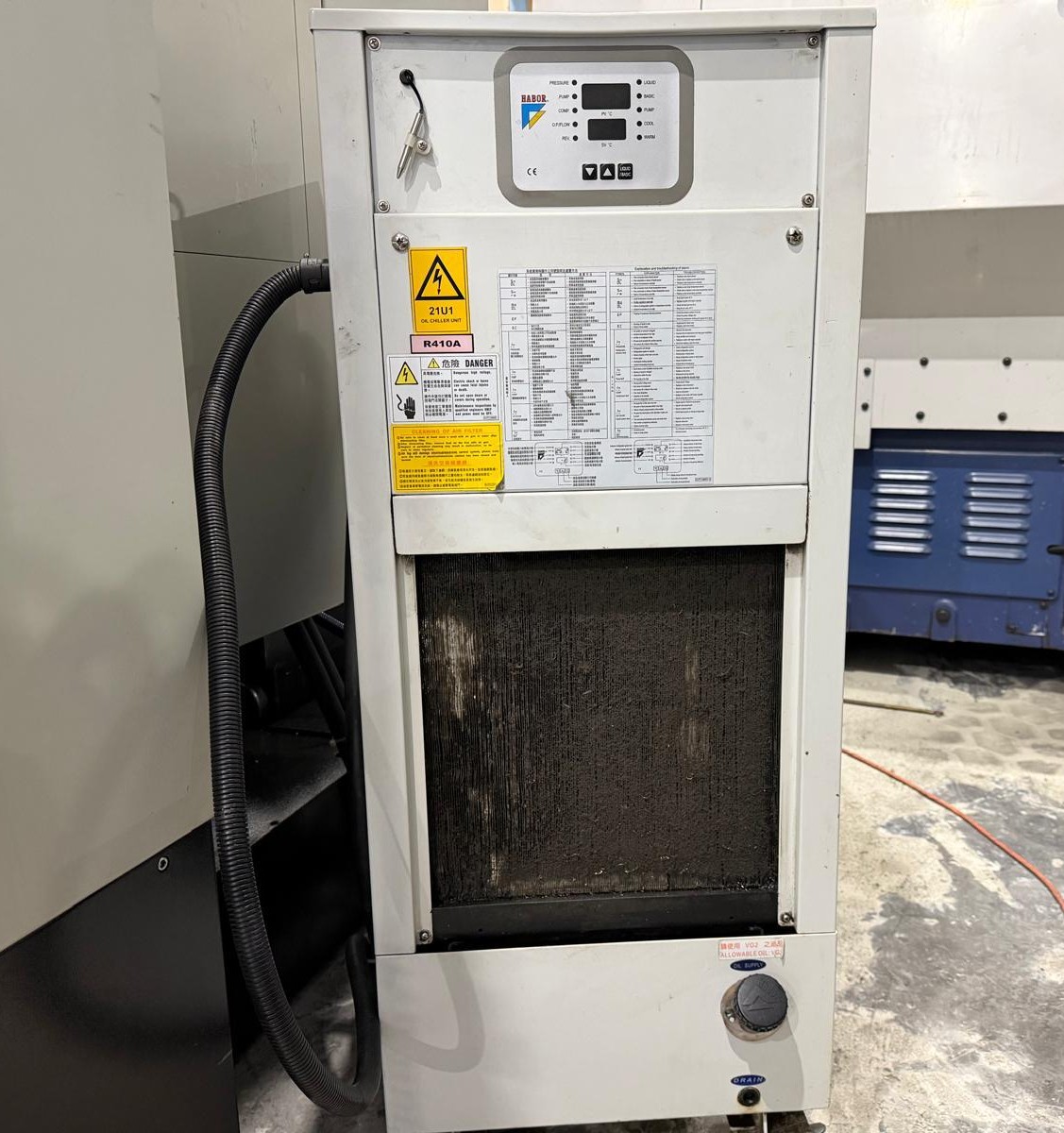

| Spindle Chiller Unit |
| PCMCIA Card Slot |
| USB Port |
| Rigid Tapping |
| Coolant System |
| Chip Conveyor |

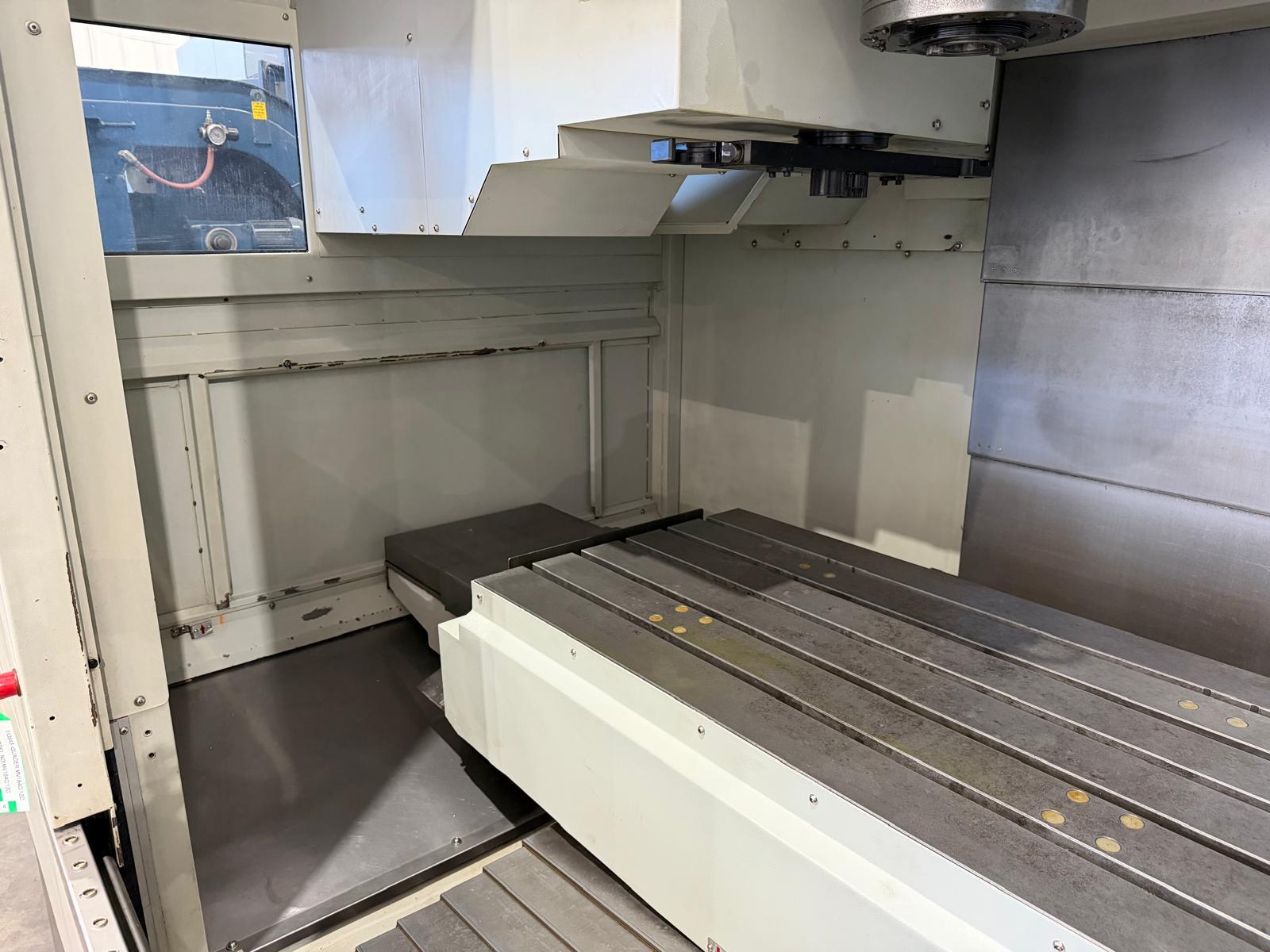

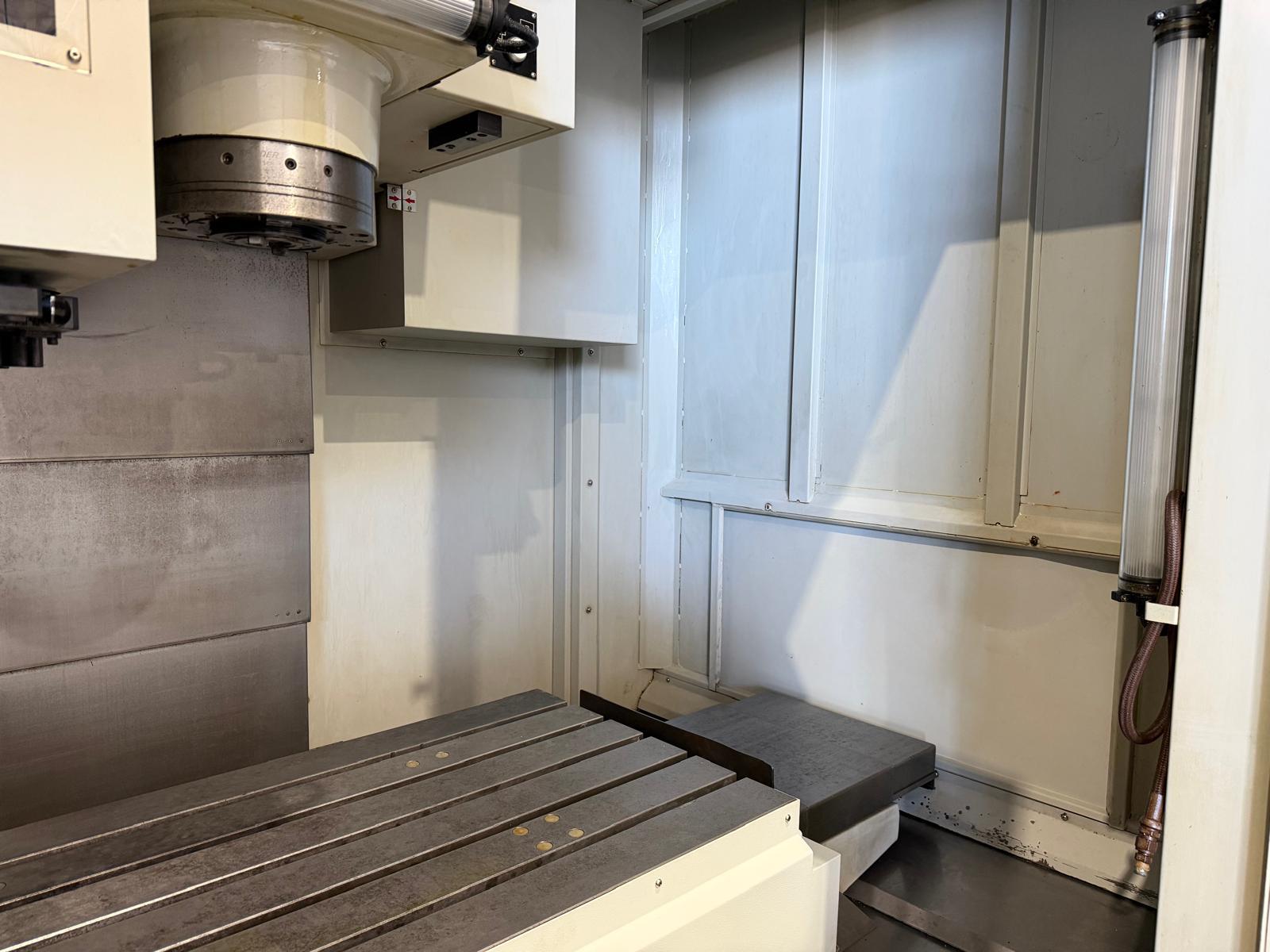

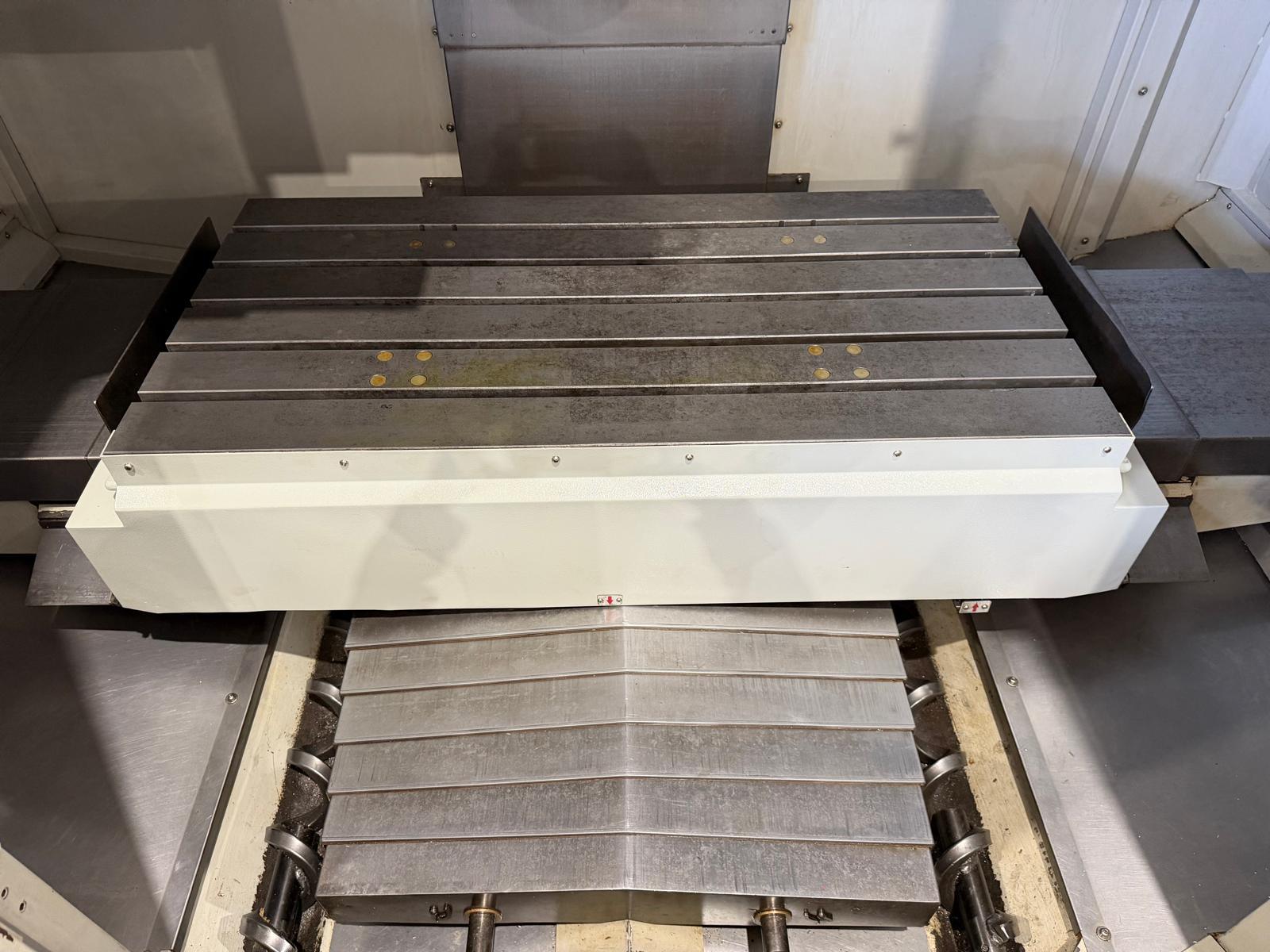

| Table: |
|---|
| Length: 47.24″ |
| Width: 23.62″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 0.70″ X 3.93″ |
| Max Weight on Table: 1102 lbs |
| Travels: |
|---|
| X-Axis: 40.15″ |
| Y-Axis: 24.01″ |
| Z-Axis: 24.01″ |
| Rapid Traverse Rates X & Y Axis: 1260 IPM |
| Rapid Traverse Rates Z Axis: 945 IPM |
| Spindle Nose to Table (Min.- Max.): 3.94″ – 27.95″ |

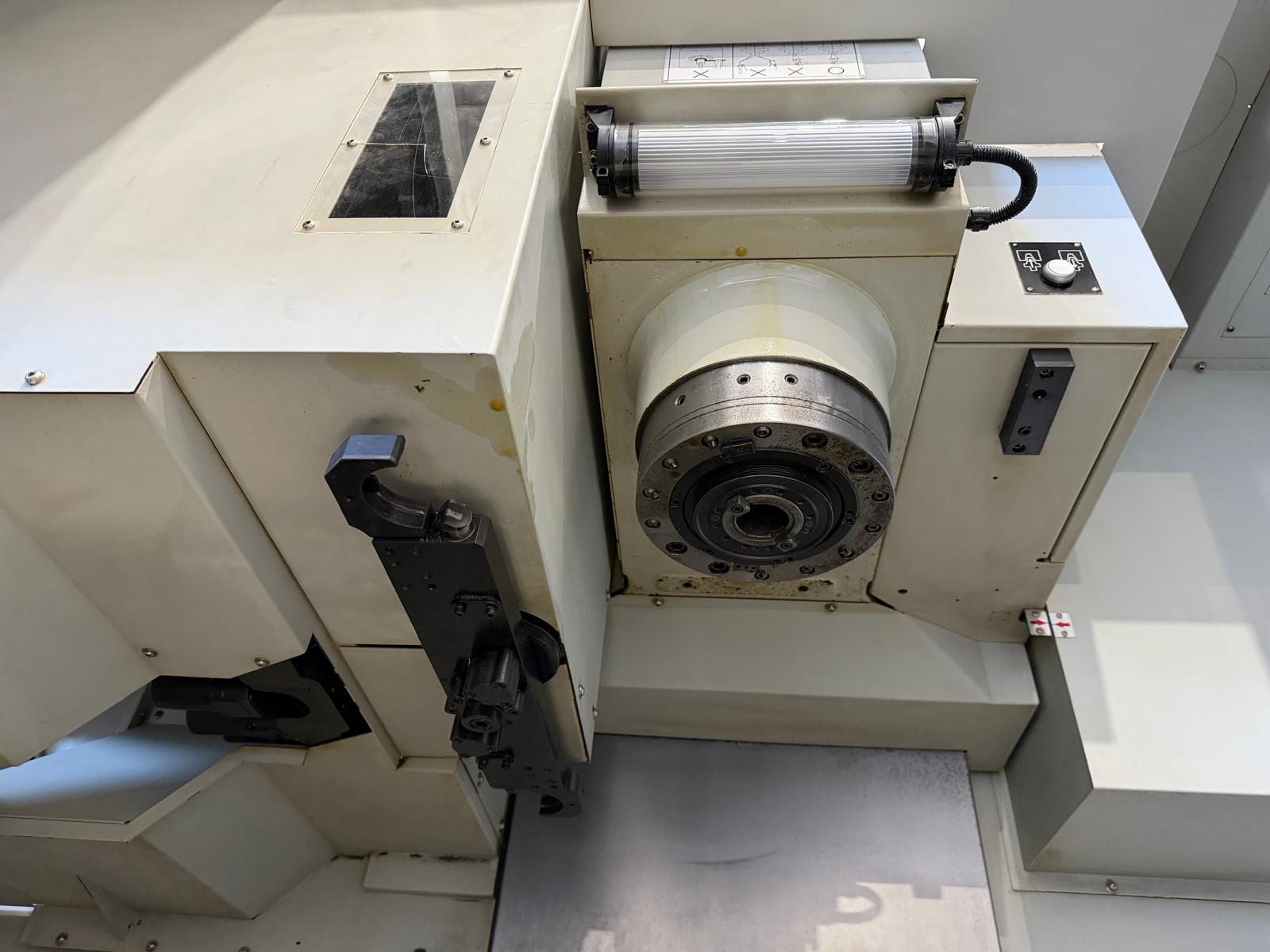

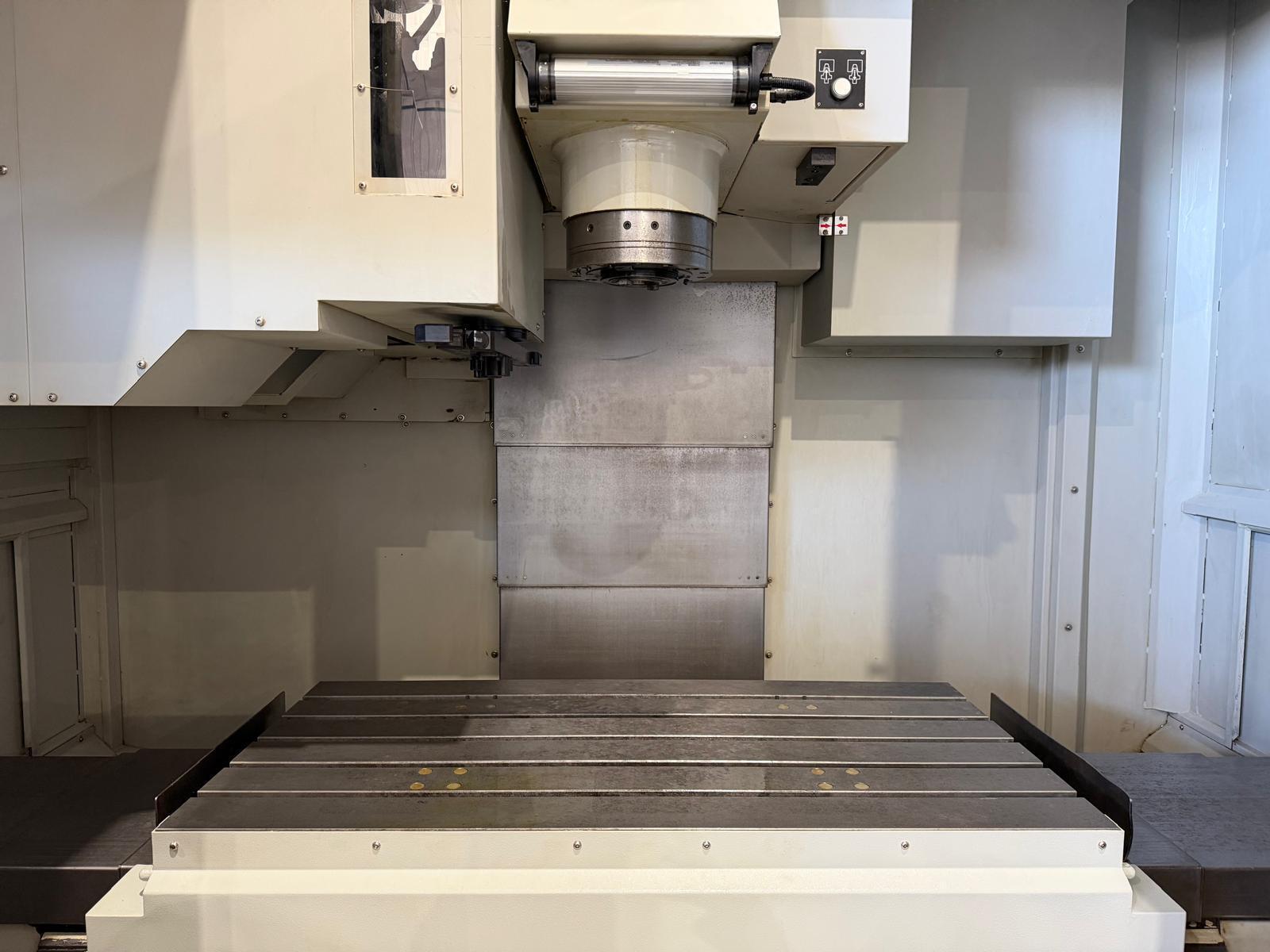

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 12000 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 15.43 lbs |
| Max Tool Dia: 3.0″ – 4.92″ |
| Max Tool Length: 11.02″ |
| Tool Changing Time (Chip to Chip): 4.2 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

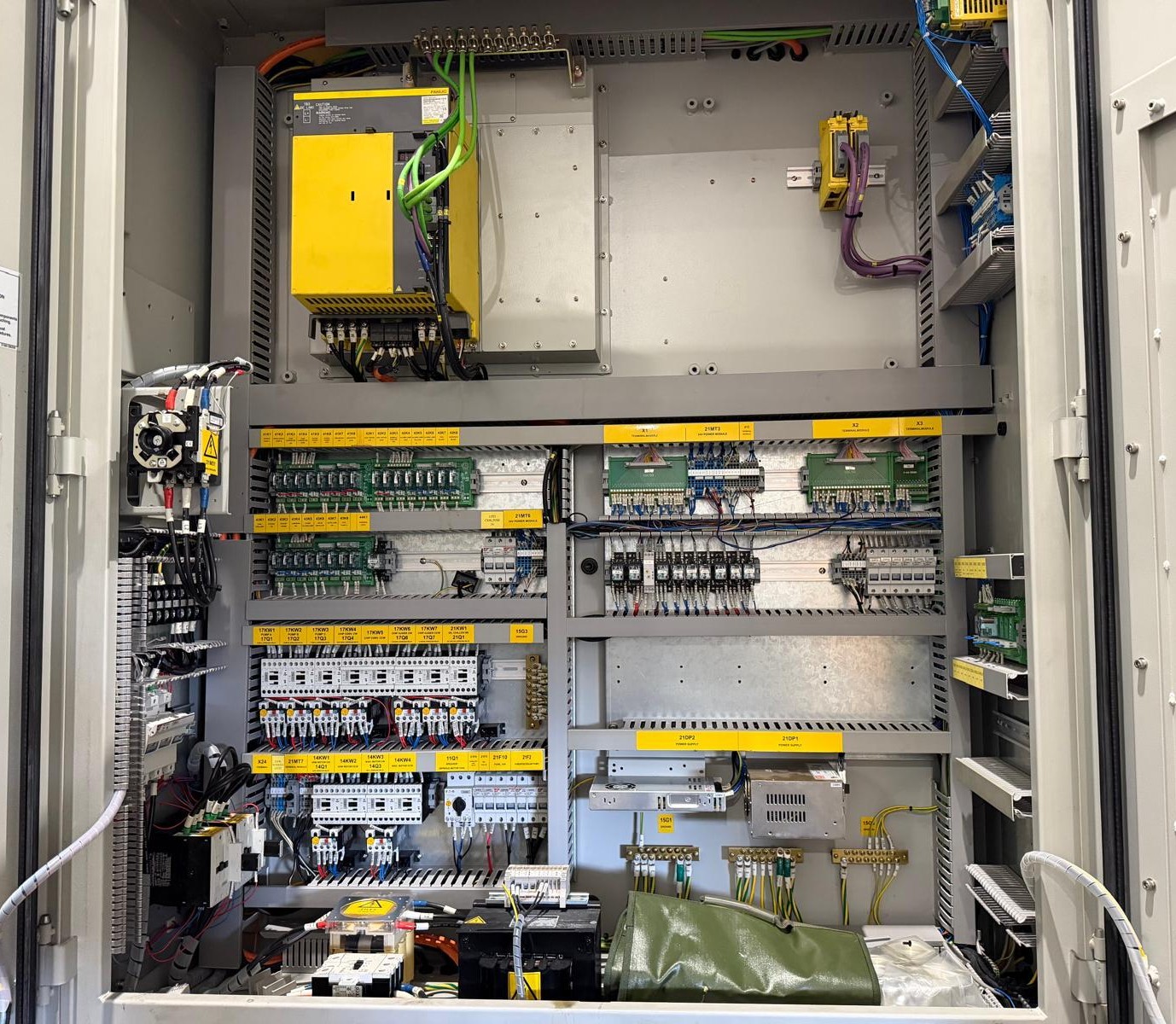

| Power: 220v / 16 kva / 3-Phase |
| Overall Dimensions: 110″ x 99″ x 120″ High Approx. |
| Weight: 16,071 lbs Approx. |
