*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us with any questions before purchasing. All sales are final.*
| Make: | Romi Bridgeport |

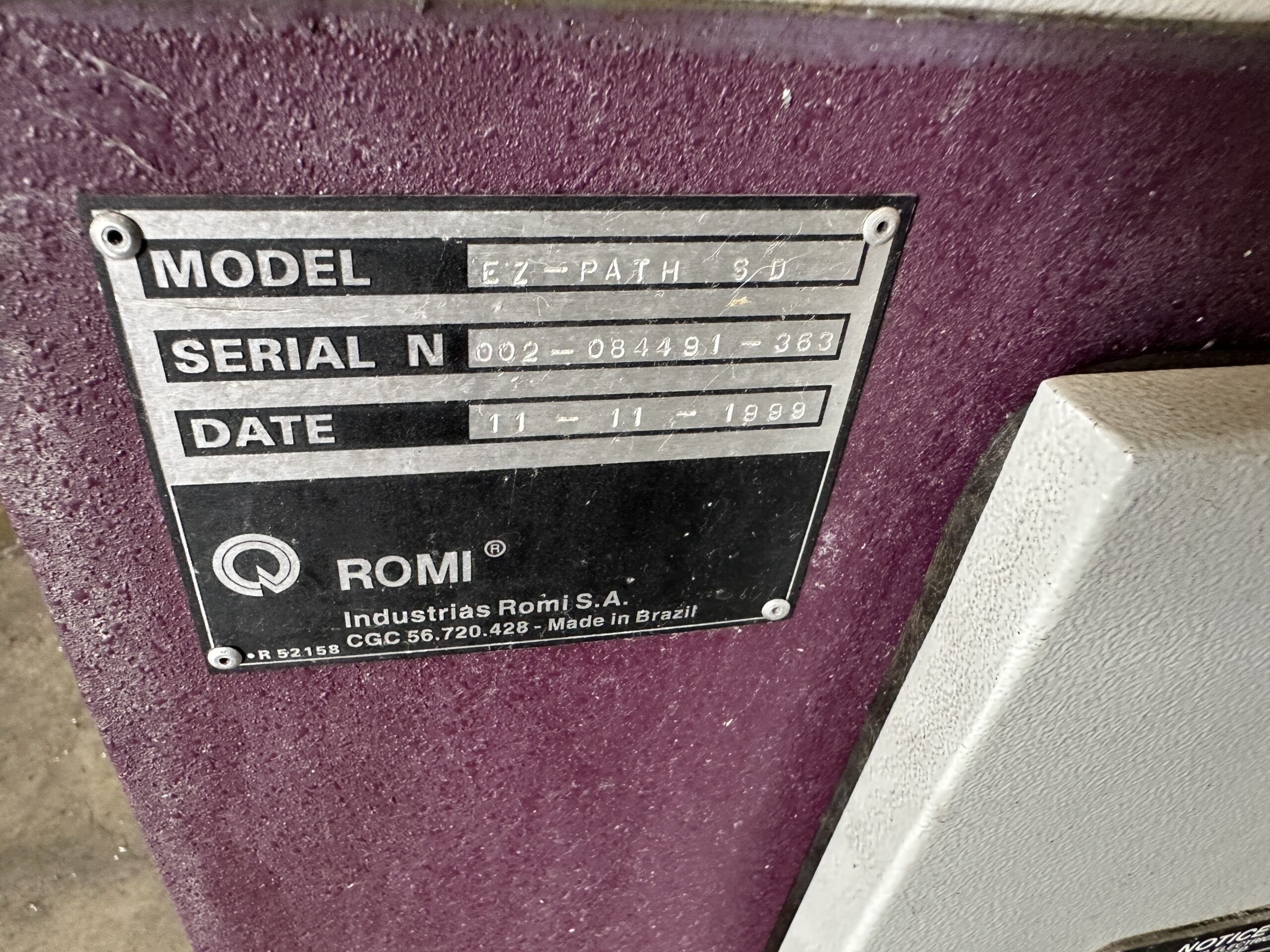

| Model: | EZ Path SD |
| Year: | 1999 |
| Machine Type: | CNC Toolroom Lathe |
| CNC Control: | Bridgeport BPCT |
| EQUIPPED WITH: |
|---|
| Bridgeport BPCT CNC Control |
| EZ-Path Interface with CRT/Display and Keyboard |
| Dual Electronic Handwheel Controls |
| Airdex 8-Position Turret |
| 8″ 3-Jaw Chuck |
| Manual Tailstock |
| #4 MT Tailstock Taper |
| Geared Headstock |
| Automatic Lubrication System |
| Coolant System |
| Enclosed Machining Area |
| Kennametal Tooling Visible on Turret |
| Emergency Stop and Spindle Control Panel |
| Capacity: |
|---|
| Max Swing Over Ways: 17″ |
| Max Swing Over Cross Slide: 8″ |
| Distance Between Centers: 40″ |
| Chuck Size: 8″ |
| Spindle Bore: 2.08″ |
| Bar Capacity: 2″ |
| Travels: |
|---|
| X-Axis Travel: 8.6″ |
| Z-Axis Travel: 40″ |
| X-Axis Rapid Traverse: 295 IPM |
| Z-Axis Rapid Traverse: 394 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-5 |
| Spindle Bore: 2.08″ |
| Speed Range: 25–4,000 RPM |
| Spindle Motor: 7.5 HP |
| Turret: |
|---|
| Turret: Airdex 8-Position |
| Tool Station Count: 8 |
| Tailstock: |
|---|
| Type: Manual |
| Quill Taper: MT-4 |
| Quill Travel: 4.7″ |
| General: |
|---|
| Machine Dimensions (Approx.): 100″ L × 49″ W × 77″ H |
| Machine Weight (Approx.): 4,900 lbs. |
