*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

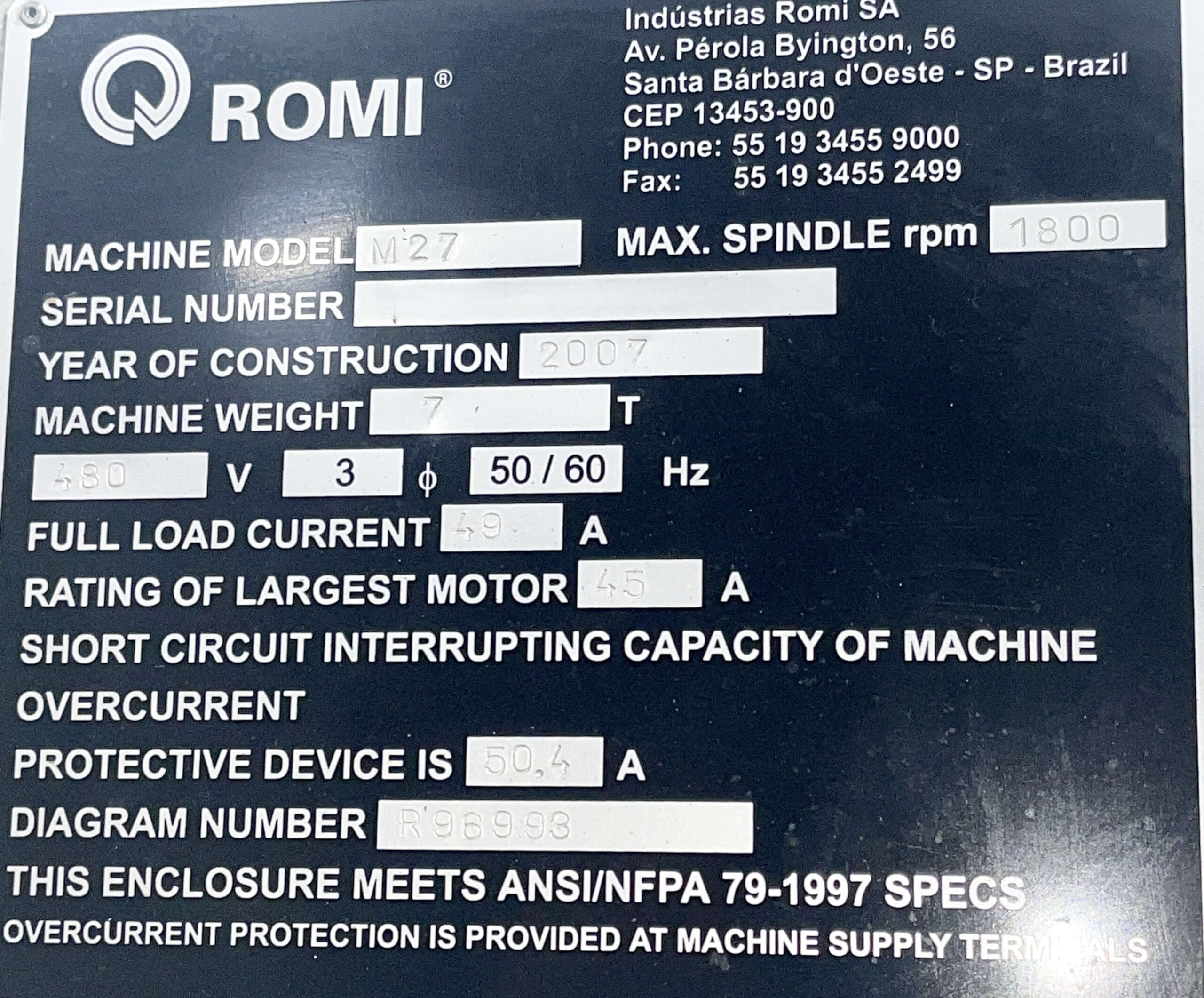

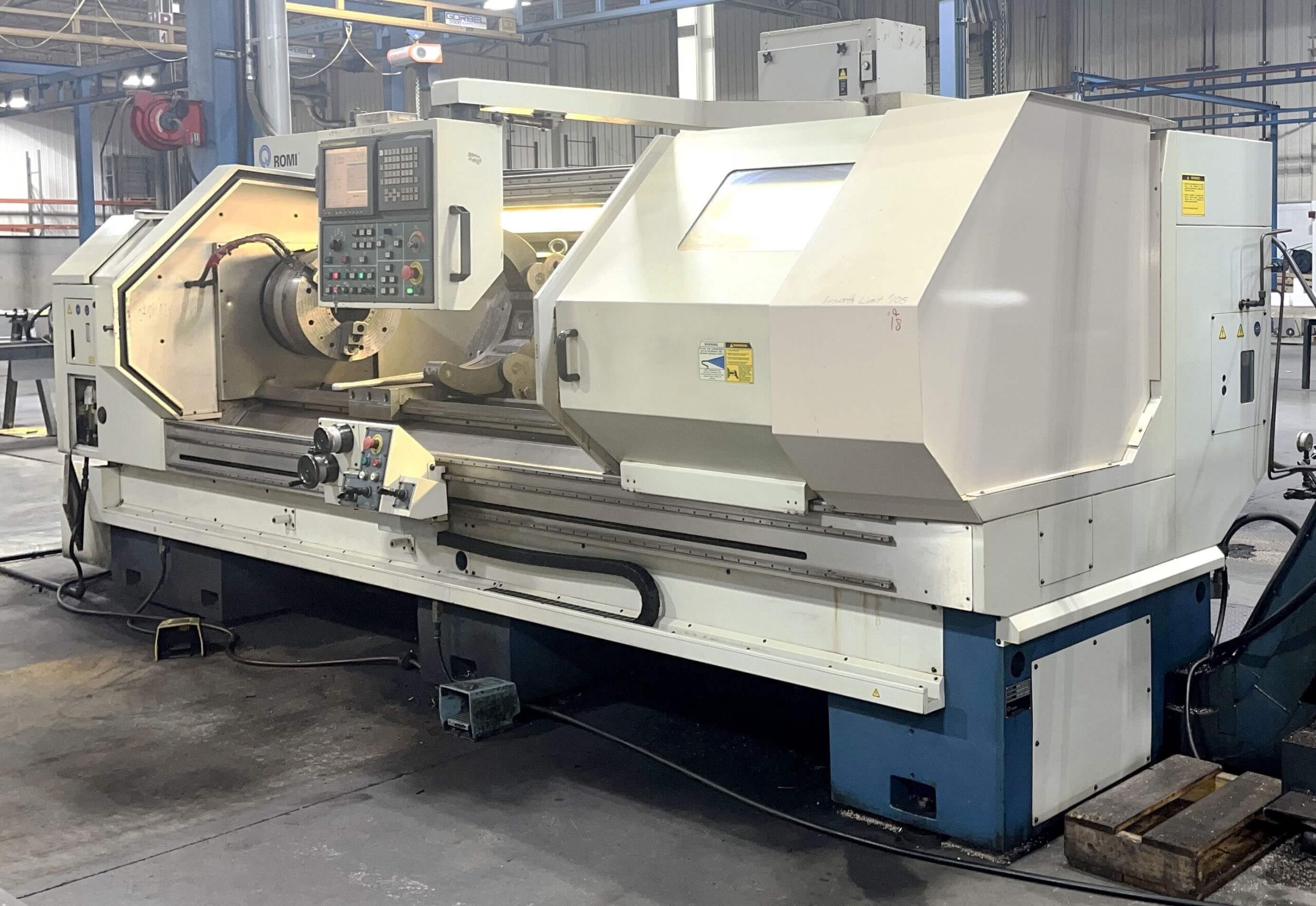

| Make: | Romi |
| Model: | M-27 |
| Year: | 2007 |
| Features: |
|---|

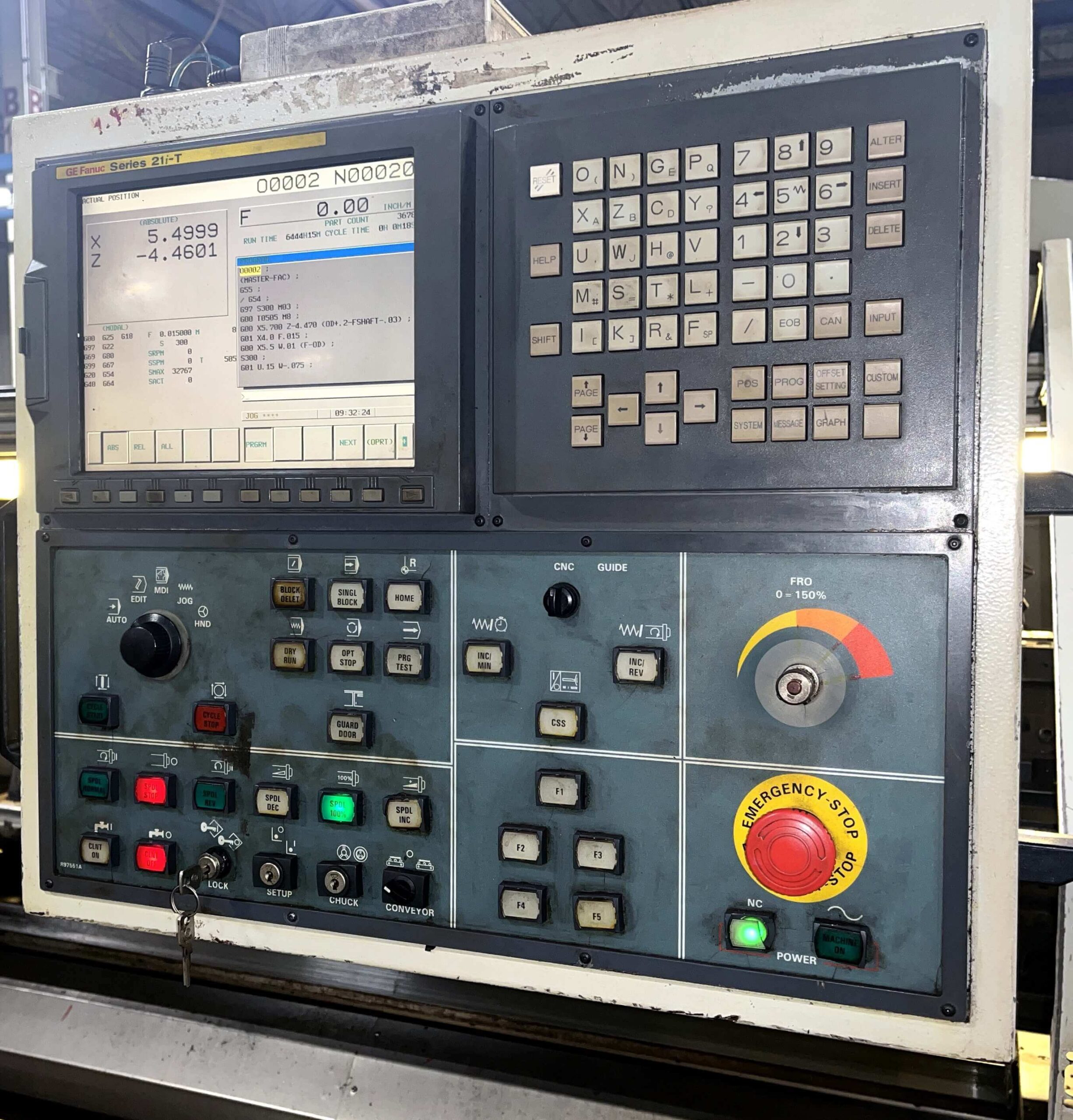

| Fanuc Series 21i-T CNC Control |
| 18″ Hydraulic 3-Jaw Chuck |
| 8-Station Turret |
| Hydraulic Tailstock |
| Hydraulic Steady Rest |
| MistBuster Mist Collector |
| Turbo Systems Chip Conveyor |
| Capacity: |
|---|
| Swing Over Bed: 27″ |
| Distance Between Centers: 110″ |
| Bar Capacity: 7.1″ |
| Chuck Size: 18″ |
| Travels: |
|---|
| X-Axis Travel: Approx. 15.0″ |
| Z-Axis Travel: Approx. 112.0″ |
| Rapid Traverse (X-Axis): 472 IPM |
| Rapid Traverse (Z-Axis): 787 IPM |
| Spindle: |
|---|
| Spindle Speed: 1,800 RPM |
| Spindle Motor: 30 HP |
| Spindle Bore: 7.1″ |
| Turret: |
|---|
| Number of Stations: 8 |
| Tailstock: |
|---|
| Hydraulic Programmable Tailstock |
| General: |
|---|
| Electrical: 480 V / 3 Phase / 50/60 Hz |
| Machine Dimensions (Approx.): 220″ × 85″ × 82″ |
| Machine Weight (Approx.): 15,400 lbs |
