*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

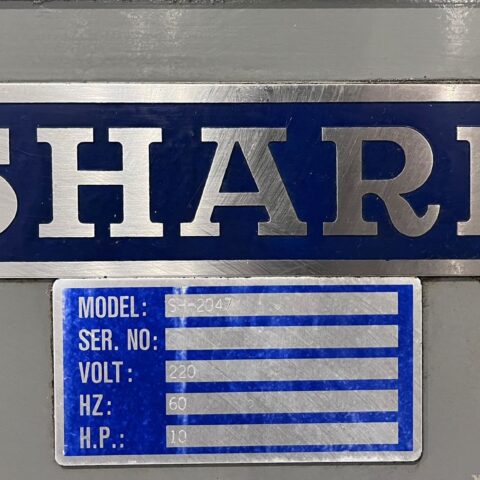

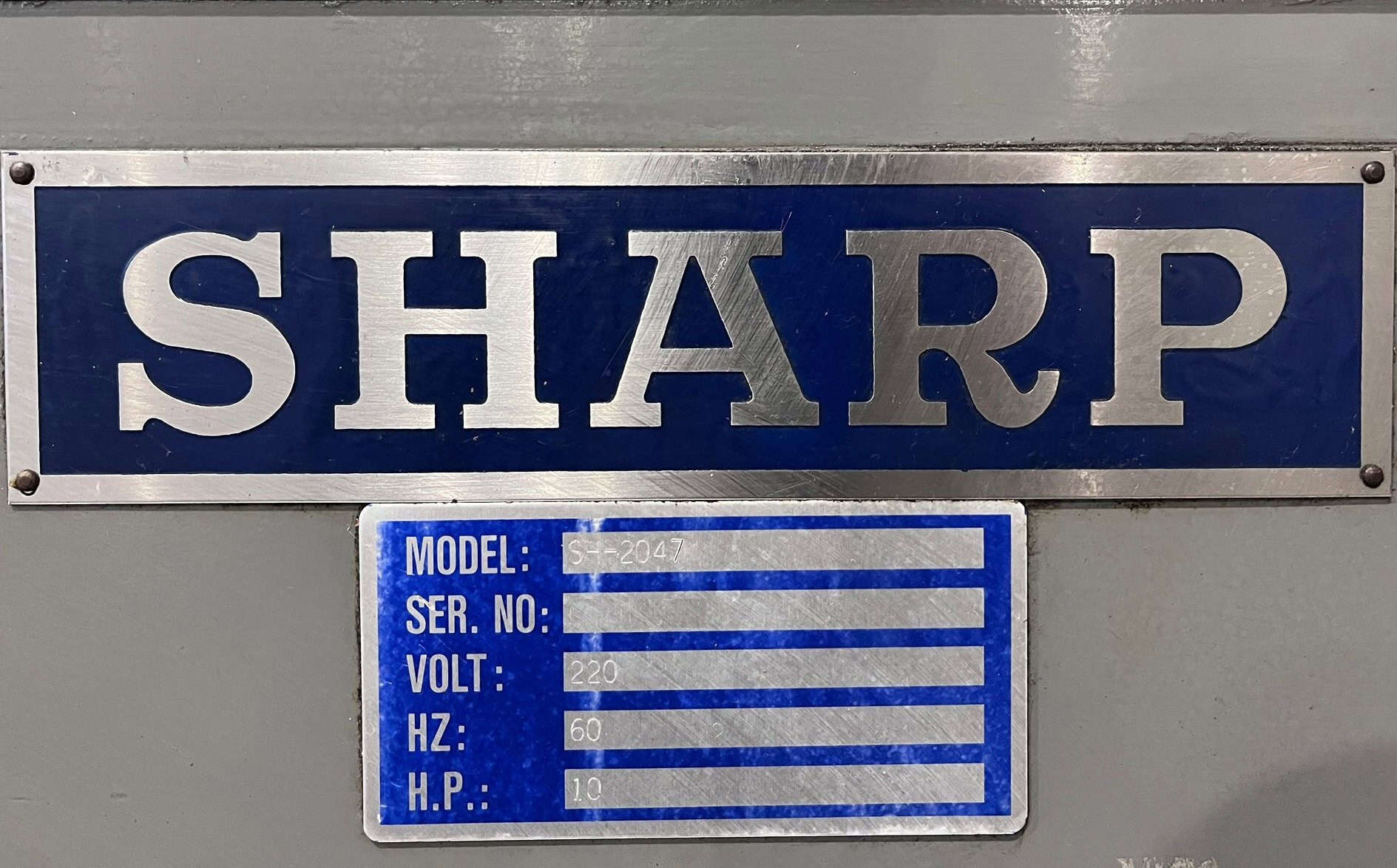

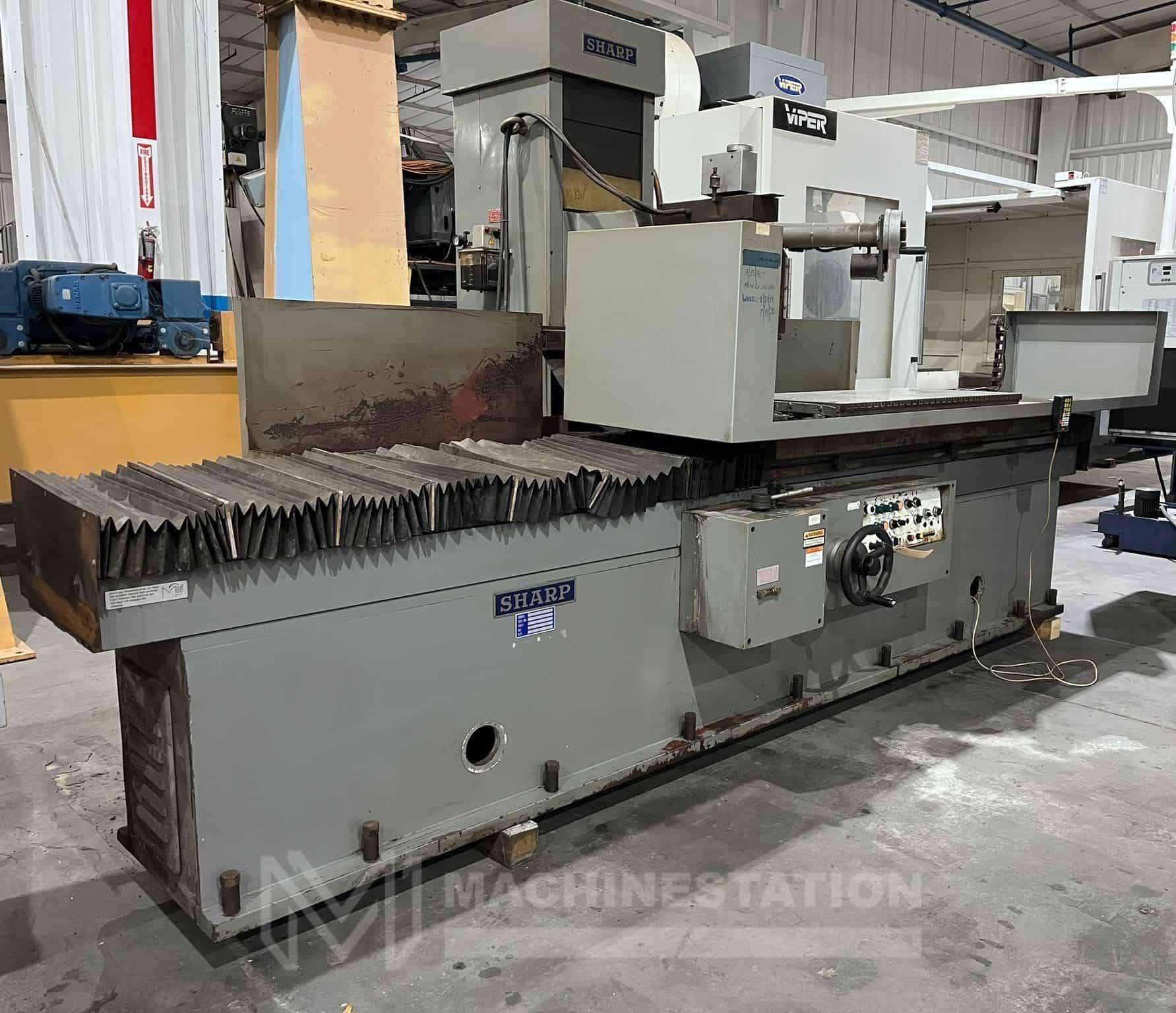

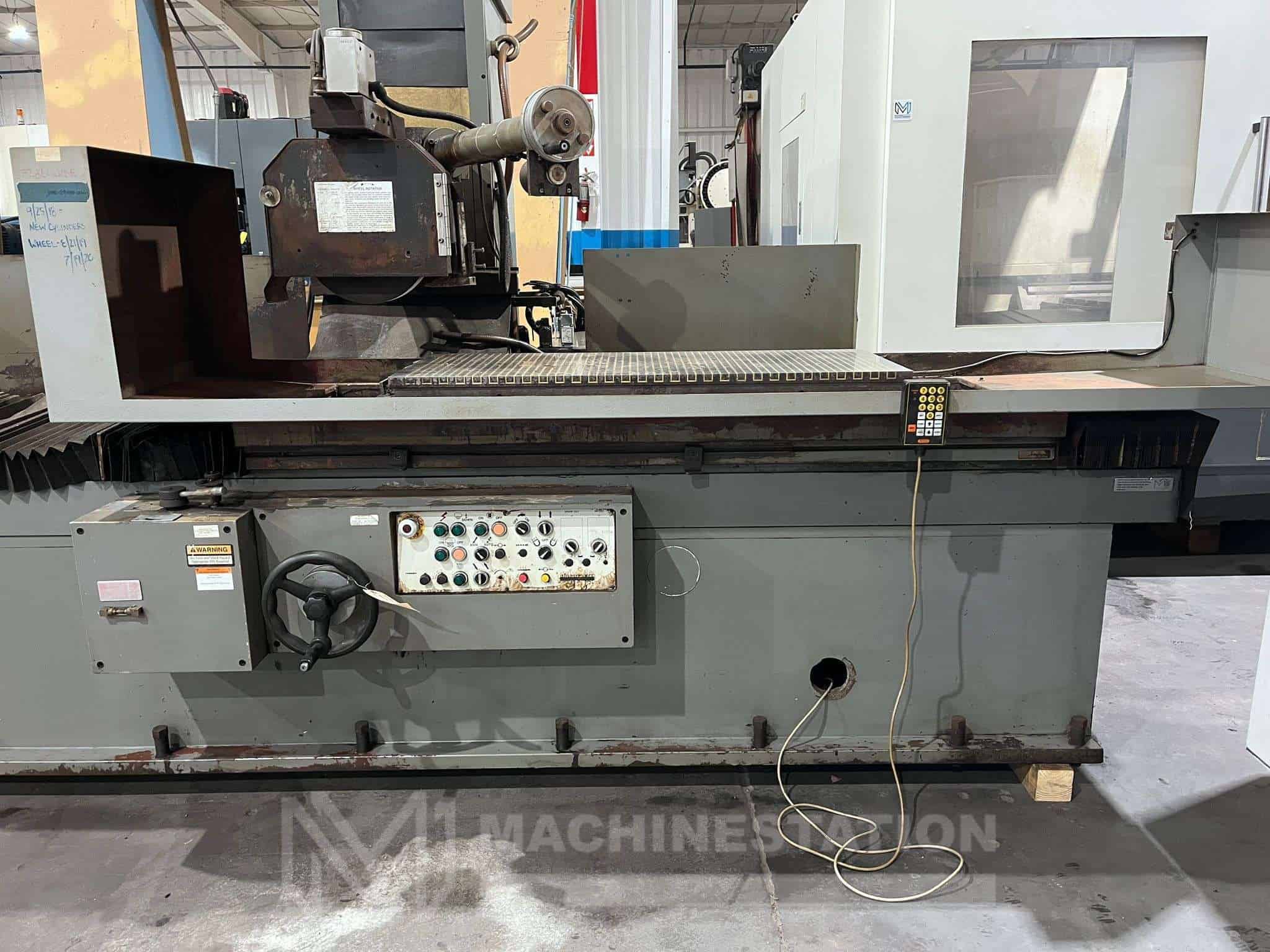

| Make: | Sharp |
| Model: | SH-2047 |
| Year: | |
| Condition: | Used – Good |
| Features: |
|---|

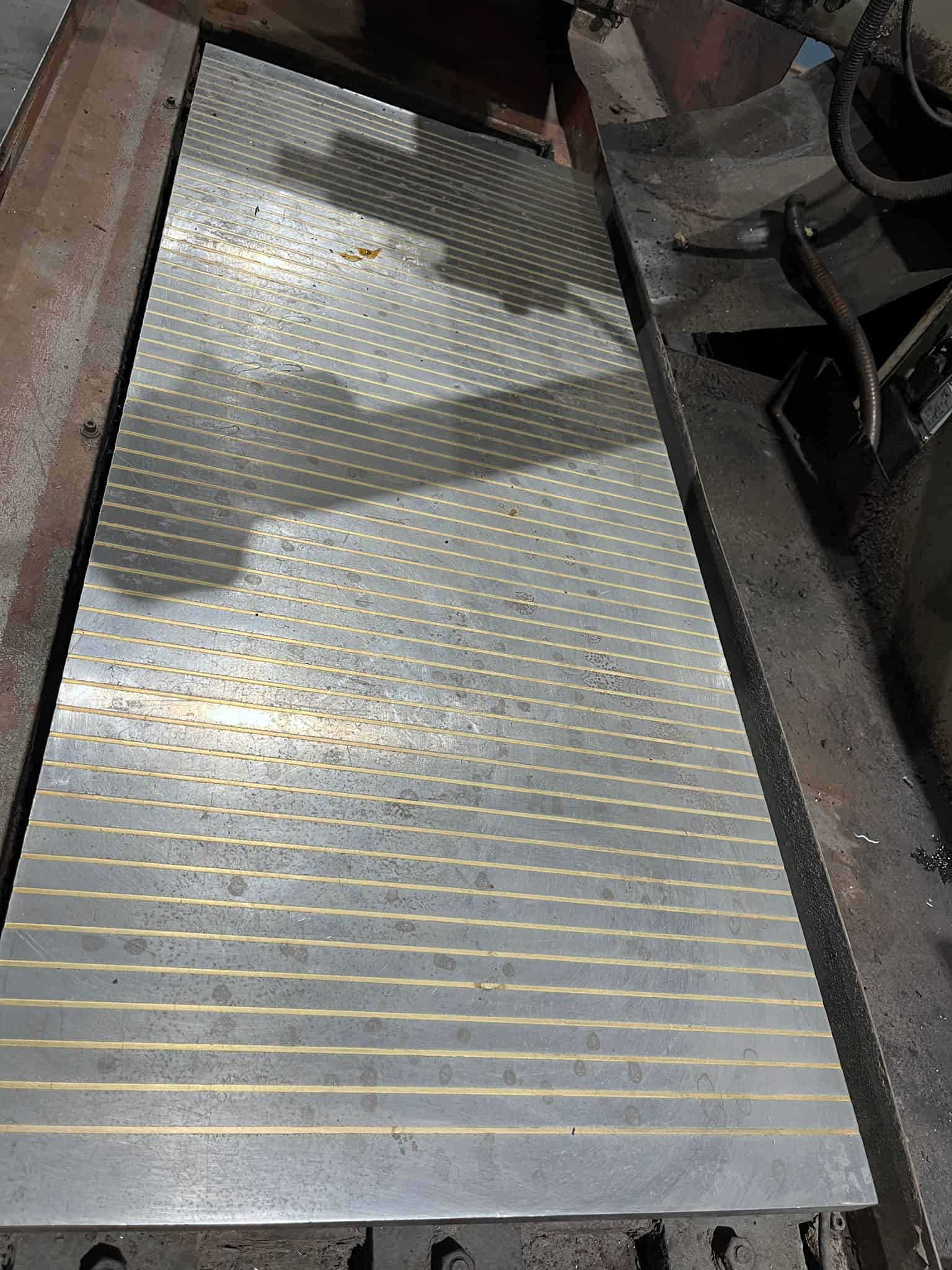

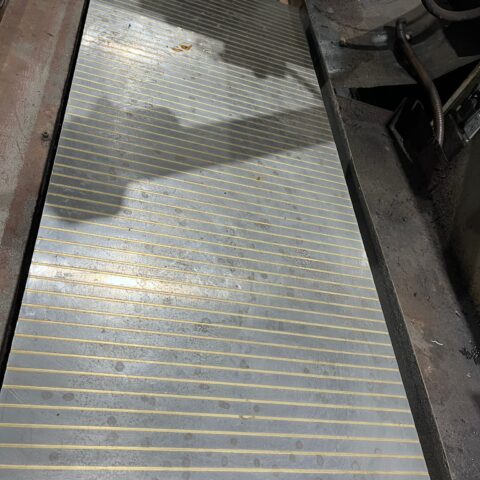

| Magnetic Table |
| Grinding Wheel |
| Ballscrew on Cross Feed |
| Wheel Flange |
| Wheel Balancer and Balancing Arbor |

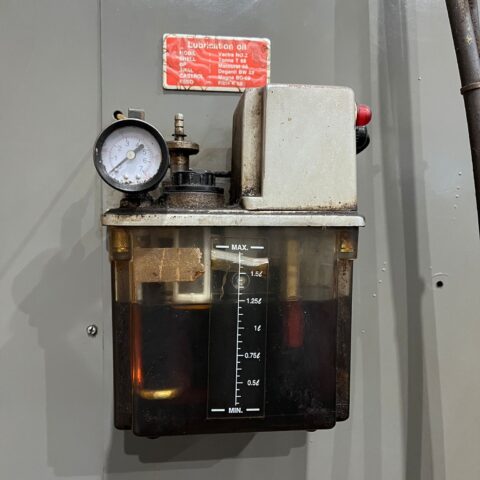

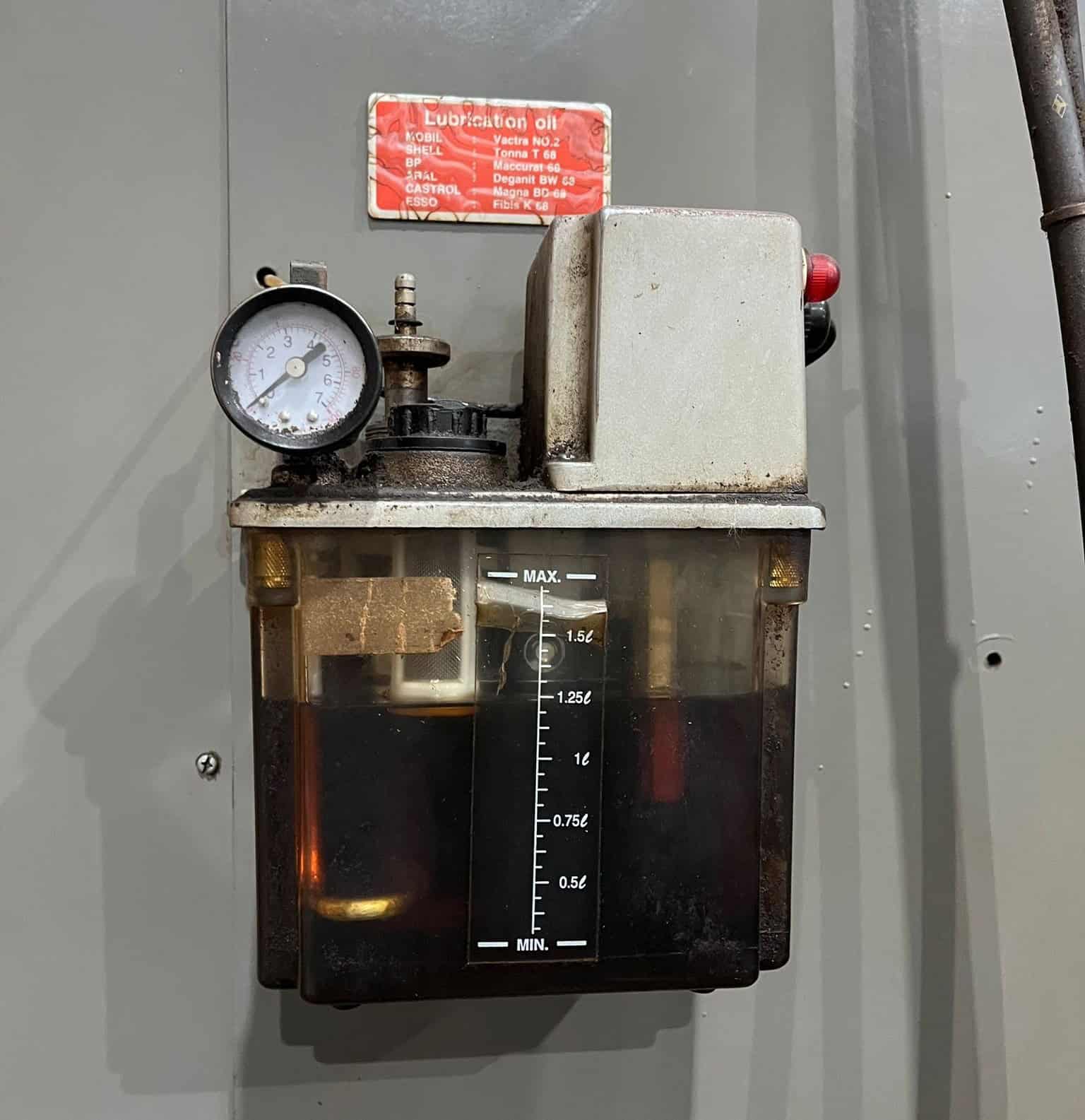

| Automatic Lubrication System |
| Coolant System |
| Automatic cross feed |
| Capacity: |
|---|
| Max Grinding Length: 47″ |
| Max Grinding Width: 20″ |
| Maximum Distance: Table to Spindle Center: 27.6″ |
| Table: |
|---|
| Length: 47″ |
| Width: 19.7” |
| Table Travels: |
|---|
| X Axis (Longitudinal): 53.2″ |
| Y Axis (Cross).: 20.9″ |
| Spindle Center to Table Surface: 27.6″ |
| Longitudinal Hydraulic Table Feed: 6.6 – 82 FPM |
| Intermittent Cross Feed (in. feed): 0.004 – 0.6 IPM |
| Continuous Cross Feed: 39 IPM |
| Number of Graduations on Dial: 200 |
| Feed Per Graduation: 0.001″ |
| Feed Per Revolution: 0.200″ |
| Vertical Travel: |
|---|
| Number of Graduations on Dial: 100 |
| Feed Per Graduation: 0.0001″ |
| Feed Per Revolution: 0.010″ |
| Rapid Downfeed: 11.8 IPM |
| Spindle and Wheel: |
|---|
| Wheel size (OD x W x ID): 14 x 2 x 5″ |
| Spindle Motor: 10 HP |
| General: |
|---|
| Power Source: AC 220 V Three Phase 60 Hz |
| Overall Dimensions: 180″ x 90″ x 102″ High |
| Weight : 16,600 lbs Approx. |
